Gweike 4kw metal pipe and plate fiber laser cutting machine 3000*1500mm

Share on (1601234776382):


Price:$27,000.00 - $40,000.00

Quantity:


Product Overview

Description







Items
Value
Working area
3000*1500mm
Laser head brand
Raytools/ Precitec
Tube length
6000mm / 3000mm
Tube diameter
20-240mm

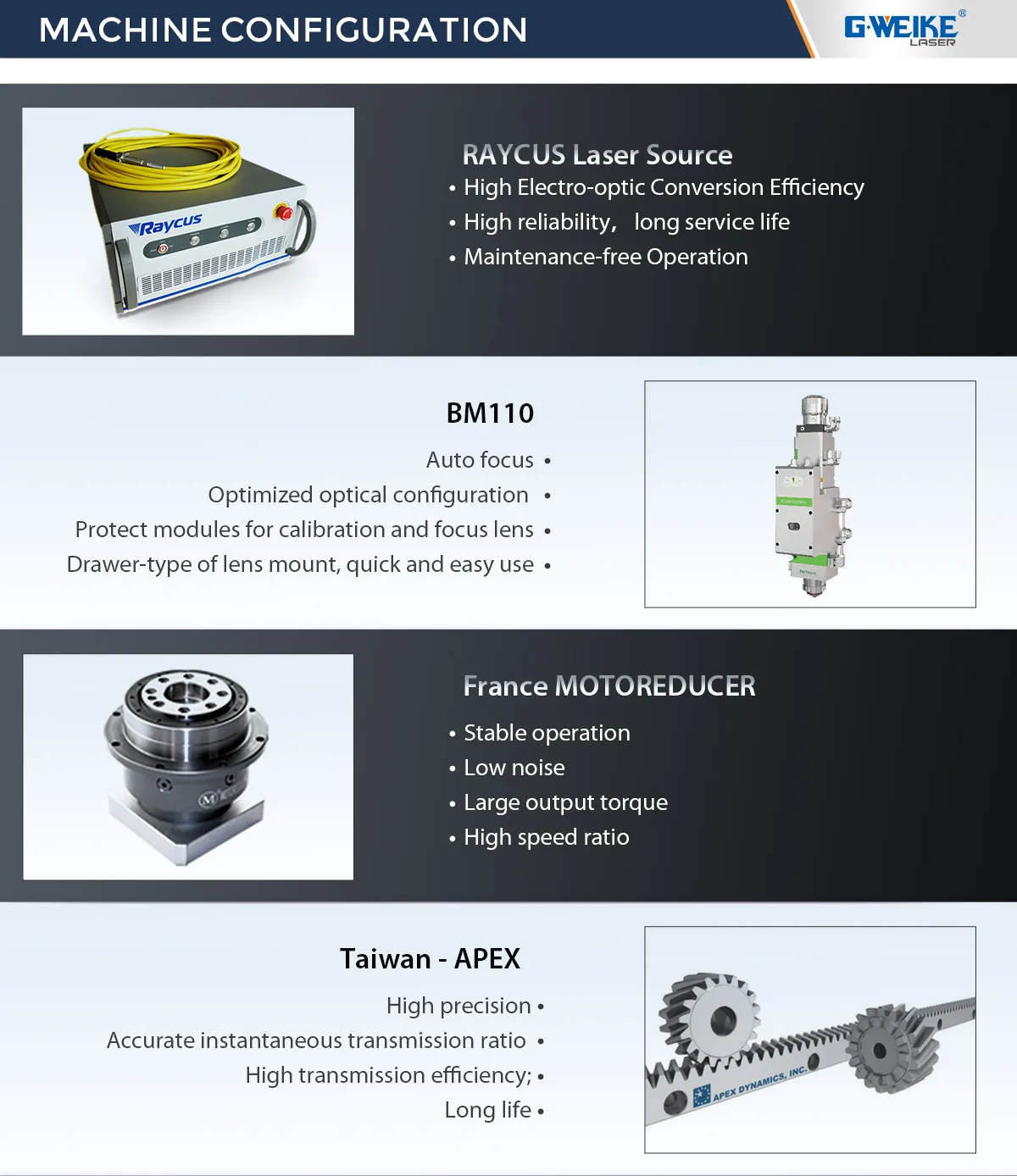

Laser source brand
IPG/Raycus/ MAX
Laser power
1000W, 1500W, 2000W, 3000W
Control system brand
Cypcut
Support format
PLT, DXF, BMP, Dwg, DXP

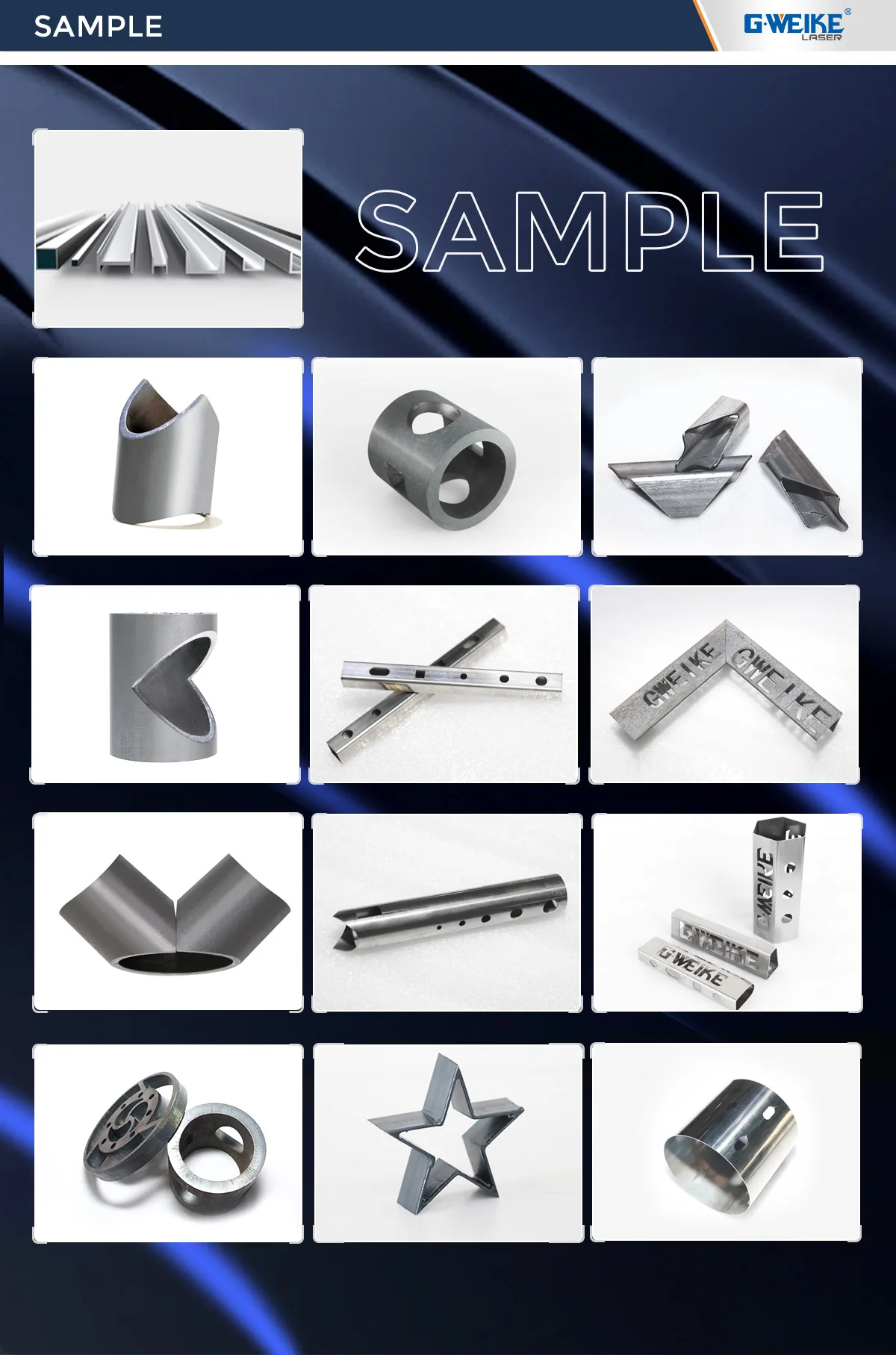

Material can cut
Carbon steel, stainless steel, aluminum, brass, copper, galvanized steel
Cooling Mode
Water cooling system

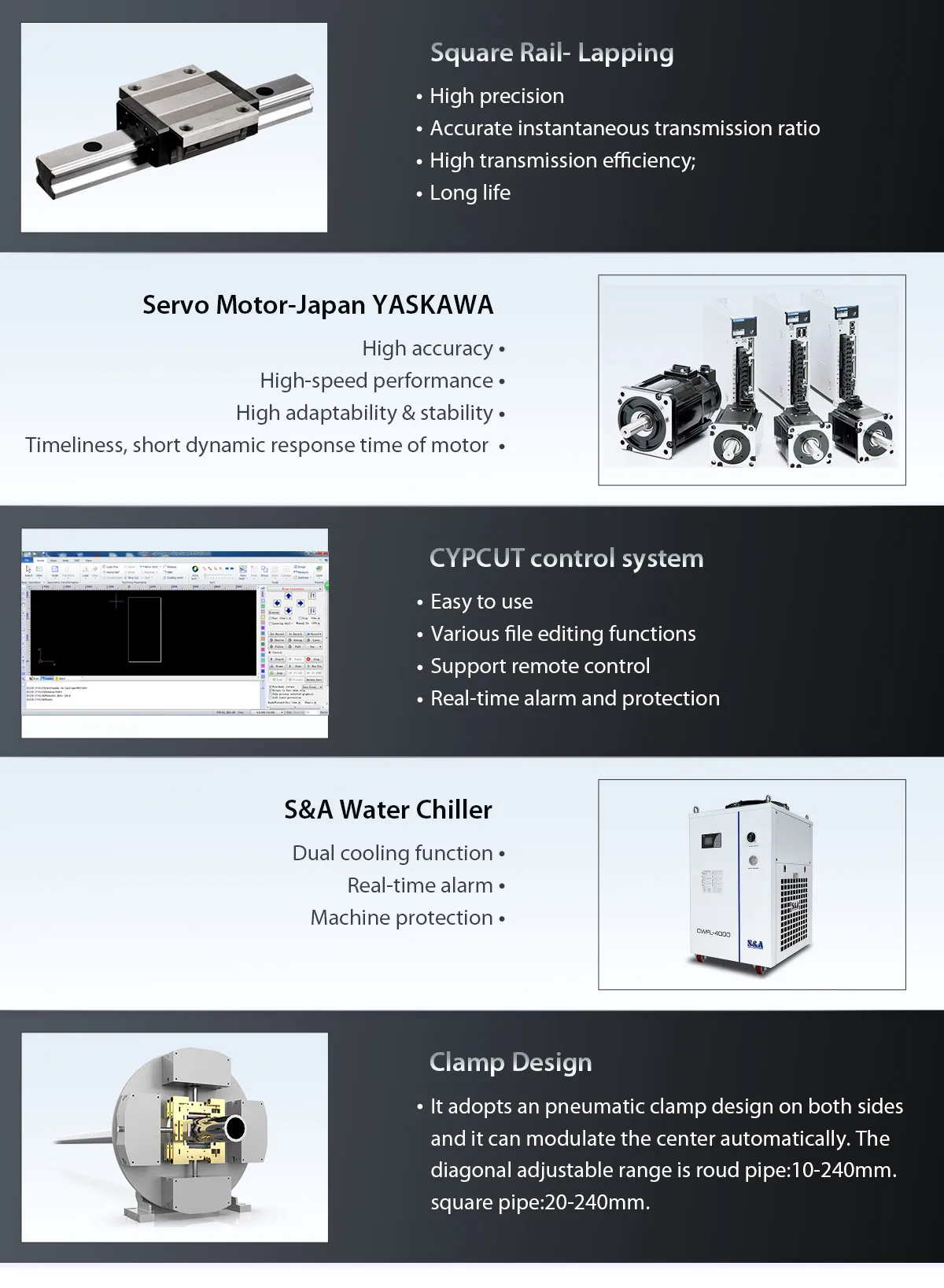

Servo Motor Brand
Yaskawa
Guide rail Brand
Lapping
Motor reducer brand
Motoreducer
Max moving speed
120m/min
Max moving acceleration
1.4G
Weight (KG)
6200kg
Warranty
3 years
Place of Origin
China
