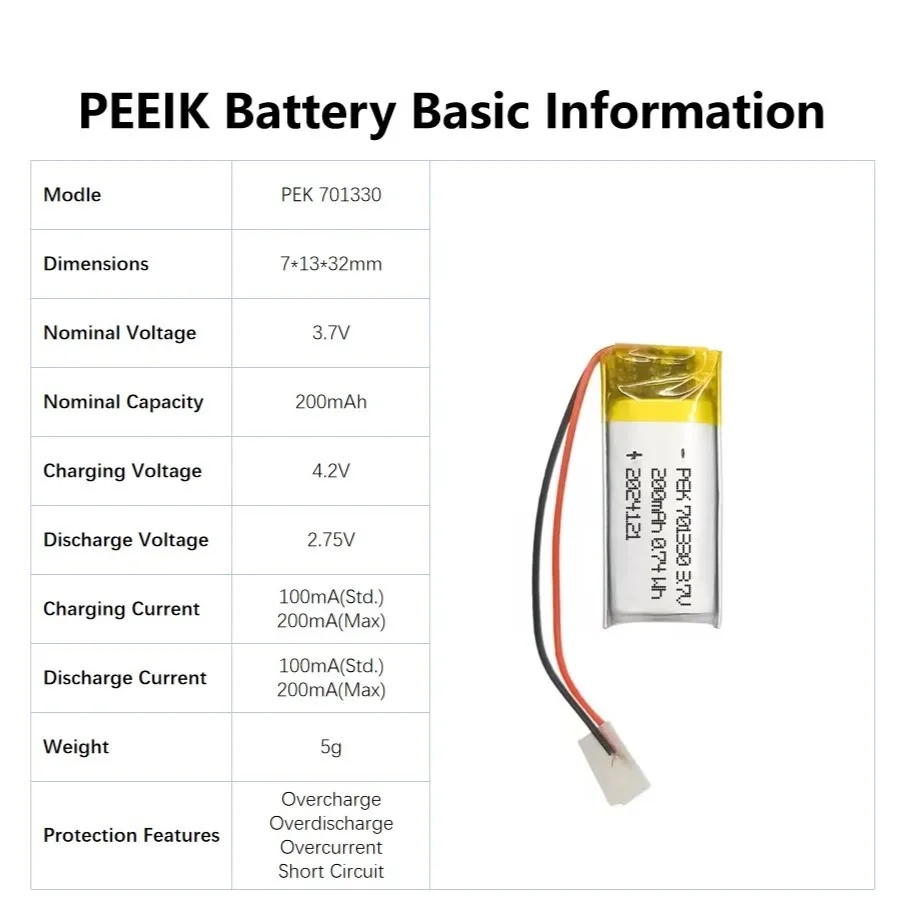

Items | Parameter | Notes |
Cell Model | PEK701330 | |
Design Scheme | Cell+PCM+Wires | |
Battery Size | 7*13*32mm | |
Nominal Voltage | 3.7V | |
Shipment Voltage | 3.85±0.5V | |
Charging Voltage | 4.2V | |
Minimum Capacity | 200mAh | |
Typical Capacity | 220mAh | |
Battery Energy | 0.74Wh | |
Standard Charging Current | 100mA | 0.5C |
Max Charging Current | 200mA | 1C |
Standard Discharging Current | 100mA | 0.5C |
Max Discharging Current | 200mA | 1C |
Battery Weight | 5g | |
Cell Impedance | ≤ 240mΩ | |
Operating Temperature | Charging: 0°C ~ 45°C | |
Discharging: -20°C ~60°C | ||
Storage Temperature | -20℃~25℃:12 months | 20±5℃ is the recommended storage temperature. |
-20℃ ~45℃:3 months | ||
-20℃ ~60℃:1months |
