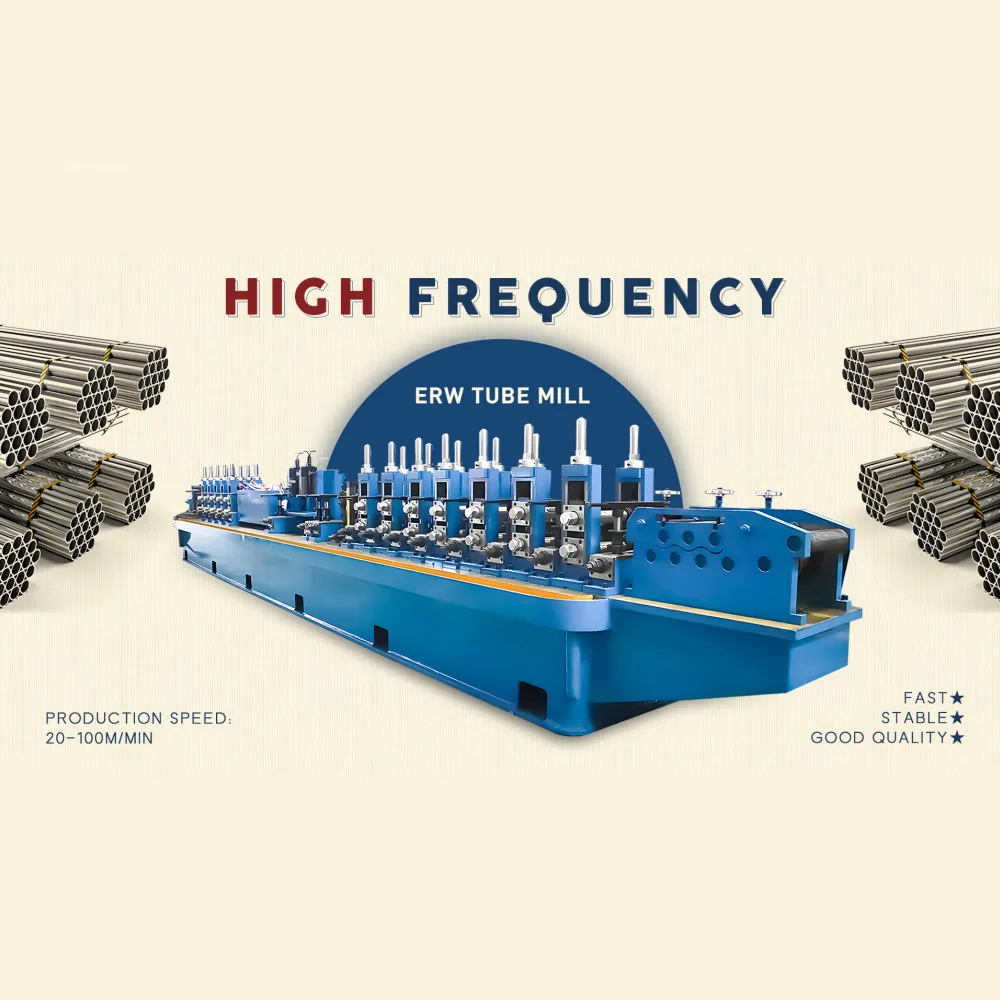

High Power Consumption Carbon Steel Tube Making Machine ERW Tube Mill for Efficient Production
High Power Consumption Carbon Steel Tube Making Machine ERW Tube Mill for Efficient Production
High Power Consumption Carbon Steel Tube Making Machine ERW Tube Mill for Efficient Production
High Power Consumption Carbon Steel Tube Making Machine ERW Tube Mill for Efficient Production
High Power Consumption Carbon Steel Tube Making Machine ERW Tube Mill for Efficient Production
High Power Consumption Carbon Steel Tube Making Machine ERW Tube Mill for Efficient Production
High Power Consumption Carbon Steel Tube Making Machine ERW Tube Mill for Efficient Production

High Power Consumption Carbon Steel Tube Making Machine ERW Tube Mill for Efficient Production

Share on (1601235032997):


Price:$65,000.00

Quantity:


Product Overview

Description



Product Paramenters




Machine model: HF20
Pipe Material:Carbon steel coil, galvanized steel coil, other hot or cold rolled steel coil.
Round Pipe diameter: Φ8mm—Φ22mm
Round Pipe thickness: 0.3mm—1.0mm
Production speed: ≤120m/min




Product Overview


Right elevation
Left elevation
Front elevation






Products Description


Process of the pipe production line
Raw material- Material feeding - Shearing and butt welding - Material storing - Material flattening - Feeding - Roll forming - Seam direction guiding - Extruding - High frequency induction welding - Welding burr removing - Water cooling - Pipe shape and size adjusting - Computerized saw cutting - Pipe automatic unloading - Checking and packing

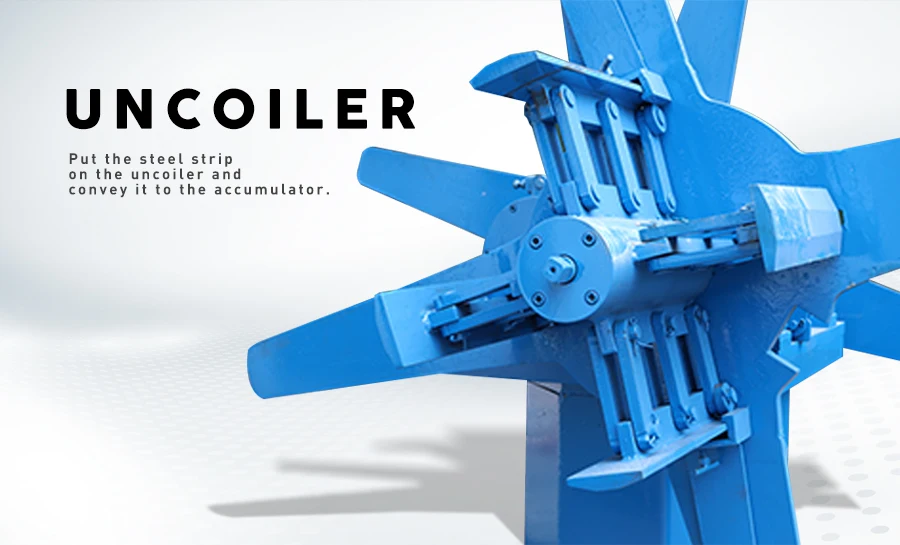

Raw material uncoiler
It’s used to support the steel strip roll and feed raw material for the production line.
Structure mode:Double working position

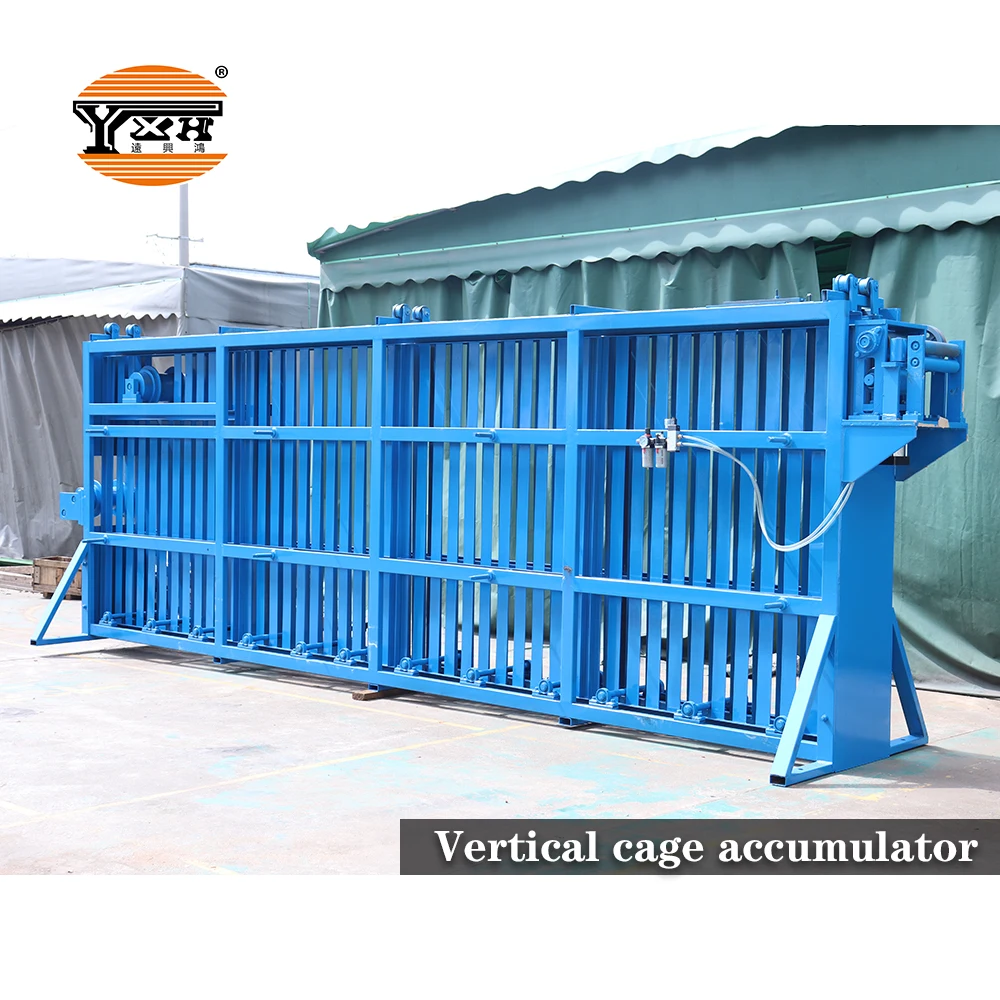

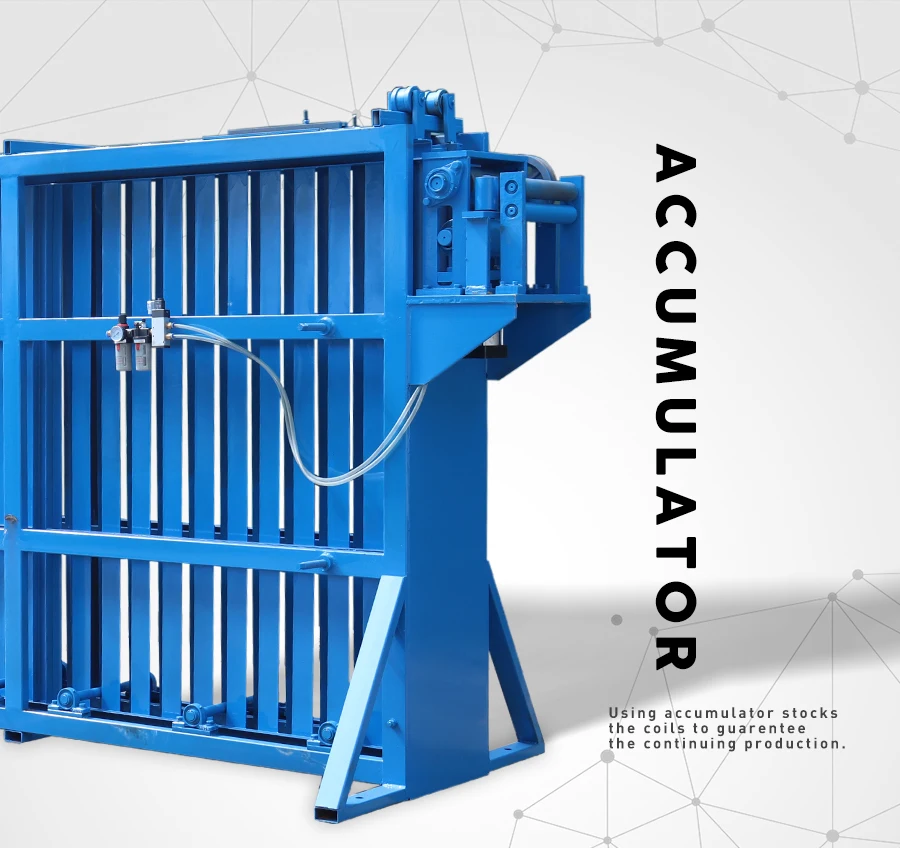

Vertical material accumulator
It’s used to store and feed raw materials for forming machine so that the machine can work continuously.

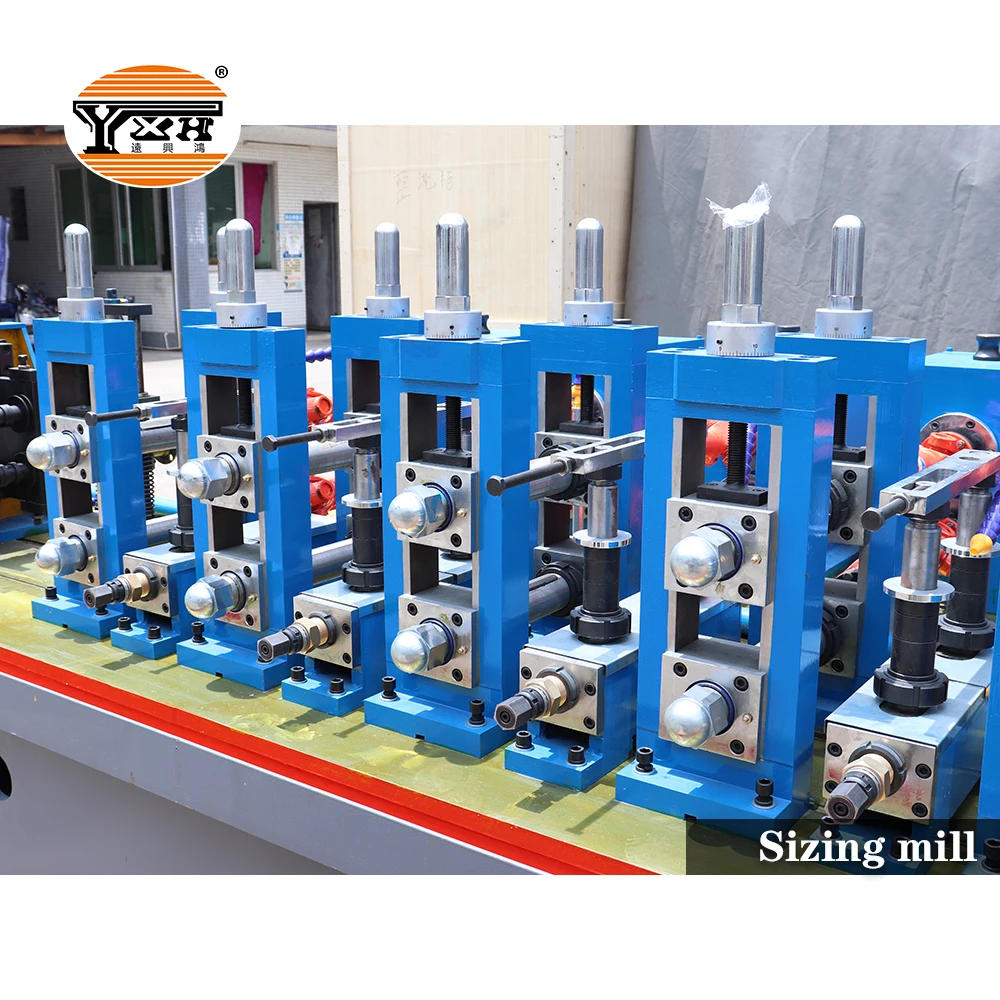

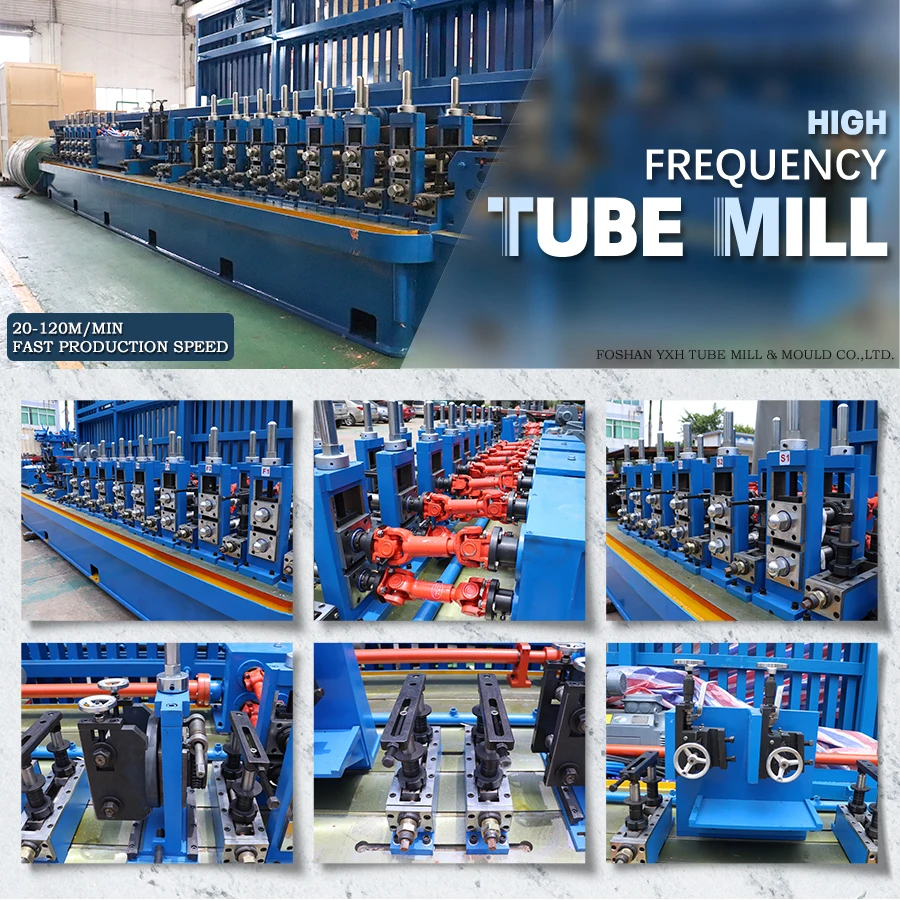

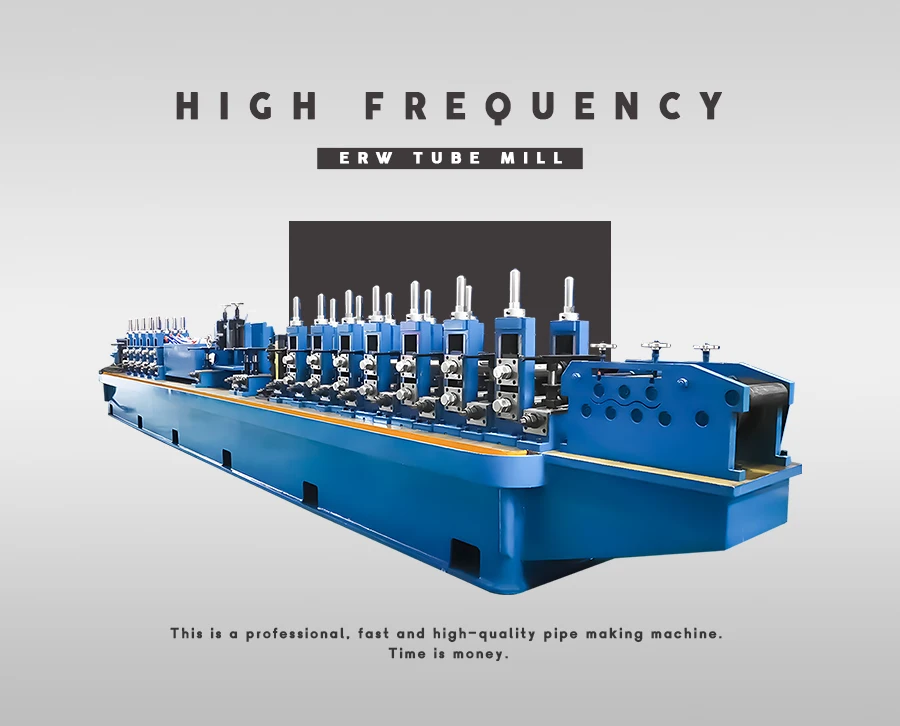

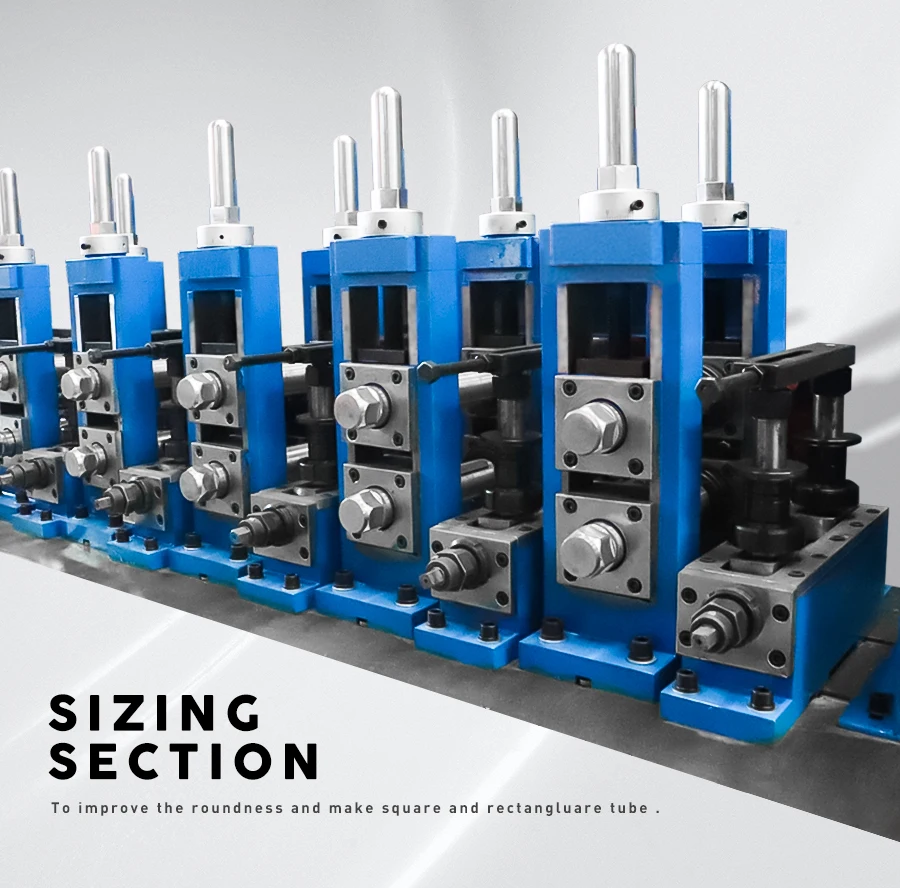

Forming and sizing machine
It’s the main equipment of the production line. Rollers can make steel strip form into pipes of variety shapes. It consists of forming part , welding part and sizing part.

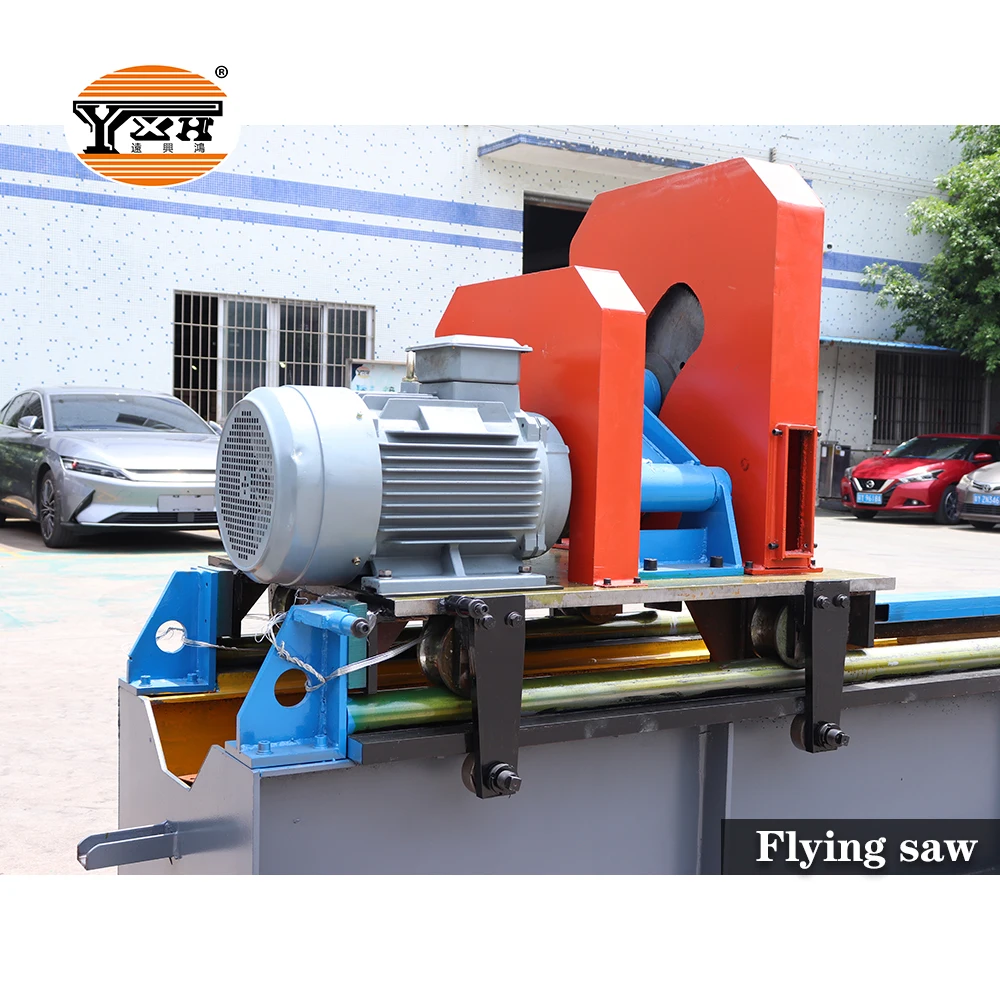

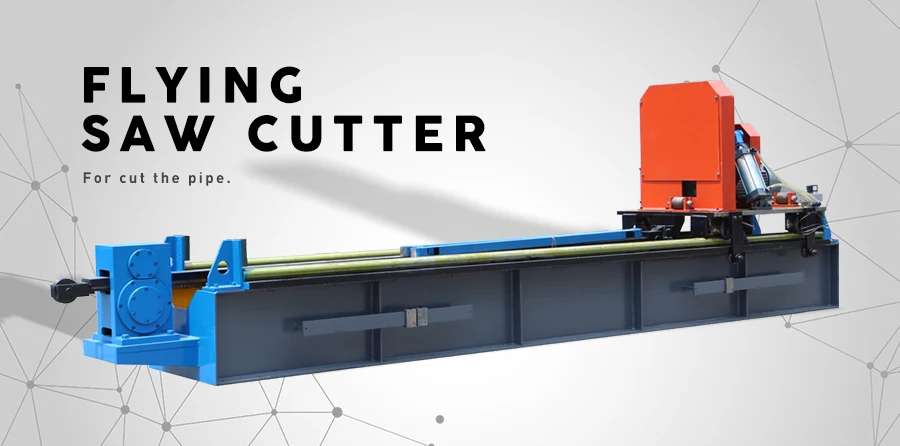

Computer flying saw
With the high precision STD control system and quick reaction of mechanical system, the cutting saw has reliable synchronization performance and high precision cutting length.

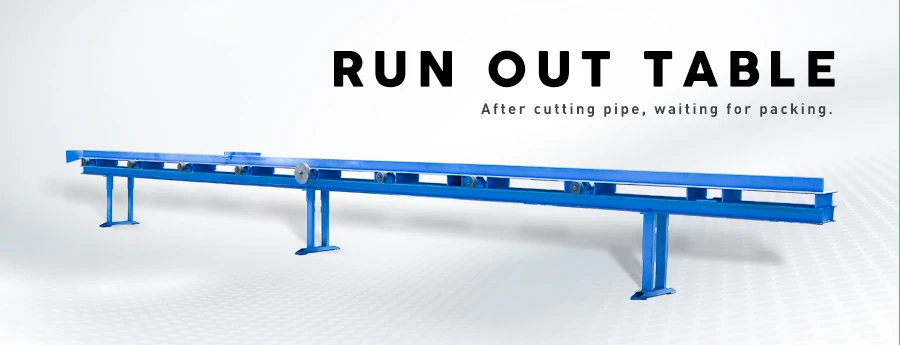

Automatic pipe unloading platform
It is an unloading platform of pipes cut by computerized saw. After the pipes falling down, workers can quickly check the quality and package them for preparation of transportation.


Application




Product packaging


Plastic film packaging for motors,Naked machine;
It can also be packaged according to customer needs.




Company Profile


Foshan YXH Tube Mill & Mould Co.,Ltd.
Foshan YXH Tube Mill & Mould Co., Ltd, founded in 2001, As a manufacturers and exporters for 23 years. We have a high-quality team, 15 persons of foreign service team;Professional Engineer with 25 years experience of adjusting machines;Professional design term with 23 years design experience.
In order to ensure the processing accuracy of the machine and ensure the stability of the machine's operation, the accessories on the pipe making machine are independently processed and produced. We have a variety of processing equipment,such as Horizontal machining center,Vertical Machining Center,CNC lathe,Coordinate Boring Machine.
Our products have been widely used in multiple well-known stainless steel enterprises, and won wide recognition and good reputation.
