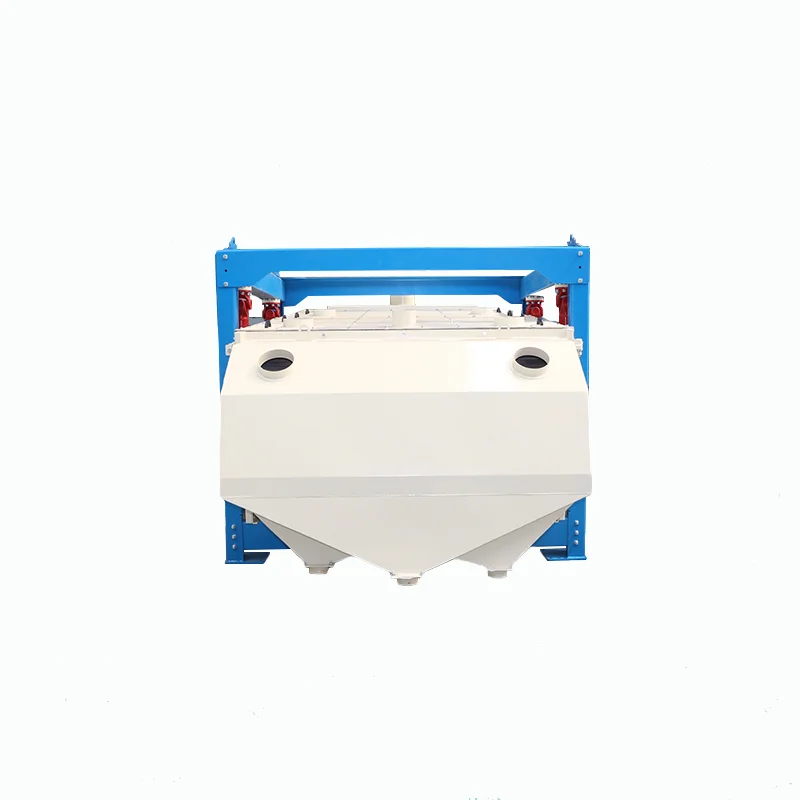

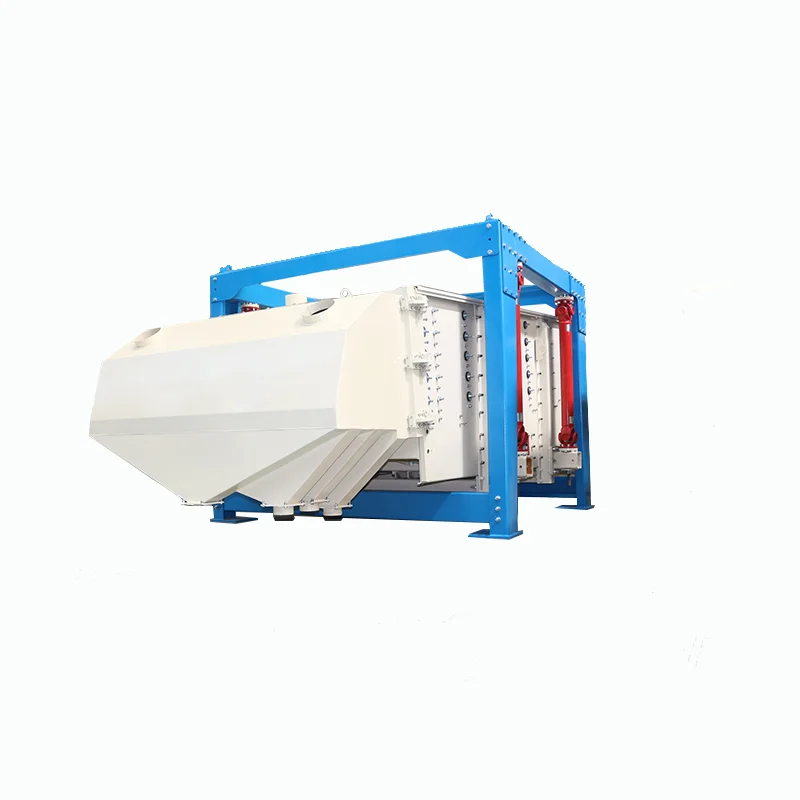

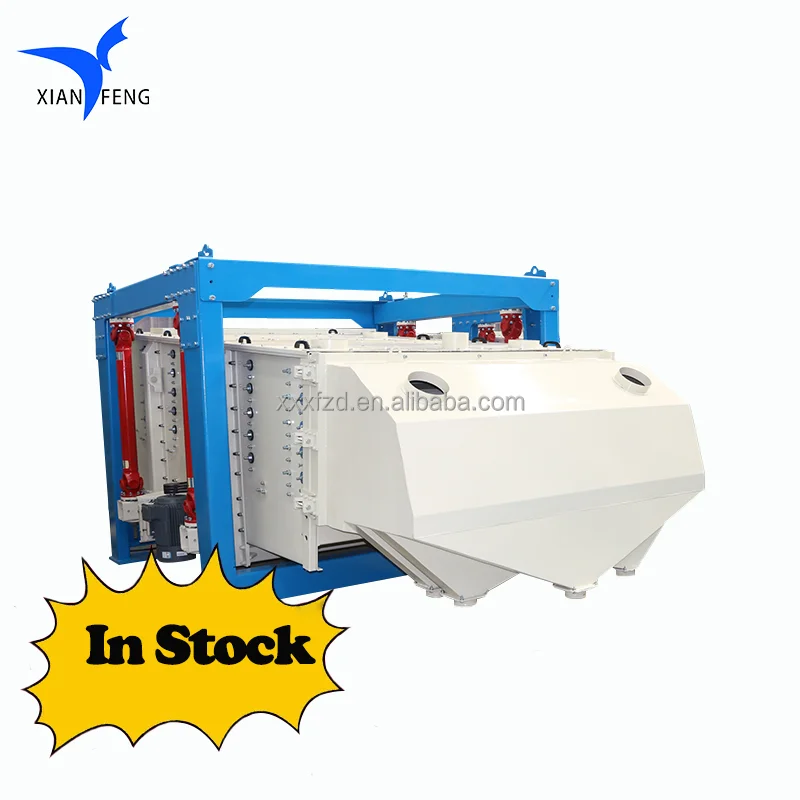

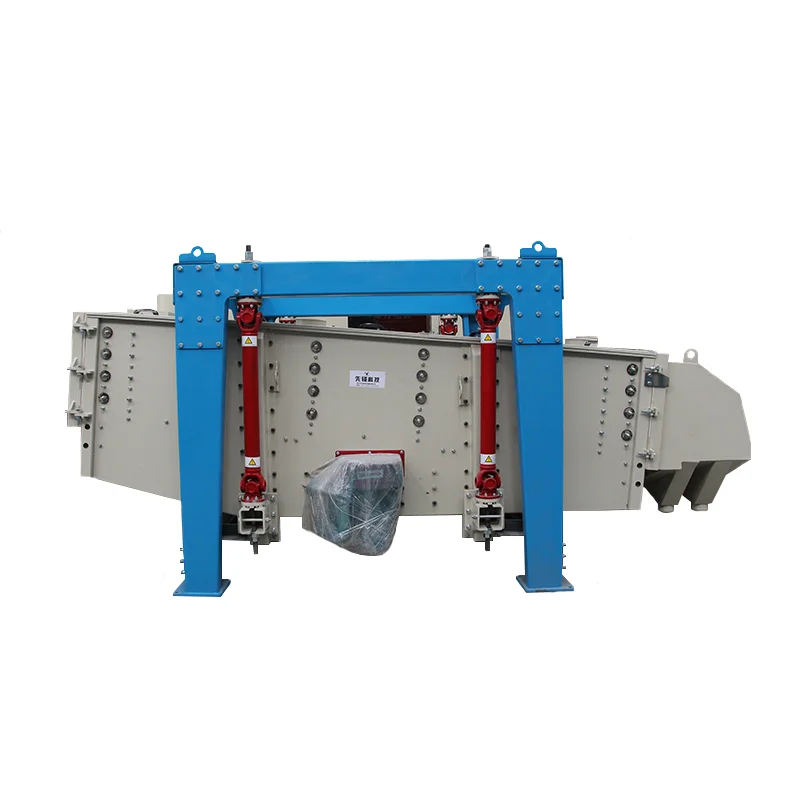

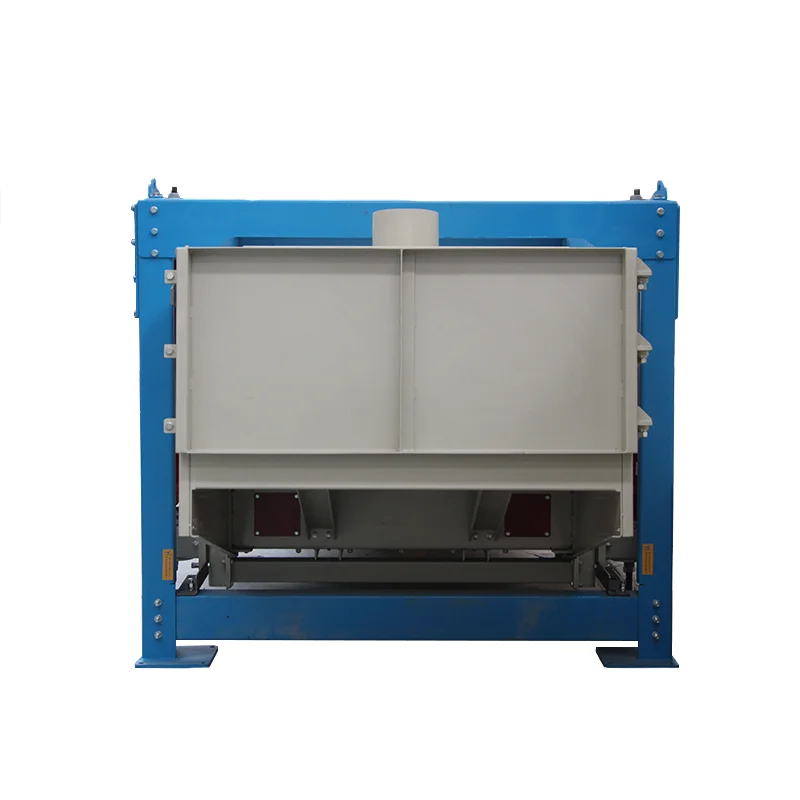

  • XIANFENG Vibrating screen equipment manufacturers,the whole machine carbon steel material Square Swing Vibration Screen.
XIANFENG Vibrating screen equipment manufacturers,the whole machine carbon steel material Square Swing Vibration Screen.
XIANFENG Vibrating screen equipment manufacturers,the whole machine carbon steel material Square Swing Vibration Screen.
XIANFENG Vibrating screen equipment manufacturers,the whole machine carbon steel material Square Swing Vibration Screen.
XIANFENG Vibrating screen equipment manufacturers,the whole machine carbon steel material Square Swing Vibration Screen.
XIANFENG Vibrating screen equipment manufacturers,the whole machine carbon steel material Square Swing Vibration Screen.
XIANFENG Vibrating screen equipment manufacturers,the whole machine carbon steel material Square Swing Vibration Screen.
XIANFENG Vibrating screen equipment manufacturers,the whole machine carbon steel material Square Swing Vibration Screen.

XIANFENG Vibrating screen equipment manufacturers,the whole machine carbon steel material Square Swing Vibration Screen.

Share on (1601235239757):


Price:$12,000.00 - $12,300.00

Quantity:


Product Overview

Description



Company Introduction


Make Sieve Become More Simpler




XIAN FENG is a modern and innovative manufacturer integrating production, sales and service, and has been adhering to the values of customer first, honesty and integrity for many years, just to make screening easier. We are mainly engaged in screening and conveying equipment such as rotary vibrating screens, linear screens, swing screens, probability screens, inline screens, conveyors and feeders.Our has served customers in food processing, medicine, building materials, metallurgy and other industries.




Why Choose US


Systematic management




Raw materials are carefully selected




Individuation customized

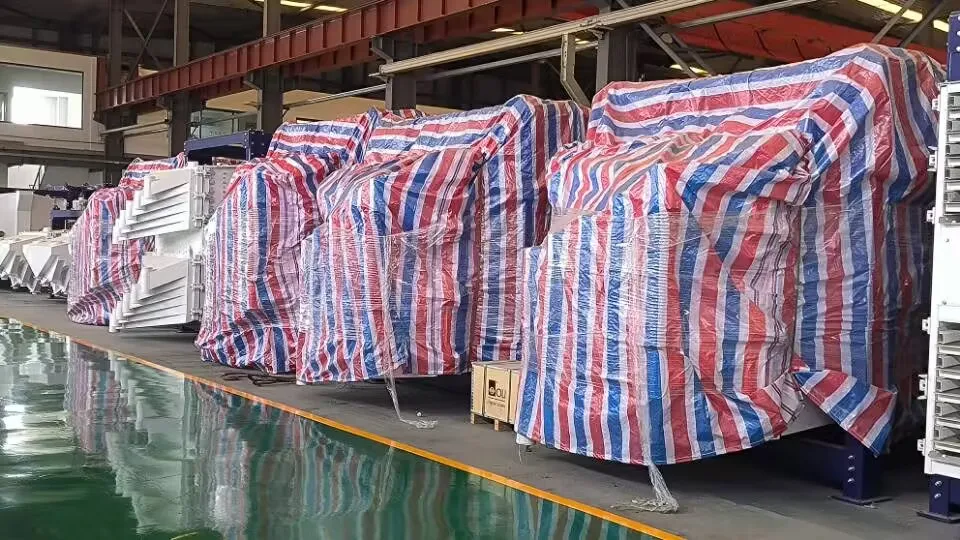

Fine packaging, fast delivery




Make Sieve Become More Simpler

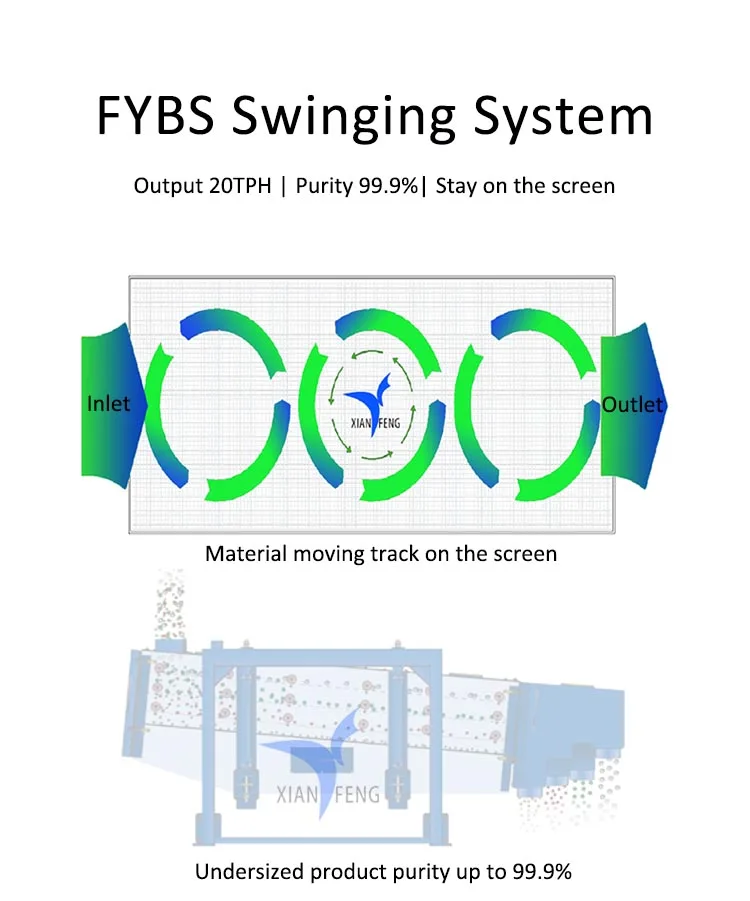

Principle of Operation Diagram




FYBS1536-5P in the action of inertia before and after the reciprocating motion, screen machine drive screen surface to do periodic shaking, so that the material on the screen with the screen box together for directional jump motion. The material less than the sieve hole becomes the sieve under the material, the material greater than the sieve hole is discharged from the discharge port after continuous tumbling and jumping movement, and the screening is completed.


Product Feature


Output up to 20 TPH
Six stage separation
Easy change the net


Ten year oil-free bearing
Screening accuracy 99.9%

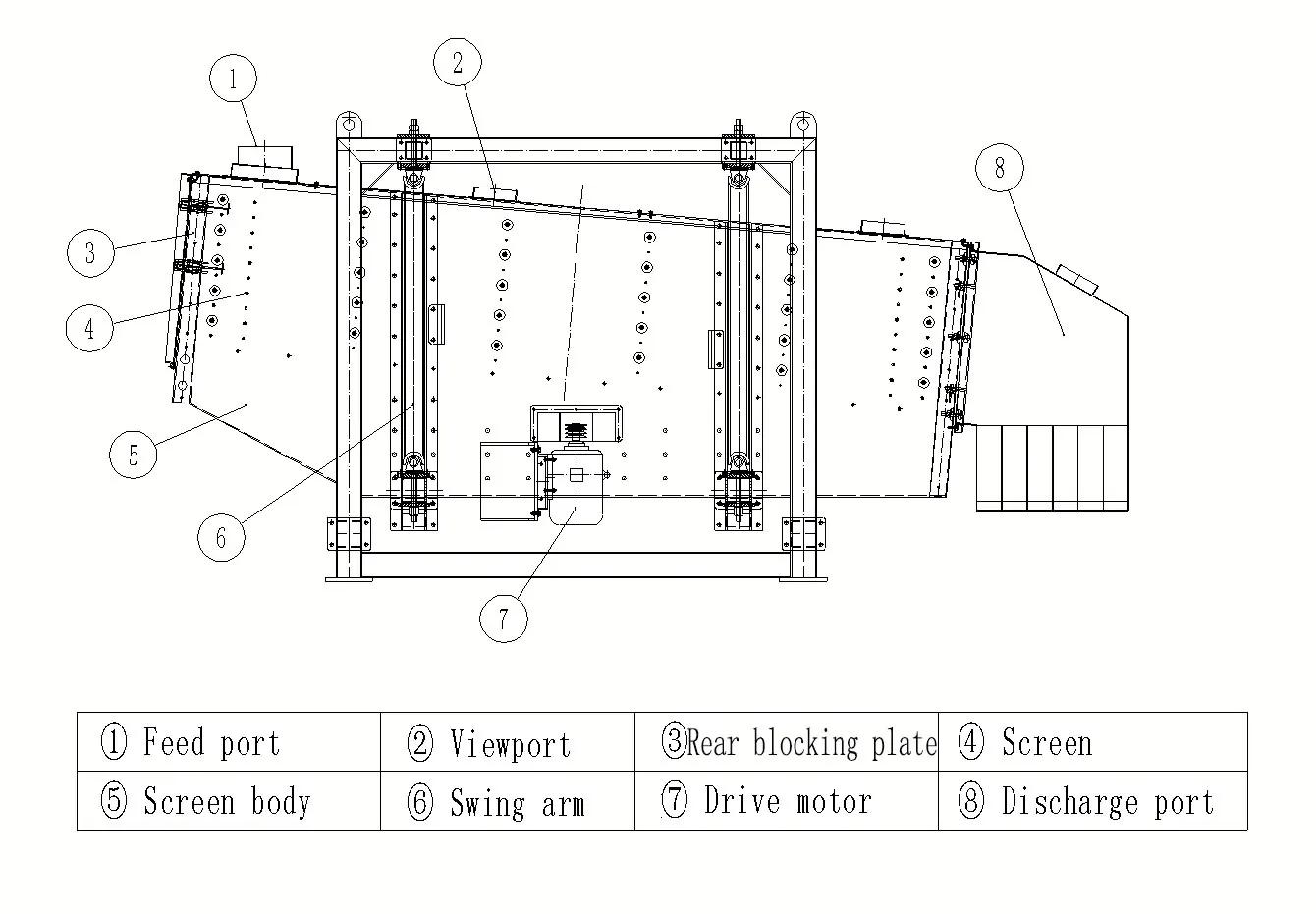

Product Structure Diagram




FYBS1536-5P with hanging structure, a high precision and large output of efficient screening equipment. In the process of use can be in a certain range by increasing or decreasing the spindle speed and the size of the exciting force to complete the screening needs of different materials. It can screen 4 kinds or 6 kinds of materials at one time, and also can do double design,with larger output.


PRODUCT SPECIFICATIONS


Model
Screen Angle(°）
Power
Layer
Rotation Frequency
FYBS1236
5
4
1~6
260~300
FYBS1536
5
5.5
1~6
260~300
FYBS2036
5
7.5
1~6
260~300
2FYBS1536
5
5.5~7.5
2~10
260~300
2FYBS2036
5
7.5~11
2~10
260~300
4FYBS2036
5
7.5~11
4~8
260~300

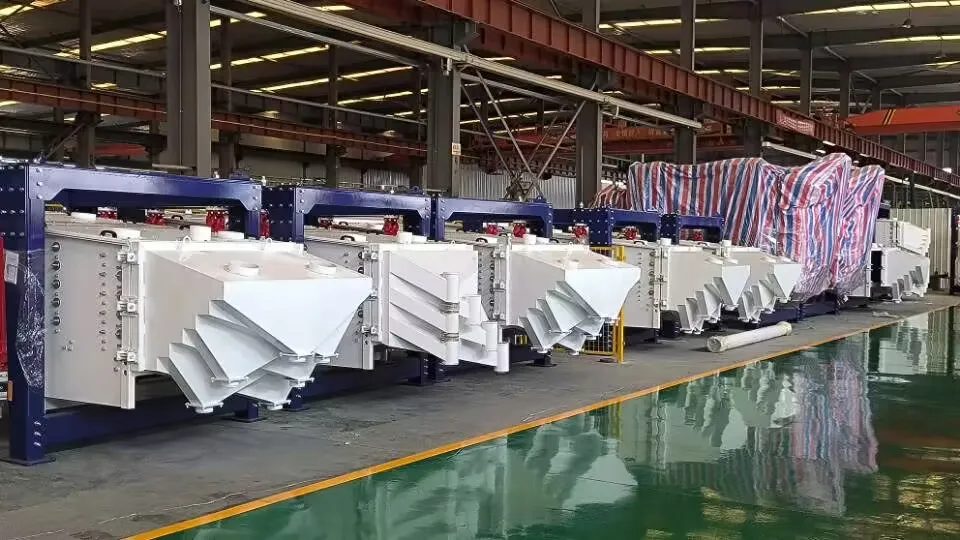

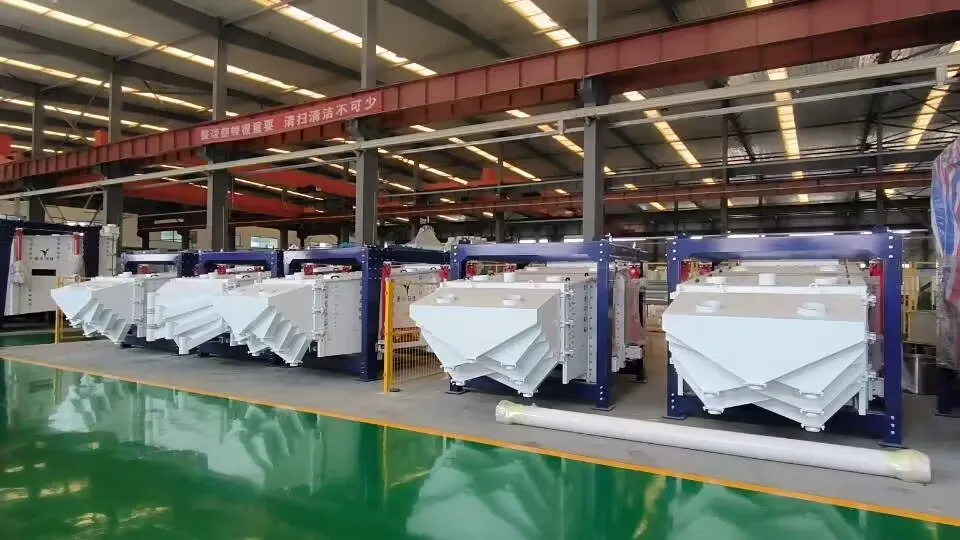

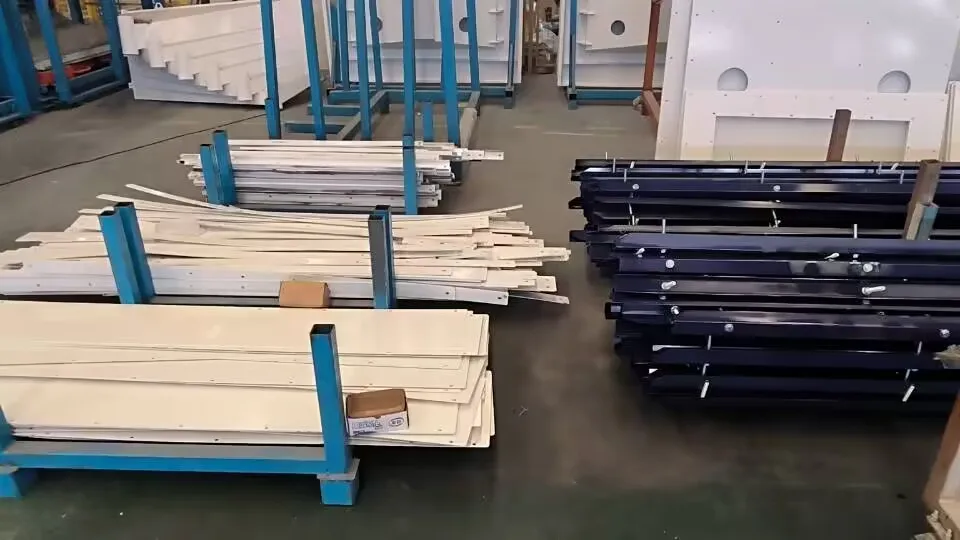

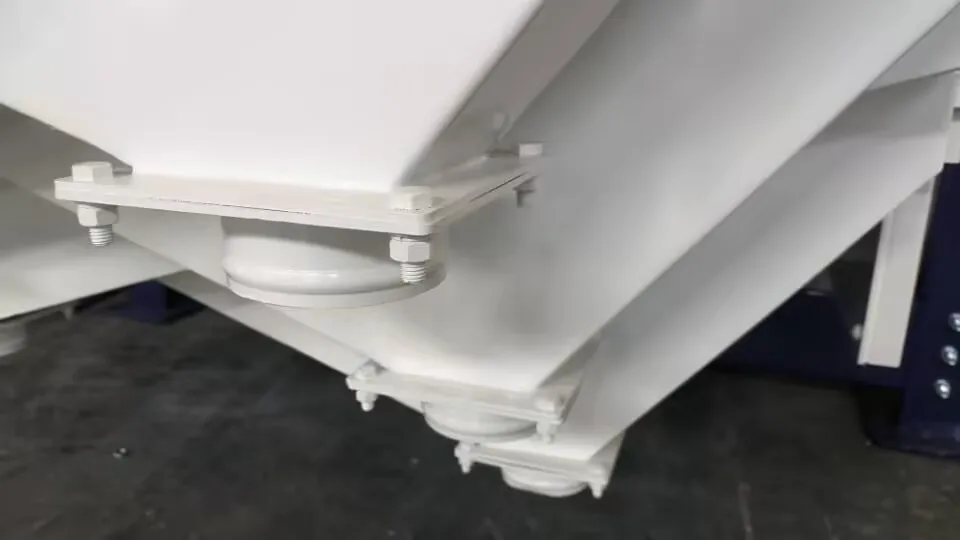

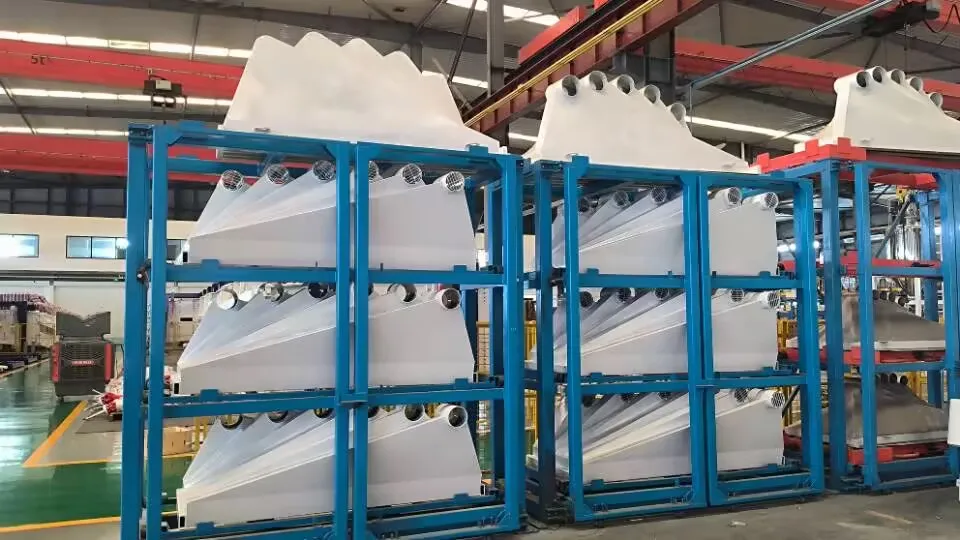

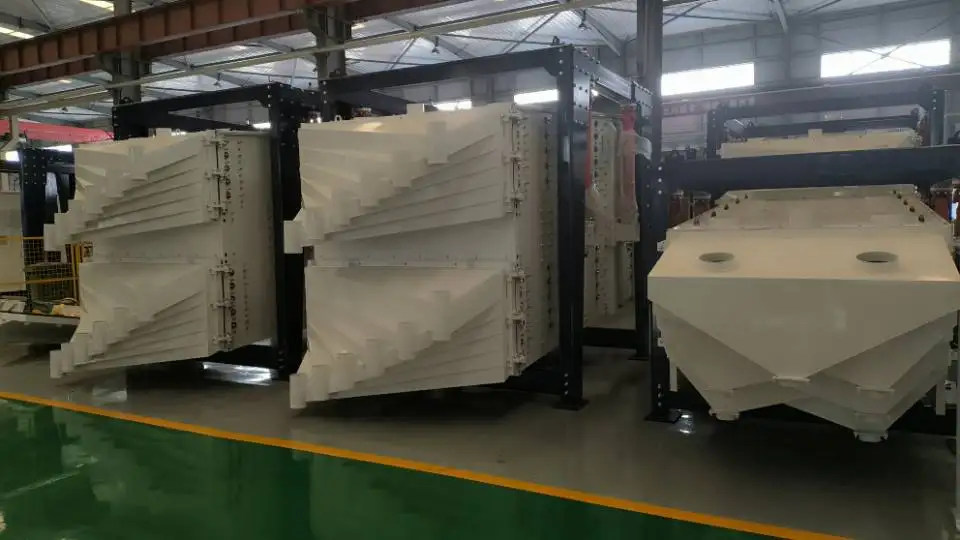

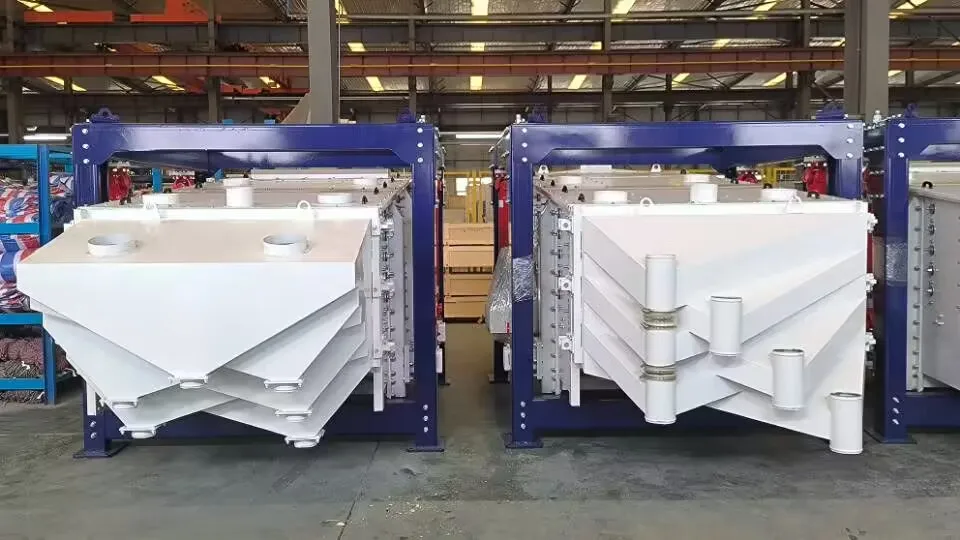

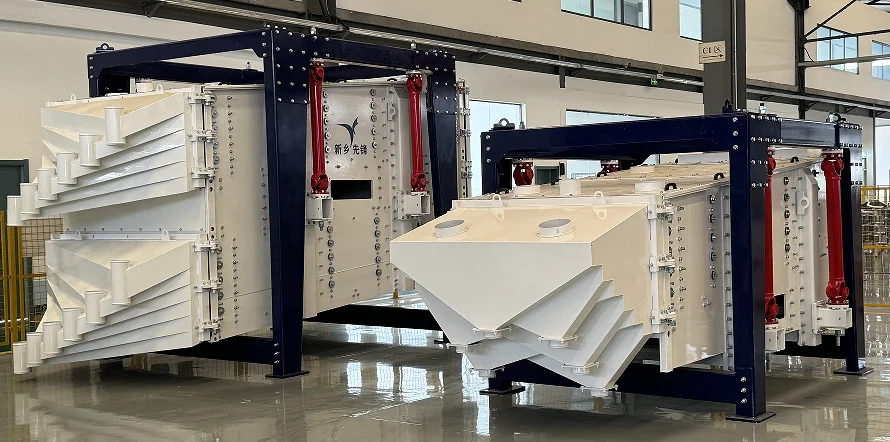

Live Shooting

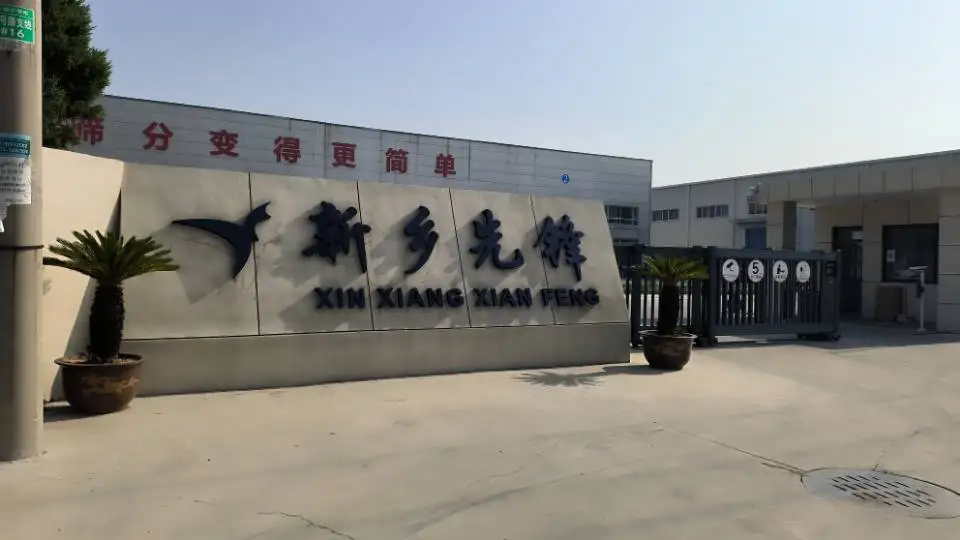

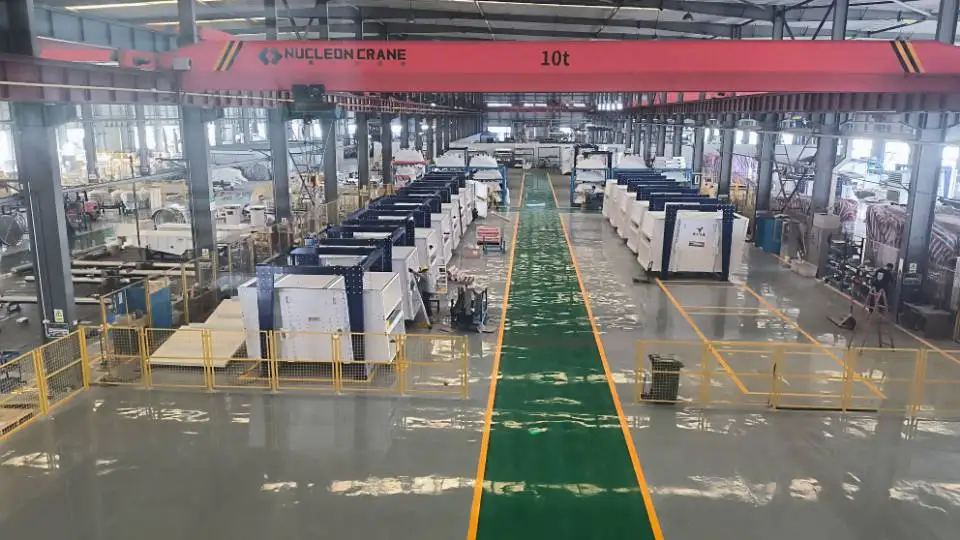

Company Strength
