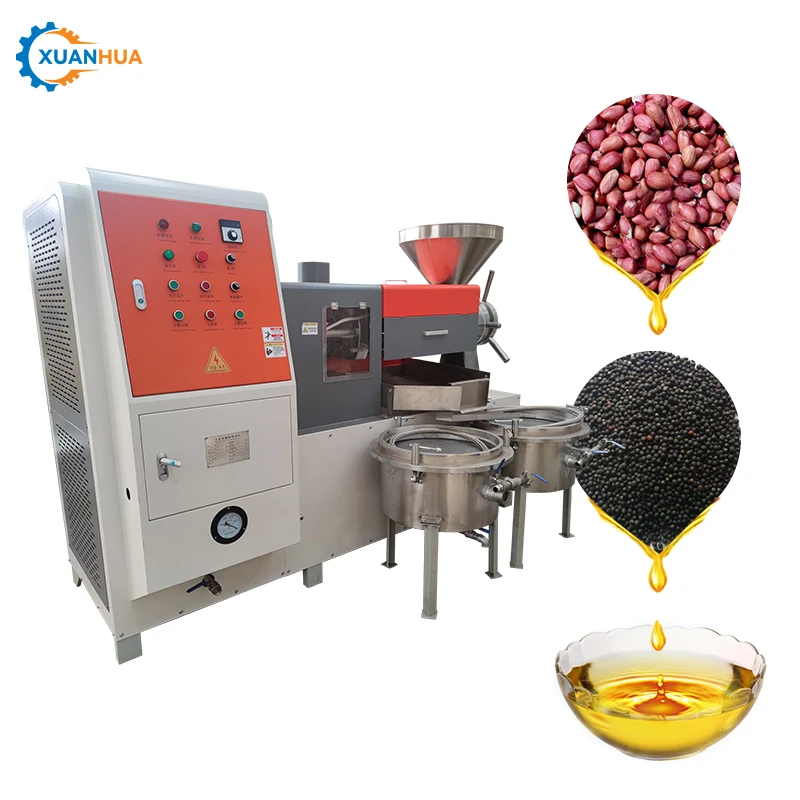

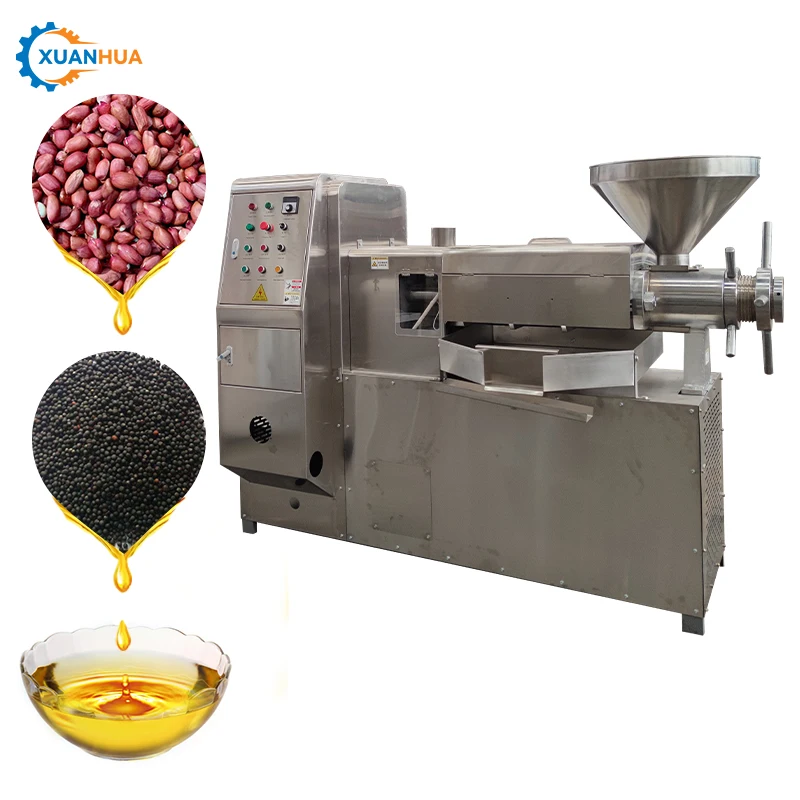

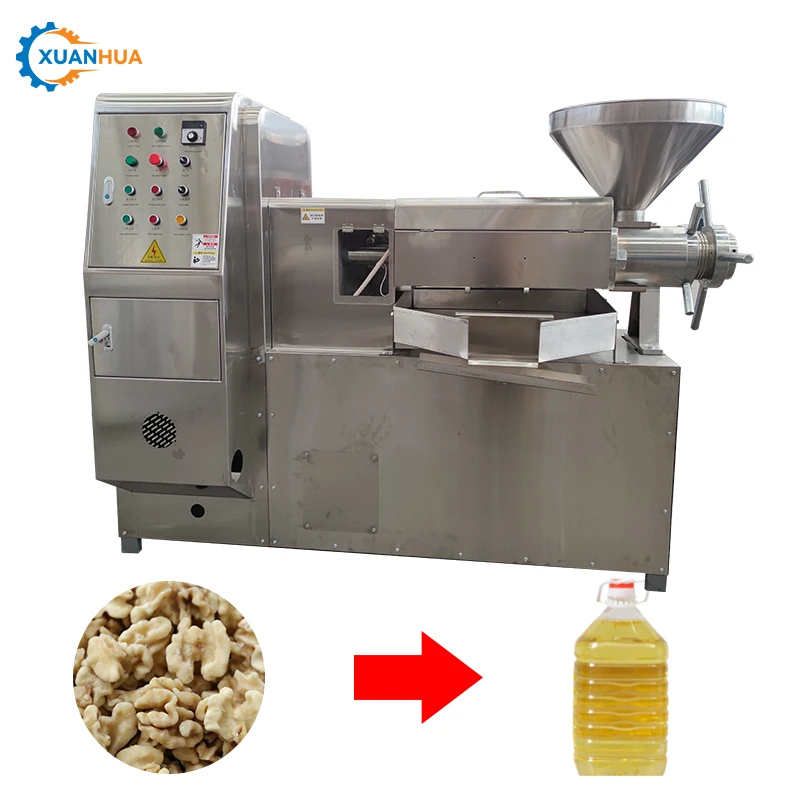

commercial oil extraction machine hydraulic ground nut oil pressing machine small industrial oil presser making machine
- Category: >>>
- Supplier: Henan Xuanhua Imp.&exp. Trading Co. Ltd.
Share on (1601235262000):
Product Overview
Description
Product Description
We specialized in providing high quality oil press machines which suitable for extracting vegetable oil from a various seeds such as soybeans, peanuts, sesame, sunflower seeds, canola, cottonseed, mustard seeds, flaxseeds, walnuts, almonds, etc.
Because of its advanced design, this oil press delivers exceptional processing results. Whether you're willing to press nuts, seeds, or any other types of material, you can trust our new oil press to extract the maximum amount of oil.
With our engineer's strict calculation of compression ratio of the pressing chamber, our new oil press machine can achieve approximately 20-30% higher oil yield than old models.
Main Technical Parameters: | ||||||
Model | 6YL-100ZDI | 6YL-120ZDI | 6YL-150ZDI | |||
Processing capacity(rapeseed) | 150-260 kg/h | 260-400 kg/h | 400-500 kg/h | |||
Diameter of squeezin gworms | 98 mm | 120 mm | 146 mm | |||
Squeezer speed | 49 r/min | 49 r/min | 42 r/min | |||
Diameter of inner circle of squeezing worms | 99 mm | 121 mm | 147 mm | |||
Host power | 7.5 kw-6 | 11 kw-6 | 22 kw-6 | |||
Vacuum filter power | 1.1 kw-4 | 1.1 kw-4 | 2.2 kw-4 | |||
Heater power | 3.5 kw | 4.0 kw | 4.7 kw | |||
Weight | 900 kg | 1020 kg | 1820 kg | |||
Dimension | 2020*1315*1570 mm | 2060*1345*1570 mm | 2700*2910*1635 mm | |||
Working Effect

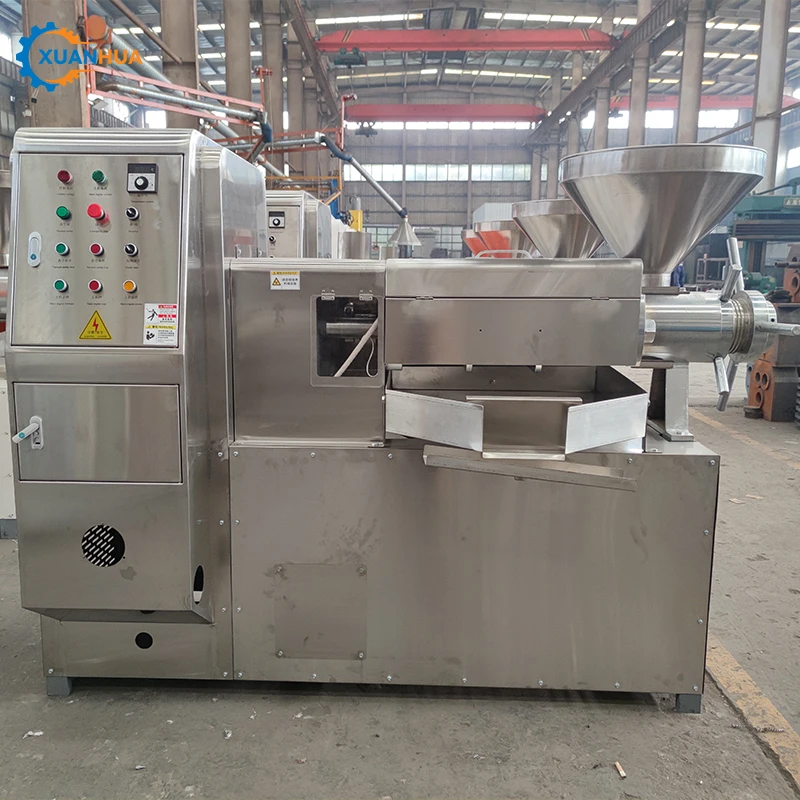

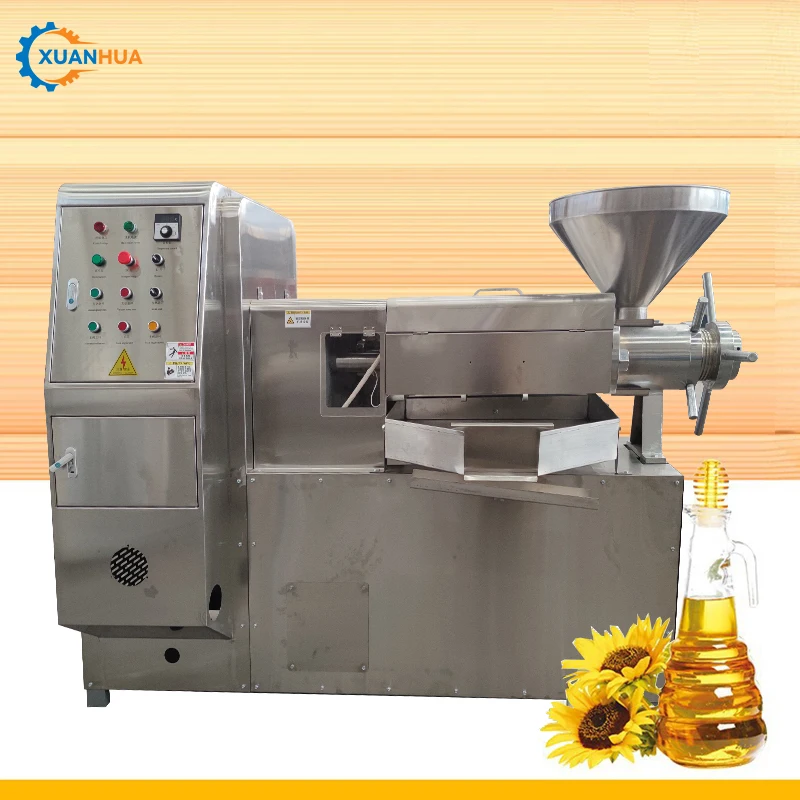

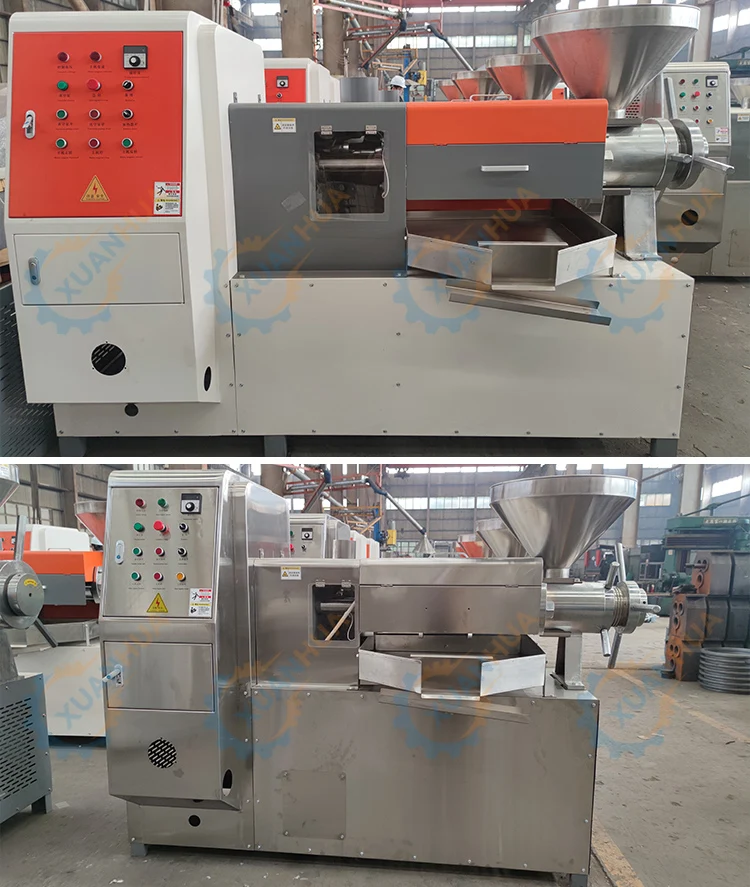

Product Photo
Product Detail
Electronic control system
Features: Components from reputable brands, enhance equipment reliability ancdurability, reduce failure rates, thus ensuring production efficiency and quality.
Screw pressing system
Features: Carburizing,Quenching,Hardness:55-60HRCFeatures: Enhanced wear resistance, high-temperature resistance, extended servicelife. and exceptional durability.
Squeezing adjusting system
Features: Precision adjustment, enables precise control of the gap between thepressing screw and pressing bar, adapting the extraction requirements of variousseeds.
Feeding system
Features: Withstands wear and corrosion, adapting to different seed types andensuring the optimal feeding angle for enhanced extraction efficiency.
