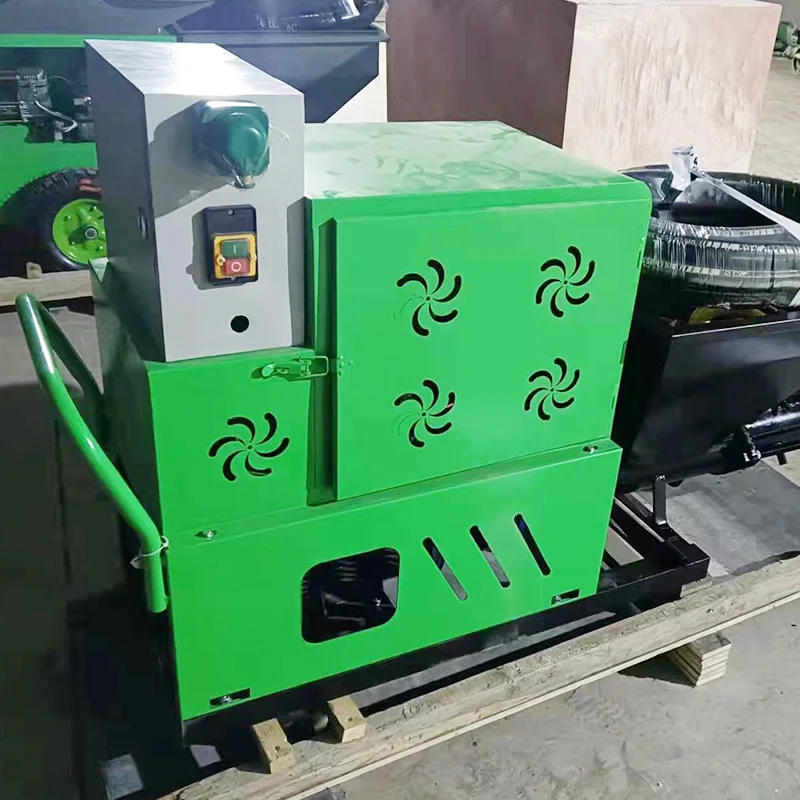

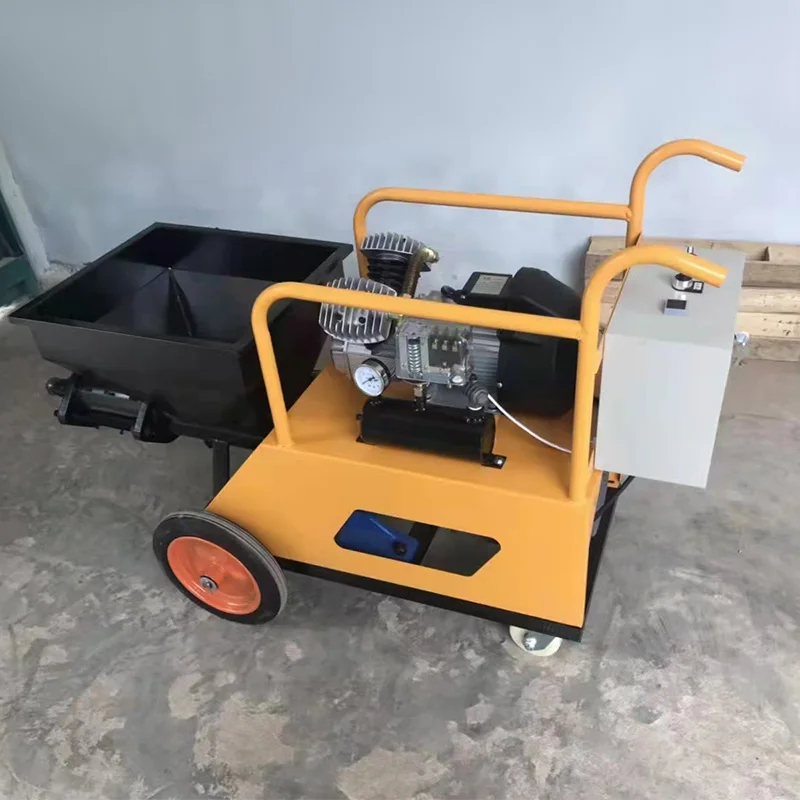

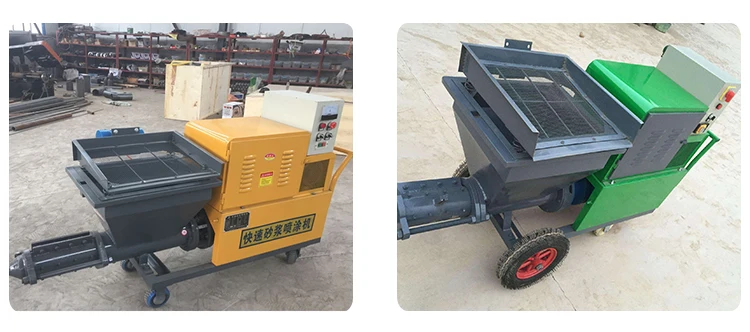

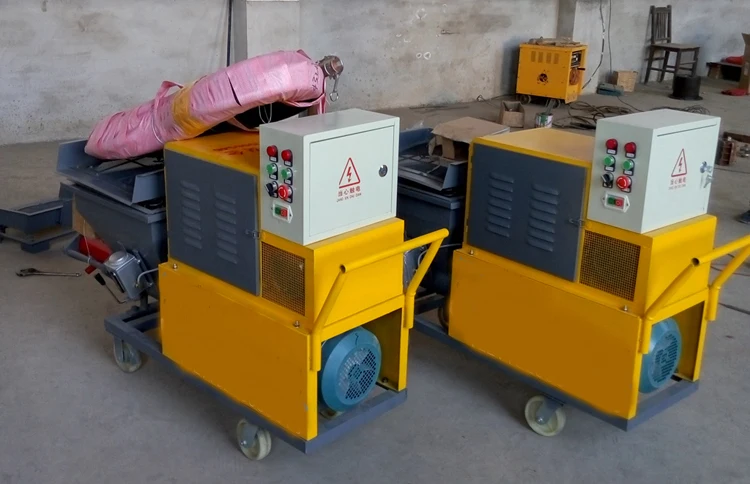

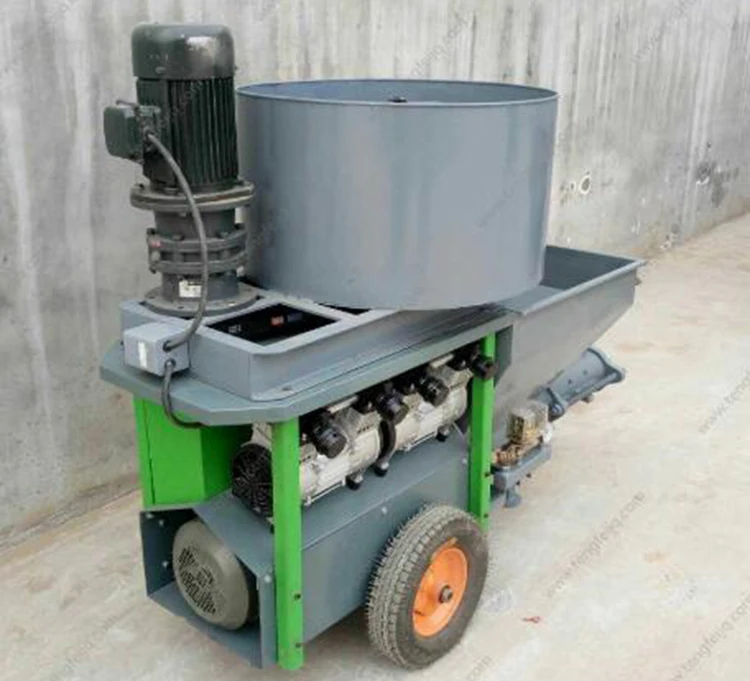

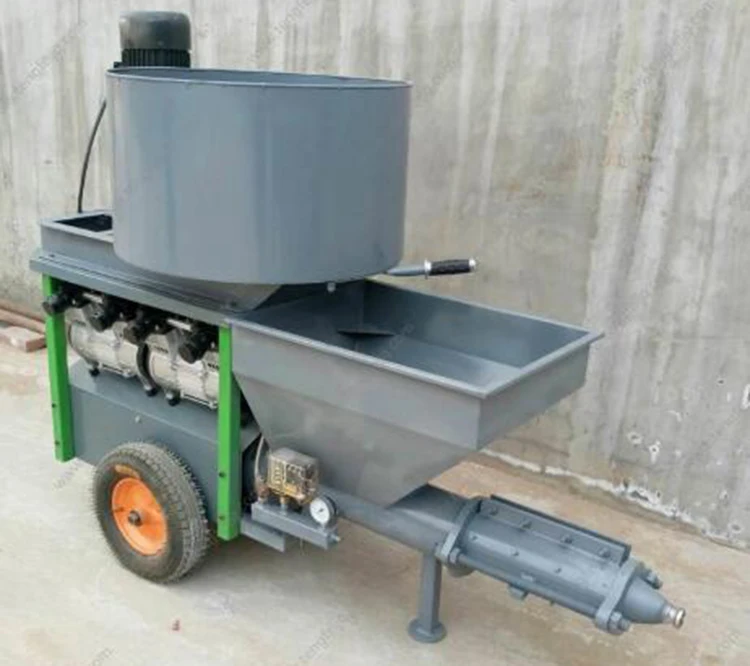

32mm Cement Mortar Spraying Machine Real Stone Paint Gypsum High Pressure Wall Spraying Machine

Share on (1601235341784):


Price:$1,590.40-1,990.40

Quantity:


Product Overview

Description



Product Description






















































1





















YG311



Production capacity:2-3m³/h


Working pressure:3MPa


Applicable materials ratio:


(water:ash:sand):0.71:1:3


Motor power:4kw


Transport distance:Level:40m,vertical:20m


Hopper volume:50L


Displacement of air compressor:0.3m³/min


Maximum aggregate diameter:12mm


Inner diameter of feeding pipe:32mm


Total Weight:200kg


















2


















YG318



Production capacity:3m³/h


Working pressure:3MPa


Applicable materials ratio:


(water:ash:sand):0.71:1:3


Voltage:380V


Motor power:7.5kw


Transport distance:Level:60m,vertical:40m


Hopper volume:80L


Displacement of air compressor:0.3m³/min


Maximum aggregate diameter:12mm


Inner diameter of feeding pipe:32mm


Total Weight:300kg


















3


















YG511



Diesel power :8HP/12hp


Working pressure:3MPa


Applicable materials ratio:


(water:ash:sand):0.71:1:3


Particle size:12mm


Transport distance:Level:50m,vertical:30m


12HP:60m/40m


Hopper volume:80L


Displacement of air compressor:0.3m³/min


Maximum aggregate diameter:12mm


Inner diameter of feeding pipe:32mm


Weight:320kg





















4





















YG612



Production capacity:3m³/h


Working pressure:6MPa


Applicable materials ratio:


(water:ash:sand):0.71:1:3


Voltage:220V


Motor power+mixer power:4kw+4kw


Transport distance:Level:60m,vertical:40m


Hopper volume:100L


Displacement of air compressor:0.4m³/min


Maximum aggregate diameter:8mm


Inner diameter of feeding pipe:32mm


Total Weight:400kg

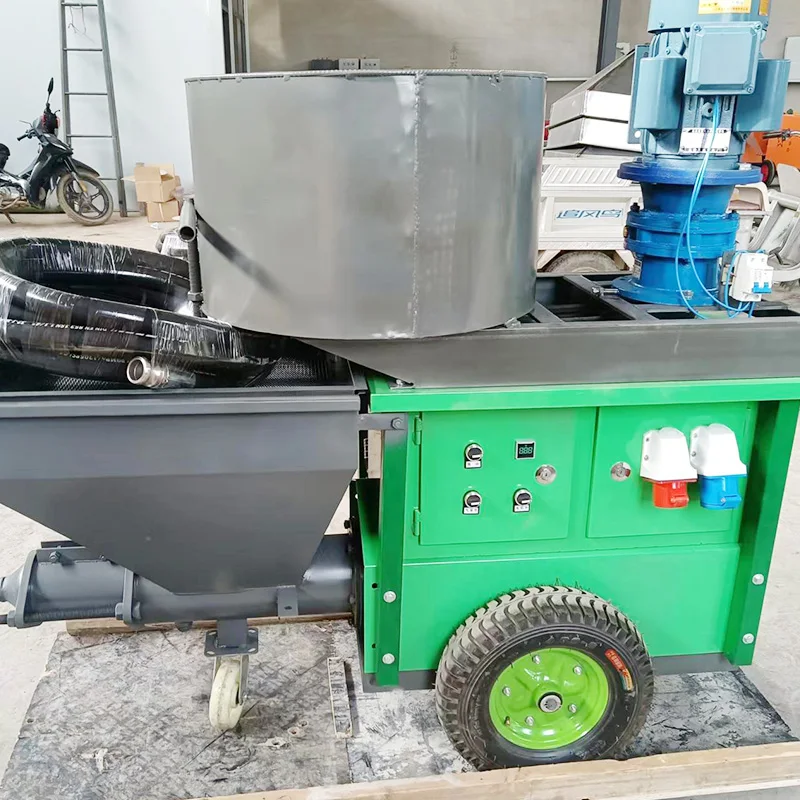

5





















YG712



Production capacity:4m³/h


Working pressure:6MPa


Applicable materials ratio:


(water:ash:sand):0.71:1:3


Voltage:380V


Motor power+mixer power:7.5kw+4kw


Transport distance:Level:60m,vertical:40m


Hopper volume:100L


Displacement of air compressor:0.4m³/min


Maximum aggregate diameter:12mm


Inner diameter of feeding pipe:32mm


Total Weight:450kg





















6





















YG800



Plastering thickness:2-30mm


Plastering height:<4m


Plastering efficiency:800m2/8h


Voltage:220v


Power:2.2kw


N.W.140kg


Machine Size:720*830*680mm


Applicable Material Proportion 1:1:3


(Water: Lime: Sand)


Size:1020*830*760mm


G.W.:170kg

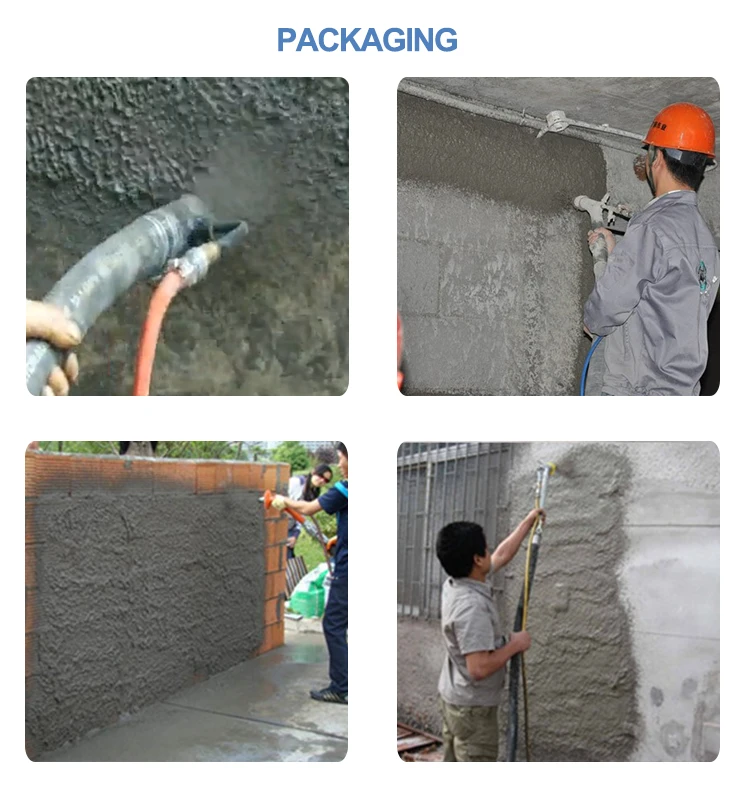

Uses of mortar spraying machine: One machine has multiple uses, it can spray thermal insulation mortar, interface agent, ordinary mortar, building glue, dry mortar, putty, anti-cracking mortar, adhesive, fireproof material, epoxy coating, etc.










This machine is an electric screw high-pressure mortar spraying machine with advanced technology. It is easy to operate and maintain, and can be operated proficiently without special training. It is easy to operate and can be used for indoor and outdoor wall spraying. The spraying equipment has a large flow rate and high pressure, which overcomes the above defects. The mortar density far exceeds the national standards, avoiding the troubles caused by quality, construction period, labor price and other issues.










Advantages of mortar spraying machine:


1. There is basically no dust on the ground, and it saves water and materials, which can reduce the cost by more than 20%.


2. Simple operation, no need to build scaffolding. No need to move equipment, no need to repair the joints. The corners and top plates can be sprayed freely, shortening the construction period. It improves the progress and saves the cost of frame materials.


3. Fast freezing, high efficiency, low labor intensity, one spraying machine can easily spray 150 square meters per hour. Excluding preparation time, it works 8 hours a day. It can spray more than 1,000 square meters, which is equivalent to the workload of 20 skilled workers working hard for a day.


4. Small investment and high returns. If each device sprays 1,000 square meters per day, it is calculated according to the market average price of 4 yuan per square meter. Excluding the workers' wages of about 500 yuan, each device can make a profit of 3,000 yuan per day. Excluding other factors, an annual income of more than 500,000 yuan is also expected.


5. The quality of the project is guaranteed, artificial wall plastering and the wall plastering machine launched previously. The main disadvantages are low adhesion to the wall and low density of mortar. The spraying equipment launched by our company has a large flow rate and high pressure (up to 30mpa) to overcome the above defects. The density of mortar far exceeds the national standards. It avoids the troubles and losses caused by quality, construction period, labor price and other issues.


6. One machine has multiple uses and can spray mortar and fire-retardant coatings. Refractory materials are not affected by regional and environmental conditions and the shape of the spray surface.
















Advantages


1.We have more than19 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.





FAQ


1. Q: Are you trading company or manufacturer?


    A: We are original equipment manufacturer.


2. Q: How long is your delivery time?


    A: It is according to the model and quantity.


        Generally it is 3-5 days if the machines are in stock.


        It will be 15-30 days if you want to customize the machines.


3. Q: Do you provide samples? Is it free or extra?


    A: Yes, we could offer you the sample machine.


        But it's not free. You need to pay for the sample and the cost of freight.


4. Q: What is your terms of payment?


    A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.


        Payment<=USD 5000, 100% in advance.


        Payment>=USD 5000, 30% T/T in advance, balance before shipment.
