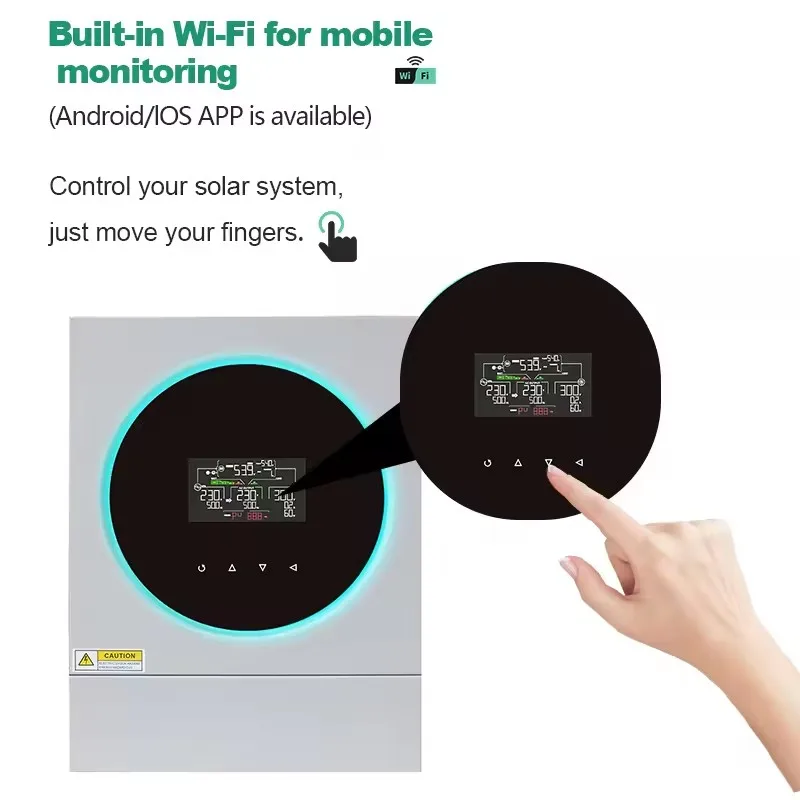

Axpert VM 4 TWIN 4KVA/6KVA wide PV input voltage range Off Grid hybrid Inverter dual output Touchable button large colored LCD
- Category: >>>
- Supplier: Anhui Kingwooh Energy Technology Co. Ltd.
Share on (1601235462366):
Product Overview
Description
Product Information
Parameters
MODEL | Axpert VM 4 3600-24 | Axpert VM 4 5600-48 | ||
RATED POWER | 3600VA/3600W | 5600VA/5600W | ||
INPUT | ||||
Voltage | 230 VAC | |||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |||
Surge Power | 7200VA | 11200VA | ||
Efficiency (Peak) | 90% ~ 93% | |||
Transfer Time | 15 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |||
Waveform | Pure sine wave | |||
BATTERY | ||||
Battery Voltage | 24 VDC | 48 VDC | ||
Floating Charge Voltage | 27 VDC | 54 VDC | ||
Overcharge Protection | 33 VDC | 63 VDC | ||
SOLAR CHARGER & AC CHARGER | ||||
Solar Charger Type | MPPT | MPPT | ||
Maximum PV Array Power | 4000W | 6000 W | ||
MPPT Range @ Operating Voltage | 120 ~ 450 VDC | |||
Maximum PV Array Open Circuit Voltage | 500 VDC | |||
Maxmum Solar Charge Current | 120 A | 120 A | ||
Maximum AC Charge Current | 100 A | 100 A | ||
Maximum Charge Current | 120 A | 120 A | ||
PHYSICAL | ||||

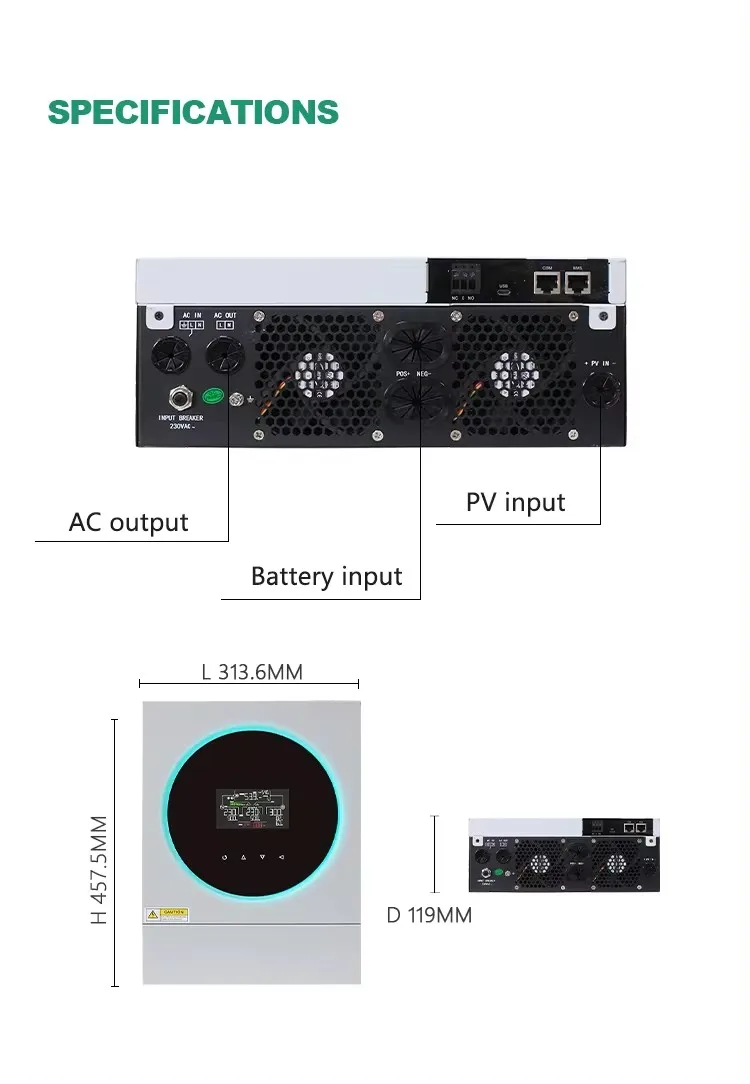

Dimension, D x W x H (mm) | 119 x 313.6 x 422.8 | |||
Net Weight (kgs) | 10.0 | 12.0 | ||
Communication Interface | USB/RS232/RS485/WiFi/Dry-contact | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature | -10°C to 50°C | |||
Storage Temperature | -15°C to 60°C | |||

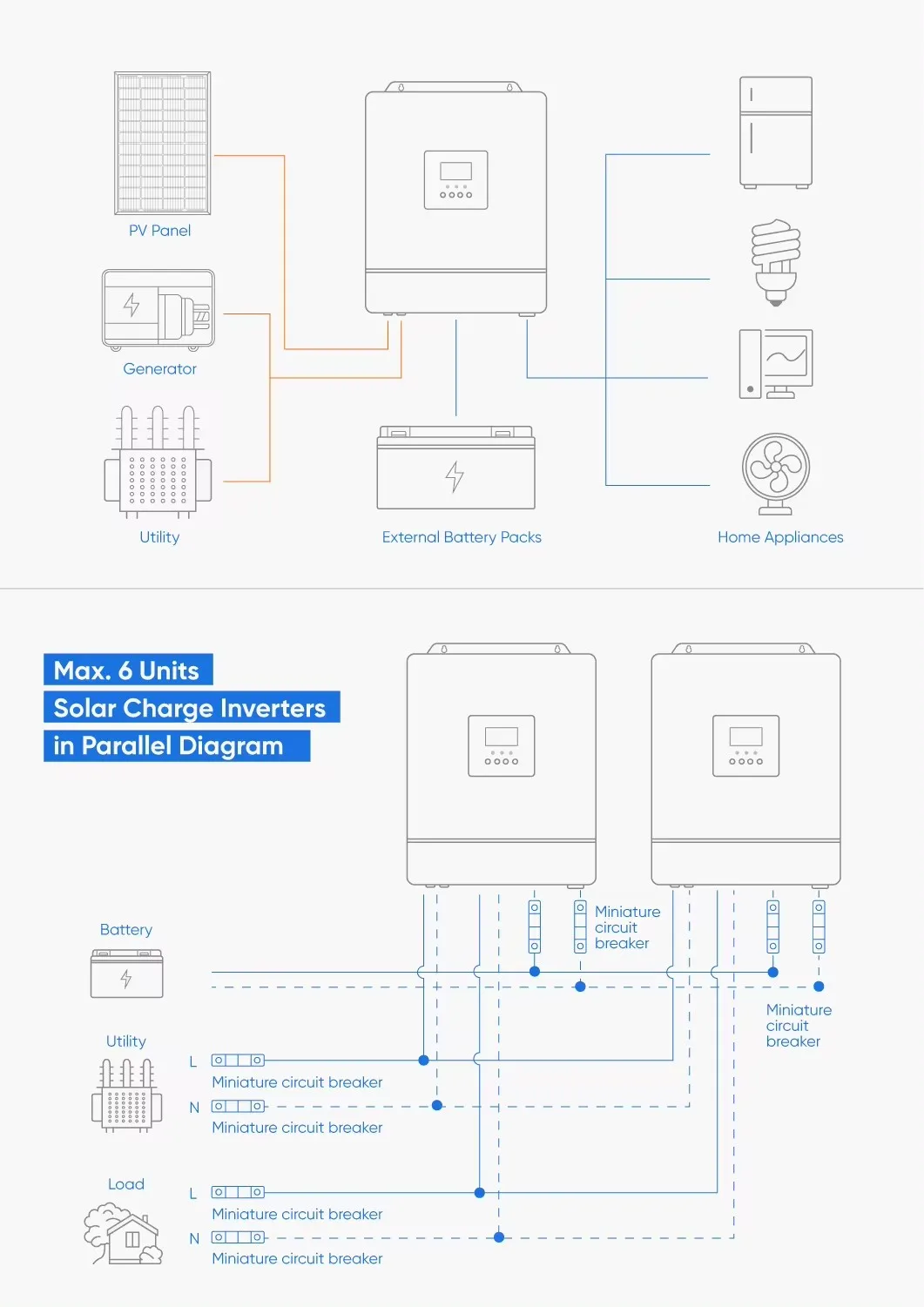

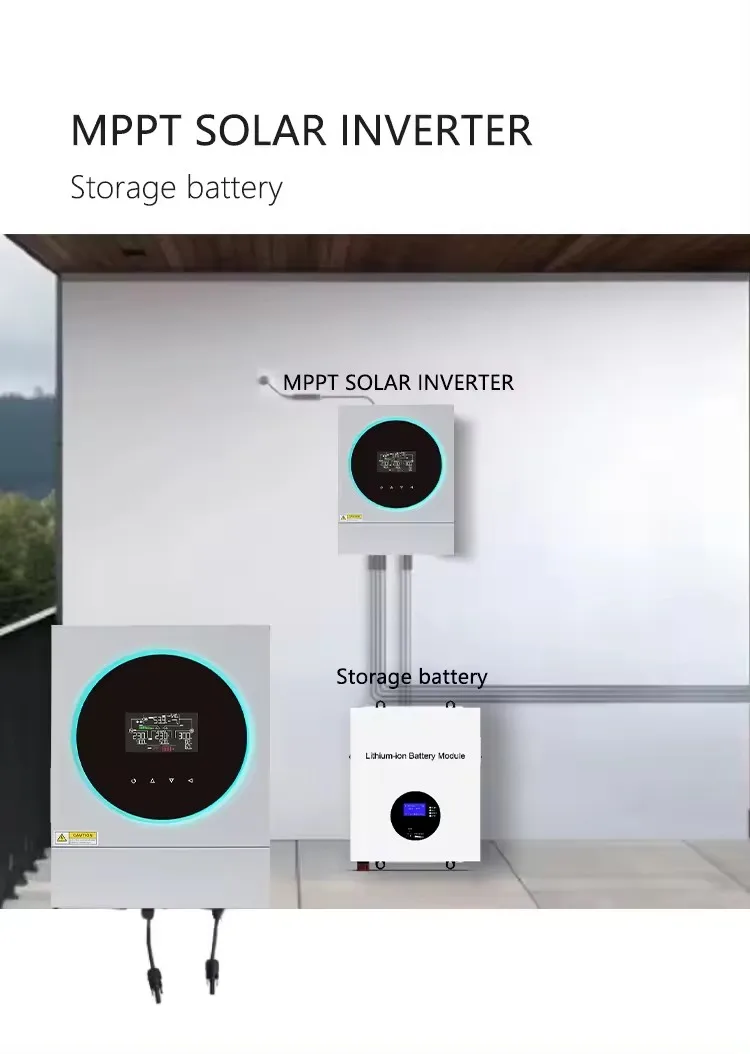

Application

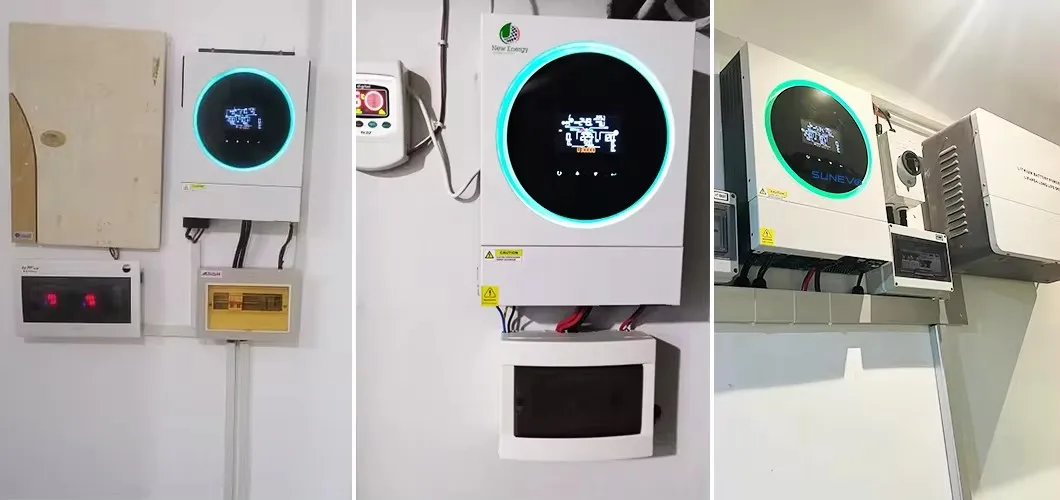

Instation Guide
