stove replacement parts pellet cooking stove smokeless stove wood
- Category: >>>
- Supplier: Shandong Yidingyuan International Trade Co. Ltd.
Share on (1601235507676):
Product Overview
Description

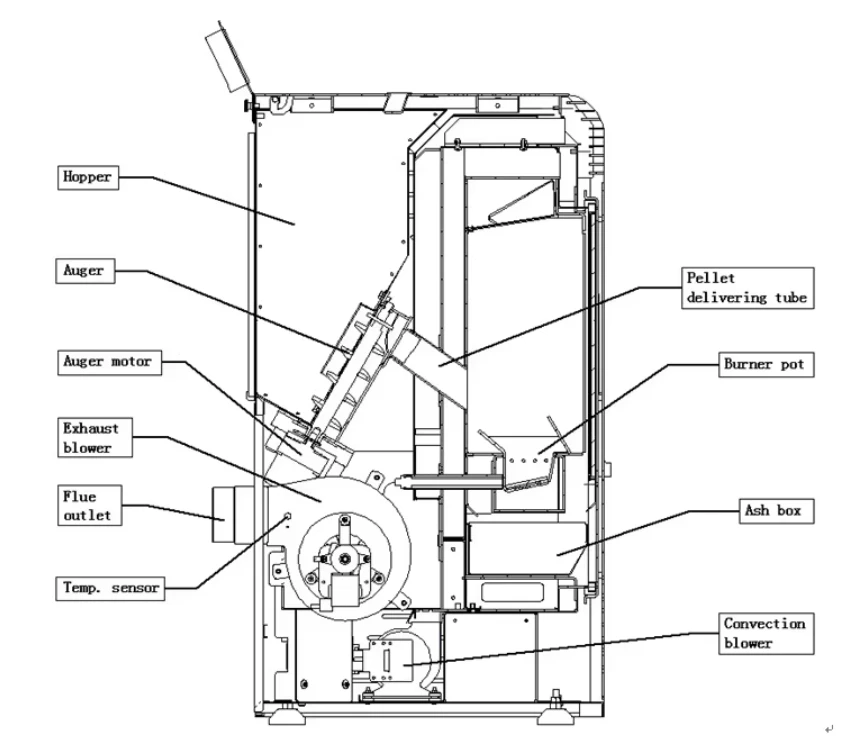

Details Images
Specification
Brand Name | PANSEE |
Model Number | PS70 |
Product Size(W*L*H) | 500*450*1050 mm |
Export Box Size(W*L*H) | 552*490*1190 mm |
WEIGHT(NET/GROSS) | 72 KGS |
Nominal Heat Output at Minimum/Maximum Power | 4 / 8 KW |
Efficiency | 85% |
CO emissions | ≤400ppm |
Hopper capacity | 16KG |
Fuel Consumption at Minimum/Maximum Power | 0.9 / 1.85 kg/h |
Operation hours at Minimum/Maximum Power | 9 /17 h |
Heat Area (㎡) | 90 |
Air inlet/output Pipe （mm） | 50/80 |
Fuel | Wood pellets |
Advantage | 1.Ceramic glass (NEG or SCHOTT brand) 2. High temperature resistantpaint (Stove Bright brand) |
Material | Carbon steel,Stainless steel |
Product Description
Company Profile
Shandong Yidingyuan International Trade Co., Ltd
We are a leading manufacturer of combustion chamber products in China. We take pride in our exceptional craftsmanship, meticulous attention to detail, and commitment to providing the greatest value to our customers. We have our own product lines and are dedicated to technological innovation and enhancing product quality. All of our products are manufactured strictly in accordance with ISO 9001 standards.
Our products have obtained multiple international certifications, including CQC, CE, AS/NZS, CSA, and EPA. With the philosophy of offering high-quality products, reasonable pricing, and excellent after-sales service, we look forward to establishing cooperative relationships with customers worldwide.
Certifications
Packing & Delivery
After Sales Service
We hereby guarantee that the warranty period for main components of the stove is 36 months in the following cases:
1.The stove was operated a1nd maintained in accordance with the requirements and instructions in the operating manual,
2.The stove is installed and maintained only by a qualified dealer or technical personnel.
2.The stove is installed and maintained only by a qualified dealer or technical personnel.
Within the 36 month warranty, only the following components and parts can be repaired:
• Glass
• Thermocouple
• PC board
• Auger motor
• Exhaust blower
• Convection Blower
• Igniter
• Thermocouple
• PC board
• Auger motor
• Exhaust blower
• Convection Blower
• Igniter
The warranty does not apply to the following cases, but we can charge to repair.
1. Damage arising from owner's improper handling, installation, operation, maintenance or storage,
and unauthorized repairing;
2. Damage arising from non-conforming power voltage;
3. Force majeure;
4. 36 month warranty expires;
5. Any damage and loss arising from uncontrollable factors such as operating environment, voltage, pressure,temperature, and humidity, as well as non-conforming of local environment with the circuit.
and unauthorized repairing;
2. Damage arising from non-conforming power voltage;
3. Force majeure;
4. 36 month warranty expires;
5. Any damage and loss arising from uncontrollable factors such as operating environment, voltage, pressure,temperature, and humidity, as well as non-conforming of local environment with the circuit.
Notice:
Claims can only be filed by proof of purchase. The warranty period starts from the issuing date of receipt. Within warranty
period, components and parts can be replaced and changed, but the cost of labour and freight shall be borne by users.
period, components and parts can be replaced and changed, but the cost of labour and freight shall be borne by users.
FAQ
May I inquire about the availability of a sample?
We are pleased to offer samples, with the understanding that a nominal fee is required upfront.
This fee will be promptly refunded upon your subsequent order of a full container.
This fee will be promptly refunded upon your subsequent order of a full container.
Do you accommodate OEM requests?
Absolutely, we specialize in OEM services. Our skilled technical team is ready to tailor our products to meet your precise
specifications.
specifications.
What is the typical lead time for delivery?
Delivery times vary by model, generally ranging from 5 to 20 days. For sample orders, we guarantee shipment within two weeks.
Is operation challenging for first-time users of this stove?
Our stoves are designed for ease of use, featuring automatic ignition and fuel feeding systems.
Your only requirement is to ensure a steady supply of pellets and proper installation of the chimney pipe. Should further
assistance be needed, we are ready to provide an operation manual and instructional videos.
Your only requirement is to ensure a steady supply of pellets and proper installation of the chimney pipe. Should further
assistance be needed, we are ready to provide an operation manual and instructional videos.
What is the duration of your warranty coverage?
We offer a one-year warranty on electrical components and a three-year warranty on all other parts. During this period, we will supply replacement parts to you at no additional charge, with an expected delivery time of approximately 3-4 days.
Could you please outline your payment terms?
* Sample orders require 100% payment in advance via telegraphic transfer.
* For formal orders, a 30% deposit is required upfront, with the remaining 70% balance due upon receipt of the
* For formal orders, a 30% deposit is required upfront, with the remaining 70% balance due upon receipt of the
Bill of Lading copy.
For more detailed information,
please feel free to reach out to our sales representatives directly.
