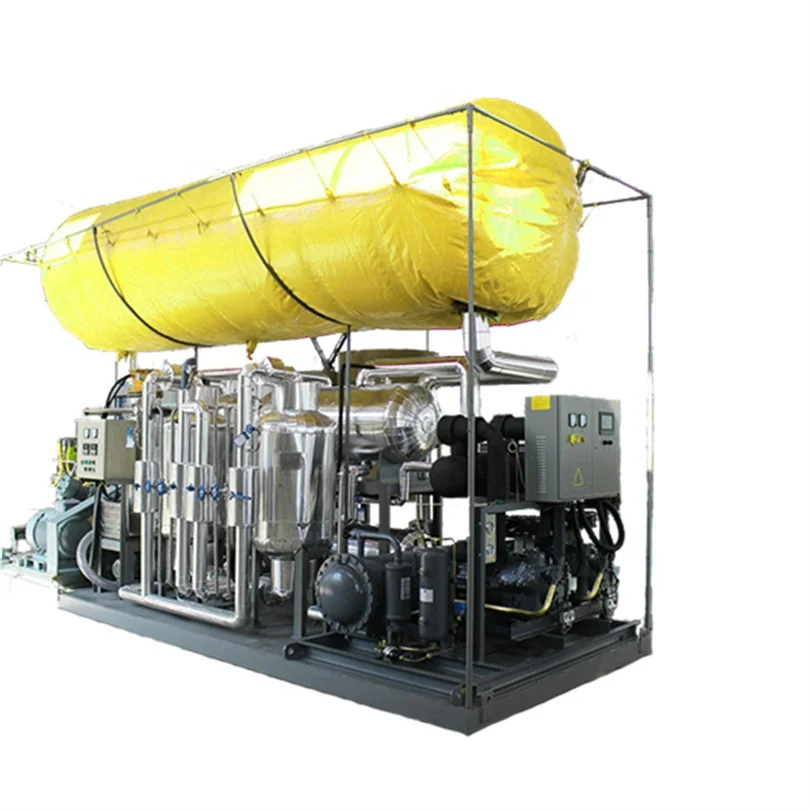

China 2024 Carbon Dioxide Carbon Dioxide Device CO2 Generator For Greenhouse
- Category: >>>
- Supplier: WOBO Industrial Group Inc
Share on (1601235592201):
Product Overview
Description
Enviromentally Friendly Food Grade Gas Recovery Gas Liquid CO2 Generator Equipment:
China 2024 Carbon Dioxide Carbon Dioxide Device CO2 Generator For Greenhouse
Product Description

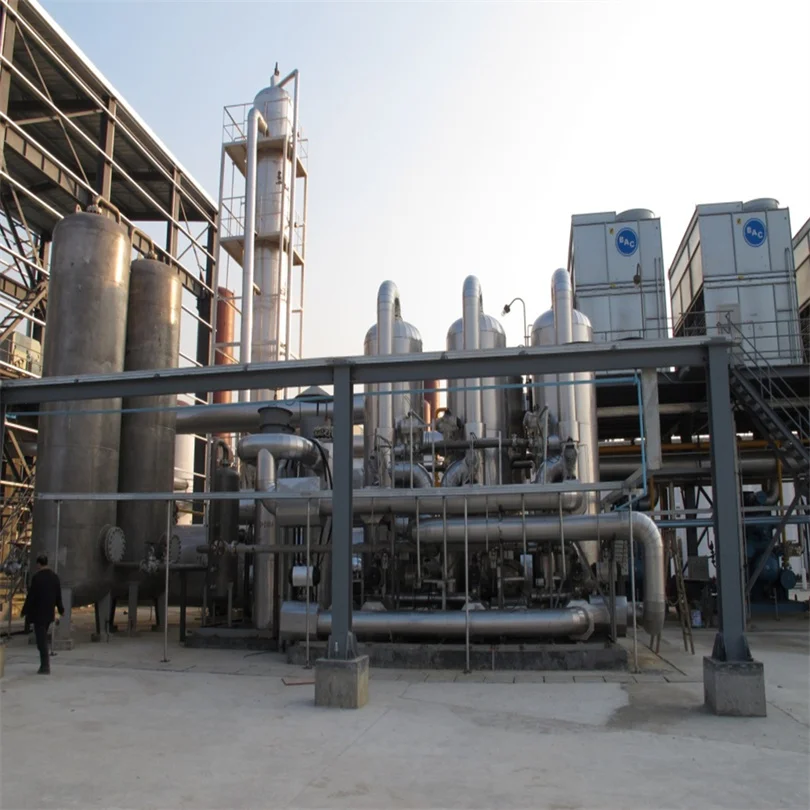

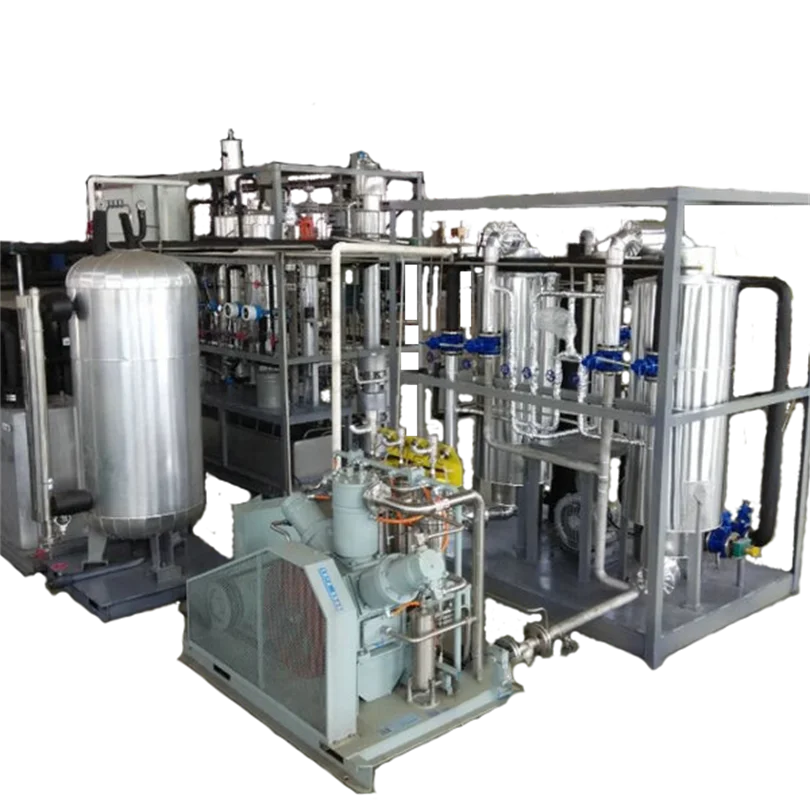

Carbon Dioxide Capture and Recovery System :
WOBO is dedicated to the design, manufacturing, and provision of complete systems for Food Grade gases and Industrial Grade gases, liquid carbon dioxide, and solid dry ice. All the essential components of our equipment are sourced from international brands, and the system is made of stainless steel. The recovered CO2 gas meets ISBT standards, as well as GB/T2398-2009 and GB10621-2006 for food additive liquid carbon dioxide.
Our products are exported to various countries and regions, including the United States, Peru, Ukraine, Russia, India, Cameroon, and Algeria. We offer customizable solutions for CO2 recovery systems, ranging from 100,000 Kt/a to 9,000,000 Kt/a. The final CO2 product purity exceeds 99.998%, with oxygen levels below 5ppm.
Our industrial-grade carbon dioxide equipment is primarily used for carbon dioxide capture from various sources, such as lime kiln emissions in metallurgical and cement factories, flue gas emissions from chemical, fertilizer, and power plants, as well as carbon dioxide recovery from fermentation gases like alcohol and xylitol. It is also employed for carbon dioxide recovery in gas fields, among other applications.
Our products are exported to various countries and regions, including the United States, Peru, Ukraine, Russia, India, Cameroon, and Algeria. We offer customizable solutions for CO2 recovery systems, ranging from 100,000 Kt/a to 9,000,000 Kt/a. The final CO2 product purity exceeds 99.998%, with oxygen levels below 5ppm.
Our industrial-grade carbon dioxide equipment is primarily used for carbon dioxide capture from various sources, such as lime kiln emissions in metallurgical and cement factories, flue gas emissions from chemical, fertilizer, and power plants, as well as carbon dioxide recovery from fermentation gases like alcohol and xylitol. It is also employed for carbon dioxide recovery in gas fields, among other applications.
Model | Capacity(T/H) | CO2 Purity | Power (KW/T) | Floor Space(M2) | ||||
WOCO2-2.4K | 0.3 | 99.99% | 250 | 6 x 12 | ||||
WOCO2-1W | 1.2 | 99.99% | 230 | 12 x 24 | ||||
WOCO2-2W | 2.5 | 99.99% | 220 | 12 x 24 | ||||
WOCO2-3W | 3.7 | 99.99% | 210 | 12 x 30 | ||||
WOCO2-4W | 5 | 99.99% | 200 | 12 x 36 | ||||
WOCO2-10W | 10 | 99.99% | 190 | 15 x 40 | ||||
Parameters may vary with different carbon dioxide gas raw materials | ||||||||

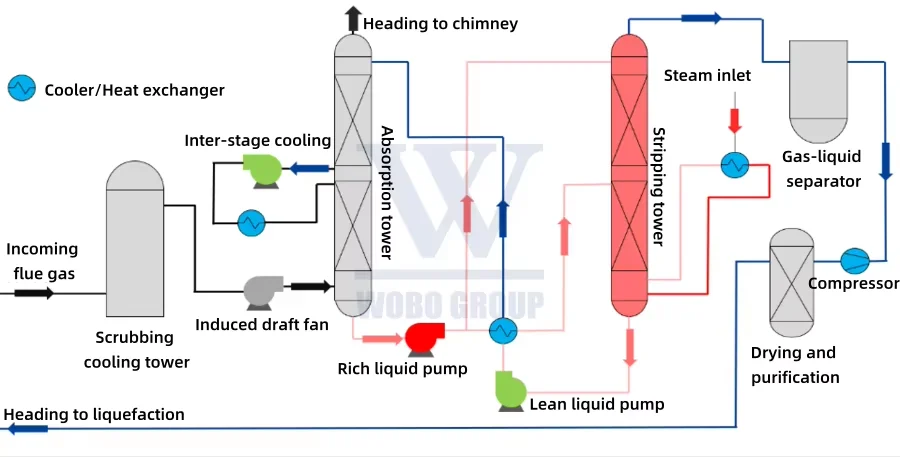

Process Flow Diagram
CHEMICAL ABSORPTION METHOD
Flue gas is scrubbed and then absorbed in a tower to capture CO2. High-temperature regeneration releases CO2 gas, which is
compressed, dried, and cooled to liquid form.
Applicable Scope:
Flue gas with low CO2 content
Application Scenarios:
Power Plants, Combustion-based Flue Gas.
compressed, dried, and cooled to liquid form.
Applicable Scope:
Flue gas with low CO2 content
Application Scenarios:
Power Plants, Combustion-based Flue Gas.
CRYOGENIC LIQUEFACTION SEPARATION METHOD
CO2 separation involves liquefying gases at low temperatures, followed by separating them based on differences in boiling points
between CO2 and other gases.
Applicable Scope:
High CO2 content flue gas (CO2 content ≥80%)
Application Scenarios:
Refineries, Coal Chemical Plants, etc.
between CO2 and other gases.
Applicable Scope:
High CO2 content flue gas (CO2 content ≥80%)
Application Scenarios:
Refineries, Coal Chemical Plants, etc.

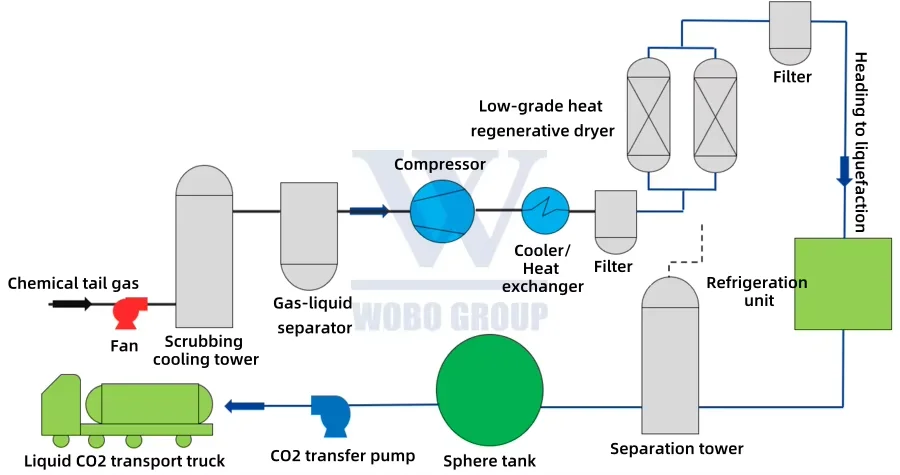

CHEMICAL ABSORPTION METHOD
Flue gas is scrubbed and then absorbed in a tower to capture CO2. High-temperature regeneration releases CO2 gas, which is
compressed, dried, and cooled to liquid form.
Applicable Scope:
compressed, dried, and cooled to liquid form.
Applicable Scope:
Flue gas with low CO2 content
Application Scenarios:
Power Plants, Combustion-based Flue Gas.
Application Scenarios:
Power Plants, Combustion-based Flue Gas.

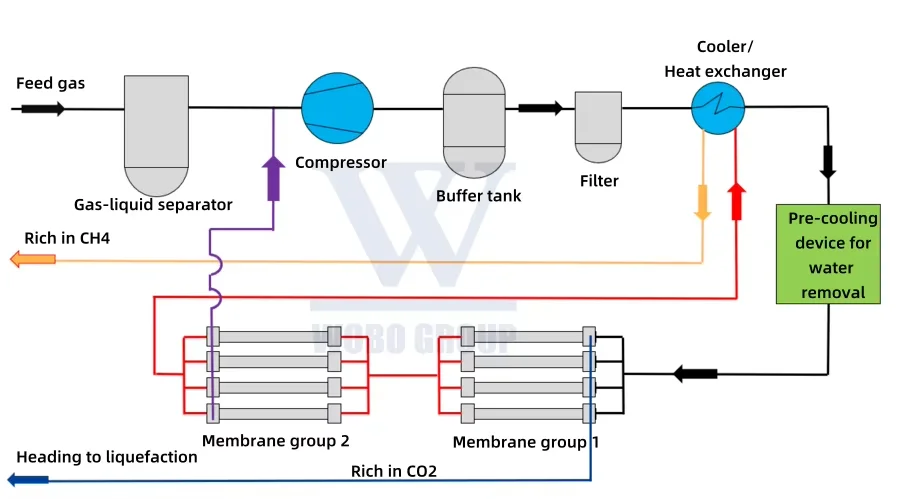

SEPARATION MEMBRANE
Membrane CO2 separation units utilize advanced hollow fiber membrane separation technology to purify CO2 from gases.
Applicable Scope:
Flue gas with CO2 content ranging from 40% to 80%
Application Scenarios:
Alcohol Plants, Natural Gas Decarbonization, etc.
Applicable Scope:
Flue gas with CO2 content ranging from 40% to 80%
Application Scenarios:
Alcohol Plants, Natural Gas Decarbonization, etc.
Product Advantages
1. Quality Components: We use premium international components for reliability.
2. Stainless Steel Build: Durable, corrosion-resistant stainless steel construction.
3. End-to-End Service: In-house design, manufacture, and installation for seamless service.
4. User-Friendly: Competitive pricing and ease of use.
5. High Automation: PLC and DCS control for efficient operation.
6. Real-time Monitoring: Constant monitoring of key parameters.
7. Instant Alerts: Immediate notifications in case of deviations.
8. Remote Access: Allows remote control and monitoring.
9. Unattended Operation: Advanced features for hands-free management.
2. Stainless Steel Build: Durable, corrosion-resistant stainless steel construction.
3. End-to-End Service: In-house design, manufacture, and installation for seamless service.
4. User-Friendly: Competitive pricing and ease of use.
5. High Automation: PLC and DCS control for efficient operation.
6. Real-time Monitoring: Constant monitoring of key parameters.
7. Instant Alerts: Immediate notifications in case of deviations.
8. Remote Access: Allows remote control and monitoring.
9. Unattended Operation: Advanced features for hands-free management.
Product Application
Carbon dioxide (CO2) gas has a wide range of applications in many fields, mainly including the food and beverage production industry (beer production, carbonated beverage production, dry ice freshness), the agricultural industry (plant growth, greenhouse greenhouses), the industrial industry (as a protective gas welding use, casting, metal welding protection, oil exploitation), new materials and other industries.
Relative Products
CO2 Liquid Transport Tanks
CO2 Liquid Storage Tanks
CO2 Cryogenic Insulated Cylinders
CO2 Gas Cylinders
Anhydrous Ethanol Equipment
Anhydrous Ethanol Equipment
Company Profile
Wobo's products cover the fields of new energy, energy, metallurgy, petrochemical, electronics, food, machinery, building
materials, medicine, new materials, petrochemical, chemical fiber, heat treatment, glass, national defense and aerospace, and are sold to more than 100 countries and regions.
We strive to provide products with the highest quality and service, and complete with the highest standards. All our products have undergone rigorous testing, and now we have obtained CE,ISO,ASME . Our goal is 100% customer satisfaction,we will provide high-quality productsand value-added services.
Product Packing
Certifications

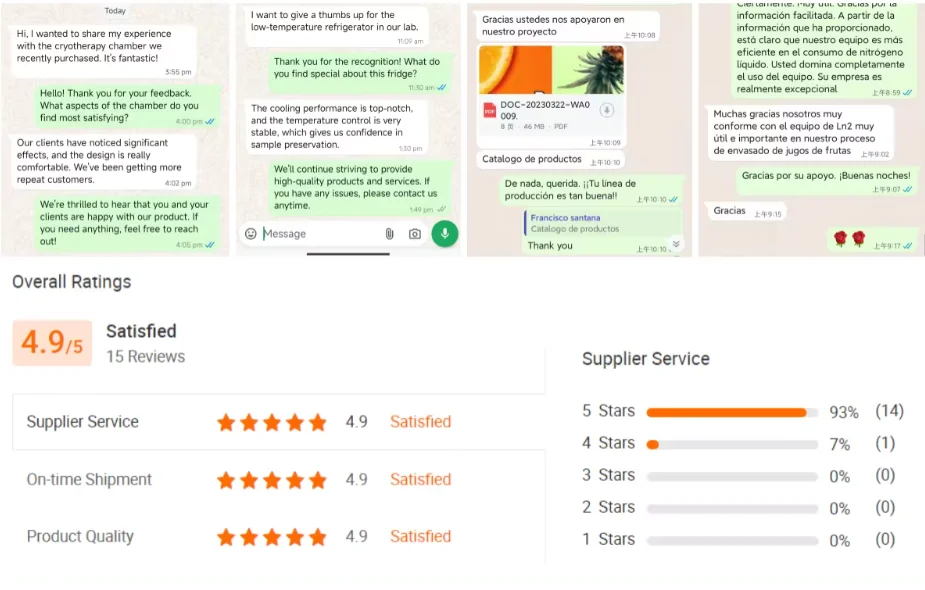

Rating & Reviews
FAQ
Warranty Policy
* Warranty Period: All products come with 18 months free warranty from the date of purchase.
* Warranty Coverage: During the warranty period, we will repair or replace parts free of charge for defects related to product quality.
* Out-of-Warranty: Repairs after the warranty period will incur a fee. Please contact customer service for details.
Return and Exchange Policy
* Return/Exchange Conditions: If there is a quality issue or if the product does not match the order, please contact customer
service within 7 days of receiving the item to request a return or exchange.
* Return/Exchange Process: Call our customer service hotline or send an email to request a return or exchange. We will provide you with the return address and instructions.
Technical Support
* Support Service: We offer 24/7 technical support via phone, email, and online chat.
* Remote Support: Technical assistance is available through phone, email, and online chat.
* On-Site Support: For issues requiring on-site attention, we will arrange for a technician to visit.
Customer Feedback
* We value your feedback. Please share your experience via our customer service hotline or email. Your input helps us improve our service quality.
Training and Support
* New Customer Training: After purchase, we provide detailed training and user guides for the product.
* Extended Warranty: You can choose to purchase an extended warranty for additional coverage.
* Custom Services: We offer personalized customization services based on your needs. Please consult customer service for details.
* Warranty Coverage: During the warranty period, we will repair or replace parts free of charge for defects related to product quality.
* Out-of-Warranty: Repairs after the warranty period will incur a fee. Please contact customer service for details.
Return and Exchange Policy
* Return/Exchange Conditions: If there is a quality issue or if the product does not match the order, please contact customer
service within 7 days of receiving the item to request a return or exchange.
* Return/Exchange Process: Call our customer service hotline or send an email to request a return or exchange. We will provide you with the return address and instructions.
Technical Support
* Support Service: We offer 24/7 technical support via phone, email, and online chat.
* Remote Support: Technical assistance is available through phone, email, and online chat.
* On-Site Support: For issues requiring on-site attention, we will arrange for a technician to visit.
Customer Feedback
* We value your feedback. Please share your experience via our customer service hotline or email. Your input helps us improve our service quality.
Training and Support
* New Customer Training: After purchase, we provide detailed training and user guides for the product.
* Extended Warranty: You can choose to purchase an extended warranty for additional coverage.
* Custom Services: We offer personalized customization services based on your needs. Please consult customer service for details.
