Competitive Price 3d uv laser marking machine 100w fiber laser marking machine for jewelry
- Category: >>>
- Supplier: Meto Laser Technology (henan) Co. Ltd.
Share on (1601235602826):
Product Overview
Description
Products Description
High-accuracy uv marking laser machine 100w fiber laser marking machine
What our machines can do?
UV laser marking machines are widely used in high-precision and high-definition marking of various materials, especially in the high-end market of fine processing, such as surface marking of polymer packaging bottles of cosmetics, medicines, auxiliary materials, LCD glass QR code marking, glassware surface drilling, metal surface coating marking, etc.
Product Paramenters
Product name | UV laser marking machine |
Working area | 110*110mm(4.3in*4.3in) 150*150mm (5.9*5.9 in) 175*175mm(6.9in*6.9in) Optional |
Marking Speed | ≤8000mm/s |
Output Power Adjustment Range | 10%~100% |
Minimum Line Width | 0.01mm(0.0004in) Depends on the material |
Minimum Character | 0.2mm(0.008in) Depends on the materials |
Laser Type | Raycus/MAX Optional |
Cooling Type | WATER COOLING |
Laser Wavelength | 355nm |
Electrical Requirements | 110V-240V/50Hz-60Hz according to local electricity supply |
Supported Image Format | PLT,DXF,AI,BMP,JPEG,etc. |
Optional Spare Parts | Rotary/2D worktable/Cutting fixture and so on. |
What are the features of our products？
1.High precision: Due to the short wavelength of UV laser, higher light focusing ability can be achieved, so as to achieve accurate marking of small text and patterns. 2.Small heat affected area: UV laser completes the marking process in a short time,
with almost no heat conduction, so thermal deformation or thermal damage to the material can be avoided.
with almost no heat conduction, so thermal deformation or thermal damage to the material can be avoided.
3.Long life and stability: UV laser uses high-quality laser devices, has a long service life, and high working stability.
Details Images

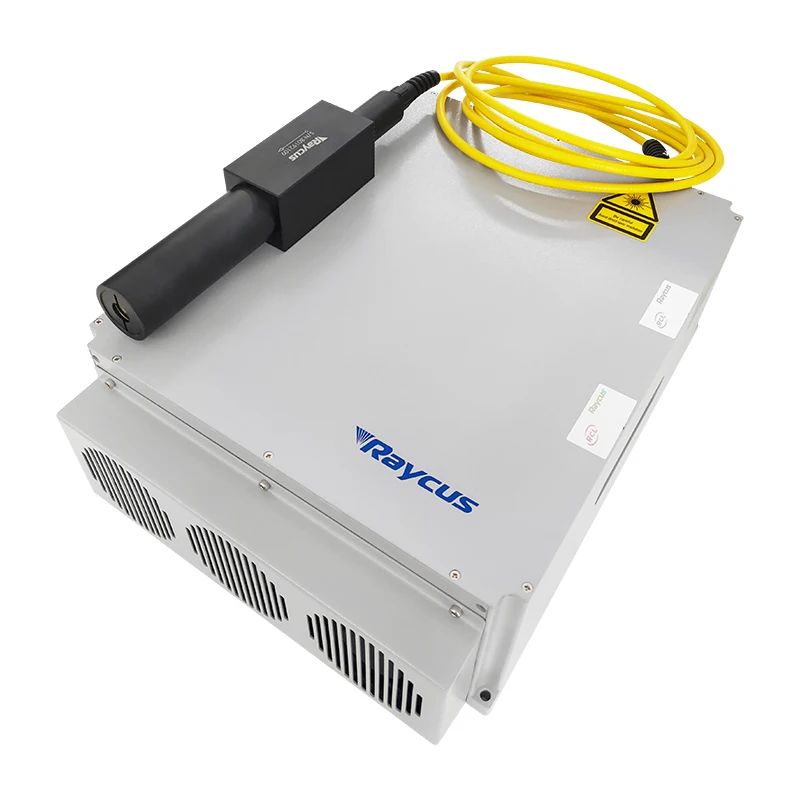

Laser Source
RAYCUS/IPG/JPT/MAX optional
High quality, low loss, long service life

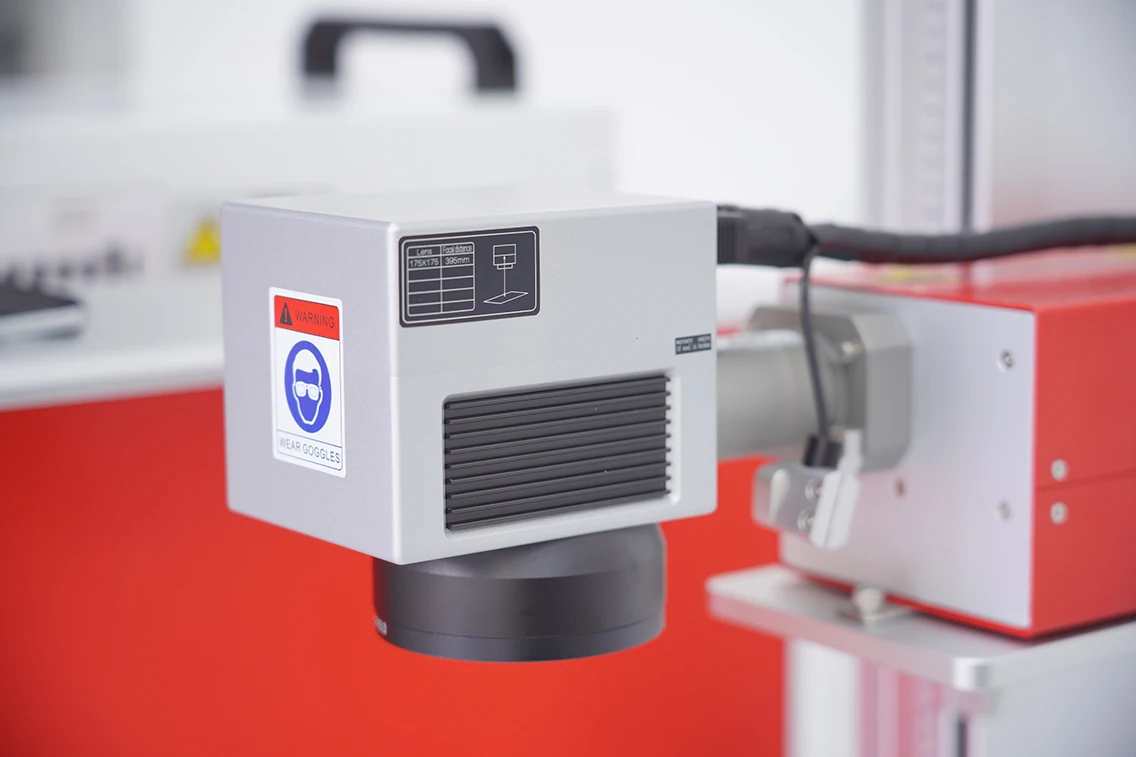

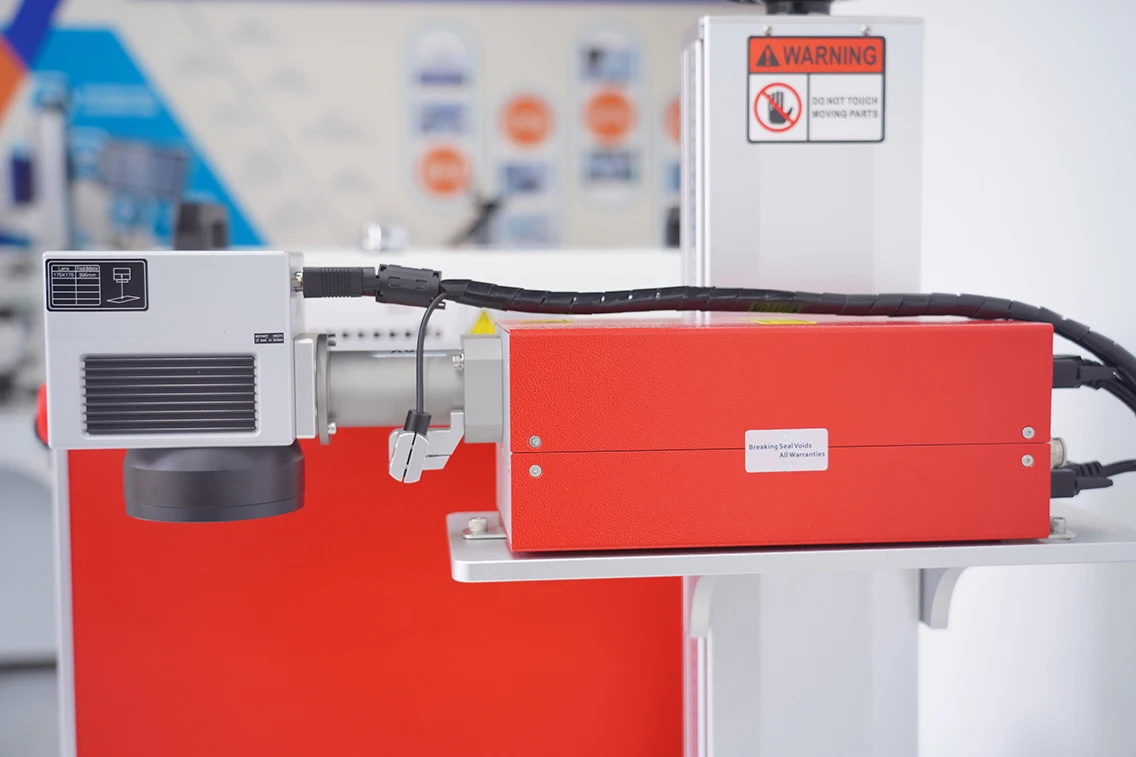

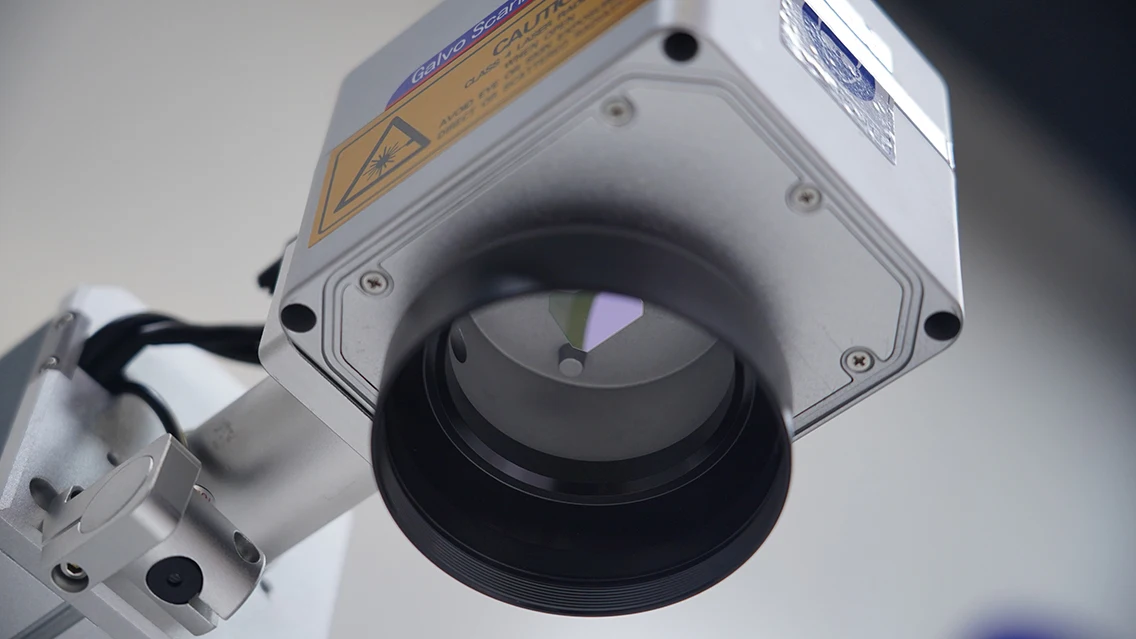

Galvo Head
Digital Galvanometer Scanning Head Maximum speed: 7000mm/s
Lens
Working size：100*100mm、150*150mm、175*175mm、200*200mm
Choose according to different working areas

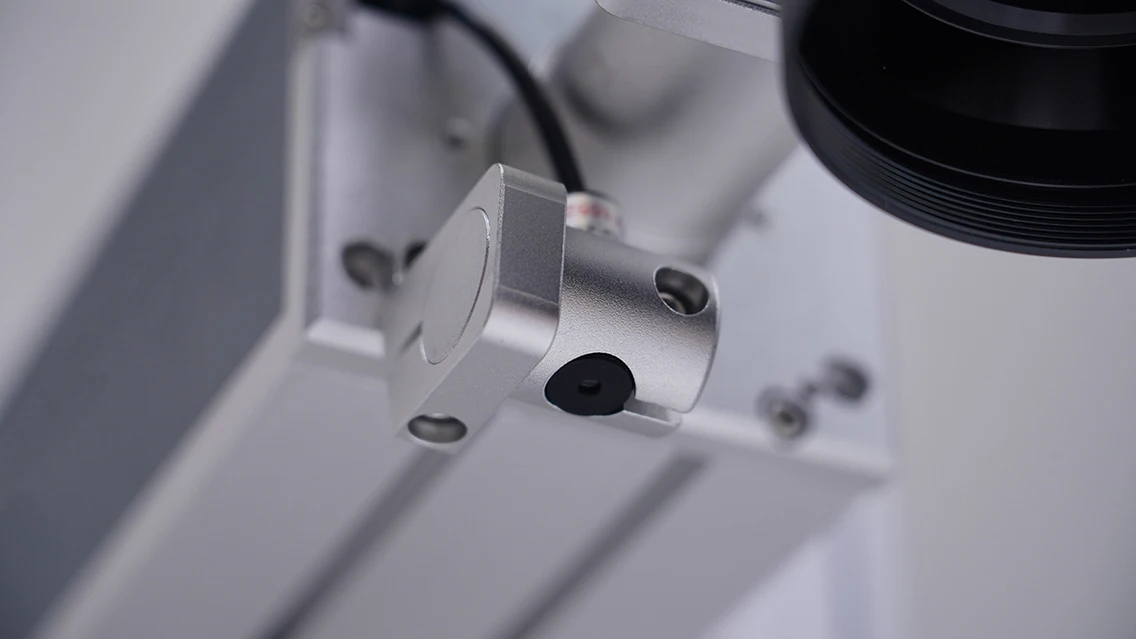

Red Light Indicator
Double red light indicator
high precision positioning
Adjust to the correct focal length and marking position

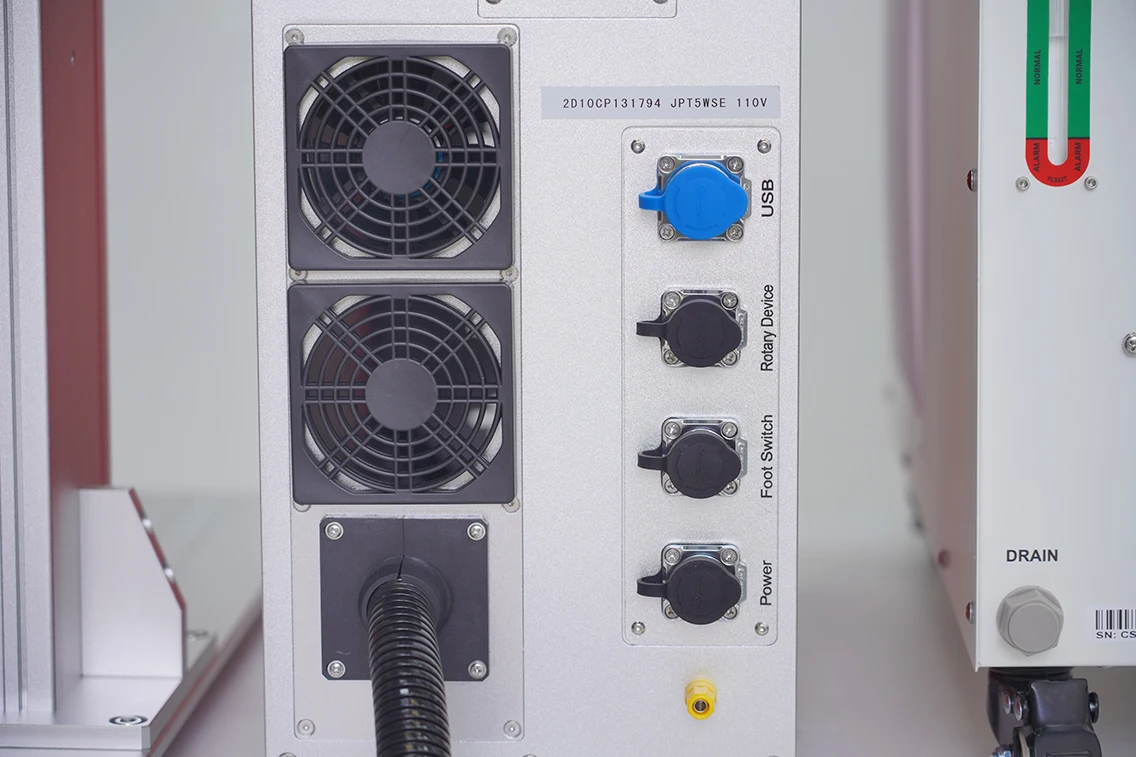

Plug-in Connector
Used to connect the power supply to the foot pedal

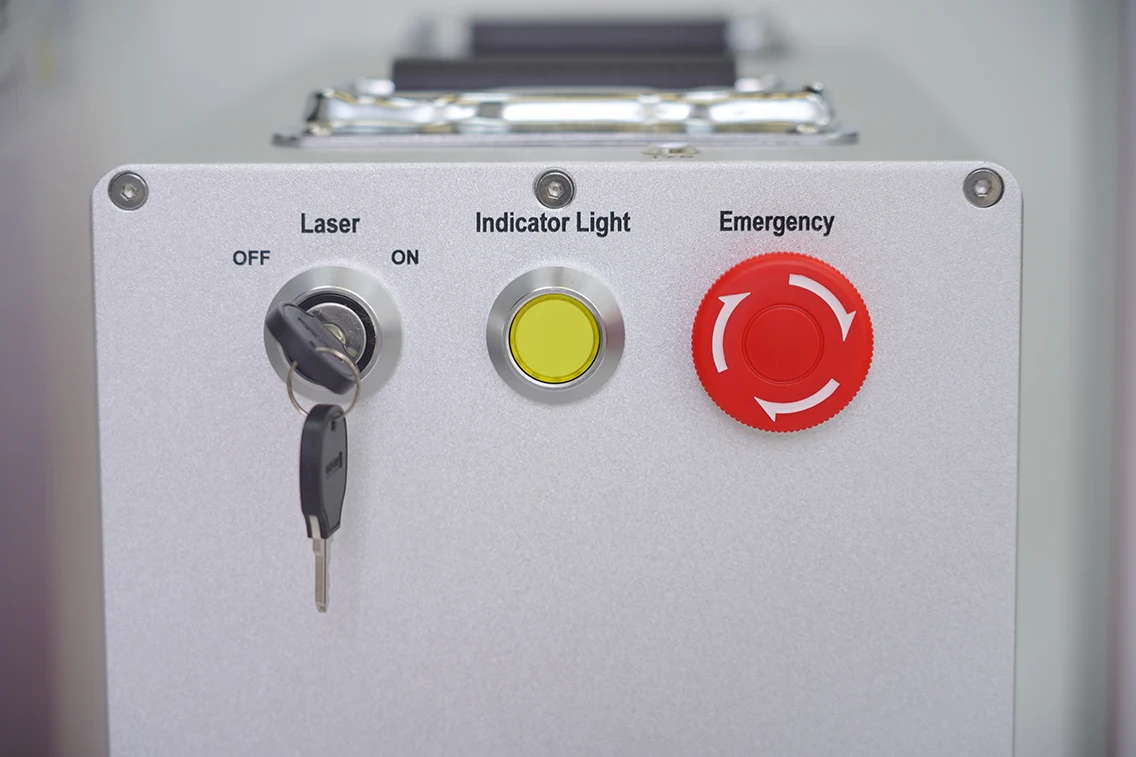

Control Panel
Key controlled power switch
Emergence：The machine encounters an error and stops immediately to reduce losses

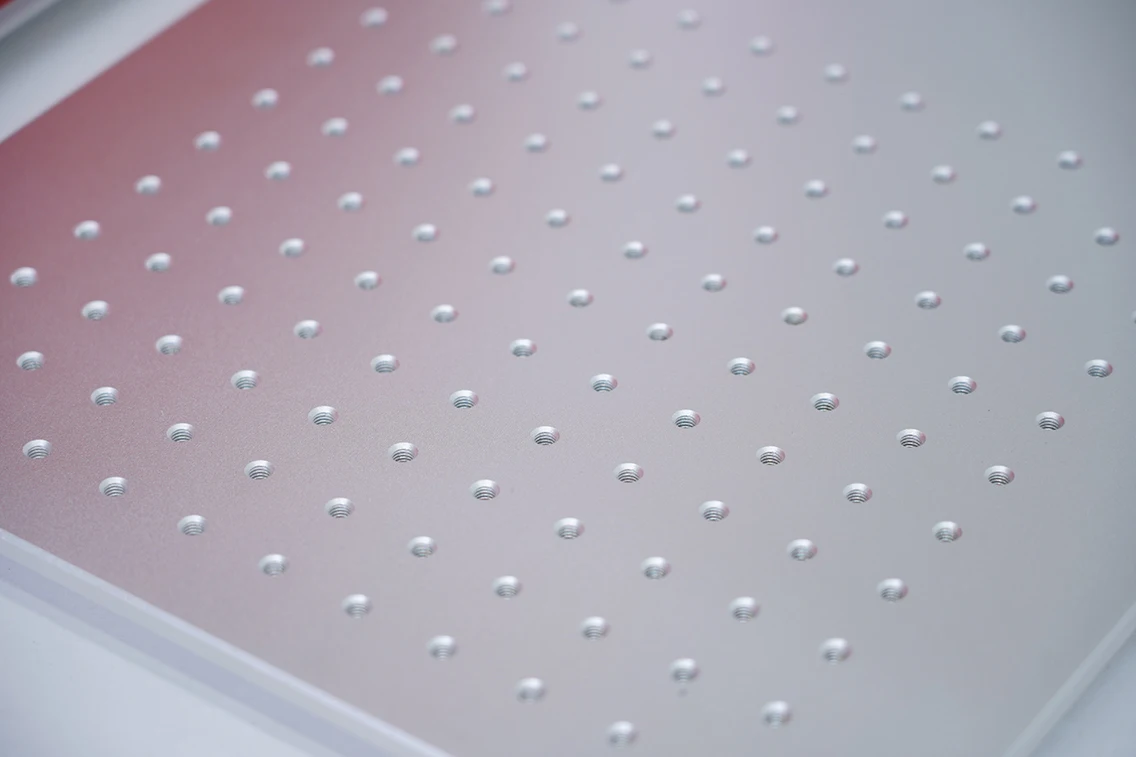

Workbench
Aluminum plate with positioning holes
Where can our machines be applied?
1. Electronics industry：Print serial numbers, QR codes, production dates and other information on electronic components to ensure product traceability; perform micro-processing on circuit boards, such as cutting and drilling.
2. Automobile Manufacturing：Mark key components such as engines, transmissions, chassis, etc. to facilitate management and maintenance during production and after-sales service; mark patterns or texts on the vehicle body structure to enhance the brand image.
3. Food and Beverage Industry：Print production date, batch number, anti-counterfeiting code and other information on food packaging bags, bottle caps and bottles to improve food traceability and safety; print brand logos, promotional information and other information on beverage packaging to enhance brand image.
4. Hardware products industry：efficient engraving and marking of metal materials such as steel, aluminum alloy, copper, etc.
5. Cosmetics industry：high-precision engraving on cosmetic packaging, including product name, brand logo, production date and other information.
2. Automobile Manufacturing：Mark key components such as engines, transmissions, chassis, etc. to facilitate management and maintenance during production and after-sales service; mark patterns or texts on the vehicle body structure to enhance the brand image.
3. Food and Beverage Industry：Print production date, batch number, anti-counterfeiting code and other information on food packaging bags, bottle caps and bottles to improve food traceability and safety; print brand logos, promotional information and other information on beverage packaging to enhance brand image.
4. Hardware products industry：efficient engraving and marking of metal materials such as steel, aluminum alloy, copper, etc.
5. Cosmetics industry：high-precision engraving on cosmetic packaging, including product name, brand logo, production date and other information.
Sample Pictures
Product packaging
