3000K Color Temperature IP66 Daylight & Microwave Motion Sensor 140lm/w 30W LED Batten Light for Metro Station

Share on (1601235643878):


Price:$18.99 - $19.99

Quantity:


Product Overview

Description



Product Description


Product Description

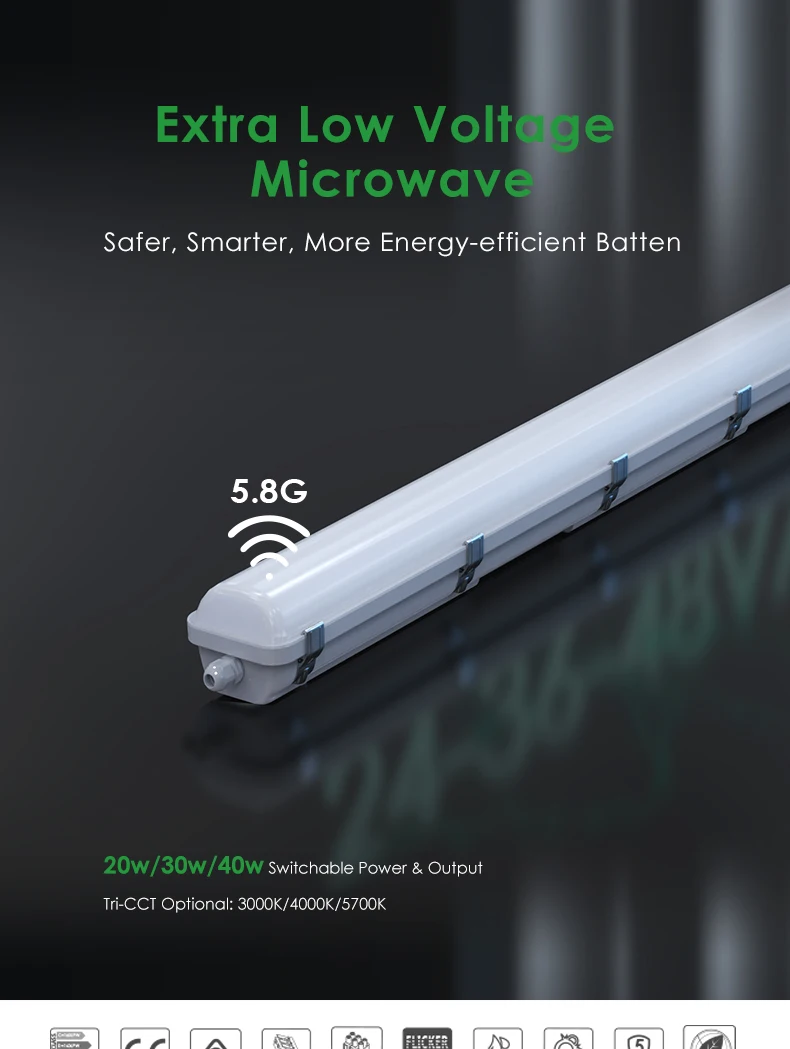

3000K Color Temperature IP66 Daylight & Microwave Motion Sensor 140lm/w 30W LED Batten Light for Metro Station


 Details:


A7-low-Voltage-5_01A7-low-Voltage-5_02A7-low-Voltage-5_03A7-low-Voltage-5_04A7-low-Voltage-5_05A7-low-Voltage-5_06A7-low-Voltage-5_07A7-low-Voltage-5_08A7-low-Voltage-5_09A7-low-Voltage-5_10


 Full-Voltage_11

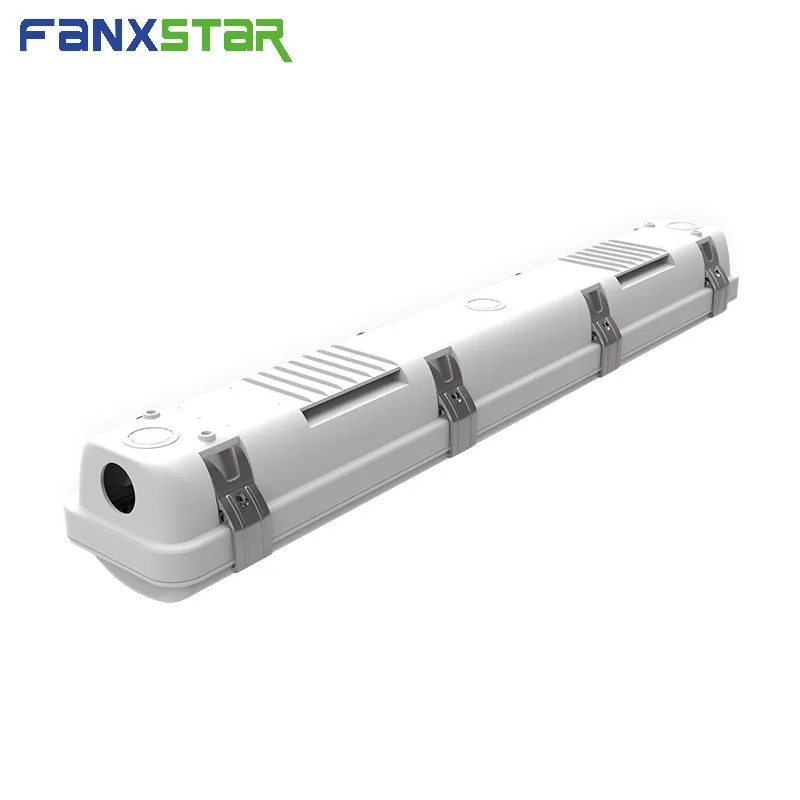

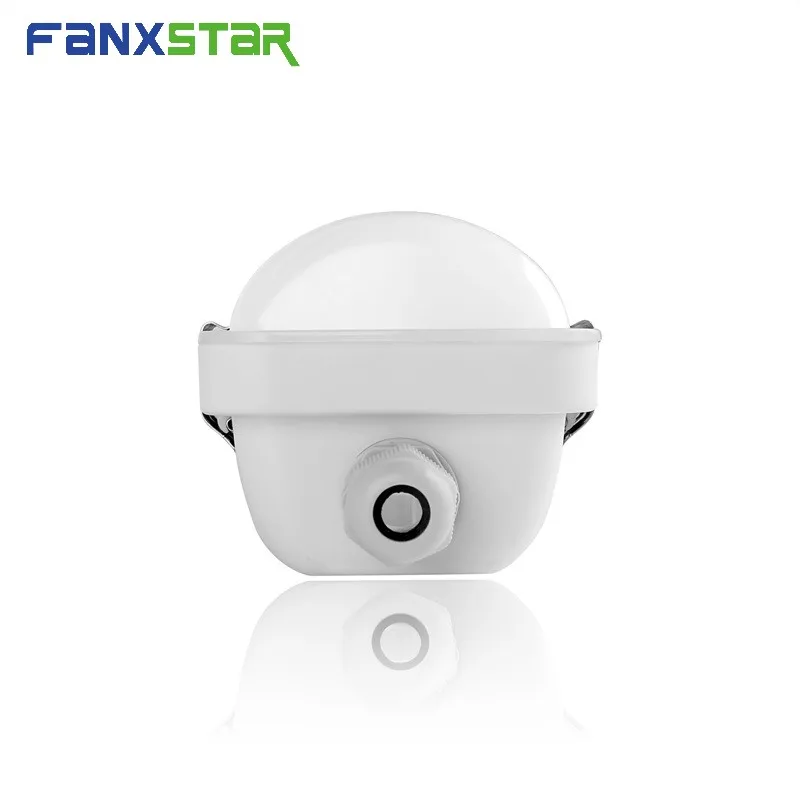

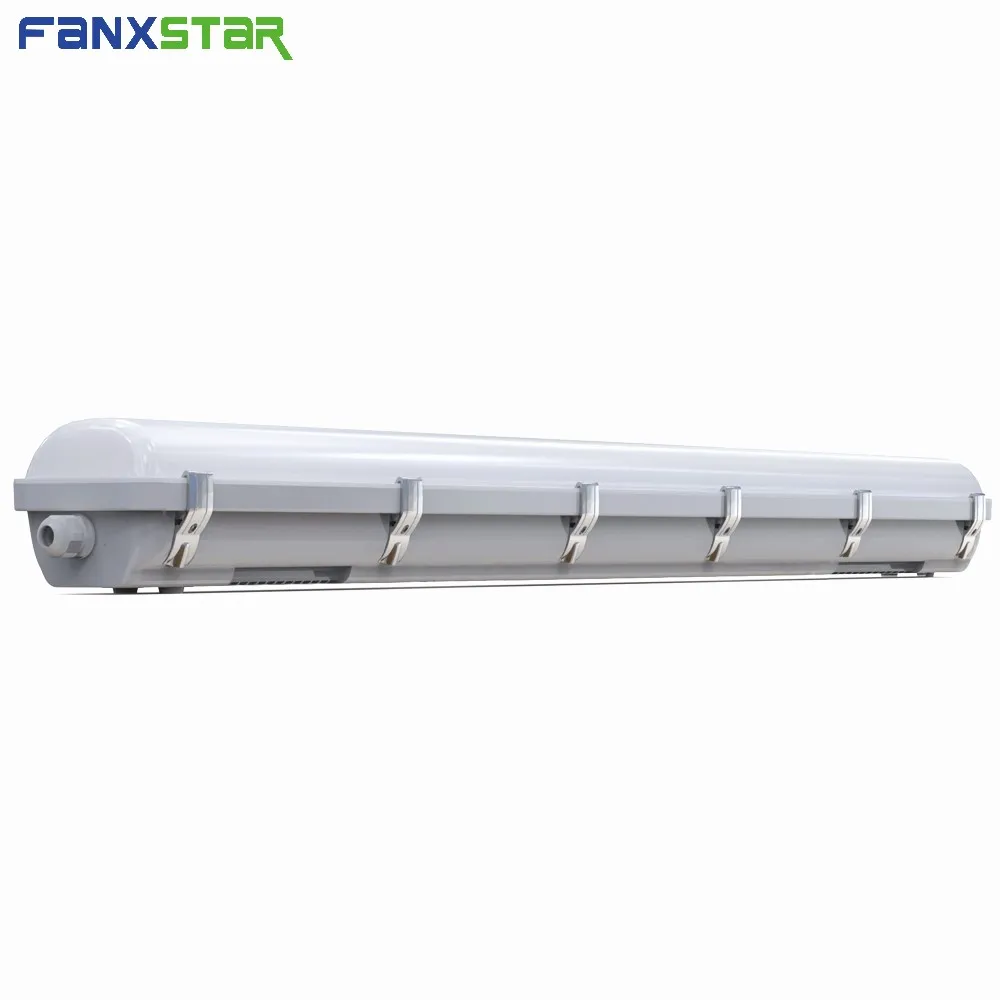

FANXSTAR LED Tri proof luminaire Trilamp A7 Specification



















































































































Item



Part Number



A7-2FT20-MMK-LS



A7-4FT30-MMK-LS



A7-5FT40-MMK-LS



Description



Low-voltage LED weatherproof Batten Light



Working



Mode of Operation



Low-voltage, 10VPWM



Input



Voltage&Frequency



24-36-48Vac/dc , 60Hz

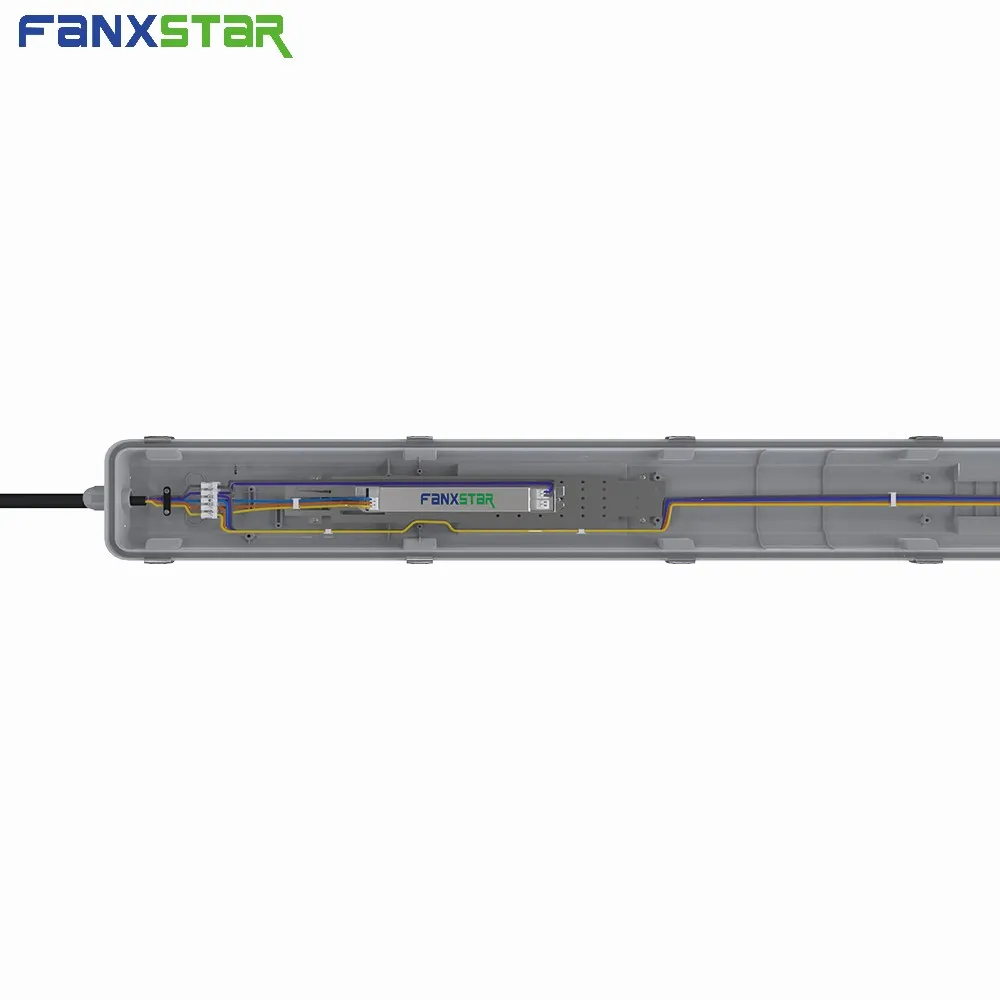

Wiring Connection



923 terminal blocks, Loop in and Loop out



Output



Light Source



High lumens SMD2835



Color Temperature



MM=27-65 stands for 2700-6500K orTri-CCT(3000K/4000K/5700K)



Luminous Flux



140lm/w±10%



Power Consumption



20W



30W



40W



Controls



Protection



Overcharge, low voltage disconnect, overcurrent, short circuit



Multimode



Brightness Control



Physical



Construction



Diffuser - high transmission opal polycarbonate, chassis -polycarbonate

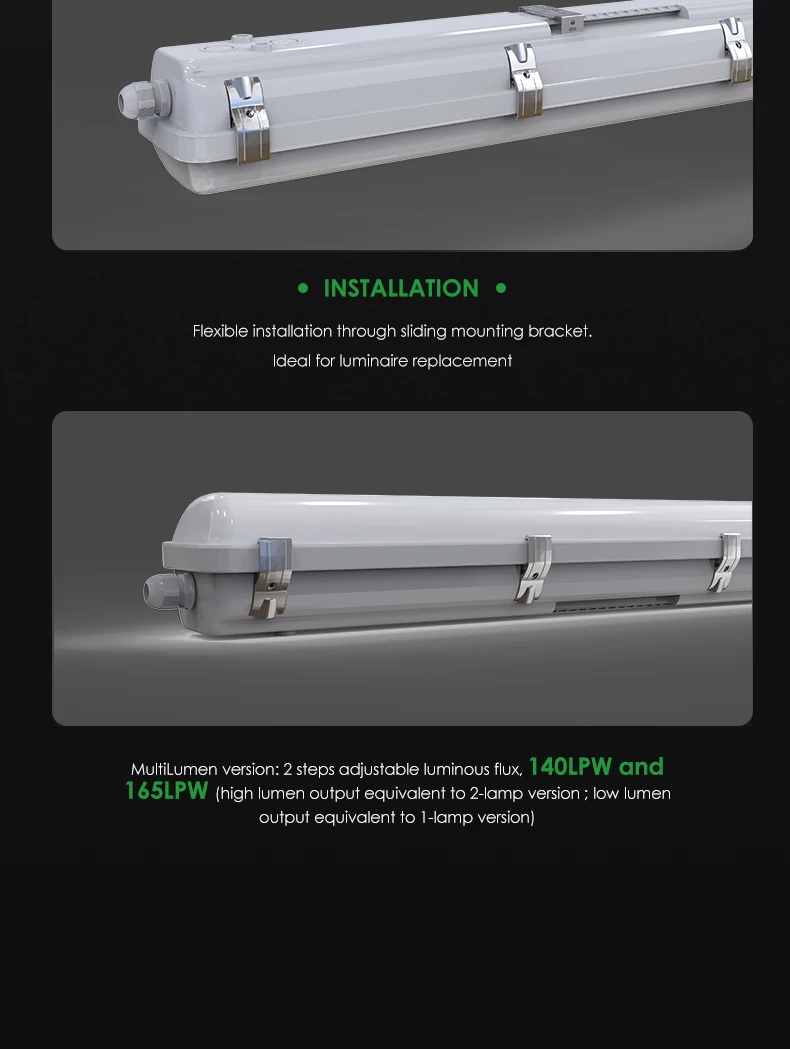

Mounting



Surface mounted - ceiling / wall /suspend



Colour



Gray RAL7035



Dimensions L x W x H(mm)



600x95x83



1200x95x83



1500x95x83

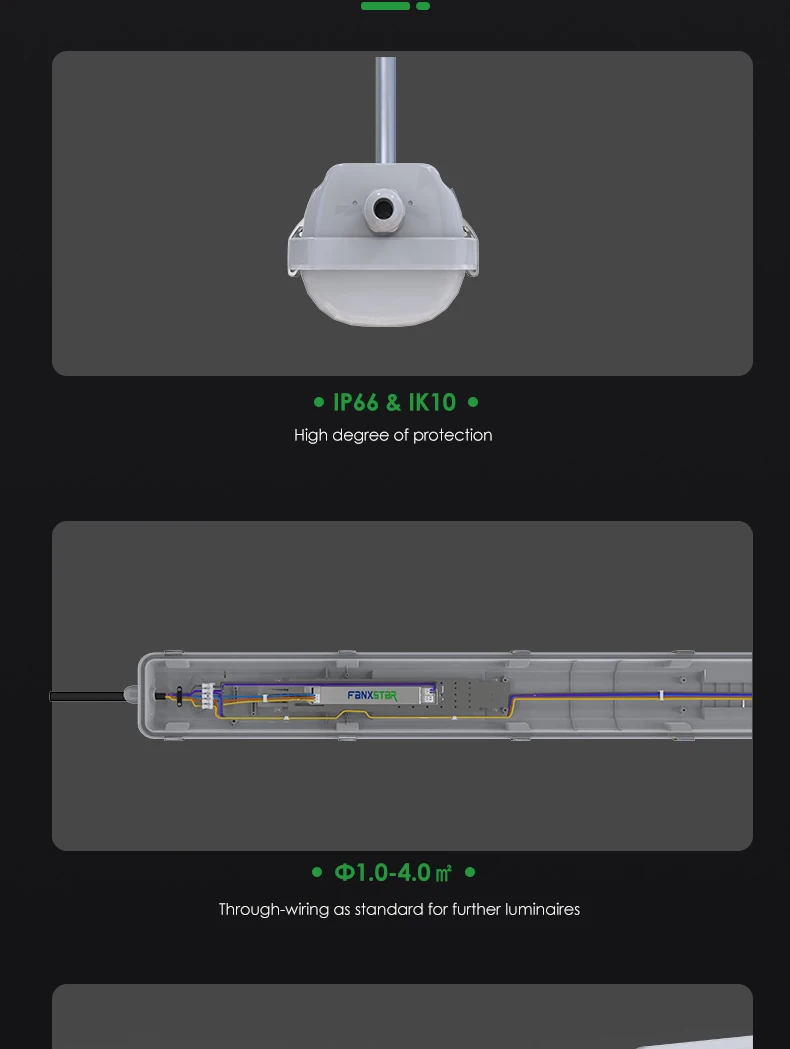

IP/IK Rating



IP66 & IK10



Weight



1.2kg



2.2kg



2.8kg



Warranty



5 years on product



Environment



Operating Temperature



-30° to 50°C



Relative Humidity



-10 to 95%



Compliance



Standards



CE/UKCA/RCM



Accessories

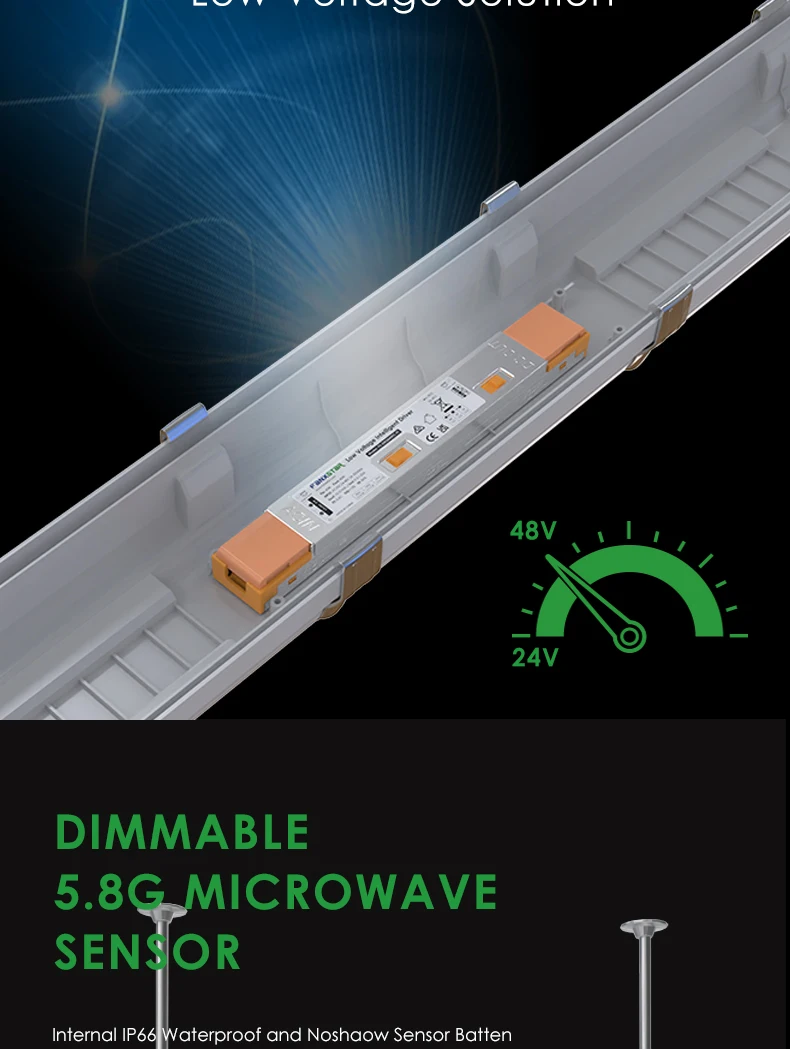

Dimming Sensor



P/N: A7-LS: MS010/MS010R/MS010ER



Remote Control



MR002
