Epever off the grid Solar Tracking Storage Control Solar Charge Controller 12v 24v 30a
- Category: >>>
- Supplier: HK Ecopower Co. LimitedHK Limited
Share on (1601236016911):
Product Overview
Description
Product Paramenters
Parameter | Tracer3210AN G3 | |
Electrical Parameters | ||
Battery Rated Voltage | 12/24VDC ① Auto-recognition | |
Rated Charging Current | 30A | |
Rated Discharge Current | 30A | |
Controller Work Voltage Range | 8~31V | |
PV Maximum Open-circuit Voltage | 100V② 92V③ | |
MPPT Voltage Range | (Battery voltage +2V)~72V | |
Rated Charging Power | 390W/12V;780W124V | |
Static Losses | ≤8mA(12V);≤5mA(24V) | |
Discharge-circuit Voltage Drop | ≤0.23V | |
Temperature Compensation | -3mV/°C12V (Default) | |
Grounding Type | Common negative | |
RS485 Port | 5VDC/200mA(RJ45) | |
LCD Backlight Time ④ | Default:60S, Range:0~999S(0 seconds: the backlight is ON all the time) | |
Environmental parameters | ||
Work Temperature Range ⑤ | -25°C~+45°C(100% loads working) | |
Storage Temperature Range | -20°C~+70°C | |
Relative Humidity | <95% (N.C.) | |
Enclosure | IP30 | |
①When a lithium battery is used, the system voltage isn't automatically identified. ②At minimum operating environment temperature. ③At 25°C environment temperature. ④When a lithium battery is used, the temperature compensation coefficient wil be 0 and can't be changed. ⑤The controller can full load working in the working environment temperature. When the internal temperature reaches 81C, the reducing chargingpower mode is turned on. | ||
Mechanical parameters | ||

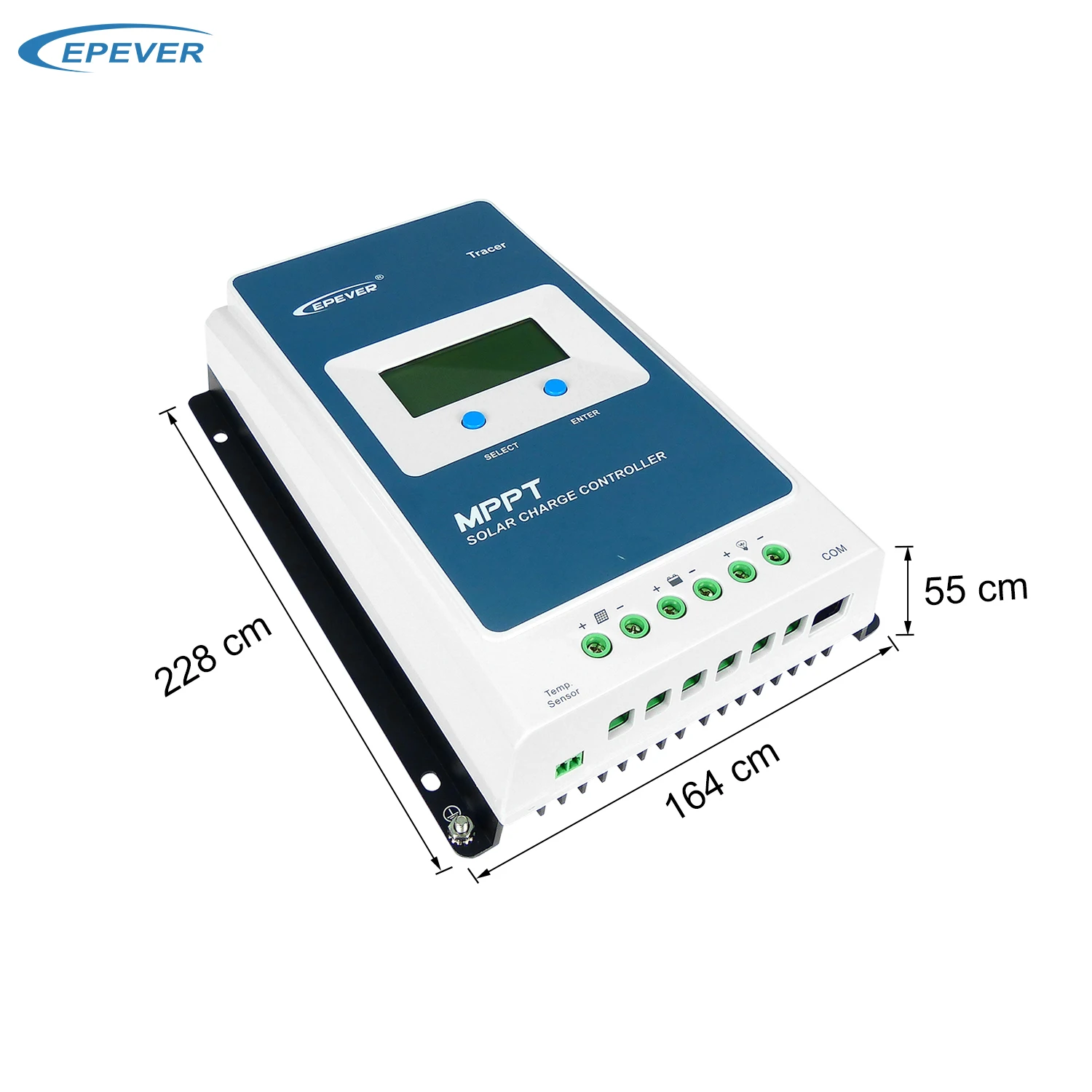

Dimension(LxWxH) | 228x164x55mm | |
Mounting Size(LxW) | 170x155mm | |
Mounting Hole Size | Ф5mm | |
Terminal | 6AWG(16mm2) | |
Recommended Wire Size | 8AWG(10mm2) | |
Net Weight | 1.26kg | |
The Tracer-AN series controller owns a self-adaptive three-stage charging mode based on a digital control circuit. It can effectively prolong the battery lifespan and significantly improve the system'sperformance. They are equipped with comprehensive electronic protections to ensure the solar system ismore reliable and durable. This controller can be widely used for RV, household systems, field monitoring, and many other applications. | ||
