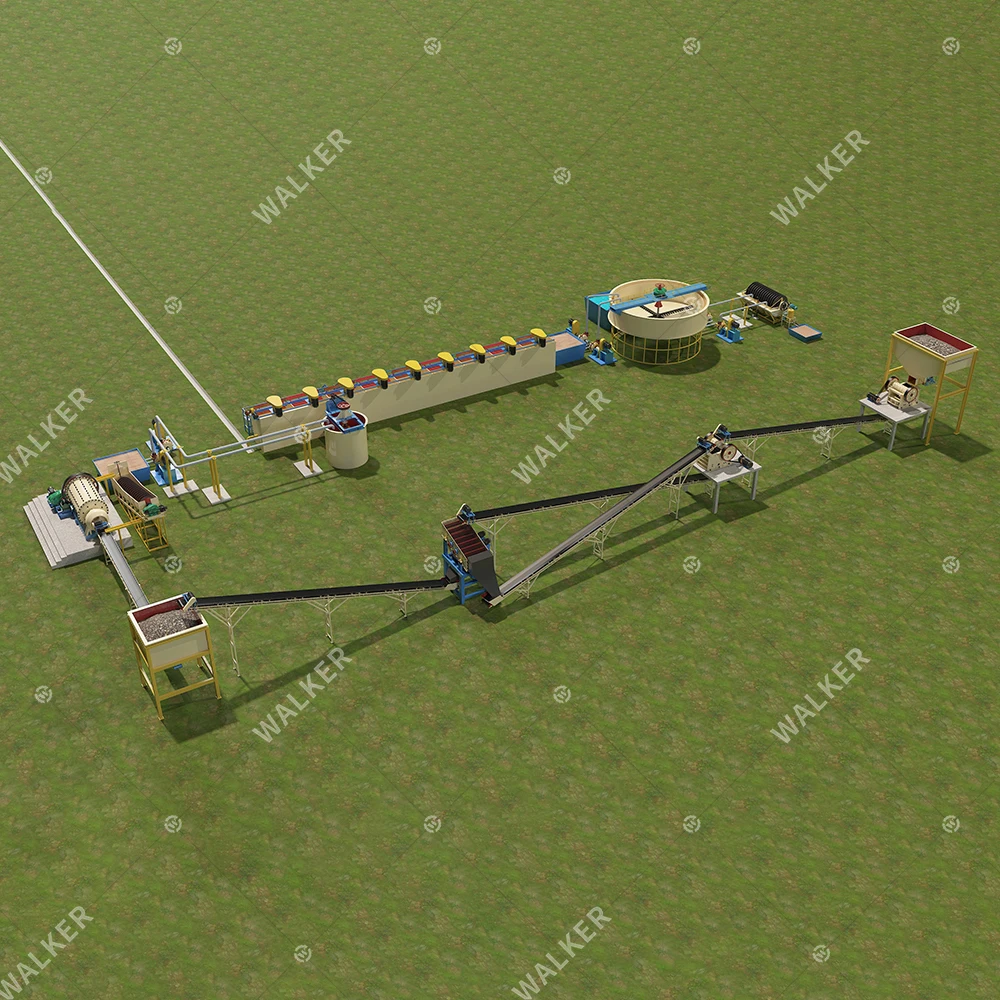

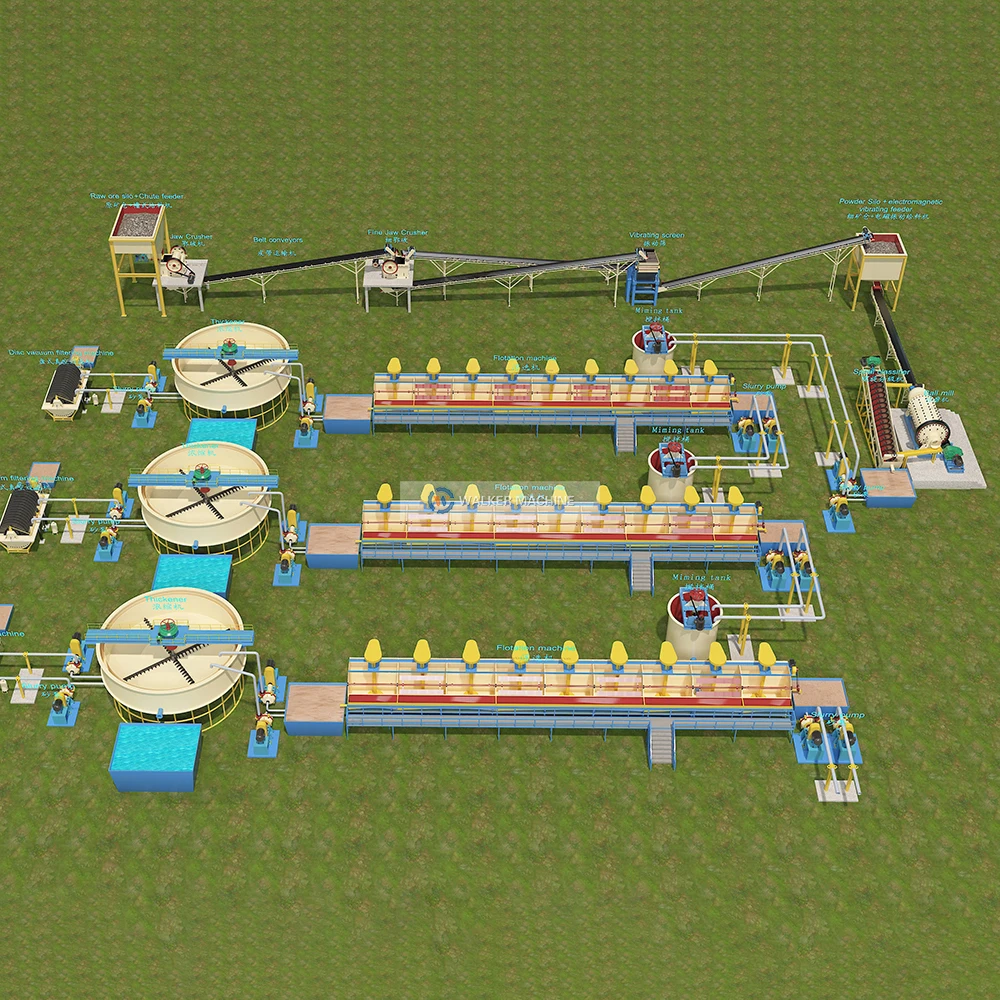

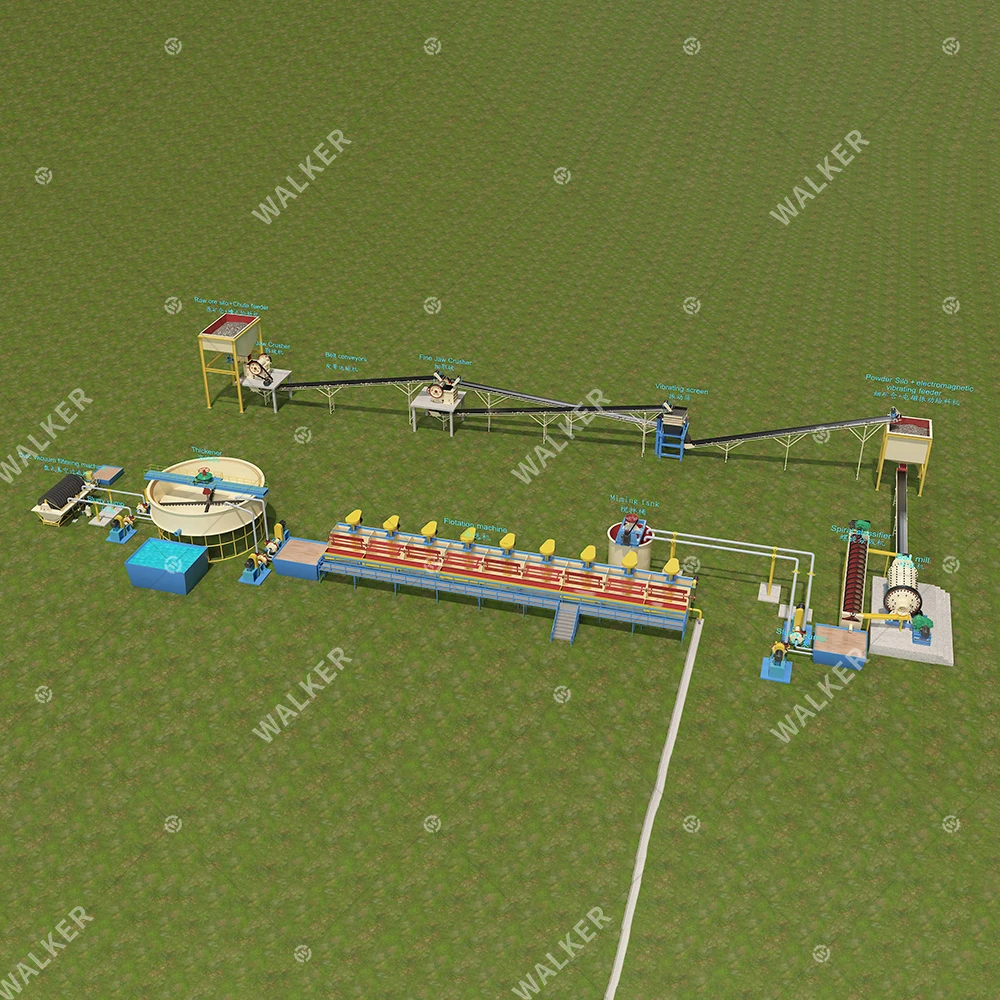

100TPD Mineral Ore Concentrate Equipment Graphite Processing Plant For Sale
- Category: >>>
- Supplier: Jiangxi Walker Machinery Co. Ltd.
Share on (1601236049765):
Product Overview
Description
Product Description

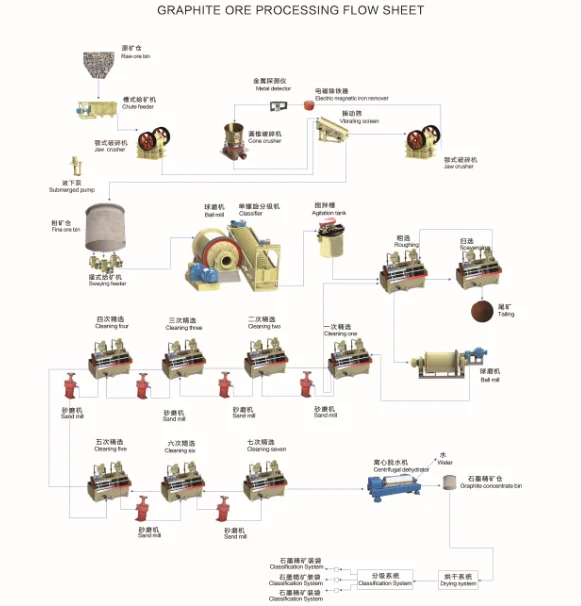

Graphite mineral processing flowsheet
Graphite beneficiation method include flotation, electrostatic separation, gravity separation, etc. Flotation is the most widely used process. Graphite mineral processing are mainly suitable for all kinds of graphite with different crystal habit and graphite accompany with mica, etc silicate minerals or pyrite. Beneficiation method: flotation, electrostatic separation, gravity separation, etc. Flotation is the most widely used process.
Ore knowledge
Graphite ore include amorphous graphite and flaky graphite. Amorphous graphite also call cryptocrystalline graphite. This ore have small graphite crystal, surface is earthy and industrial performance is not good. But this graphite ore have high grade, general 60-80%. But its flotability is bad. After flotation, the grade have no remarkable increase. Thus, if the grade is lower than 65%, shall not be mined, the grade between 65-80%, selection and then use. The feature of Flaky graphite is the graphite present as flaky or foliated, raw ore grade is not high, general 3-5%, can't
Exceed 20-25%. This graphite ore have good flotability and grade can up to 90% after flotation. So, raw ore grade with 2-3% can be mined. Flaky graphite have good performance and can be used to make advanced carbon product. So, we can't only consider the grade for different graphite, but also the type, then decide whether use the flotation process.

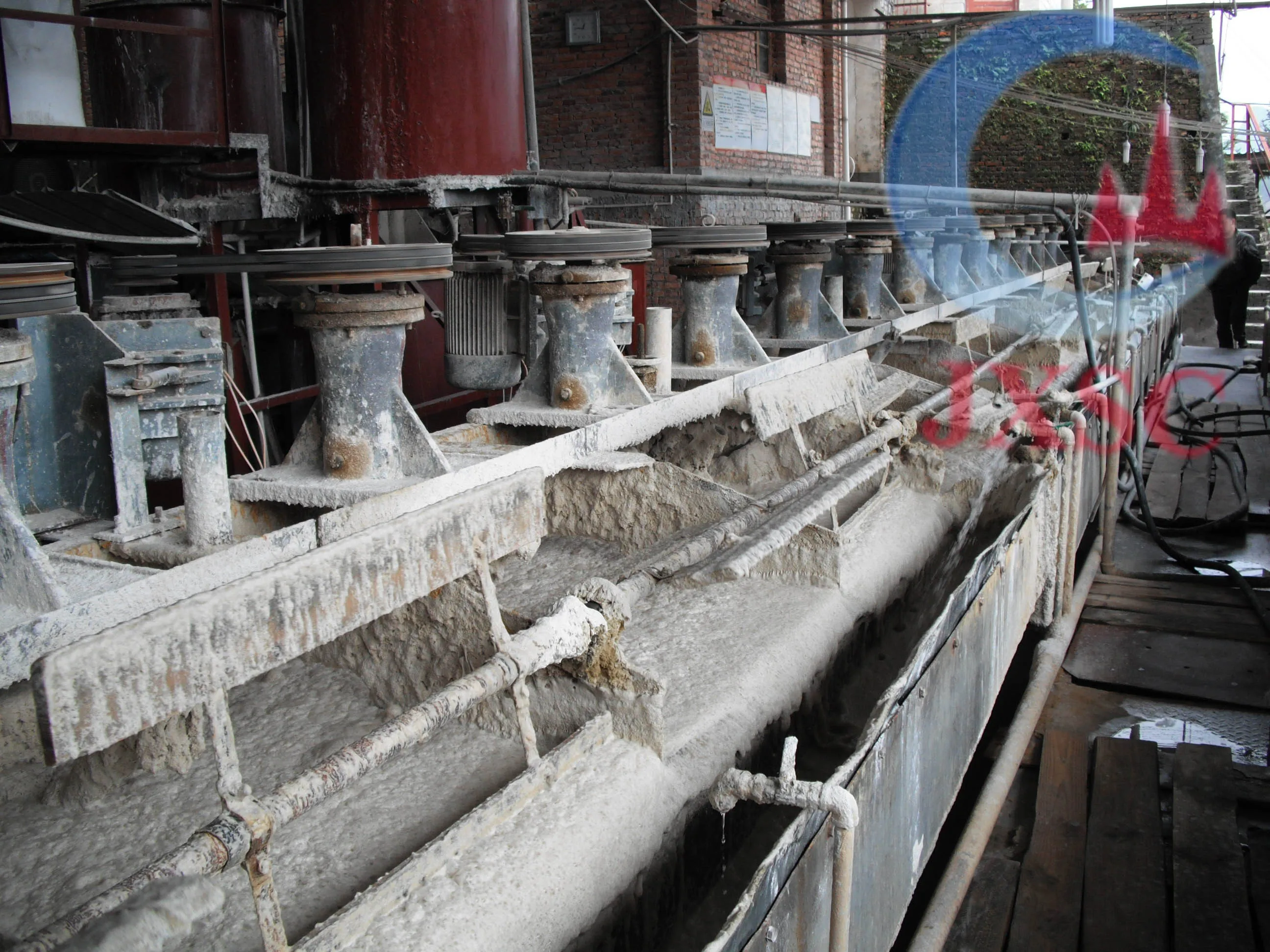

Flaky graphite have good flotability, so mostly use flotation to select. In China, generally use the kerosene or diesel as collector, 2# oil or new flotation oil as foaming agent. After many years production practice, 4# oil are considered as ideal foaming agent for graphite.
Generally, Cryptocrystalline graphite associate with mica etc silicate minerals. When flotation, can use starch, dextrin, organic glue, cellulose, etc agent to control the silicate minerals, for example, if the pyrite content is high, add lime and oxide.
Exceed 20-25%. This graphite ore have good flotability and grade can up to 90% after flotation. So, raw ore grade with 2-3% can be mined. Flaky graphite have good performance and can be used to make advanced carbon product. So, we can't only consider the grade for different graphite, but also the type, then decide whether use the flotation process.
Flaky graphite have good flotability, so mostly use flotation to select. In China, generally use the kerosene or diesel as collector, 2# oil or new flotation oil as foaming agent. After many years production practice, 4# oil are considered as ideal foaming agent for graphite.
Generally, Cryptocrystalline graphite associate with mica etc silicate minerals. When flotation, can use starch, dextrin, organic glue, cellulose, etc agent to control the silicate minerals, for example, if the pyrite content is high, add lime and oxide.
Introduction
Process flowsheet
1. multistage grinding multistage flotation
To prevent graphite flakes from breaking, generally use multistage grinding multistage flotation process. After multi grinding and flotation, the concentrated graphite will meet the requirements.
2. gravity and flotation united process
For graphite associated with heavy mineral, generally use gravity and flotation united process to select, that use gravity separation to separate heavy mineral firstly, then use flotation to process the light mineral.

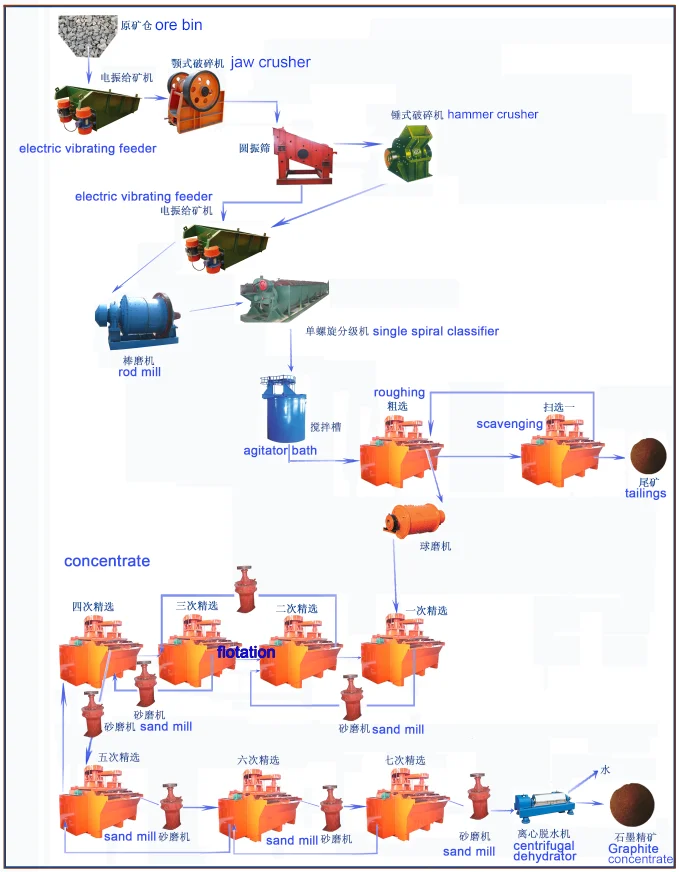

Detailed crystalloid graphite mineral processing flowsheet:
Generally, graphite ore's hardness is medium hard or medium hard soft, grade is between 2-10%, crushing process is simple, use three-stage open circuit, two-stage open circuit or one-stage crushing flowsheet. Flotation process include multistage grinding, multistage selection, middlings return in order or concentrated. Multistage process have three form, that is concentrate regrinding, middlings regrinding, tailings regrinding. Crystalloid graphite most use concentrate regrinding process, normally, the recovery ratio can up to around 80%.
Cryptocrystalline graphite mineral processing flowsheet: although Cryptocrystalline graphite have high grade, it is different to separate. Cryptocrystalline graphite have low flotability and flotation only can preliminary concentrate, normally, use hand picking and then levigating for sale.
1. multistage grinding multistage flotation
To prevent graphite flakes from breaking, generally use multistage grinding multistage flotation process. After multi grinding and flotation, the concentrated graphite will meet the requirements.
2. gravity and flotation united process
For graphite associated with heavy mineral, generally use gravity and flotation united process to select, that use gravity separation to separate heavy mineral firstly, then use flotation to process the light mineral.
Detailed crystalloid graphite mineral processing flowsheet:
Generally, graphite ore's hardness is medium hard or medium hard soft, grade is between 2-10%, crushing process is simple, use three-stage open circuit, two-stage open circuit or one-stage crushing flowsheet. Flotation process include multistage grinding, multistage selection, middlings return in order or concentrated. Multistage process have three form, that is concentrate regrinding, middlings regrinding, tailings regrinding. Crystalloid graphite most use concentrate regrinding process, normally, the recovery ratio can up to around 80%.
Cryptocrystalline graphite mineral processing flowsheet: although Cryptocrystalline graphite have high grade, it is different to separate. Cryptocrystalline graphite have low flotability and flotation only can preliminary concentrate, normally, use hand picking and then levigating for sale.
Main Products

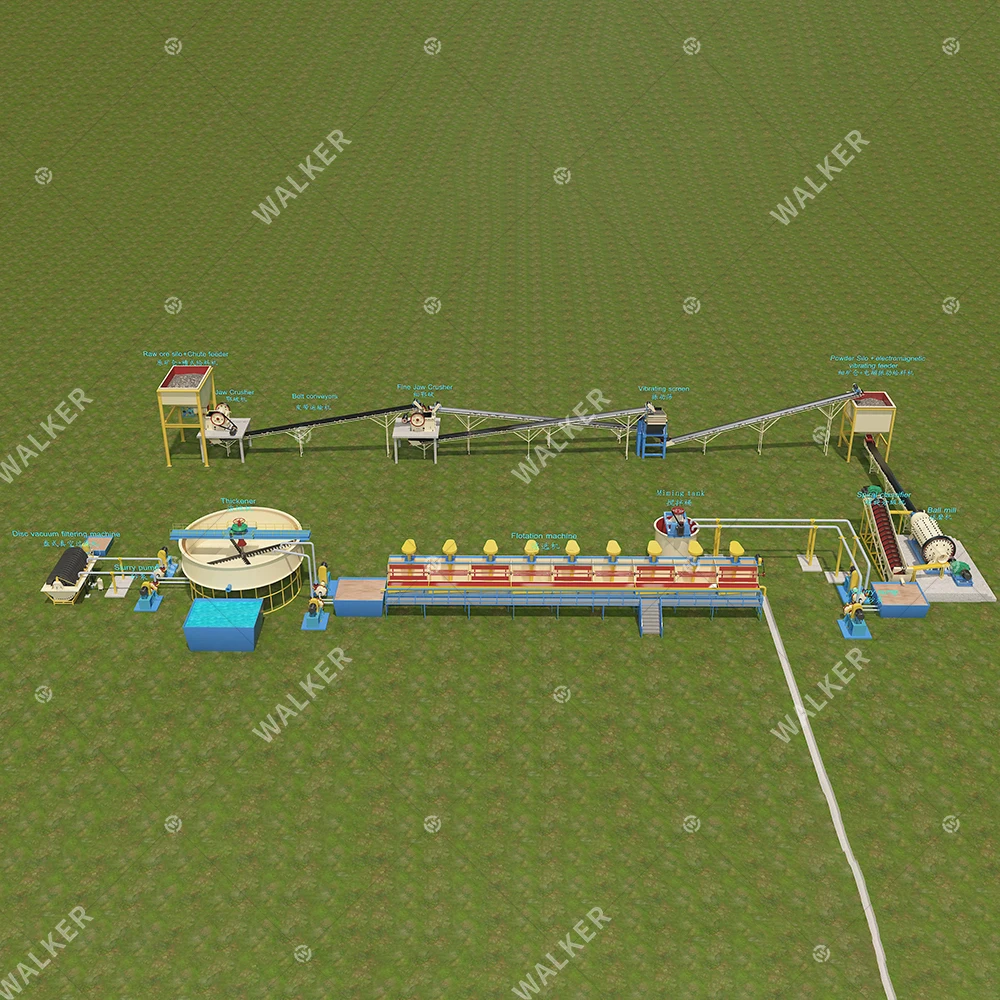

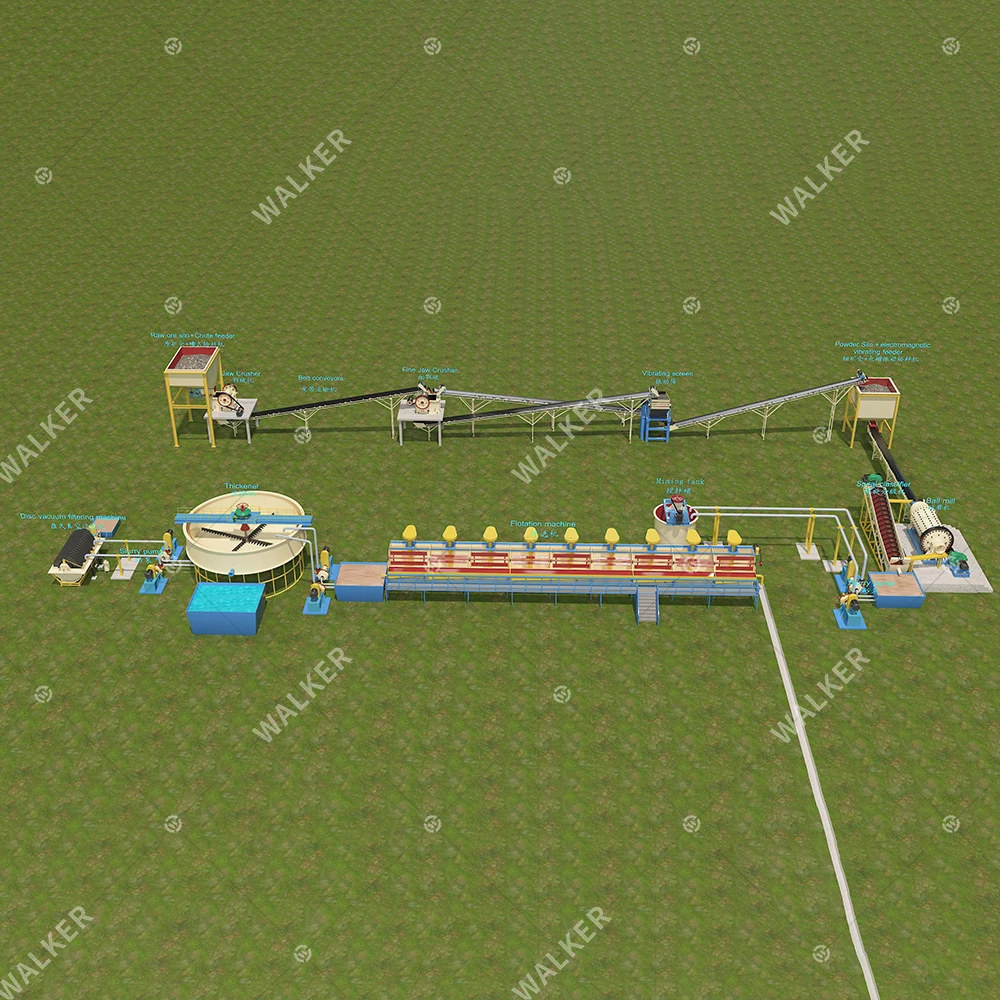

We have professional engineers team to draw flowchart based on customer's ore site details.

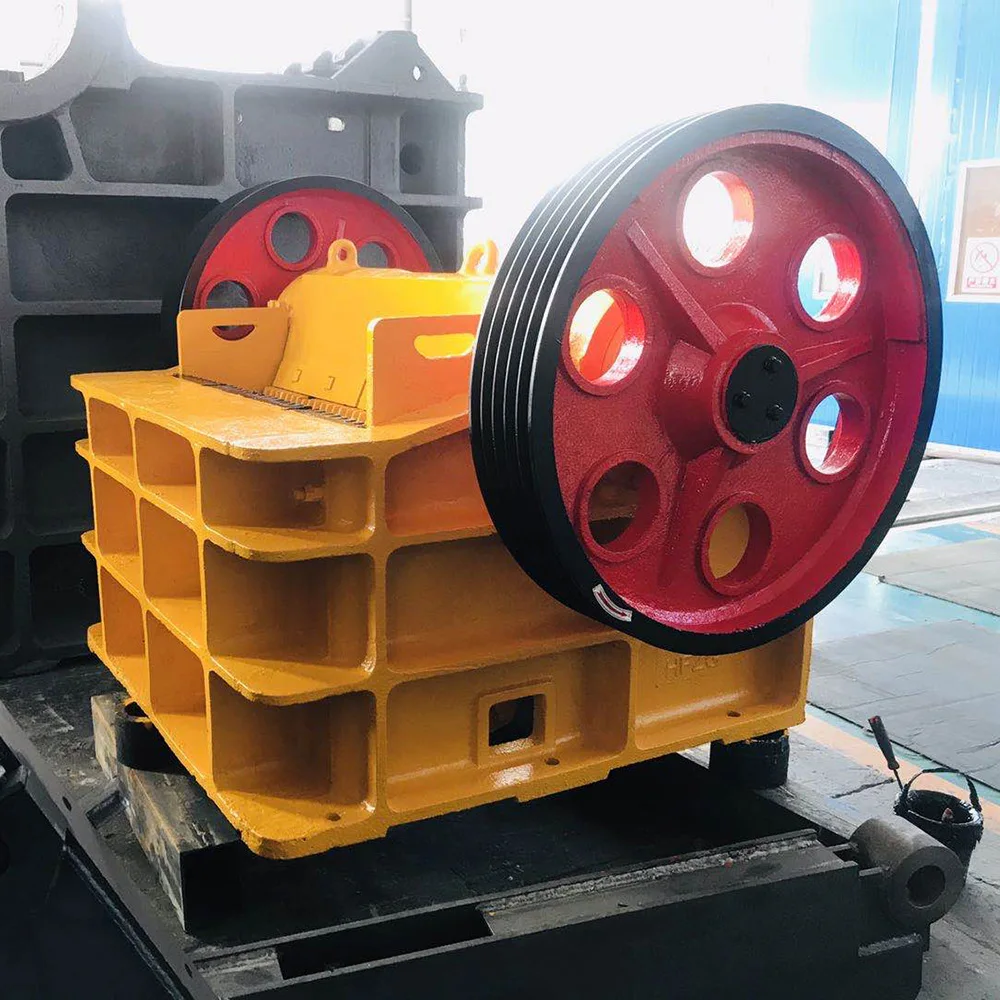

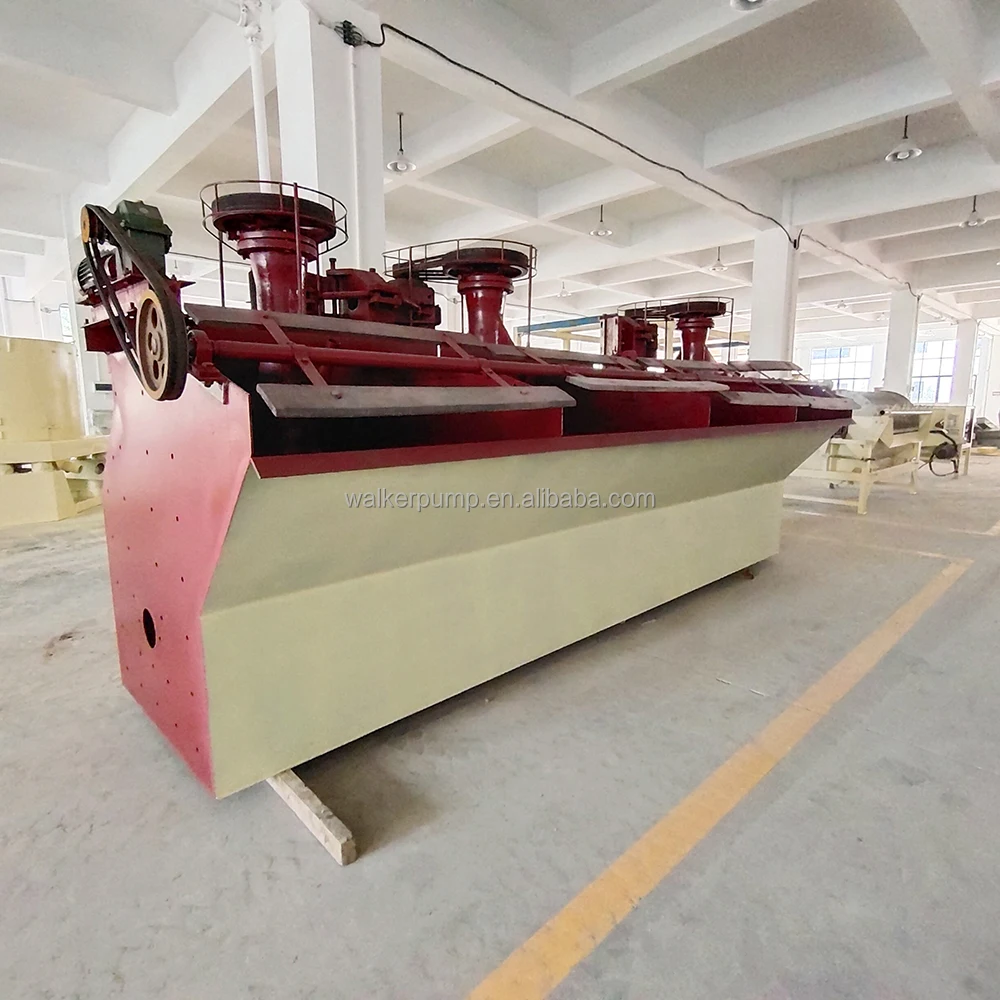

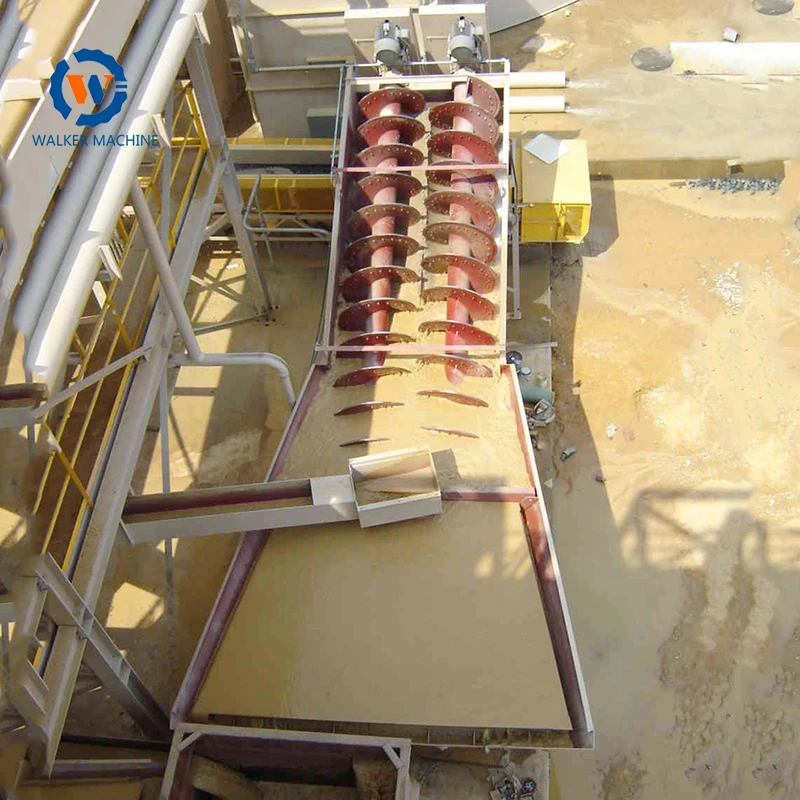

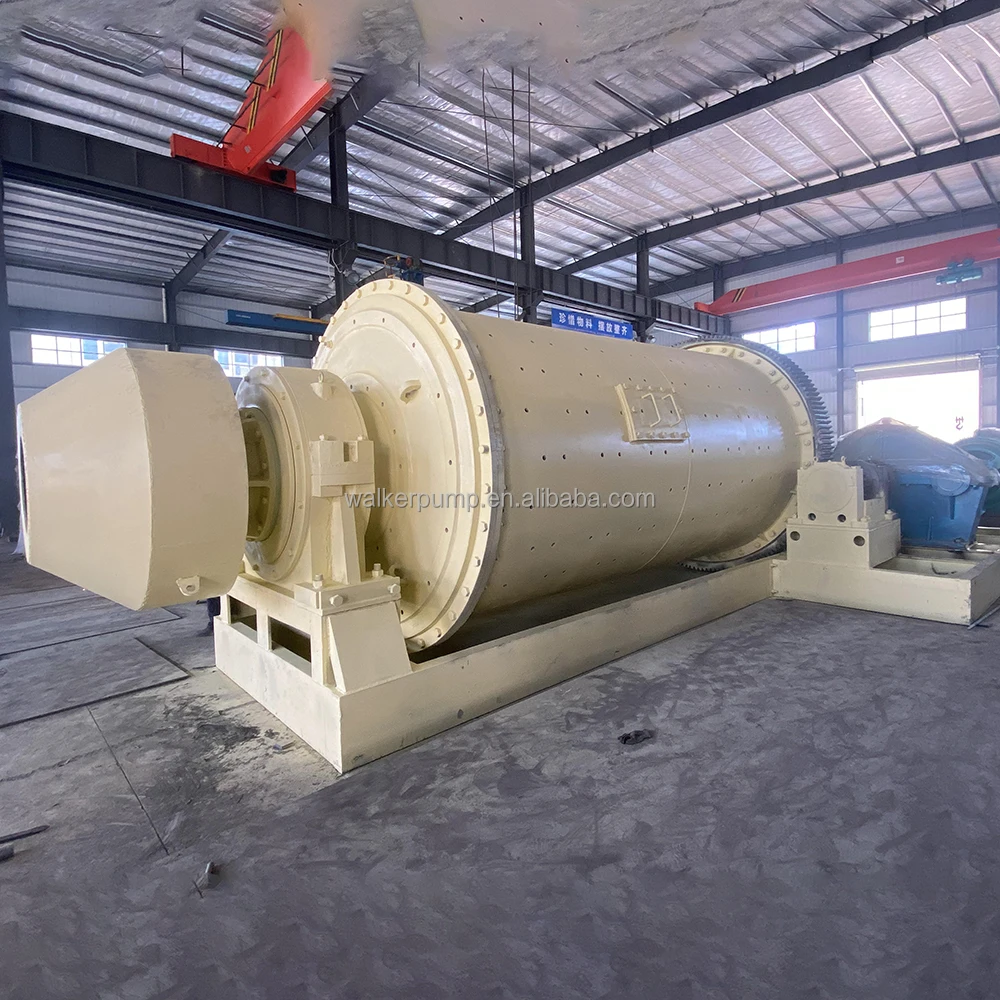

We supplied full set equipment: Jaw crusher, Ball mill, Spiral classifier, Flotation Machine, Disc filter, Thickener, Agitation tank.

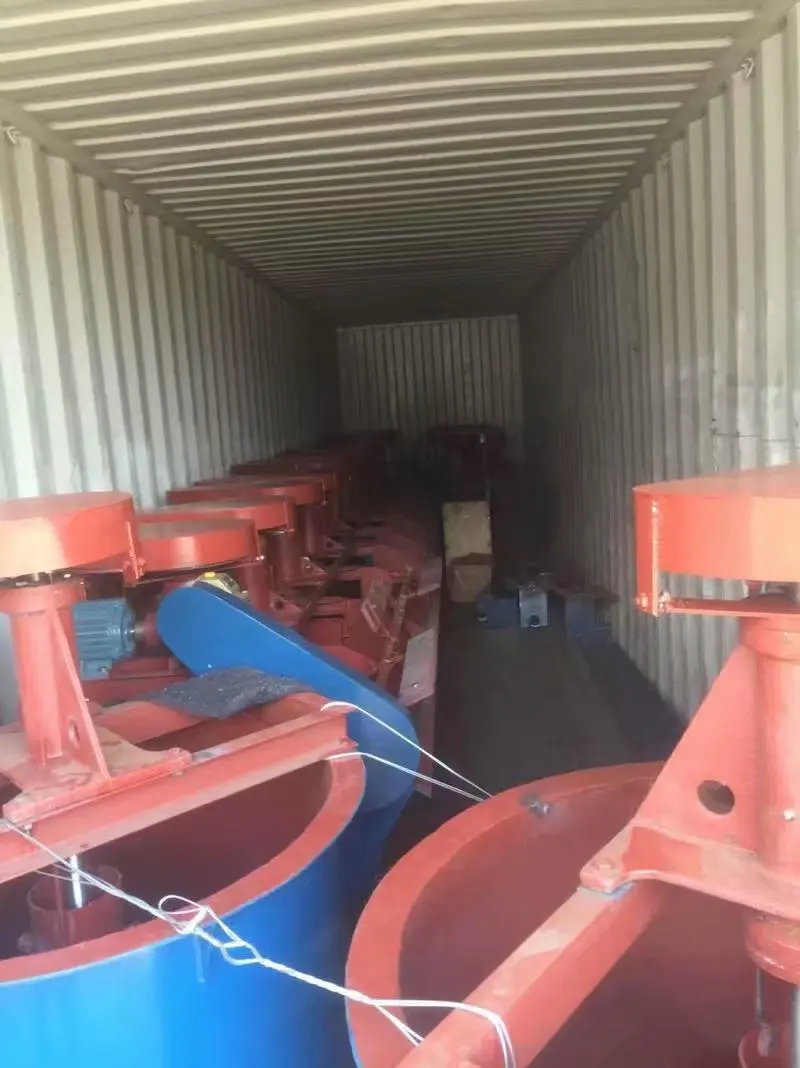

Packing & Delivery
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Company Introduction
Jiangxi walker Machinery Co.,Ltd, are a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province.professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our core advantages as below:
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional ming soolution consulting
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional ming soolution consulting
1.Inquiry and consulting support. 2.Ore sample testing support. 3.View our Factory. 4.Design Flowchart. | 1.Training how to instal the machine, training how to use the machine. 2. 1 year warranty . 3.Engineers available to service machinery overseas. |
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
