Optimum Heating Effect Home Apartment Floor Heating Parts Strip Electrothermal Heating Film
- Category: >>>
- Supplier: Nuanjia Graphene Carbon New Energy (qingdao) Co. Ltd.Nuanjia Ltd.
Share on (1601236087503):
Product Overview
Description
Product Description
Product Description

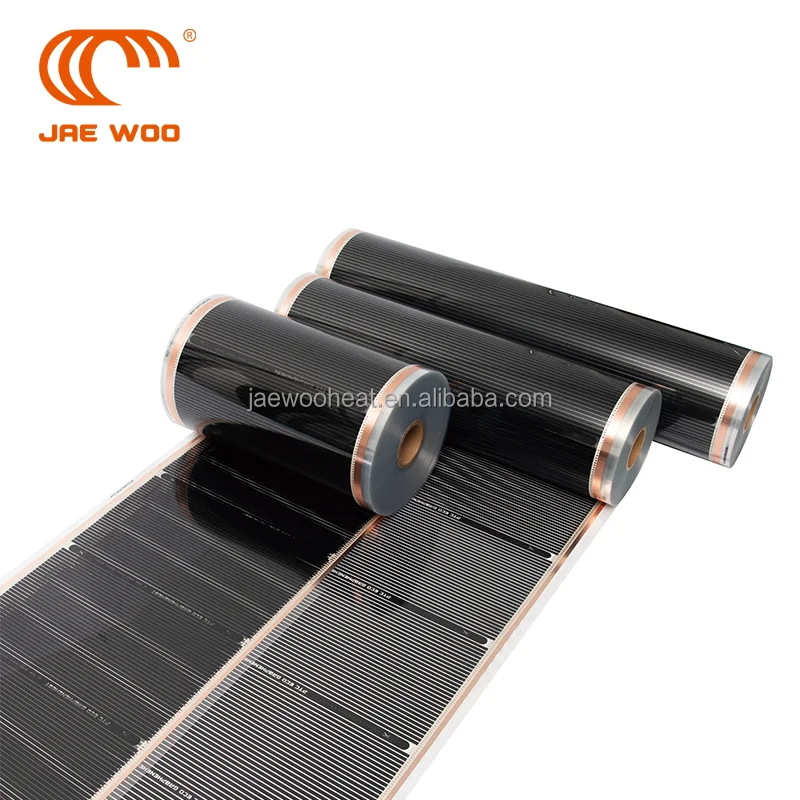

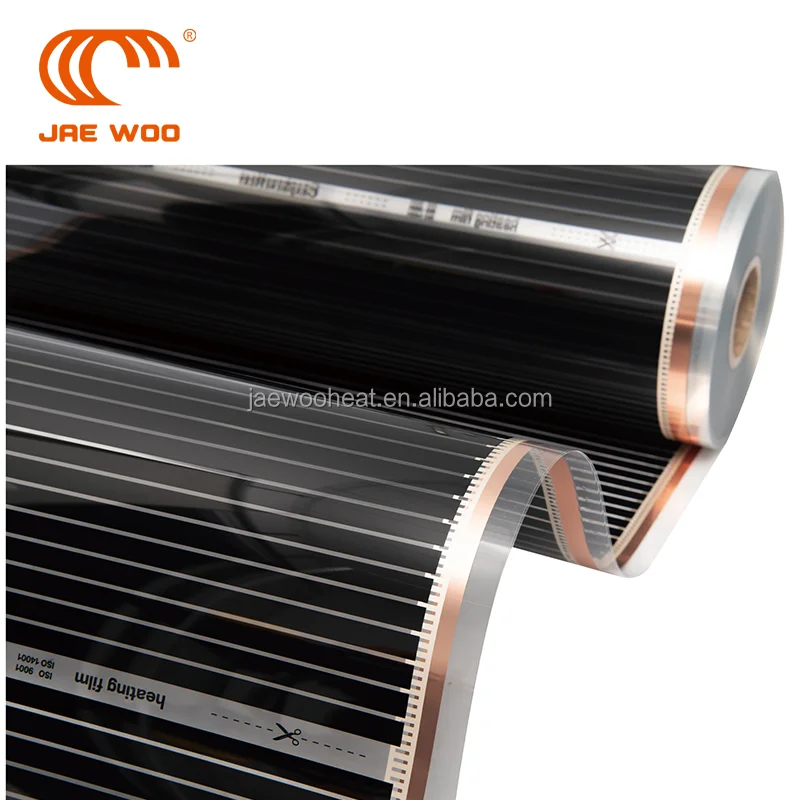

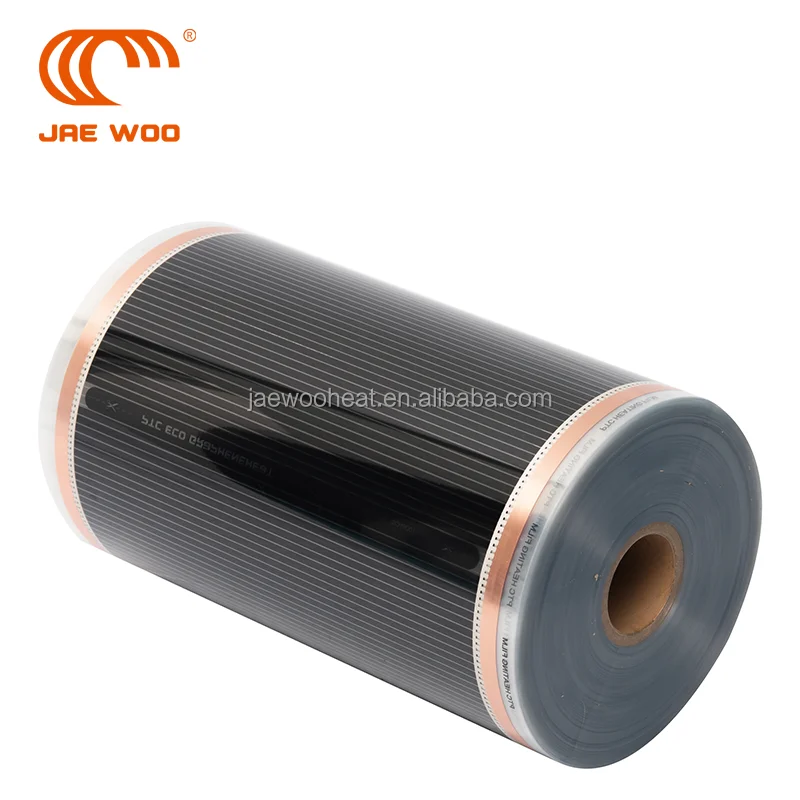

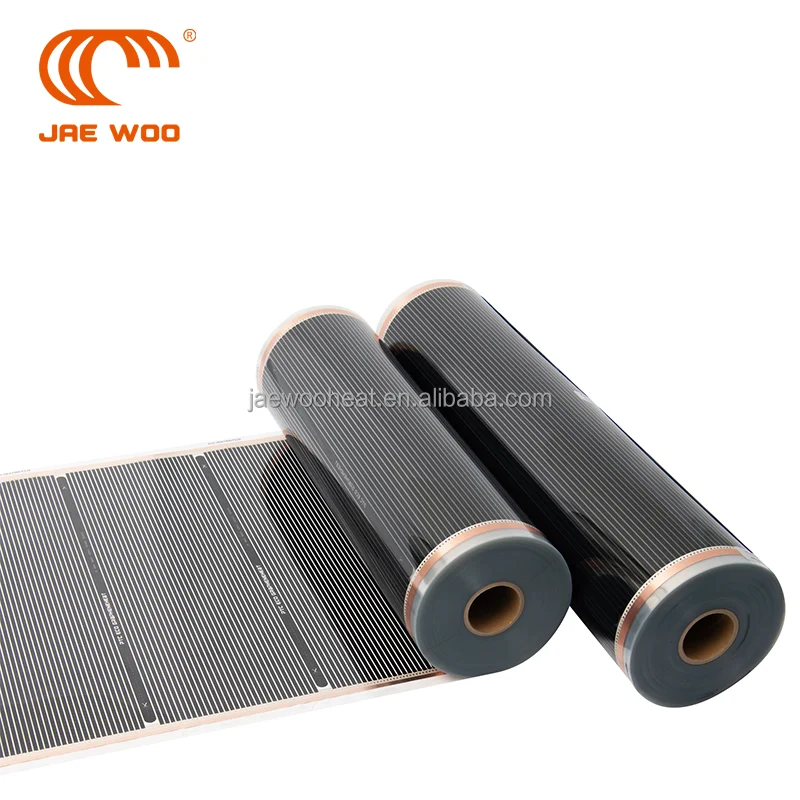

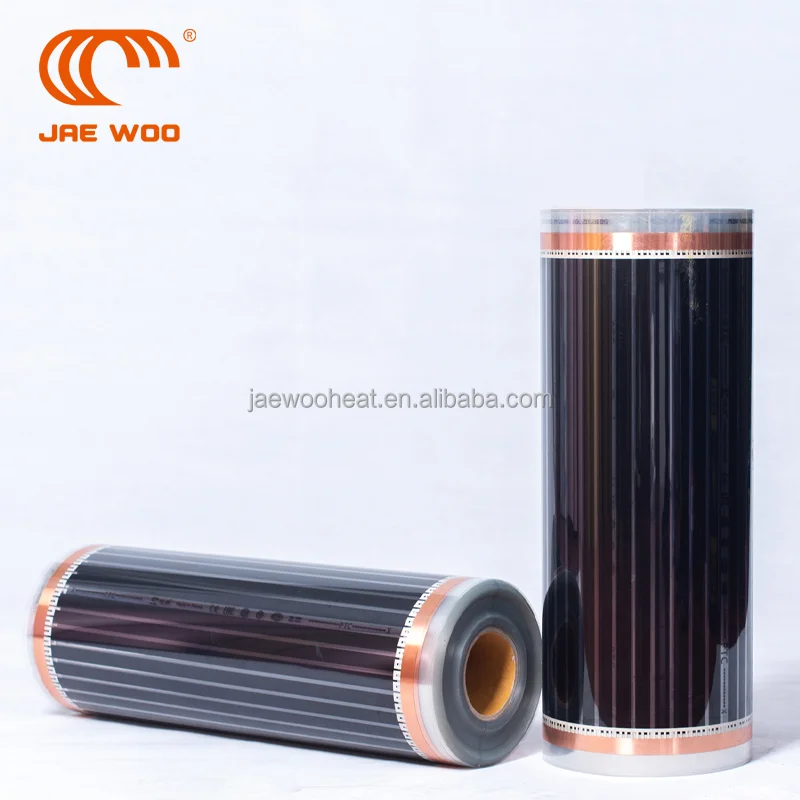

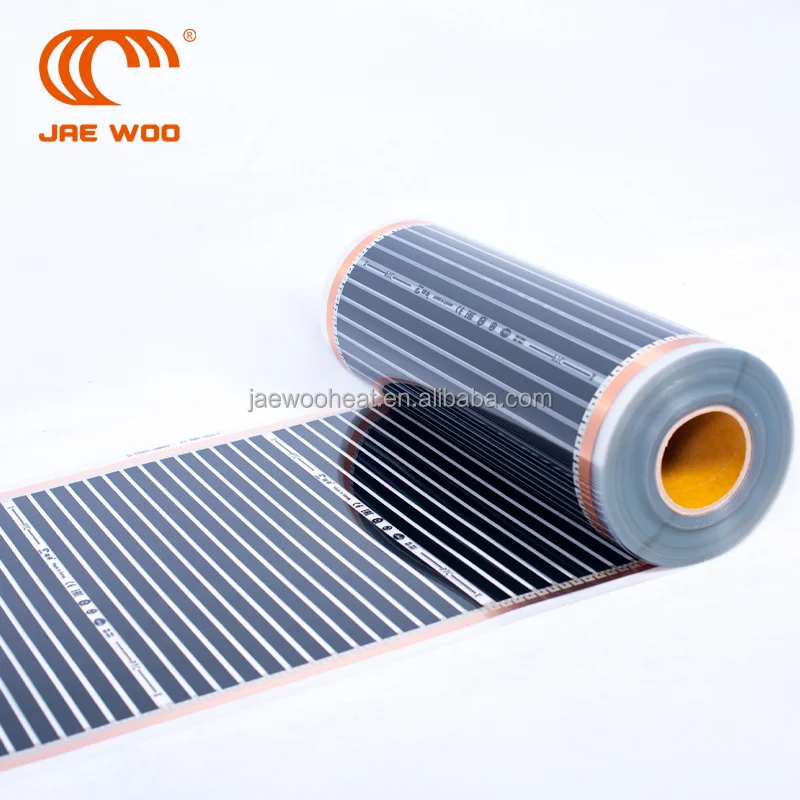

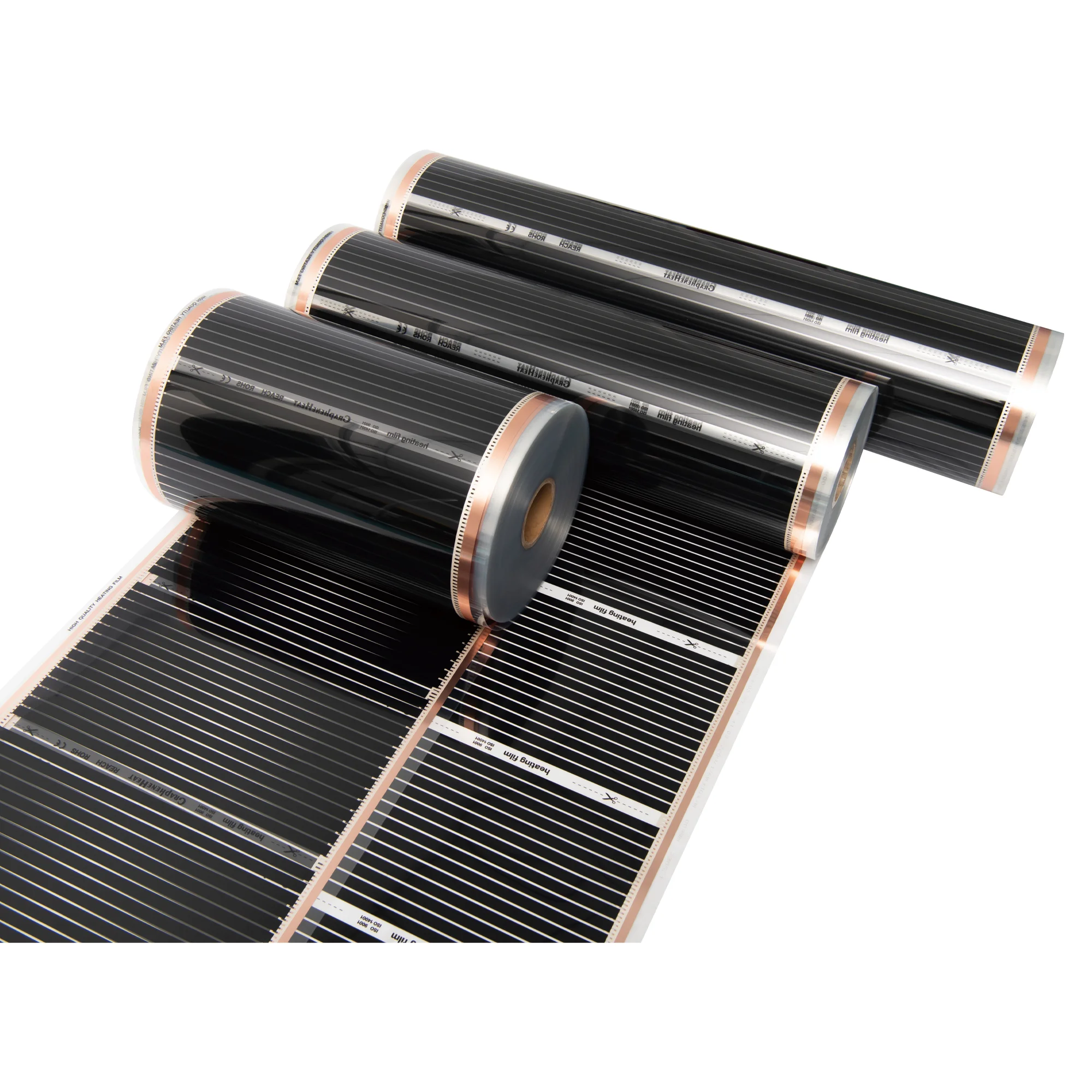

Low temperature radiation electrothermal film is a kind of polyester film that can generate heat after being electrified. It is made of electrically conductive special ink and metal current carrying strips, which are processed and hot-pressed between insulating polyester films. When working, carbon or graphene is used as a heating element to send heat into the space in the form of infrared radiation, which first warms the human body and objects. Its comprehensive effect is superior to traditional convection heating methods. The electric system consists of a power supply, a temperature controller, connectors, an electric heating film, and a decorative laver. The principle of electrothermal film heating is that under the action of an electric field. The carbon molecules in the heating body generate a "Brownian motion", causing severe friction and impact between the carbon molecules. The generated heat energy is transmitted externally in the form of far infrared radiation, and the conversion rate between electric energy and heat energy is very high.

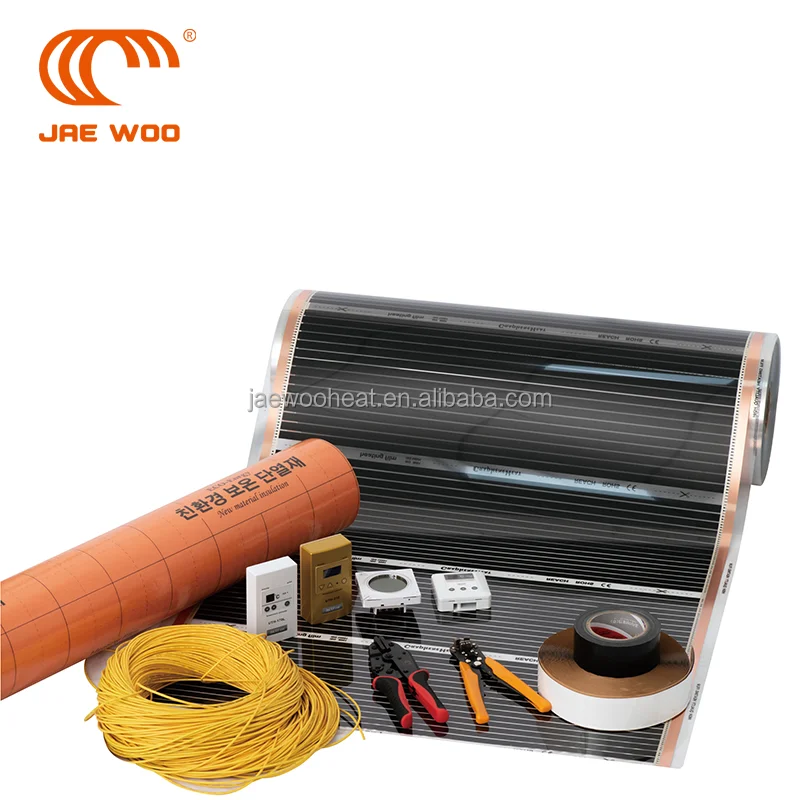

Reminding: the price is only for heating film and does not include installation accessories. If you need the installation accessories, please purchase them separately.
Specification
Product Specifications
The main parameters are as the following:
Product Name | Graphene Underfloor Heating Film |
Material | Graphene Carbon, Pure copper strip,Silver paste |
Color | Clear |
Shape | Strip |
Power | 220W/m2 |
Mains Voltage | 220V |
Heating Film Size | 50cm*150m |
Heating Fim Thickness | 0.338mm |
Size after packaging | 30*30*53cm |
Gross weight | 36KGs |
Cutting line | 25cm of each |
Heating Film Sample | Free(The shipping cost will be borne by the buyer) |
Heating Film Warranty | 5 years |
Film melting point | 180 ℃ |
The share of IR rays in the total spectrum | 95.60% |
Efficiency of converting electricity into thermal energy | 96%-98% |
Surface temperature can achieve after covering | in the range from 39 to 49 ℃ |
Feature | No PTC; Work with a thermostat; |
Average daily electricity consumption with thermostat | 30-40 W/㎡ |
Work Scene
Application AreaThe heating film is widely applied to:
1. Buildings: residential communities, hotels, office buildings, hospitals, schools, villas, senior apartments, kindergartens, libraries, shopping malls;
2. Home use: anti fog mirror, electric heating picture, electric foot mat, electric heated kang, writing desk board;
3. Industry: Tank insulation, pipeline tracing, warehouse, industrial plant;4. Agriculture: vegetable greenhouses, flower houses, incubators;
5. Transportation: platform heating, road snow melting;Exhibition
The exhibition we attended:
Precautions for installing electric heat film:
1. Determine the load of the electric heat film according to the area and wattage of the electric heat film, and configure the corresponding international high temperature resistant wires.
2. Select the temperature controller model and quantity based on the actual situation.

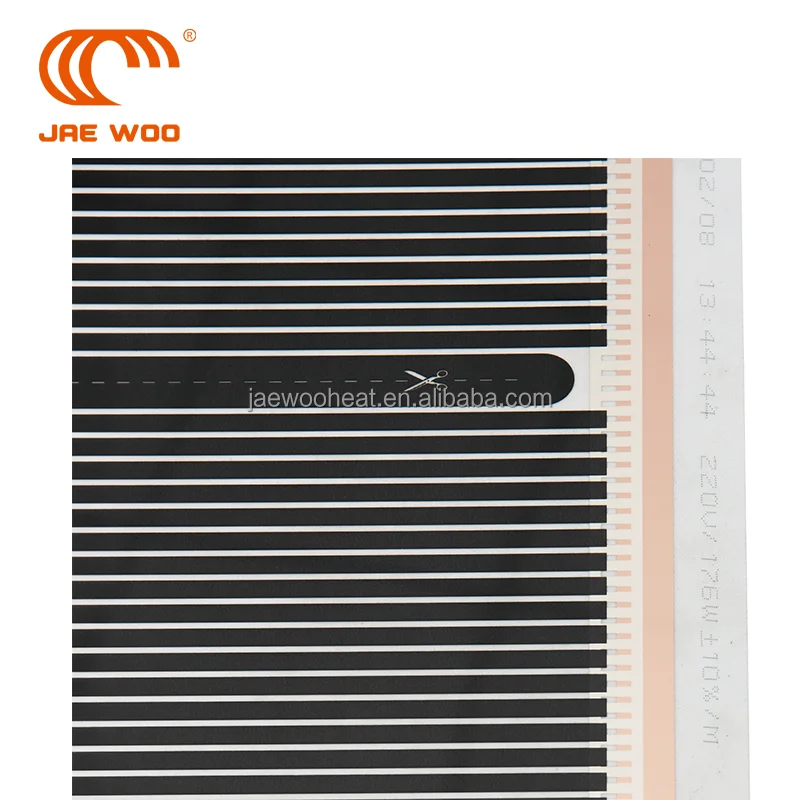

3. The electric thermal film must be cut according to the cut position.
4. The electric heat film must be laid face up according to the instructions. When laying, the electric thermal film should be flat, no folds, and need to be fixed with tape to prevent overlapping of the electric thermal film.
5. When installing, the electric thermal film should be at least 30 cm away from the wall with a window.
3. The electric thermal film must be cut according to the cut position.
4. The electric heat film must be laid face up according to the instructions. When laying, the electric thermal film should be flat, no folds, and need to be fixed with tape to prevent overlapping of the electric thermal film.
5. When installing, the electric thermal film should be at least 30 cm away from the wall with a window.

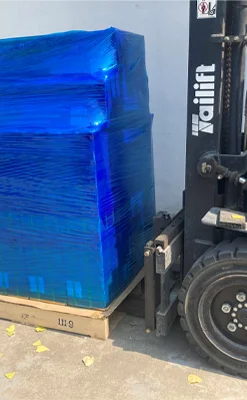

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

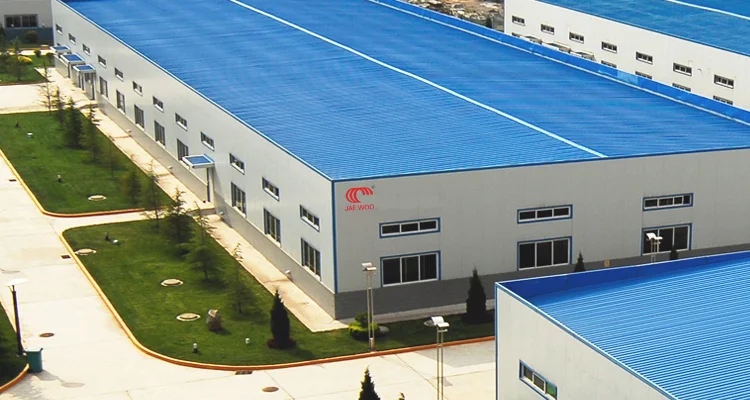

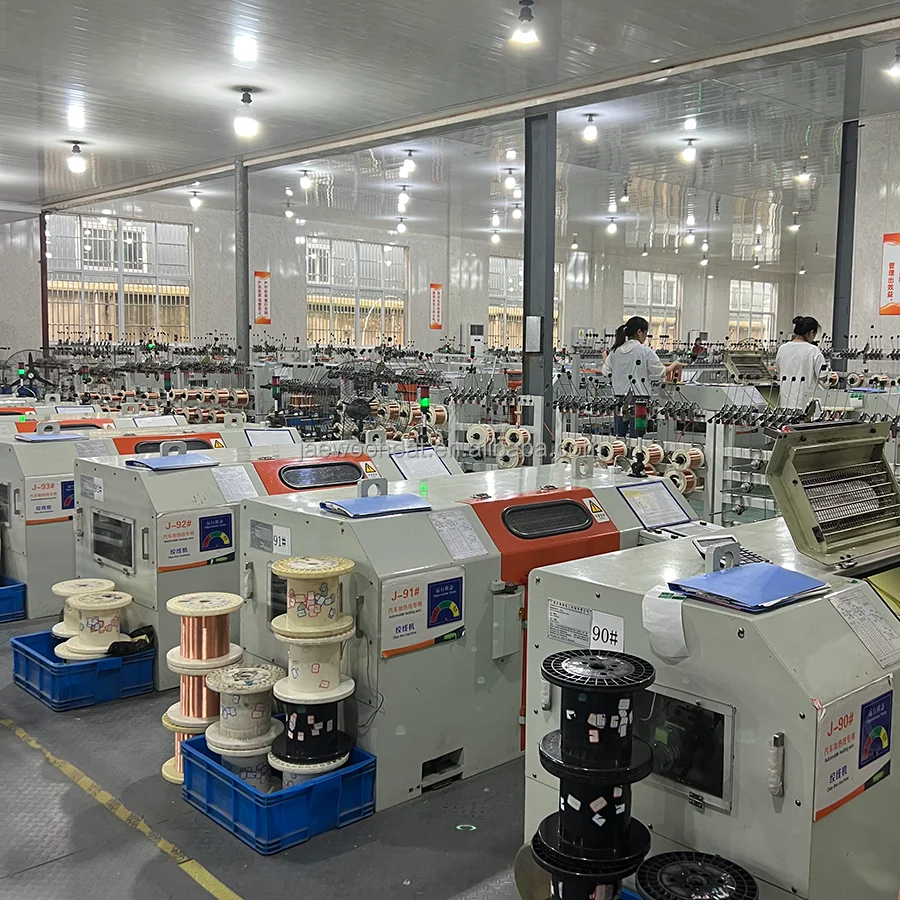

Company Profile
The advantages of electrothermal film are as follows:
1. The high voltage resistant electric heating film can withstand a test voltage of up to 3000V without breakdown.
2. The anti-aging materials for manufacturing electric heating film are all special materials with good characteristics, ant-aging, non deterioration, stable performance and long service life.
3. The moisture resistant electric heating film is made of polyester film and is waterproof as a whole.
4. High toughness. According to testing, he tensile resistance of the electrothermal film is about 20GK.
5. Small shrinkage. In aging tests, the shrinkage rate is minimal.
6. After testing, the performance and size of the electrothermal film have not changed significantly after 26000 hours of continuous operation at a surface temperature of 40℃.
7. Fully advanced heat sealing process ensures full polymerization between membranes without bubbles or delamination, ensure a close combination of the heating element and the current carrying strip.
8. The endurance radio thermal film can operate safely in an environment of- 20℃-50℃.
9. Brownian motion produces far infrared rays.
2. The anti-aging materials for manufacturing electric heating film are all special materials with good characteristics, ant-aging, non deterioration, stable performance and long service life.
3. The moisture resistant electric heating film is made of polyester film and is waterproof as a whole.
4. High toughness. According to testing, he tensile resistance of the electrothermal film is about 20GK.
5. Small shrinkage. In aging tests, the shrinkage rate is minimal.
6. After testing, the performance and size of the electrothermal film have not changed significantly after 26000 hours of continuous operation at a surface temperature of 40℃.
7. Fully advanced heat sealing process ensures full polymerization between membranes without bubbles or delamination, ensure a close combination of the heating element and the current carrying strip.
8. The endurance radio thermal film can operate safely in an environment of- 20℃-50℃.
9. Brownian motion produces far infrared rays.
10.Our company is the source production factory of graphene electrothermal film, supporting customization: voltage, power, width, color, etc. providing free design services.

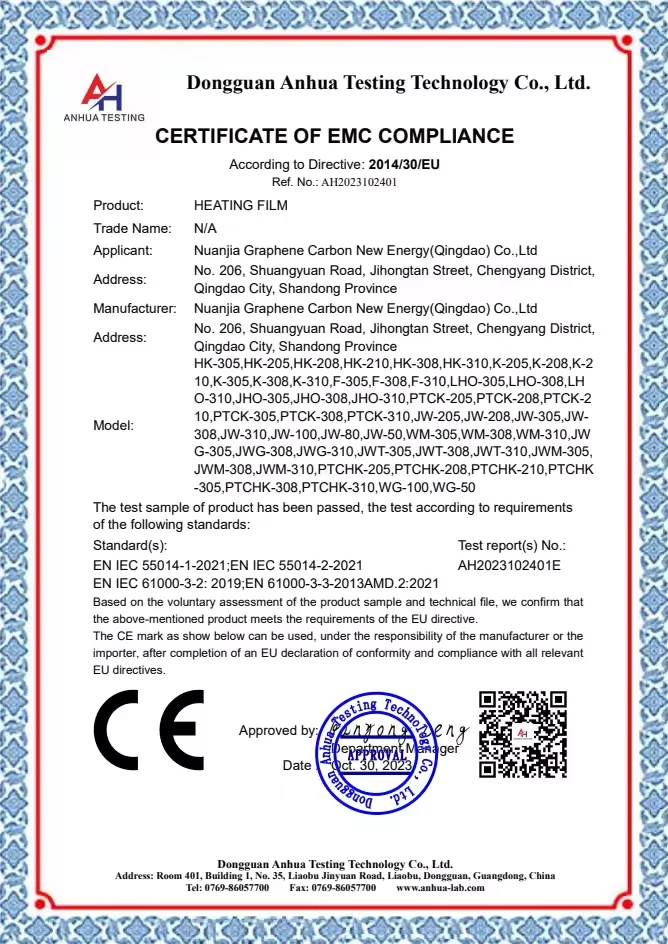

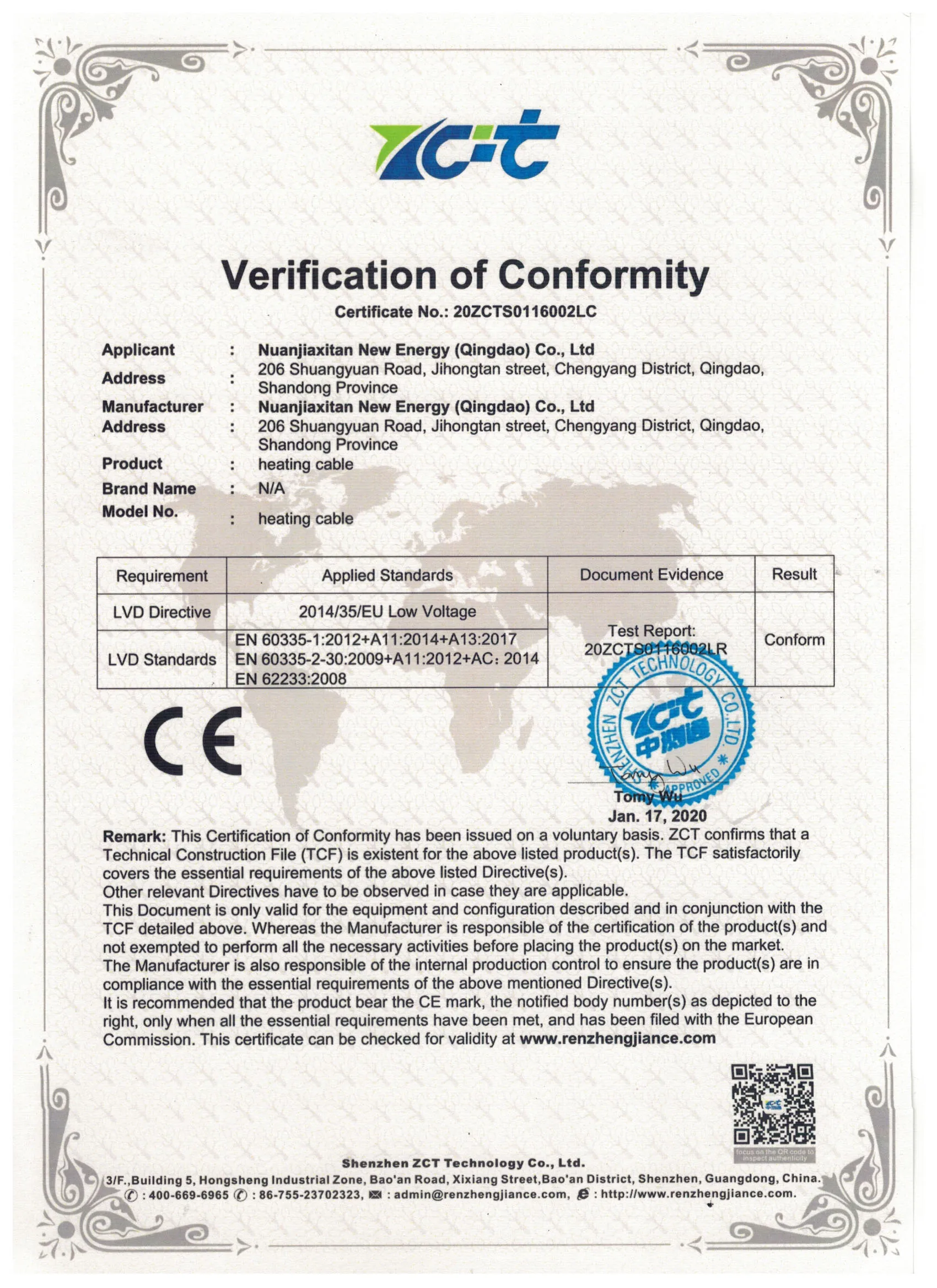

Certifications
FAQ
* Can it be used for floor heating?
* Agreed, it is part of floor heating system.
* Will installing heating film make the house shorter?
* The standard thickness of the product is 0.338mm, and other thicknesses can be customized, so it has almost no impact on the housing space.
* What's the advantage of the heating film?
* 1. High voltage resistant
* 2. Ant-aging, non deterioration, stable performance and long service life.
* 3. Waterproof.
* 4. High toughness.
* 2. Ant-aging, non deterioration, stable performance and long service life.
* 3. Waterproof.
* 4. High toughness.
* 5. Small shrinkage.
* How is the delivery speed?
* Standard products are in stock, ensuring fast delivery.
