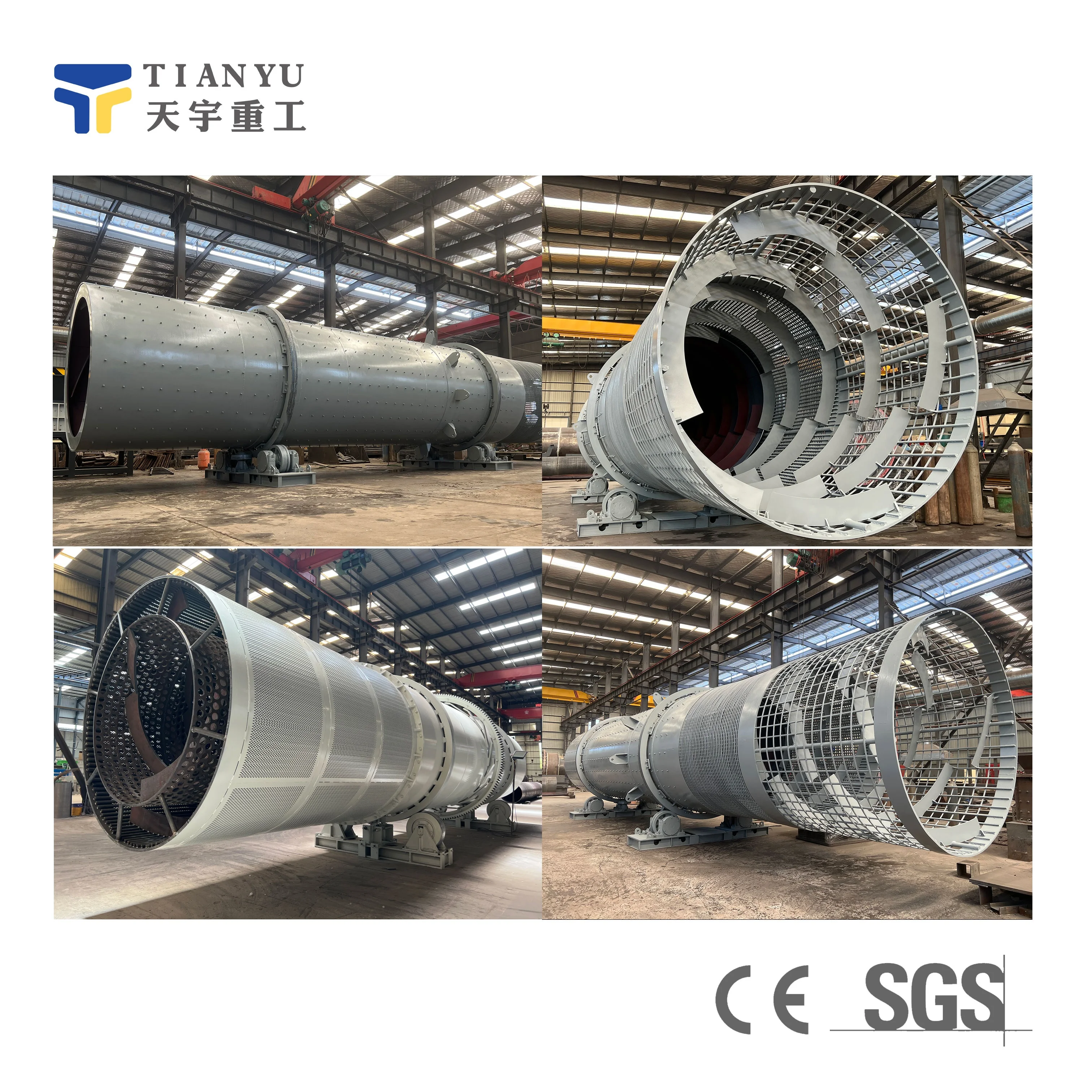

Mining machinery clay ore large size mud stone rotary drum stone washing machine with rotary screen
- Category: >>>
- Supplier: Zhengzhou Tianyu Heavy Industry Machinery Co. Ltd.
Share on (1601236207499):
Product Overview
Description
Product Description

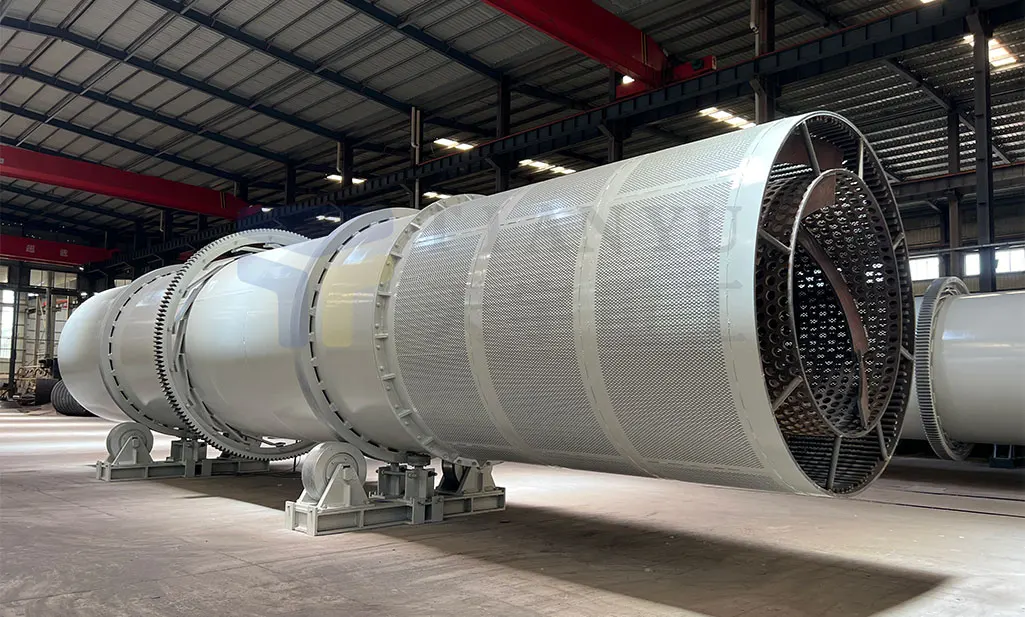

High Tough Plastic Clay Ore Large Size Muddy Stone Rotary Drum Scrubber Washing Machine With Trommel Screen
The drum stone washing machine adopts the principle of friction between machinery and stone to clean the raw stone, which ensures enough productivity to meet the supply of stone while ensuring the quality requirements of the project. The working process of the drum stone washing machine is generally as follows: raw material storage, transportation, cleaning, transportation of finished materials, sewage precipitation and reuse.
Product Features
The drum stone washing machine can process materials in the range of 50-500mm, and can wash the soil and ash powder on the materials into clean materials. It is commonly used in the washing of manganese ore, iron ore, limestone, tungsten ore, tin ore,silica sand and other minerals. The drum washing machine has a large processing capacity and is an ideal equipment for enterprises with large production capacity and requirements for the cleanliness of ore and stone.
Granite
Limestone
Basalt
Iron ore
Tin ore
Barite
Specification
No | Item | Data | Item | Data |
1 | Feed Size | ≤500mm | Cylinder Inner Diameter | 2600mm |
2 | Motor Power | 132kw | Rated Machine Capacity | 400-500t/h |
3 | Motor Speed | 1480r/min | Material Of The Blades | Q345n |
4 | Total Weight | 36T | Self-lubrication System | lubricating grease |
5 | Leaf Thickness | 10mm | Retational Speed Of The Drum | 16r/min |
6 | No-load Noise | ＜45 decibels | Effective Length Of Cylinder | 15200mm |
7 | Capacity Rating | 400t/h | Barrel Steel Plate Material | manganese steel |
8 | Level Of Protection | IP55 | Thickness Of Cylinder Steel Plate | 20mm |
9 | Kind Of Drive | motor gear | External Dimension Of Equipment Body | 15200*3444mm |
Structure and Principle

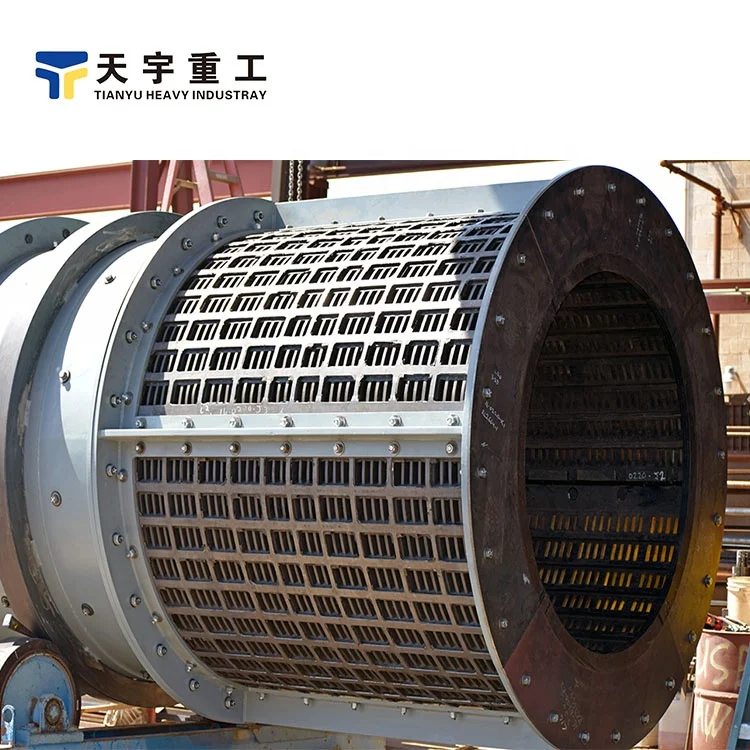

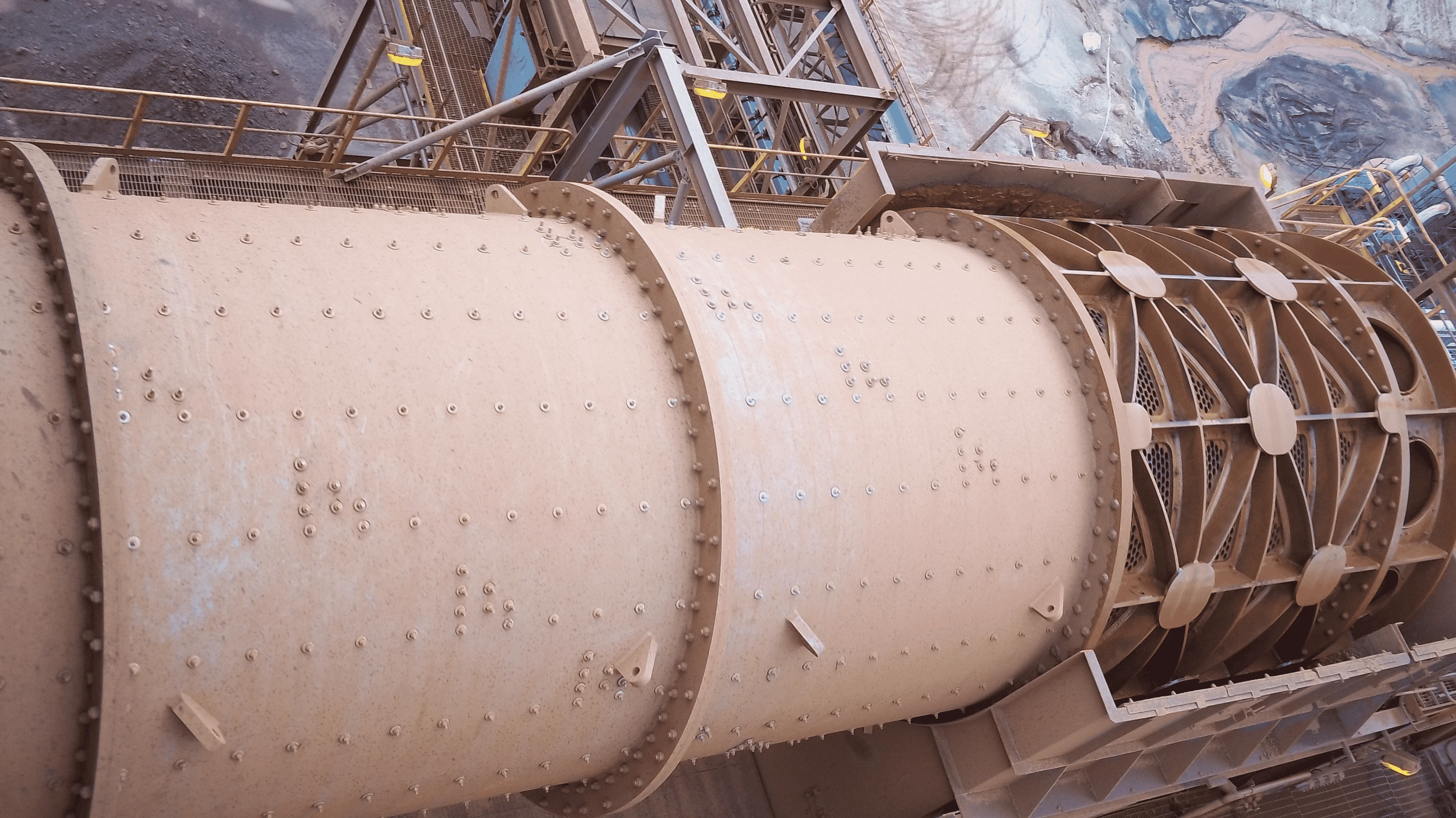

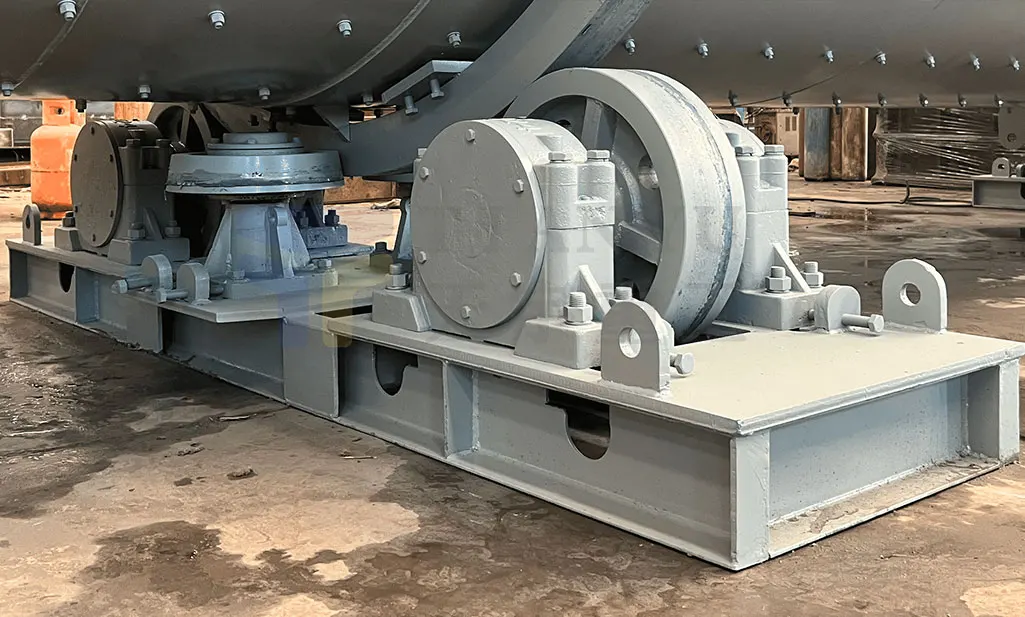

When the drum stone washing machine is working, the cleaning cylinder is supported by the tug frame, the motor drives the reducer,and the large and small gears drive the cleaning cylinder to rotate at a low speed. The aggregate containing mud and stone powder is fed from the feeding port into the rotating drum, and the wear-resistant lining plate installed with a certain angle in the cleaned drum is continuously lifted and dropped, and moves from the feeding end to the discharging end. During the process, it is circulated for many times and washed by flushing water in the forward or reverse direction. The cleaned aggregate is screened and dehydrated by the discharge end drum screen and discharged. Wastewater containing sludge flows out through a perforated baffle at the discharge or feed end.

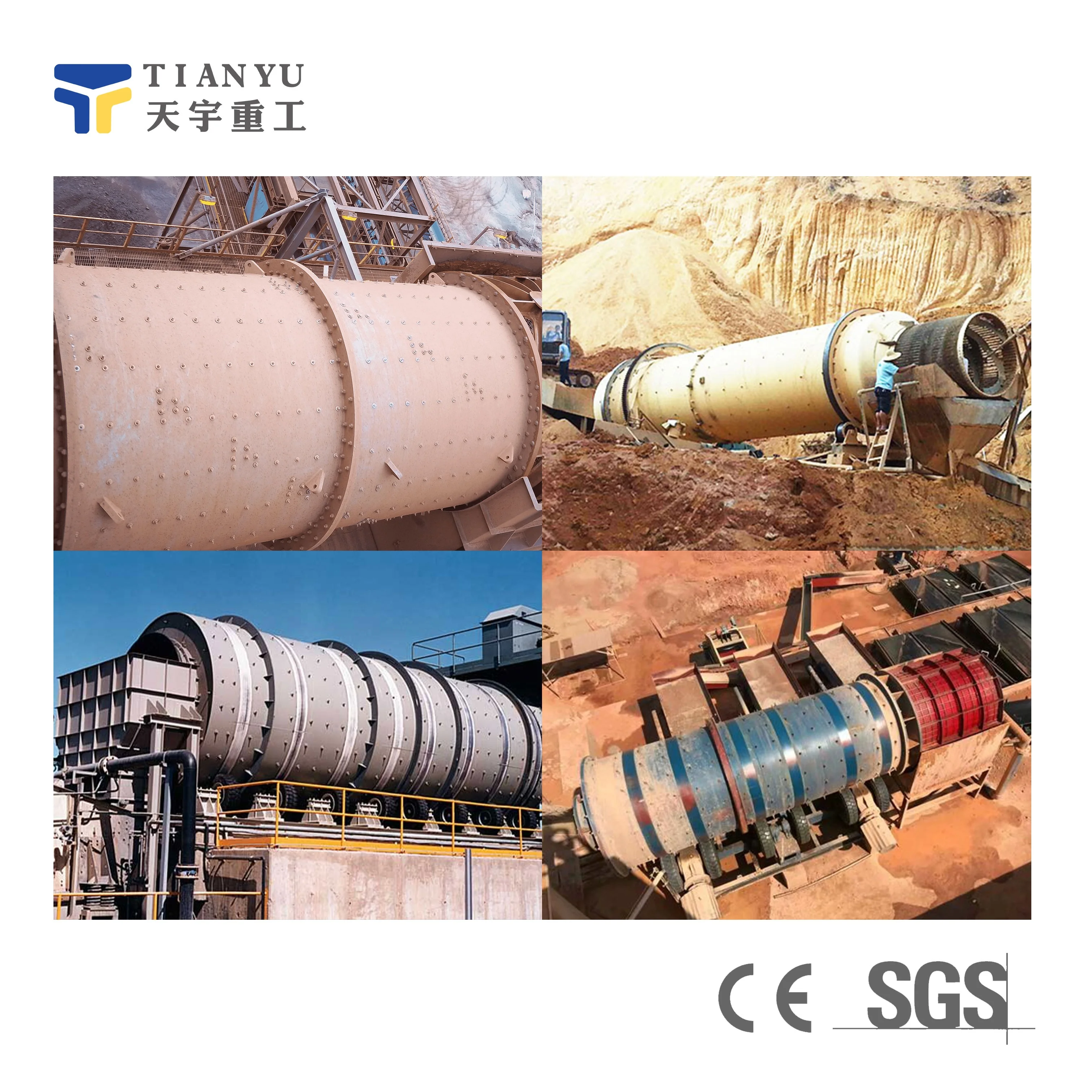

Application Areas
The drum stone washing machine is used for the desliming operation of artificial sand and stone less than 500mm aggregate. It has the advantages of large feed particle size, mud content of aggregate can be less than 0.5% and water content is less than 2% after washing
The cleaning capacity of two drum stone washing machines working together is stronger, and the mud content after washing is generally not more than 0.4%, which is better than the relevant standards. After washing, because the gravel is clean, the strength of concrete is uniform and stable, under the condition of constant strength, the amount of cement can be saved about 5%.
Feature & Advantage
1.Adopting a new transmission mode, Large energy and low
power consumption
2. Compact structure, easy installation and simple
operation;
power consumption
2. Compact structure, easy installation and simple
operation;
3. Small footprint and low cost;
4. The cost of wearing parts is low and the replacement is
fast;
4. The cost of wearing parts is low and the replacement is
fast;
Company Profile
FAQ
In order to give you more effective information, some useful messages are as follows:
Q1:How long is your delivery time?
A:Generally it is 7-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.
quantity.
Q2:What is the washing efficiency of the product? A:The ore washing efficiency of the product is up to 98%
Q3: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation,adjustment and operation training.
Q4: What are some key options to consider when purchasing a silica stone washing machine?
A: Key options to consider when purchasing a silica stone washing machine include:
1. Protective safety covers
2. Trommel screen extension
3. Feed end desander Section
2. Trommel screen extension
3. Feed end desander Section
Q5: What are some key application questions I should have answers when sizing a silica stone washing
machine?
machine?
A:To size a silica stone washing machine, you should know:
1. The type of clay/silt contamination that needs removed
2. The ore/rock feed size
3. The tons per hour feed solids capacity
4. The process flow and equipment location of required washer in your processing plant
2. The ore/rock feed size
3. The tons per hour feed solids capacity
4. The process flow and equipment location of required washer in your processing plant
