Howo 4x2 5cbm 6cbm fecal suction tanker vehicle vacuum pump sewage suction truck
- Category: >>>
- Supplier: Hubei Chusheng Vehicle Imp.&Exp. Co. Ltd.Hubei Ltd.
Share on (1601236212117):
Product Overview
Description
HOWO 4x2 154hp used vacuum truck 80000l sewage suction truck vacuum tanker truck
Our Sewage Suction Truck adopts domestic technology leading "Weilong" vacuum pump, with large suction and long suction range, It is especially suitable for the suction, shipment and discharge of the silt in the sewer, especially the large objects such as sewer mud, silt, stone, brick and so on;
Fecal suction truck is a special purpose vehicle mainly used in cleaning the septic-tank, bilge and sewer.
It is mainly used for urban and rural sanitation sector suction and delivery feces and other sewage. Suitable for sucking fecal, sewage, mud, and liquid mixed with tiny granules. It is apply to the municipal sanitation, large & small industrial and mining enterprises, neighborhoods, schools, septic tank cleaning & transport , city pipeline cleaning & dredge, factories marsh liquid biogas clean-up.
About Our Sewage Suction Truck series
1.Type: Sewage Suction Truck, Fecal Suction Truck, Sewage Suction Cleaning Truck;
2. Drive model: RHD or LHD 4*2, 4*4, 6*2, 6*4, 8*4; Brand of chassis, Dongfeng, Foton, Sinotruck, Shacman , JAC, Faw .etc are available
3. Capacity: 2-25CBM

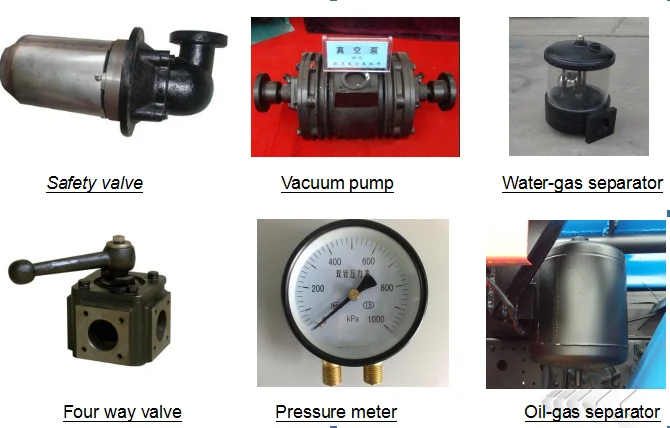

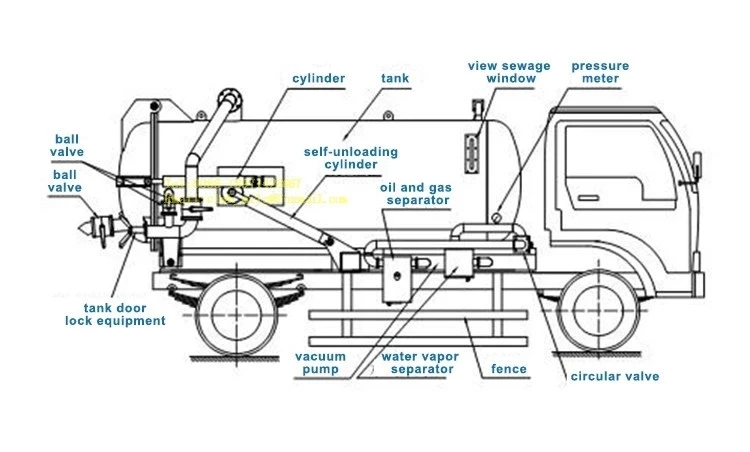

4. Equipment tank with material of carbon steel, high-power vacuum pump, dump body, back cover can be opened by hydraulic, back cover equipped with self-flowing hole and special valve, suction height can be 5-8 meter, equipped with special sewage suction pipe;

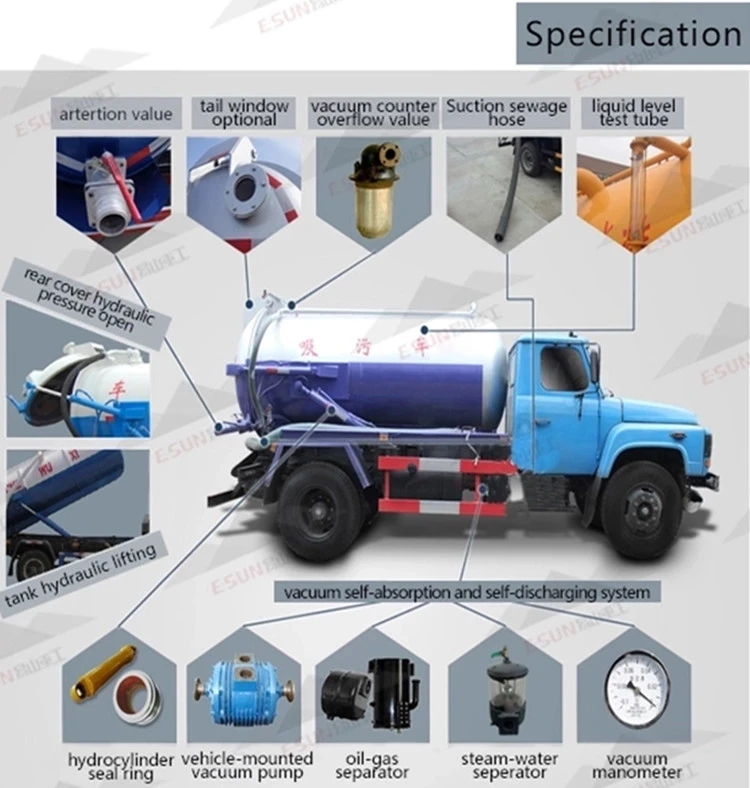

Technical parameter for sewage suction trucks
Vehicle Main Dimensions | (L x W x H)mm | 8600x2500x3200 |
| |
Wheel base (mm) | 4600 | |||
Wheel track (front/rear) (mm) | 2022/1830 | |||
Approach/Departure angle(°) | 16/14 | |||
Weight in KGS | Tare Weight | 10150 | ||
Loading Capacity | 13000 | |||
Front axles loading capacity(HF7 drum) | 1x7000 | |||
Rear axles loading capacity(ST16) | 2x16000 | |||
Max. driving speed(km/h) | 90 | |||
Engine | Brand | SINOTRUK | ||
Model | WD615.87 | |||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
Horse Power(HP) | 290HP | |||
Emission standard | Euro Ⅱ | |||
Gearbox | HW15710, 10 forwards & 2 reverse | |||
Steering Gear | ZF8098,power steering, hydraulic steering with power assistance | |||
Fuel tank (L) | 400L | |||
Tire | 12.00 R20 all steel radial tire , 11 pieces | |||
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||
Tank Body
Sewage body capacity | 10m³ |
Tanker Body Material | 6mm steel / Q235 high tensile strength steel |
End plate | 6mm steel sheet/Q235 high tensile strength steel |

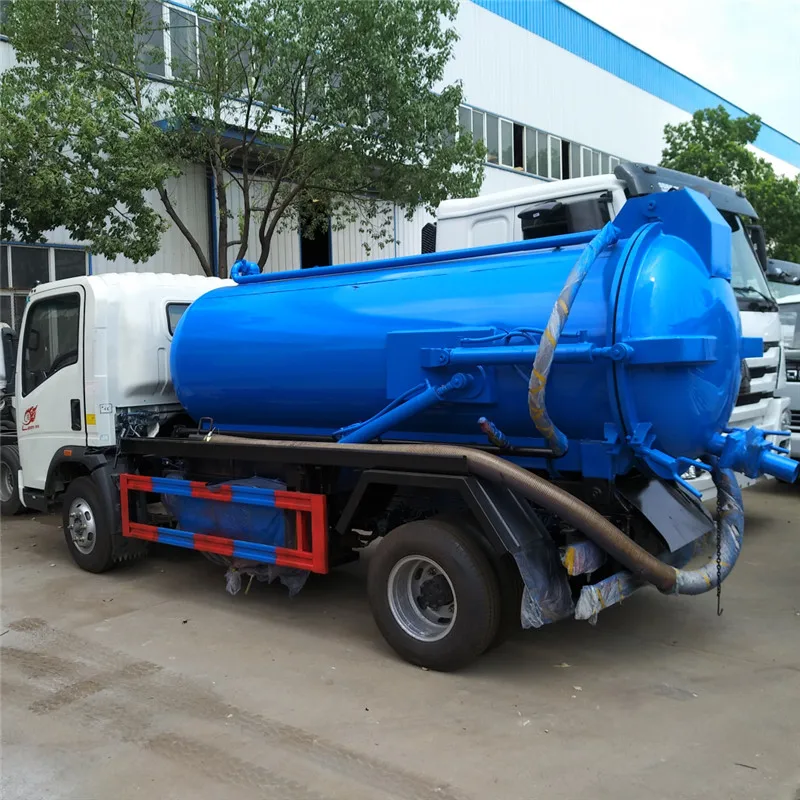

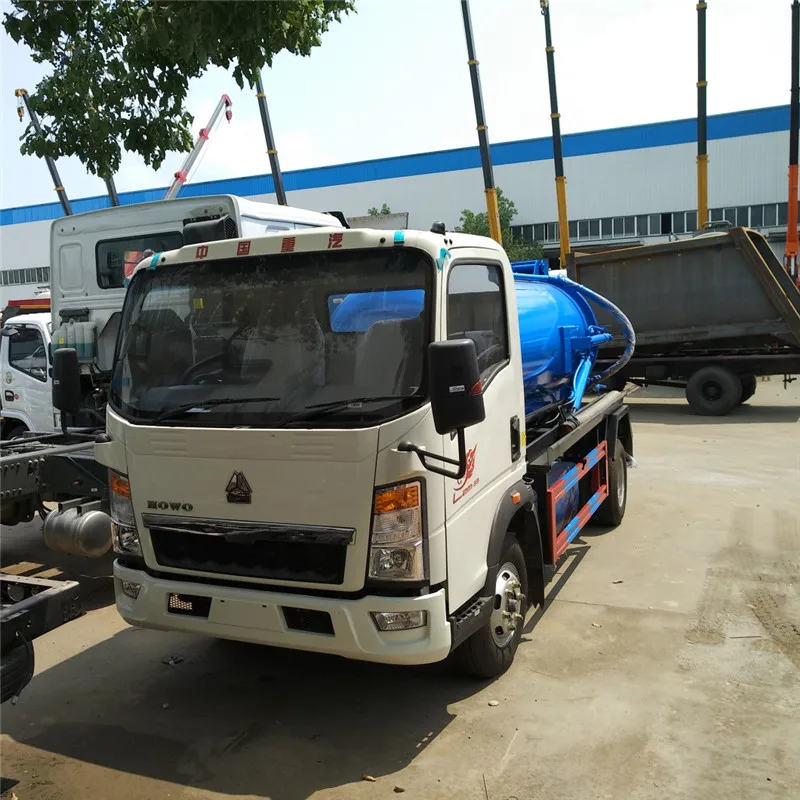

Detailed Images
Packaging & Shipping
Sewage suction trucks can be shipped by bulk, ro-ro and containers.
Company Information
1.CHUSHENG VEHICLE GROUP CO.,LTD. is a famous and the biggest manufacturer with very professional experience in specialautomobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2.Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck,Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truckwith Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Advertisement Truck,Various Semi-trailers, Spare parts etc.
3.We have successfully exported to more than 60 countries and regions, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola,Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia,Tanzania, Zambia, Zimbabwe, Yemen etc.
4.Our product have passed the ISO9001 quality system certification, and CCC certificate.
