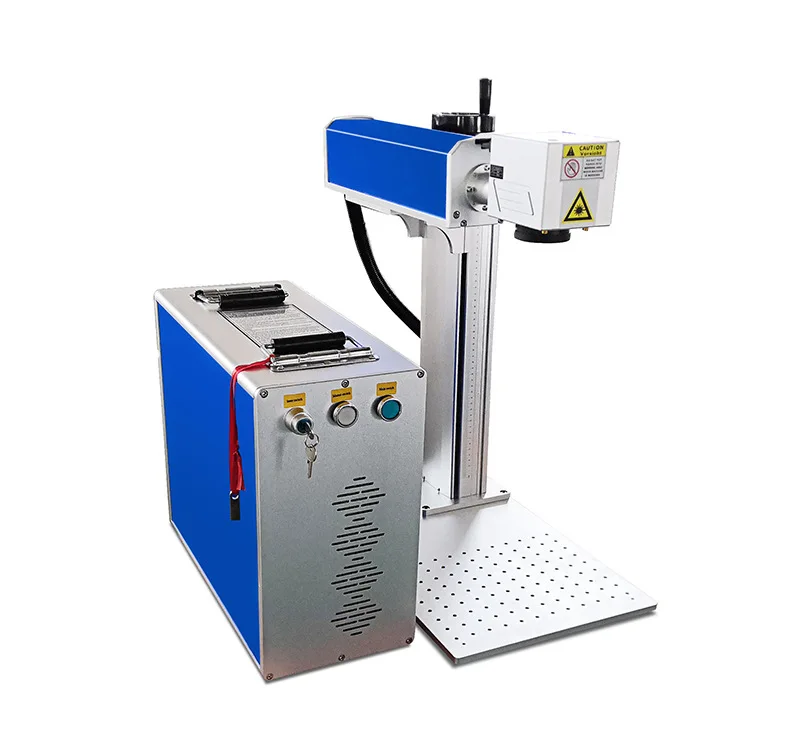

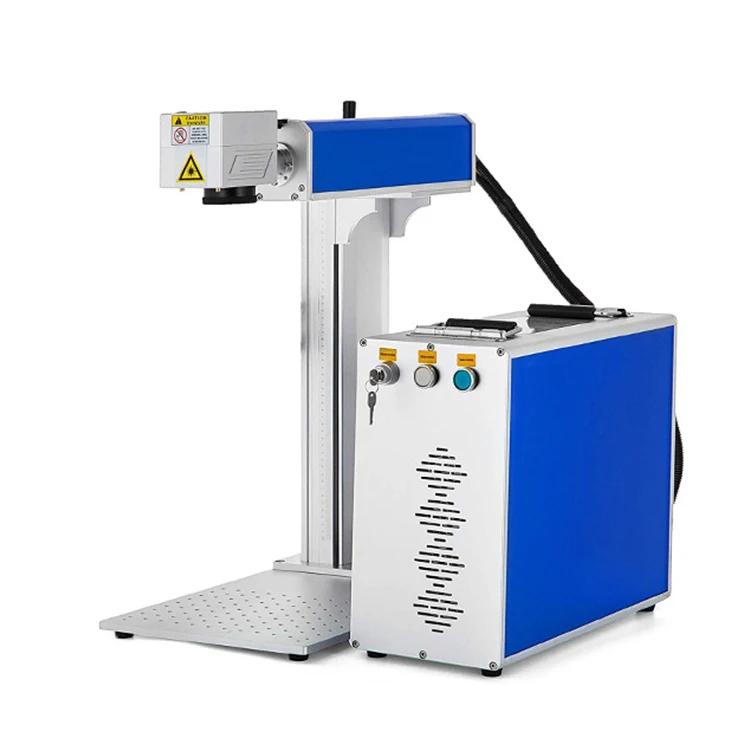

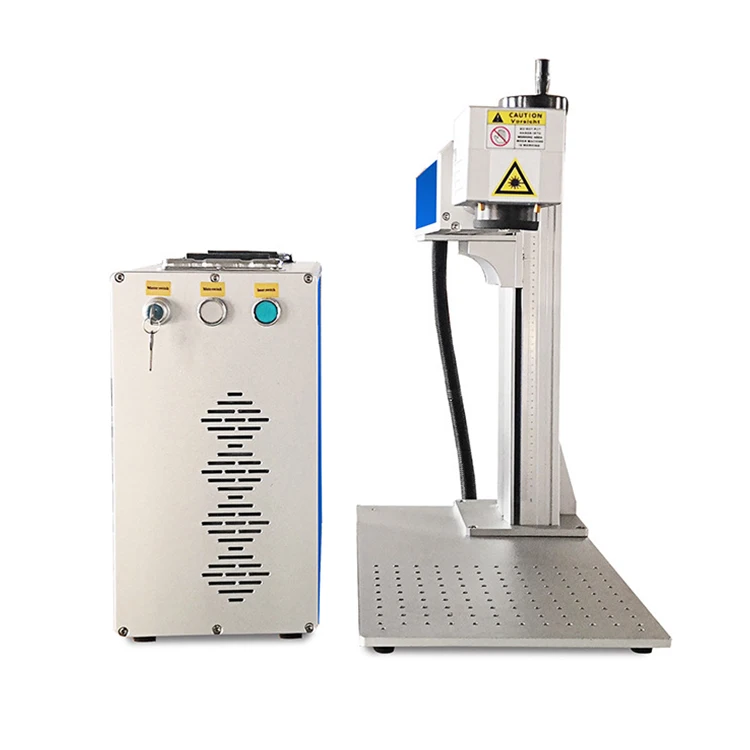

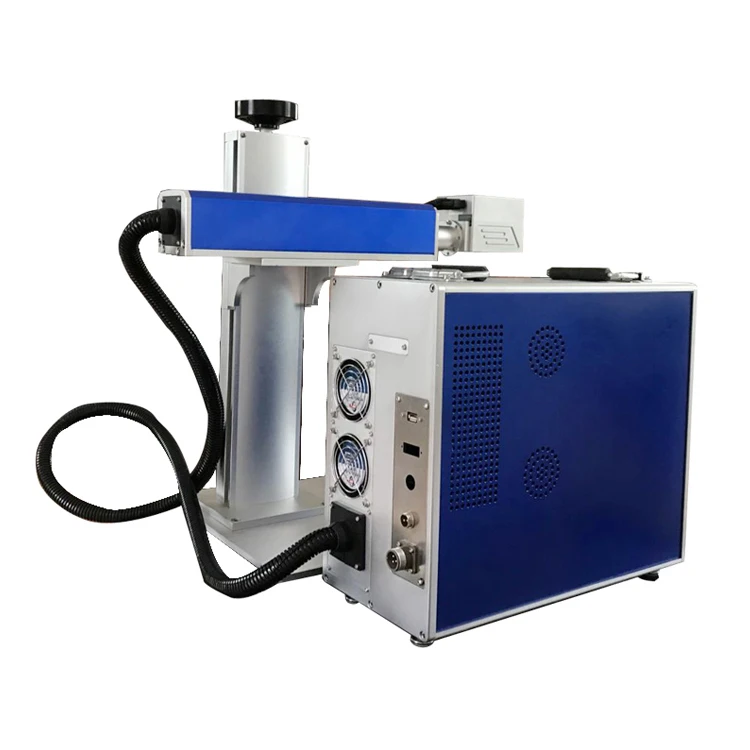

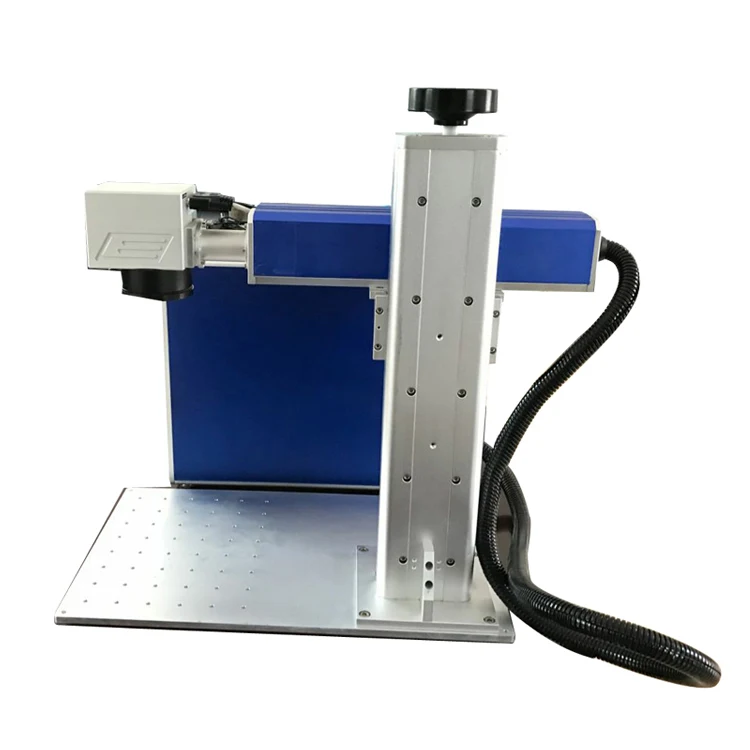

Mini Laser Portable 20w 30w 50w Raycus MAX IPG metal Fiber CO2 UV Laser lazer Marking Engraving marker Machine engraver Price
- Category: >>>
- Supplier: Guangzhou Disen Electronic Equipment Co. Ltd.
Share on (1601236259172):
Product Overview
Description
Note: This quotation is only for the machine deposit price. Please contact the salesperson for details.
Product Description
Specification
Note: The link quoted is model 20QS
Laser type | split fiber laser marking machine |
Laser power | 10w, 20w, 30w, 50w (optional) |
Laser wavelength | 1064±3 |
Beam quality | <1.6 |
Laser jump Q frequency | 20kHz-80kHz |
Working format | optional (110*110, 150*150, 300*300) mm |
Marking depth | ≤1 |
Machine power | ≥600w |
Minimum line width | 0.01mm |
Minimum character | 0.15mm |
Repeatability | ±0.0001mm |
Scanning speed | 8000mm/s |
Output power | 10%-100% adjustable |
Service life | 100,000 hours |
Compatible system | Windows |
Data input | USB |
File format | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc. |
Input voltage | AC220+10%50HZ/AC110+10%60Hz 10A |
Cooling method | air cooling |
Dimensions | 675*375*620mm |
Bare metal weight | 40.5KG |
Application industry | metal materials and some non-metallic materials, electronic separation components, integrated circuits, electrical circuits, hardware, automotive accessories, plastic buttons, etc. |
1. Exposing the deep layer of the substance by evaporation of the surface layer of the target substance by laser light energy;
2. The desired pattern text is "engraved" by the laser light energy causing the chemical and physical changes of the surface material;
3. Some of the substances are burned by laser light to reveal the pattern and text to be etched.
The fiber laser marking machine is mainly composed of a fiber laser, a galvanometer (marking head), a software control board, an industrial control computer, a cabinet cabinet, and a water platform for placing the workpiece.
The working principle of fiber laser marking machine:
The fiber laser is used to generate laser light and the laser is used to extract the laser and then the optical high-speed
scanning galvanometer is used for marking the workpiece. The core component is a fiber laser.
Fiber lasers use rare earth doped fibers as gain media. Due to the fineness of the fiber core in the fiber laser, the high power density is easily formed in the fiber under the action of the pump light, which causes the laser energy level of the laser working substance to “reverse the number of particles”.
2. The desired pattern text is "engraved" by the laser light energy causing the chemical and physical changes of the surface material;
3. Some of the substances are burned by laser light to reveal the pattern and text to be etched.
The fiber laser marking machine is mainly composed of a fiber laser, a galvanometer (marking head), a software control board, an industrial control computer, a cabinet cabinet, and a water platform for placing the workpiece.
The working principle of fiber laser marking machine:
The fiber laser is used to generate laser light and the laser is used to extract the laser and then the optical high-speed
scanning galvanometer is used for marking the workpiece. The core component is a fiber laser.
Fiber lasers use rare earth doped fibers as gain media. Due to the fineness of the fiber core in the fiber laser, the high power density is easily formed in the fiber under the action of the pump light, which causes the laser energy level of the laser working substance to “reverse the number of particles”.

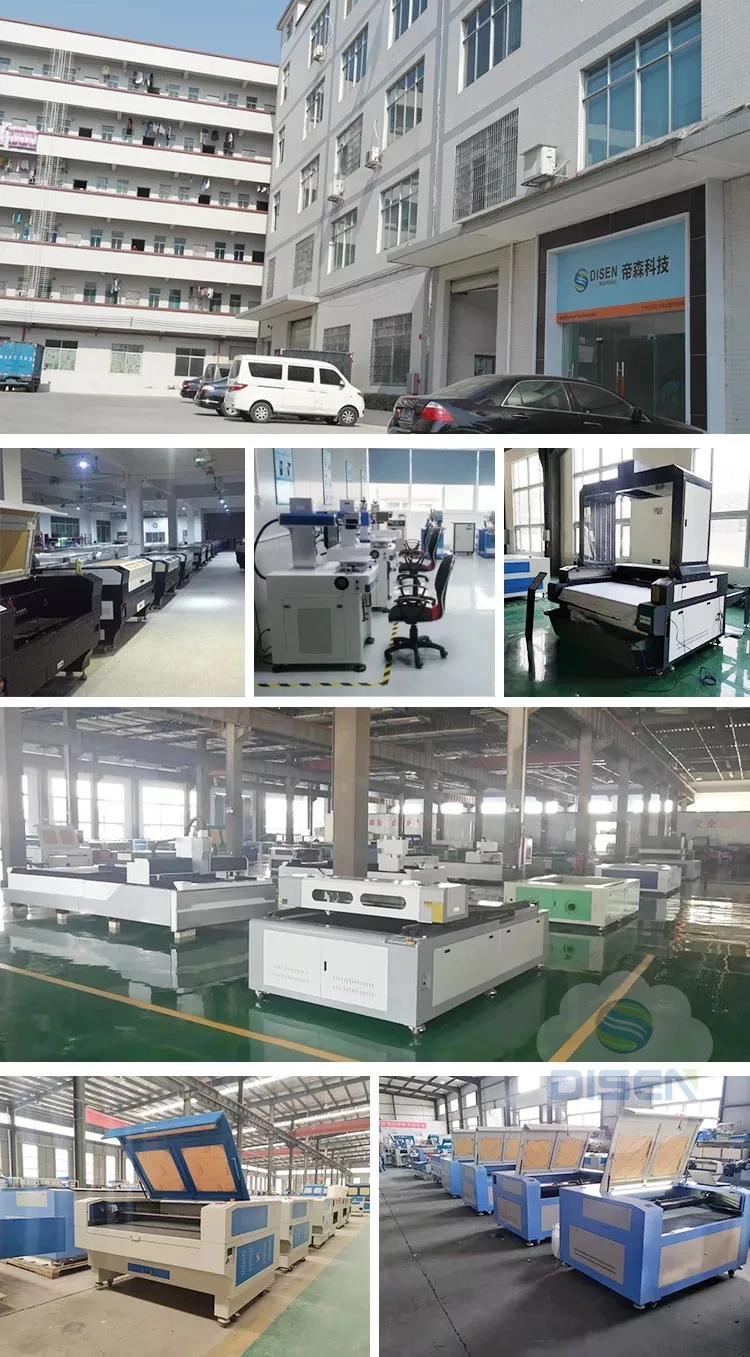

Company Profile
