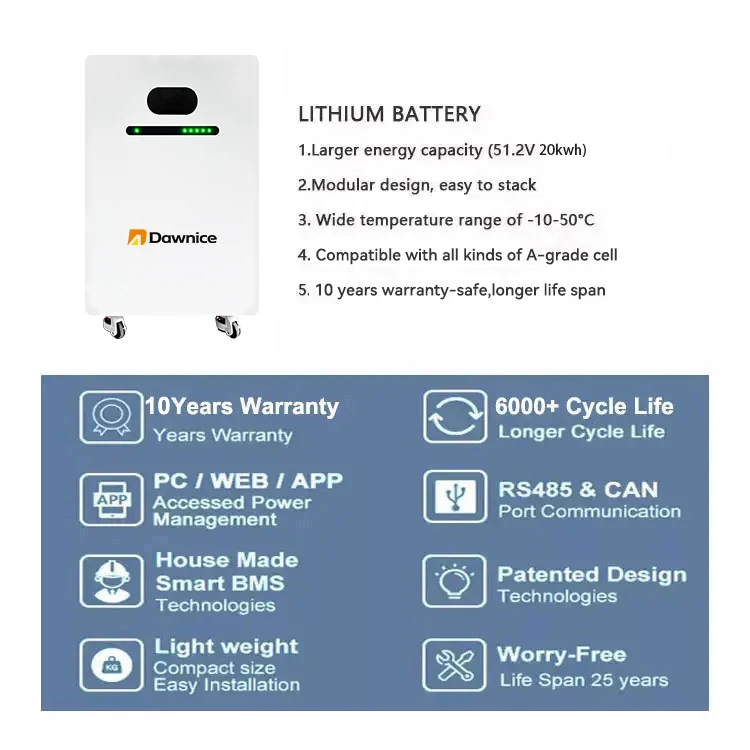

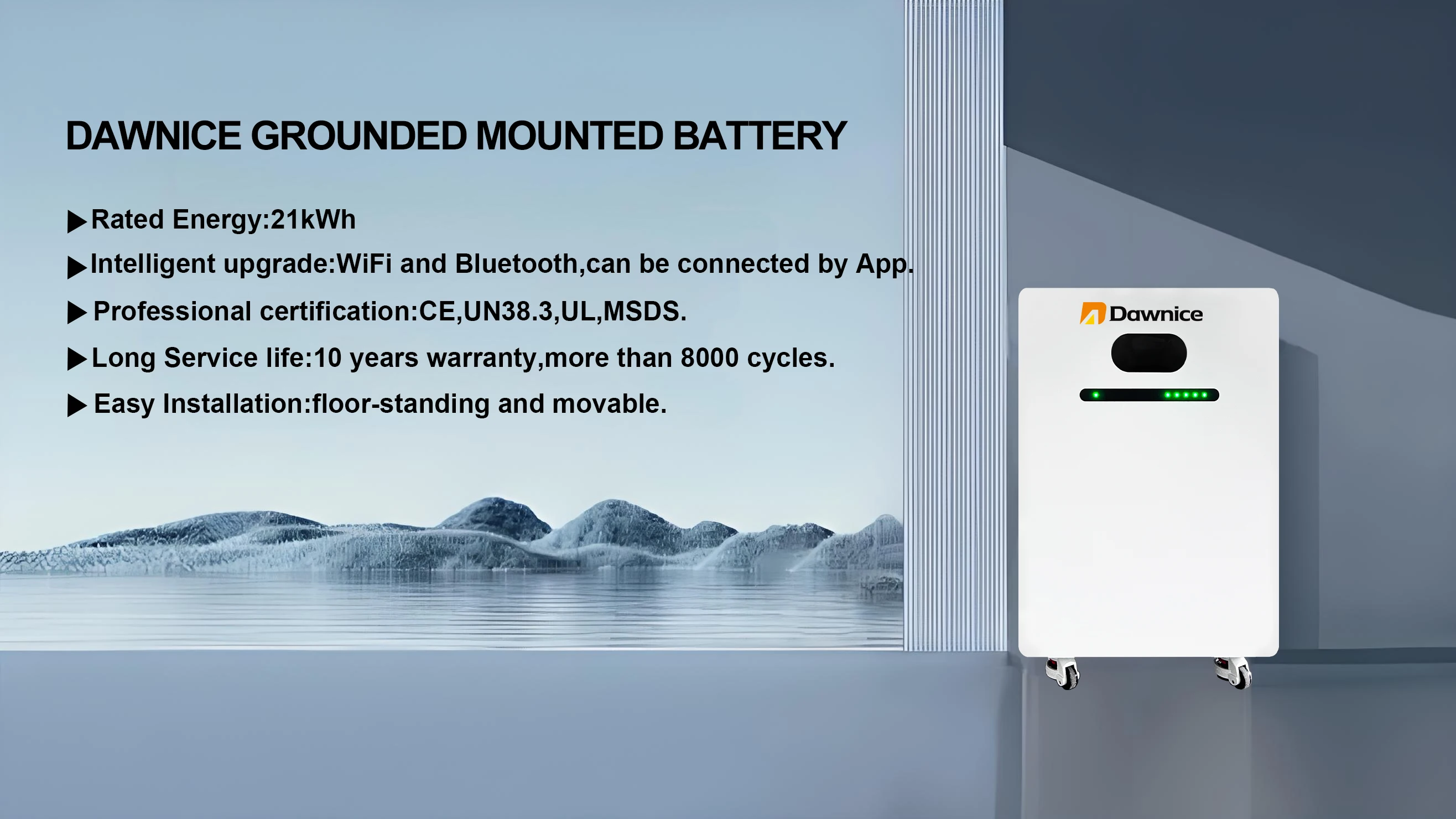

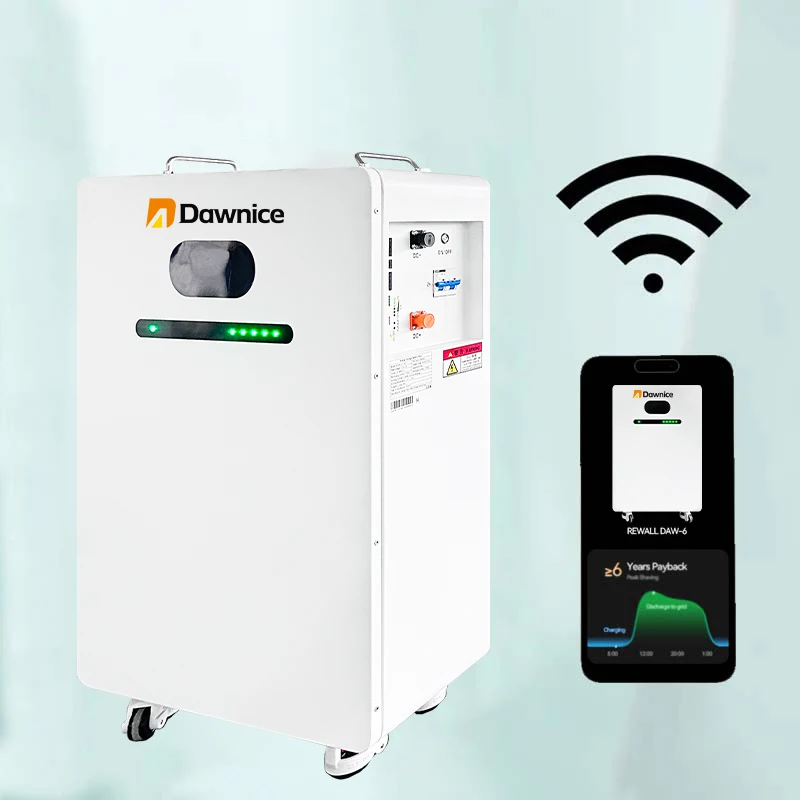

Dawnice New Arrival 48V 51.2V 400ah 20kwh Stand On Floor Energy Storage Battery Lifepo4 Lithium Ion Battery For Solar System
- Category: >>>
- Supplier: Yichun Dawnice Manufacture & Trade Co. Ltd.
Share on (1601236318339):
Product Overview
Description
Products Description

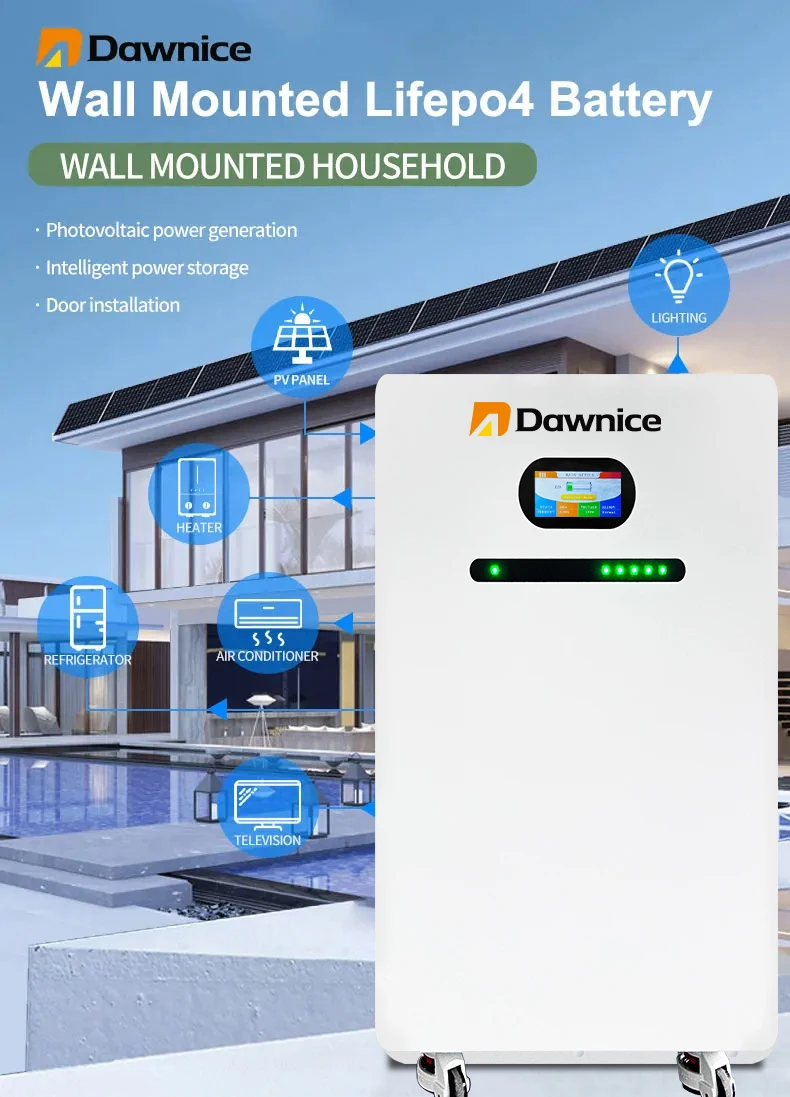

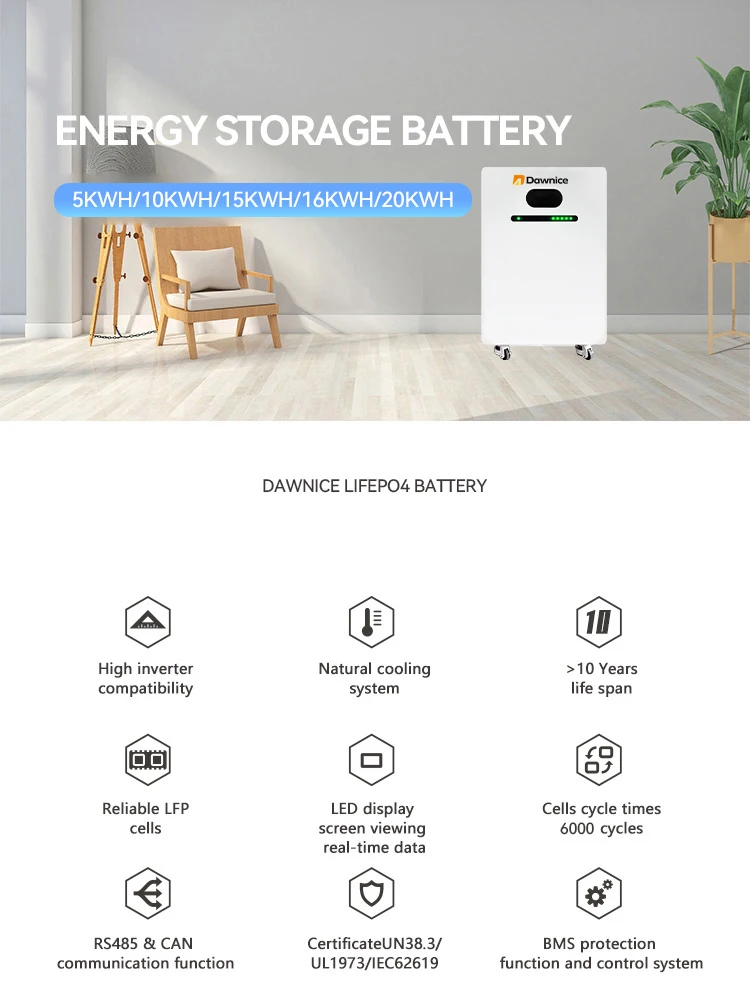

Power wall - Solar Energy Storage Batteries for Home
PERFORMANCE SPECIFICATIONS | |||||||||
Model | HZEB-LCT-5 | HZEB-LCT-10 | HZEB-LCT-15 | HZEB-LCT-16 | HZEB-LCT-21 | ||||
Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | ||||
Cell model/configuration | 3.2V100Ah/16S1P | 3.2V206Ah/16S1P | 3.2V280Ah/16S1P | 3.2V314Ah/16S1P | 3.2V205Ah/16S2P | ||||
Capacity(Ah) | 100Ah | 206Ah | 280Ah | 314Ah | 410Ah | ||||
Rated Energy(kwh) | 5.12kwh | 10.55kwh | 14.34kwh | 16.076kwh | 21kwh | ||||
Max.Charge/Discharge Current(A) | 50A/50A | 100A/100A | 100A/100A | 100A/100A | 200A/200A | ||||
Voltage Range(Vdc) | 44.8-57.6V | ||||||||
Scalability | Up to 6 parallel | Up to 15 parallel | |||||||
Communication | RS232-PC,RS485(B)-BAT RS485(A) | ||||||||
Cycle Life | ≥8000Cycles | ≥8000Cycles | |||||||
Design Life | ≥15Years(25℃) | ||||||||
MECHANICAL SPECIFICATIONS | |||||||||
Weight(Net/gross)(KG) | 58.2/65kg | 96.05/102kg | 122/135kg | 129kg/150kg | 177.6kg | ||||
Dimension(W/D/H)(mm) | 645*440*193 | 620*461*284 | 765*461*284 | 460*800*288 | 650*265*932 | ||||
Installation Mode | Wall mounted | Ground Mounted | |||||||
IP Grade | IP54 | IP20 | |||||||
SECURITY AND CERTIFICATION | |||||||||
Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC | UN38.3,MSDS,IEC62619(CB),CE-EMC | |||||||
Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |||||||
Protection | BMS,Breaker | ||||||||
ENVIRONMENTAL SPECIFICATIONS | |||||||||
Operating temperature(℃) | Charge 0℃_50℃;discharge -10℃_50℃ | Charge 0℃_50℃;discharge -10℃_50℃ | |||||||
Altitude(m) | ≤2000 | ||||||||
Humidity | ≤95%(Non-condensing) | ||||||||
Company Profile
Dawnice Battery Factory was founded in 2002 in Jiangxi, China. It is a leading manufacturer of home energy storage
batteries,commercial energy storage systems, and battery energy storage systems with integrated solar inverters. Dawnice's core
products are residential storage batteries and commercial solar storage solutions.
They have provided energy solutions to 70 countries, serving around 80,000 households. The lithium battery factory holds
recognized certificates such as CE, UL, UN38.3, RoHS, IEC62619, ISO14001, and ISO9001.
batteries,commercial energy storage systems, and battery energy storage systems with integrated solar inverters. Dawnice's core
products are residential storage batteries and commercial solar storage solutions.
They have provided energy solutions to 70 countries, serving around 80,000 households. The lithium battery factory holds
recognized certificates such as CE, UL, UN38.3, RoHS, IEC62619, ISO14001, and ISO9001.

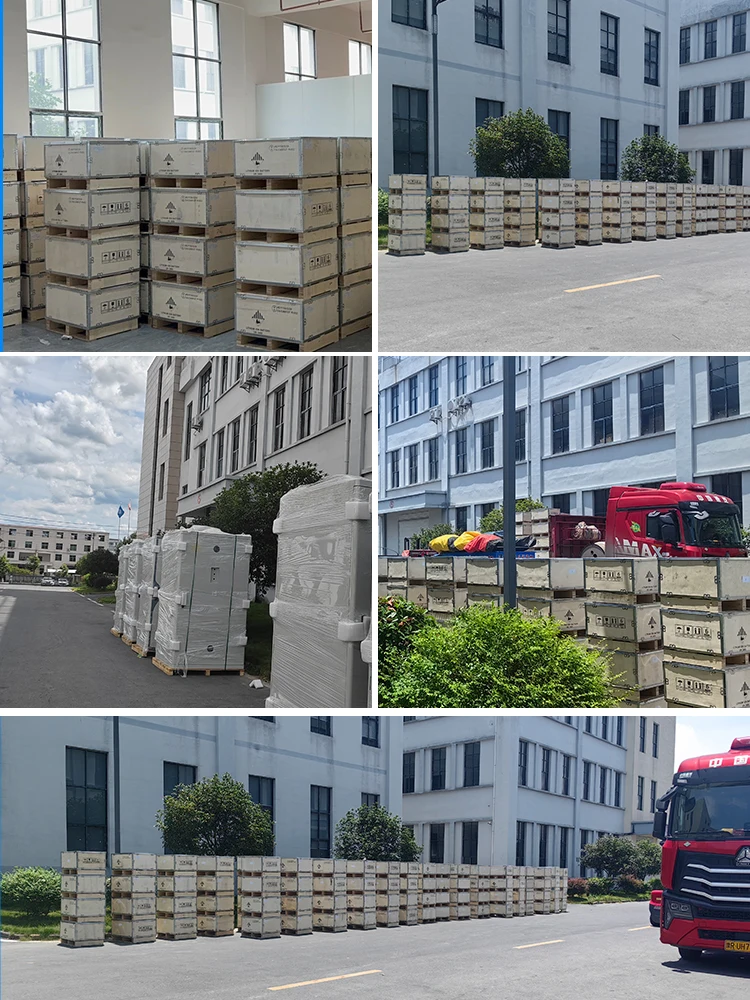

Product packaging
Packing:
2. Customized package available. Boxing packaging,carton case and wooden support or as your requirement.
