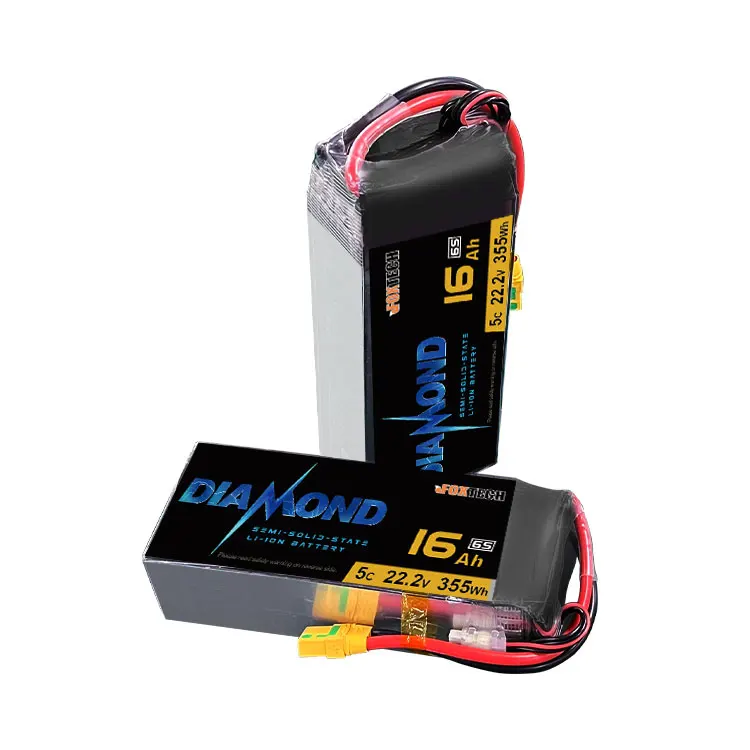

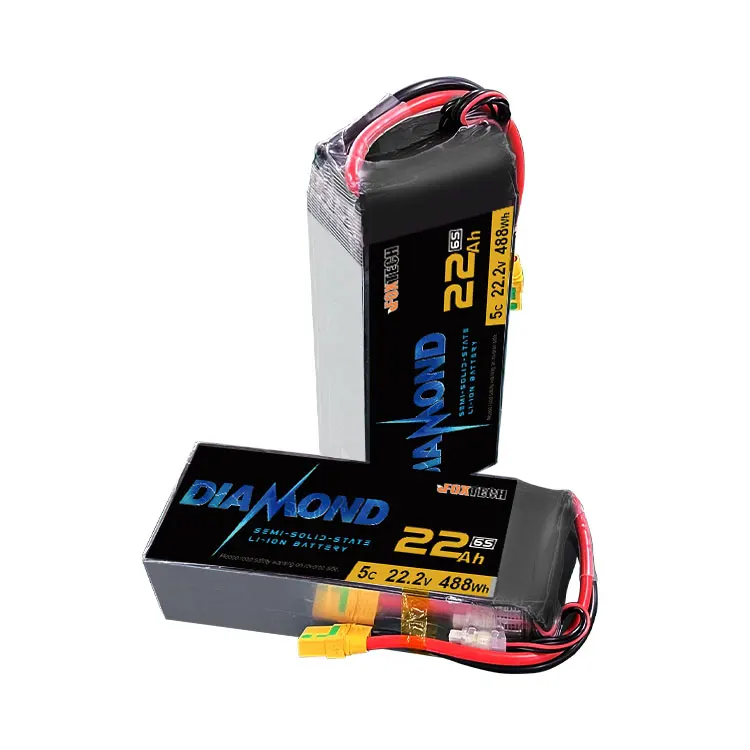

Custom Diamond Series 6S 16000mAh 22000mAh 27000mAh 30000mAh 16Ah 22Ah 27Ah 30Ah Semi Solid State Battery Li ion Battery
- Category: >>>
- Supplier: Huixinghai Technology (Tianjin) Co. Ltd.
Share on (1601236334850):
Product Overview
Description
Compared with traditional battery, Diamond semi-solid-state li-ion battery achieves both safety and performance improvement, which features high energy density, high discharge rate and high safety performance, small size and light weight.
Take 6S 22000mAh semi-solid-state li-ion battery as an example:
6S 22000mAh semi-solid-state li-ion battery is only 1963g, with 251.7Wh/kg energy density, the continuous discharge rate is 5C, Max. discharge rate is 10C. It also has a long cycle life, over 600 times.
Compared with Li-ion battery, the Diamond Semi-solid-state Li-ion battery has higher discharge current. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of Li-ion battery.

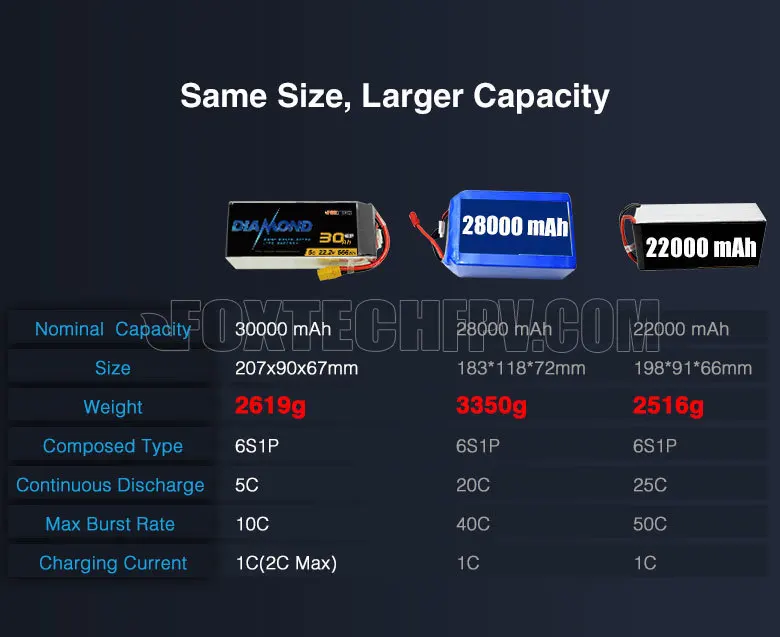

Compared with traditional lipo battery, the Diamond Semi-solid-state Li-ion battery has light weight and higher energy density. Its energy density increased by 30%-35%, even 20% higher than that of high-voltage version lipo battery. So the drone endurance time will be increased by 20%-35% by using the Diamond Semi-solid-state Li-ion battery.

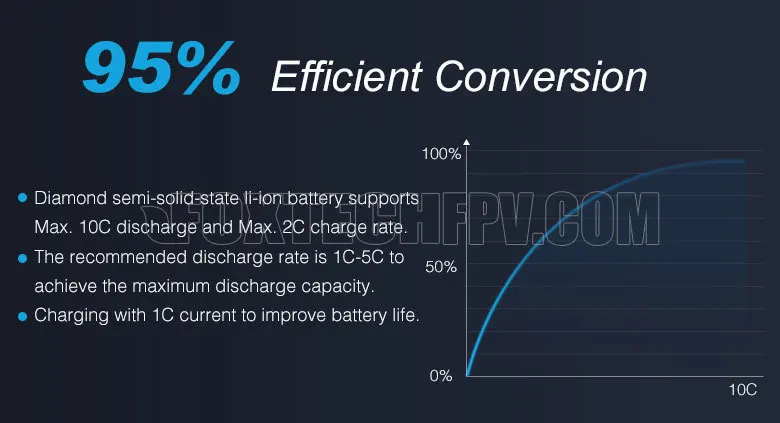

Diamond Semi-solid-state Li-ion battery supports Max.5C discharge and Max. 2C charge. The recommended discharge rate is 1C-3C to achieve the maximum discharge capacity, charging with 1C current to improve battery life.
Take 6S 22000mAh semi-solid-state li-ion battery as an example:
6S 22000mAh semi-solid-state li-ion battery is only 1963g, with 251.7Wh/kg energy density, the continuous discharge rate is 5C, Max. discharge rate is 10C. It also has a long cycle life, over 600 times.
Compared with Li-ion battery, the Diamond Semi-solid-state Li-ion battery has higher discharge current. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of Li-ion battery.
Compared with traditional lipo battery, the Diamond Semi-solid-state Li-ion battery has light weight and higher energy density. Its energy density increased by 30%-35%, even 20% higher than that of high-voltage version lipo battery. So the drone endurance time will be increased by 20%-35% by using the Diamond Semi-solid-state Li-ion battery.
Diamond Semi-solid-state Li-ion battery supports Max.5C discharge and Max. 2C charge. The recommended discharge rate is 1C-3C to achieve the maximum discharge capacity, charging with 1C current to improve battery life.
