Product Overview

Description

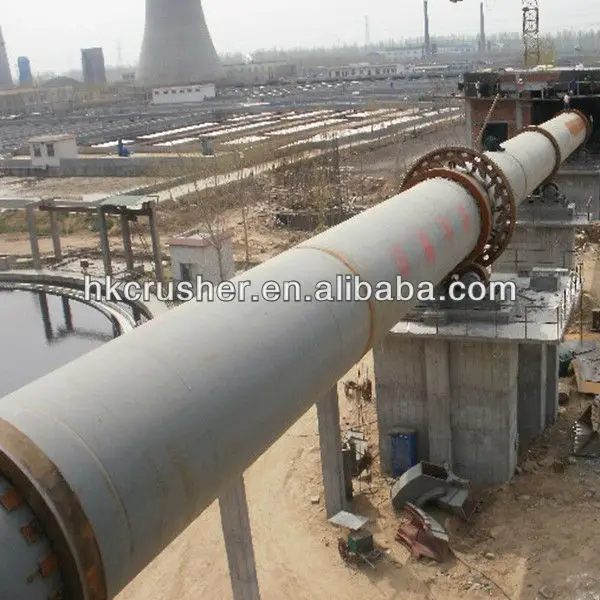

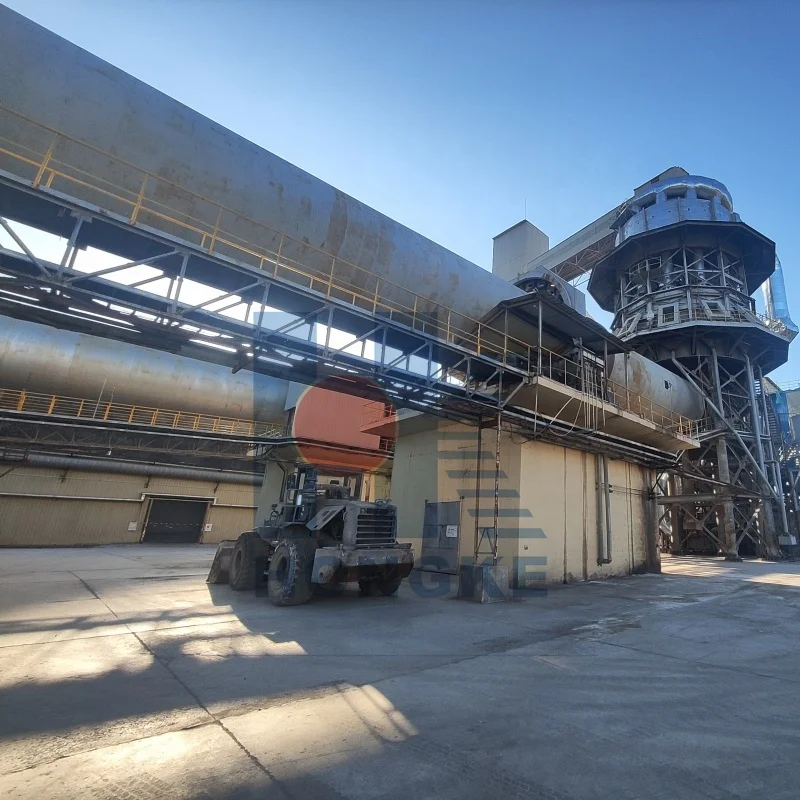

Introduction of Cement Rotary Kiln

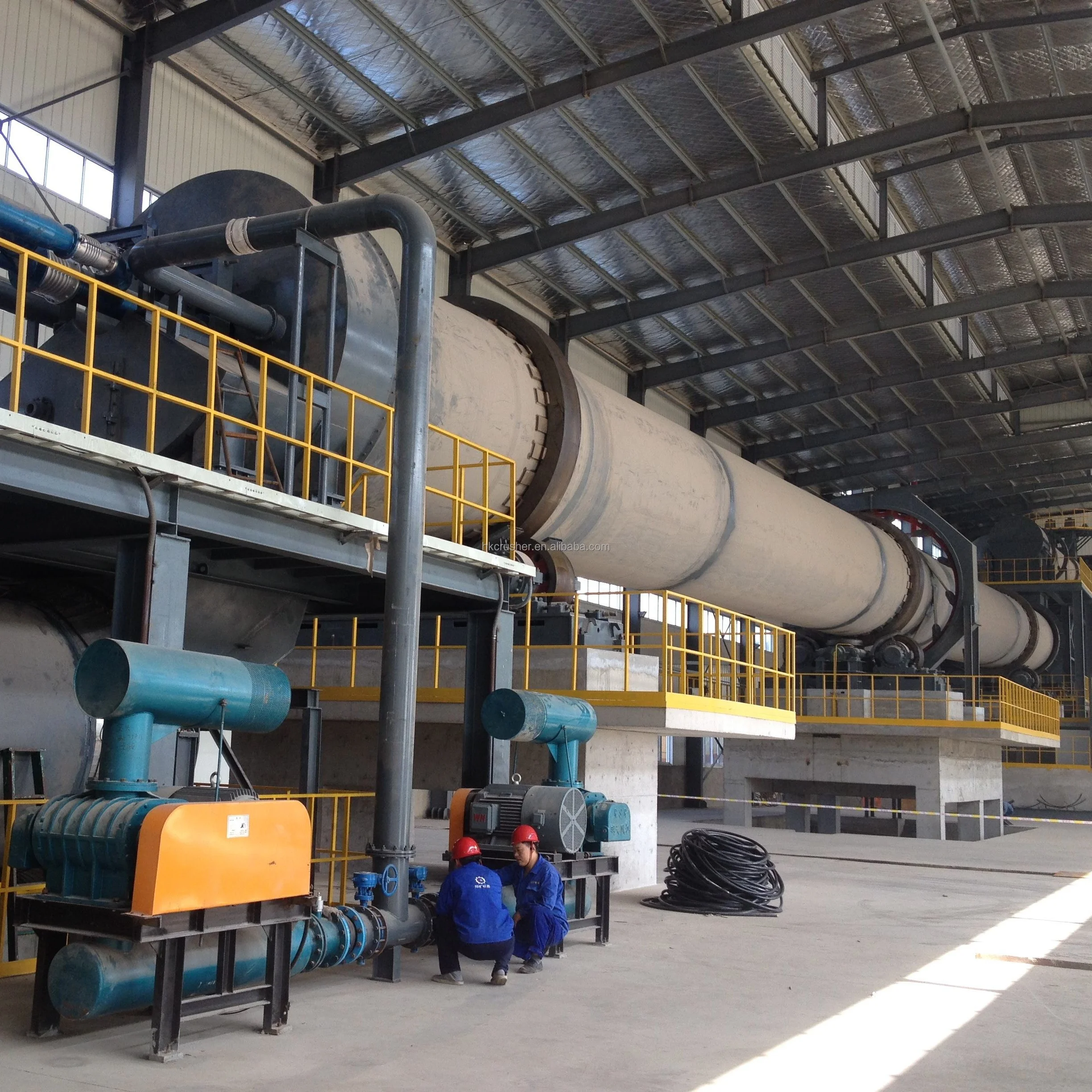

Factory Price Manufacturer 200 TPD Cement Rotary kiln Machine Clinker Calcination
Cement kiln is mainly used for calcining cement clinker and are divided into two categories: dry process cement kiln and wet process cement kiln. Metallurgical chemical kiln are mainly used for magnetic roasting of poor iron ore in steel plants in the metallurgical industry;
Rotary kiln is a rotary calcination kiln and also one of the building material equipment. According to the different processing materials, there are cement kiln, metallurgical and chemical kiln, and lime kiln.
Rotary kiln is the key equipment of cement clinker in dry-process and wet-process production line. Metallurgy chemical kiln is mainly used in iron ore magnetic calcination, slicon thermal refining magnesium, chromium nickel ore calcination, refractory calcination and active lime and calcined dolomite for steel mill and ferroalloy works.
The cement production line includes belt conveyor, vibrating feeder, jaw crusher, preheating system, cement rotary kiln, cement ball mill, rotary dryer, dust collector, packaging machine, etc.
All necessary equipment on this line can be provided by our factory. We have cement production line experts to design specific solutions for your reference.







Application


Application of Cement Rotary Kiln
Rotary kiln belong to building materials and equipment, and can be divided into cement kiln, metallurgical and chemical kiln, and lime kiln according to different materials. Cement kiln are used to prepare cement clinker, and there are two preparation methods: dry method and wet method.
Metallurgical chemical kiln are widely used in the magnetic roasting of poor iron ore in steel plants and the oxidation roasting of chromium and nickel; High alumina ore from the backing refractory material factory; Roasting clinker and alumina in aluminum plants, and roasting chromium ore and chromium powder in chemical plant. Lime kiln are used for the calcination of active lime in steel plant and ferroalloy plant, as well as for the light calcination of dolomite.





Features


Features of Cement Rotary Kiln
1. Through technological innovation, our rotary kiln cement plant is designed with international leading wheel catch device, high precision plunger metering pump, high accuracy speed control valve and contact graphite block sealing device, etc.

2. In order to improve machinery automation, an industrial computer is used for showing the calcining condition, and a fluorescent screen is adopted for showing the simulated process flows. An infrared scanner is utilized for transmitting the calcining condition to the computer.

3. These new technologies provide our rotary kiln cement plant with strong visual sense, convenient operation and reliable performance. They help stabilize thermal regulation and improve operation efficiency. The rotary kiln has a simple structure, convenient production operation, few vulnerable parts, high efficiency, and is used for calcining high-quality cement in cement plant. It can also be used in industries such as metallurgy, chemical industry, and construction. Rotary kiln have the characteristics of sturdy structure, stable operation, and superior product quality.


Working Principle


Working Principle of Cement Rotary Kiln:
The rotary kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly around its axis. The material to be processed is fed into the upper end of the cylinder. As the kiln rotates, the materials gradually move down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe (or 'firing pipe') which acts like a large burner. The fuel may be gas, oil or pulverized coal.

1. With a certain slope to the level, the whole kiln body is supported by rollers and fitted with thrust rollers to control up and down movement of the kiln body.
2. Besides main driving unit for driving system, it is also fitted with the auxiliary driving unit so as to ensure the kiln body still can rotating when the main motor is powered off and prevent it from deforming.
3. The kiln head adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing could be ensured.



Technical Parameters


Specifications
(m)
Kiln dimension
Output(t/h)
Rotation speed(r/min)
Motorpower(kw)
Weight
Diameter(m)
Length(m)
Slope(%)
(t)
Ø1.4*33
1.4
33
3
0.9-1.3
0.39-3.96
18.5
47.5
Ø1.5*36
1.5
36
4
1.2-1.9
0.26-2.63
22
52
Ø1.8*45
1.8
45
4
1.9-2.4
0.16-1.62
30
78.2
Ø1.9*39
1.9
39
4
1.65-3
0.29-2.93
30
77.59
Ø2.0*40
2
40
3
2.5-4
0.23-2.26
37
119.1
Ø2.2*45
2.2
45
3.5
3.4-5.4
0.21-2.44
45
128.3
Ø2.5*40
2.5
40
3.5
9.0-10.5
0.44-2.44
55
149.61
Ø2.5*50
2.5
50
3
6.25-7.4
0.62-1.86
55
187.37
Ø2.5*54
2.5
54
3.5
6.9-8.5
0.48-1.45
55
196.29
Ø2.7*42
2.7
42
3.5
10.0-11.0
0.10-1.52
55
198.5
Ø2.8*44
2.8
44
3.5
12.5-13.5
0.437-2.18
55
210.58
Ø3.0*45
3
45
3.5
12.8-14.5
0.5-2.47
75
210.94
Ø3.0*48
3
48
3.5
25.6-29.3
0.6-3.48
100
237
Ø3.0*60
3
60
3.5
12.3-14.1
0.3-2
100
310
Ø3.2*50
3.2
50
4
40.5-42
0.6-3
125
278
Ø4*60
4
60
3.5
80-105.7
0.396-3.96
315
523
Ø4.3*64
4.3
64
3.5
110-135
0.4-3.96
420
606.69
Ø4.8*72
4.8
72
3.5
170-210
0.39-3.96
630
853.3
Ø5.2*61
5.2
61
3.5
198-231
0.38-3.79
800
859
Ø5*80
5
80
4
205-250
maX3.5
800
1201
Ø5.6*87
5.6
87
4
283-333
maX4.23
900
1227.6


FAQ


FAQ:
1. What is the raw material do you want to grind?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the output size of your product?
Ask:
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of rotary kiln equipment and related machinery
(Rotary kiln, granulator, crusher, grinder, dryer, cooler, feeder, conveyor belt), etc.
2.What should I do if I encounter some trouble while using it?
A: We will provide English manuals and videos to show you how to solve the problem, and if necessary, we will dispatch our engineers to your factory.
3. Do you provide installation services after ordering the machine?
A: For single machines, we provide guidance and operation videos for users.
For the production line, we provide professional construction drawings and arrange engineers to guide users in installing machines. Assist users in training skilled workers.

4.Can we visit your factory and see your equipment?
A: We really warmly welcome every customer to visit our factory, and we can take them to visit the machinery factory

1. We have comprehensive technical and business consulting services;
2. Propose the most suitable solution and equipment for our customers;
3. Free CAD design: If you can provide materials, target capabilities, and factory information, we can provide you with free CAD design.

After sales service:
1. Safe and fast payment methods;
2. Assist clients in equipment foundation construction;
3. Dispatch engineers to install and debug the equipment;
4. Provide training for frontline operators on site;
5. Regularly visit customers, solve production problems, and provide lifelong service


Company Introduction




Aerial view of the factory

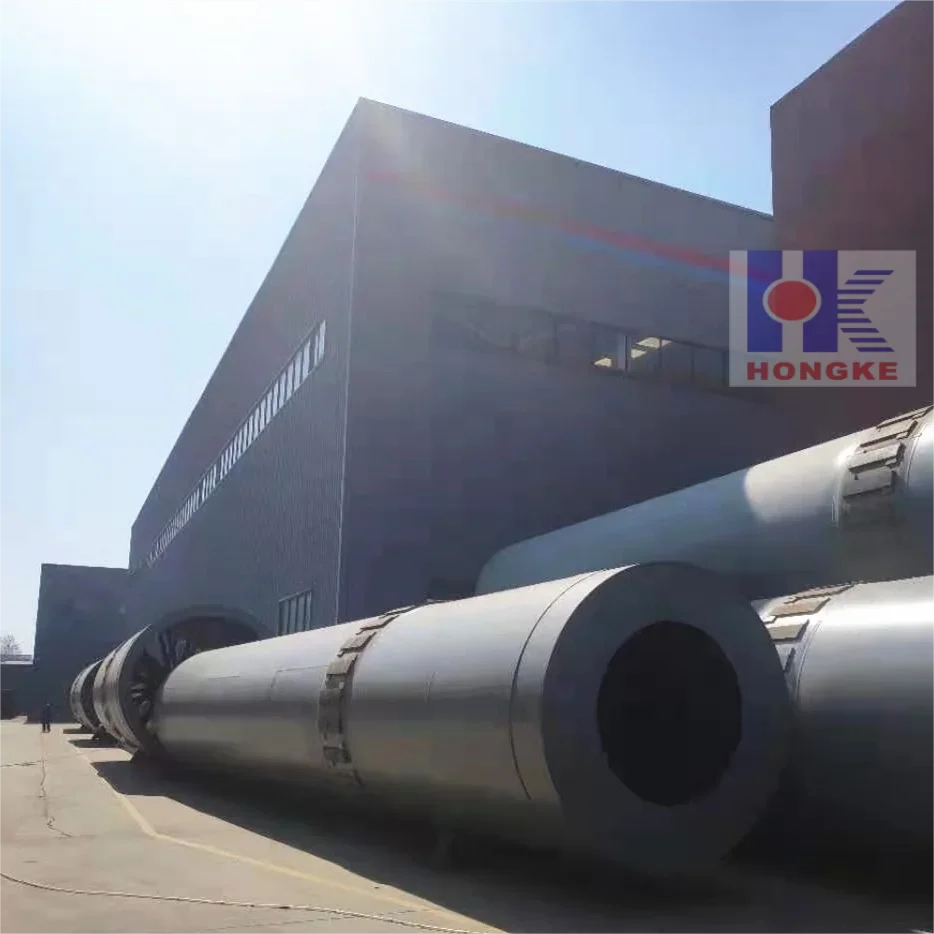

Factory photo taken

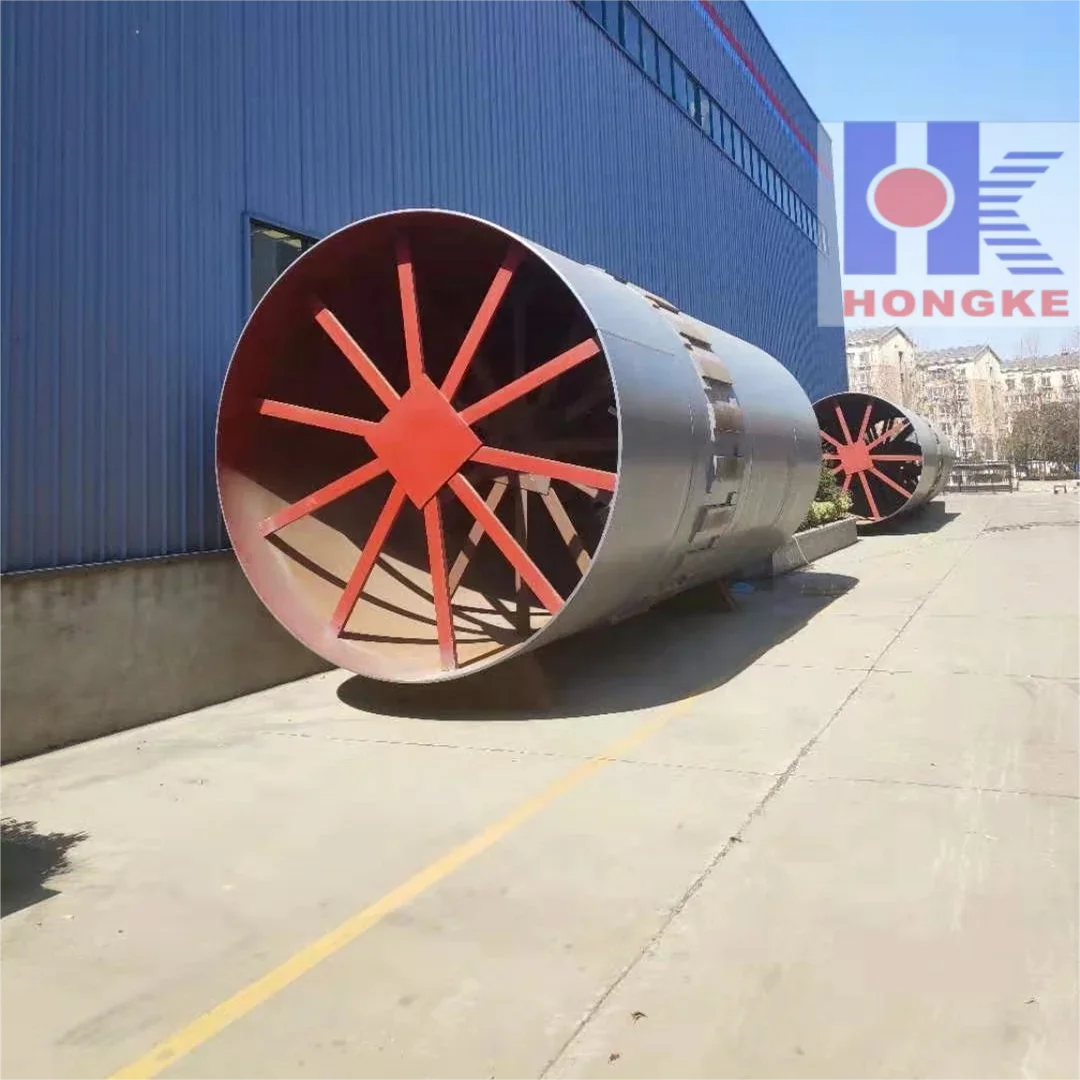

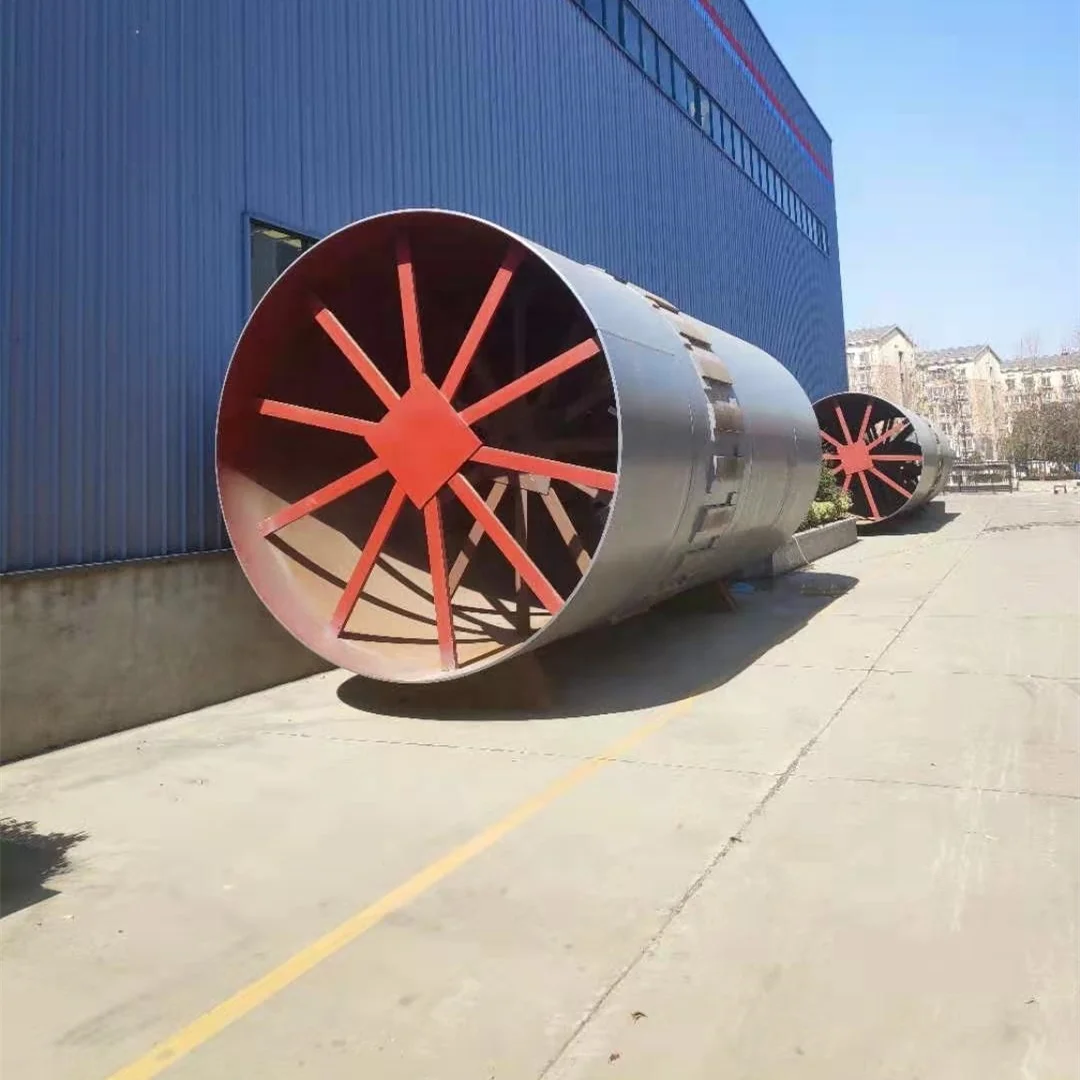

Factory workshop actual photos
