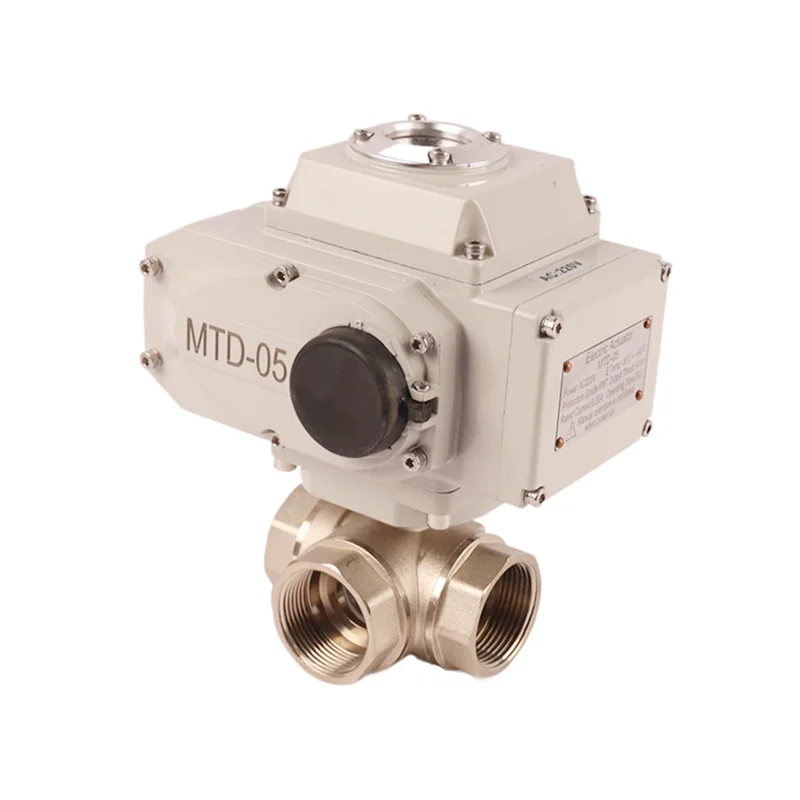

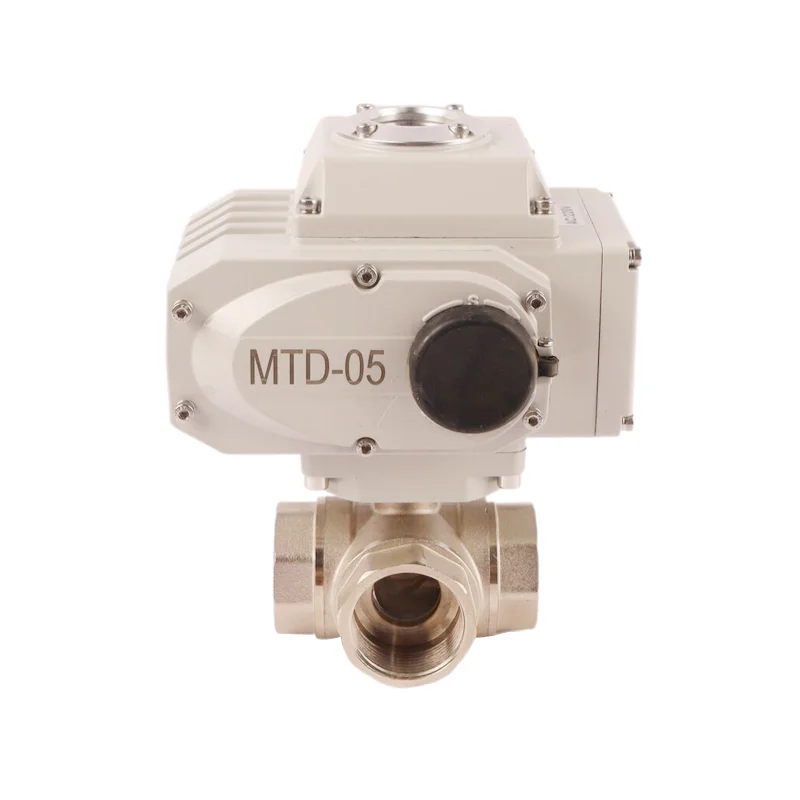

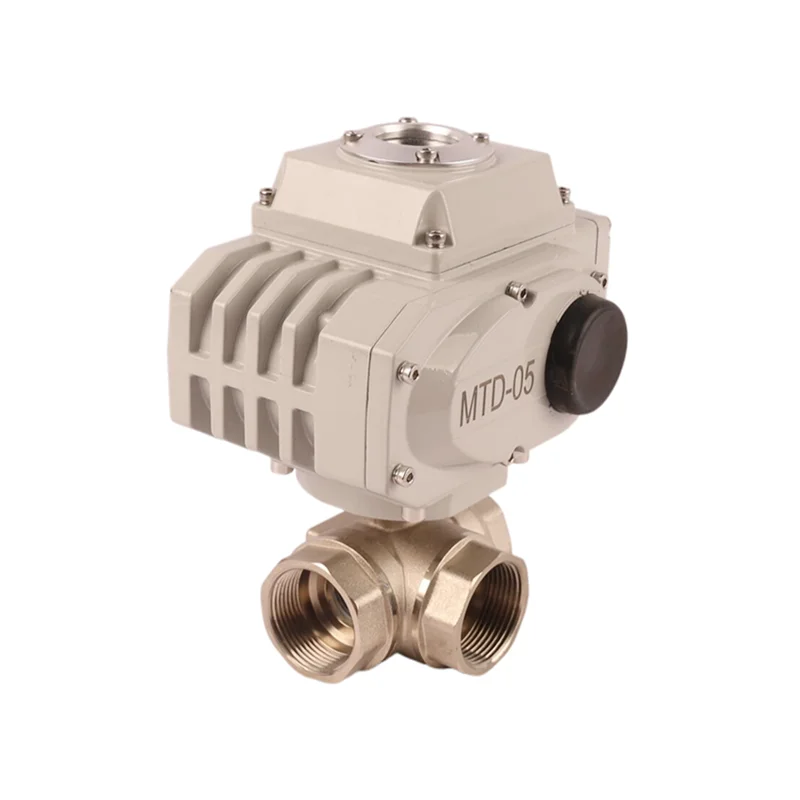

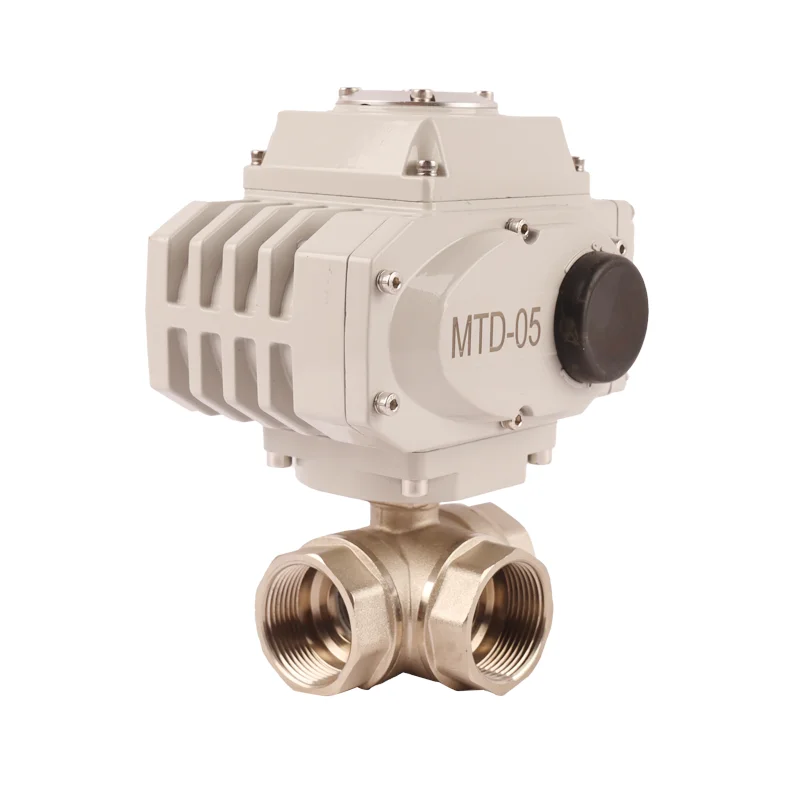

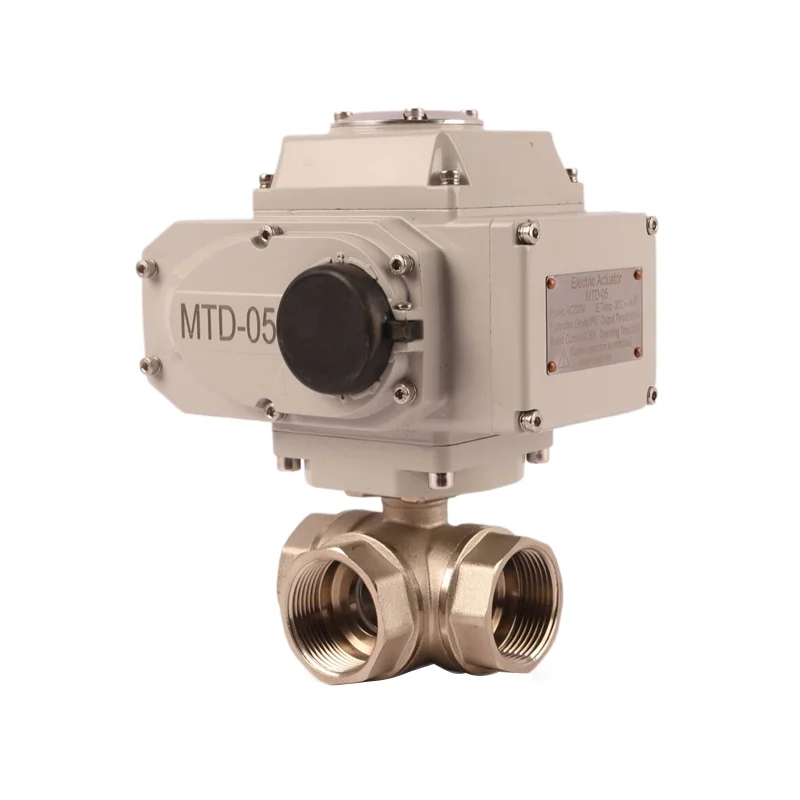

24V DC Motorised Actuators 3 Way 304 Stainless Steel Water Treatment Electric Actuator Ball Valve
- Category: >>>
- Supplier: Ningbo Leadwin International Trade Co. Ltd.
Share on (1601236469863):
Product Overview
Description
Actuator valve actuator control 3 way brass ball valve
3 way brass actuator Specification:
* Size Range: DN15-DN100
* Valve material: Brass(Nickel-plated is available)
* Pressure: 232psi
* Thread connection: BSP thread, NPT thread, G thread
* Standard: ISO5211(F03/F05/F07/F10)
* Accessories: 0.8m cable wires; bracket&screw;with manual override
* Customized: high platform bracket&screw ,extra wires length
* Rated Torque: 10Nm-2000Nm
* Enclosure level: IP67
* Housing material: ABS/Die-casting aluminum
* Rated Voltage: DC12V、DC24V、AC24V、AC110V、AC230V、AC/DC24V、AC/DC95~265V
* Modulating control mode: 0~5V、1~5V、0~10V、2~10V、0~20mA、4~20mA
* Install Actuator: ON &OFF Actuator, Modulating Actuator, Failsafe capacity Actuator, RS485 Series Actuator, Intelligent on&off
Actuator, Intelligent Modulating Actuator
* Functions Ordered: High speed On/Off Type,Power Off Reset Type,PID Type,Nb_lot Type
* Size Range: DN15-DN100
* Valve material: Brass(Nickel-plated is available)
* Pressure: 232psi
* Thread connection: BSP thread, NPT thread, G thread
* Standard: ISO5211(F03/F05/F07/F10)
* Accessories: 0.8m cable wires; bracket&screw;with manual override
* Customized: high platform bracket&screw ,extra wires length
* Rated Torque: 10Nm-2000Nm
* Enclosure level: IP67
* Housing material: ABS/Die-casting aluminum
* Rated Voltage: DC12V、DC24V、AC24V、AC110V、AC230V、AC/DC24V、AC/DC95~265V
* Modulating control mode: 0~5V、1~5V、0~10V、2~10V、0~20mA、4~20mA
* Install Actuator: ON &OFF Actuator, Modulating Actuator, Failsafe capacity Actuator, RS485 Series Actuator, Intelligent on&off
Actuator, Intelligent Modulating Actuator
* Functions Ordered: High speed On/Off Type,Power Off Reset Type,PID Type,Nb_lot Type
3 way brass actuator Features:
Features 1 | Multi-position mode can be realized |
Features 2 | High performance brushless motor, overheat/overload protection of internal motor. |
Features 3 | Service life-20000 cycles (Max:9371648 times) |
Products Description
Types of Actuator

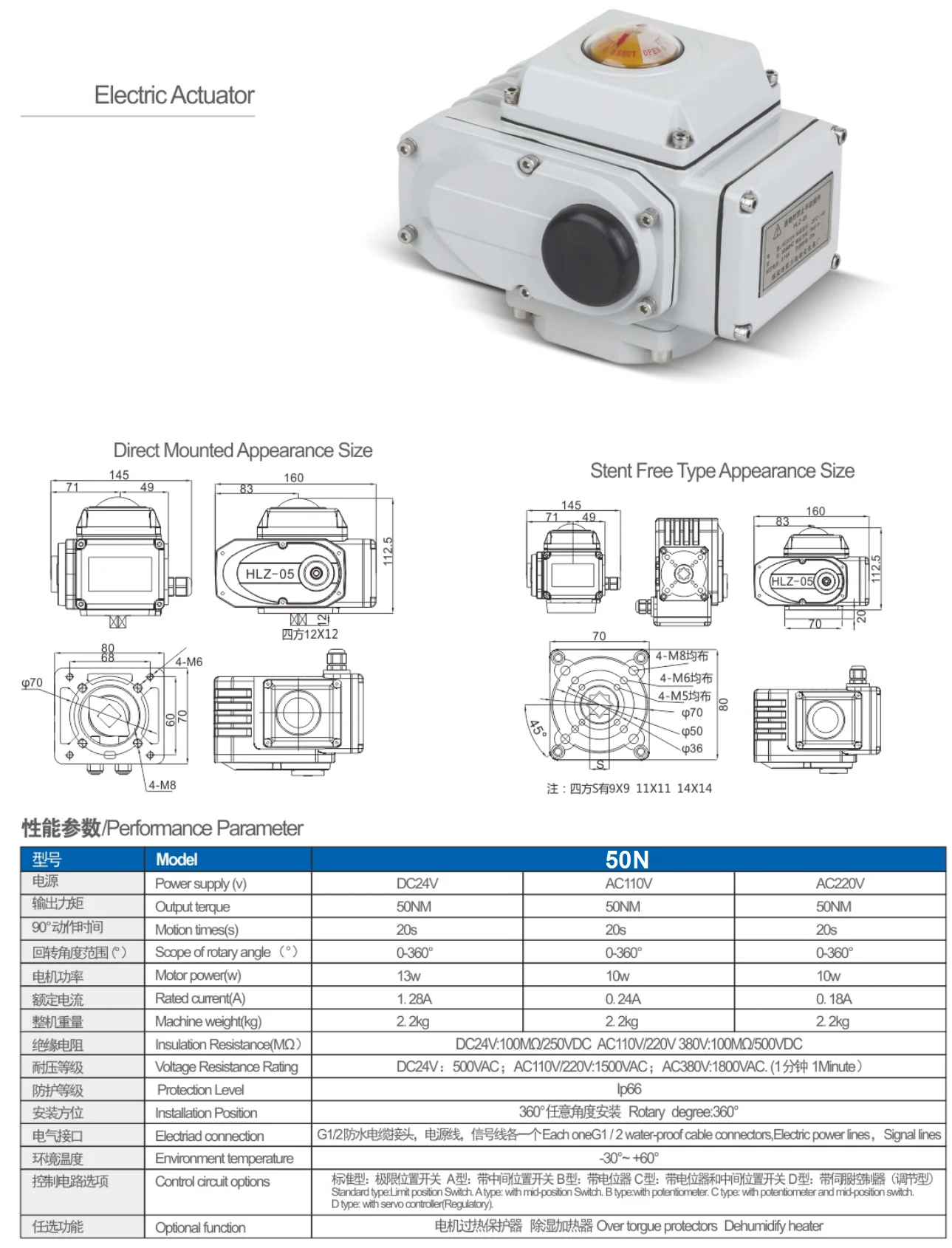

50Nm

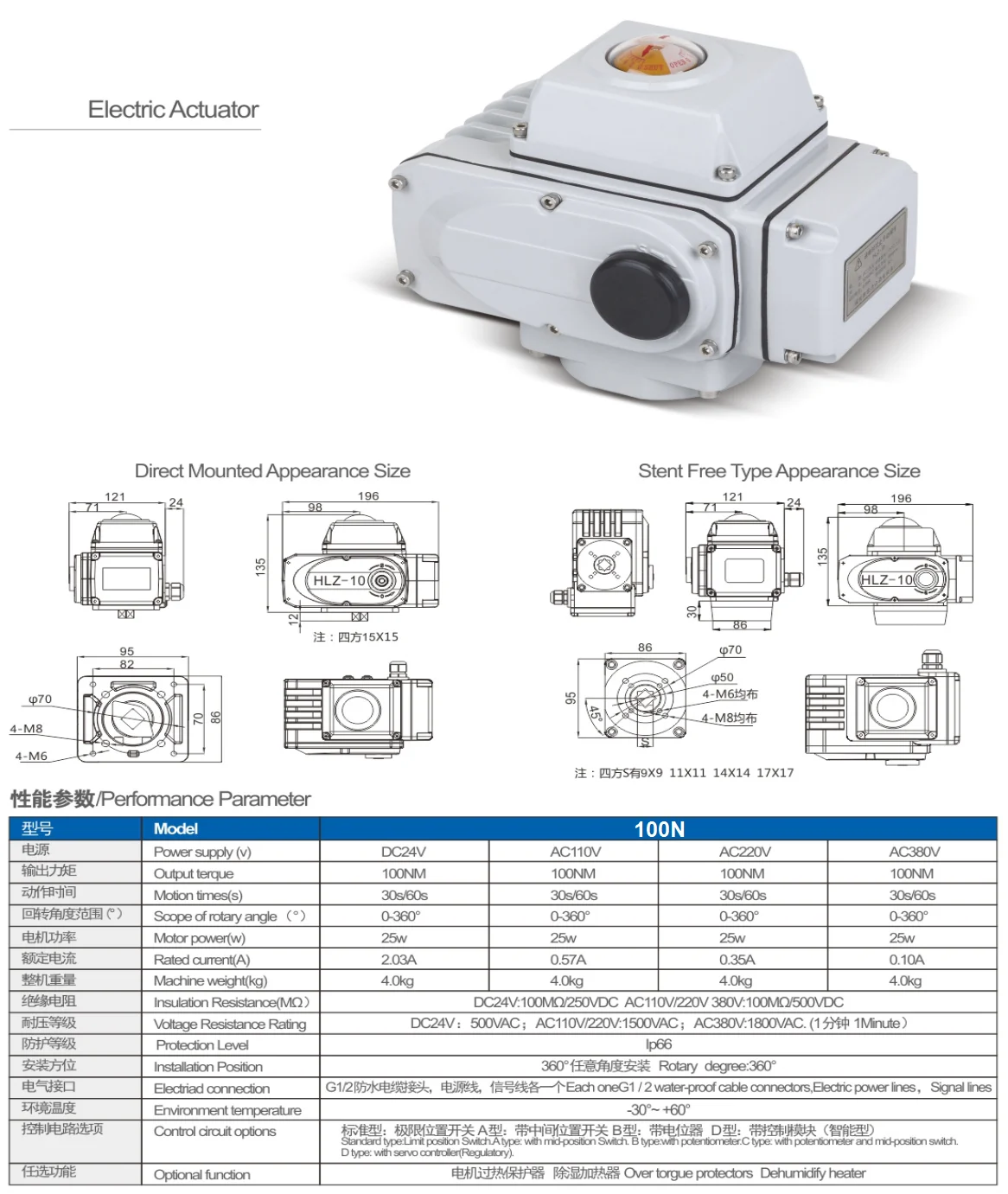

100Nm

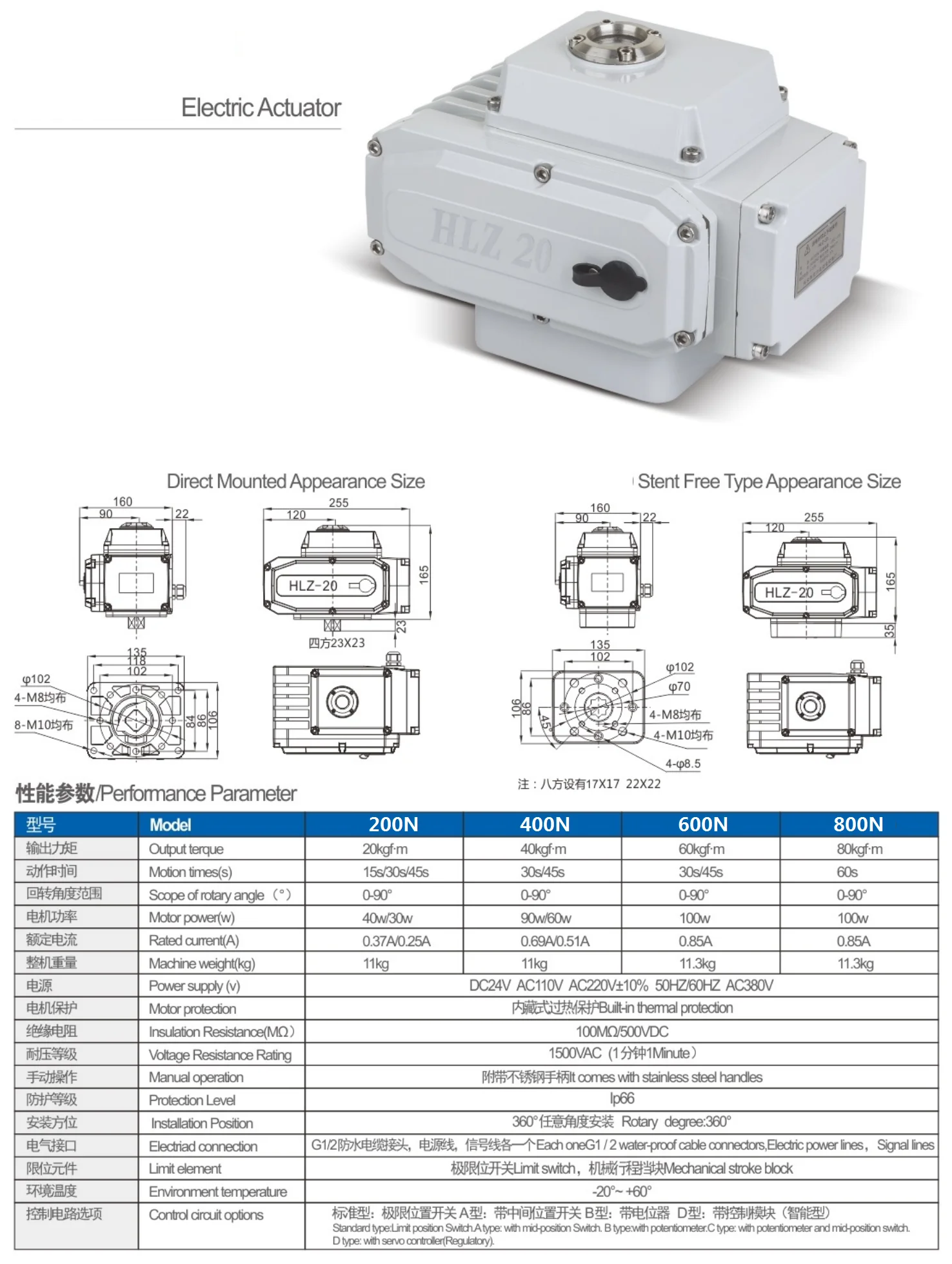

200Nm-800Nm
