DC 5V DC12V WS2811 Digital LED Pixel point LightWS2811 RGB IC Color Changeable IP68 waterproof 0.3W Smart LED module Light
- Category: >>>
- Supplier: Shenzhen Like Light Co. Limited.
Share on (1601236534373):
Product Overview
Description
Products Description
Part NO： L-C12-UCS1903/WS2811
Diameter (mm) : 12 mm
IC chip: UCS1903/WS2811
Lighting Source: F8 diodo LED
Operate Voltage : DC5V/12V optional
Wattage : 0.3W/pc
Beam Angel :180 degree
Length: standard 50pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Diameter (mm) : 12 mm
IC chip: UCS1903/WS2811
Lighting Source: F8 diodo LED
Operate Voltage : DC5V/12V optional
Wattage : 0.3W/pc
Beam Angel :180 degree
Length: standard 50pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃

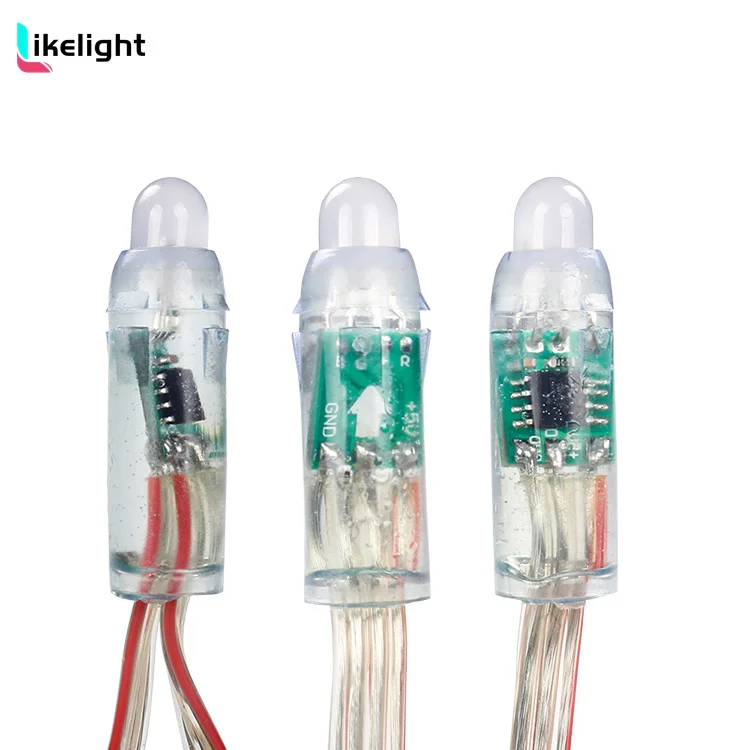

1.Control : Seperate control, 1 PCS F8 diodo and 1IC (UCS1903/WS2811)
2. Waterproof : IP65 with JST non-waterptoof connector (indoor use), IP68 with PVC connector (outdoor use).
3. Installation: Aluminum profil or screw , the best drill holes of profil about 30-31mm.
4. Power supply: Low power and consume, DC5V/DC12V 0.3W. Do not higher than DC5VDC12V or will burn the led.

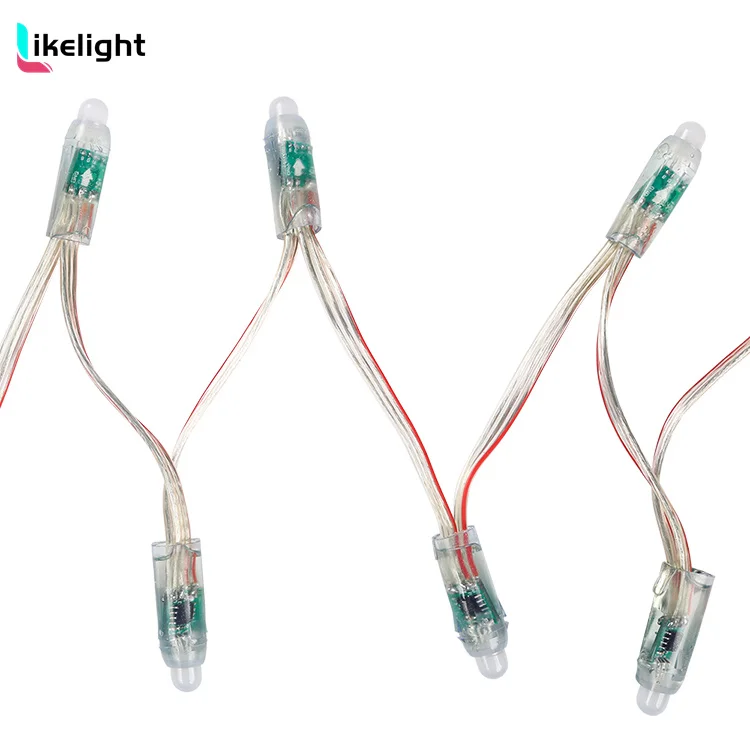

5. Connectors :3PIN JST female/male connector, also can be waterproof connector, DAT, DC5/12V+, GND-, each led pixel is separate,you can easily connect them one by one through the male female connector.
6. It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and colorful
7. Different installation methods can constitute different dynamic effects of different color characteristics and designs.
2. Waterproof : IP65 with JST non-waterptoof connector (indoor use), IP68 with PVC connector (outdoor use).
3. Installation: Aluminum profil or screw , the best drill holes of profil about 30-31mm.
4. Power supply: Low power and consume, DC5V/DC12V 0.3W. Do not higher than DC5VDC12V or will burn the led.
5. Connectors :3PIN JST female/male connector, also can be waterproof connector, DAT, DC5/12V+, GND-, each led pixel is separate,you can easily connect them one by one through the male female connector.
6. It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and colorful
7. Different installation methods can constitute different dynamic effects of different color characteristics and designs.
Dimensional drawing & installation
Applications
Numeric letter sign lighting
Christmas decoration
Home decoration
Outdoor garden decoration
Halloween decorations
Christmas decoration
Home decoration
Outdoor garden decoration
Halloween decorations

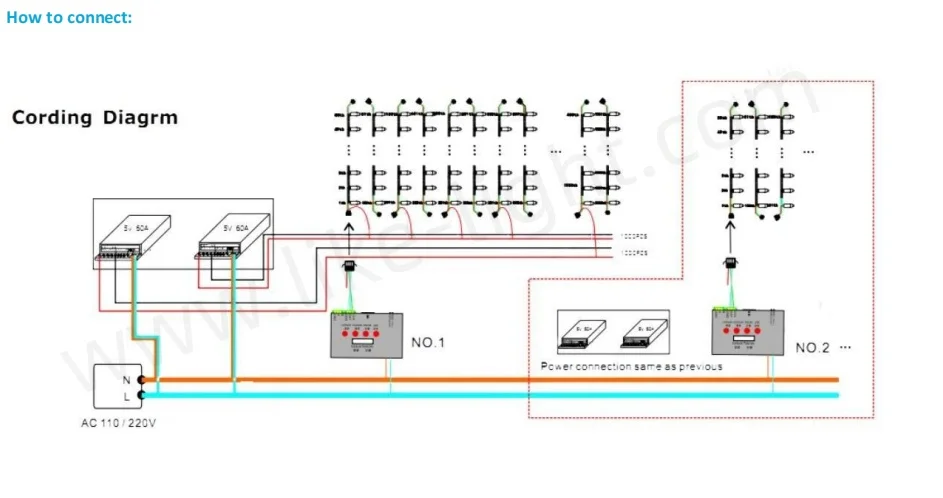

Control Components
1. Signal wire:DC+, DAT, GND.
2. DC+ and GND connect to power supplier; DAT, CLK and GND connect to controller.
3.Music Bluetooth WIFI controller for mobile phone control ;SD Controller T400K, T500K, T4000C, K1000C, K8000C; Online Controller; Artnet;Arduino and DMX controller and SPI controller.2. DC+ and GND connect to power supplier; DAT, CLK and GND connect to controller.
4. Software to make program, now we often use LEDEDIT, LED EASY and MADRIX.
5. Meanwell power supply and chuanglian power supply, waterproof/non-waterproof.
6. Contact me for more information.
Packing & FAQ
Why choose Like-Light LED Light ?
1.PCB board: Like-Lighting use at least 2 ounces PCB, some are 3 ounces and 4 ounces , double-sided copper film for better dissipation. They are 100% pure copper.
2.LED Chip: Epistar brand led chips. Like- Lighting could do other brand chips according to customer's request, such as,
Cree,Samsung, Philips, San'an, Honglitronic and Smalite led chips. We only focus on high quality led chips.Our LED 99% pure gold wire copper bracket, stable function, long life, good heat dissipation
3.Color Rendering Index: Like- Lighting use at least CRI 80 led chips to do our led strip lights,string light ,pixel light. When
we test by the integrating sphere machine, it usually shows CRI 83 for most of our led chips. We also use many CRI 90 and CRI 95 led chips for special projects. We can offer the test report for each batch of our LED strip lights, LED pixel light, LED bar light.
4.Uniformity: It's very important to our customers that Like- Lighting always keep the same bin color temperature for all our LED strip lights, LED pixel light, LED bar light.
5.Waterproof Rating: We could not only offer traditional IP65, IP67, IP68 waterproof process, but also new silicon extrusion process for IP65, IP66, IP67, IP68 waterproof ratings in dotless milk encapsulations. Most of our waterproof mold are private mode.
6.Engineer Team: Like- Lighting have our own engineer team. Whatever flexible strip pcb , rigid strip pcb or led pixel module, our engieer team can draw file for customers at first time. We welcome all OEM and ODM orders from all over the world.
7.Service: Like- Lighting LED lights are CE, ROHS, We warranty 2-3 years. Welcome to visit our factory !.
1.PCB board: Like-Lighting use at least 2 ounces PCB, some are 3 ounces and 4 ounces , double-sided copper film for better dissipation. They are 100% pure copper.
2.LED Chip: Epistar brand led chips. Like- Lighting could do other brand chips according to customer's request, such as,
Cree,Samsung, Philips, San'an, Honglitronic and Smalite led chips. We only focus on high quality led chips.Our LED 99% pure gold wire copper bracket, stable function, long life, good heat dissipation
3.Color Rendering Index: Like- Lighting use at least CRI 80 led chips to do our led strip lights,string light ,pixel light. When
we test by the integrating sphere machine, it usually shows CRI 83 for most of our led chips. We also use many CRI 90 and CRI 95 led chips for special projects. We can offer the test report for each batch of our LED strip lights, LED pixel light, LED bar light.
4.Uniformity: It's very important to our customers that Like- Lighting always keep the same bin color temperature for all our LED strip lights, LED pixel light, LED bar light.
5.Waterproof Rating: We could not only offer traditional IP65, IP67, IP68 waterproof process, but also new silicon extrusion process for IP65, IP66, IP67, IP68 waterproof ratings in dotless milk encapsulations. Most of our waterproof mold are private mode.
6.Engineer Team: Like- Lighting have our own engineer team. Whatever flexible strip pcb , rigid strip pcb or led pixel module, our engieer team can draw file for customers at first time. We welcome all OEM and ODM orders from all over the world.
7.Service: Like- Lighting LED lights are CE, ROHS, We warranty 2-3 years. Welcome to visit our factory !.
