24p PV Dual Axis Tracker Solar Tracker Solar Dual Axis Tracker 2024 Hot Selling Tracking Bracket
- Category: >>>
- Supplier: Shandong Jinhong New Energy Co. Ltd.
Share on (1601236557142):
Product Overview
Description
Product Description

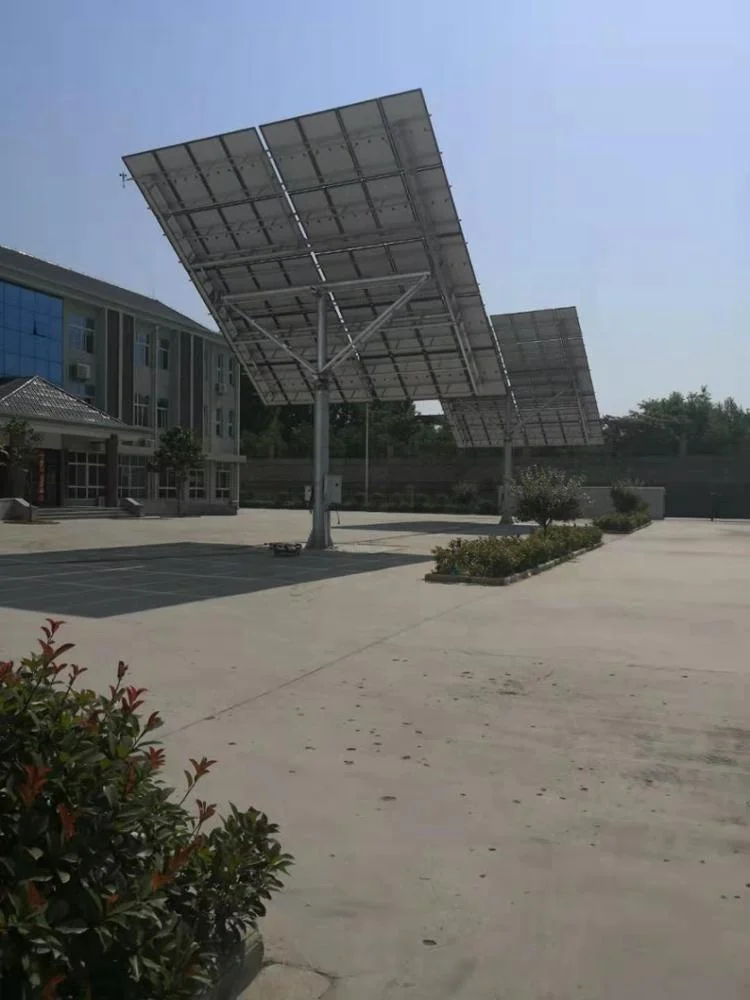

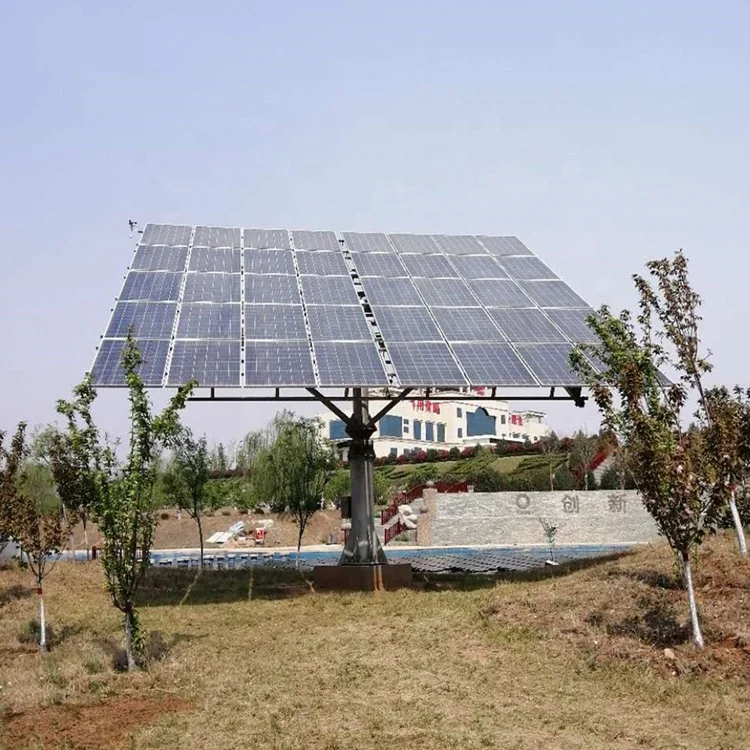

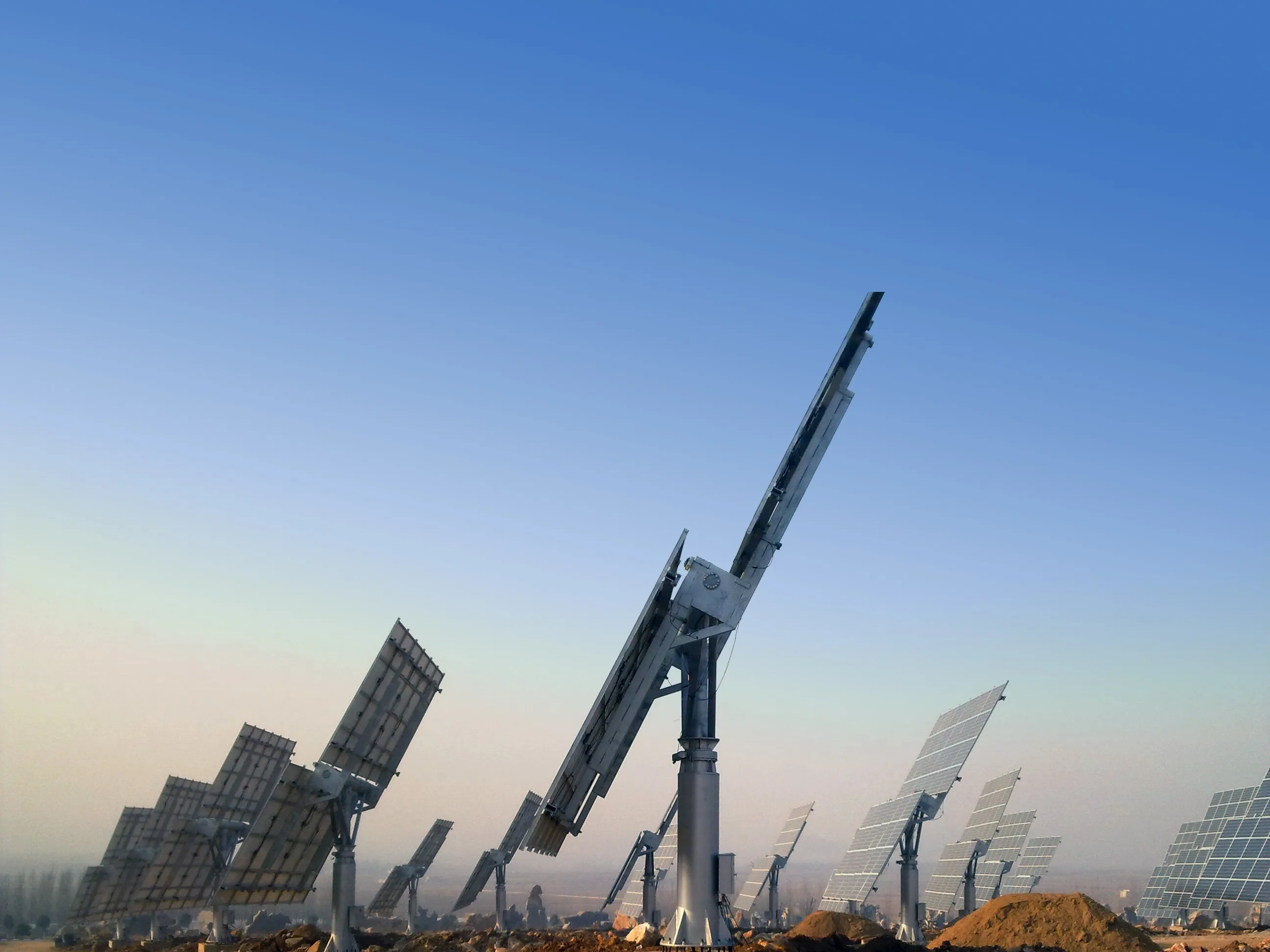

Dual Axis Solar Tracker
The dual axis solar tracker solar panels tracking system uses high-precision astronomy algorithm to calculate the angle of thesun, combined with high-performance microcontroller (DSP core), making the system accurate and reliable, not rainy daysinterference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking,without human intervention.

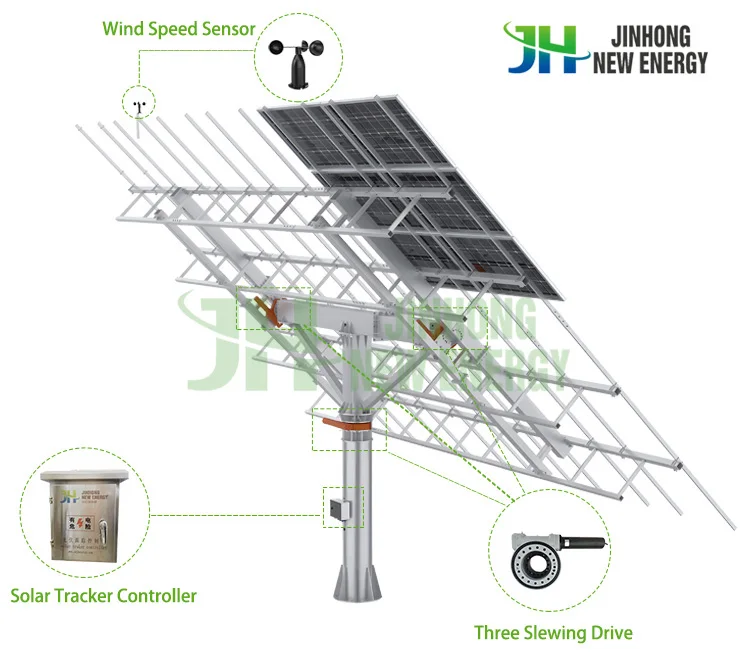

Features Of Our Support Structure
※ Self-balancing structure to reduce mechanical wear and extend motor life;
※ The use of slewing bearing reducer drive, no gap;
※ Simple structure, easy to install and maintain;
※ The consumable parts are made into standard products, and the maintenance and replacement of the motor are simple.
※ The use of slewing bearing reducer drive, no gap;
※ Simple structure, easy to install and maintain;
※ The consumable parts are made into standard products, and the maintenance and replacement of the motor are simple.
The Main Advantages Of A Dual Axis Solar Tracker

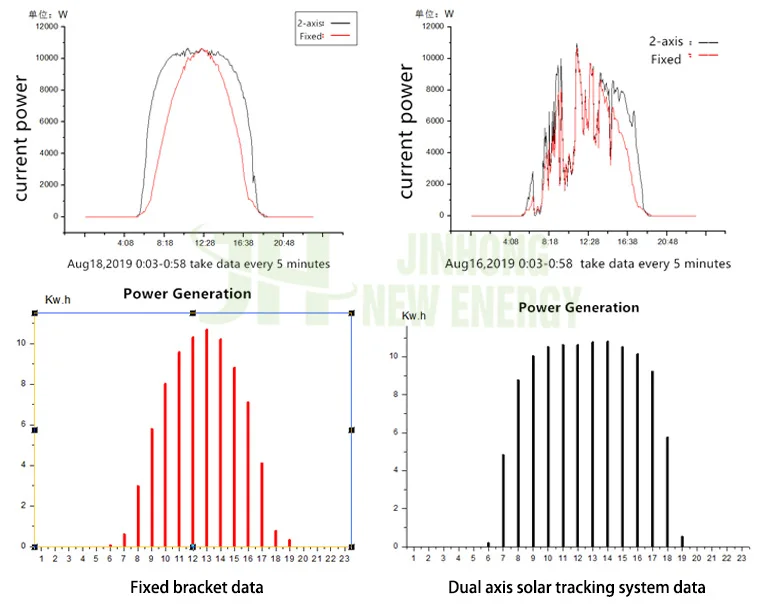

※ Power generation efficiency increased by 35%~45%.
※ Simple structure ,easy in installation and debugger application.
※ provide installation video ,introduction and foundation design drawing.
※ Cover a small area,you can grow shade-loving plant under the system.
※ The tracker could adjusts solar panels into horizontal level when meeting strong wind.
※ Exclusive design patent:dual axis solar bracket and solar controller.
※ provide installation video ,introduction and foundation design drawing.
※ Cover a small area,you can grow shade-loving plant under the system.
※ The tracker could adjusts solar panels into horizontal level when meeting strong wind.
※ Exclusive design patent:dual axis solar bracket and solar controller.

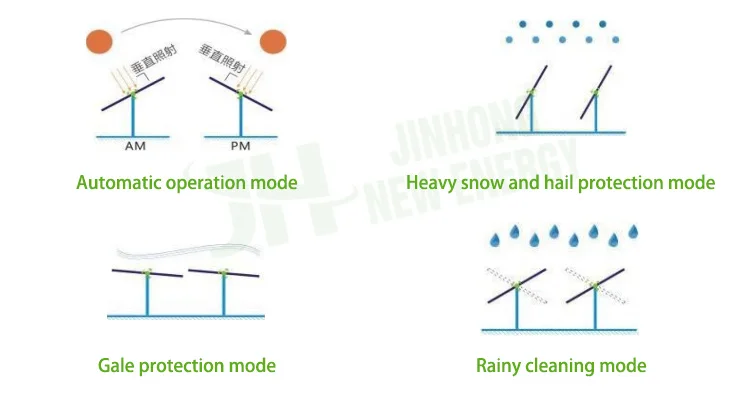

※ According to the astronomical algorithm and the position sensor, the theoretical value and the actual value of the Sun are determined to track the solar azimuth accurately.
※ In case of snow or hail, the station personnel shall control the inclination angle of the component to the protection angle, which is conducive to snow sliding and avoiding hail damage to the component.
※ In severe windy weather, the flat single-axis tracking bracket can enter the wind-out posture, and the assembly can automatically turn to the minimum windward surface to reduce the Windward area and avoid and reduce the risk of wind damage.
※ In rainy days, the station personnel control, the component (East-West direction) rotates several times, and the component is automatically cleaned by rainwater to increase the power generation efficiency.
Product parameters
Dual Axis Solar Tracking System Reference | ||||||
Origin | Shandong, China | Brand | JinHong | |||
Bracket Material | Hot Galvanizing Q355B steel | Tracking Precision | ≤ 1° | |||
Wind Load | ≤ 18m/s | Snow Load | 0.3KN~1.4kn/㎡ | |||
Driving form | Rotary Drive | Drive power | 150W | |||
Electricity Consumption | <0.4KWH/Day | Power Supply | 220VAC/1500VDC | |||

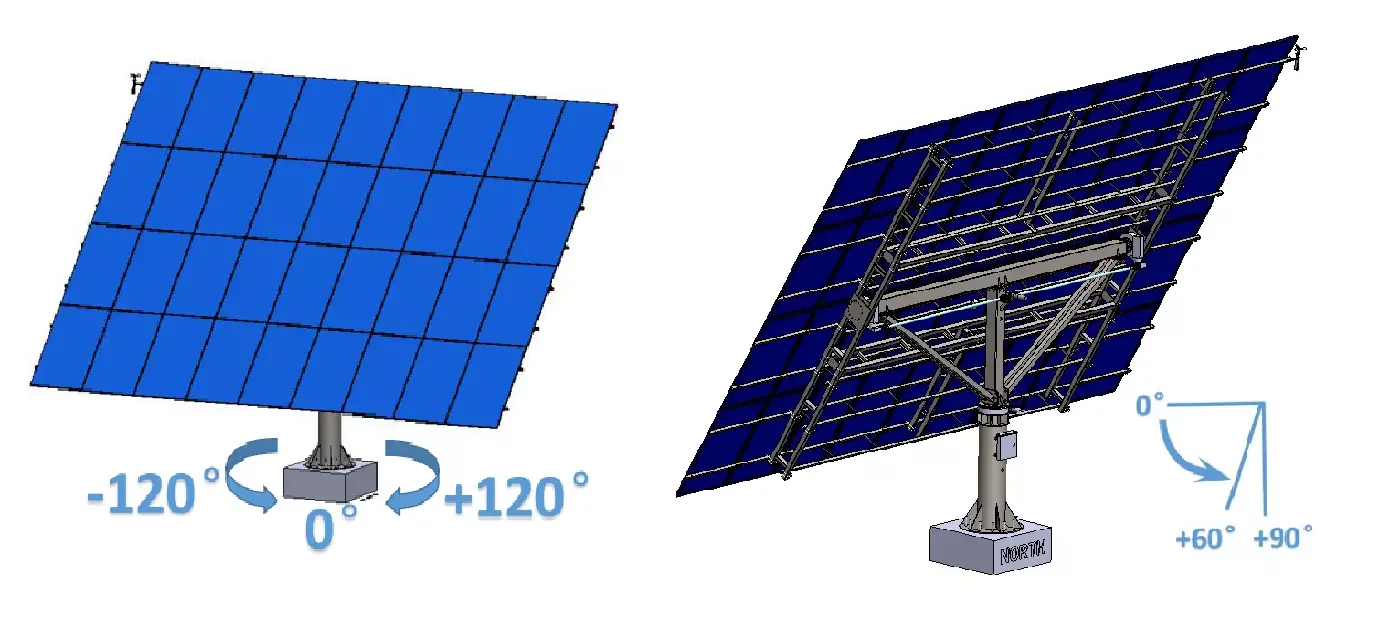

X Tracking Angle | ±120° | Y Tracking Angle | 0 - 60° | |||
Communication Protocol | RS485-Modbus | Protection Level | IP65 | |||
Operating Temperature | -35℃ ~ 70℃ | Foundation Form | Concrete Foundation | |||
Bracket Material Warranty | 3 Years | Other Component Warranty | 1 Year | |||
Standard | GBT 29320-2012 | Design Life | >25 Years | |||
Certification | CE,CQC,ISO9001,ISO14001,OHSAS18001 | |||||
Technology and R&D
Our company independently develops the cloud platform,which can upload and save the data in real time to the cloud control center.Users can view the tracking data and remote control in real time through the computer and mobile.
Self-developed back tracking algorithm to further improve the efficiency of power generation to ensure that the solar panels has always been working in shadow less state,increase the solar power generation and prolong its service life.
Solar Tracking Controller
Determine the theoretical and actual values of the sun based on astronomical algorithms and position sensors, and accurately track the angle of the sun.
By analyzing and tracking the trajectory of the sun, it ensures that components are not obstructed by shadows and improves power generation efficiency.
RS485-MODBUS
Computer software can read the following device data at any time：
1.Sun angle,inclination angle,running status.
2.Actuator,inclination,limit,communications fault alarm.
3.Remote start,stop,reset,manual,anti-wind,anti-snow,anti-rain.
2.Actuator,inclination,limit,communications fault alarm.
3.Remote start,stop,reset,manual,anti-wind,anti-snow,anti-rain.
Company Profile
Shandong Jinhong New Energy Co., Ltd. is a manufacturing enterprise specializing in R&D,production and sales of solar systems. We are committed to promoting and popularizing clean energy applications and has launched a series of products such as solar system, solar tracker and solar pumping system.
Photovoltaic Tracking System Sales Map

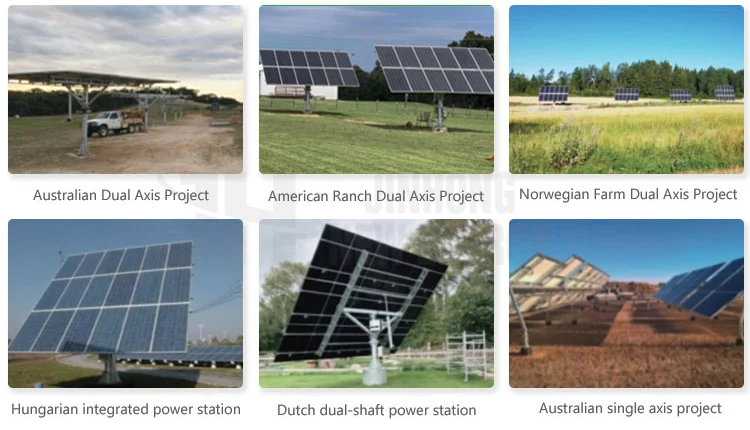

※ Jinhong products have been sold to more than 20 countries around the world and have been widely praised.
※ Jinhong products are well adapted to various environments and have customers all over the world.
Our Advantages
Our R&D design team has 18 years experience and more than 20 patents in the field of solar tracking system.

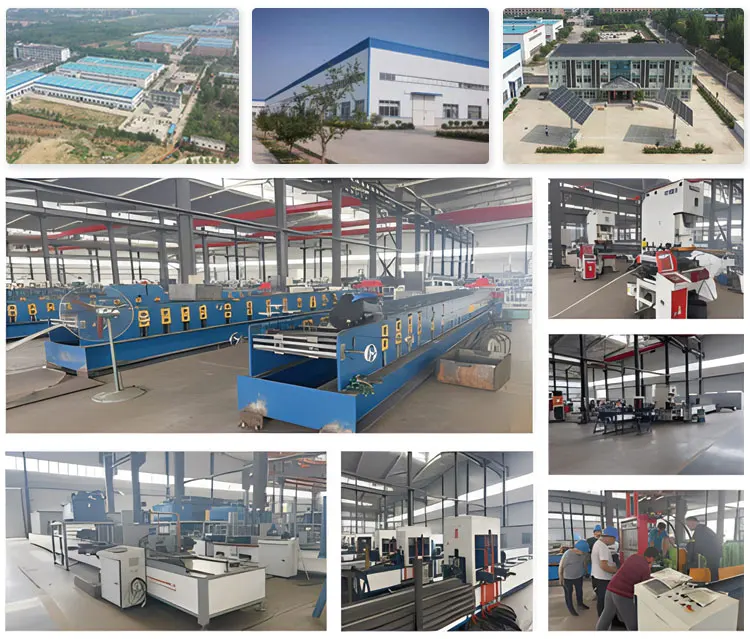

※ Our factory covers an area of 266400㎡. Total investment reached 120 million us dollars.
※ Company using ERP enterprise resourse planning and OA office automation ,ensure that the entire production process achieve quality control,finished storage and waiting for delivery.
※ With high intelligence and automated production work shop ,the company annual production capacity reach to 800MWp solar system.
Certification and Exhibition
Packing & Delivery
FAQ
Q: How long is your delivery time?
A: Generally solar tracker is 5-10 working days if the goods are in stock, or it is 20-35 working days if the goods are not in
stock,it is according to quantity.
A: Generally solar tracker is 5-10 working days if the goods are in stock, or it is 20-35 working days if the goods are not in
stock,it is according to quantity.
Q: Does any country support T/T, L/C, D/A, D/P, Western Union, Money Gram?
A: Our method of payment varies according to different countries and regions. Normally, we accept payment by T/T.
Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
