Flexible 20 x 20 Mesh Stainless Steel Fly Screen Mesh
US $2.92-$3.50
Stainless Steel 304 stainless steel security mesh mosquito window net stainless steel woven screen mesh
- Category: >>>
- Supplier: Hebei Jinbiao Construction Materials Tech Corp. Ltd.Hebei Ltd.
Share on (1601236672050):
Product Overview
Description
Product Description

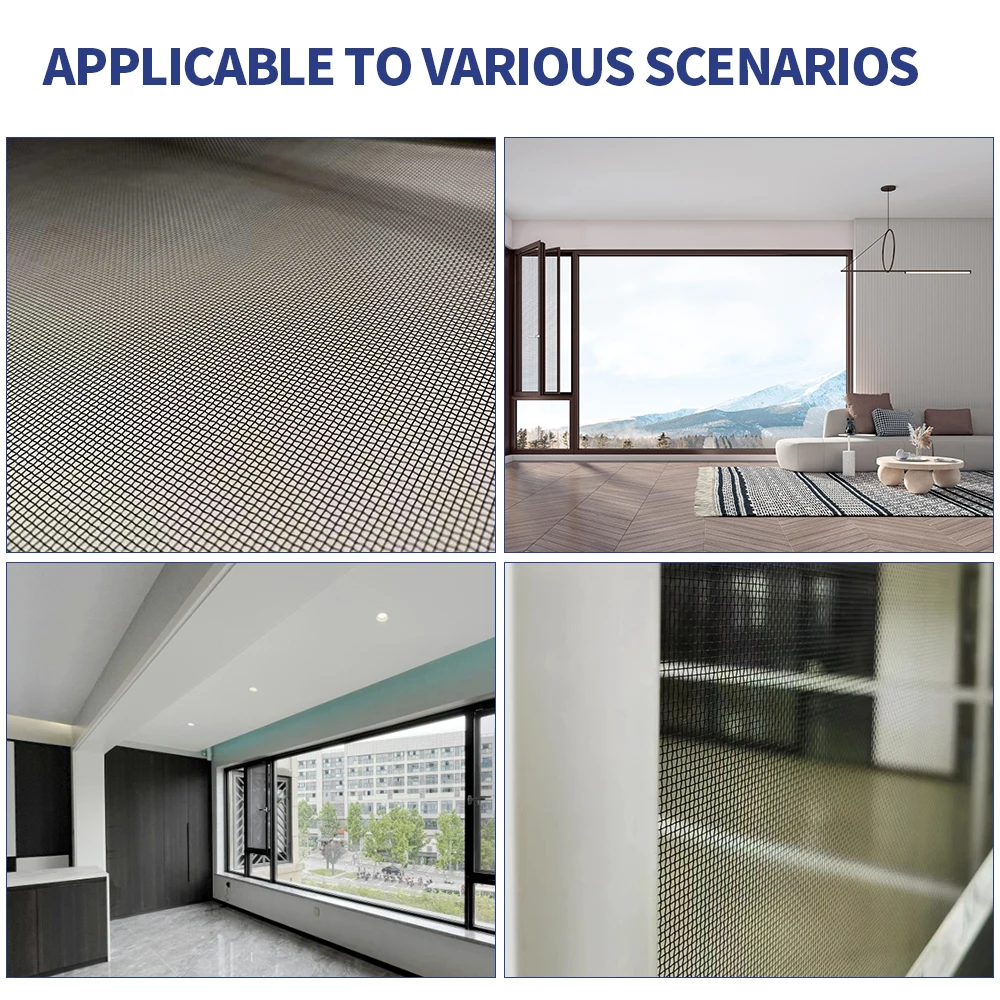

Stainless Steel Window Screen is made of plain weaving technology, with good air permeability, light transmission and other properties, is the substitute of ordinary nylon window screen in China. This product is high grade, wide use, is the first choice of doors and windows protection products for high-grade office buildings, residential buildings and various buildings, livestock farms, orchards. Breathable and transparent, the product surface color bright and beautiful, compared with ordinary nylon window screen can better increase the rate of air circulation and sunlight irradiation. And Not blocking the light and not blocking the wind.
JS110H | JS130 | JS150 | JS140H | JSS200 | JS300 | ||||||
Wire Composition | Stainless Steel Screen | Stainless Steel SUS304 | Stainless Steel SUS304 | Stainless Steel Screen | Stainless Steel SUS316 | Stainless Steel SUS304 | |||||
Mesh: | 24x22 | 24x22 | 18x18 | 18x18 | 18x16 | 16x16 | |||||
Wire diameter: | 0.11mm | 0.13mm | 0.15mm | 0.14mm | 0.20mm | 0.30mm | |||||
Aperture | 0.92x1.01mm | 0.92x1.01mm | 1.25x1.25mm | 1.25x1.25mm | 1.21x1.38mm | 1.28x1.28mm | |||||
Openness | 82% | 80% | 80% | 82% | 75% | 65% | |||||
Light Transmittance | 99% | 98% | 94% | 95% | |||||||
Weight | 120g/m2 | 210g/m2 | 210g/m2 | 190g/m2 | 310g/m2 | 670g/m2 | |||||
Tensile Strength | 1555Mpa | 750N/mm2 | 750N/mm2 | 1555N/mm2 | 750N/mm2 | 750N/mm2 | |||||
Elongation | 2% | 35% | 35% | 2% | 35% | 35% | |||||
Color | Black (other colors need to be customized) | ||||||||||
Width | Customized and Maximum width is 2.8 meters | ||||||||||
Roll Length | Customized and Maximum width is 1000 meters | ||||||||||

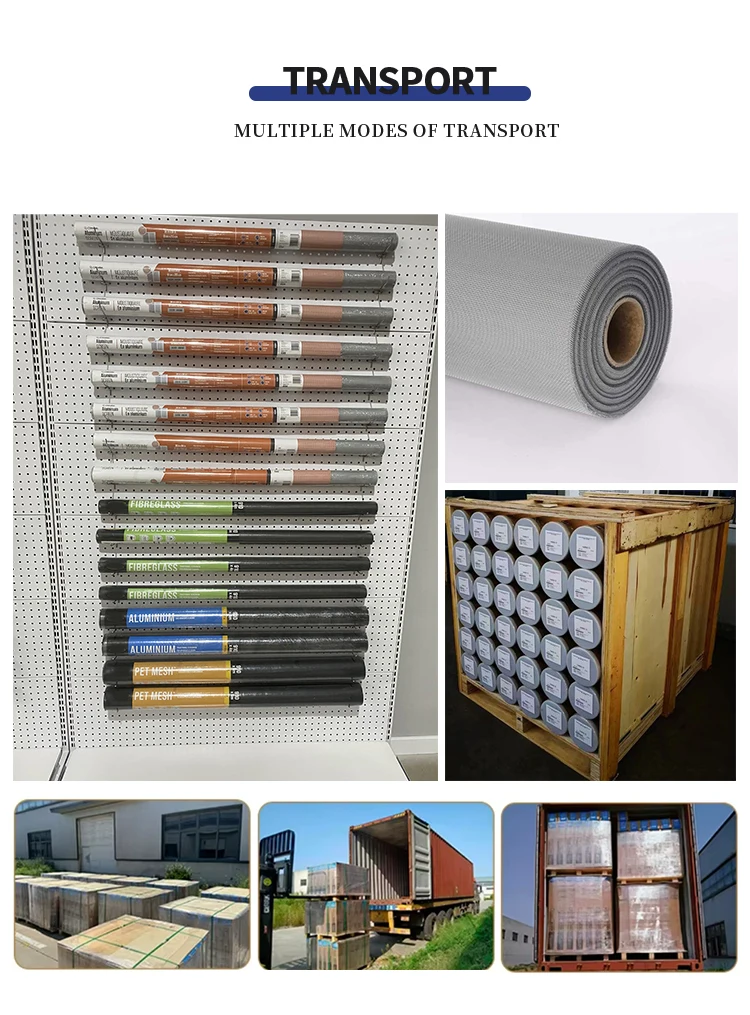

Packaging | Cardboard Tube + Wooden Case | ||||||||||
JS600 | JC240 | JL250 | JT250 | JF280 | |
Wire Composition | Stainless Steel SUS304 | Copper Alloy | Aluminum Alloy | Galvanized Iron Wire | Fiberglass |
Mesh: | 12x12 | 18x14 | 18x16 | 12x12 | 18x16 |
Wire diameter: | 0.60mm | 0.24mm | 0.25mm | 0.25mm | 0.28mm |
Aperture | 1.5x1.5mm | 1.16x1.56mm | 1.15x1.33mm | 1.86x1.86mm | 1.13x1.46mm |
Openness | 50% | 71% | 68% | 77% | 63% |
Weight | 2100g/m2 | 500g/m2 | 180g/m2 | 400g/m2 | 116g/m2 |
Tensile Strength | 750N/mm2 | 600N/mm2 | 360N/mm2 | 1050N/mm2 | 740N/50 mm |
Elongation | 35% | 1% | 5% | 1% | 3% |
Color | Metallic grey (other colors need to be customized) | Golden color | Black (other colors need to be customized) | Black (other colors need to be customized) | Black/Gray (other colors can be customized) |
Width | Customized and Maximum width is 1.6 meters | Customized and Maximum width is 2.5 meters | Customized and Maximum width is 2.8 meters | Customized and Maximum width is 2.5 meters | Customized and Maximum width is 3.2 meters |
Roll Length | Customized and Maximum width is 50 meters | Customized and Maximum width is 500 meters | Customized and Maximum width is 1000 meters | Customized and Maximum width is 1000 meters | Customized and Maximum width is 1000 meters |
Packaging | Cardboard Tube + Wooden Case | Carton Box + Wooden Case | Carton Box + Wooden Case | Cardboard Tube + Wooden Case | Carton Box + Wooden Case |

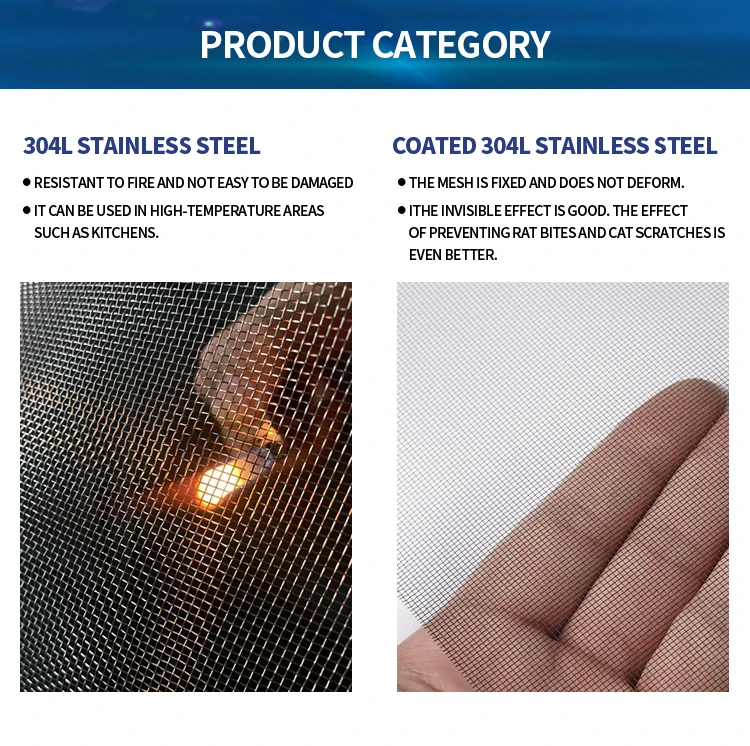

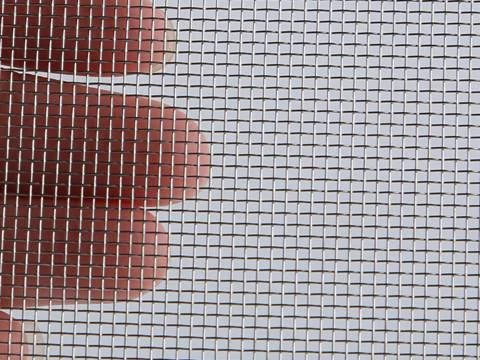

It is woven with stainless steel wires. The wires are waterproof, firm and durable. It can resist exposure to the sun, cat claws,
etc., and is wear-resistant.
etc., and is wear-resistant.

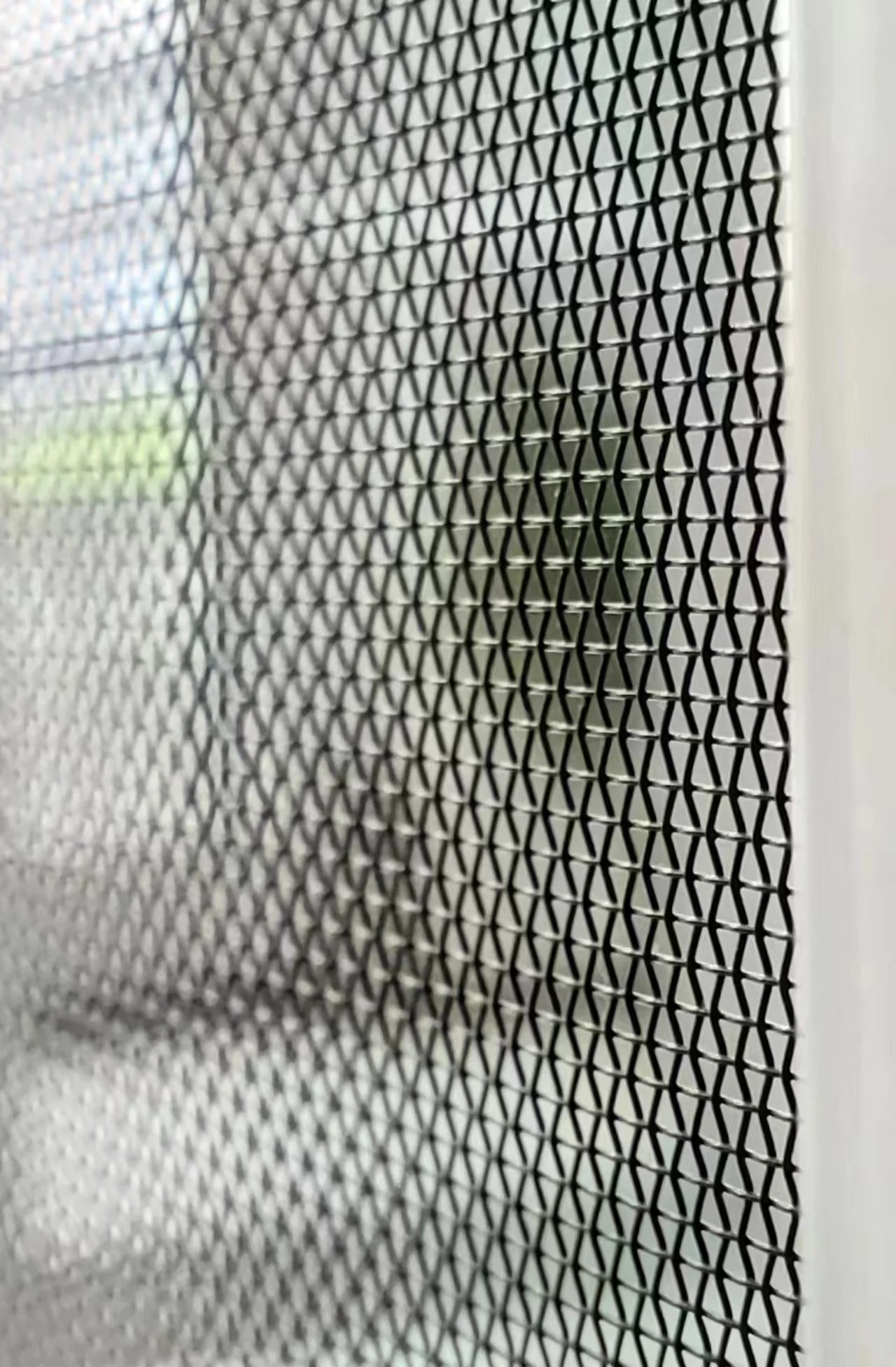

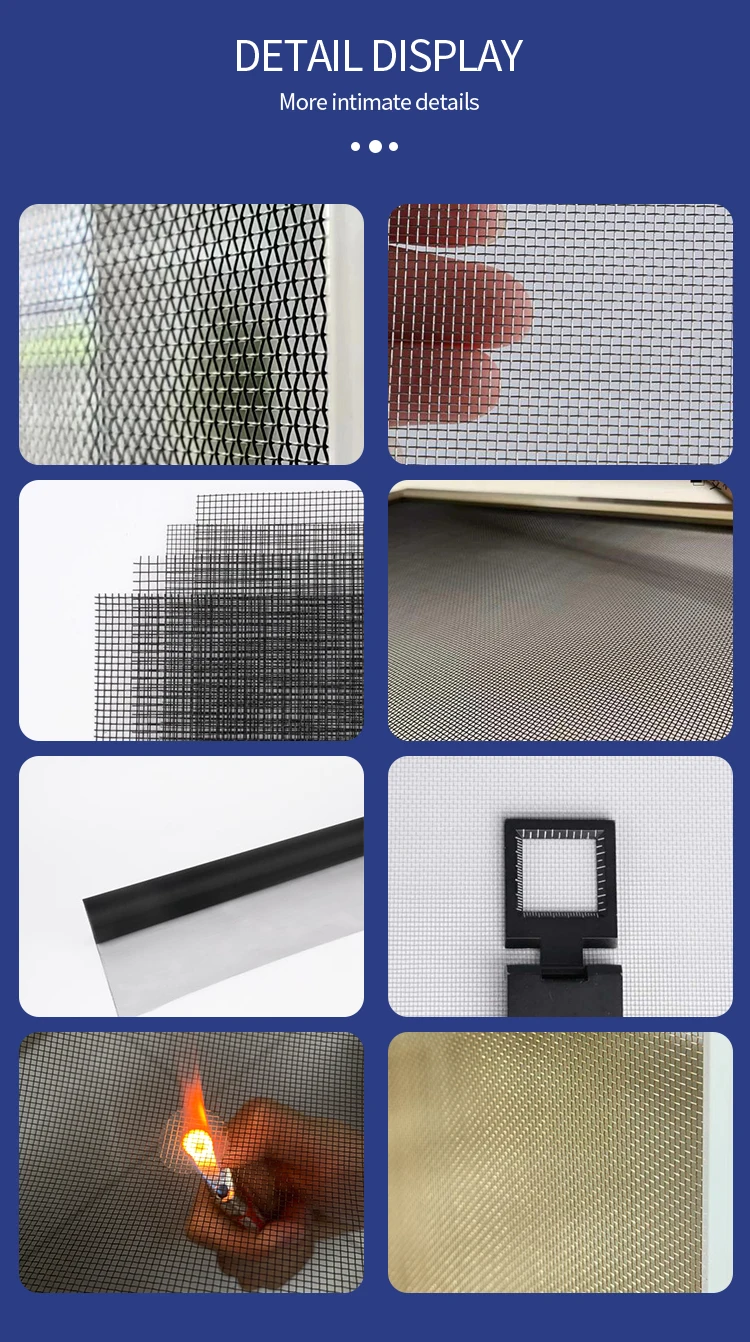

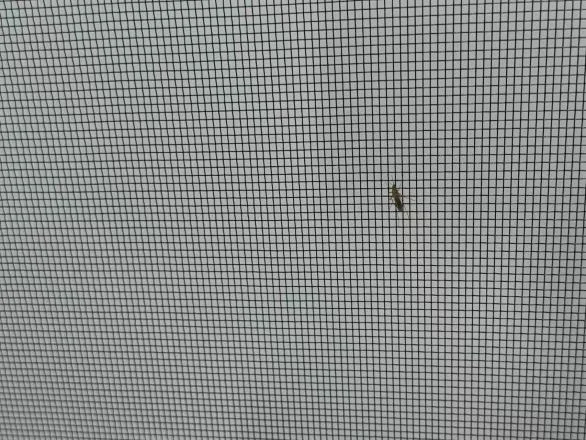

The mesh holes have been upgraded and encrypted. The mesh surface is flat, uniform and neat, exquisite and beautiful. Even the
smallest mosquitoes can be kept out.
smallest mosquitoes can be kept out.
It can be cut freely without silk shedding. Each silk is fixed. It can be brushed and rubbed for cleaning.

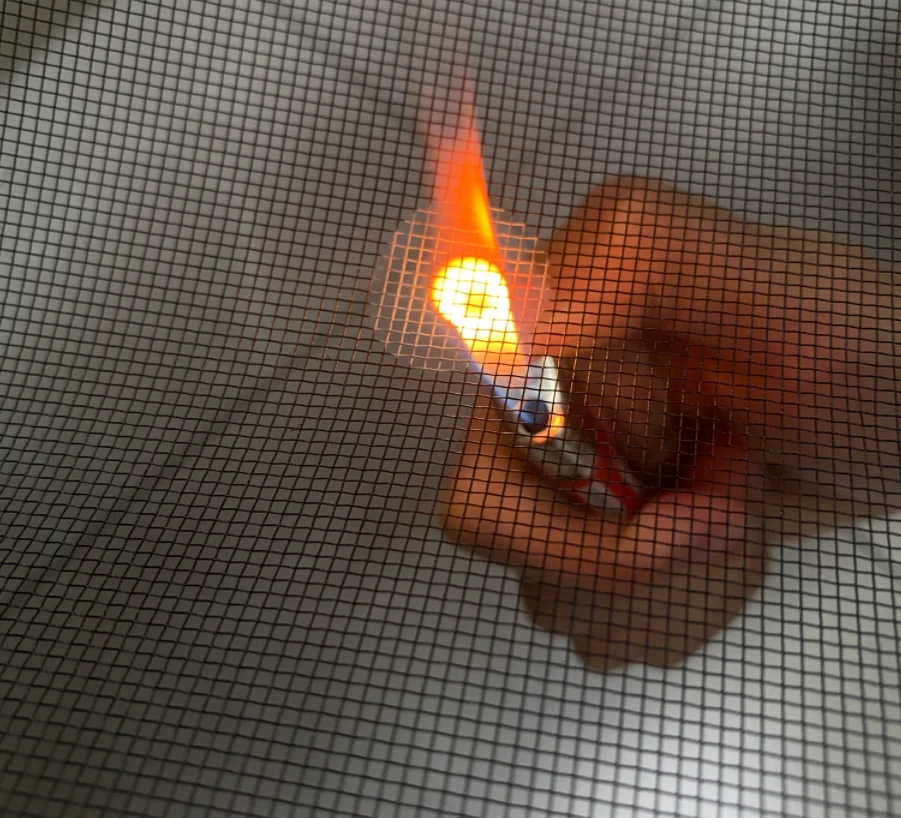

Light transmittance up to 99%, fire, flame retardant
