Factory Supply 3t/h Poultry Chicken Ring Die Pellet Food Maker Feeds Pellet Making Machine Animal Feed Pelleting Mill Machine
- Category: >>>
- Supplier: MIKIM TECHNIQUE LLC
Share on (1601236738182):
Product Overview
Description
Products Description
1. This ring die feed pellet machine widely applied product with mature technology .
2. The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3. Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
4. The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .
5. Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the
service life is long. The discharged particles are smooth and the quality is high .
6. International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
7. Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.
2. The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3. Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
4. The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .
5. Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the
service life is long. The discharged particles are smooth and the quality is high .
6. International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
7. Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.
Main Features
1.1.This feed pellet machine is equipped with screw feeder controlled by FC inverter with permanent magnet to removing iron impurities.
1.2.Stainless steel conditioner makes even retention and sufficient cooking effect.
1.3.Gear directly-connecting driving is adopted for high accuracy and efficiency. The output can increase 20% comparing to feed pellet machine driven by belts.
1.4.High quality bearings and motors are adopted to makes operation smoothly.
1.5.Main gear and pinion shaft adopt the carbonizing quenching with high accuracy, to ensure smooth driving, low noise and long service life.
1.6.The ring die& roller assemblies are quickly assembled and disassembled.
1.7.Applicable for all kinds of high grade animal/livestock/aqua feed. Single, double or three layers of conditioner is optional.
1.8.Speed-adjust feeding, adopted by this feed pellet machine, can control the feeding capacity correctly to fit for different and meet the production requirement of pellets with different diameters.
1.2.Stainless steel conditioner makes even retention and sufficient cooking effect.
1.3.Gear directly-connecting driving is adopted for high accuracy and efficiency. The output can increase 20% comparing to feed pellet machine driven by belts.
1.4.High quality bearings and motors are adopted to makes operation smoothly.
1.5.Main gear and pinion shaft adopt the carbonizing quenching with high accuracy, to ensure smooth driving, low noise and long service life.
1.6.The ring die& roller assemblies are quickly assembled and disassembled.
1.7.Applicable for all kinds of high grade animal/livestock/aqua feed. Single, double or three layers of conditioner is optional.
1.8.Speed-adjust feeding, adopted by this feed pellet machine, can control the feeding capacity correctly to fit for different and meet the production requirement of pellets with different diameters.
Model | Capacity | Power | Conditioner Power | Pellet size | Feeder Power | |||||
SZLH250 | 1-2 T/H | 22kw | 1.5 kw | φ1.0-12.0mm | 0.55kw | |||||
SZLH320 | 3-5 T/H | 37kw | 2.2 kw | φ1.0-12.0mm | 1.5kw | |||||
SZLH350 | 5-8 T/H | 55kw | 3.0 kw | φ1.0-12.0mm | 1.5kw | |||||
SZLH420 | 10-12 T/H | 110kw | 7.5 kw | φ1.0-12.0mm | 2.2kw | |||||
SZLH508 | 12-18 T/H | 132kw | 11 kw | φ1.0-12.0mm | 2.2kw | |||||
Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm Pellets shaping rate: ≥95% Pellets stability in water: ≥20Min Noise: ≤86dB(A) ≤90dB(A) Roller working temperature: ≤85ºC Steam working pressure: 0.1-0.4Mpa Steam temperature: 130-150ºC | ||||||||||
Details Images

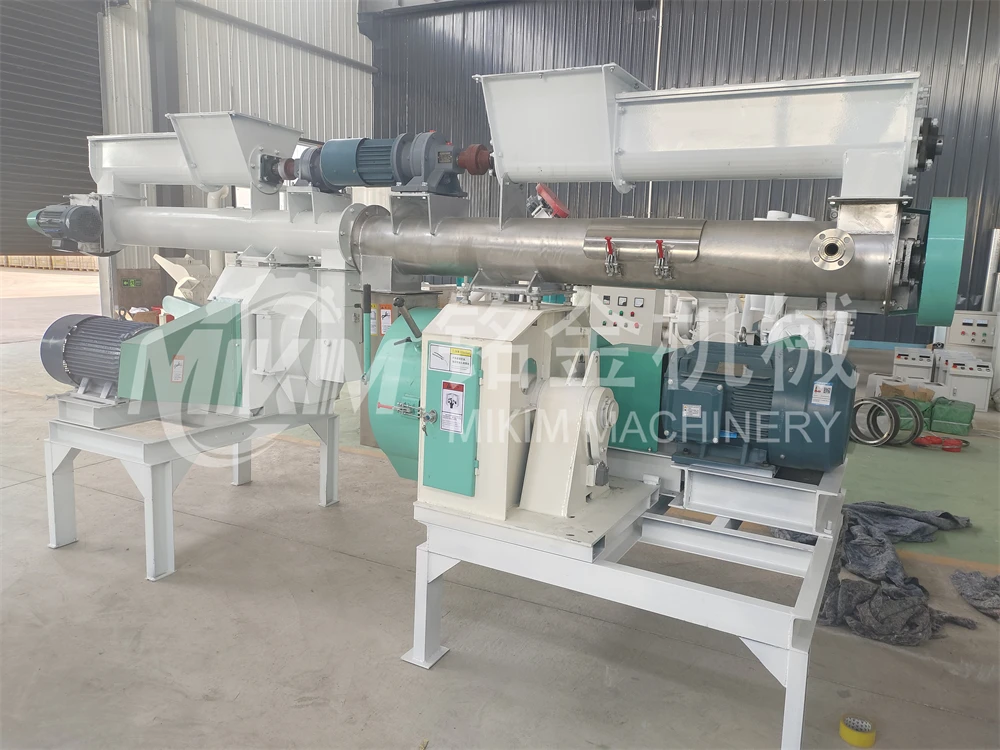

Ring die Pellet machine
Mainly suitable for medium-and small-scale farming professional households and other processing of various livestock and poultry and aquatic pellet feed can reduce the cost of aquaculture.Feed machine can be used for raising rabbits, chickens, ducks, geese, fish, pigs, cattle, sheep, aquatic products and so on.

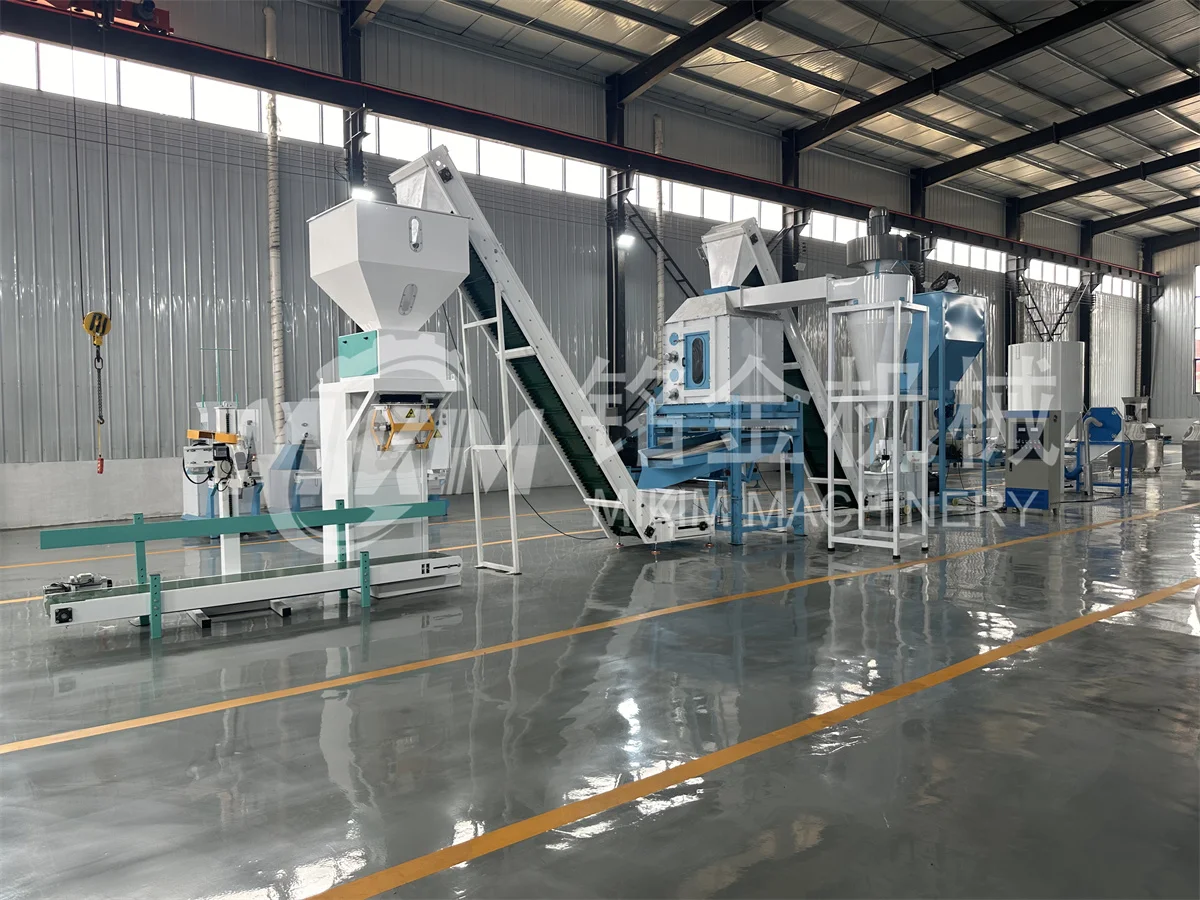

Pellet Machine + Belt Conveyor+ Counterflow Cooler machine
The counterflow cooling machine principle is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. At the same time, the airlock is used for feeding and space of air inlet bigger, therefore it can get better cooling effects;
1.Slide reciprocating discharger has smooth and reliable discharging, low residue;
2.Low power consumption, ease of operation;
2.Low power consumption, ease of operation;
3.Pellet temperature after cooling is less than +3°C~5°C ambient temperature;
4.Capable of cooling pellets.

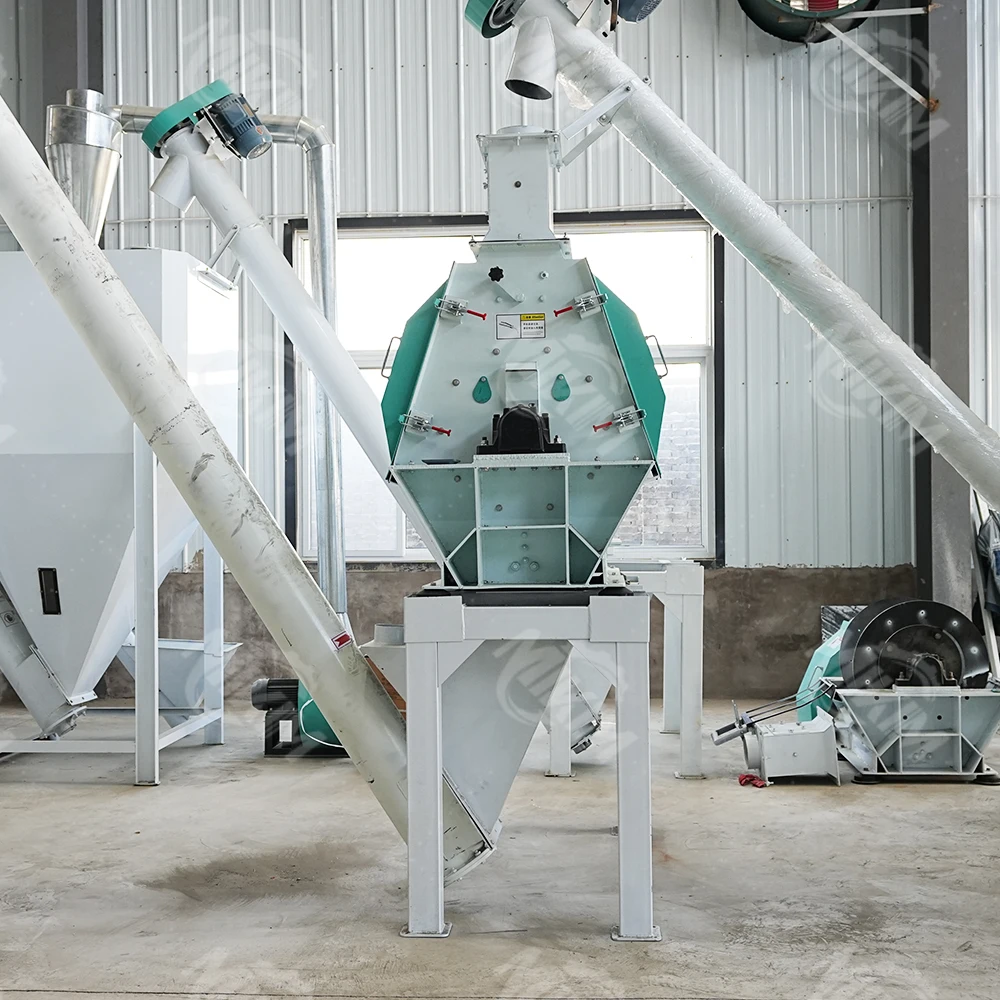

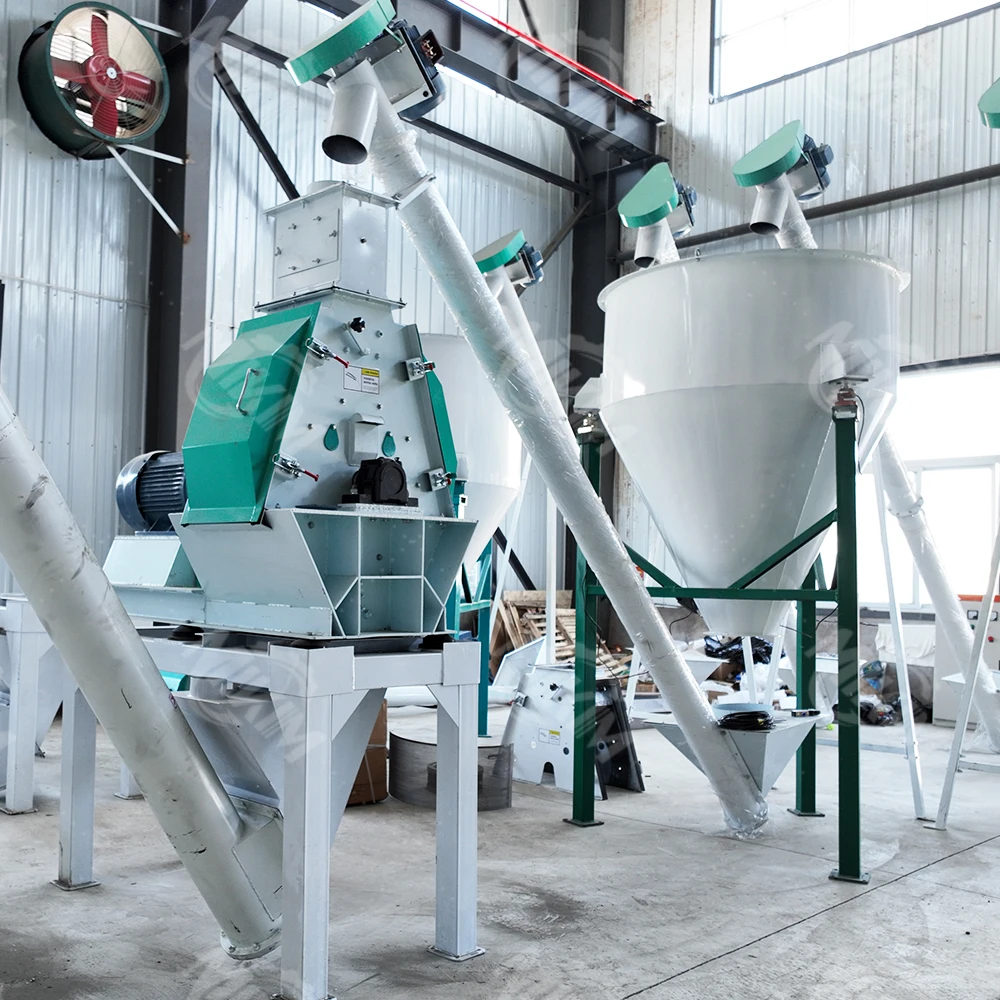

Water drop Crusher hammer mill
Water drop crusher is adopted international modern technique; crush room is designed to be water drip figure. The hammer mill is widely used in feed factories to produce poultry feed, aquatic feed; also in alcohol plants, citric acid plants, food product factories to crush pellet material.
water drop hammer mill Characteristics:
1,The equipment is featured with low power and large output;
2,It has satisfactory sealing
performance, free of flying dust during operation;
performance, free of flying dust during operation;
3,It is also featured with stable operation, high safety performance and easy maintenance in the later period.
Model | SFSP56 x 30 | SFSP56 x 36 | SFSP56 x 40 |
Rotor diameter(mm) | 560 | 560 | 560 |
Main shaft rotation speed (rpm) | 2950 | 2950 | 2950 |
Hammer's linear speed(m/s) | 86 | 86 | 86 |
Crushing chamber width | 300 | 360 | 400 |
Hammer Q'ty | 16 | 20 | 24 |
Power (kw) | 11 | 22 | 37 |
Capacity (t/h) | 1-2 | 3-4 | 5-6 |
Dimension(mm) | 1400x860x1000 | 1430x860x1000 | 1630x860x1000 |

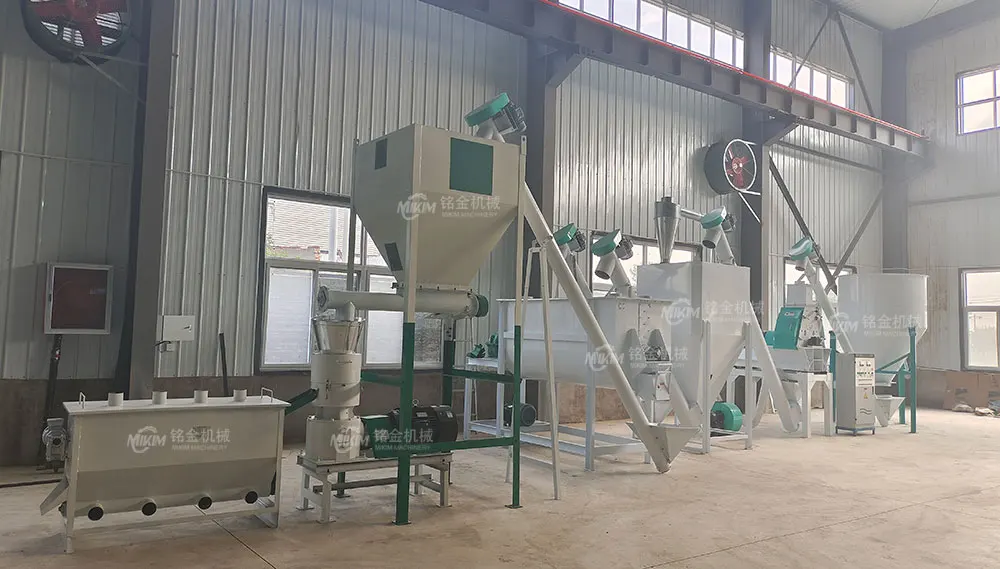

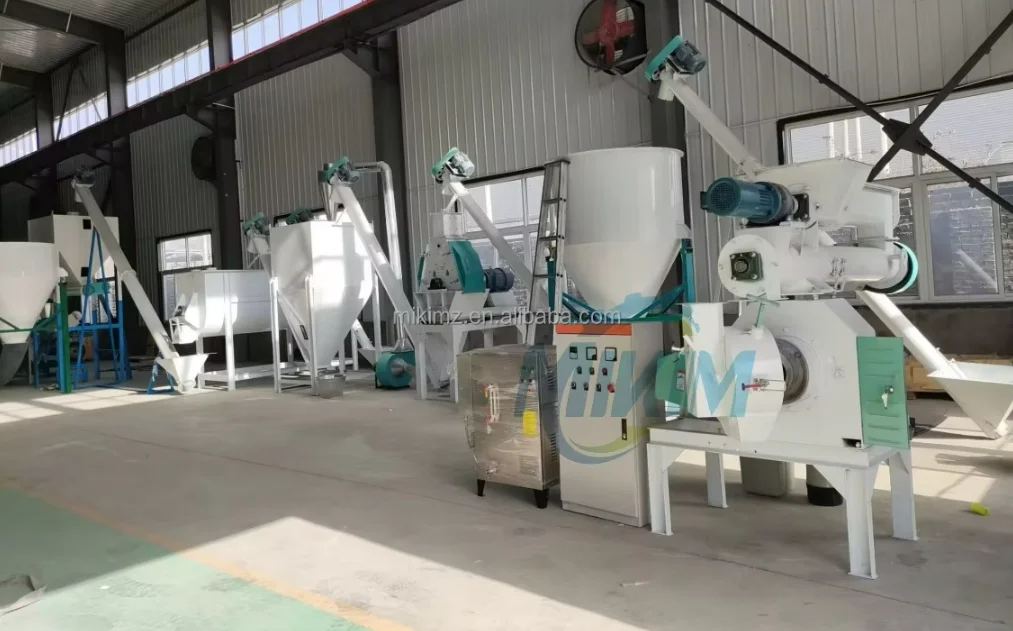

Successful Project Case
Project Name: Pigs Pellet Feed Production Line
Capacity: 1 Tons/Hour
Location: Kenya
Pellet Type: Poultry Pellet Feed, Livestock Pellet Feed, Chicken Pellet Feed
Project Name: Cattle Pellet Feed Project
Capacity: 2 Tons/Hour
Location: Cameroon
Pellet Type: Cattle Pellet Feed
Project Name: Poultry Pellet Production Line
Capacity:1-2 Tons/Hour
Pellet Type: Poultry Pellet Feed
Location: Canada

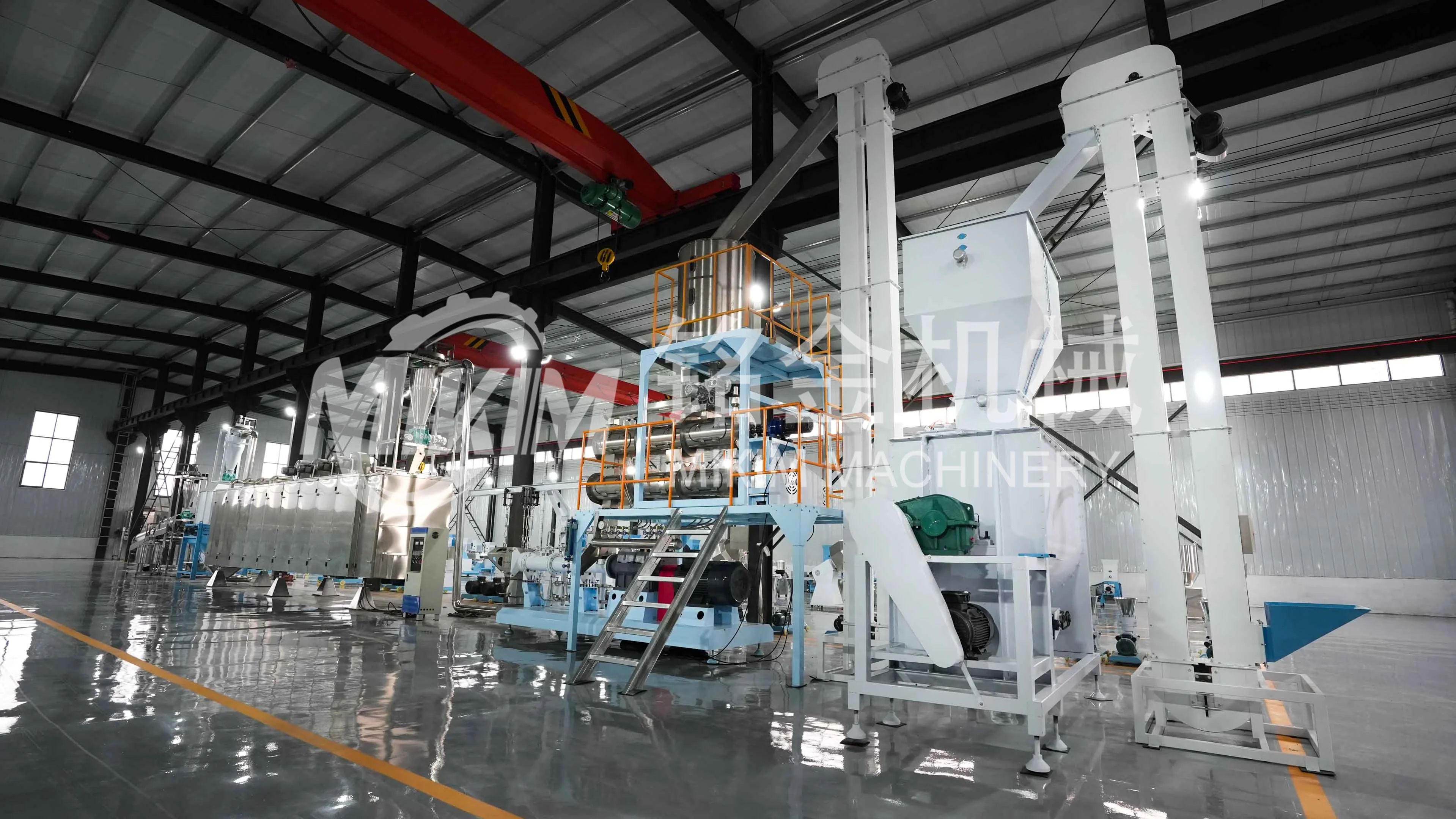

Computer Batching Fish /shrimp Feed Pellet Plant
Capacity: 5 Tons/Hour;Location: Saudi Arabia
Pellet Type: Fish ,shrimp ,Cattle, Cows Pellet Feed Turn Key Project
