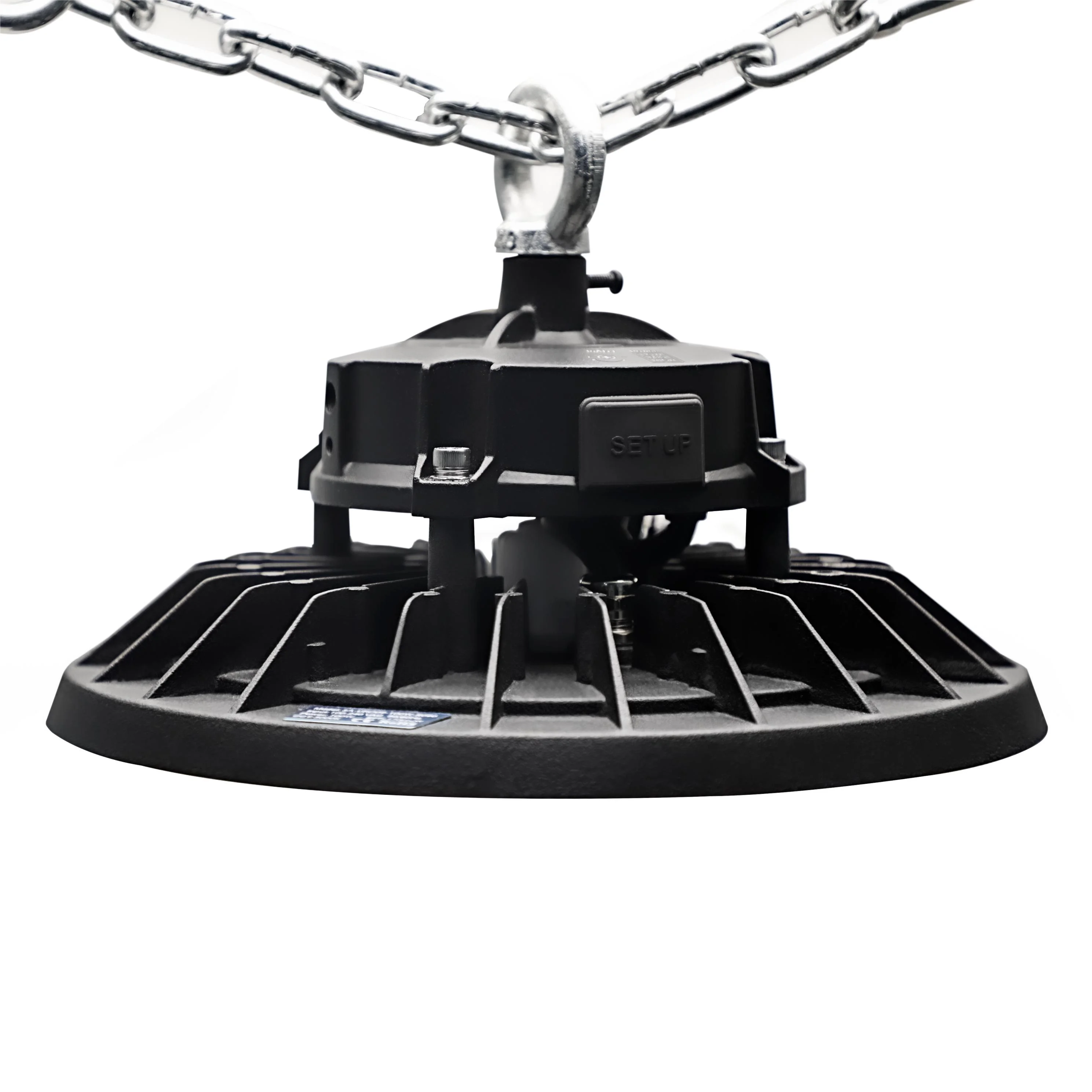

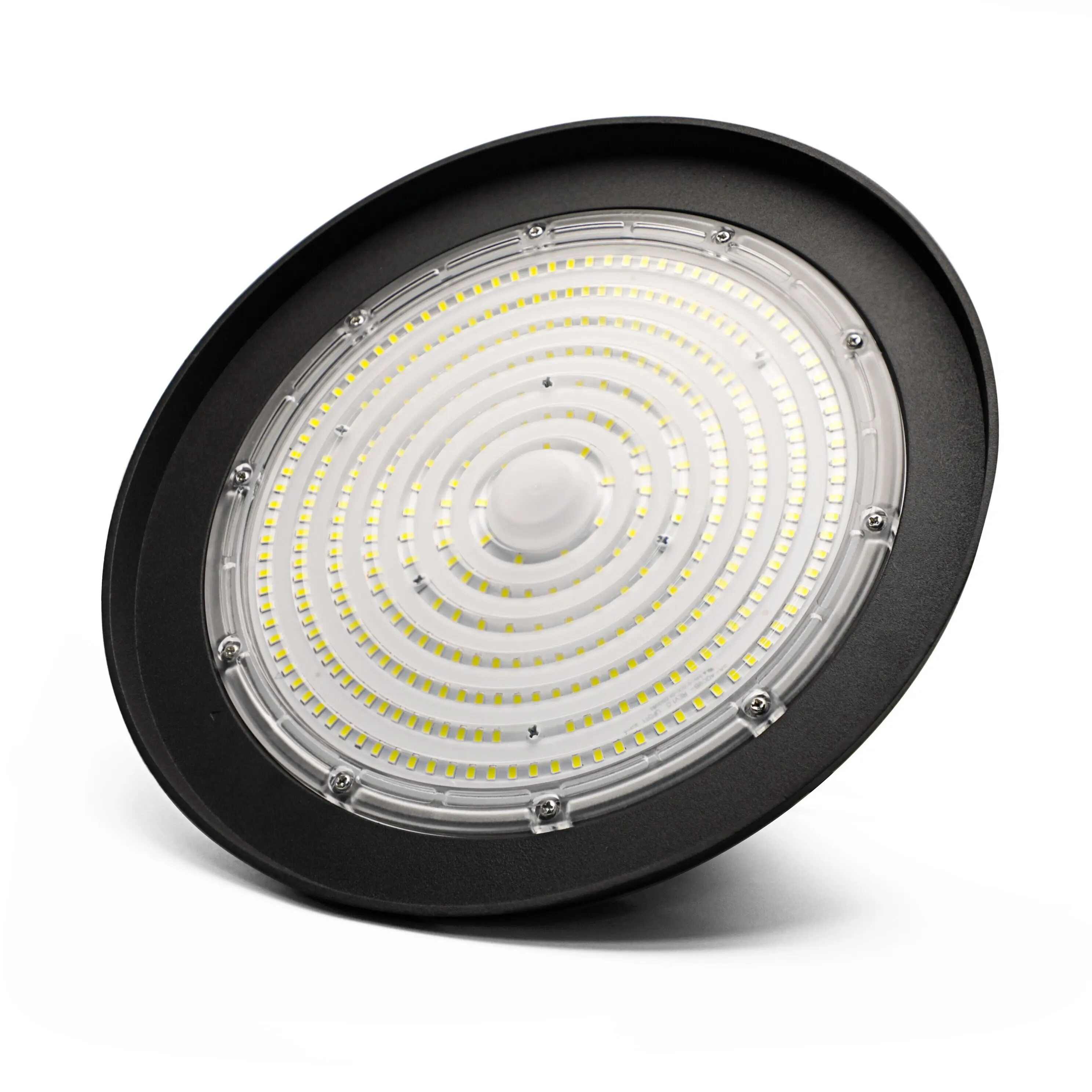

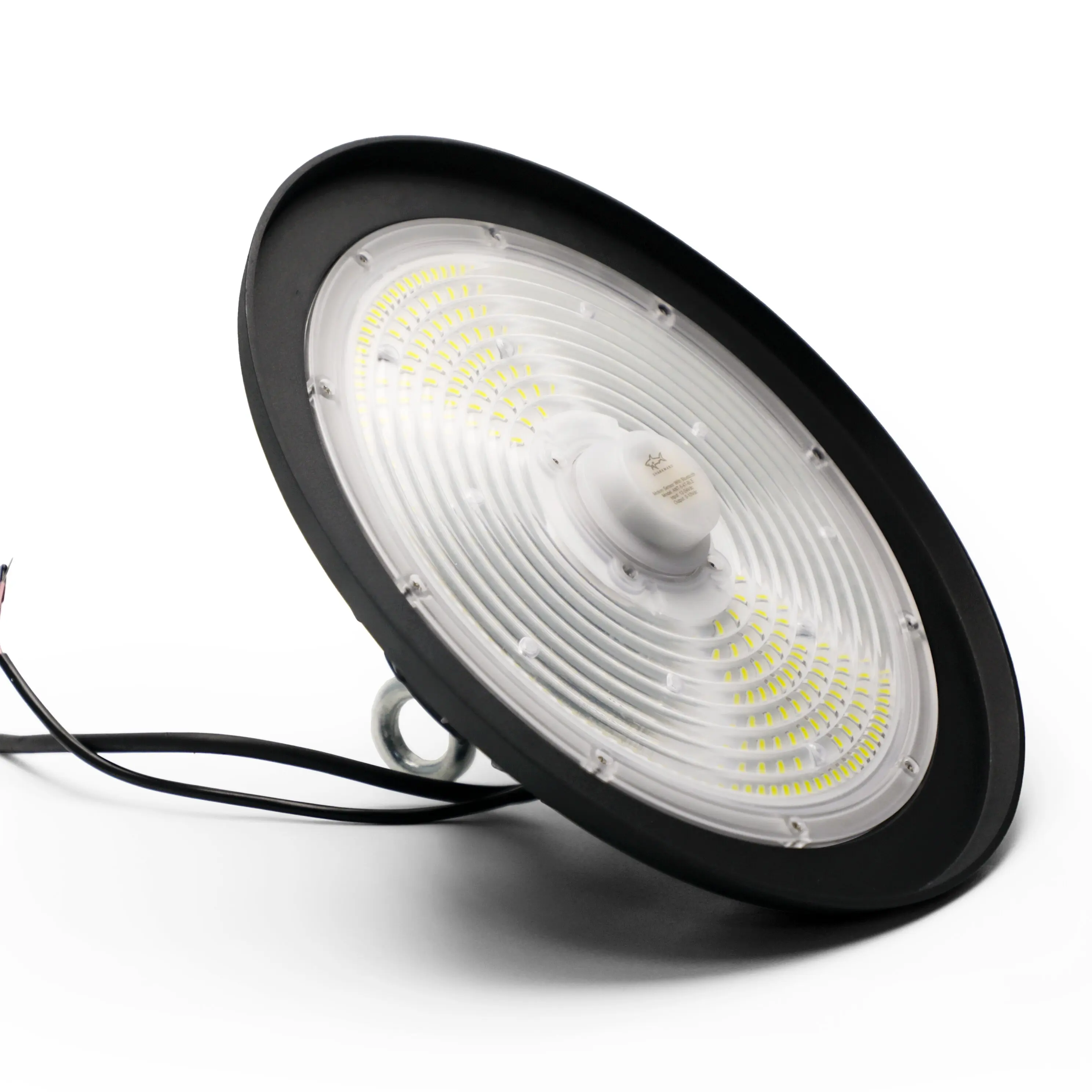

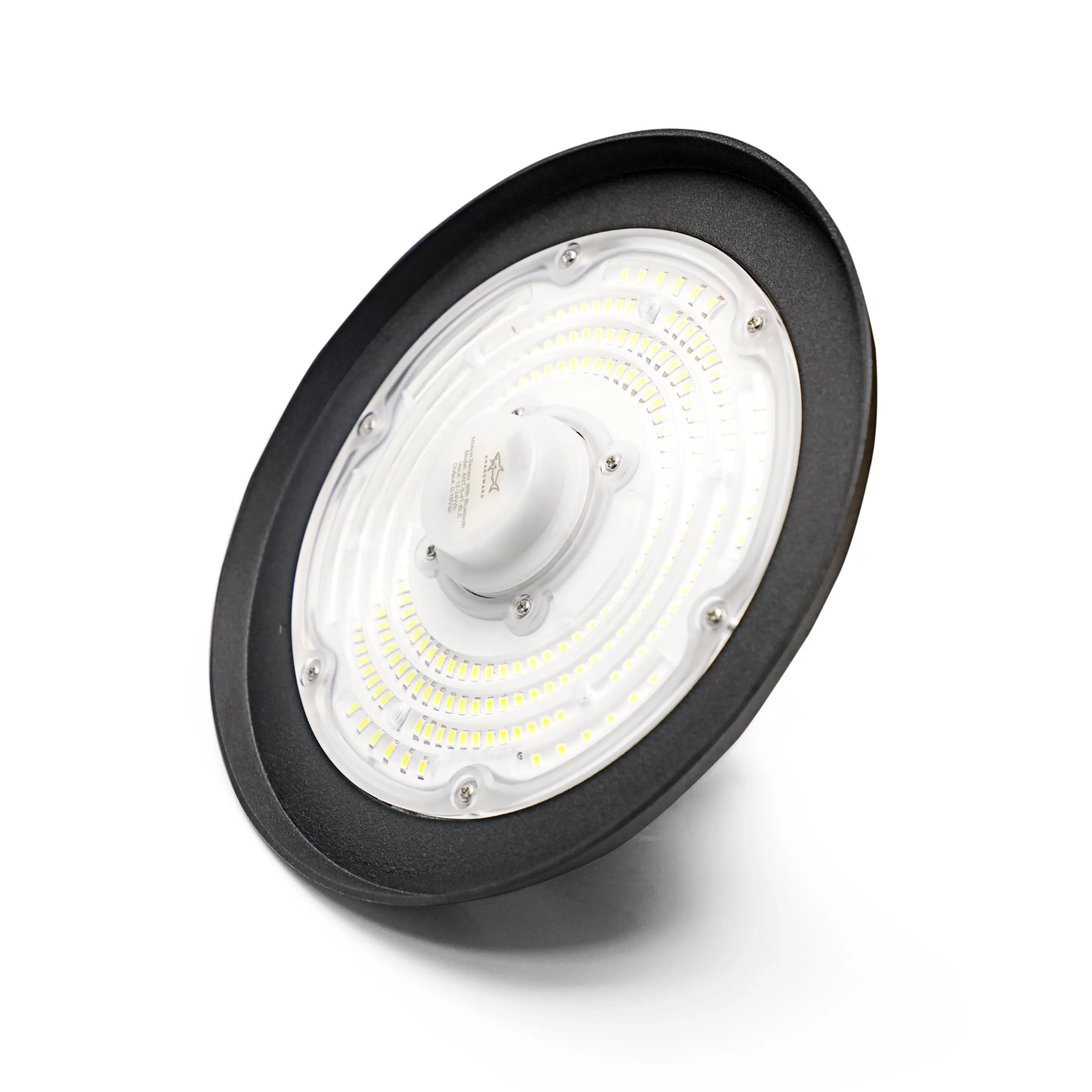

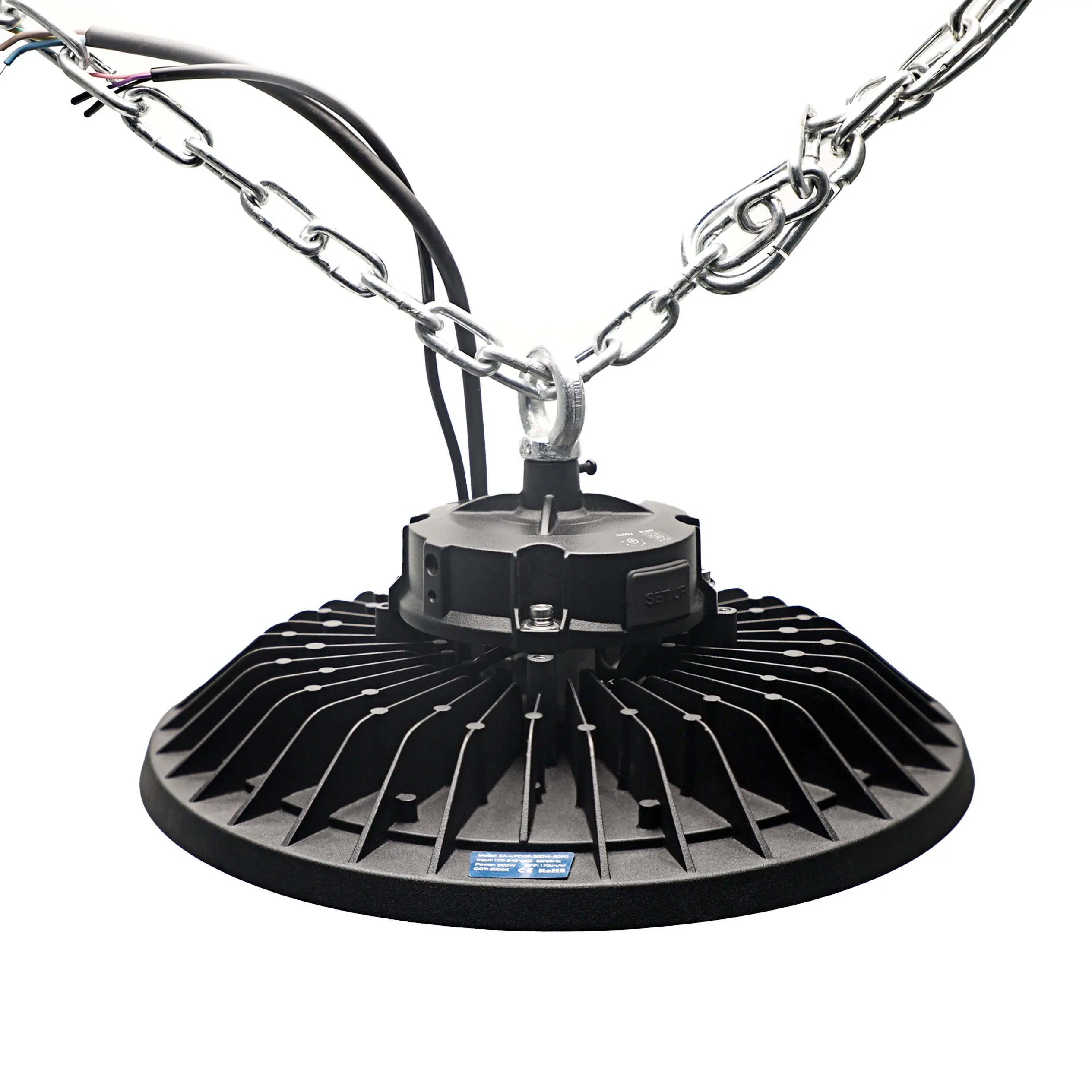

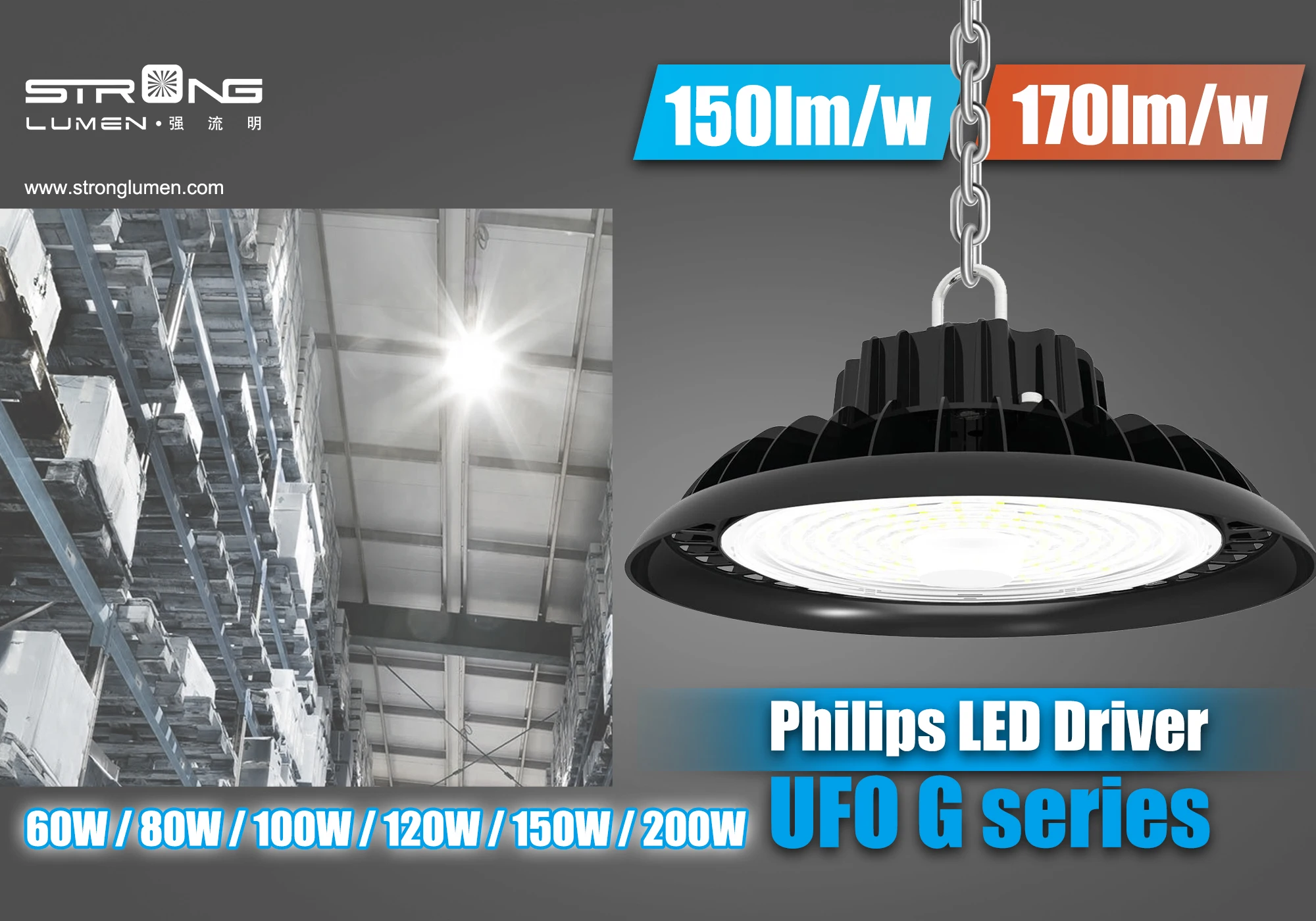

Full A6063 Aluminum Material LED UFO High bay Light 170lm/w 100w 5Y Warranty With CE Certification
- Category: >>>
- Supplier: Shenzhen Strong Lumen Opto Co. Ltd.
Share on (1601236771455):
Product Overview
Description
Product Description
Product Type: | LED UFO Highbay Light |
Voltage: | 100-277VAC/200-240VAC |
Efficacy | 170LM/W±10lm/w |
LED Brand | Nichia 3030/Lumileds 3030 |

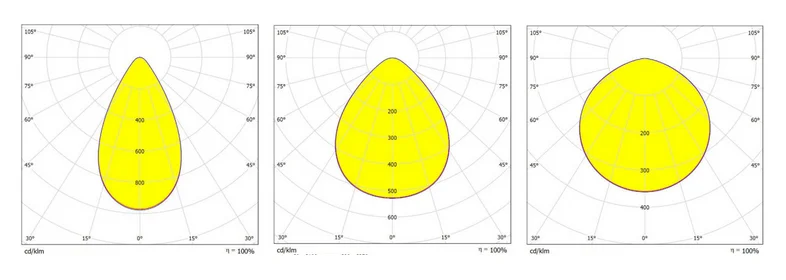

Beam Angle | 60/90/120 degree |
Color | 3000K/3500k/4000K/4500k/5000K/5700K |
Ra | >80;>70 |
Warranty | 5 years |
Parameter
Model No. | UFOA00-80W-XXXX-B | UFOA00-100W-XXXX-B | UFOA00-120W-XXXX-B UFOA00-150W-XXXX-B | UFOA00-200W-XXXX-B | |||
Power | 80W | 100W | 120W 150W | 200W | |||
PF | >0.95 | ||||||
Input Voltage | 100-277VAC | ||||||
Dimming (Optinal) | Non-Dimming/0~10V Dimming/DALI | ||||||
CCT | Neutral white（4000K）、Natural white （5000K）、 Cool white （5700K） Warm white（3000K）---can be customized | ||||||
IP Class | IP65 | ||||||
Installation mode | Ring Mounted; Bracket Mounted | ||||||
Adventage of Stronglumen UFO Highbay

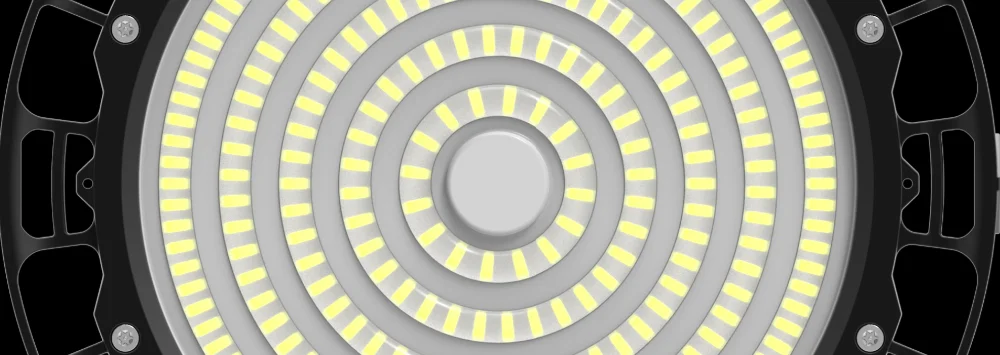

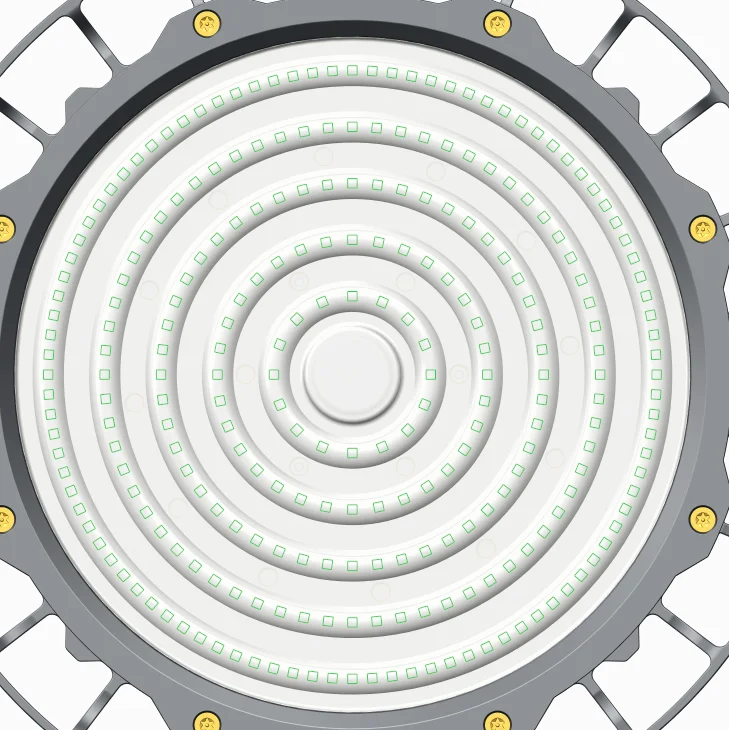

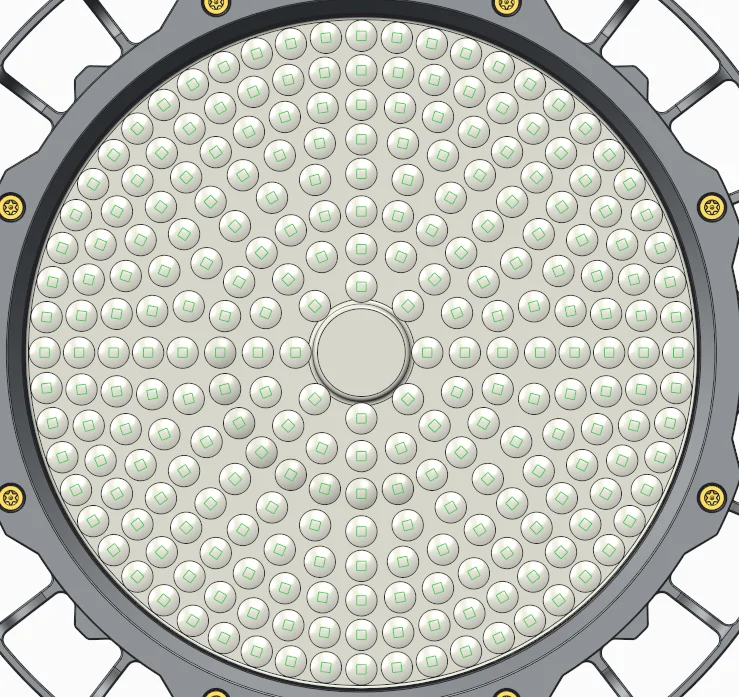

1、Ring three-dimensional
The whole light be used ring three - dimensional light guide technology
A, because the traditional single lens 1 on the arrangement of 1, without changing the main structure of the case, can not be based on customer demand for excessive light effects; for this design ring lens, lamp beads can be changed according to demand, to Flexible effect of light effect;
B, compatible with single lens design;
C, ring design, uniform distribution of light beads, optical and angular distribution of uniform, stable;

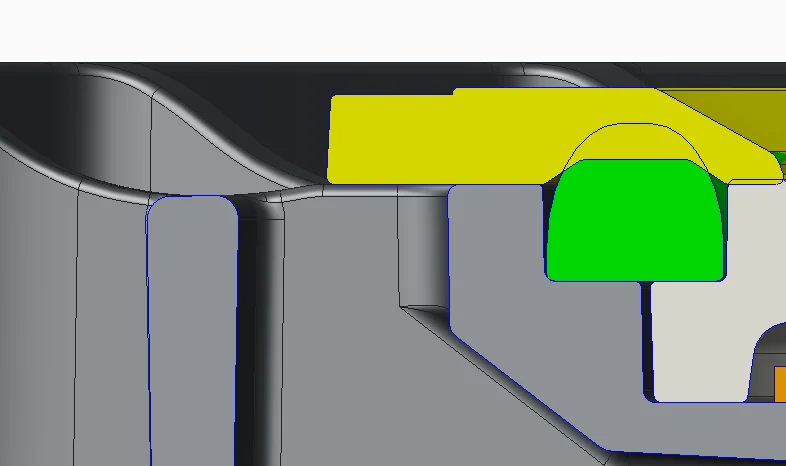

2, the new lens waterproof structure design;
Because the traditional waterproof structure is a lens adhesive ring, affecting the lens angle and waterproof effect;
To this end by changing the radiator design, frame design and lens design,
The apron placed on the lens above, no longer affect the optical and waterproof;

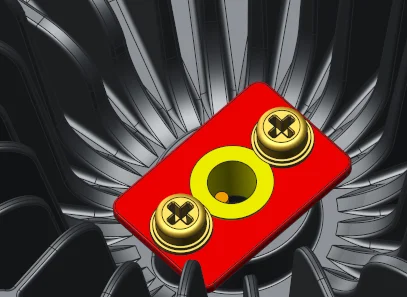

3、New power line waterproof structure design;
Due to the traditional power line drainage structure generally through the direct screw waterproof connector to waterproof, screw into the process of complex, there are water leakage risk; for this design a compression squeeze apron, just screw into the two screws can be easy to produce simple, cost;

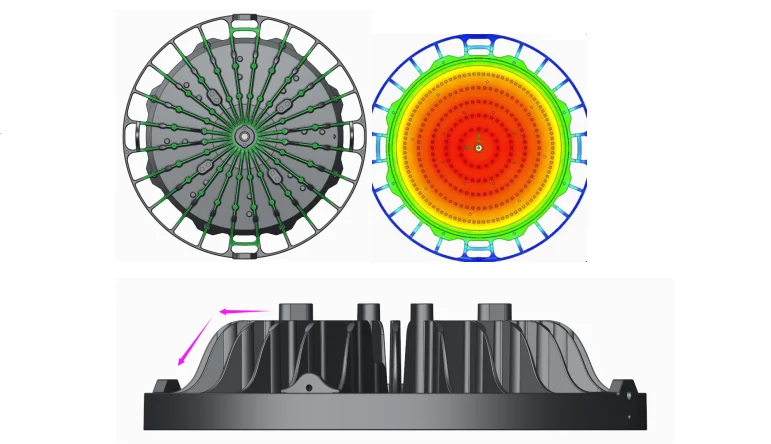

4、Space radiation gradient fins heat, do not waste a trace of the full heat of resources;
Because the material is not a waste, in the case of the same power, to achieve small size, light weight, reduce the cost of the effect; simple, 360-degree comprehensive divergence, straight-line direct cooling;
Center radiation gradient: the middle of the high temperature, fins thick, fast heat conduction; edge temperature is low, fins low, heat conduction slow;

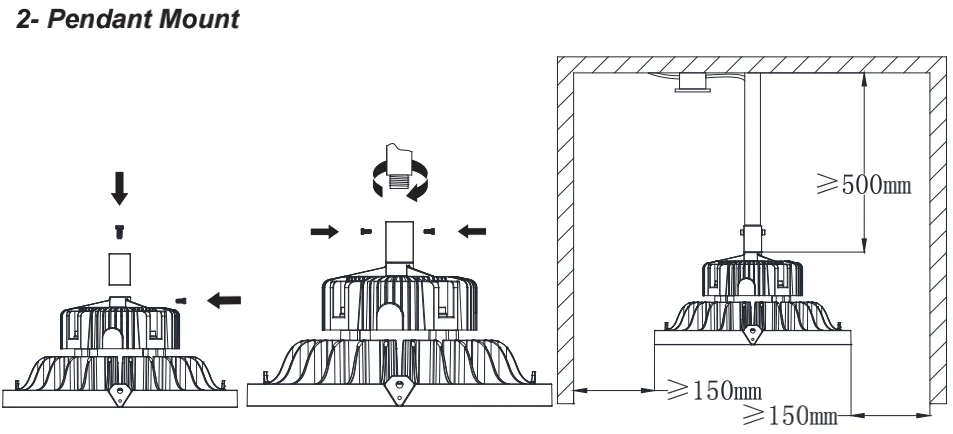

Instalation Guide:

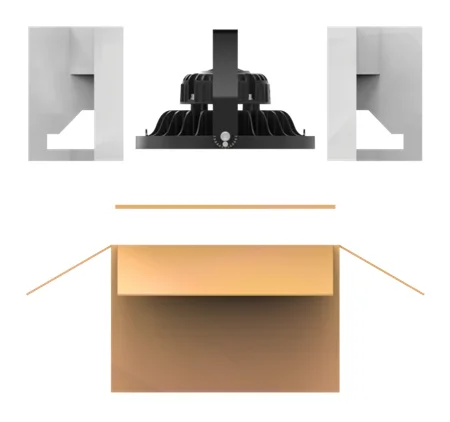

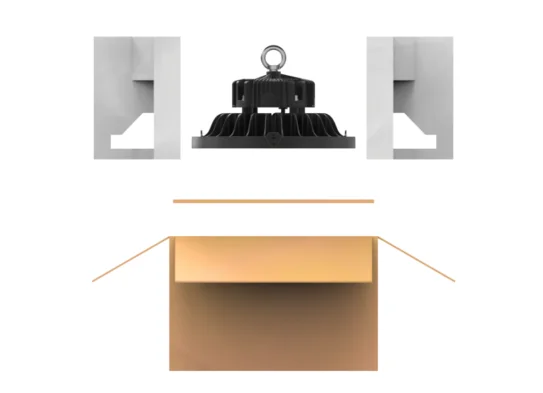

Packing

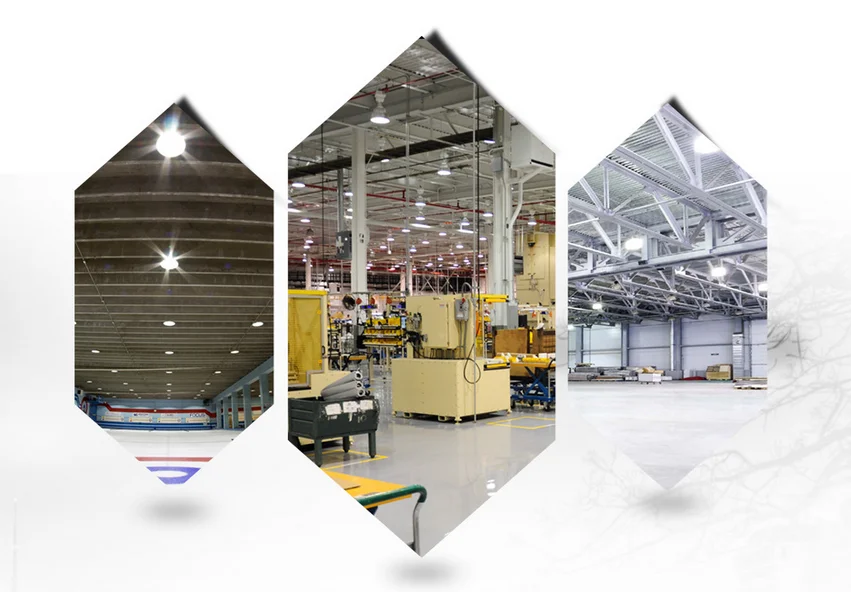

Application
Company Information
About StrongLumen
Founded :in 2008
Company area: 10,000 sq meters
Total Staff: 150
Our Products: T10,8,5 LED Tube/ Electronic ballast compatible Tube/ LED high bay light/Linear light/Panel/PLC
Our Certificate: TUV,CE(EMC/LVD),Rohs, VDE, SAA
Our Client: Sylvania,Sony, Epson, IKEA,Madrid Subway, PLA Airport,Daily Price Store,Wholesaler,Retailers...
Trade Show
HKTDC Hong Kong International Lighting Fair 2017(Spring Edition)....
HKTDC Hong Kong International Lighting Fair 2016(Autumn Edition)
HKTDC Hong Kong International Lighting Fair 2016(Spring Edition)
HKTDC Hong Kong International Lighting Fair 2015(Autumn Edition)
HKTDC Hong Kong International Lighting Fair 2015(Spring Edition)
HKTDC Hong Kong International Lighting Fair 2014 (Spring Edition)
2013 GuangZhou Led Light Trade Fair etc.
R&D Team
6 R&D engineers with more than average 8 years R&D working experiences in LED industry. Furthermore, CEO Mr. Jack is our chief product designer, who have been in led industry for 10 years with unique design idea and great knowledge on product and market demand.
With the support of our professional R&D team, our products have passed TUV,VDE, SAA and CE. Our main customer from Europe, Australia, Asia and Middle East.
Quality Control
A) Comply to 5S management.( SEIRI, SEITON, SEISOU, SEIKETSU, SHITSUKE)
B) Strictly inspection for incoming material and standard warehouse management.

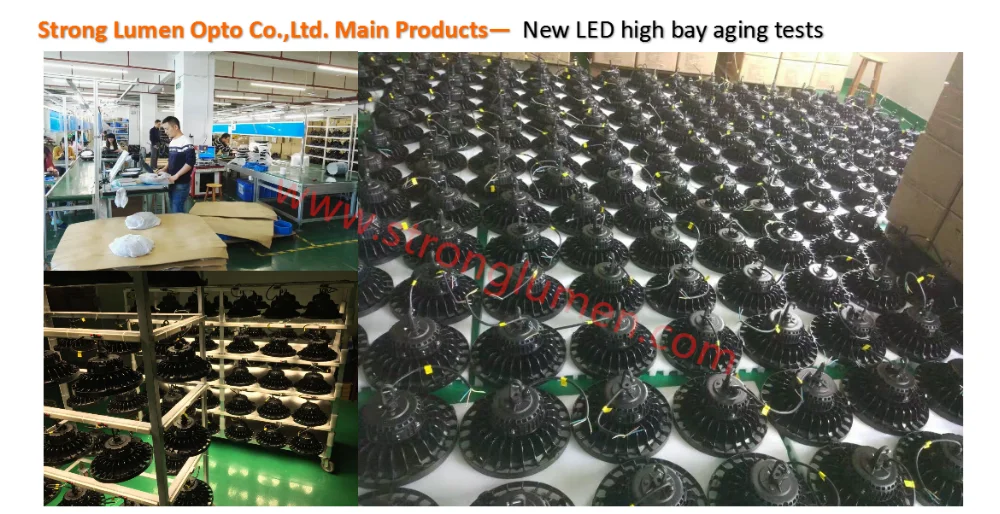

C) 100% aging test for at least 24 hours before delivery.
After Sale Service
When things do not work as expected, pls kindly contact our sales.
We will respond to you within 24 hours upon receiving your complaint in our working days (Monday to Friday), and It will help us to get quick response to your complaint if you indicate details of your complaint with pictures.
Any loss caused by StrongLumen, we'll bear the responsibility and give best solution ASAP.
