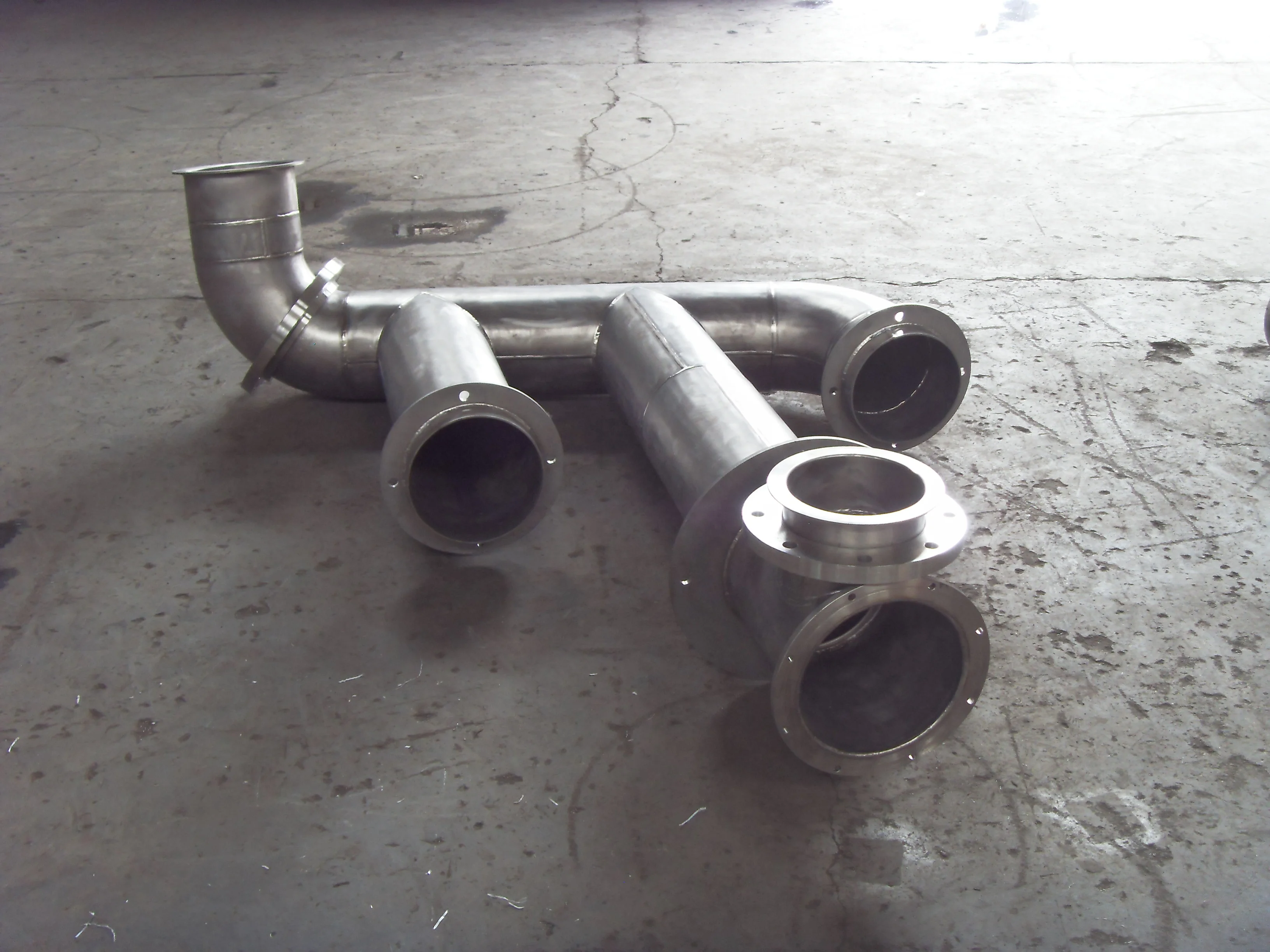

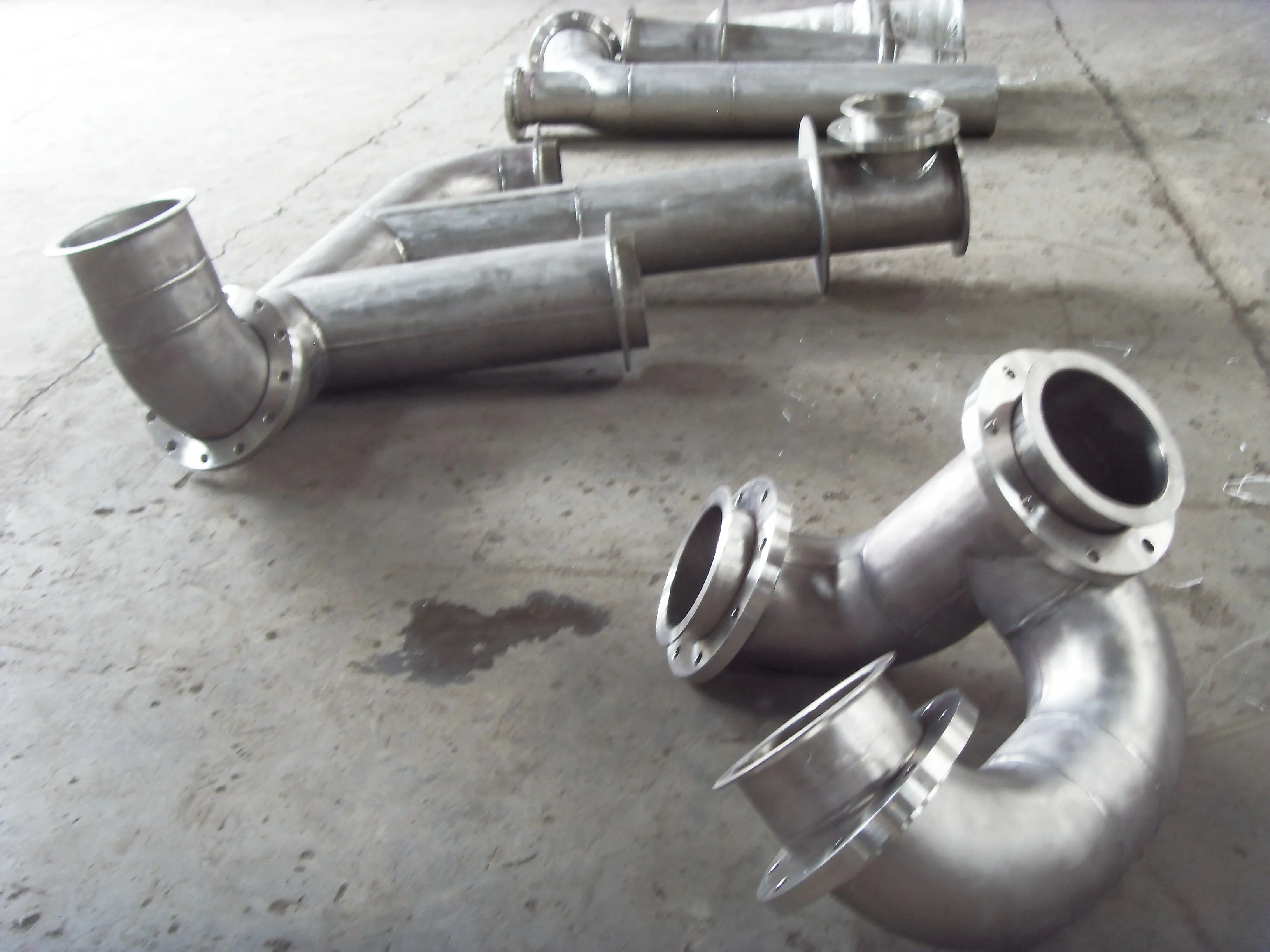

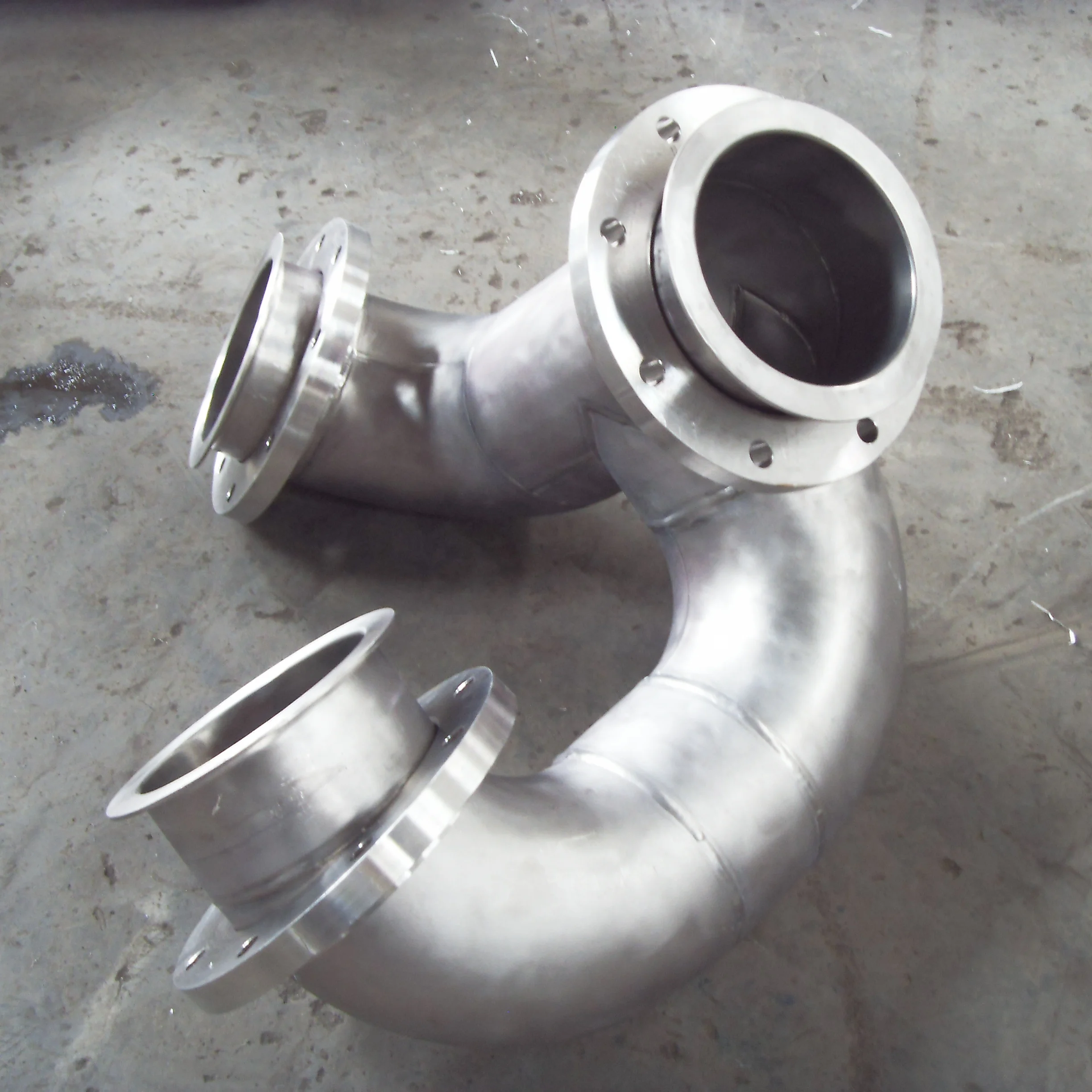

titanium pipe fitting

Name

Hot sell good quality titanium pipe fittings wholesale Price

Material

Gr1,Gr2 ,Gr7,Gr12

Specification

1/2"-24" Schedule 5s to Schedule 80

Standard

ASTM B363,ASME B16.9

Type

R=1.0D, R=1.5D, R=3D

Bending degrees

30, 45, 60, 90, 120, 180 degrees bend

Surface Processing

sand-blasting, polishing

grade

Tensile strength(min)

Yeild strength(min)

Elongation(%)

ksi

MPa

ksi

MPa

1

35

240

20

138

24

2

50

345

40

275

20

7

50

345

40

275

20

12

70

438

50

345

Six Characters of Titanium

1. High Strength

Titanium strength/density ratio is better than other metals, components with high strength, good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines, frames, skins, fastners and landing gears.

2. Anti-Corrosion

Compared with stainless steel, titanium alloy's corrosion is better in moisture laden air, seawater, titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists corrosions to alkali, chloride, chlorinated organic sunstances, sulphuric acid, nitric acid.

3. High-Temperature Resistance

Titanium application temperature's higher than aluminium alloys. Titanium can work in 450-500℃ for long time. Titanium alloy stil prossesses high strength when working in 150-500℃. Titanium working temperature can be reached to 500℃

4. Low Temperature Resistance

Titanium alloys still owns its mechanical properties when working in low or super low temperature conditions. Titanium alloys with low-temperature resisitance and extra low interstitial still possess good ductility, therefore, titanium alloy is sort of good low temperature structural material.

5. Eco-Friendly Metal

Thermal conductivity of titanium is lower than carbon steel or copper, but titanium owns very good corrosion resistance, therefore, titanium thickness can be greatly reduced, also the heat exchange mode is dropwise condensation between titanium and steam. This kind of mode reduces heat transfer resistance, no fouling on titanium surface, which makes titanium thermal conductivity better.
