Hydraulic Press for Mineral Salt Block Making Silicon Manganese Mineral Powder Ball Press Machine

Share on (1601236932955):


Price:$12,600.00 - $13,424.00

Quantity:


Product Overview

Description



Professional Ball Press Machine Charcoal Coal Powder Ball Briquette Press Making Machine


Products Description

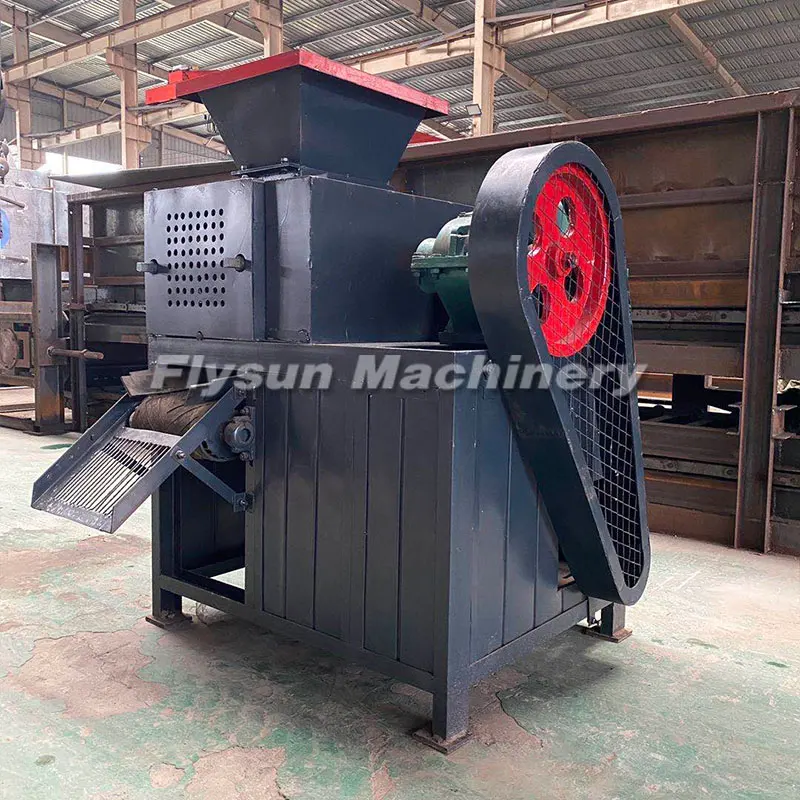

Charcoal briquette making machine
The ball pressing machine can press and shape various mineral powders, metal powders, coal powders, coke powders and other materials. Due to the forced extrusion of the rollers, the products produced have the characteristics of high density, high strength and high hardness, and the pressure roller of this machine is made of 650mn hard material, which has good wear resistance. Effectively improve the service life of the pressure roller.


Product Applications






Working Principle

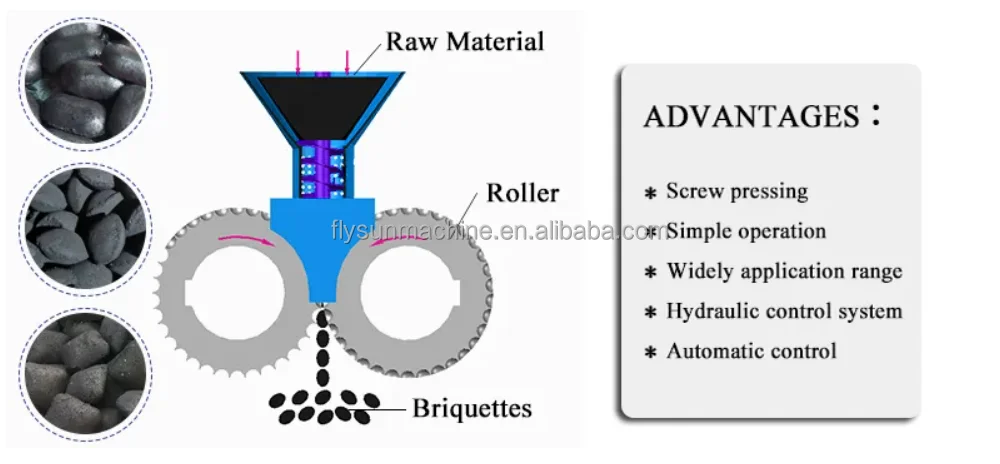

Charcoal ball briquette making machine working Principle
In order to make the material into a ball at high pressure, the pre-compression screw of the charcoal briquette making machine is used to force the material to be formed into the middle of the roller. Due to the constant speed and reverse rotation, the material is compressed and formed. The unit pressure is from small to large until the center line of the roller is "0-0". At this point, the molding unit pressure reaches the maximum value. As the counter roller continues to rotate, the molding pressure continues to decrease, and it enters the ball-off state until the ball is off.




Technical Parameters


Model
Motor power(kw)
Capacity(charcoal)
(kg/h)
Machine weight
(kg)
Machine size
(mm)
FS290
5.5
1000-1500
800
1320*1200*1520
FS360
7.5
2000
1100
1450*1470*1750
FS430
11
3000
2050
1630*1550*2350
FS550
18.5
5000
3200
2200*1850*2300
FS650
22
6000
5600
2400*1900*2500
FS850
75
10-15
7200
3100*2300*2600


Product Advantages


Features of Charcoal ball briquette making machine
1)The roller is made by hard material , with good wear resistance and long life time ;
2) Service life of wearing parts is up to 4000 hours ;
3) The charcoal forming equipment electricity cost reduces by 60%◇
4) Easy to operate and maintain ;
5) The molding material is energy - saving , easy to transport and higher utilization of waste ;
6) The final product is smokeless , non - toxic , none peculiar and environmental protection ;
7) The end products shapes include oval , round , square , bal egg - shaped and
pilow - shaped .

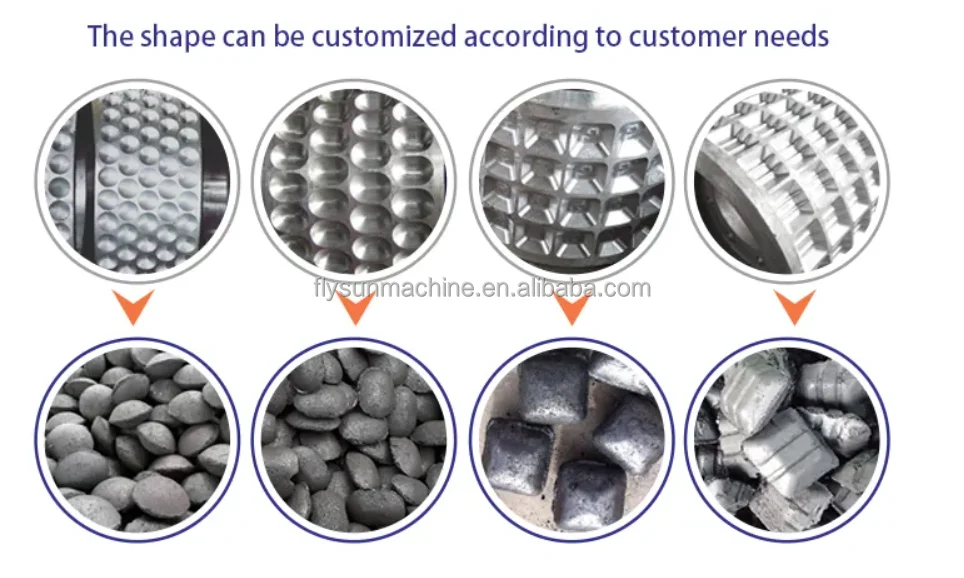

As the final products of the charcoal briquette making machine, the briquettes ball can be designed of oval shape, egg shape, pillow shape, star shape, square shape etc. We can also customize the size according to your required.






We can control the combustion effect of the charcoal briquette making machine by adjusting the formula of the binder. In other words, on the one hand, we can keep the burnt briquette in its original shape without spreading, on the other hand, we can also make it burned into ashes.

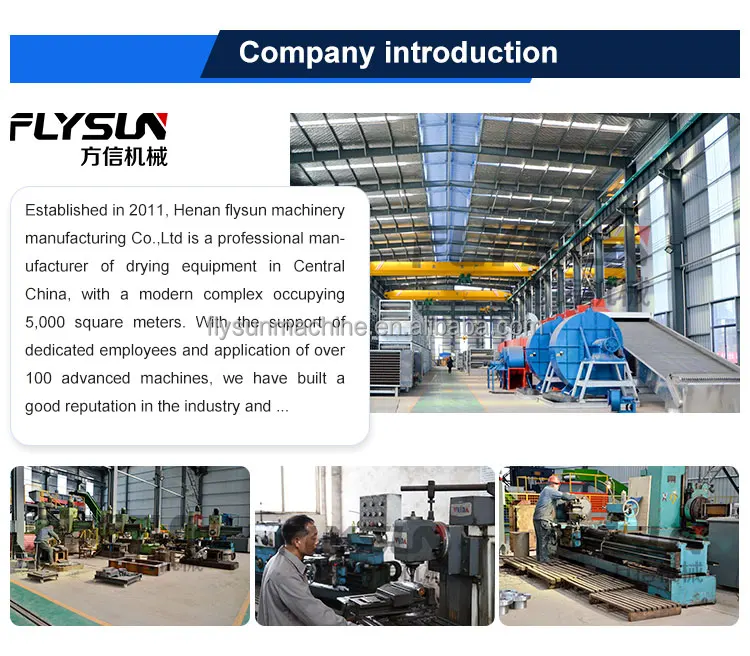

Company Profile
