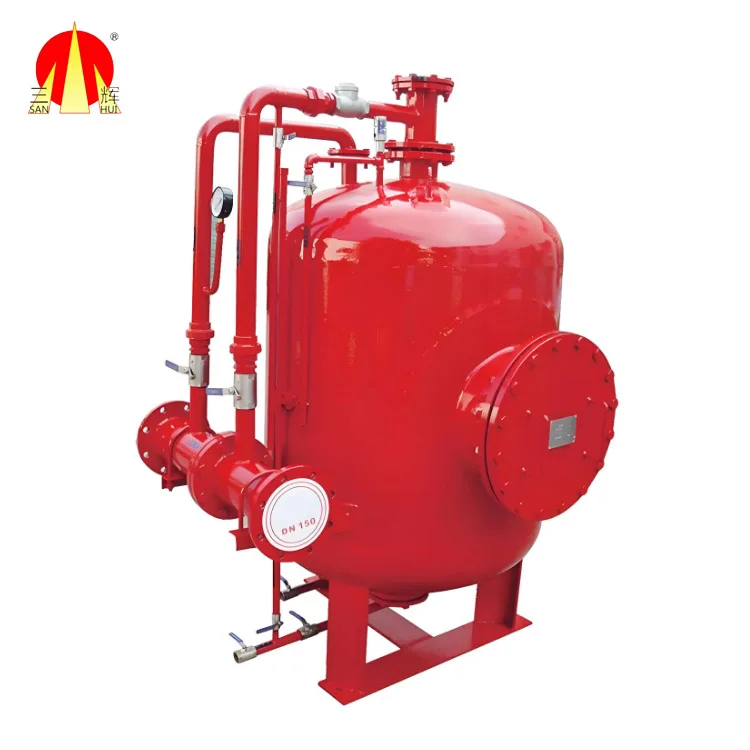

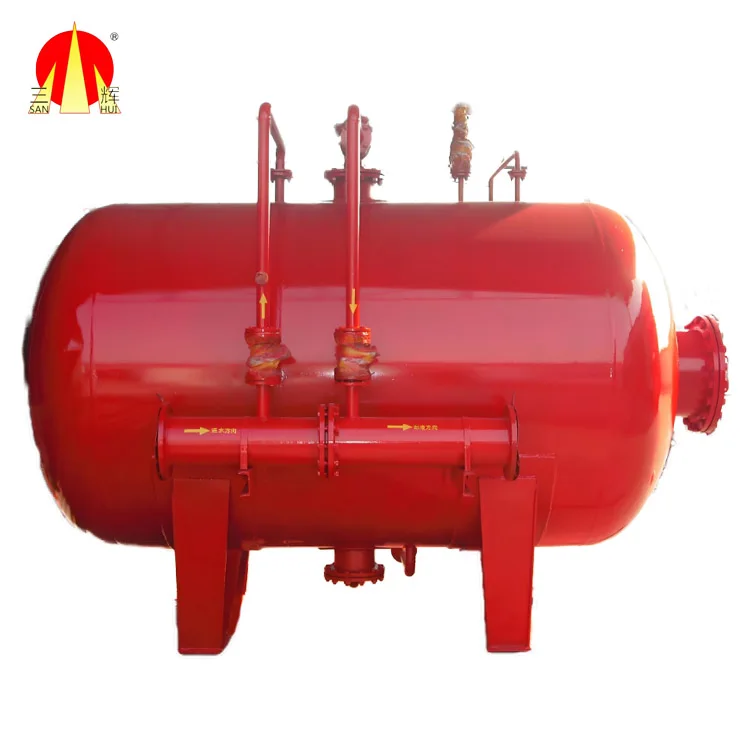

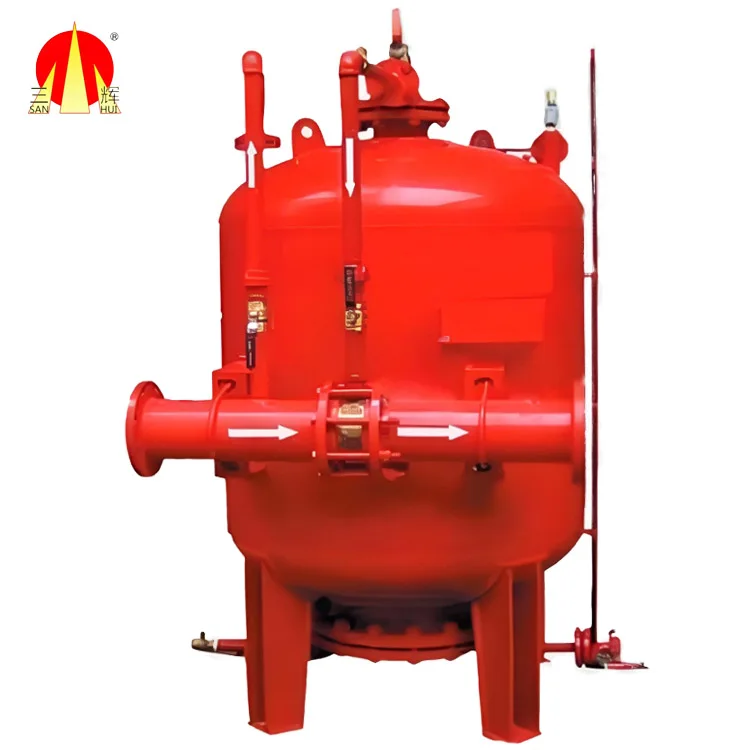

Horizontal Type Fire Suppression System Foam Bladder Tank
- Category: >>>
- Supplier: Fujian Sanhui Fire Equipment Co. Ltd.
Share on (1601236969853):
Product Overview
Description
Product Description
The PHYM series Foam Bladder Tank consists of pressure tank, bladder, proportional mixer, safety valve, exhaust valve, pressure gauge, one-way valve , various control valves and pipes. It is mainly used in the mining , paper making, petroleum, chemical industry, underground garage and other places. It is a device for mixing the foam liquid with the pressure water and the foam mixing liquid in a certain proportion. The bladder separates the foam liquid and water. If the foam liquid has not be used out on time, it can be used continuously next time. Besides, the mixing accuracy is stable and reliable. Such Foam Bladder Tank has wide flow pressure and small pressure lost. It has been widely applied in various high, medium and low multiple foam extinguishing systems.

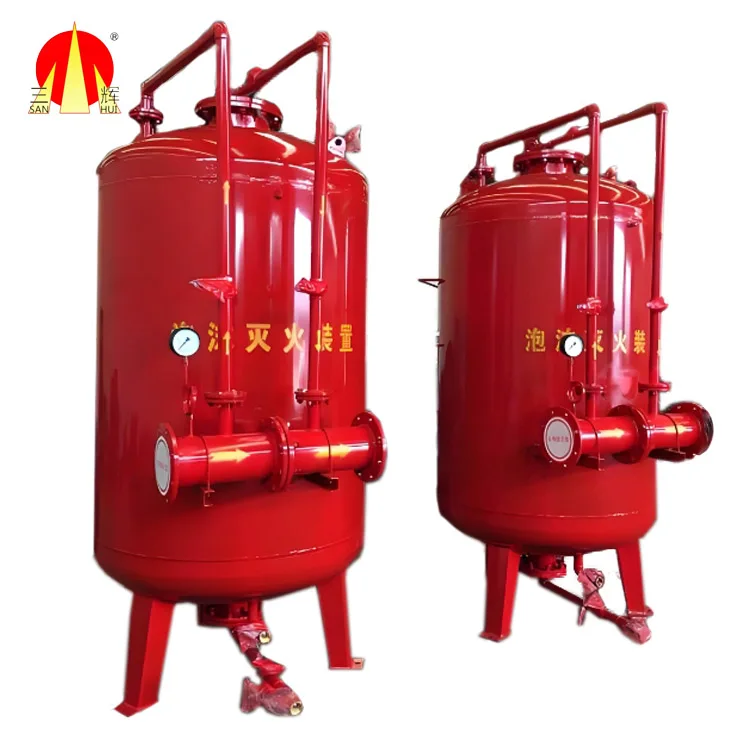

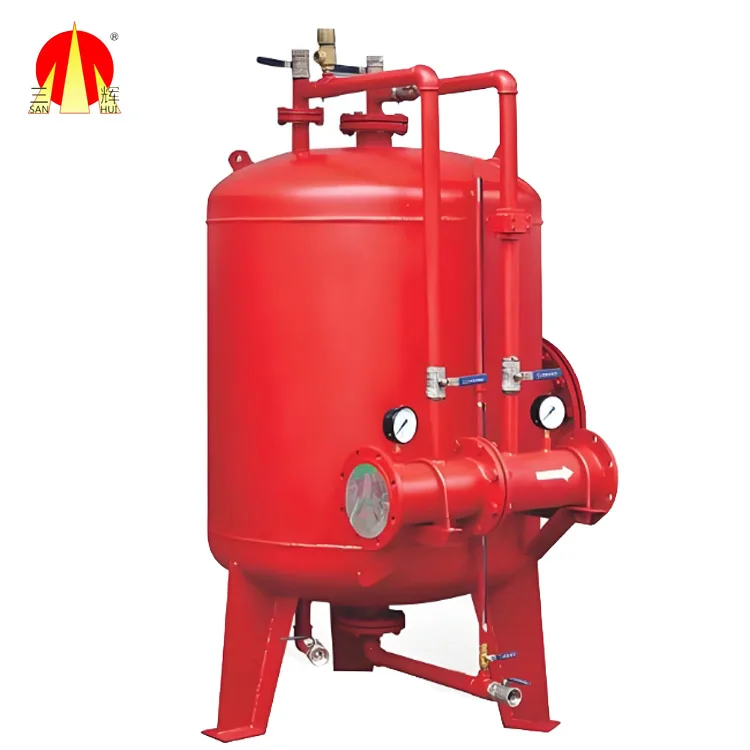

Bladder tanks are available in Horizontal and Vertical mounting with a completely pre-piped option. These are very commonly used in low expansion foam fire fighting systems.

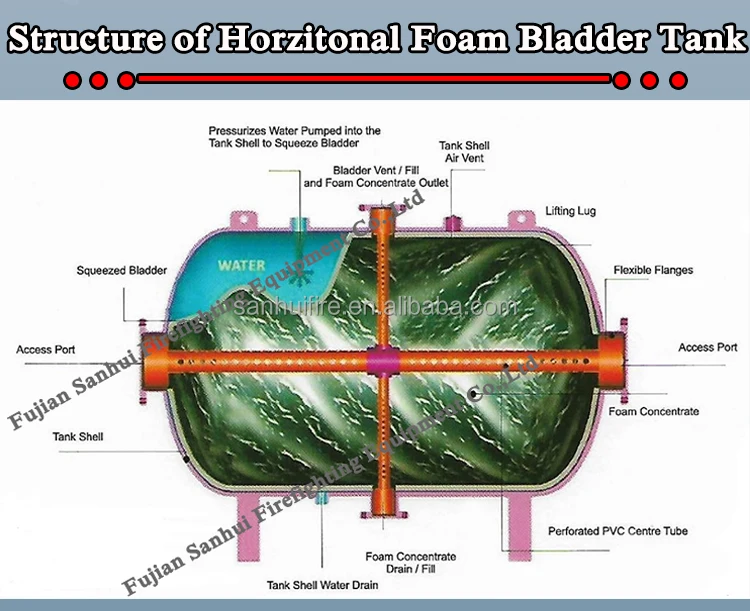

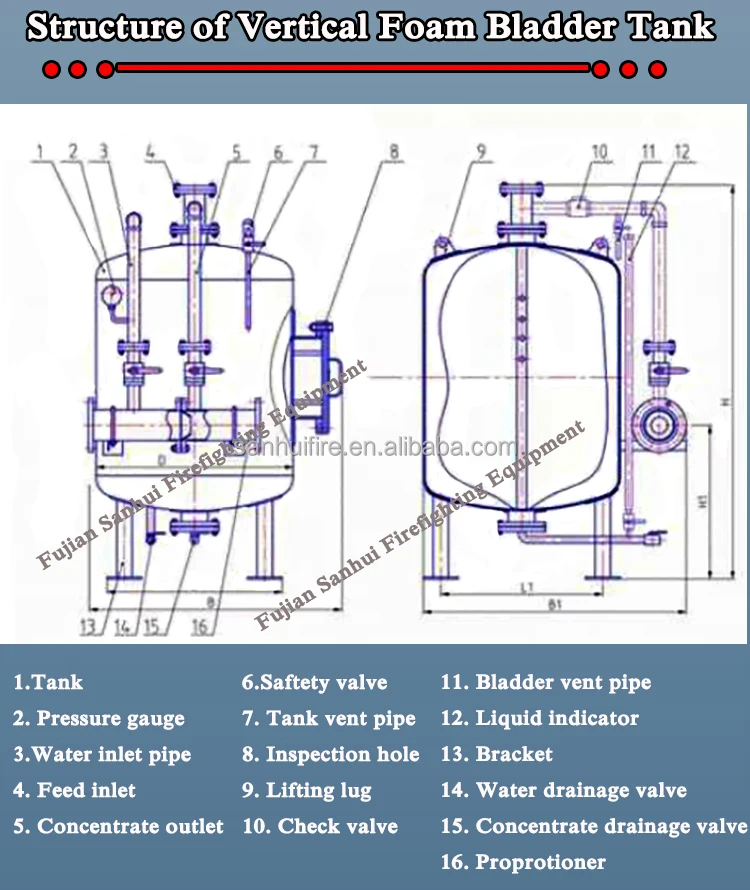

Structure of Vertical and Horizontal Foam Bladder Tank
Working Principle of Foam Bladder Tank
Foam Bladder Tanks offer a reliable and simpler method of foam proportioning. The Bladder Tank system includes a pressure-rated tank with an internal elastomeric rubber bladder.
Upon system actuation, incoming water applies pressure to the rubber bladder, which supplies pressurized foam concentrate to the foam proportioning device (ratio controller). The foam ratio controller meters the foam concentrate into the fire water line, creating a foam solution. The solution is then piped to the discharge devices protecting the hazard area.
Upon system actuation, incoming water applies pressure to the rubber bladder, which supplies pressurized foam concentrate to the foam proportioning device (ratio controller). The foam ratio controller meters the foam concentrate into the fire water line, creating a foam solution. The solution is then piped to the discharge devices protecting the hazard area.
Different Models of Foam Bladder Tank
Model | Working Pressure | Press Lost | Mixed Liquid Flow Scope | Volume | ||
PHYML32/10 | 0.6---1.2MPa | <0.15MPa | 8-24L/S | 1000L | ||
PHYM32/20 | 420 | 10-32L/S | 2000L | |||
PHYM32/30 | 550 | 10-48L/S | 3000L | |||
PHYM64/50 | 10-64L/S | 5000L | ||||
PHYM80/55 | 24-55L/S | 5500L | ||||
PHYM80/80 | 24-80L/S | 8000L | ||||
PHYM100/100 | 24-100L/S | 10000L | ||||
PHYML24/10 | 8-24L/S | 1000L | ||||
PHYML48/15 | 12-48L/S | 1500L | ||||

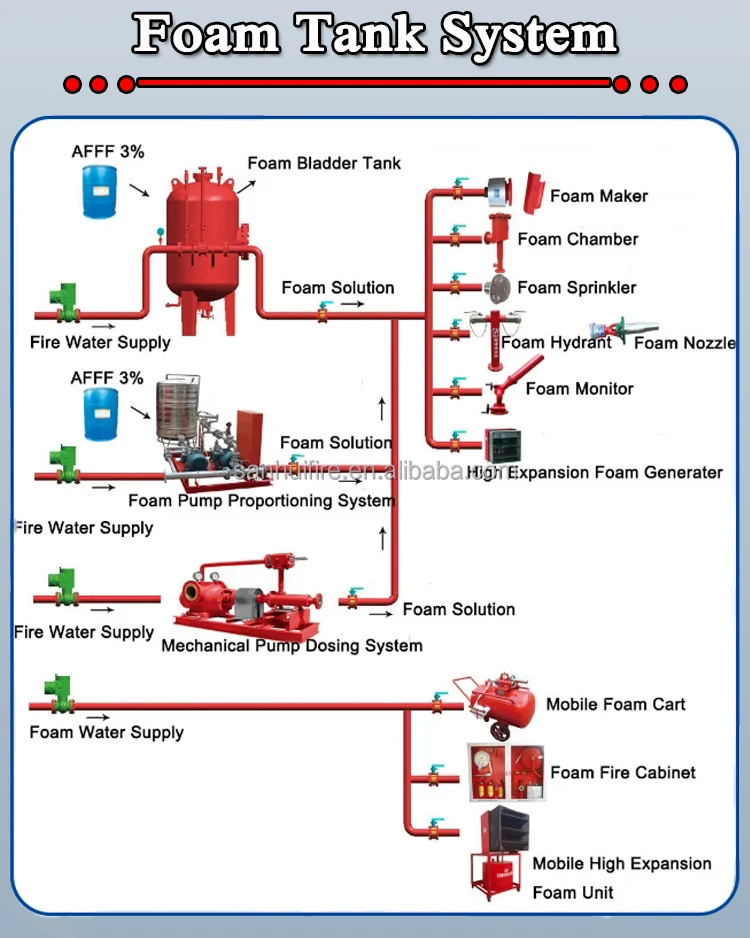

Foam Tank System

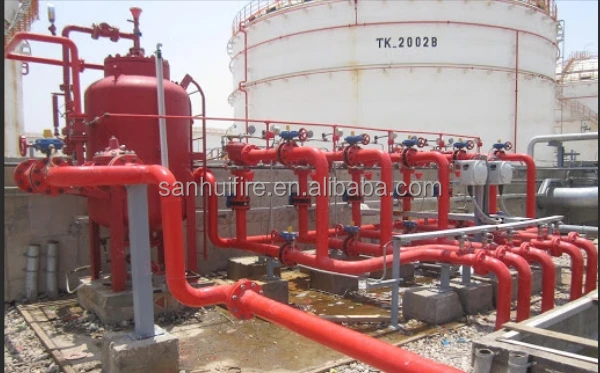

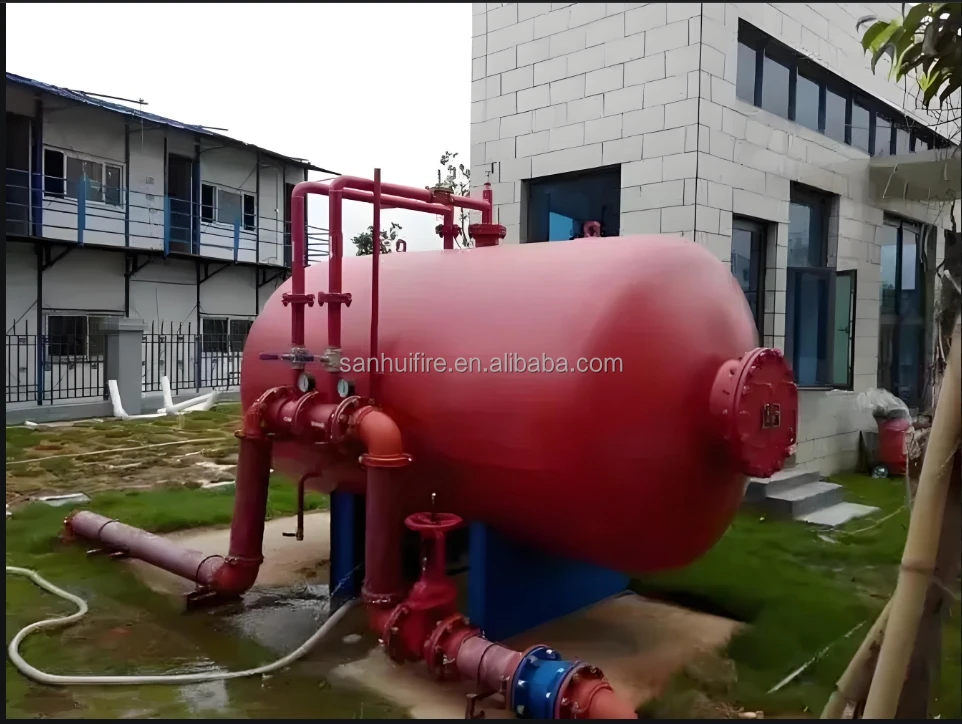

Project case
The Foam Bladder Tank is mainly used in the mining , paper making, petroleum, chemical industry, underground garage and other places.
Characteristic of Foam Bladder Tank
The mixing ratio of foam tank is quite stable, accurate and reliable . It can provide high
quality foam mixture.
quality foam mixture.
The foam tank has the lowest pressure drop loss. The sprayed extinguishing agent energy is large with a strong penetration ability. It can put out the fire quickly.
Related Products

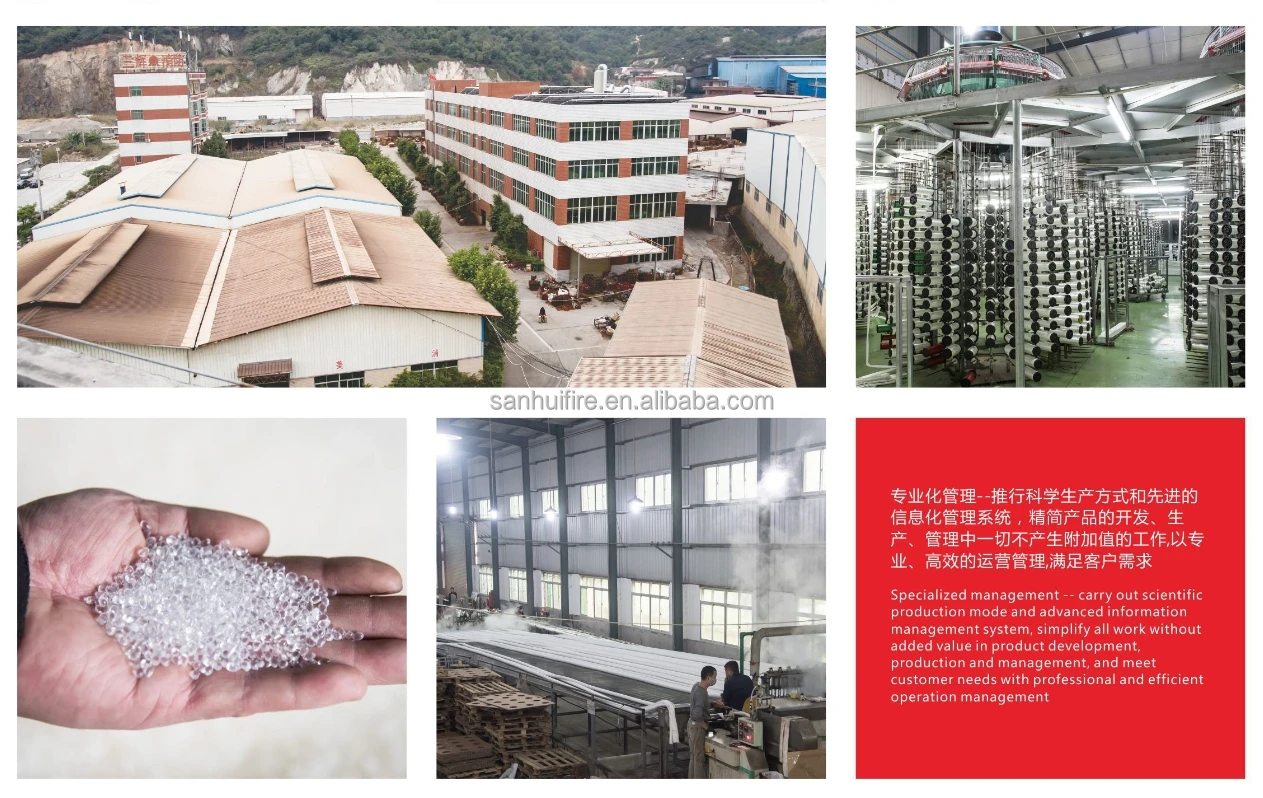

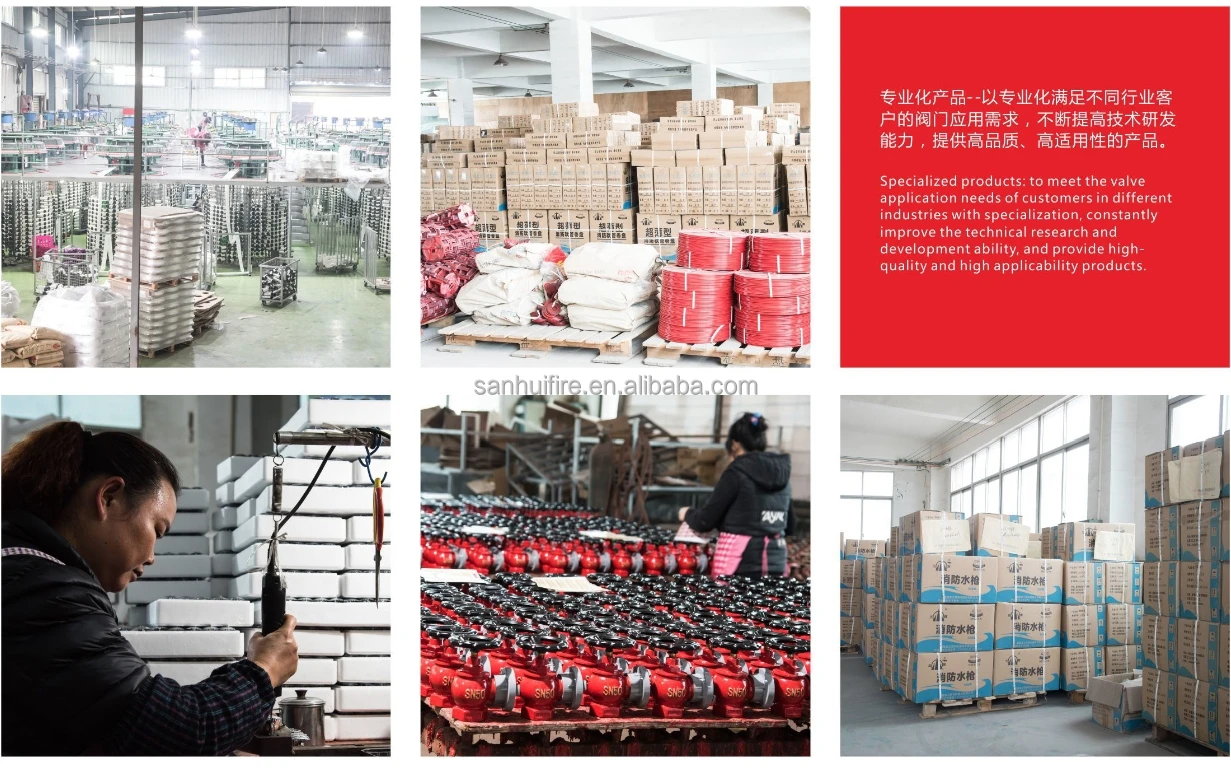

Company Introduction
Fujian Sanhui Fire-fighting Equipment Co., LTD., founded in 1988 which is a fire-fighting
equipment manufacturer in Fujian province, covering an area of 10,000 square meters, with more than 450 employees, 50 fire engineering and technical personnel. Excellent talents, strong technical support and advanced modern production equipment is not only our driving force, but also has ensured the quality of final products. After more than 20 years of hard work, the products have been approved by the Ministry of Public Security and has been granted as a Provincial Advanced Enterprise.Our main products are Fire Connection Department, Bladder Foam Tank, Indoor Fire Hydrant,Outdoor fire hydrant, Water Pump Adapter, Fire Interface,
Water Gun, Fire Hose,Fire Hose Reel , Cabinet, Alarm Valve ,Deluge Valve,Fire Signal Butterfly Valve, Fire Signal Gate Valve, Fire Sprinkler, Fire Extinguisher,Water Flow Indicator and other more than 60 types of firefighting products. We also accept customization. Welcome to visit us to discuss more cooperation!
equipment manufacturer in Fujian province, covering an area of 10,000 square meters, with more than 450 employees, 50 fire engineering and technical personnel. Excellent talents, strong technical support and advanced modern production equipment is not only our driving force, but also has ensured the quality of final products. After more than 20 years of hard work, the products have been approved by the Ministry of Public Security and has been granted as a Provincial Advanced Enterprise.Our main products are Fire Connection Department, Bladder Foam Tank, Indoor Fire Hydrant,Outdoor fire hydrant, Water Pump Adapter, Fire Interface,
Water Gun, Fire Hose,Fire Hose Reel , Cabinet, Alarm Valve ,Deluge Valve,Fire Signal Butterfly Valve, Fire Signal Gate Valve, Fire Sprinkler, Fire Extinguisher,Water Flow Indicator and other more than 60 types of firefighting products. We also accept customization. Welcome to visit us to discuss more cooperation!

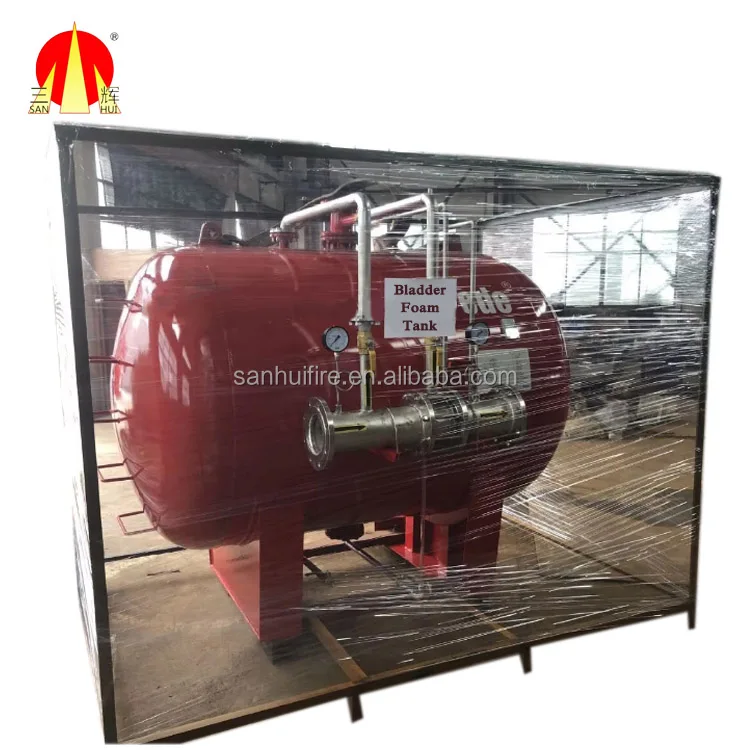

Packing&Shipping
