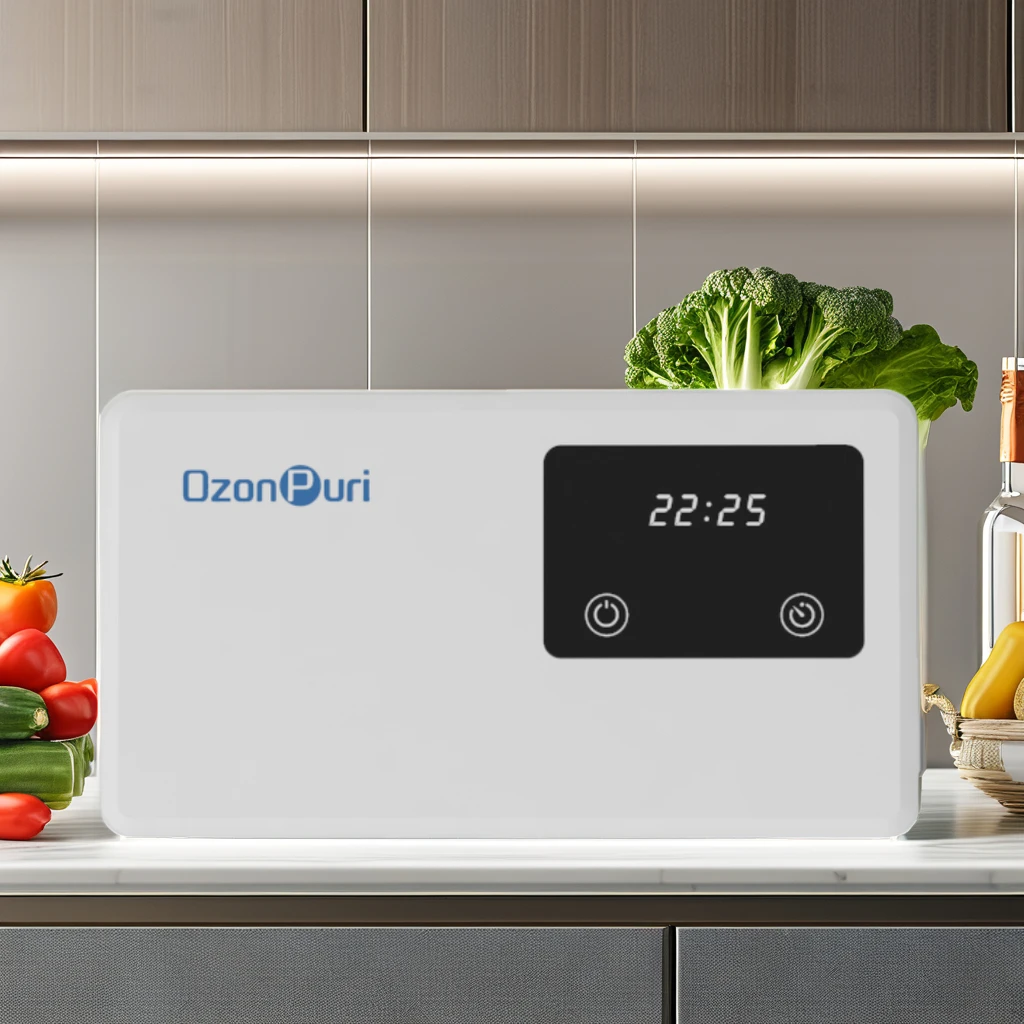

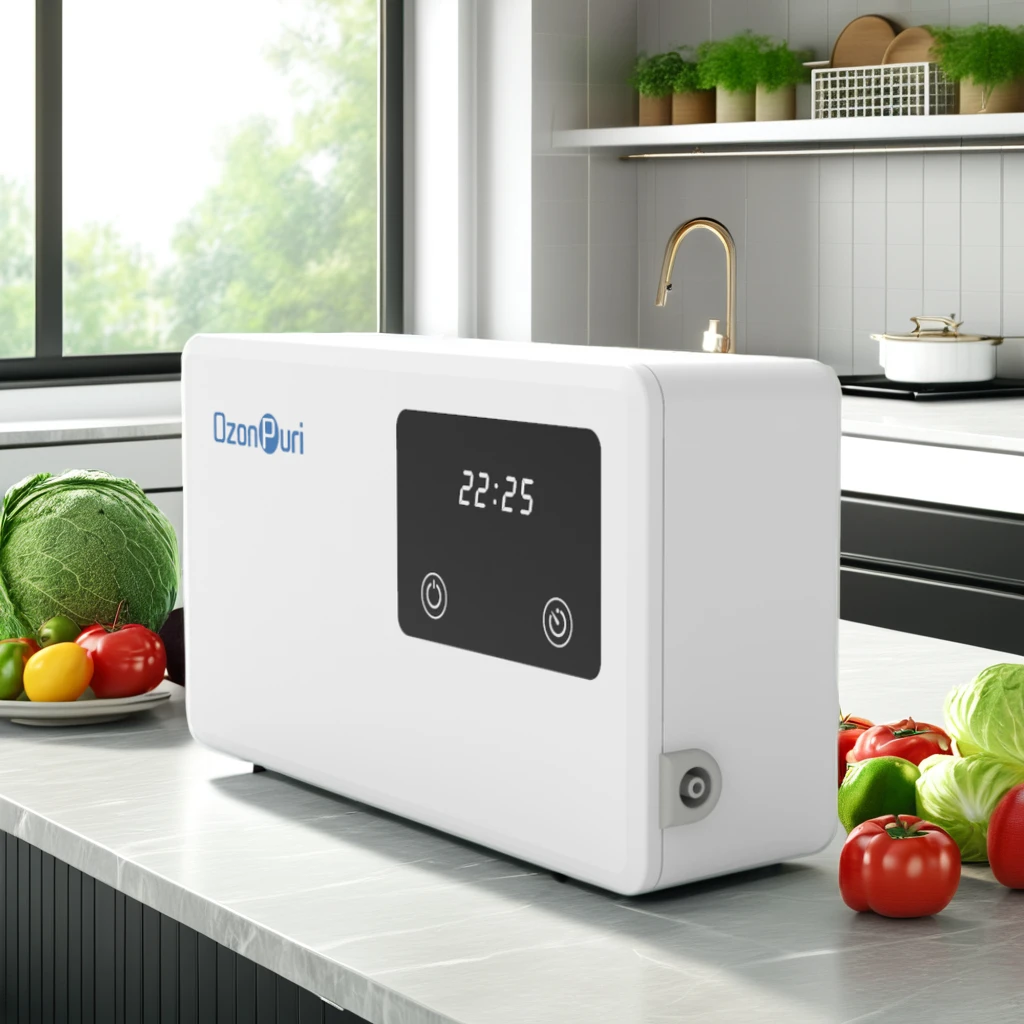

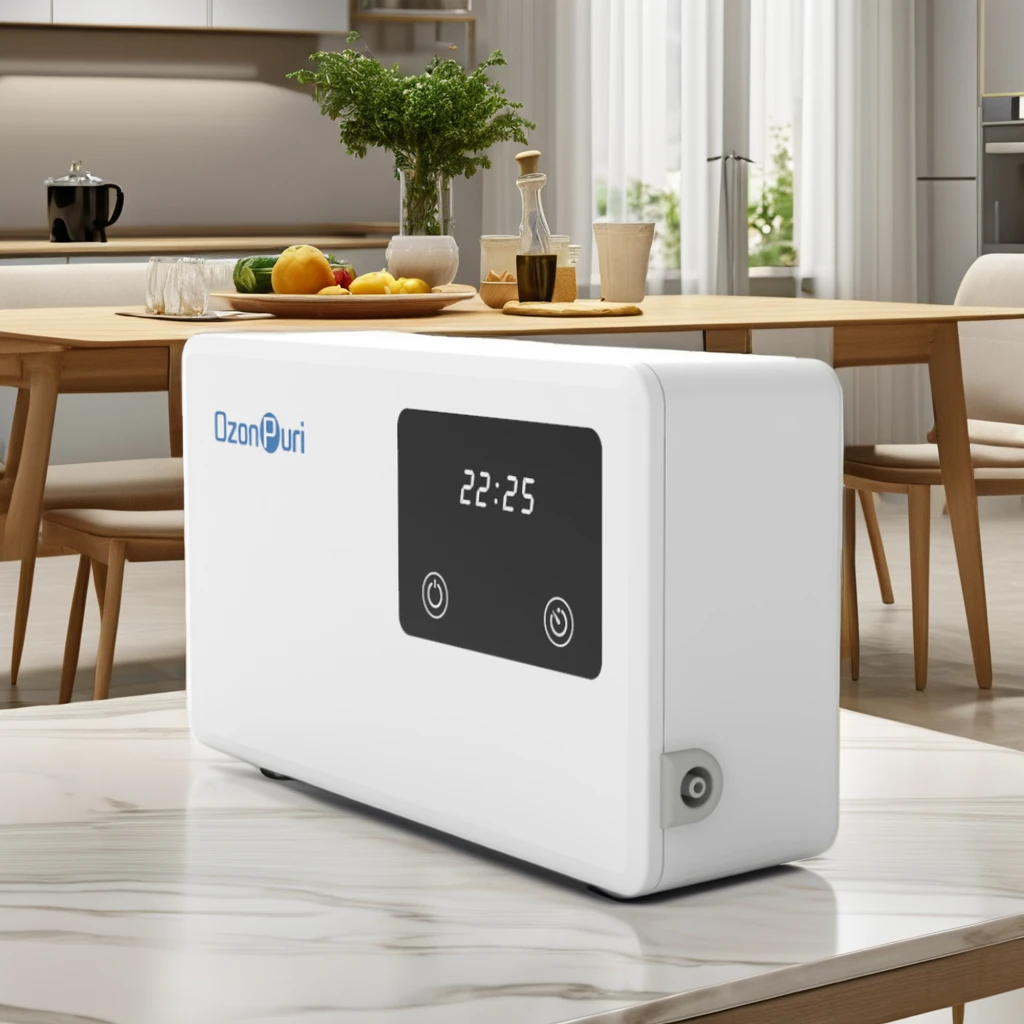

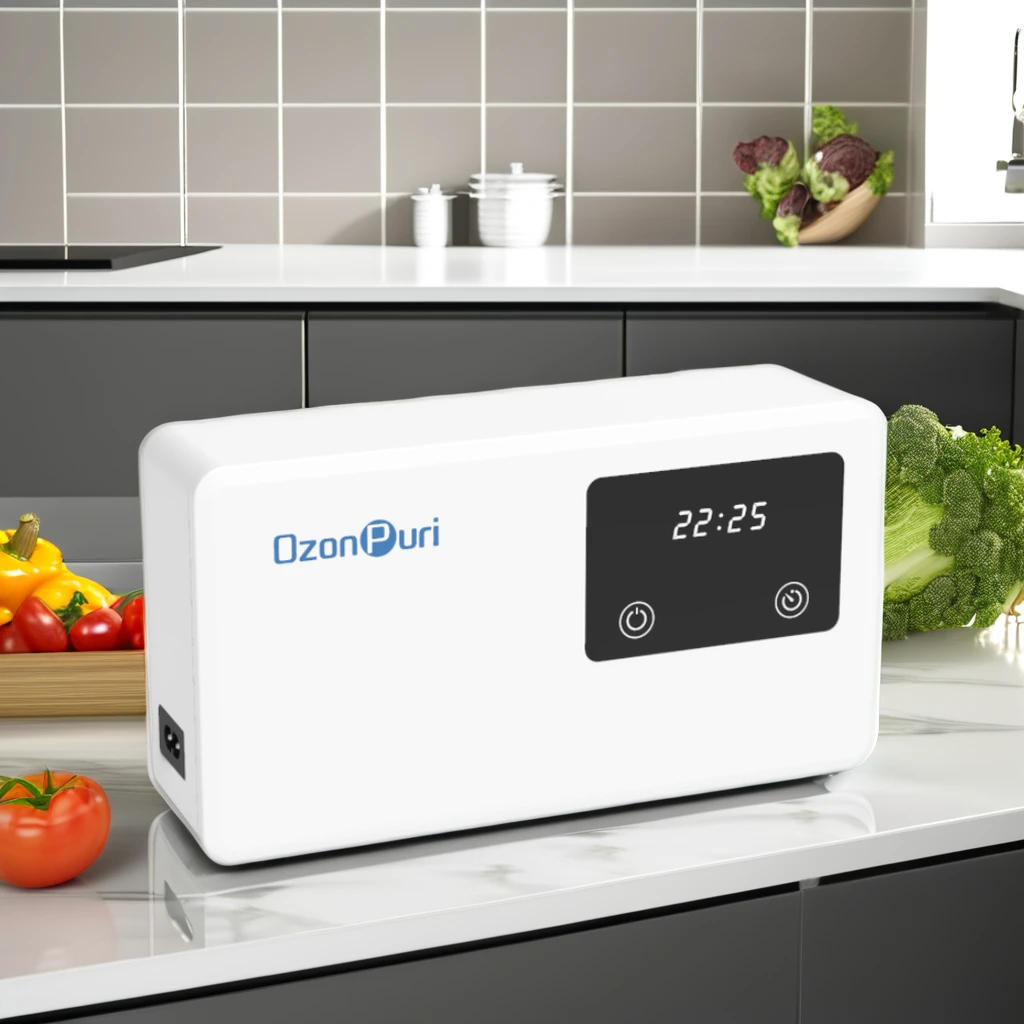

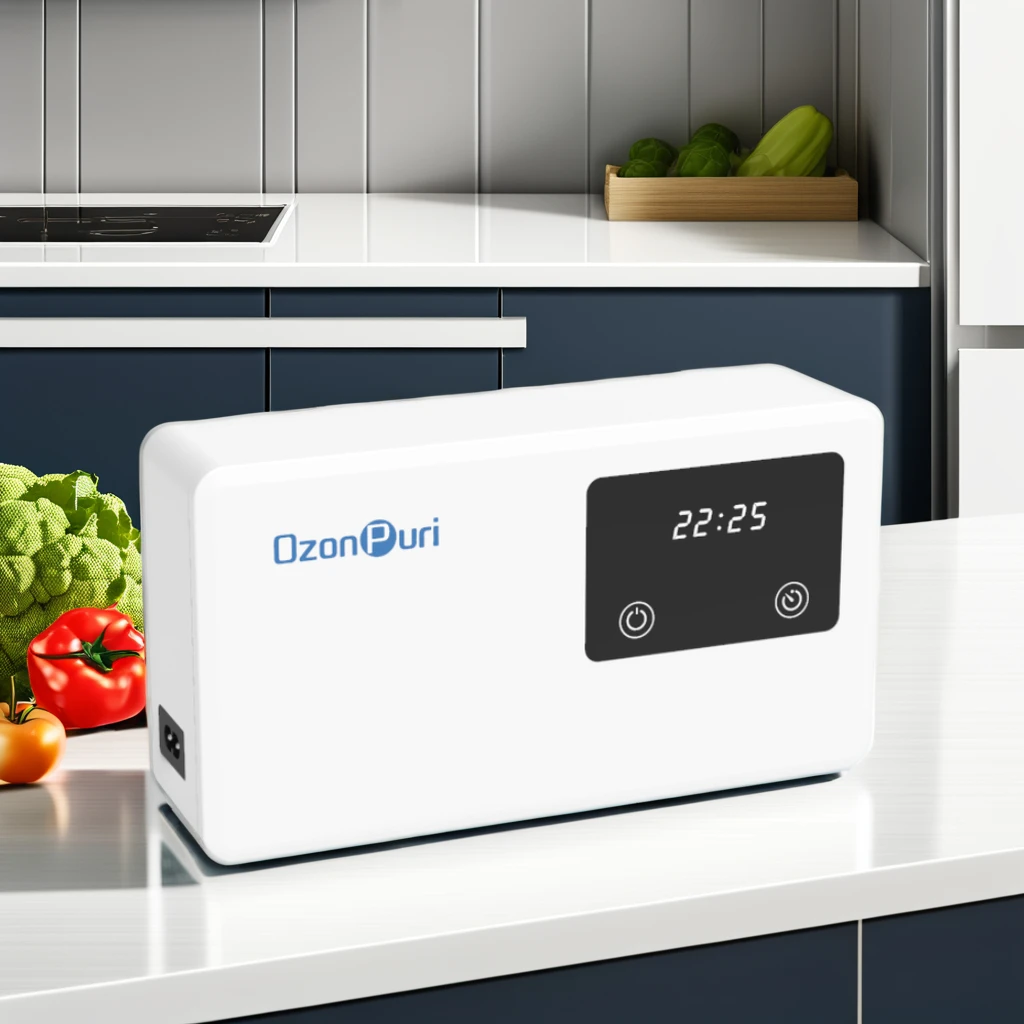

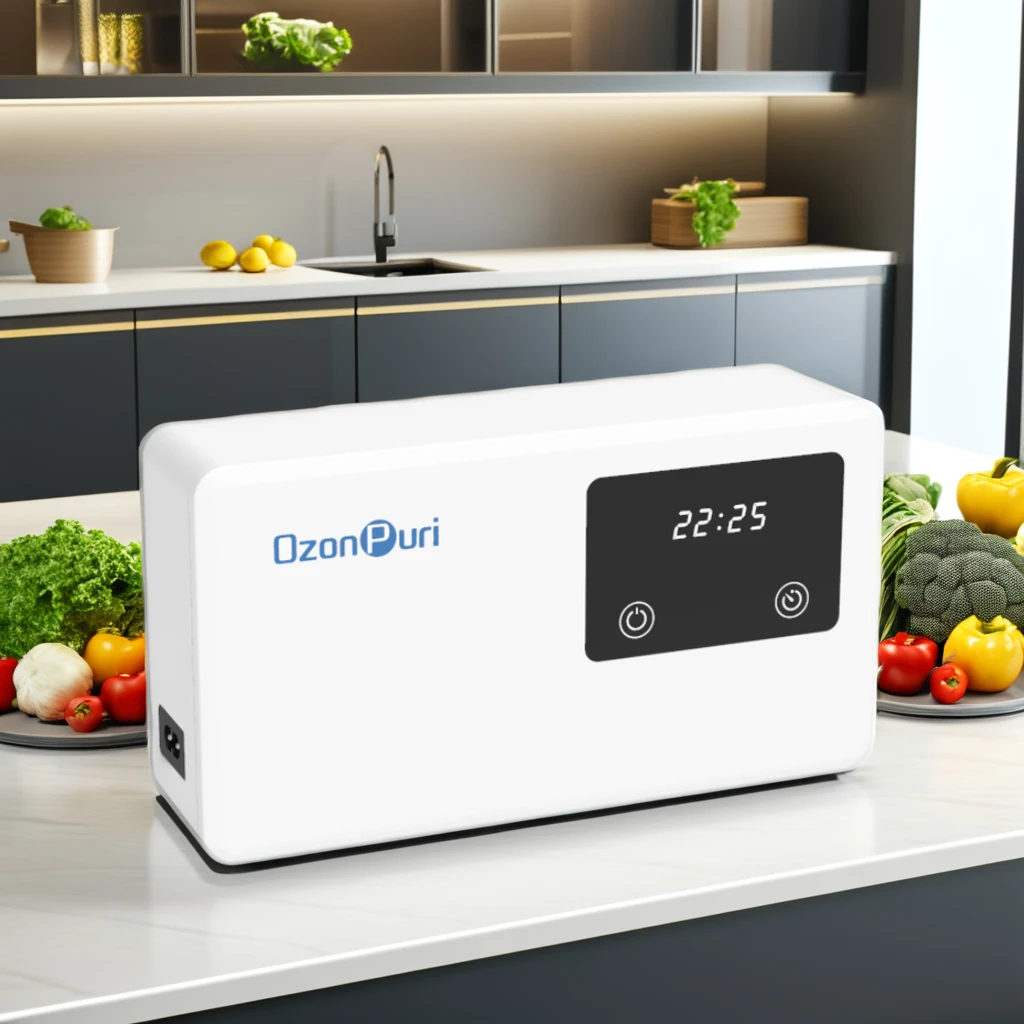

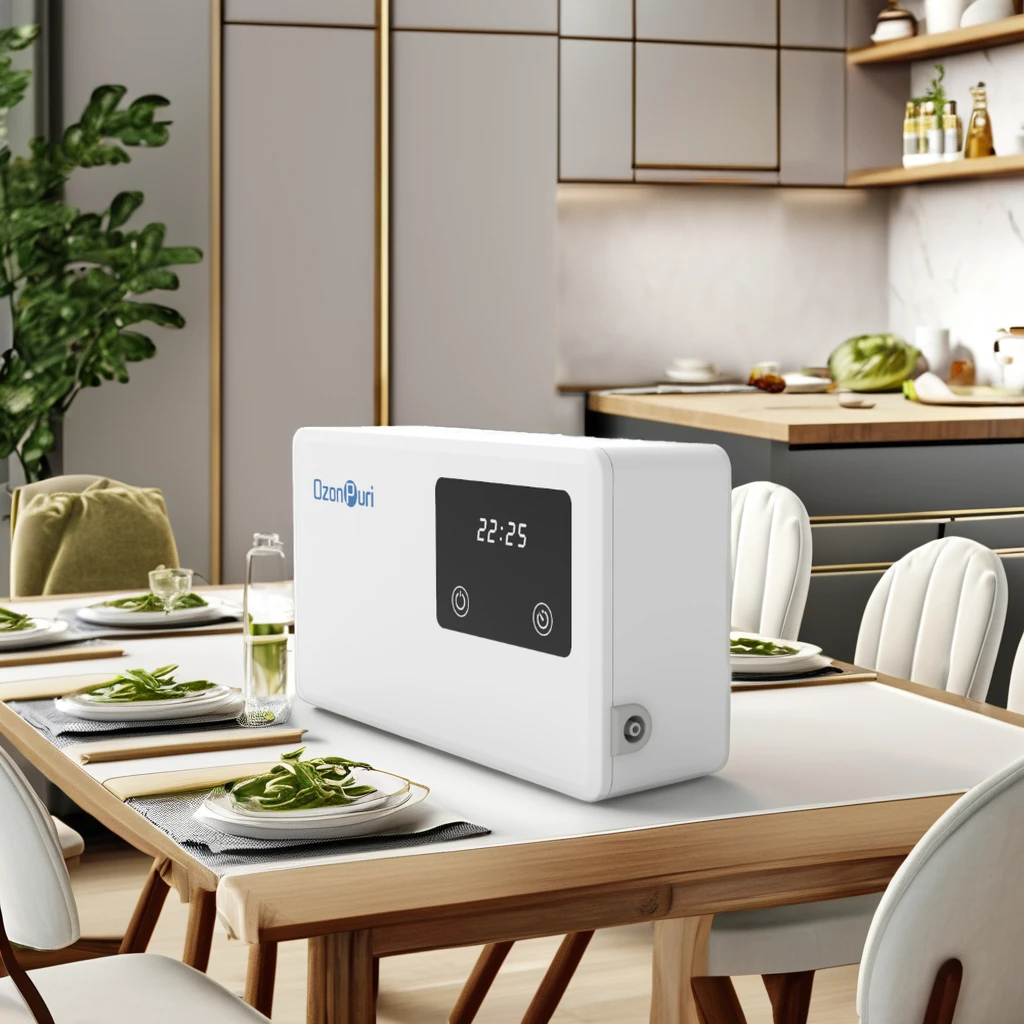

Electric 220V Ozone Generator for Fruits and Vegetables Efficient Fruit and Vegetable Cleaner

Product Overview

Description

Electric Electric 220V Ozone Generator for Fruits and Vegetables Efficient Fruit and Vegetable Cleaner







Function Characteristic Of OzonPuri Ozonator OZ-1

1.Ozone Sterilization:



Deodorizer: Ozone can kill microbes, inhibits Fungus,anti virus.



Food Cleanser: Ozone can disintegrate and decompose the pesticide,hormone and odor, which remains on the surface on food, such as fruit, vegetables, meat and seafood, etc.



Air Purifier: Remover Odor and Foul Smell.



Water Treatment: Over 50% more efficient at breaking through bacteria membranes compared to chlorine.



Safety instruction Of OzonPuri Ozonator OZ-1

1. Disconnect the power before cleaning or repairing.
2. When this product is used to Sterilize water, place it above water surface to avoid water from flowing in.
3. Do not use it in high temperature environment (above 42ºC) or places with high humidity or high oil content. It will reduce the effectiveness or shorten the usage life of the product.

4. Do not throw or cause any impact on the unit.(Do not block the ozone outlet as it will affect the air ventilation.)

5. When this machine is used in a unventilated room to sterilize the air (ozone air sterilization), please enter the room after the machine stops working for 30 minutes. People leave the room during ozone working !



Technical Parameters Of OzonPuri Ozonator OZ-1



Model	OZ-1
Ozone Output	500mg/h
Air Flow	5L/minutes
Power	15w
Voltage	110v or 220v
New Weight	0.7kg
Working Time	5,10,15,20,25,30,40,50,60minutes.



Packing list Of 1 Set OzonPuri Ozonator OZ-1

Main Machine	1pcs
Power cord	1pcs
Pipe	2pcs
Aeration Stone	2pcs
Strong sticker	1pcs
Plastic board	1pcs
Shelf for stone	2pcs
User manual	1pcs
Colour box	1pcs

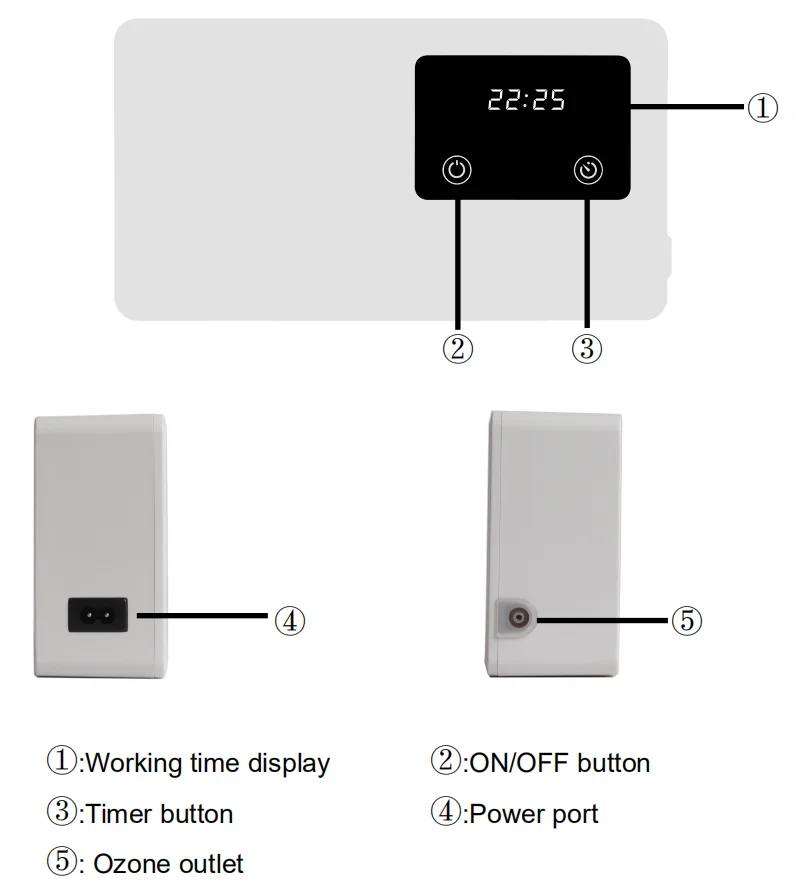

Operation Instructions Of OzonPuri Ozonator OZ-1

Use in Water: (Timer: 2-60min)

Step1: Connect the pipe end with Ozone outlet and the other pipe end with aeration stone correctly. To let the Ozone go out, put the aeration stone on the bottom of the water.



Step2: Plug in the power cord, connect the machine to the power outlet.the light will blink in correspondence button ON/OFF . the machine is powered.



Step3:Turn on/off the appliance by pressing down the button ON/OFF . Turn on machine, the button light will bright,display will light up indicating the working time 10:00,it will automatically start ozone operation after 2 seconds,timer display will begin the countdown,the Timer button light will bright.Turn off machine,the light on button ON/OFF will blink.



Step4: Touch Timer button slightly, to choose the working time 2,5,10, 15,20,25,30,40,50,60 minutes. Notice:when machine finish working ,it will turn off automaticlly , the light on button ON/OFF will blink.



Use in Air: (Timer: 15-60min)

Notice 1: No need to link the aeration stone and pipe.

Notice 2: People leave the room during ozone working for room air sterilization.



Machine Wall-mounted Instructions

Step1:use the strong sticker stick on the smooth and clean wall(ceramic,metal or glass)make sure the sticker adhere to the wall fully.

Step2:use screw to connect wall-mounted plastic board on the strong sticker,then put machine on the wall-mounted plastic board.



Stone Shelf Wall-mounted Instructions

Step1:use the strong sticker stick on the smooth and clean wall(ceramic,metal or glass)make sure the sticker adhere to the wall fully.

Step2:put the plastic shelf on the strong sticker,then put stone on the shelf.



Example of Application Of OzonPuri Ozonator OZ-1

Application Area	Time	Benefits of Ozone
Vegetables and Fruits in water	10-20mins	sterilizer, decompose pesticide and fertilizer residues, and extend the freshness of food.
Meat in water	10-15mins	remove the residue hormones, antibiotics and virus.
Seafood in water	10mins	kill parasites of hepatitis A/B and other infectious bacteria.
Kitchen,bedroom, bathroom, car	10-30mins	remove bad smell, smoke, odor, bacteria,air purification.
Clothes	5-15mins	ozone-containing water can be used to disinfect clothes.
Wash items & toys	10-15mins	Disinfect children's toys,pet's toys.
Homemade mouthwash	10mins	Improve oral hygiene, effectively prevent bad breath, and help to care for the teeth.
Skin, beauty, water bath	20-30mins	Remove the dirt from the pores to achieve the effect of skin care.



FAQ

What is Ozone?
Ozone (03) is a highly charged form of the oxygen (02) that we breathe.  Outdoors, ozone has been produced for millions of years. At ground level, 03 acts as an oxidizer to keep the air smelling fresh. In the upper atmosphere, ozone acts as a protective layer that partially shields the earth from the sun's UV rays. Life on earth as we know it could not exist without 03.
This third oxygen atom is loosely attached,unstable and seeks out pollutants. It will then release and oxidize them on contact.
How does the Ozone sterilizer create ozone?
The machine utilize electricity to create a corona discharge which duplicates the effect of lightning. The 02 molecule is split, which then combines with other 02 molecules to createthe 03 molecule, or ozone.
What is ozone half-life?
Under standard conditions (21ºC, 1 bar) the half-life of ozone gas is 20 minutes.Dissolved ozone half-life is 20 minutes at pH6, 15 minutes at pH7 and 5 minutes at pH 8. The main factor which reduces ozone half-life is higher temperature pressure and velocity.
How long will the product last?
The machine is made of the highest quality component material and superior craftsmanship that will allow you to enjoy it for 10000-15000 hours.
