Grating Galvanized Metal Steps Steel Stair Tread
- Category: >>>
- Supplier: Shangang Metal Group Co. Ltd.Shangang Ltd.
Share on (1601237128582):
Product Overview
Description
Products Description
Product | galvanized stair treads steel metal step outdoor walkway |
Material Standard1 | ASTM A36, A1011, A569, Q235, S275JR, |
Material Standard2 | Stainless steel 304/316, Mild steel & Low carbon steel, etc |
Method of welding | Automatic pressure resistance welding |
Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar |

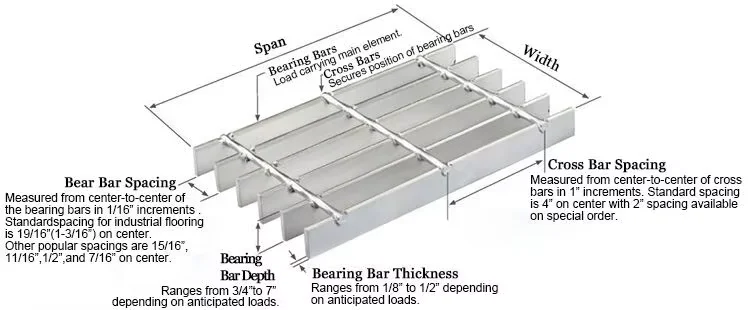

Bearing Bar (Width x Thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
Dimension of cross bar | 5*5.6*6,8*8、10*10、12 * 12Mm, etc. . |
Application | Steel grating is widely used in parking lot,walkways, platforms, stairs, fences for mining industry, power plants, Petrochemical industry, machinery, light industry, railways, bridges, docks, schools, water plants, sewage treatment plants, etc. |
Packing | (1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
Surface Treatment | Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement. |
Function | 1. Extremely high temperature resistance; 2. Corrosion resistance, alkaline resistance. 3. Rust resistance. 4. Skid resistance. 5.Very hard surface can withstand severe wear.” |
Features | High strength, low price, corrosion resistance |
Specification | 1000 types |

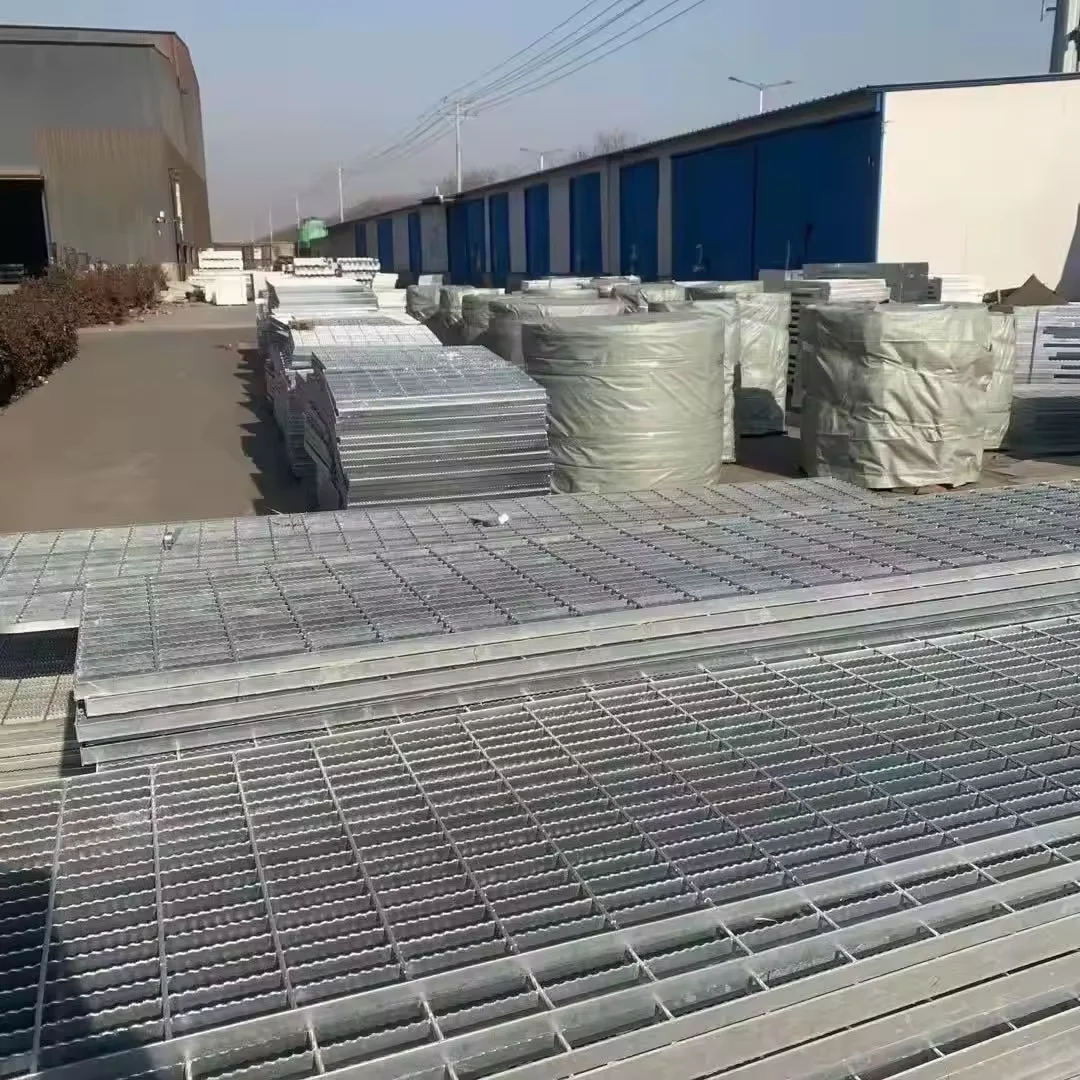

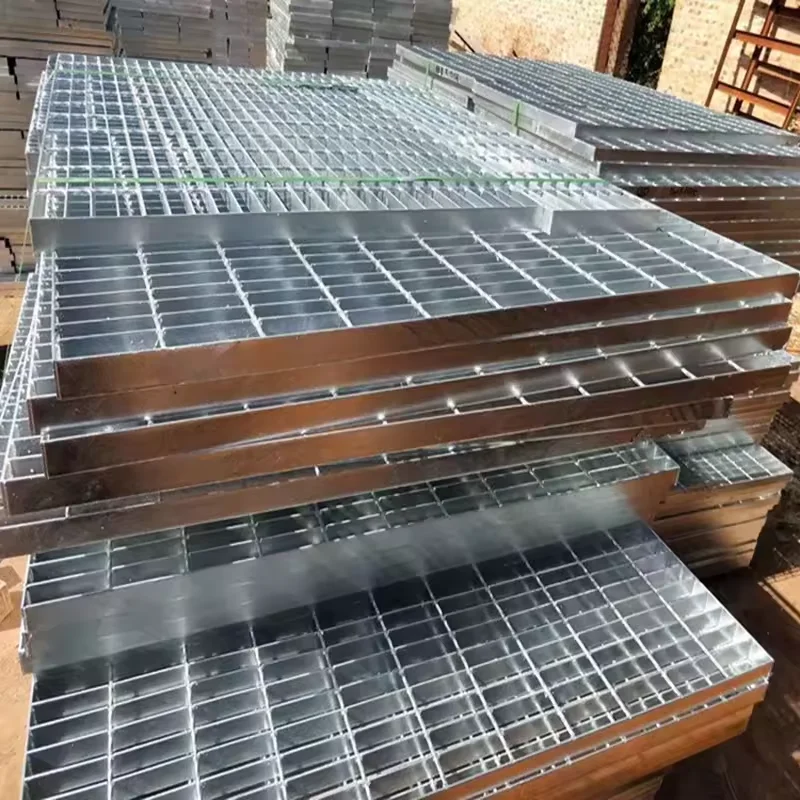

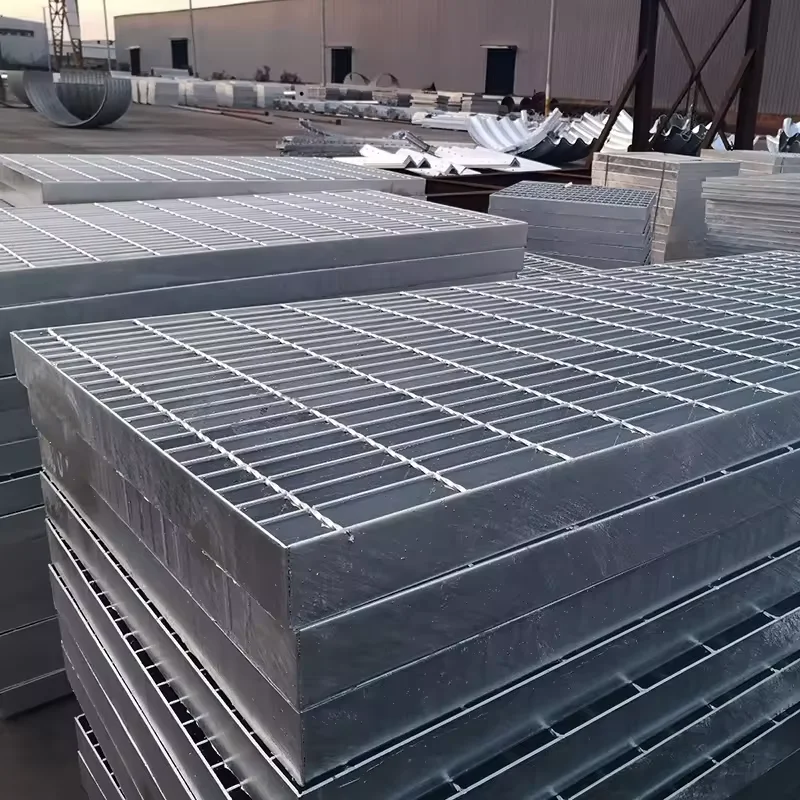

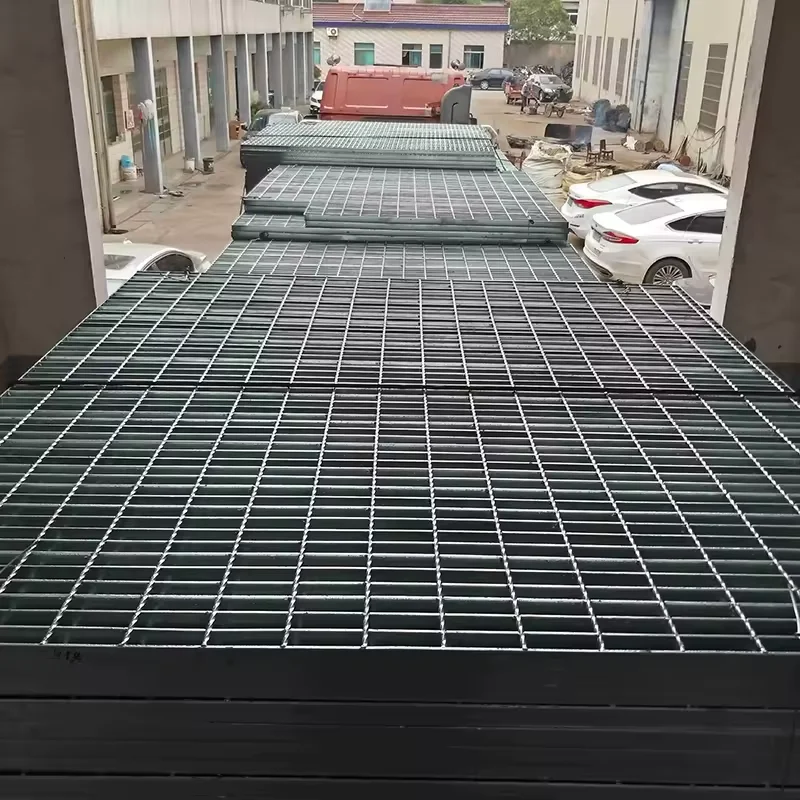

Details Images

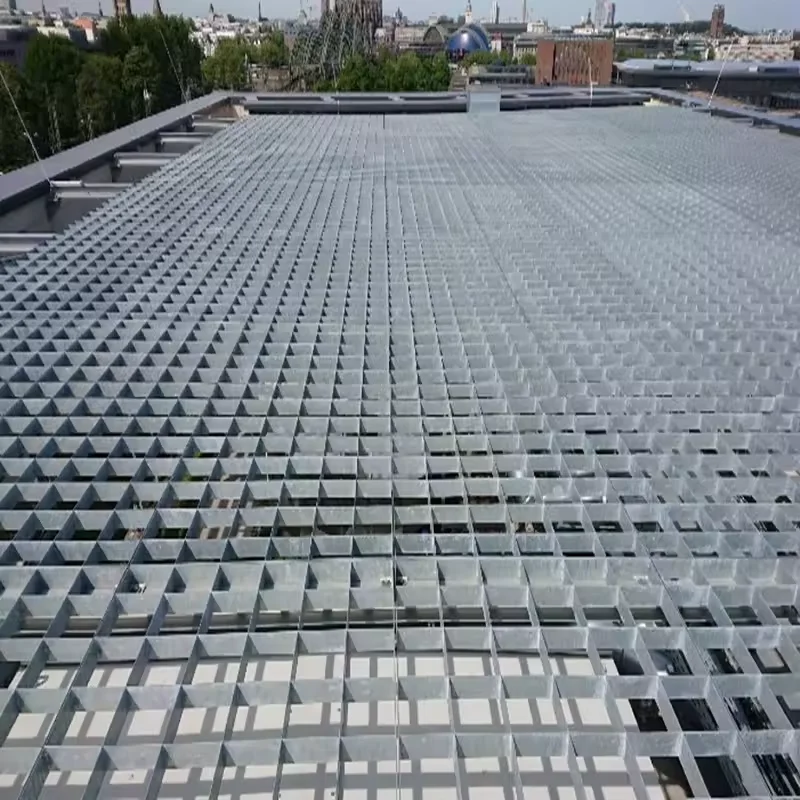

Product Application
Mesh grille is also known as steel grating. It is a kind of steel product that is made of flat steel and cross bars (twisted square steel, square steel, round steel, flat steel, etc.) arranged crosswise at a certain spacing and welded into a square grid in the middle. Steel grating is mainly used for ditch covers, steel structure platform plates, steel ladder treads, etc. The cross bars are generally made of twisted square steel. Steel grating is generally made of carbon steel, and the surface is hot-dip galvanized to prevent oxidation. It can also be made of stainless steel. Steel grating has ventilation, lighting, and heat dissipation. Mesh grille is suitable for alloys, building materials, power stations, boilers, shipbuilding, petrochemicals, chemicals, general industrial plants, municipal construction and other industries. It has the advantages of ventilation, light transmission, anti-slip, good bearing capacity, easy cleaning, and simple installation.
Company Profile
Why Choose Us

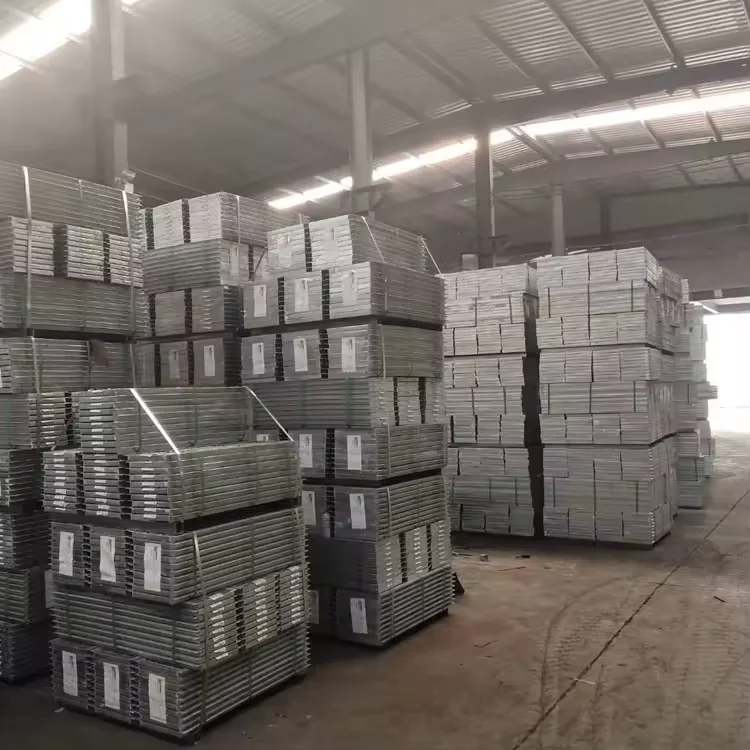

Product packaging
FAQ
Q:Can I get samples before order ?
A:Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:How can I get a quotation from you ?
A:You can leave us message, and we will reply every message in time. Or we may talk on line.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept the third party inspection absolutely.
