MINGXIN Jig Machine Price Gravity Jigger Machine Manganese Jigging Gold Concentration Diamond
- Category: >>>
- Supplier: Jiangxi Mingxin Metallurgy Equipment Co. Ltd.
Share on (1601237185348):
Product Overview
Description
Product Descriptions
Product Application:
XKJ Mine Machinery Saw-tooth wave washbox belongs to a type of energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification, and on the basis of traditional jigger. The performance of washbox has reached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation. When processing the open-pit mines, the washbox is a key machine with the principle of gravity separation. Its pulse curve is like saw-tooth waveform to make rising water faster than the dropping water; enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment.hot sale! jig machine from professional washbox manufacturer manganese ore dressing washbox.
Working Principle:

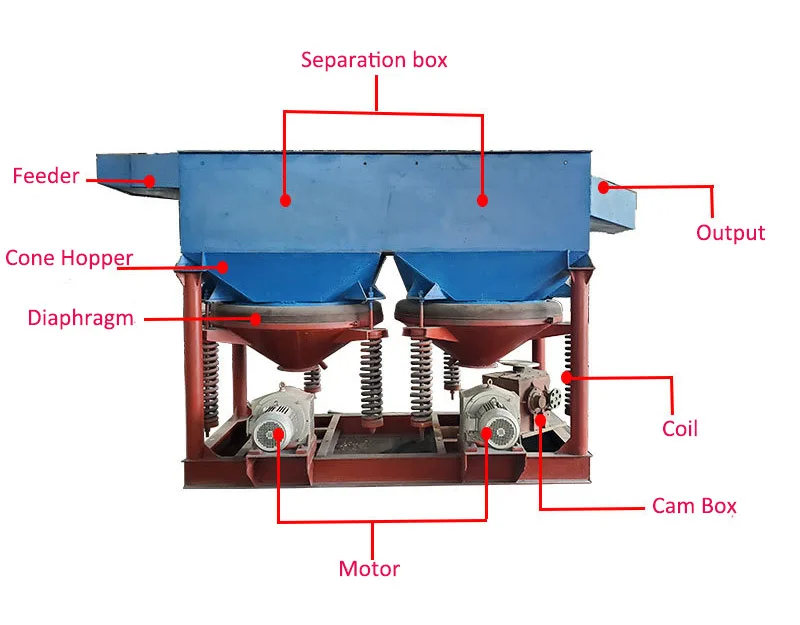

Sawtooth wave jig is composed of transmission wave box and jigging chamber, the transmission wave box by coupling by speed regulating motor drive, the formation of serrated movement up and down, thus promote jig do up and down, make the jigging bed loose and particles according to the proportion of stratification, thus to achieve the equipment selected don't ratio and recovery
rate.
rate.
Main Features:
High capacity, High concentration ratio and high recovery
Fabricated with highest quality material
Easy to install, operate and maintain
Water conservation ,Saving water 30-40% than ordinary jig.
The pulsation speed very easy adjusted by regulator
Suitable for roughing and desliming
Fabricated with highest quality material
Easy to install, operate and maintain
Water conservation ,Saving water 30-40% than ordinary jig.
The pulsation speed very easy adjusted by regulator
Suitable for roughing and desliming

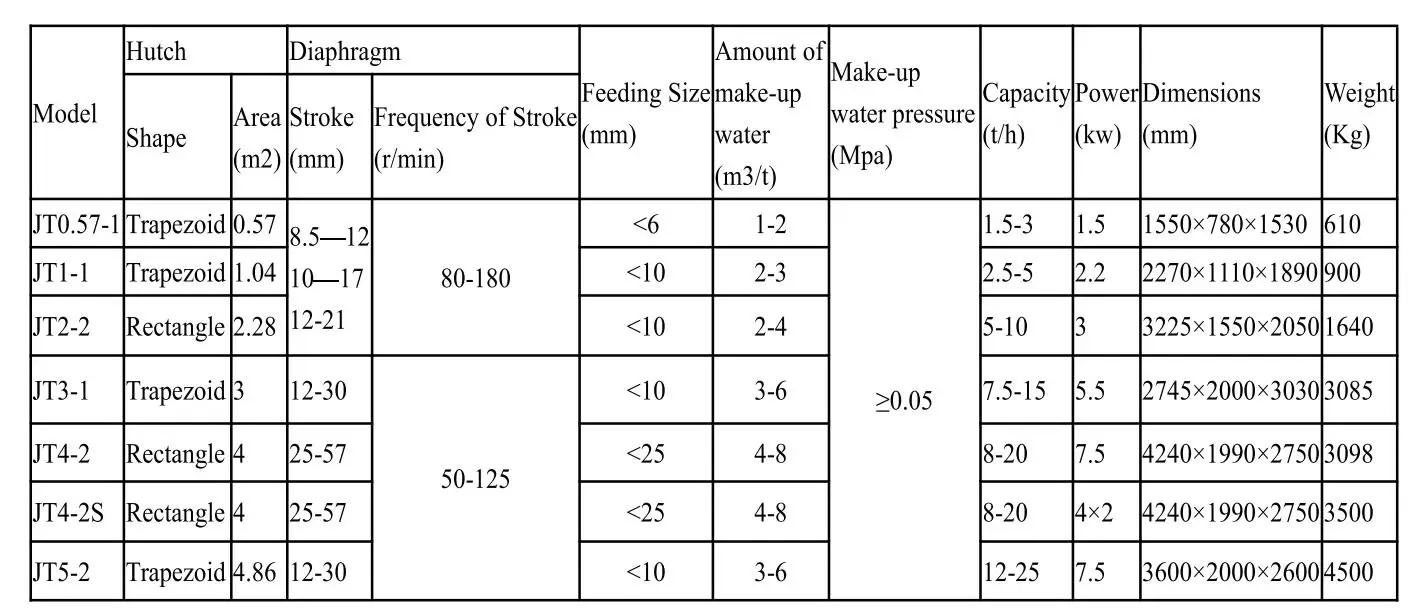

Product Parameters
