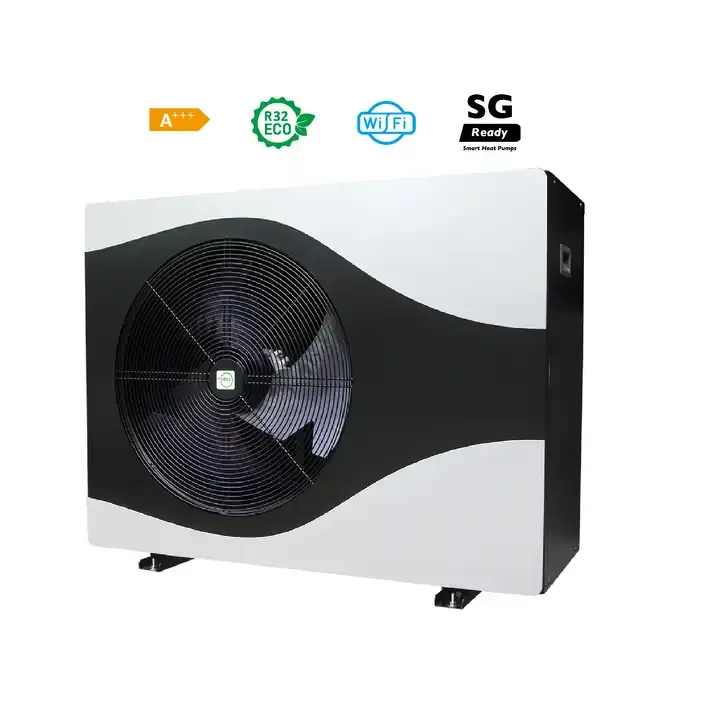

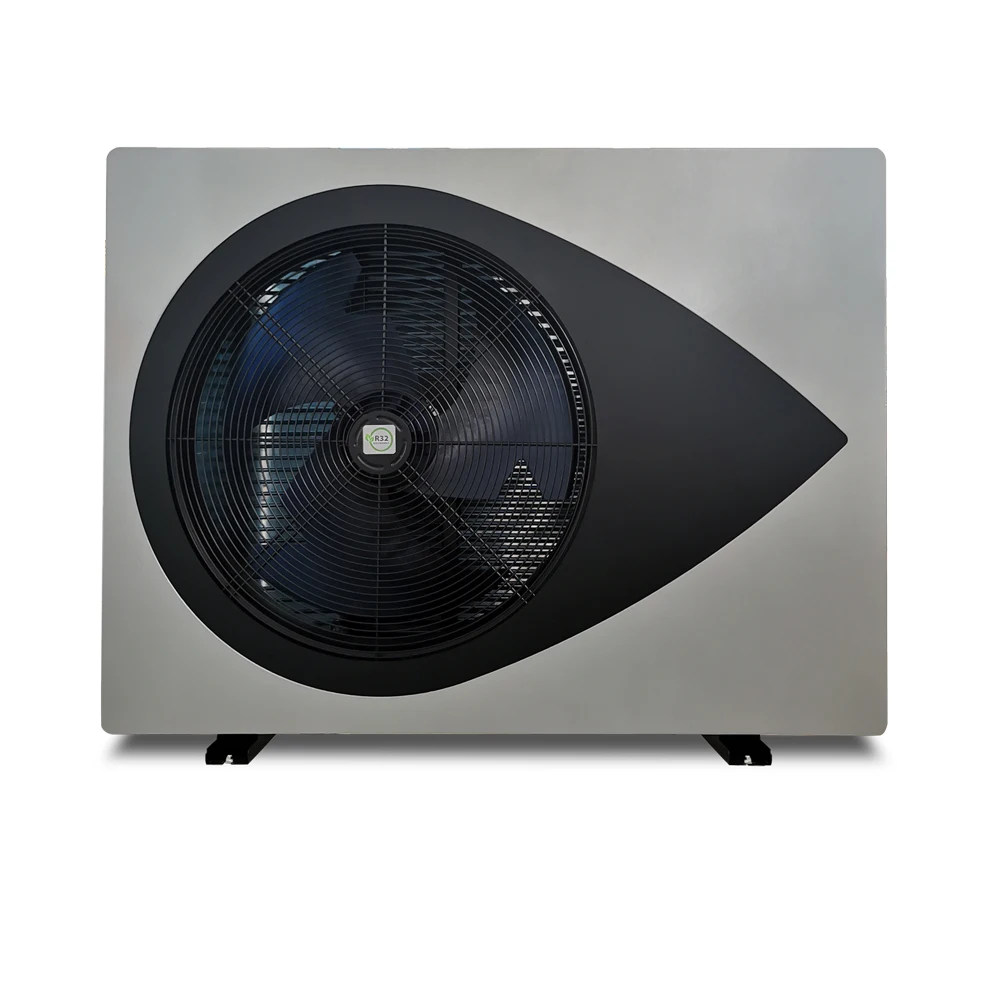

Sunrain Factory Supply Wholesale Only Monoblock A R32 R290 Full Invert Heat Pump 6KW 10KW 14KW 20KW Pompa Ciepla
- Category: >>>
- Supplier: Jiangsu Sunrain Solar Energy Co. Ltd.
Share on (1601237222563):
Product Overview
Description
Product Description
Key Features
* R32 refrigerant, low GWP
* SCOP A+++
* Heating+Cooling+DHW
* Full DC inverter compressor and fan motor
* -25ºC stable running
* WIFI smart control
* Outlet water temperature 60ºC
* CE certified
* R32 refrigerant, low GWP
* SCOP A+++
* Heating+Cooling+DHW
* Full DC inverter compressor and fan motor
* -25ºC stable running
* WIFI smart control
* Outlet water temperature 60ºC
* CE certified
Sunrain High Efficiency R290 Monoblock Heat Pump
Sunrain R32 monoblock heat pump(Model No.: BLN-006TB1 BLN-010TB1 BLN-014TB1 BLN-024TB1) is specially designed for cold area, to satisfy family demand for heating, cooling and hot water. With EVI technology, Sunrain heat pumps can have a stable perfomance even under -30ºC.

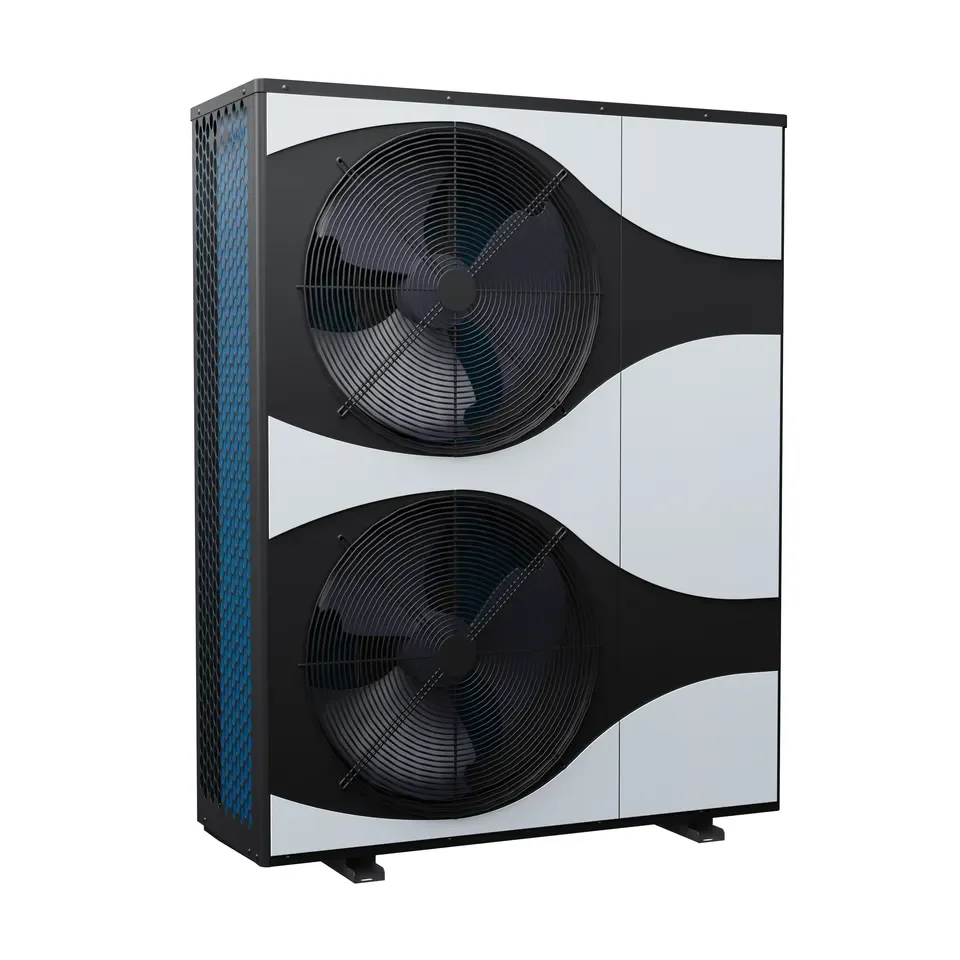

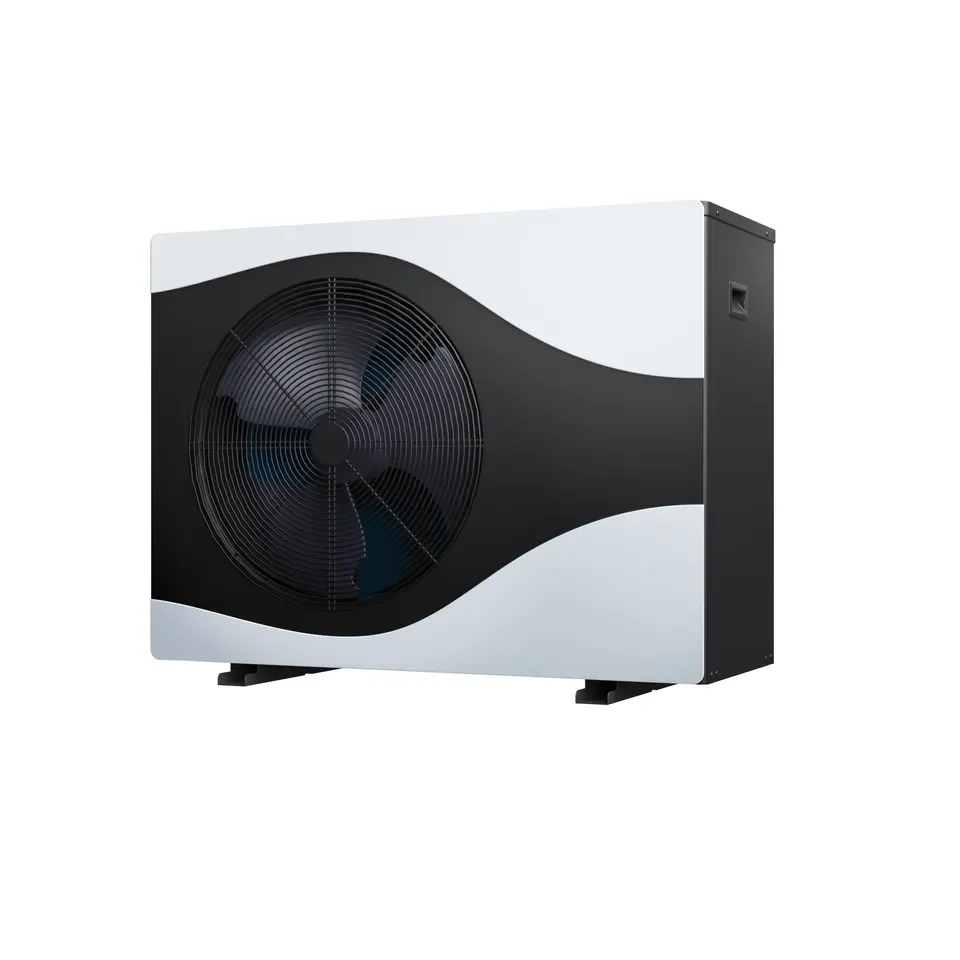

Two Patterns For Choice
Top Brand Inverter Compressor
More Stable & Durable
TFT Touch Screen
Better View
Blue Hydrophilic Fin Evaporators
More Efficiency
Product Parameters
Model | BLN-006TB1 | BLN-010TB1 | BLN-014TB1 | BLN-014TB3 | |||||
Power Supply | V/Ph/Hz | 220-240V~/50（60）Hz | 380-415V/3N~/50（60）Hz | ||||||
Heating ¹ | Capacity | KW | 2.50-8.30 | 4.20-12.20 | 5.30-16.50 | 5.30-16.60 | |||
Input Power | KW | 0.57-1.92 | 0.86-2.88 | 1.15-4.15 | 1.15-4.15 | ||||
Input Current | A | 2.53-8.52 | 3.82-12.77 | 5.10-18.41 | 1.86-6.70 | ||||
Heating ² | Capacity | KW | 2.30-7.62 | 3.85-11.20 | 4.90-15.10 | 4.90-15.10 | |||
Input Power | KW | 0.75-2.61 | 1.13-3.75 | 1.65-5.25 | 1.65-5.25 | ||||
Input Current | A | 3.32-11.58 | 5.01-16.6 | 7.32-23.30 | 1.67-8.47 | ||||
Cooling | Capacity | KW | 1.80-7.10 | 2.60-10.30 | 4.50-13.50 | 4.50-13.50 | |||
Input Power | KW | 0.61-2.43 | 0.91-3.65 | 1.45-4.85 | 1.45-4.85 | ||||
Input Current | A | 2.71-10.78 | 4.03-16.19 | 6.43-21.52 | 2.34-7.82 | ||||
SCOP (Water Temp. At 35℃) | 5.14 | 4.55 | 4.58 | 4.62 | |||||
SCOP (Water Temp. At 55℃) | 3.37 | 3.41 | 3.39 | 3.44 | |||||
Rated Input Power | KW | 2.71 | 3.83 | 6.2 | 6.2 | ||||
Rated Input Current | A | 12 | 17 | 27.5 | 10.5 | ||||
CO₂ Equivalent | / | 0.84t | 1.21t | 1.89t | 1.89t | ||||
Maximum Allowable Pressure | MPa | 4.4 | 4.4 | 4.4 | 4.4 | ||||
IP Class | / | IPX4 | IPX4 | IPX4 | IPX4 | ||||
Max. Outlet Water Temp. | ℃ | 60 | 60 | 60 | 60 | ||||
Operating Ambient Temperature | ℃ | -25～45 | -25～45 | -25～45 | -25～45 | ||||
Water Piping Connections | mm | G1 | G1 | G1-1/4 | G1-1/4 | ||||
Rated Water Flow | m³/h | 1.1 | 1.75 | 2.52 | 2.52 | ||||
Water Pressure Drop | kPa | 25 | 27 | 30 | 30 | ||||
Noise Level | dB(A) | 50 | 51 | 55 | 55 | ||||
Net Dimensions ( L×W×H ) | mm | 1100×445×850 | 1100×445×850 | 1110×480×850 | 1110×480×850 | ||||
Net Weight | kg | 102 | 107 | 124 | 124 | ||||

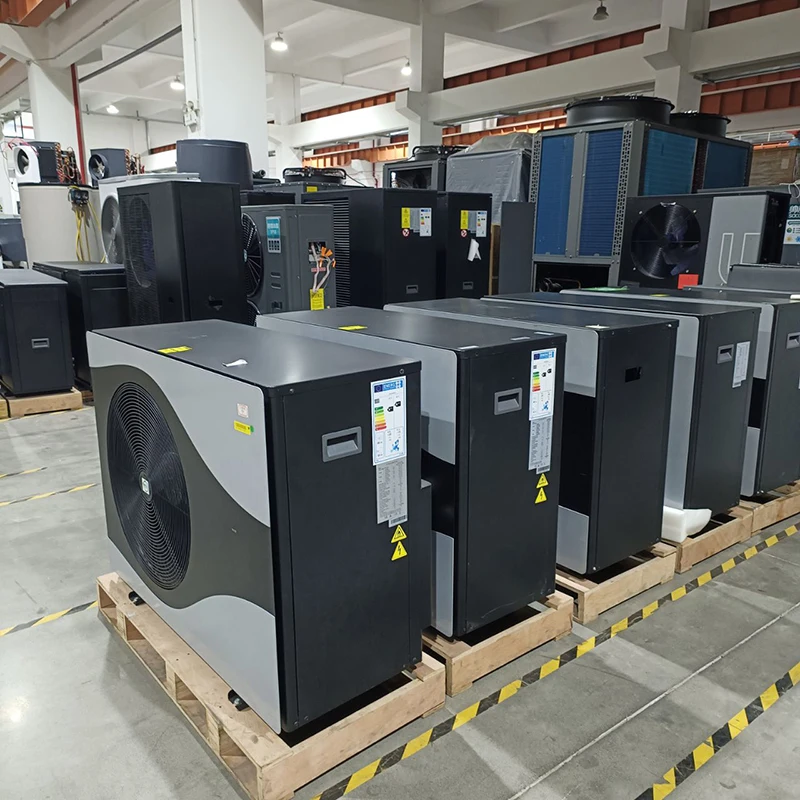

Packing&Shipping
Company Introduction
Jiangsu Sunrain is a listed company engaged in renewable energy products for more than 26 years. We have 6 production bases with annual turnover of more than 6 billion. Sunrain can supply a full range of air source heat pumps and heat pump components, like air to water heat pump water heaters, all in one heat pumps, split heat pump water heaters system, swimming pool heat pumps, commercial heat pump and monoblock heat pump for domest heating. It is more safe and flexible to do business with Sunrain.
After Sales Service
a. 2 years warranty for the whole heat pump
b. Free spare parts provided
c. OEM ODM project solution service available
b. Free spare parts provided
c. OEM ODM project solution service available
