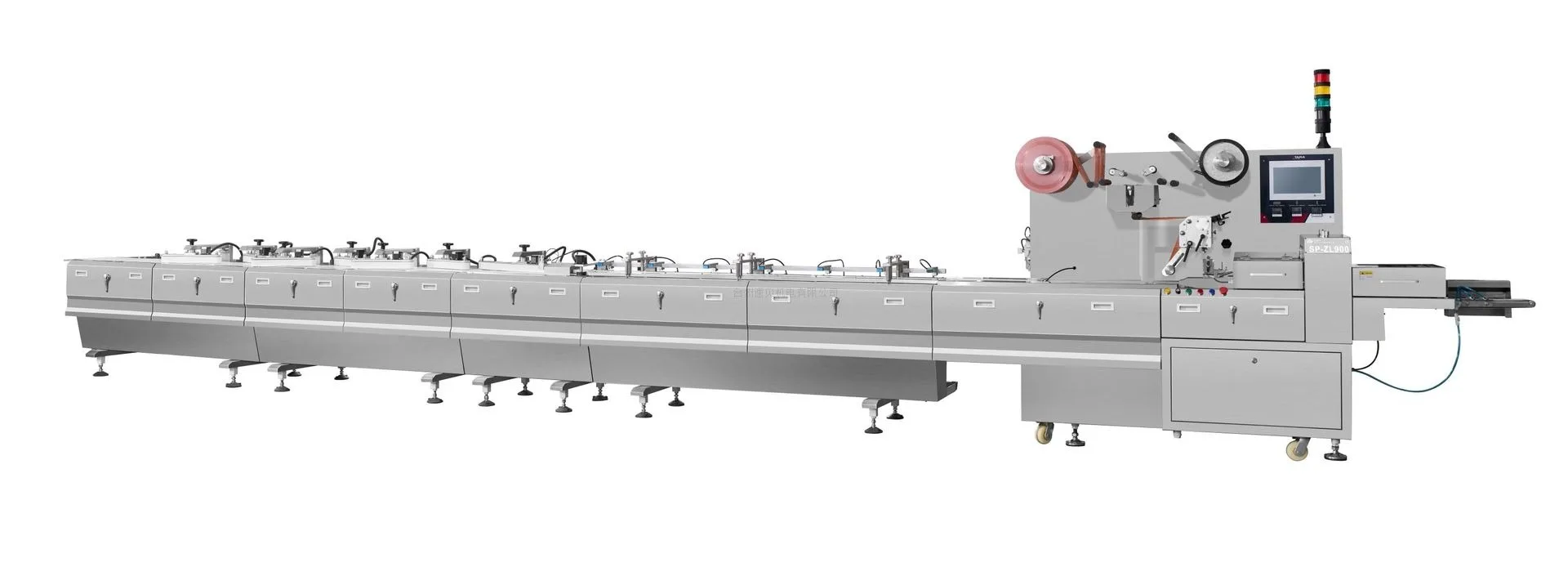

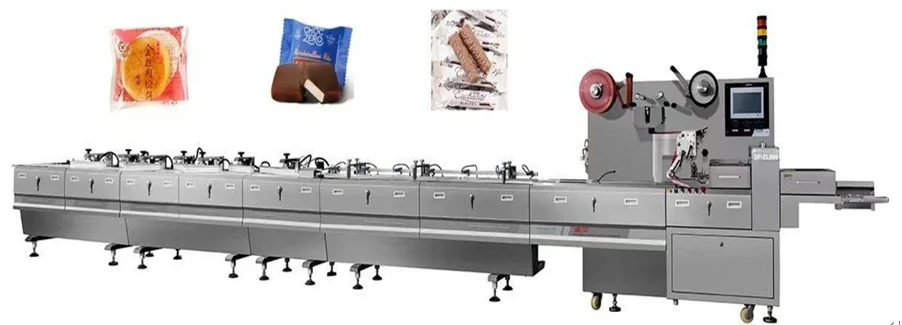

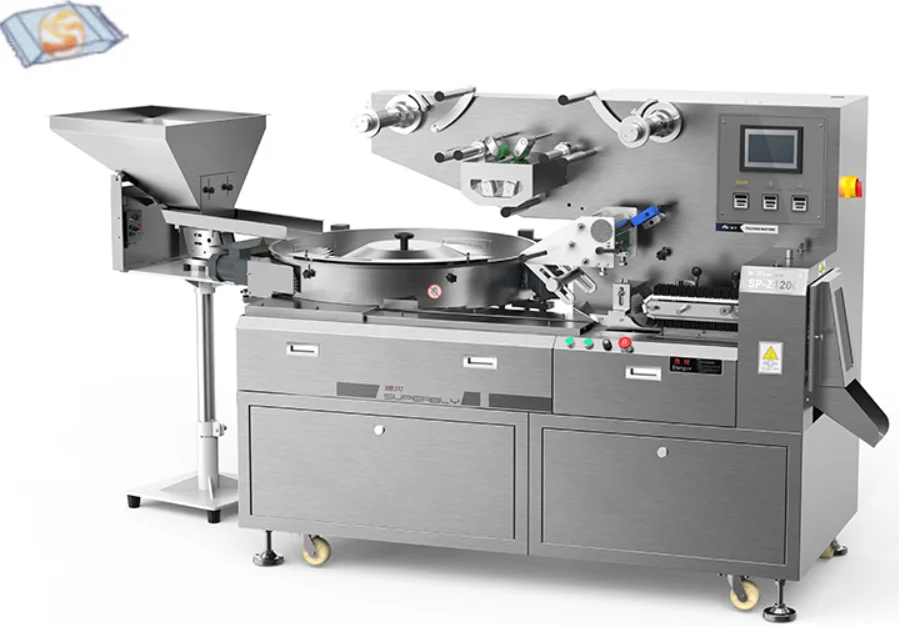

Automatic bar chocolate packing machine energy bar chocolate wrapping machine

Product Overview

Description

                Automatic bar chocolate packing machine energy bar chocolate wrapping machine













A. Parts of the Machine Show

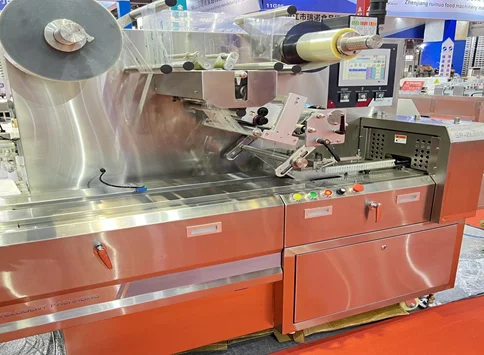

1) Intelligent man-machine interface, non-stop film changing device, high speed and high efficiency, the whole machine and food contact surface are made of stainless steel.

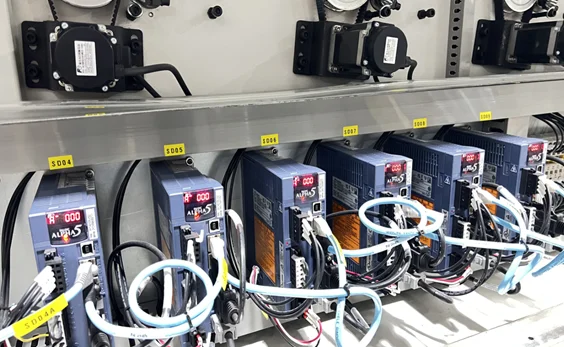

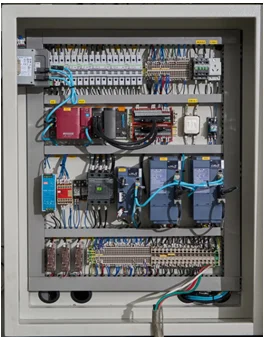

            2)Electrical box: PLC motion controller, motion controller substrate, CPU module, ten servo               bus servo motor and driver (fast use of calculation, intelligent operation of the equipment,                   more stable, network cable in line anti-interference, strong expansion ability)



          3) Man-machine interface HMI 10-inch screen for easy adjustment of various packaging sizes,

              can store a variety of menus at will switch.

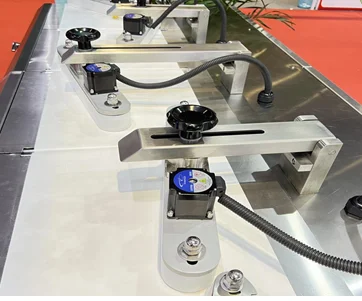

4) The intelligent dividing section adopts the whole servo motor device, the adjustment is simple and intelligent, the operation is stable and the failure rate is low.







5)Change of conveyor belt is flexible and convenient, and no tools are needed.

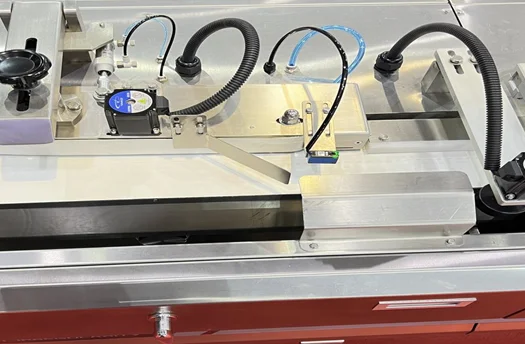

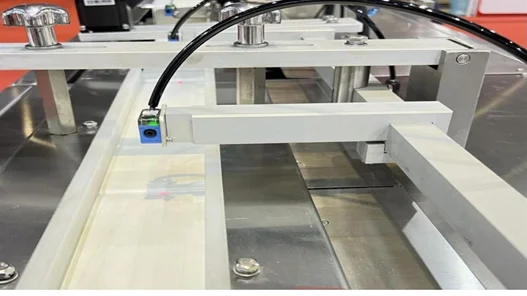

6) Germany SICK original photoelectric tracking, to ensure that the material is stable at high

speed running state.





7)Automatically eliminate irregular feed items, making its material packaging faster and smoother.

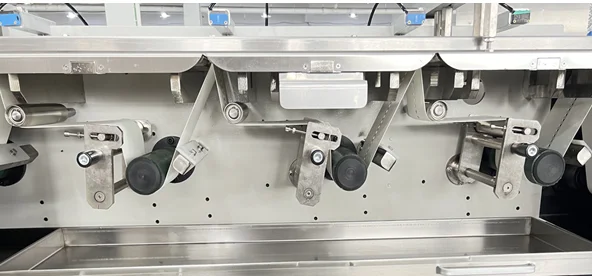

8) Side power belt + sorting section differential sorting





B. Features of the machine:

1, Machine overall surface: stainless steel wire drawing plate;

2, Equipped with a new 10 servo (bus servo) PLC operating system;

Network cable in line: ultra-high speed, high precision, strong anti-interference expansion ability can be connected to the MESTIntel system

3, Intelligent material handling feeding system, so that the material in the packaging process is not easy to damage the surface, no empty bag



 C. Technical Data

Film dimension	Film Length 60-110mm, Width Max160mm
Product to be packed	L(10-75mm ) x W(12-40mm) x H(5-28mm)
Packing speed	Max.700bag/min
Voltage	380V 50Hz
Motor power	13.51KW
Machine size	8469 *1203 *1575mm
Machine weight	1890kg
Non-stop film change
Package materials	OPP, CPP, PET aluminized film, aluminum-plastic film, paper plastic and other single-layer can be heat-sealed, or cold-sealed adhesive For film, it is recommended to use the outer PET thickness of 0.013mm and the inner CPP thickness of 0.023-0.027mm Composite cryogenic film
