100W ETFE cheapest flexibel sun power frameless roof pv solar panel
1).Description
Water-proof IP67 rated,perfect to use on yacht,car,boat,snow mobile,golf-cart....etc;
Light weight for easy carrying;flexible solar panel etfe
High efficiency(22%~23%) SunPower brand solar cells;flexible solar panel etfe
Front cover material is PET/ETFE;flexible solar panel etfe
Junction box at front/back side optional;
Standard with 1 meter cable, MC4 male/female connector.
2).Semi Flexible

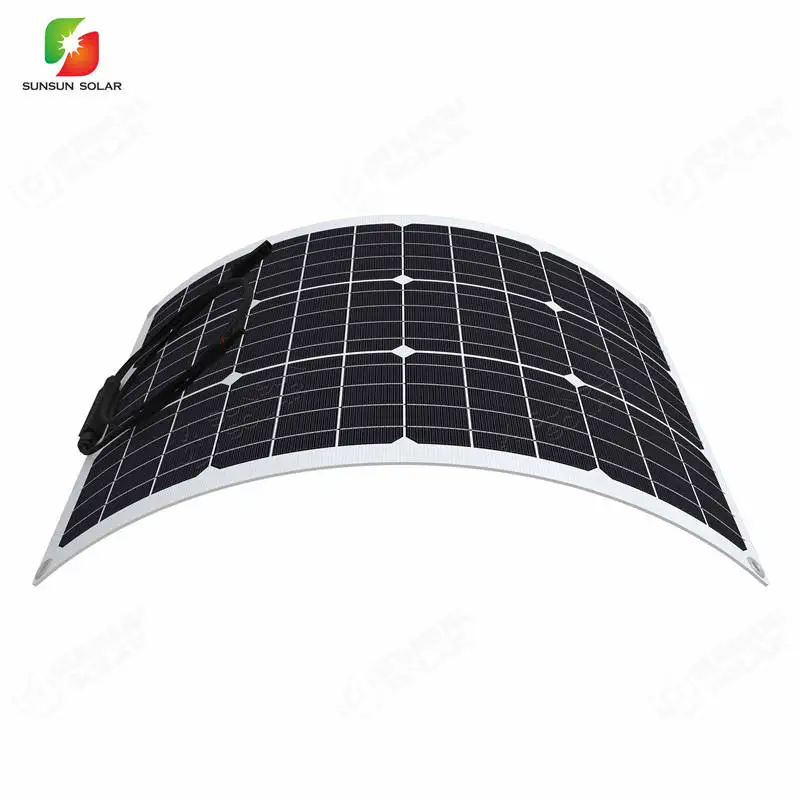

Semi flexible solar panel can be bending angle up to 30 degrees
3).Standard Test Condition flexible solar panel etfe
Est each module at lOOOW/m2,AMl.5,25'C before packing
100W ETFE cheapest flexibel sun power frameless roof pv solar panel
1).Description
Water-proof IP67 rated,perfect to use on yacht,car,boat,snow mobile,golf-cart....etc;
Light weight for easy carrying;flexible solar panel etfe
High efficiency(22%~23%) SunPower brand solar cells;flexible solar panel etfe
Front cover material is PET/ETFE;flexible solar panel etfe
Junction box at front/back side optional;
Standard with 1 meter cable, MC4 male/female connector.
2).Semi Flexible
Semi flexible solar panel can be bending angle up to 30 degrees
3).Standard Test Condition flexible solar panel etfe
Est each module at lOOOW/m2,AMl.5,25'C before packing
Model | SS-M60WP |
Maximum Power at STC (Pmax) | flexible solar panel etfe 60 W |
Optimum Operating Voltage (Vmp) | 18.00 V |
Optimum Operating Current (Imp) | 3.33A |
Operating Module Temperature | -20 °C to +65 °C |
Maximum System Voltage | 1000 V DC (IEC) / 600 V DC (UL) |
Maximum Series Fuse Rating | 20 A |
Power Tolerance | ±5 % |
Solar Cell | Monocrystalline |
No. of Cells | 36 (4 × 8) |
Dimensions | 595 × 540× 3mm |
Weight | 1.2 kgs |
Front | ETFE |
Frame | N/A |
Junction Box | IP67 rated |
Output Cables | TUV (2Pfg1169:2007), UL 4703, UL 44 |
Optional 4.0 mm2,symmetical lengths(-)1000mm and (+)1000mm | |
Connectors | SOLAR MC4 integrated twist locking connectors |
