High Accuracy Hydraulic CNC Bender Steel Power Pipe Dobladoras De Tubo Bending Machines for Pipe and Tube
- Category: >>>
- Supplier: TOPTECH SMAC MACHINERY LTD.
Share on (1601237443627):
Product Overview
Description
Products Description
Introduction

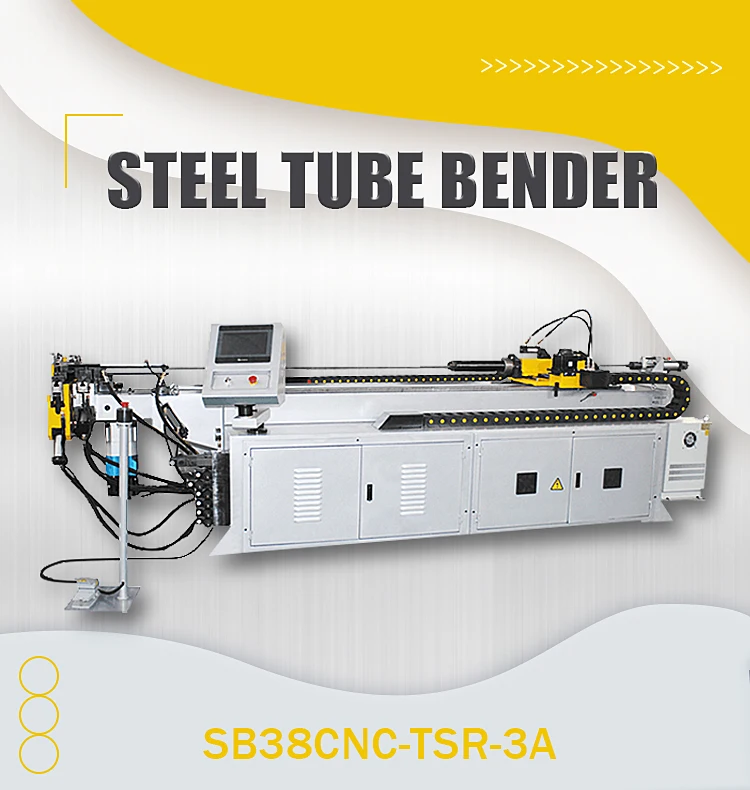

This model is a PLC controlled fully automatic CNC pipe bending machine, which can automatically bend, automatically feed, and automatically rotate the pipe. The feeding and rotating and bending three axes are controlled by servo motors and servo drives.

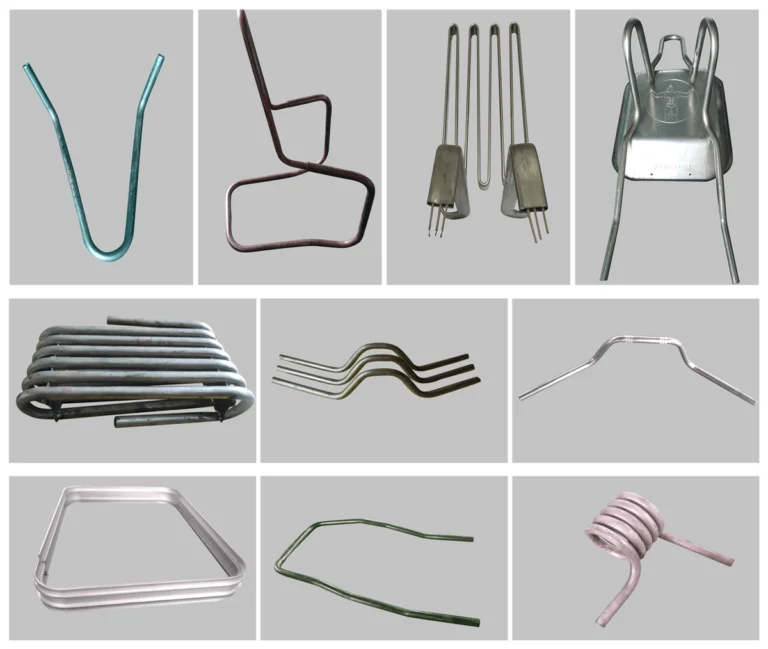

Especially suitable for the processing of pipe fittings with many spatial angles and high precision requirements.
This model is a PLC controlled fully automatic CNC pipe bending machine, which can automatically bend, automatically feed, and automatically rotate the pipe. The feeding and rotating and bending three axes are controlled by servo motors and servo drives.
Especially suitable for the processing of pipe fittings with many spatial angles and high precision requirements.
The hydraulic circuit has cooling and speed adjustment devices, which are powerful, stable, and durable.
High-pressure vane pump with sufficient flow, high efficiency, and stable performance.
Mobile foot switch has start and emergency stop functions
Quality bending with wiper, mandrel, and other systems.
High-pressure vane pump with sufficient flow, high efficiency, and stable performance.
Mobile foot switch has start and emergency stop functions
Quality bending with wiper, mandrel, and other systems.
Specification
Parameters | SB38CNC-TSR-3A |
Control system | PLC control |
Max bending capacity | Φ38x2mm |
Bending radius | 25～150mm |
Bending angle | 0～195° |
Max effective mandrel length | 2000mm |
Bending speed | 90°/sec（can be adjusted） |
Bending accuracy | ±0.15° |
Bending servo motor power | 3500w |
Feeding speed | 200～1000mm/sec（can be adjusted） |
Feeding accuracy | ±0.2mm |
Feeding servo motor power | 1000w |
Rotating speed | 300°/sec |
Rotating accuracy | ±0.15° |
Rotating servo motor power | 400w |
Total power | 8KW |
System hydraulic pressure | 12MPa |
Cooling system | water cooling |
Size | 3600×1100×1300mm |
