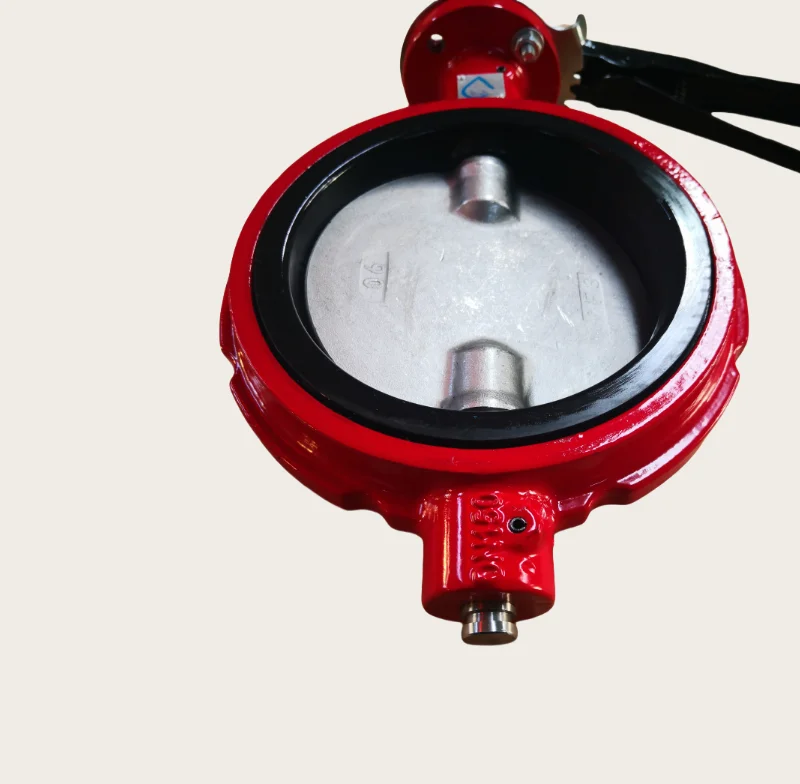

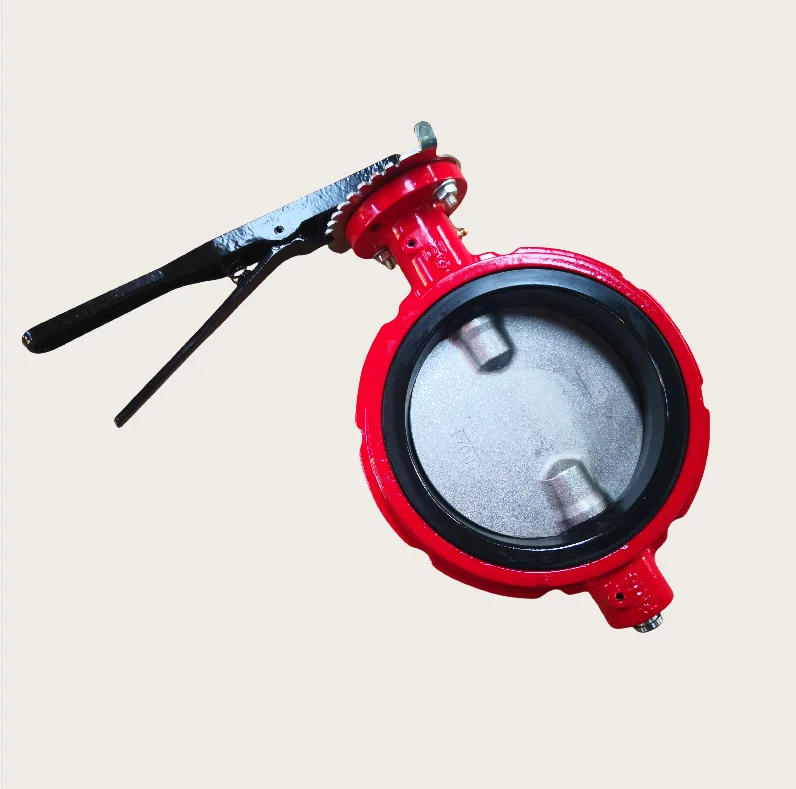

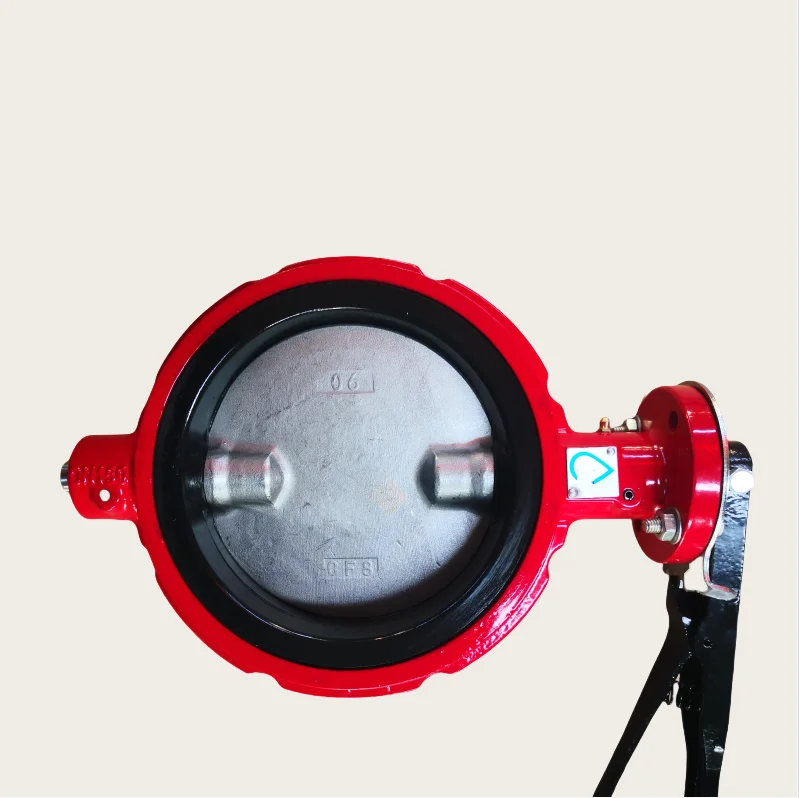

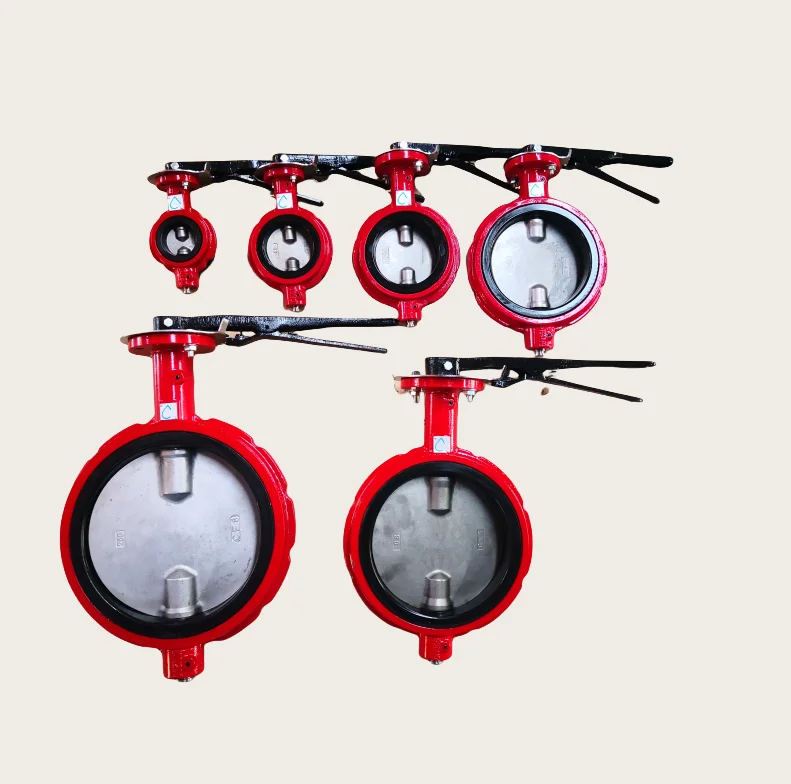

6 Inch ANSI CL150/ANSI125 Ductile Iron Ggg50 Red Color Wafer Type Butterfly Valve Suitable for American Market
- Category: >>>
- Supplier: Anhui Sunval International Trading Co. Ltd.
Share on (1601237675972):
Product Overview
Description
Product Description

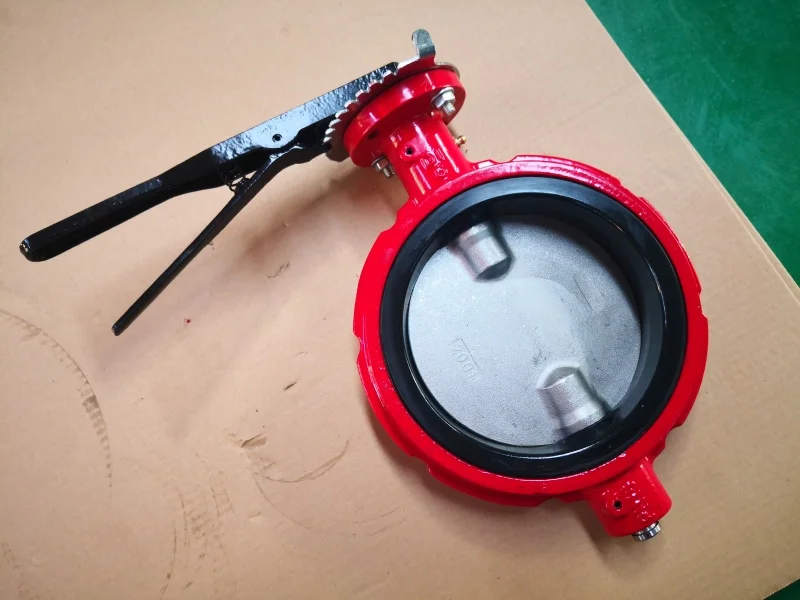

Red Color Wafer Type Butterfly Valve, ANSI CL150
The valve body shall be one-piece wafer or lug design with extended neck to allow for 2--48” of piping insulation, have flange hole drilling per international flange standards and be provided with a non-corrosive bushing and self-adjusting stem seal.Flange locating holes shall be provided on wafer bodies to allow for quick and precise alignment during valve installation.
Working pressure: PN10/PN16
Flange: PN10 PN16 150LB
Design: EN593 API 609 BS5155 EN1092 ISO5211
Face to Face: DIN558-1 API609 DIN3202 ISO5752 BS5155
Testing: EN 12266-1 ISO5208 API598
Testing: EN 12266-1 ISO5208 API598
Material:
Part Name | Materials |
Body | Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200; GB12226 HT200; Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; Carbon Steel: ASTM A216 WCB |
Stem | Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416; |
Taper Pin | Stainless Steel: ASTM A276 Type 304, Type 316; EN 1.4501; |
Seat | NBR, EPDM, Neoprene, PTFE, Viton; |
Disc | Ductile Cast Iron (Nickel plated): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501; L-Bronze: ASTM B148 C95400; |
O-Ring | NBR, EPDM, Neoprene, Viton; |
Bushing | PTFE, Nylon, Lubricated Bronze; |
Features:
1.Small in size and light in weight. Easy installation and maintenance. lt can be mounted wherever needed.
2.Simple and compact construction, quick 90degrees on-off operation.
3.Minimized operating torque, energy saving.
4.Bubbles-tight sealing with no leakage under the pressure test
5.Wide selection of materials, applicable for various medium.
6.Long service life. Standing the test of tens of thousands opening/closing operations.
7.Flow curve tending to straight line.Excellent regulation performance.

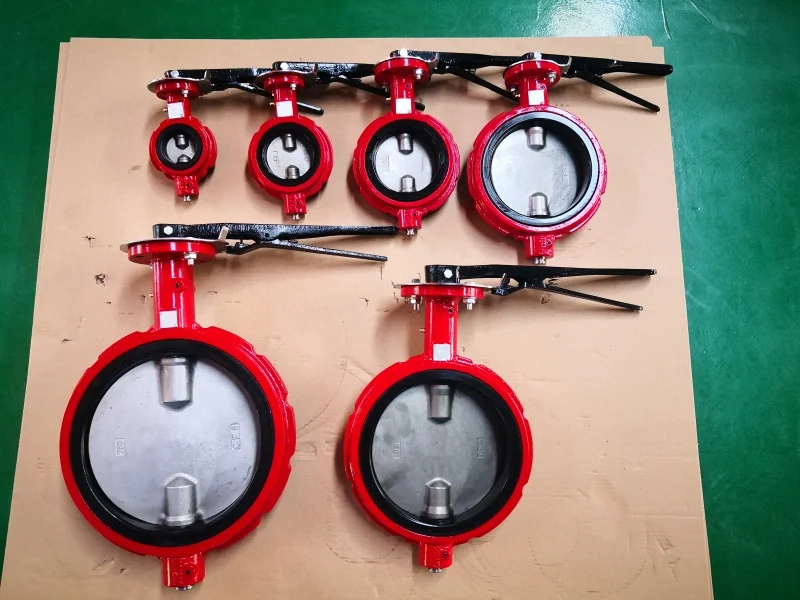

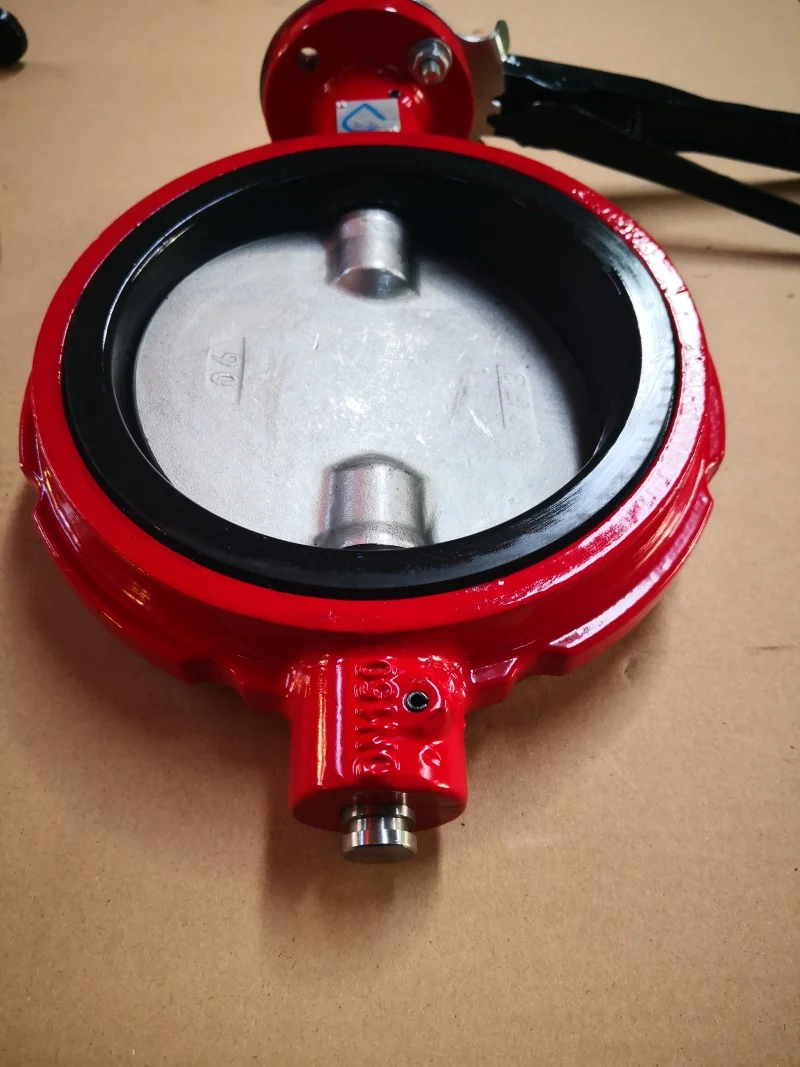

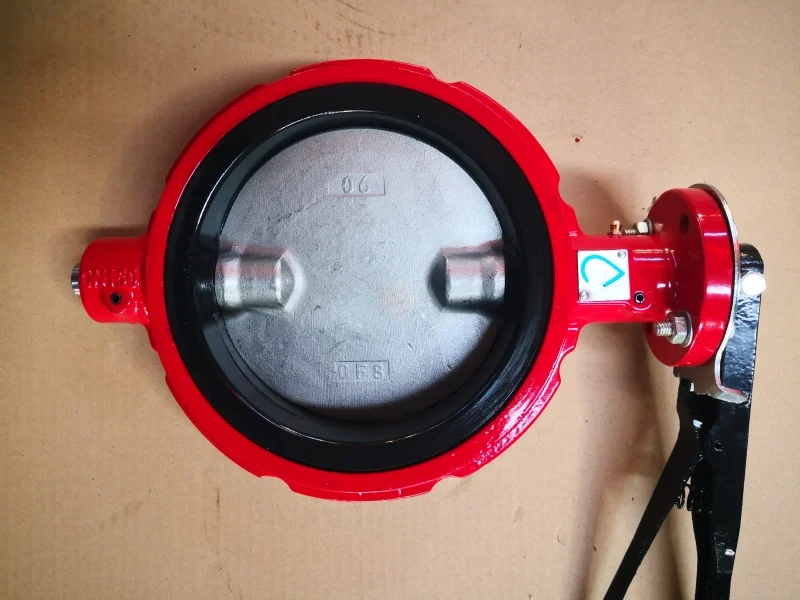

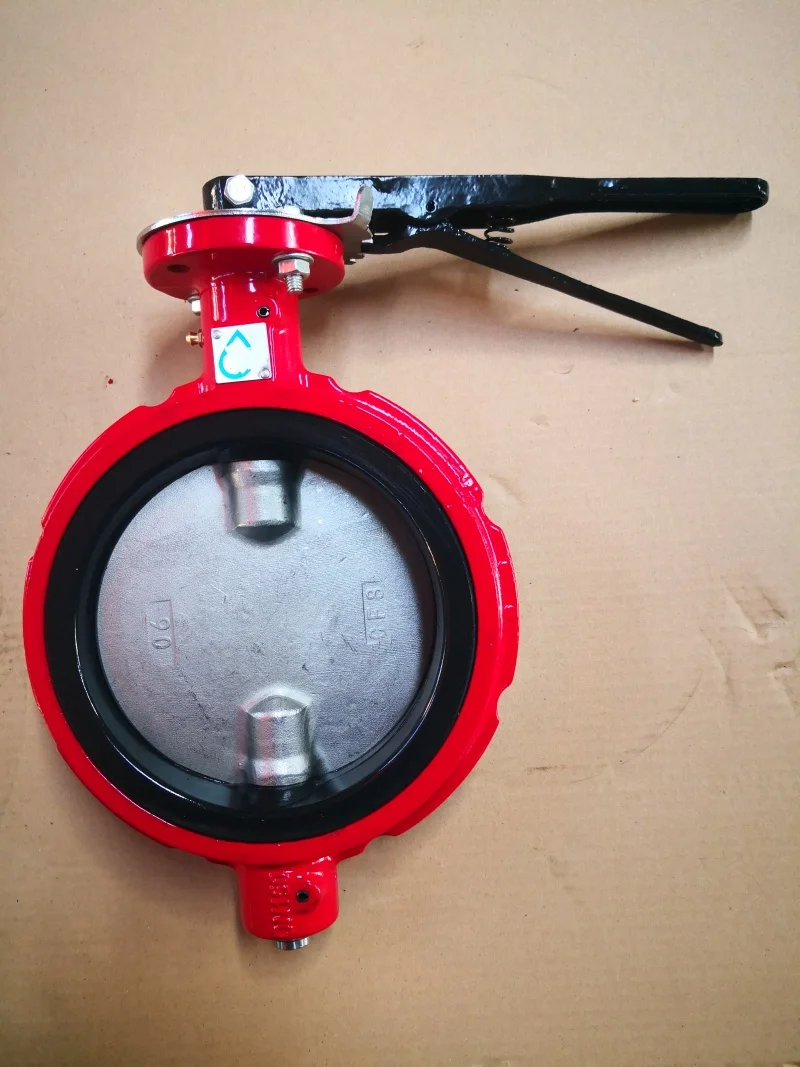

Detailed Photos
Manufacturing Technique
Packing & Delivery
Packing & delivery
1. Product packed by Standard Export Carton or Upon Requests of customer
2. We can offer products on time, shipping by ocean,by air or DHL, Fedex, TNT,UPS
1. Product packed by Standard Export Carton or Upon Requests of customer
2. We can offer products on time, shipping by ocean,by air or DHL, Fedex, TNT,UPS
Company Profile
Anhui Sunval international Co., Ltd. Anhui Sunval International Co., Ltd. is a professional supplier of valves and piping systems. Our company focuses on iron valves, steel valves, copper alloy valves, pipes and related accessories etc. Our main products are gate valve (resilient seated or Metal seated), globe valve, check valve, ball valve, butterfly valve, air vent valve, strainer, control valves and pipe fittings with main material of cast iron, ductile iron, carbon steel, stainless steel and copper alloy. The pressure rating is 0.6Mpa - 150.0Mpa and size range is DN15-DN2400 . The valves are designed and manufactured in accordance with the standards of GB, ANSI, API, DIN, BS, JIS and widely used for water, oil and gas industries. We have obtained certificates of ISO9001, CE, WRAS etc.. Sunval has been selling to 40 countries in Asia, Europe, America and Africa.
