LuxPower LXP LB EU 12K hybrid solar power Single Phase inverter 3 mppt Supports independent connector for generator
- Category: >>>
- Supplier: Sunlink (xiamen) New Energy Technology Co. Ltd.
Share on (1601237698809):
Product Overview
Description
Products Description

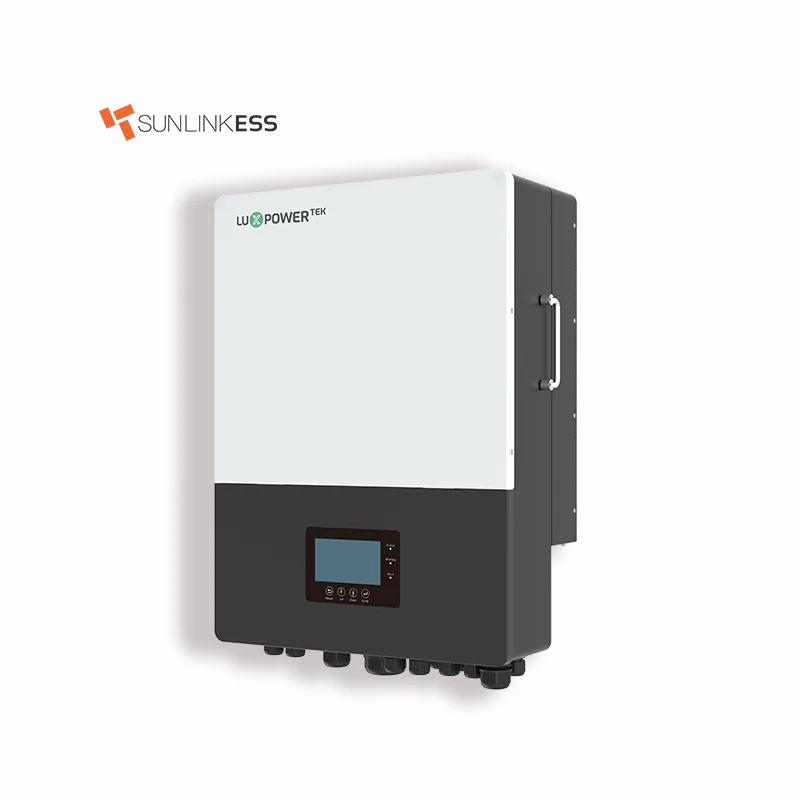

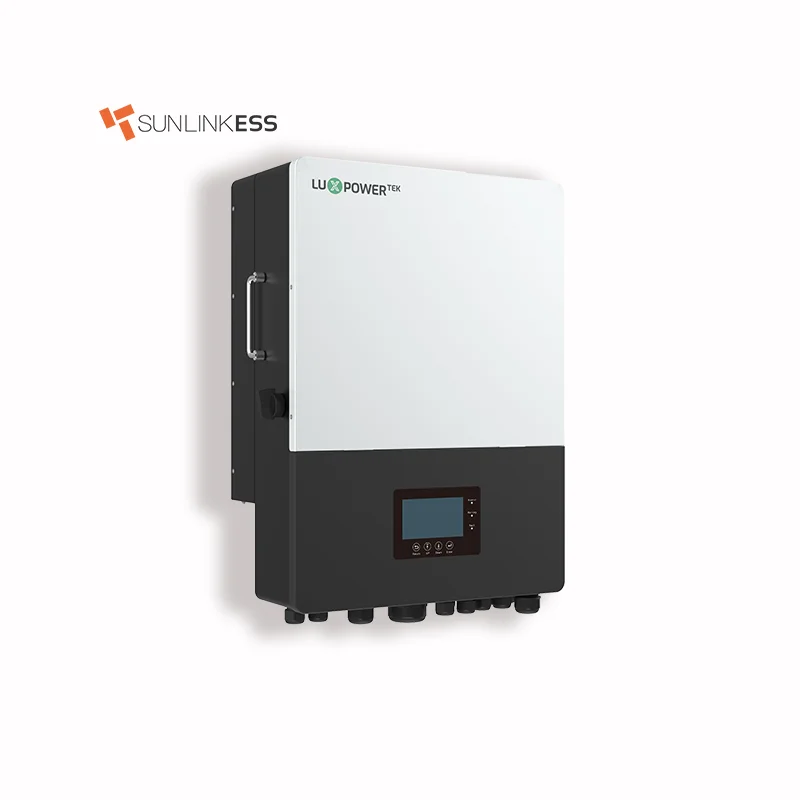

LuxPower LXP-LB-EU 12K hybrid solar power Single Phase inverter 3 mppt Supports independent connector for generator
LuxPower Hybrid Inverter LXP-LB-EU 12K
* Max 250A charge/discharge current with 48v battery
* Paralleling up to 6 units
* AC-coupling function
* Smart load control

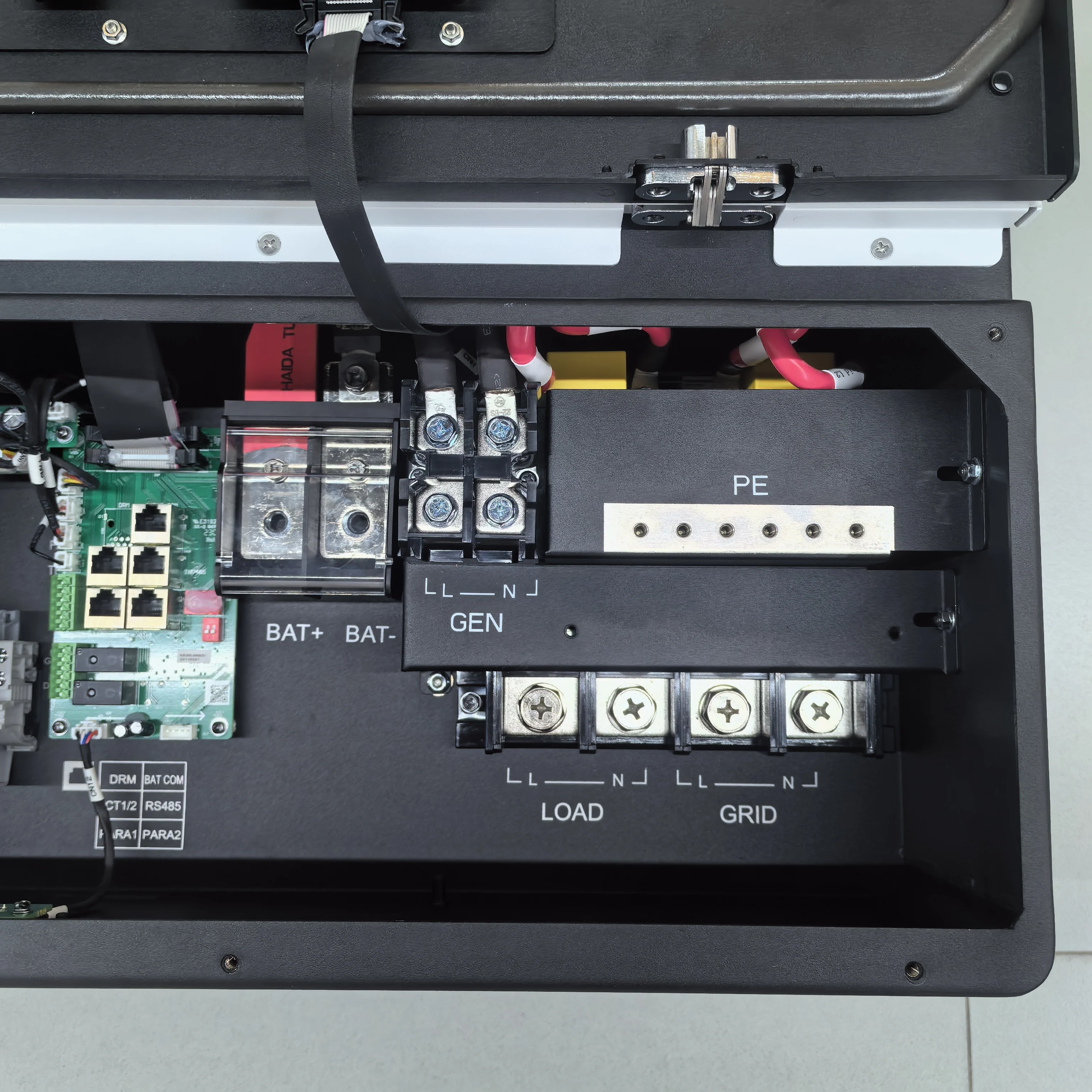

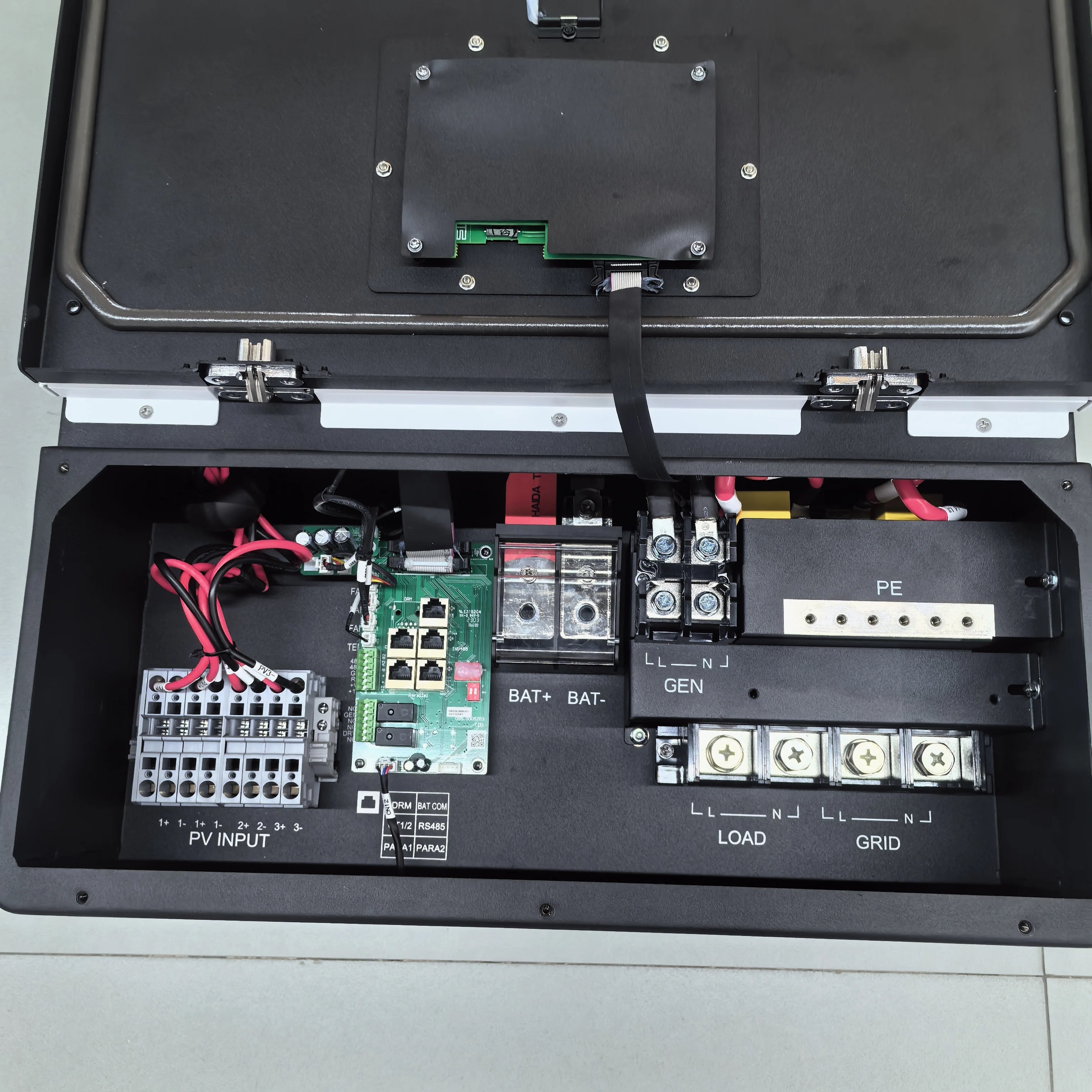

* Separate generator interface available
* 12kW UPS output single phase

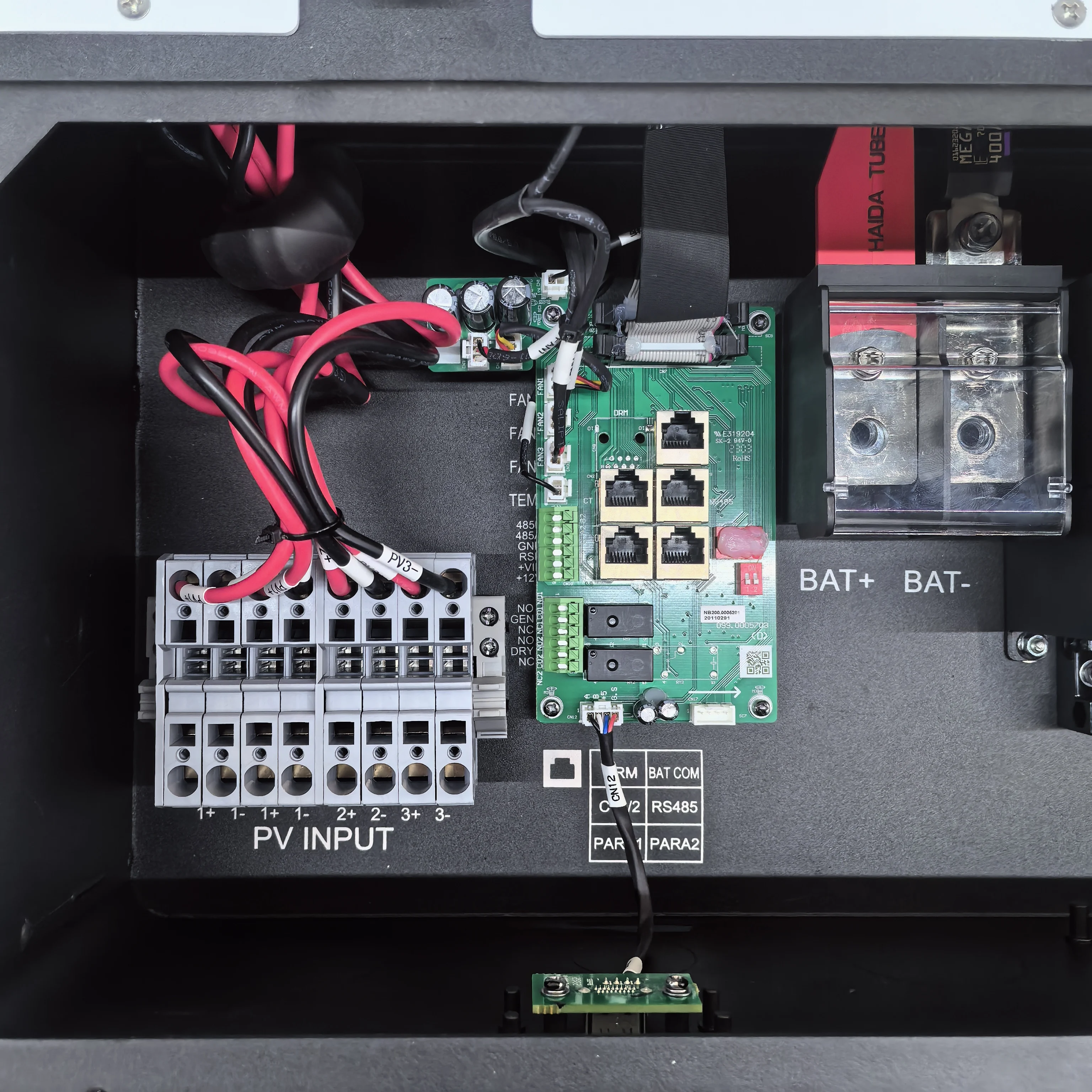

* 3 MPPT inputs, maximum up to 18 kW
* Integrated UPS module, on/off grid seamless

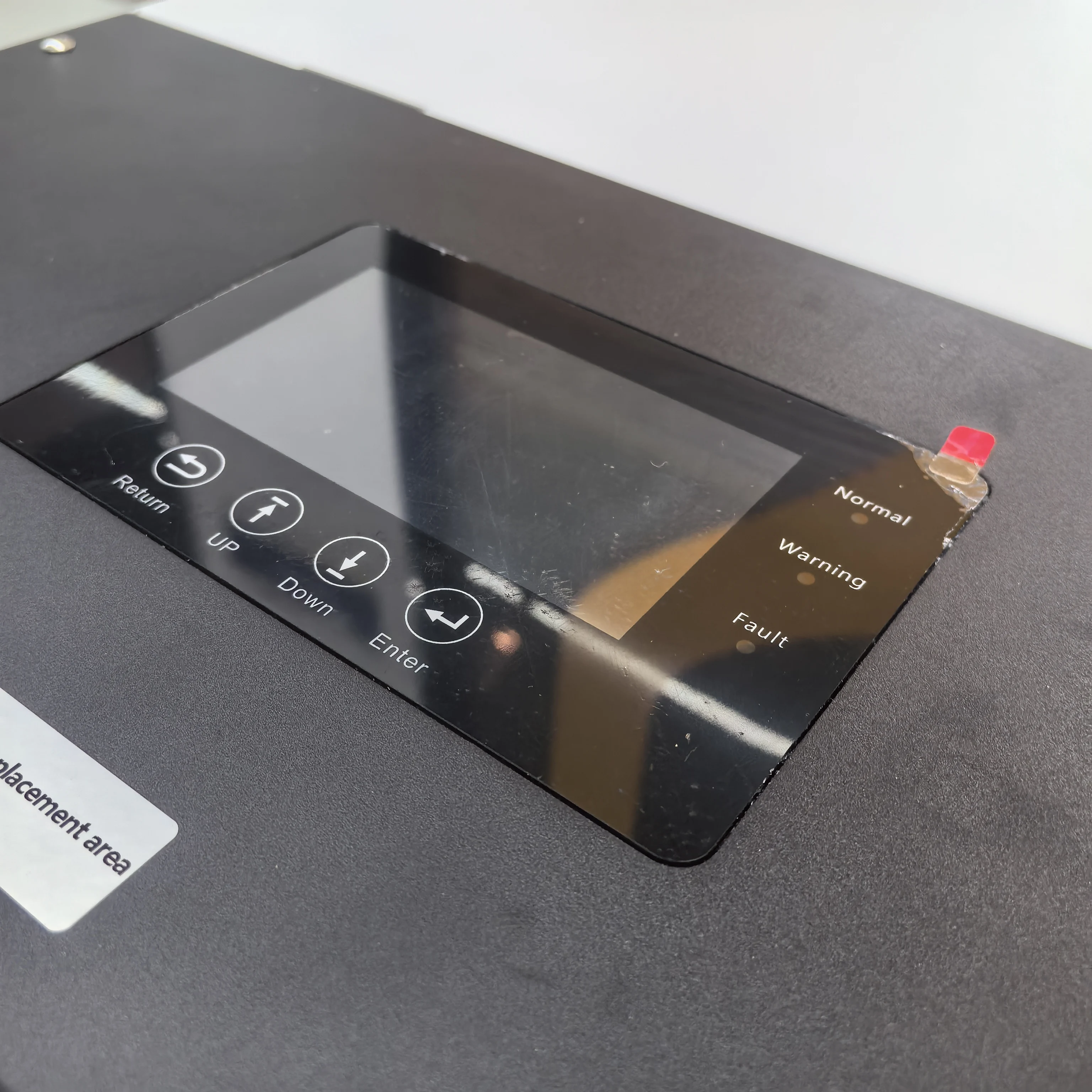

* LCD color touch screen
* Paralleling up to 6 units
* AC-coupling function
* Smart load control
* Separate generator interface available
* 12kW UPS output single phase
* 3 MPPT inputs, maximum up to 18 kW
* Integrated UPS module, on/off grid seamless
* LCD color touch screen
Product Paramenters
INPUT (PV DC) | LXP-LB-EU 12K |
Max. PV array power(W) | 18000W |
Rated PV input voltage(V) | 360 |
Number of independent MPPT inputs | 3 |
PV input voltage range(V) | 100 600 |
MPPT voltage range(V) | 120 480 |
Start-up voltage(V) | 140 |
Max. PV input current per MPPT(A) | 25/15/15 |
Max. PV short-circuit current input per MPPT(A) | 31/19/19 |
Battery | |
Compatible Battery Type | Lithium-ion / Lead-Acid |
Rated battery voltage(Lithium-ion/Lead-Acid)(V) | 48 |
Battery voltage range(V) | 40 60 |
Max. charging/discharging current(V) | 250 |
Max. charging power(W) | 12000 |
Force wake up battery from PV function(Y/N) | Y |
Grid | |
Rated AC voltage(V) | 230 |
Rated AC frequency(Hz) | 50 |
Rated AC output current(A) | 50 |
Rated AC output power(W) | 11500 |
Max. AC intput current(A) | 100 |
Max. AC intput power(W) | 23000 |
PF | 0.99 |
THDI | <3% |
Rated AC current of BYPASS relays(A) | 200 |
UPS | |
Rated output power(W) | 11500 |
Rated output voltage(V) | 230 |
Rated output current(A) | 50 |
Rated output frequency(Hz) | 50 / 60 |
Surge power, duration | 2Pn, 0.5s |
Switching time | 20ms |
Wave form | Sine Wave |
THDV | 3% |
Efficiency | |
Max. MPPT efficiency | 99.0% |
Max.Efficiency | 99.0% |
EU Efficiency | 97.5% |
Max. Charging Efficiency | 96.0% |
Max. Discharging Efficiency | 94.0% |
Protection | |
PV reverse polarity protection | YES |
Over current/voltage protection | YES |
Anti-islanding protection | YES |
AC Short-circuit current protection | YES |
Leakage current protection | YES |
Ground fault monitoring | YES |
Grid monitoring | YES |
DC Switch | YES |
AC/DC Surge protection Type III | YES |
General | |
Dimensions (W/H/D) | 490*670*265mm/19.3*26.3*10.4inch |
Weight | 50kg/110.2lbs |
Ingress protection rating | IP65 |
Relative humidity | 0 100% |
Operating environment temperature range | -25 60°C |
Storage temperature range | -25 60°C |
Display & Communication interface | Touch color screen, RS485/Wi-Fi/CAN |
Warranty | 5 years |
Cooling Method | FAN |
Topology | Transformer-less |
Altitude | <2000m |
Noise emission(typical) | <50dB |

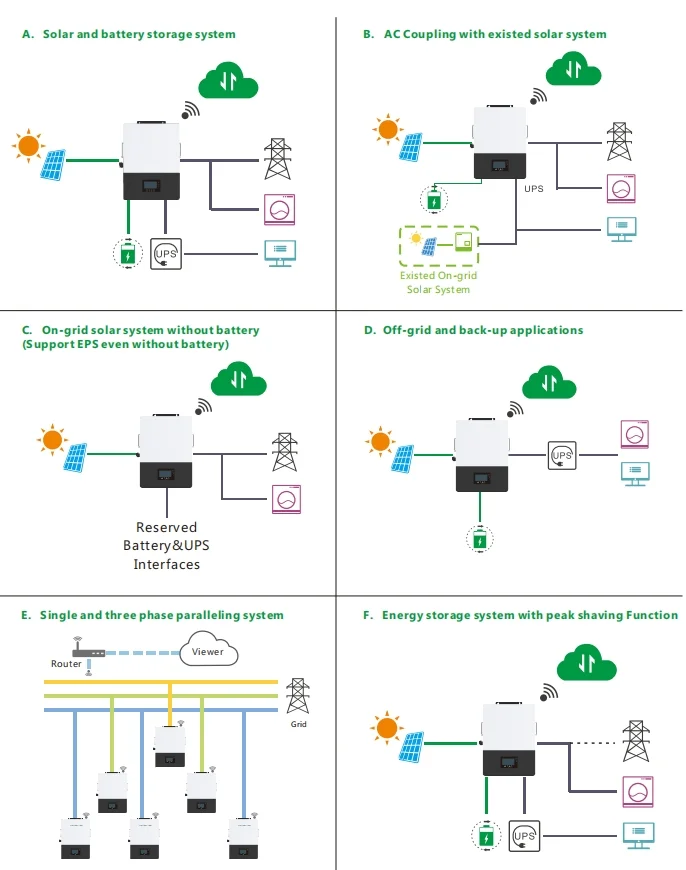

Application
Working Mode
SNA 3-5kW series off grid inverters can support the system to work as a back-up power or a replacement of dieselgenerator. Since
the inverter support paralleling function, the capacity of system can range from 3kW to 50kW. The inverter support several working modes.
Pure off-grid working mode: working as traditional off grid inverters, can set using AC first or solar first.
Hybrid working mode: working as a hybrid,support solar and utility jointly take the load, can set to self consumption mode or charge priority mode.
SNA 3-5kW series off grid inverters can support the system to work as a back-up power or a replacement of dieselgenerator. Since
the inverter support paralleling function, the capacity of system can range from 3kW to 50kW. The inverter support several working modes.
Pure off-grid working mode: working as traditional off grid inverters, can set using AC first or solar first.
Hybrid working mode: working as a hybrid,support solar and utility jointly take the load, can set to self consumption mode or charge priority mode.

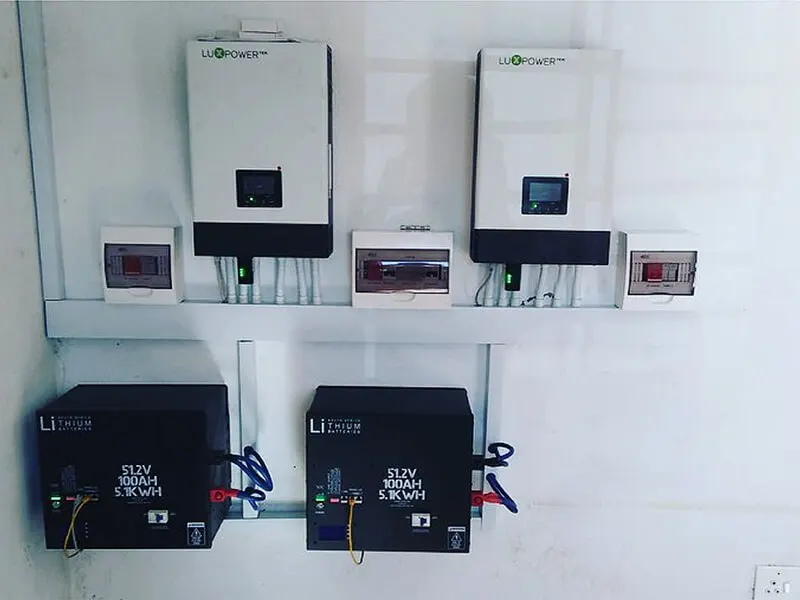

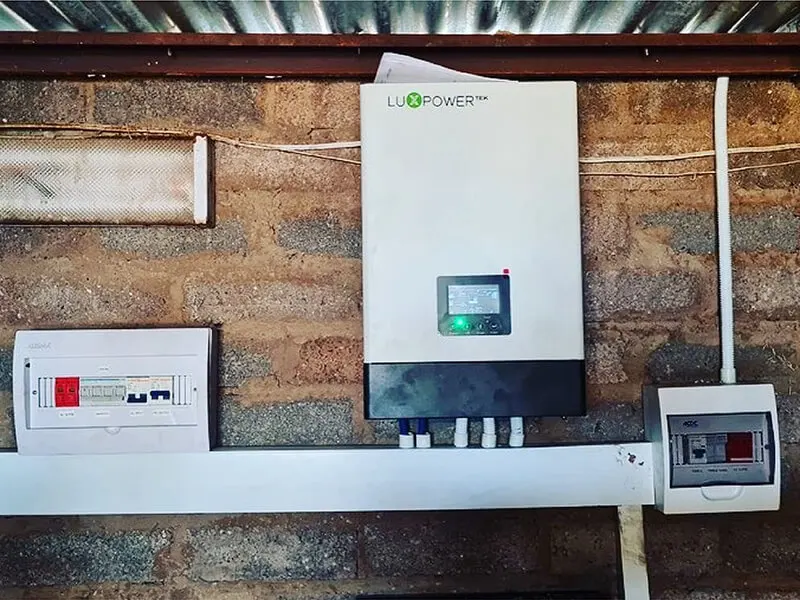

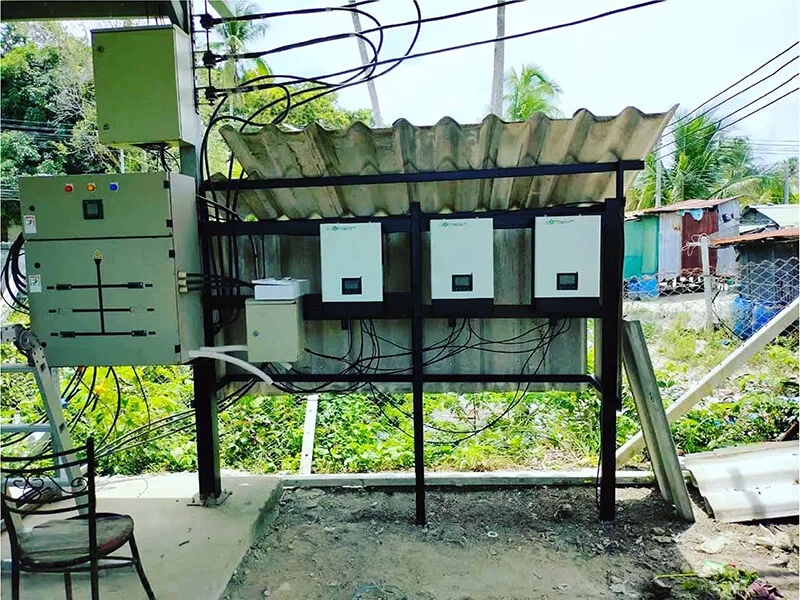

Installation
10KW, Germany
3-5KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SNA 5000
15KW, Philippine
3-5KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
5KW, Australia
3.6-5KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

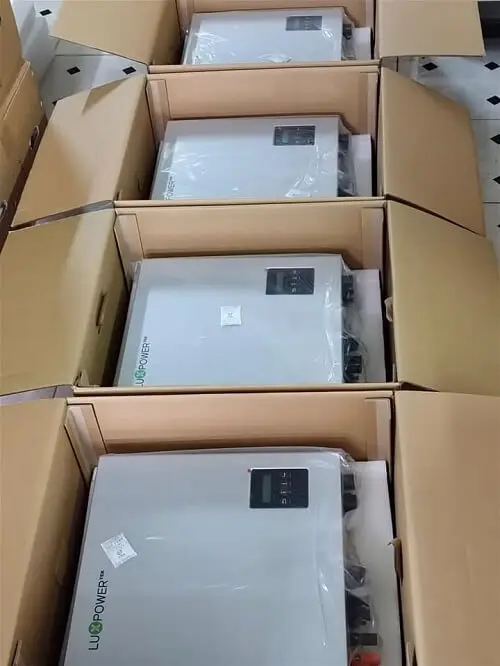

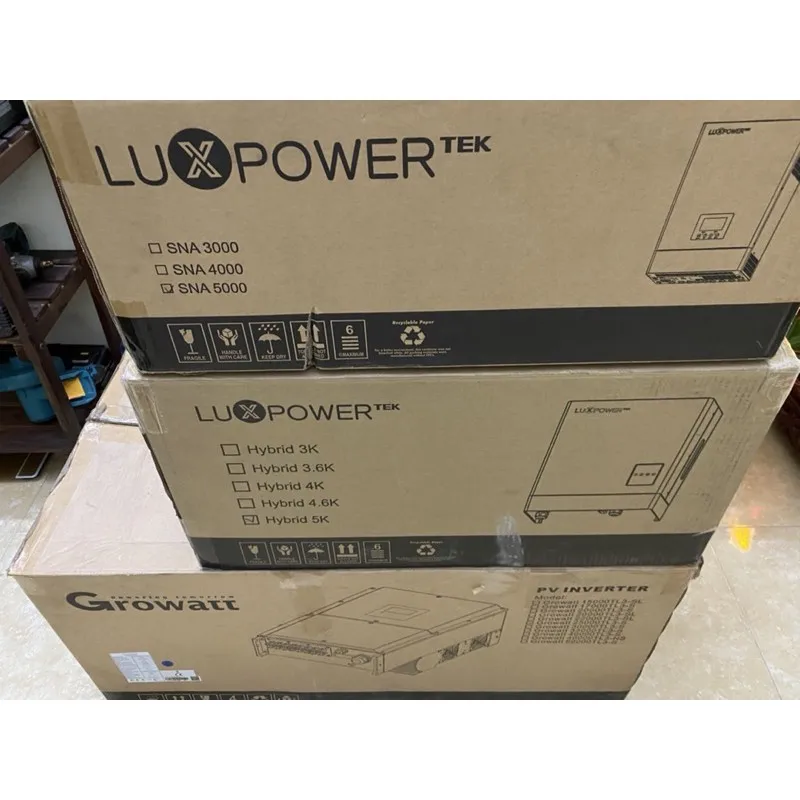

Product Packaging
