Multiple color plastic cup disposable cup logo full auto screen printing machine bubble cup logo silk screen printing machine

Product Overview

Description



Description

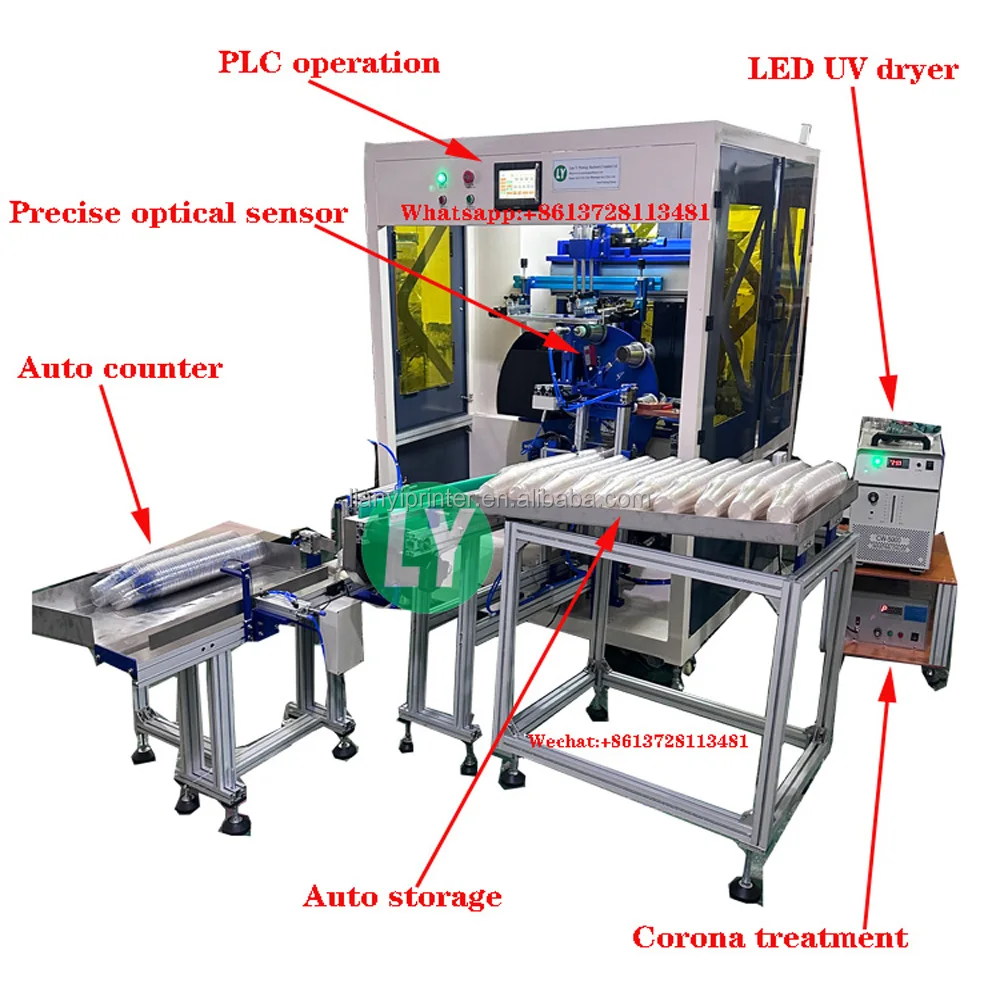

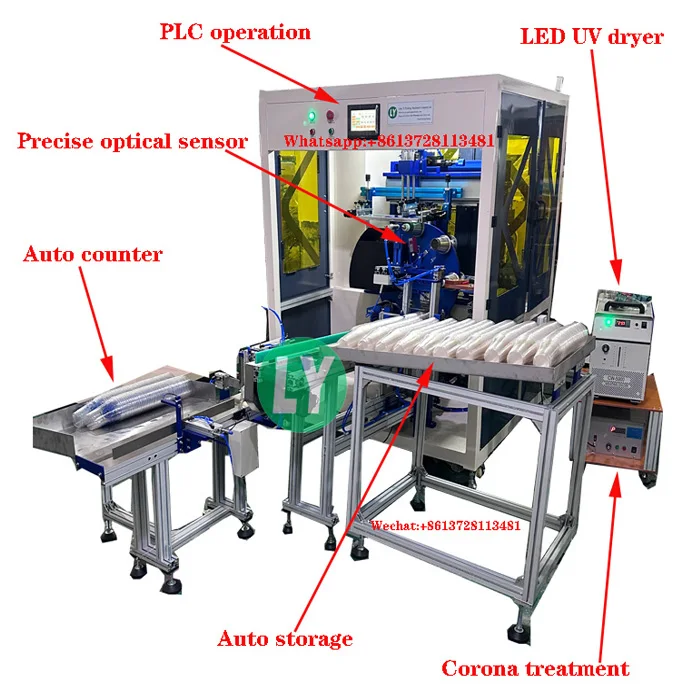

Servo system full automatic color sensor register Cup full auto screen printer with  LED UV dryer  LY-850-UVIR



 Full automatic working, don't need any worker to operate it , Save labor cost

It is adopted full Servo system to control ,So that print multiple color very precise,It is adopted advanced high sensitive Sensor for making registration by automatically , automatic positioning ,It is very easy to print multiple color with high quality ,such ,2,3,.4,5,6 color ......



Programming is operated by PLC , inspect everything is very clearly.
Left and right running by full Servo motor,Screen frame moving by electronic motor.



Application

LY-S80-1 is extremely good at 360 degree printing ( full circle), it can print all sizes of cups,from 2oz to 32oz....ETC, also it can print bowls....



Advantages:
We use all main parts are imported directly ,original place.

1.Servo motor is imported from Japanese famous brand Fuji,
2.High precise Sensor is imported from German famous brand Leuze
3.PLC system is imported from Japanese celebrated Hitachi
4.Touch Screen is imported American Guaranteed brand Wigerlon
5.Guide screw is imported great brand TBI from TaiWan.
6.Slide guide is from Hiwin from TaiWan.

Tech specification:
Specifications:
1.Model number: LY-850-UVIR
2.Product appearance: Round
3.Max. Printing diameter: 120mm (360 degree printing)
4.Printing Speed: 3600PC/Hr
5.Machine weight: 800kg
6.Machine size:L3100Xw1520xH1890mm
7.Air pressure: 0.5Mpa
8.Voltage power: 220V/ single phase
9.With Servo system
10.With automatic color sensor register
11.With auto paper cup line sensor (to avoid printing logo on the paper sealed line )
12.With PLC
13. With automatic counter and auto storage
14.Packing size:L3230*W1650*H 2090mm =11.13CBM
15.Packing weight:1090Kg
16. With Led UV dyer
17.With Automatic feeding and automatic unloading
18.It with corona system to process the surface on PP cups ,PE cup
19.It can print all kind of cups ,PET cups ,PP cups , paper cups ,foam cups ,PLA cups....ETC
20 .Full automatic working, don't need any worker to operate it , Save labor cost
21 .With CE certificate



Printing videos on Youtube:



 For plastic cups



https://www.youtube.com/watch?v=GqGSK1d6dJI



 For paper  cups

https://www.youtube.com/watch?v=tdfn7HejB0g&t=117s

















































Printing samples



































 With CE certificate
