Product Overview
Description
Food and beverage:wine，beer ，vodka，juice, honey filtration; Syrup, additive filtration; Oil filter
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtrationAutomotive: oil removal and filtration of electrophoretic paint; Filter varnish and finish
Electronic industry: coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products
Petrochemical industry: aviation kerosene filtration; Oil and fuel filtration
Contact: Shirley ju
Email: yate20201225@163.com
Whatsapp/WeChat/Mob.: + 8615265667398
Email: yate20201225@163.com
Whatsapp/WeChat/Mob.: + 8615265667398
Products Description

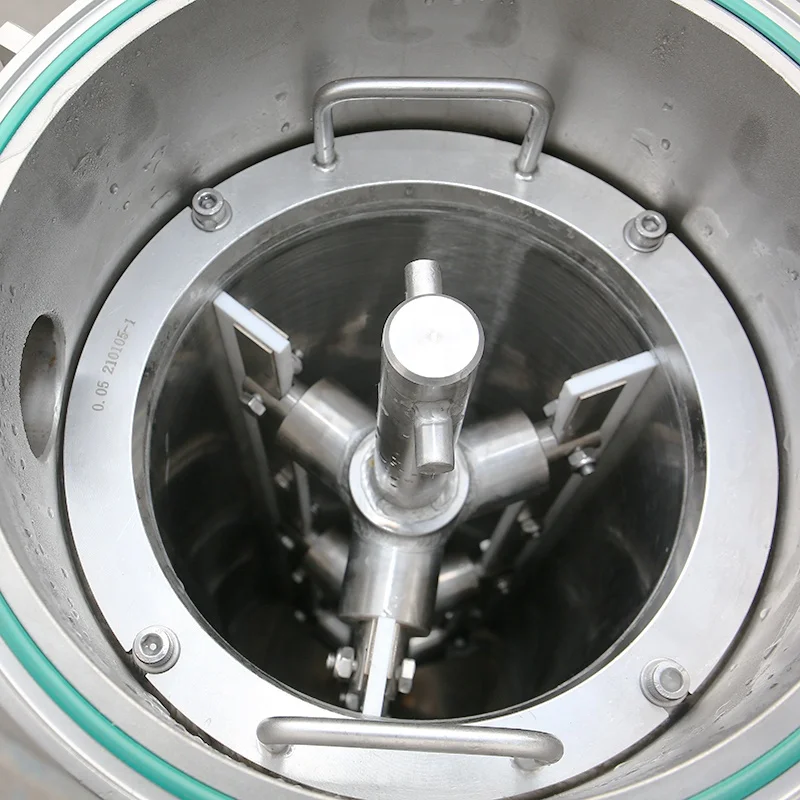

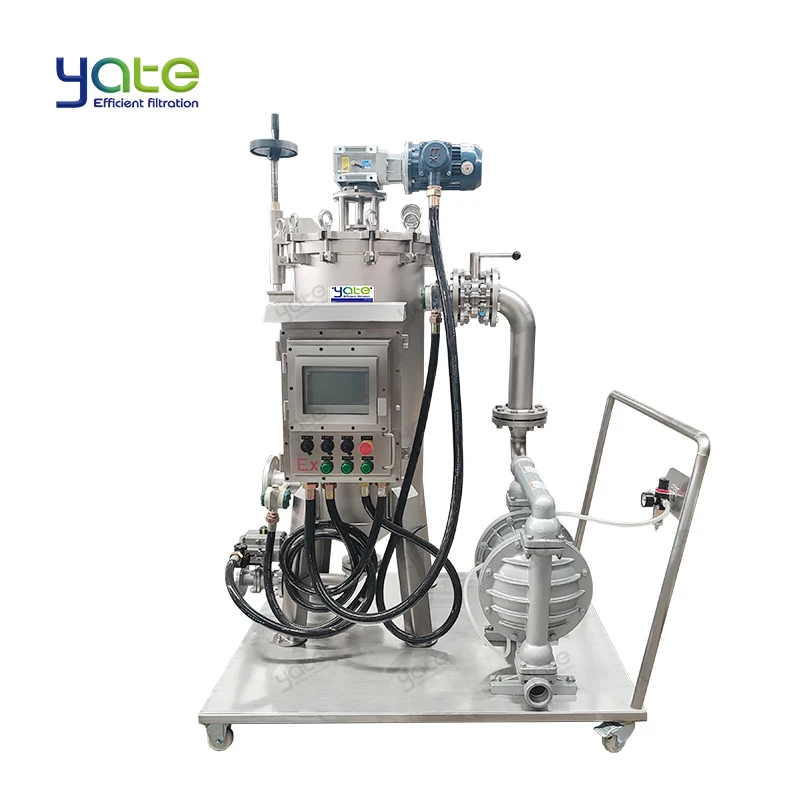

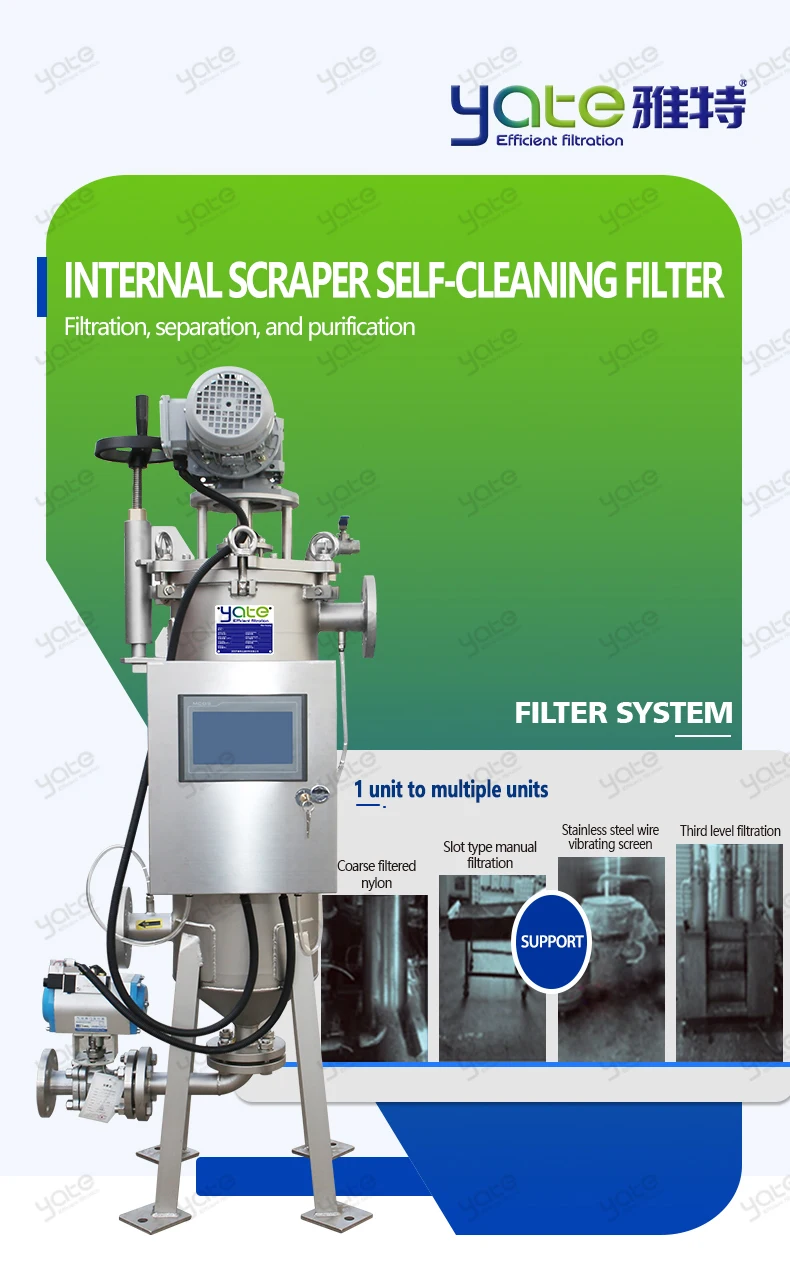

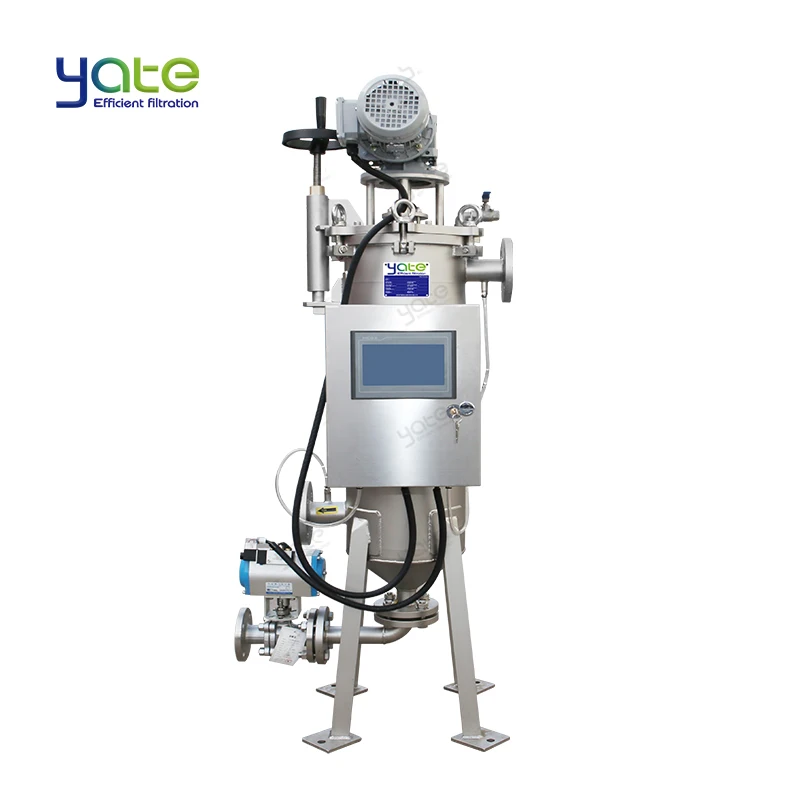

Internal scraper self-cleaning filter is mainly used for viscous liquid filtration
Self-cleaning filter is suitable for emulsion, grease, resin, paint, honey,syrup,fermentation liquid, glue and other viscous liquids.

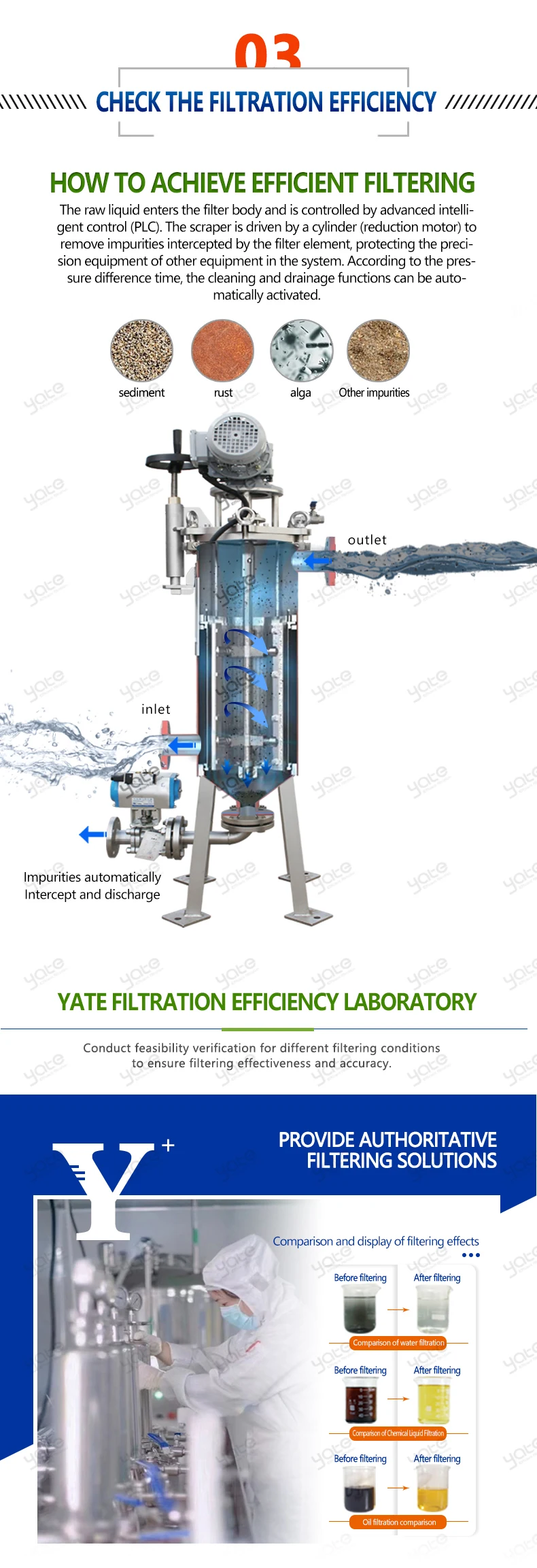

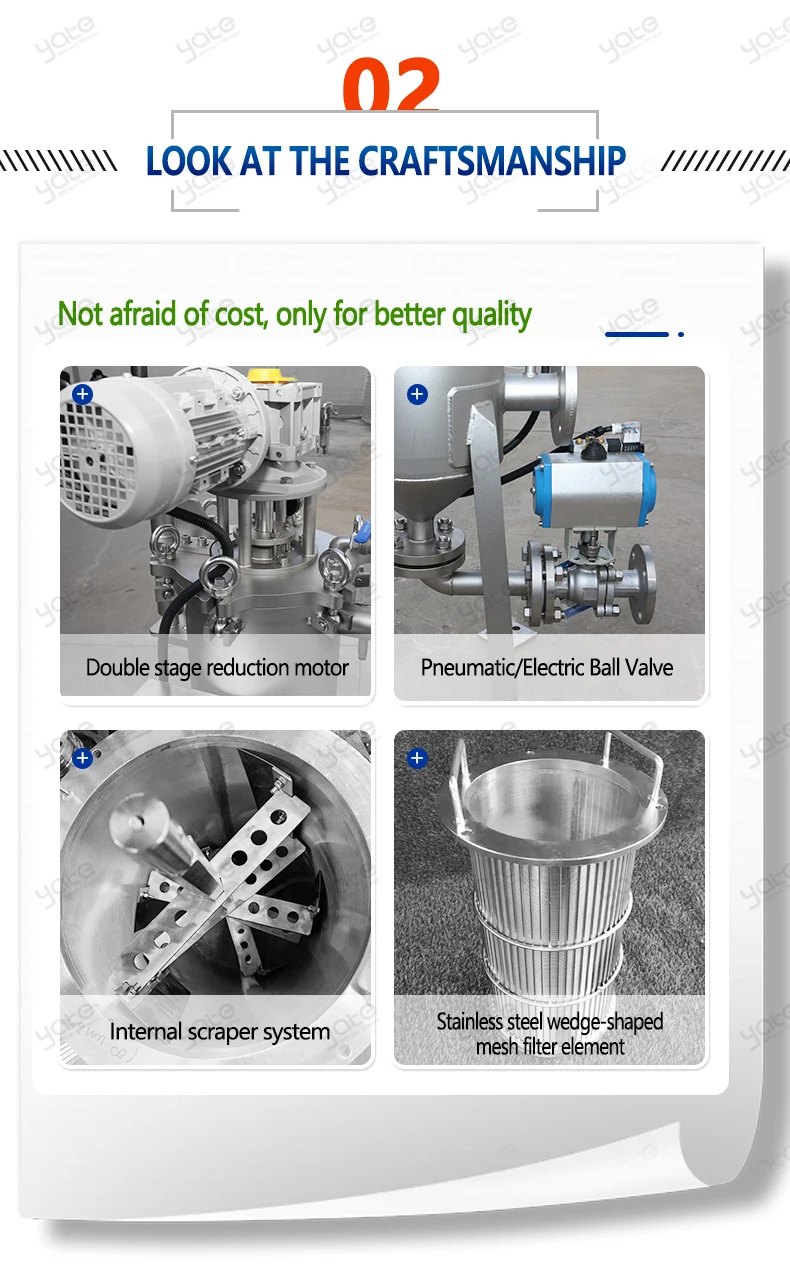

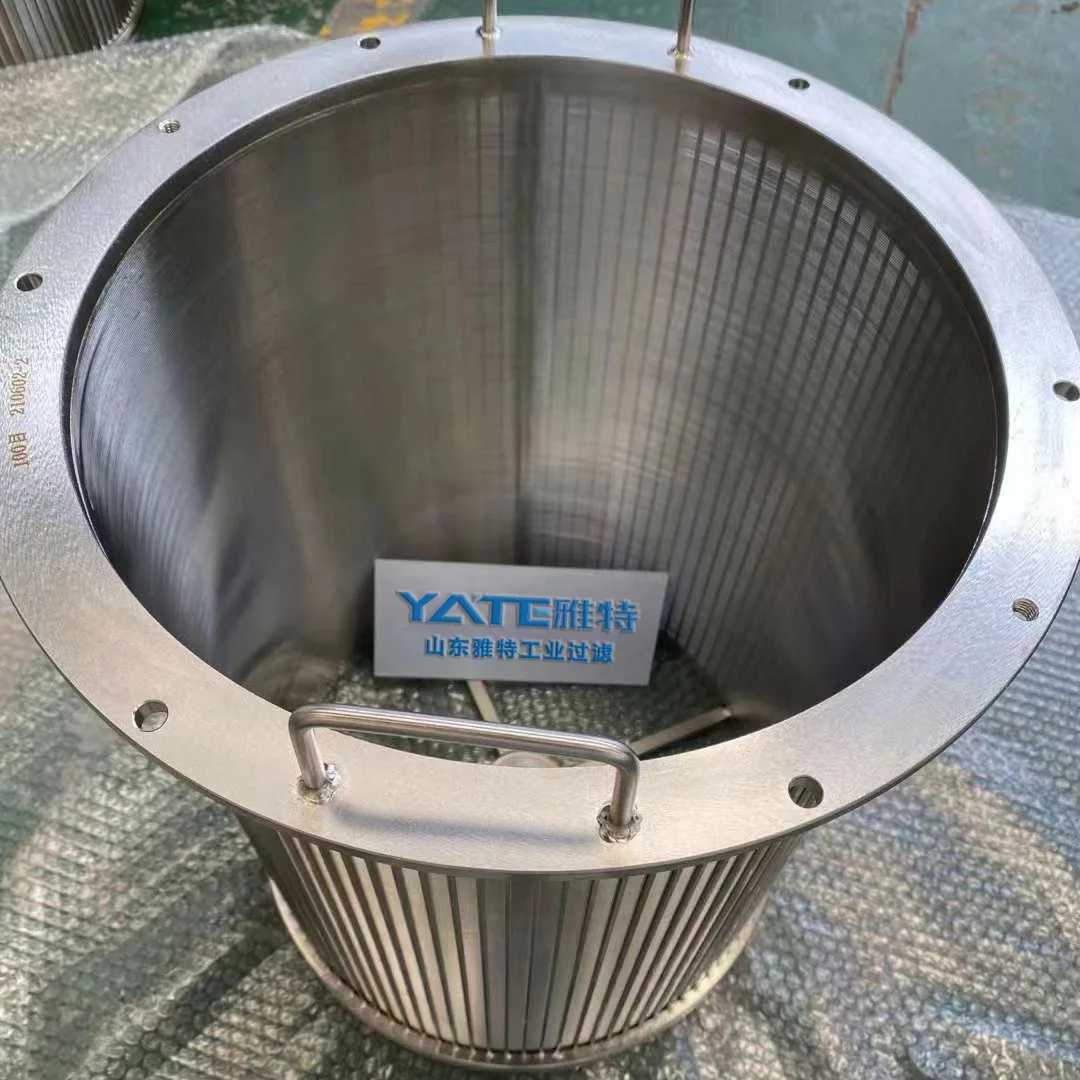

The scraper self-cleaning filter is a precision equipment that removes the impurities intercepted by the filter element and protects the normal operation of other equipment in the system by driving the scraper by the deceleration motor. It can automatically discharge while single-machine continuous online filtration, no filter supplies are produced, and no manual cleaning is required. The liquid enters the self-cleaning filter body from the water inlet, controlled by advanced intelligent (PLC), according to the pressure difference, time setting can automatically open the sewage function, high degree of automation. It covers the requirements of various filtration accuracy from 20 um to 1000 um, and provides customers with filtration solutions that reduce cost and increase efficiency.
The scraper self-cleaning filter is a precision equipment that removes the impurities intercepted by the filter element and protects the normal operation of other equipment in the system by driving the scraper by the deceleration motor. It can automatically discharge while single-machine continuous online filtration, no filter supplies are produced, and no manual cleaning is required. The liquid enters the self-cleaning filter body from the water inlet, controlled by advanced intelligent (PLC), according to the pressure difference, time setting can automatically open the sewage function, high degree of automation. It covers the requirements of various filtration accuracy from 20 um to 1000 um, and provides customers with filtration solutions that reduce cost and increase efficiency.
Model | Diameter（mm） | Thickness（mm） | Connection | Refer.Flow (m3/h) | Working Pressure(MPa) |
YT-SZ-273 | 273 | 4 | DN80 | 60 | 0.8 |
YT-SZ-377 | 377 | 4 | DN10 | 100 | 0.8 |
YT-SZ-426 | 426 | 4 | DN125 | 150 | 0.8 |
YT-SZ-612 | 612 | 5 | DN200 | 300 | 0.8 |
YT-SZ-712 | 712 | 5 | DN250 | 500 | 0.8 |
YT-NG-219 | 219 | 4 | DN50 | 15 | 0.8 |
YT-NG-273 | 273 | 4 | DN65 | 20 | 0.8 |
YT-NG-450 | 450 | 4 | DN80 | 50 | 0.8 |
YT-NG-600 | 600 | 5 | DN100 | 100 | 0.8 |
YT-WG-219 | 219 | 4 | DN65 | 10 | 0.8 |
YT-WG-350 | 350 | 4 | DN65 | 20 | 0.8 |
YT-WG-420 | 420 | 4 | DN80 | 30 | 0.8 |
YT-FC-377-6 | 377 | 4 | DN80 | 40 | 0.8 |
YT-FC-400-10 | 400 | 4 | DN100 | 80 | 0.8 |
YT-FC-600-20 | 600 | 5 | DN200 | 150 | 0.8 |
YT-FC-700-30 | 700 | 5 | DN250 | 280 | 0.8 |
Advantages
1. Choose high-quality materials
2. Superb welding technology, strong sealing
3. Efficient filtration effect
4. Provide complete filtration solutions
5. Global real case feedback

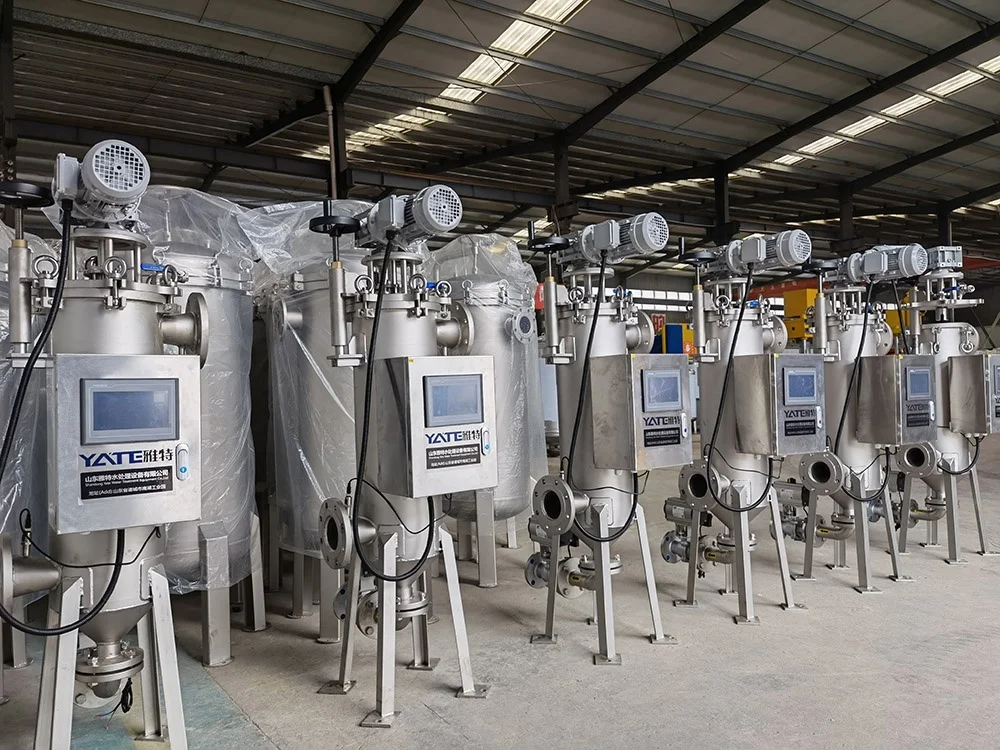

6. Factory processing equipment and inspection equipment are complete.
