Precise Chromite Separation with Wear Resistant and Corrosion Resistant Glass Fiber Reinforced Plastics Spiral Chute
- Category: >>>
- Supplier: Shicheng Wanshuntong Mining Equipment Co. Ltd.Shicheng Ltd.
Share on (1601237904900):
Product Overview
Description
Product Description
Glass Fiber Spiral Chute
Glass Fiber Spiral Chute is a kind of highly effective gravity separation equipment, for separation of metal, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zirconite and metals and non-metallic minerals with enough gravity difference, at size of 0.3-0.02mm. The spiral concentrator has characteristics of high performance and advanced separation index. This equipment is widely used in various nonferrous and ferrous mines and win the technological research awards of metallurgical ministry.
Manufacture series of glass fiber reinforced spiral concentrators for various ferrous and nonferrous mines,coal dressing in coal preparation plant, sulfur plant and scientific research in college laboratory.
Model | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 |
Dia. (mm) | 1500 | 1200 | 900 | 600 | 400 |
Spiral pitch (mm) | 540,720 | 900,720,540 | 675,540,405 | 450,360,270 | 240,180 |
Pitch diameter ratio (pitch/dia.) | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.6,0.45 |
Cross dip (degree) | 9° | 9° | 9° | 9° | 9° |
Max. spiral head per set | 4-2 | 4-2 | 4-2 | 3 | 2 |
Feeding size (mm) | 0.3-0.02 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 |
Feeding concentration (%) | 25-55 | 25-55 | 25-55 | 25-55 | 25-55 |
Capacity (t/h) | 6-8 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 |
Dimension (mm) | 1560*1560*5230 | 1360*1360*5230 | 1060*1060*4000 | 700*700*2600 | 460*460*1500 |
Weight (kg) | 800 | 600 | 400 | 150 | 50 |
Packaging & Shipping
Our Services

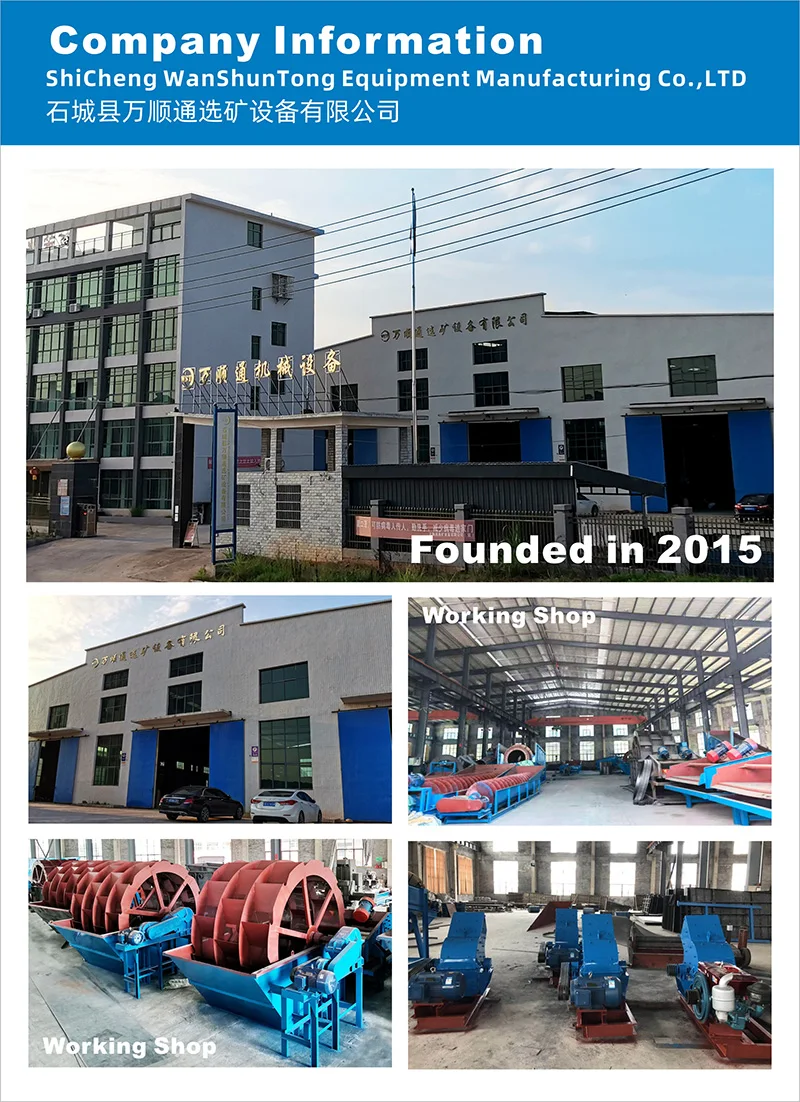

Company Information

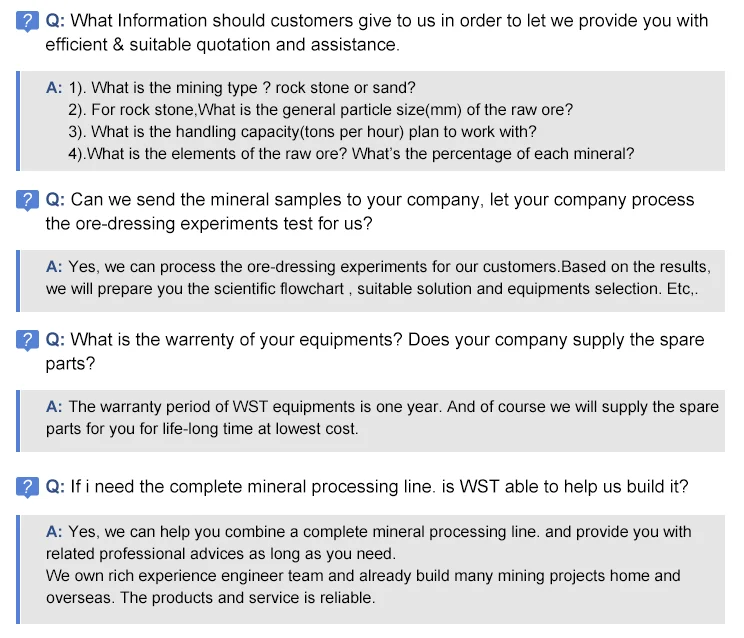

FAQ

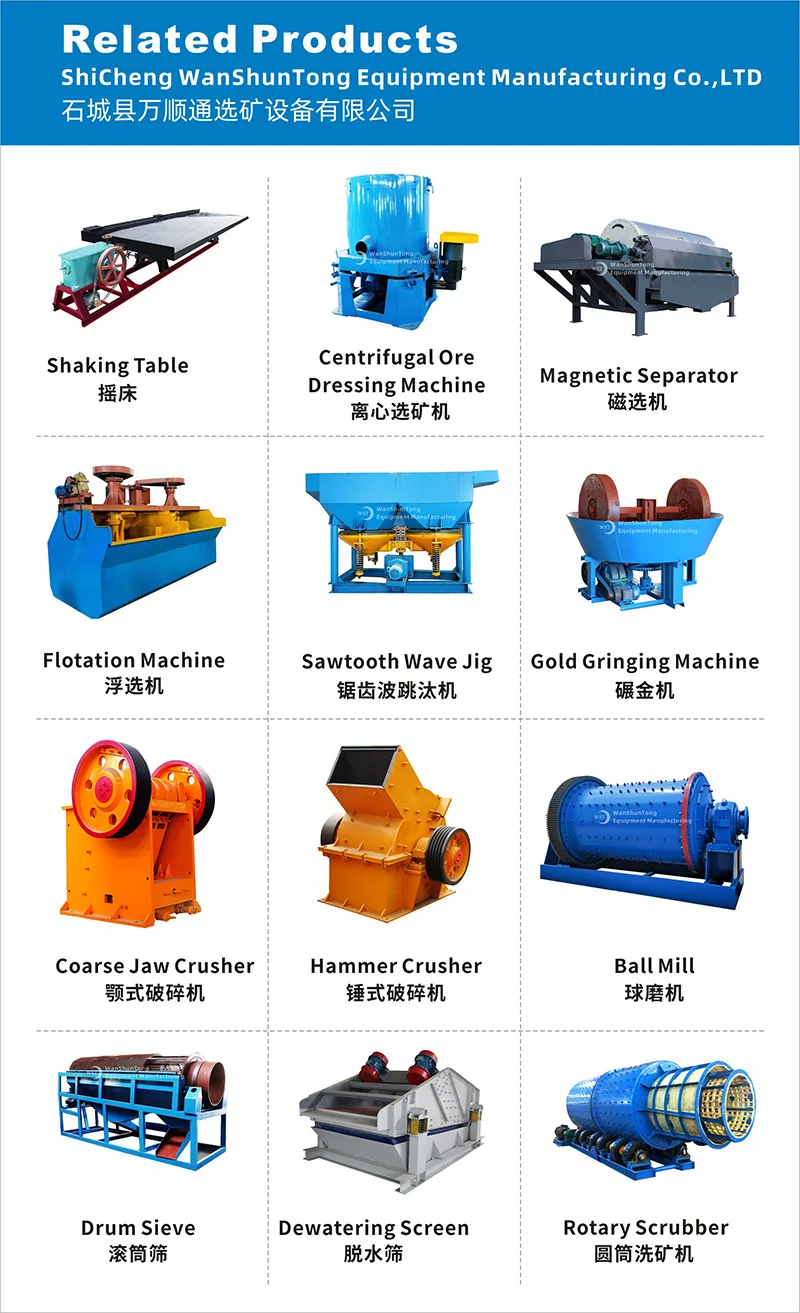

We Recommend
