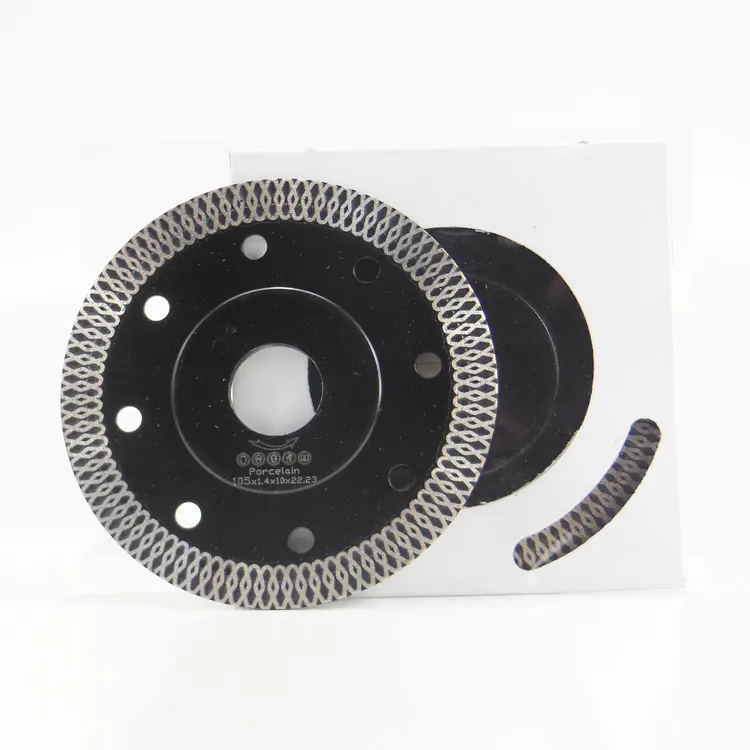

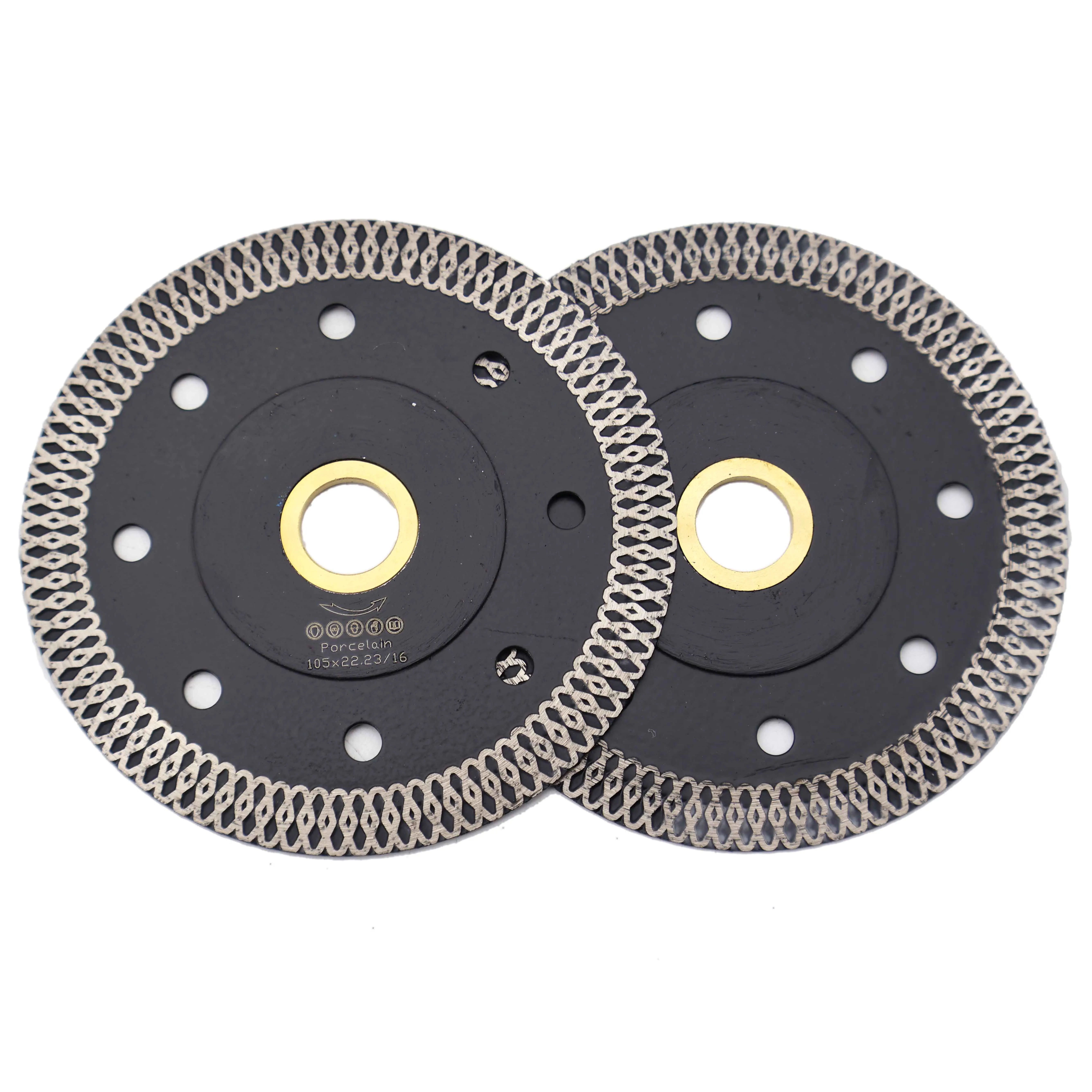

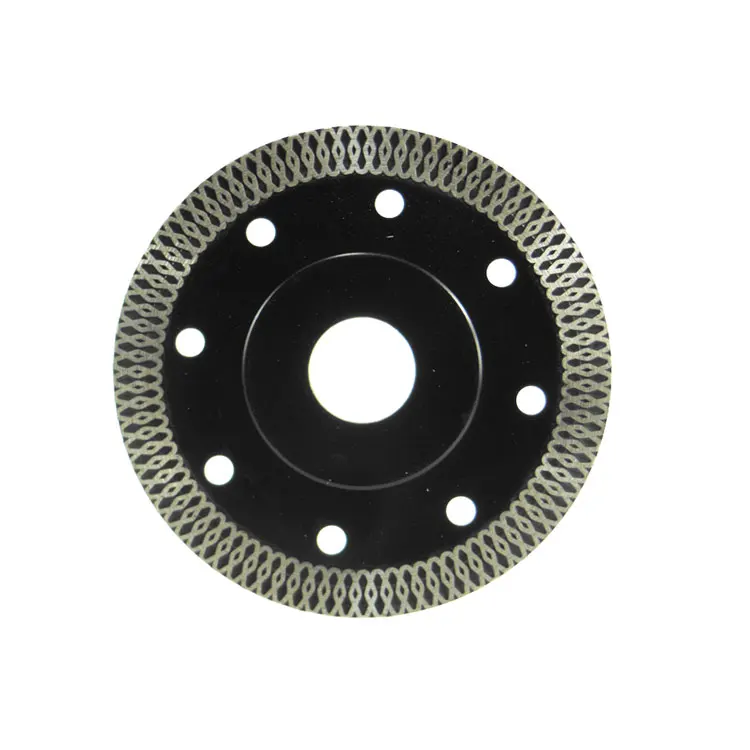

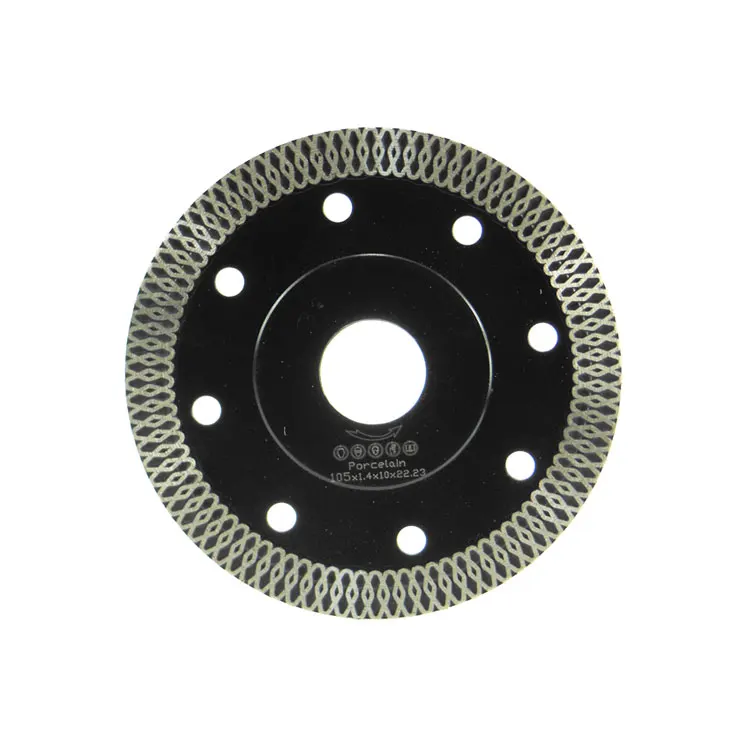

Diamond Tile Saw Blade Cutting Disc Porcelain Cutting Blade Super Thin Diamond Porcelain for Porcelain Tiles Marbles Blade1.2mm
- Category: >>>
- Supplier: Fujian Nanan Fullux Abrasives Co. Ltd.
Share on (1601237990592):
Product Overview
Description
Product Detail
PRODUCT PARAMETER TABLE
ITEM NO | OUTER DIAMETER | ARBOR SZE | SEGMENT DIMENSION | ||||
INCHES | METRICI(mm) | ||||||
2204 | 4” | 105 | 20/22.23 | 1.2*10 | |||
2245 | 4.5” | 115 | 20/22.23 | 1.2*10 | |||
22451 | 4.5” | 115 | 20/22.23 | 1.4*10 | |||
2205 | 5” | 125 | 20/22.23 | 1.4*10 | |||
2207 | 7” | 180 | 22.23/25.4 | 1.8*10 | |||
2209 | 9" | 230 | 22.23/25.4 | 2.0*10 | |||
CUT MATERIALS: | CERAMIC,MARBLE | ||||||
DIAMOND TYPE/GRADE: | 20KG | ||||||
DIAMOND GRIT | 70/80# | ||||||
DIAMOND CONCENTRATION: | 20% | ||||||
BOND HARDNESS: | HRB100 | ||||||
BOND MATERIALS: | CU,FE,SN,NI,CO | ||||||
