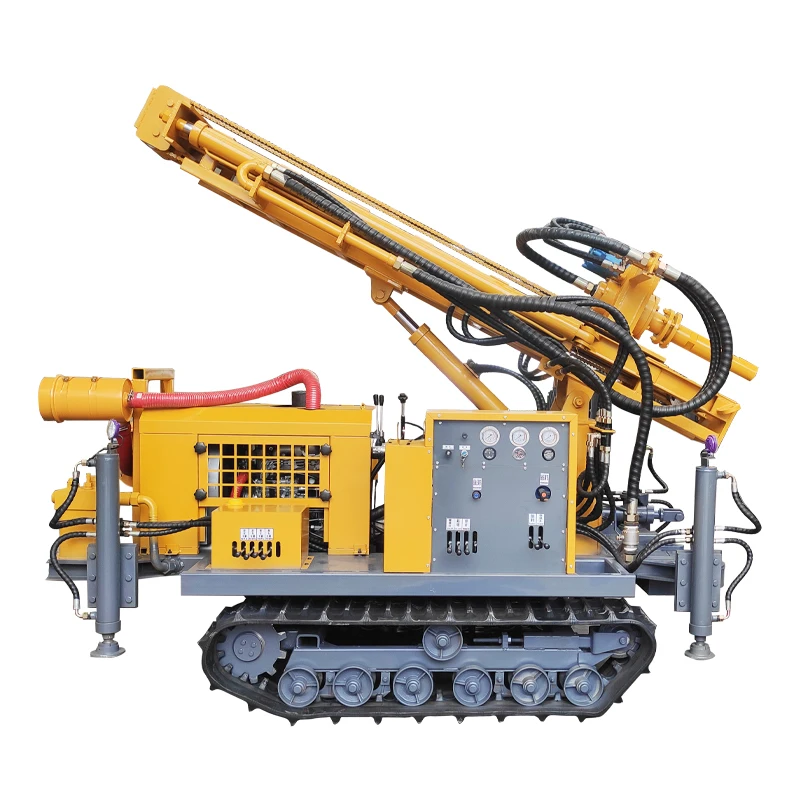

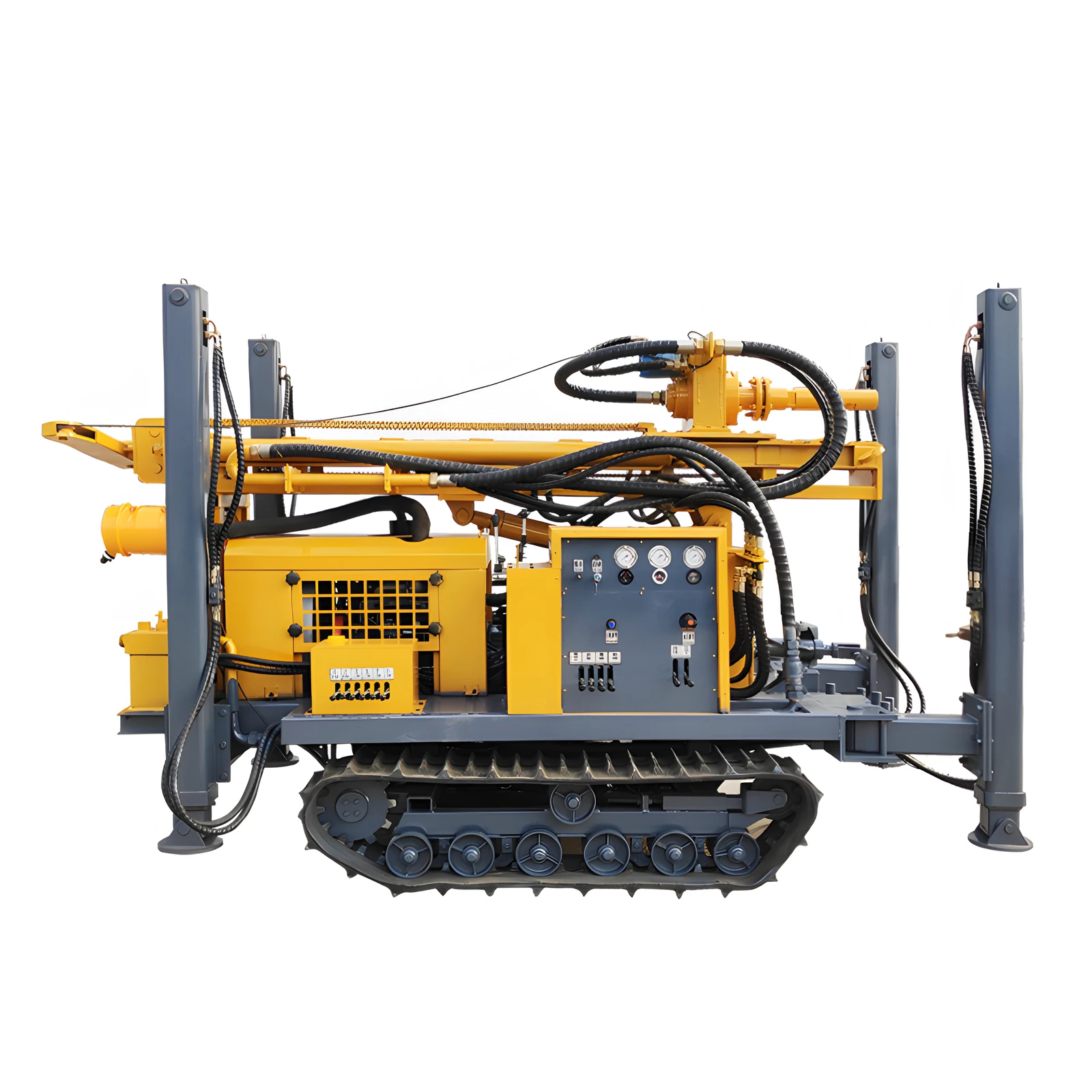

Water Well Drilling Rig Drilling Machine Used For Well Construction
Water Well Drilling Rig Drilling Machine Used For Well Construction
Water Well Drilling Rig Drilling Machine Used For Well Construction
Water Well Drilling Rig Drilling Machine Used For Well Construction
Water Well Drilling Rig Drilling Machine Used For Well Construction
Water Well Drilling Rig Drilling Machine Used For Well Construction
Water Well Drilling Rig Drilling Machine Used For Well Construction

Water Well Drilling Rig Drilling Machine Used For Well Construction

Share on (1601237999940):


Price:$8,600.00 - $12,500.00

Quantity:


Product Overview

Description





Product Description

Product Description

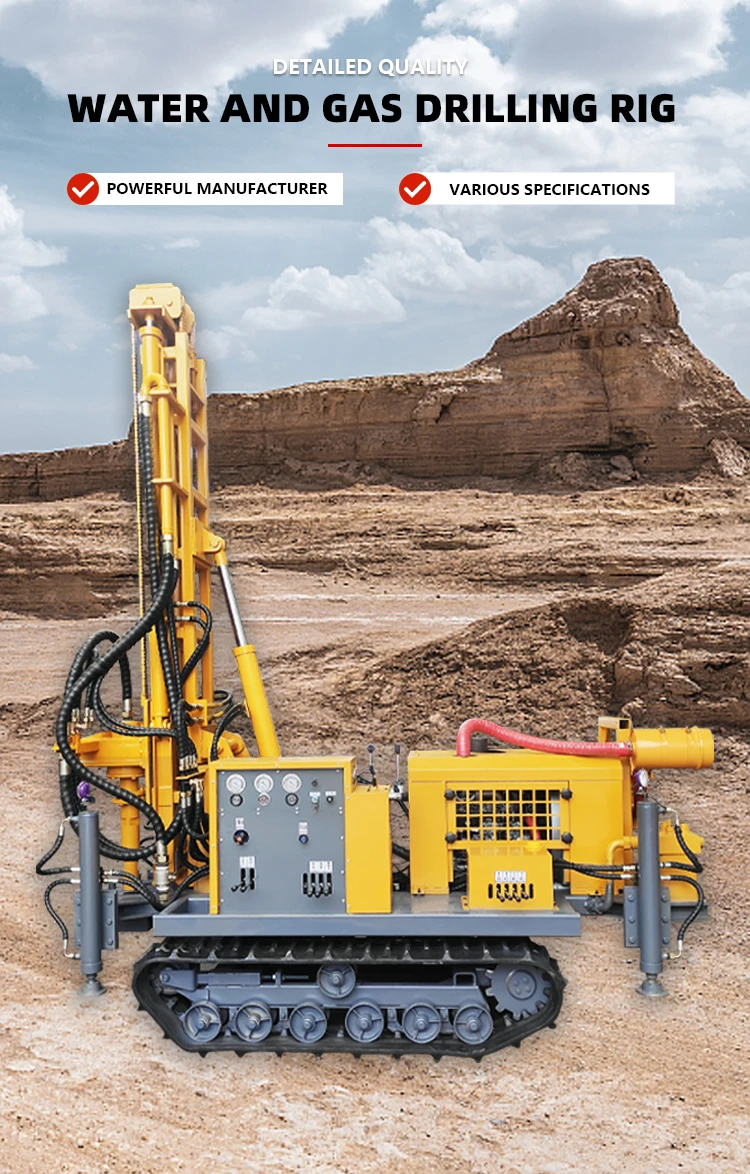

100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 0











The This series of s produced by us adopts new hydraulic technology, which is equipped with high-torque hydraulic motor rotation and large-bore hydraulic cylinder advancement. Advanced hydraulic technology greatly improves the drilling speed and working efficiency. There are several models of a crawler drilling rig with different specifications.











100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 1









Specification

Specification



























































































































Model




YG-180




YG–200




YG–300




YG–400




YG–600




140-254mm




140-305mm




140-325mm




140-350mm




140-350mm




180m




200m




300m




400m




600m




Walking speed




2.5km/h




2.5km/h




2.5km/h




2.5km/h




2.5km/h




Climbing angles (Max.)




30




30




30




30




30




Equipped capacitor




55kw




65-70kw




84kw




92kw




115kw




Using air pressure




1.7-2.5mpa




1.7-3.0mpa




1.7-3.3mpa




1.7-3.5mpa




1.7-3.5mpa




Air consumption




17-31m³/min




17-30m³/min




17-35m³/min




17-35m³/min




17-35m³/min




Drill pipe length




1.5m, 2.0m, 3.0m




1.5m, 2.0m, 3.0m




1.5m, 2.0m, 3.0m,6.0m




1.5m, 2.0m, 3.0m,6.0m




1.5m, 2.0m, 3.0m,6.0m




Drill pipe diameter




76mm, 89mm




76mm, 89mm




89mm, 102mm




89mm,102mm,108mm




102mm,108mm,114mm




Rig lifting force




15t




12t




20t




22t




28t




Dimension




3800*1500*2200 mm




4000*1750*2450 mm




5900*2000*2850 mm




5900*2100*2850mm




6000*2200*2850mm




Weight




4500kg




5800kg




9000kg




10000kg




12000kg








 You can choose a suitable model according to your requirements and the technical parameters of our machine.









Advantages












100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 3

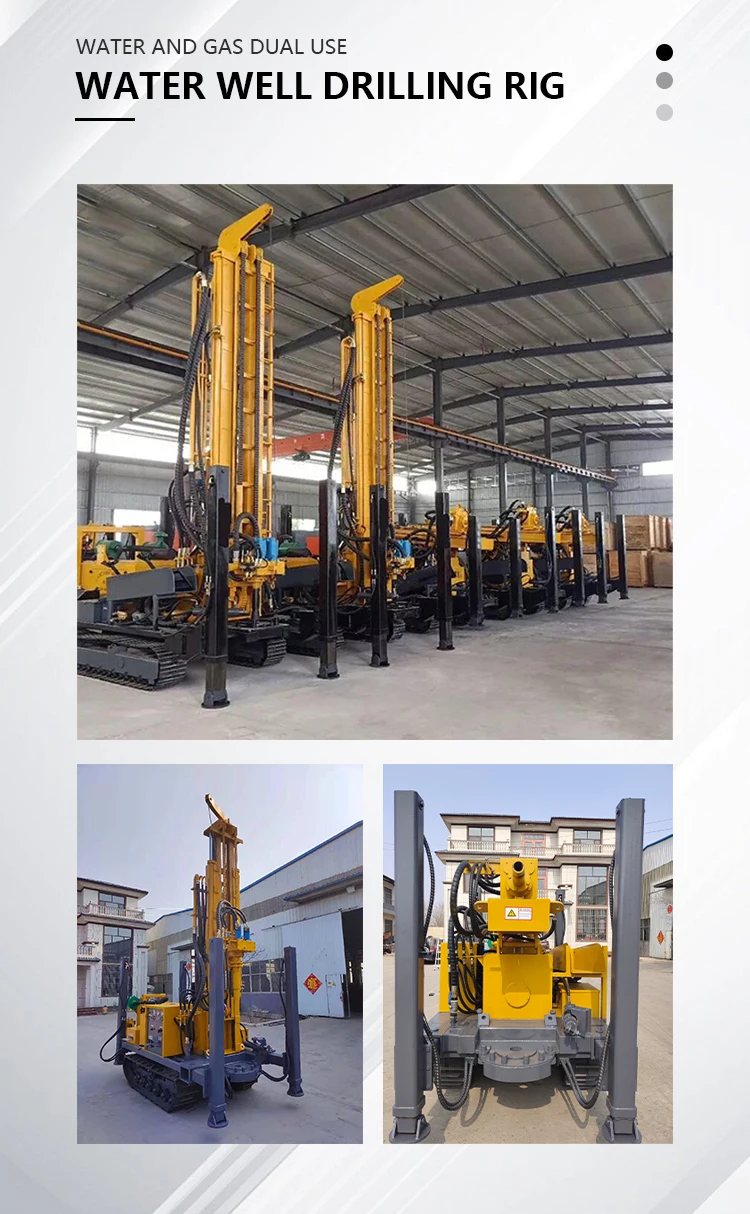

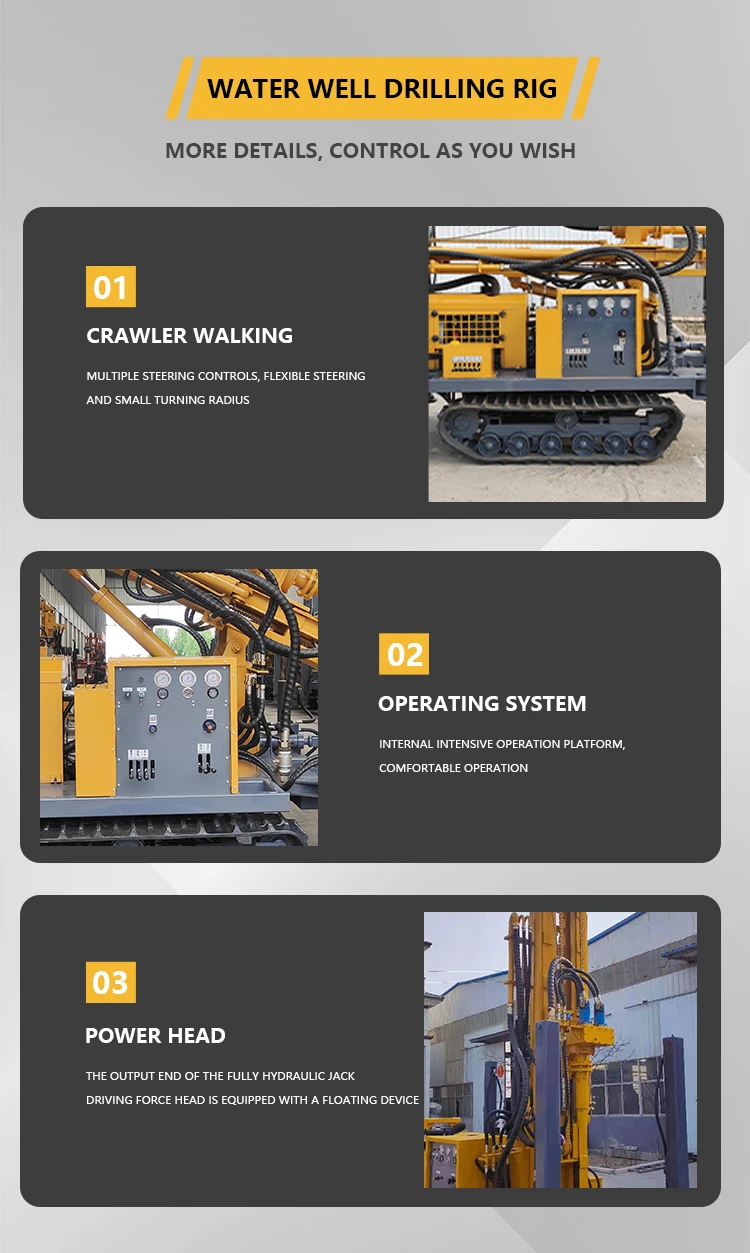

Detailed Images

Detailed Images






100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 4











YG Machinery has always been a company that provides the best service to customers. The machine has good quality, long service life, and a better price than other factories. It has a professional after-sales team to solve customers’ worries.











100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 5











100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 6











100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 7















Packaging & Shipping


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.









100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 8

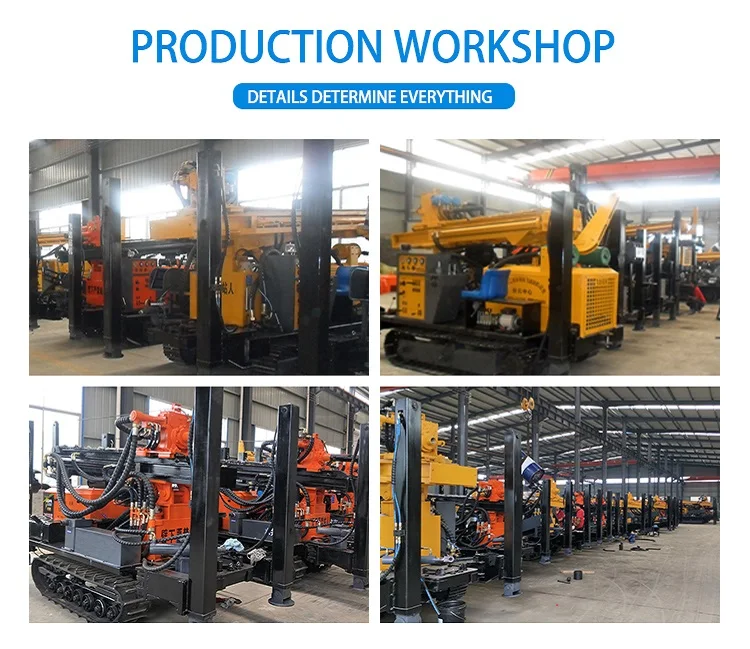

Company Profile

Company Profile






100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 9











100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 10











100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 11











100M 300M 500M 600M For 200M Perforadora Pozos Borehole Drilg Water Well Drill Rig hine 12









FAQ

FAQ







Q1: Are you trading company or manufacturer?
A1: We are original equipment manufacturer.



Q2: How long is your delivery time?
A2: It is according to the model and quantity.
    Generally it is 3-5 days if the machines are in stock.
    It will be 15-30 days if you want to customize the machines.



Q3: Do you provide samples? Is it free or extra?
A3: Yes, we could offer you the sample machine.
   But it's not free. You need to pay for the sample and the cost of freight.



Q4: What is your terms of payment?
A4: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
     Payment<=USD 5000, 100% in advance.
     Payment>=USD 5000, 30% T/T in advance, balance before shipment.
