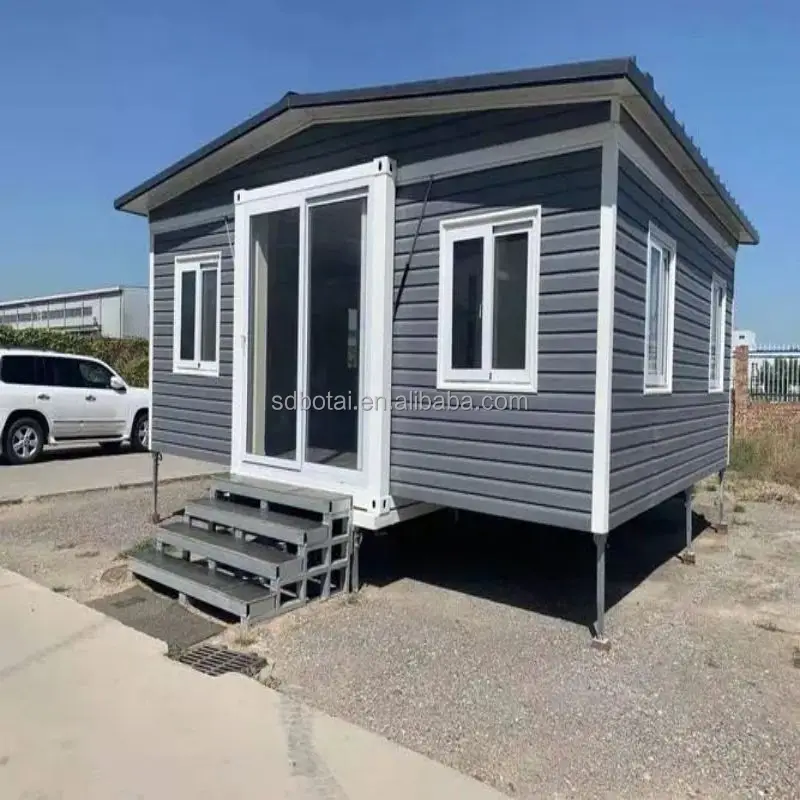

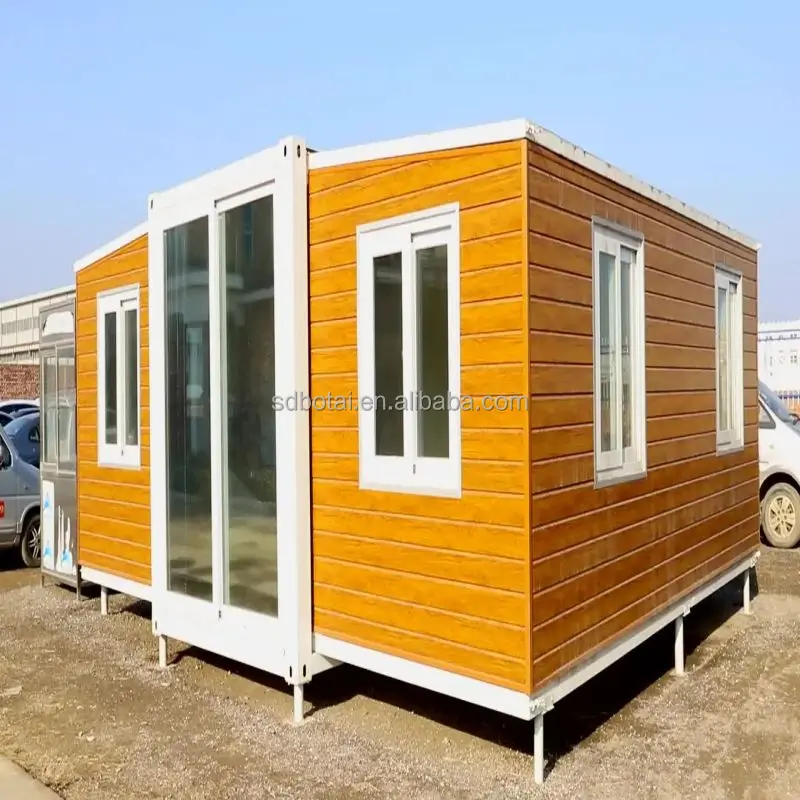

Modern Pre Fab Container House from China Low Cost Real Estate Mobile Home Cabin for Sale Sizes 20ft & 40ft for Puerto Rico
- Category: >>>
- Supplier: Shandong Botai Aluminum Industry Co. Ltd.
Share on (1601238081012):
Product Overview
Description
Products Display
Products Description

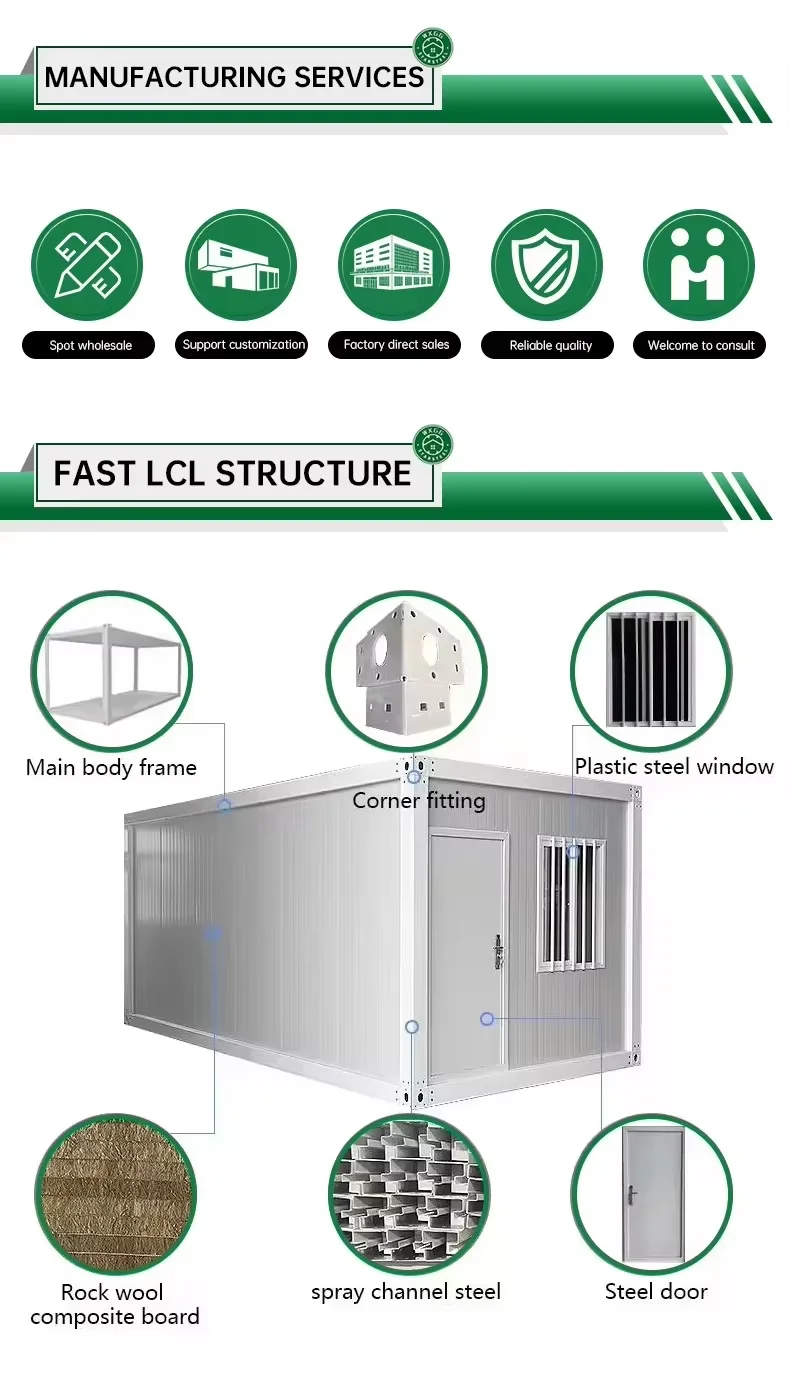

Bottom | Frame structure | 2.2/2.5/3mm cold rolled steel profiles, | |
2.2/2.5/3mm cold formed cross members welded together | |||
Floor | 18mm fiber cement board | ||
Floor finishes | 1.6mm PVC flooring | ||
Roof | Frame structure | 2.2/2.5/3mm cold formed cross members, | |
corner fitting and steel purlin welded together | |||
Outside | 0.4mm galvanized and painted steel plate | ||
Insulation | 50mm glass wool/Rock wool sandwich panel | ||
Ceiling | 0.5mm steel sheet bottom tile | ||
Corner posts | 4.5mm cold rolled steel profile | ||
Wall panel | Sandwich panel with 75mm rockwool | ||
Window | UPVC sliding widow with screened and burglar bars (800mm/925mm*1100mm, Double glazed) | ||
Door | Steel door(950mm*2000mm) | ||
meet CE standard | |||
Electrical system | Include 2 external electric supply sockets,1 electricity box,2 wall-sockets,1 Air-conditioning socket,1 switch,2 fluorescent lamps | ||
Painting | Automatic galvanizing and baking paint spray molding | ||
Specification | Details | ||
External dimensions | 6058mm(L)*2438mm(W)*2800mm(H) | ||
Internal dimensions | 5858mm(L)*2238mm(W)*2505mm(H) | ||
Technical performance | Bottom loads | 2.00kn/m2 | |
Roof loads | 0.75kn/m2 | ||
Wind loads | 0.50kn/m2 | ||
Seismic rating | 8 | ||
Fire rating | Class A Non-combustible | ||
Thermal Insulation | 0.6w/(sqm/k) | ||
Staked layers | 3 | ||
Re-assemble times | 20+ | ||
Life time | 15 years | ||

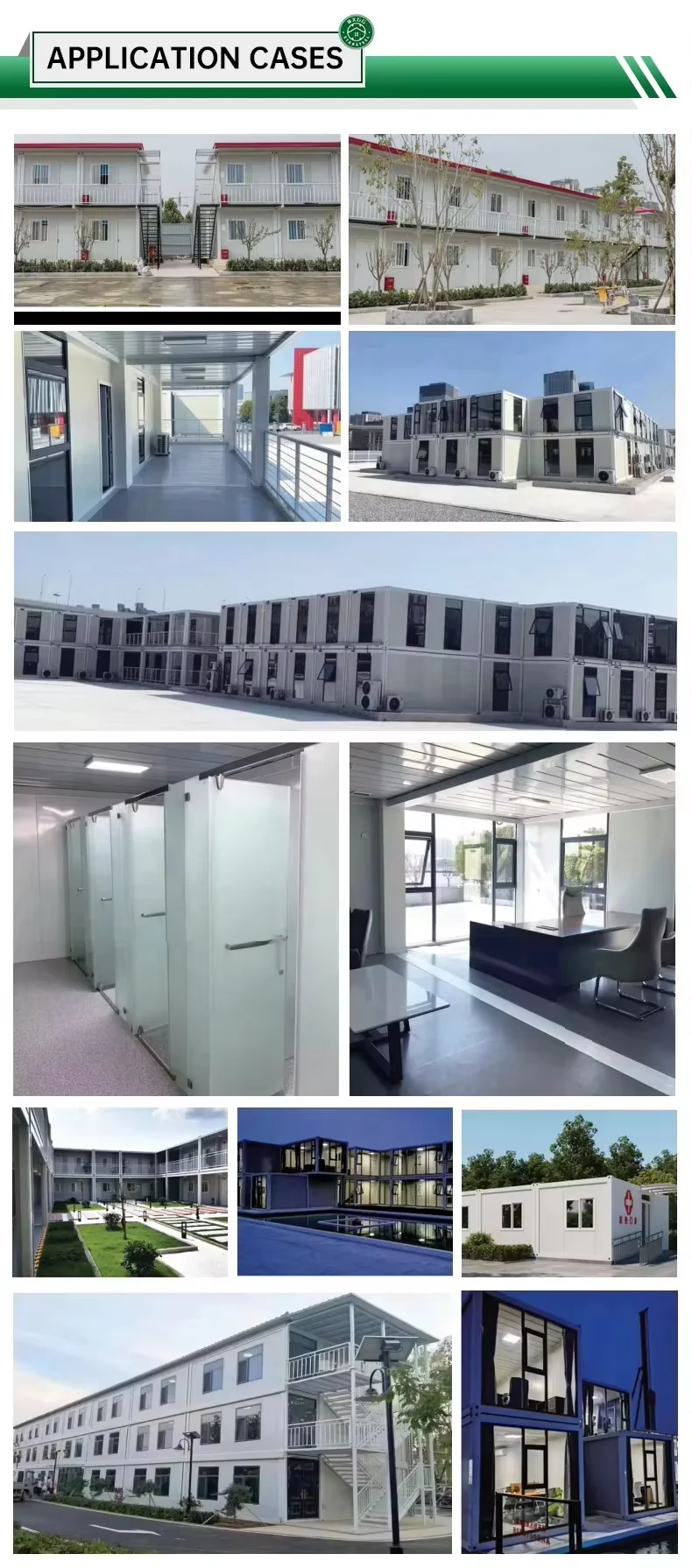

Product Application
Outer Dimensions(Width*Length*Height*Folding width)： 15ft 4800*5800*2480*660㎜ 1 living room without bathroom, 40'HQ=6 units 20ft
6300*5900*2480*2200㎜ 1 living room; 1/2/3/4 bedroom + 1 living room, 40'HQ=2 units 40ft 6300*11800*2480*2200㎜ 1 living room;
1/2/3/4 bedroom + 1 living room, 40'HQ=1 unit Weight: MAX 2000kg Application scenarios: Office/Dormitory/Home/Homestay and etc.
The box is just the foundation, and can be optionally equipped with kitchen (cabinets and hanging cabinets)/bathroom/floor(or floor tiles)/doors and windows, etc. It can be double layered, but requires accessories.
6300*5900*2480*2200㎜ 1 living room; 1/2/3/4 bedroom + 1 living room, 40'HQ=2 units 40ft 6300*11800*2480*2200㎜ 1 living room;
1/2/3/4 bedroom + 1 living room, 40'HQ=1 unit Weight: MAX 2000kg Application scenarios: Office/Dormitory/Home/Homestay and etc.
The box is just the foundation, and can be optionally equipped with kitchen (cabinets and hanging cabinets)/bathroom/floor(or floor tiles)/doors and windows, etc. It can be double layered, but requires accessories.
Packing & Shipping
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
2.what can you buy from us?
container house, other construction materials.
Always a pre-production sample before mass production;Always final Inspection before shipment;
2.what can you buy from us?
container house, other construction materials.
3. why should you buy from us not from other suppliers?
We have own factory, quickly respond to the market and needs.professional customized team and service for OEM needed.
4. what services can we provide?
There are multiple warehouses and factories around the world, and the best manufacturer can be selected according to customer needs.
We have own factory, quickly respond to the market and needs.professional customized team and service for OEM needed.
4. what services can we provide?
There are multiple warehouses and factories around the world, and the best manufacturer can be selected according to customer needs.
