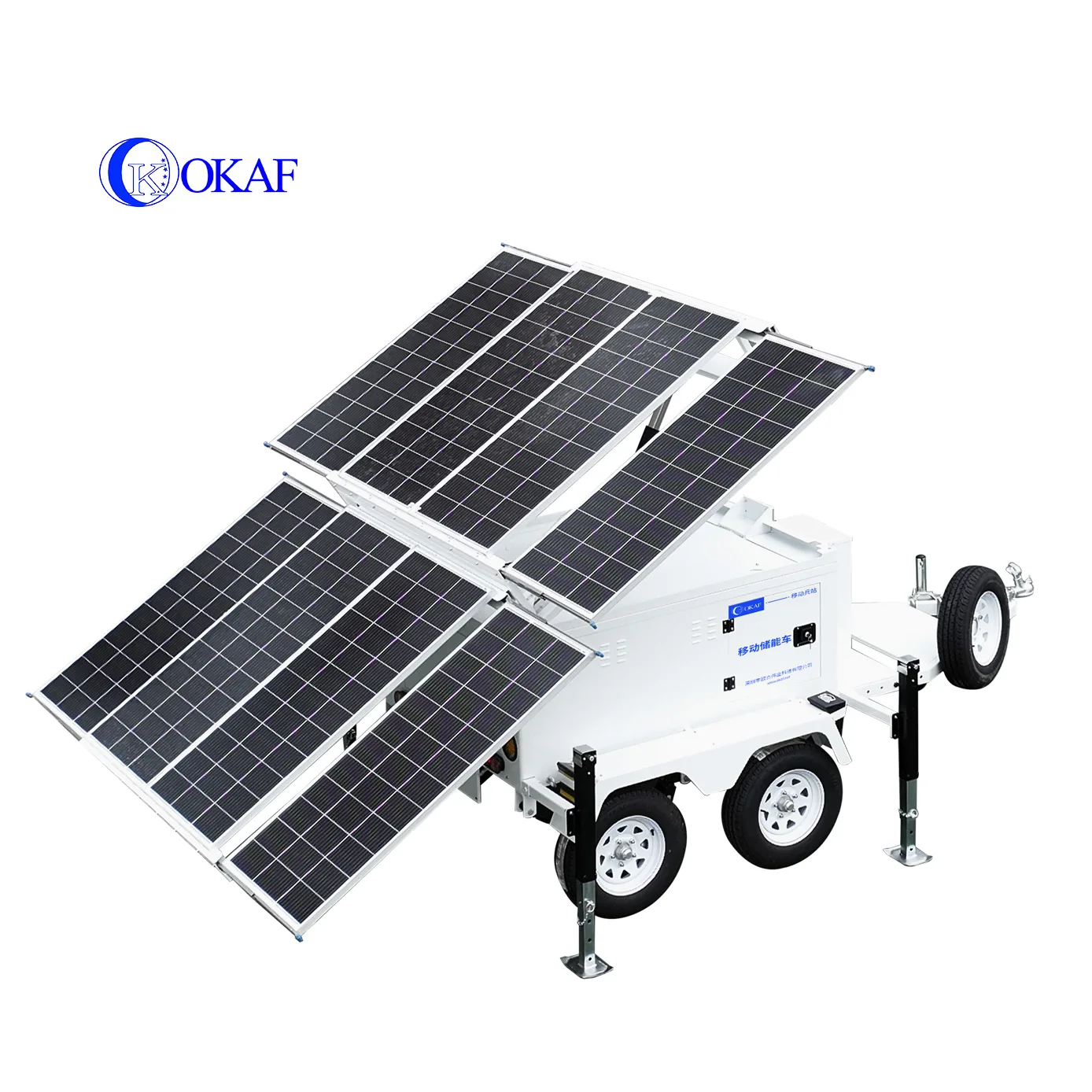

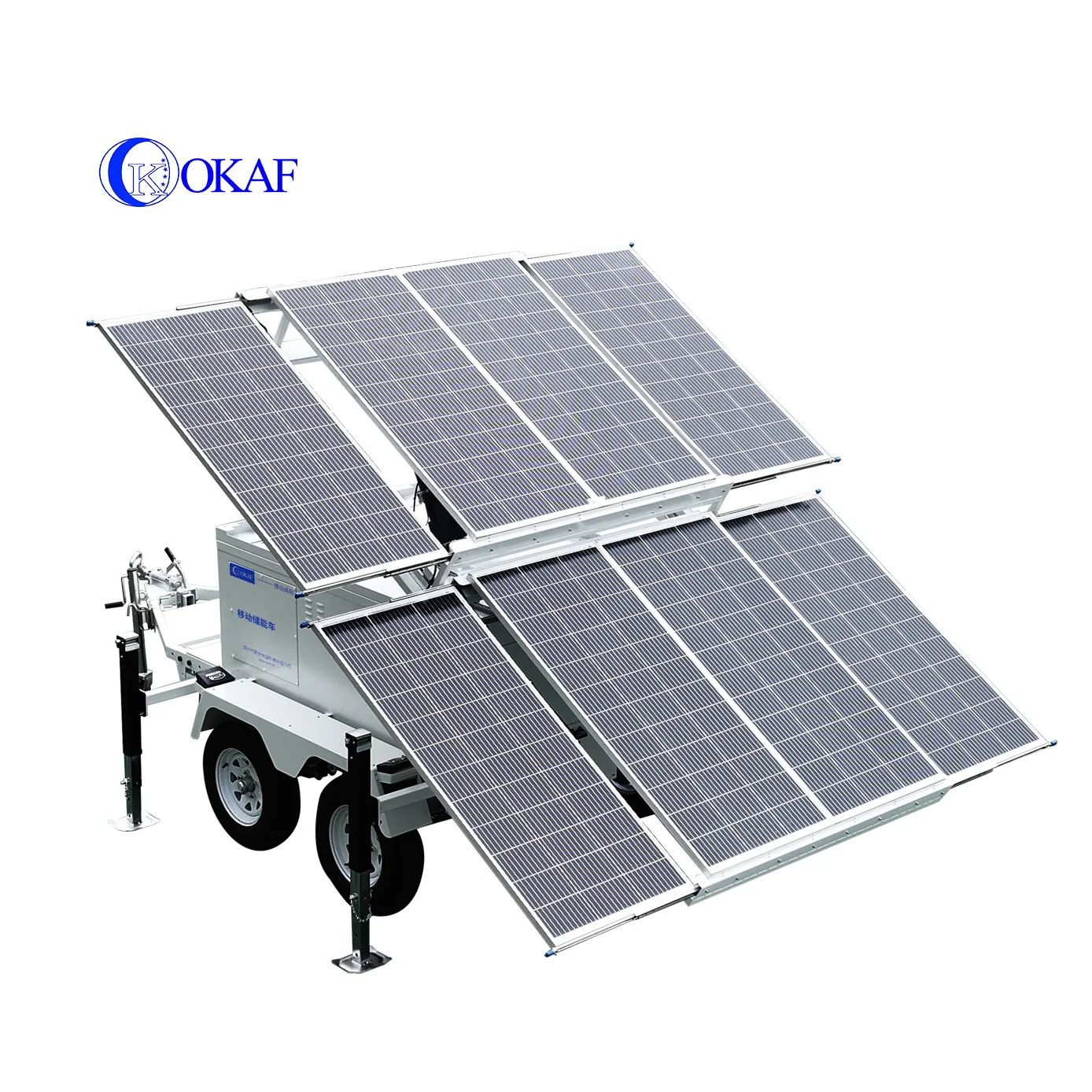

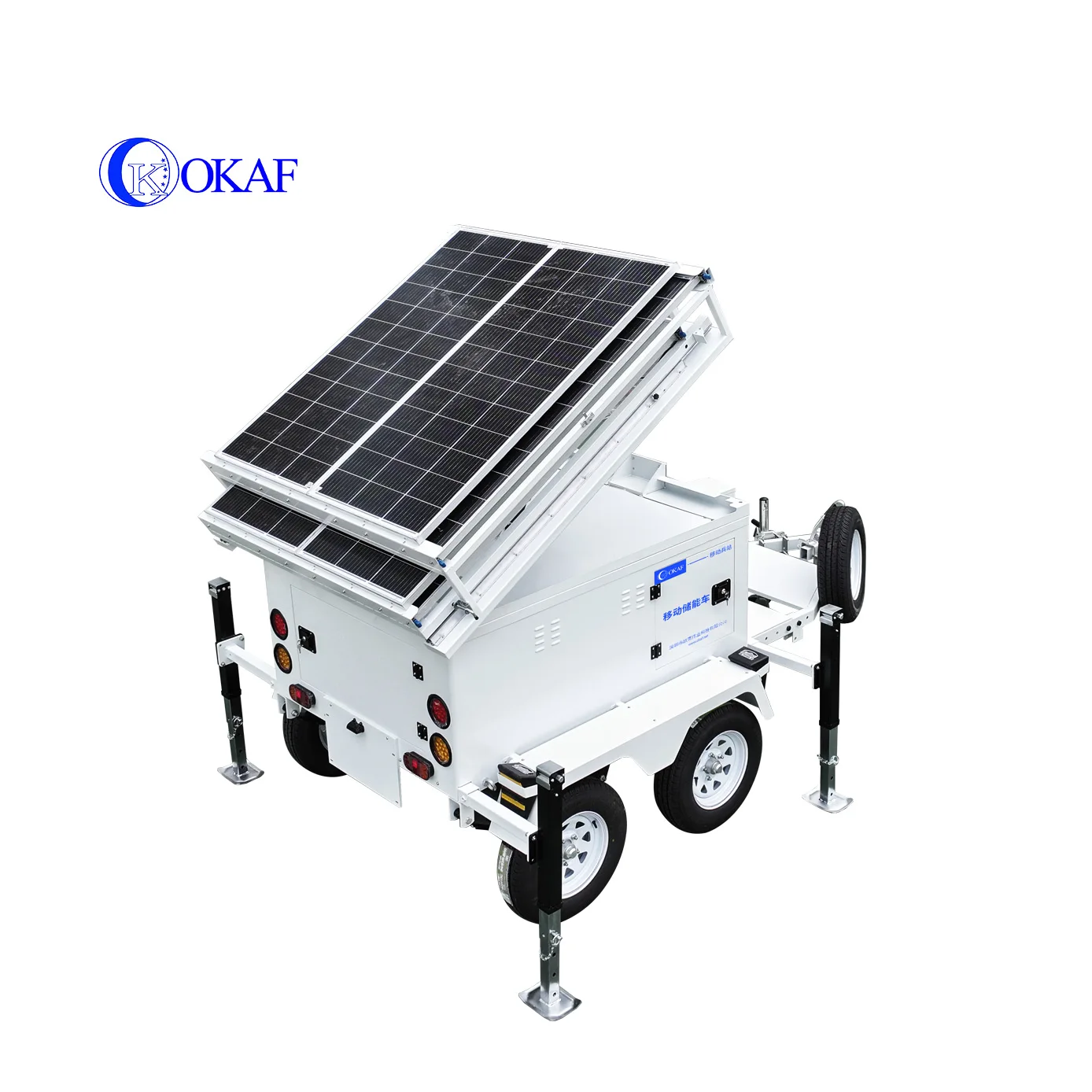

Mobile Solar Trailer Renewable Energy Station Mobile Off Grid Power System
- Category: >>>
- Supplier: Shenzhen Okaf Technology Co. LTD
Share on (1601238129185):
Product Overview
Description
SPECIFICATIONS

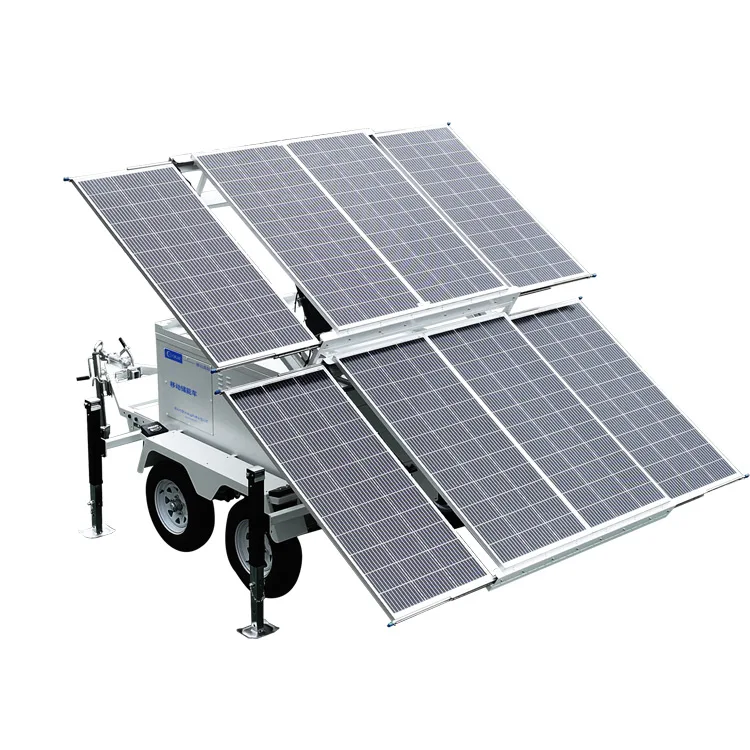

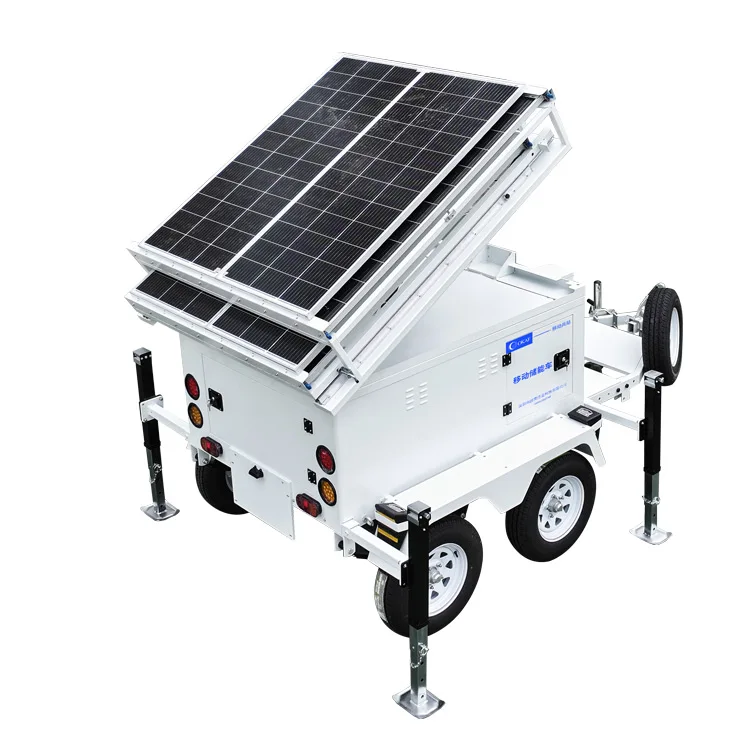

Mobile Solar Trailer
OKAF mobile power supply vehicle uses photovoltaic power generation and uses solar panels to directly convert sunlight into electrical energy. The photovoltaic power generation system mainly consists of four parts: solar panels, controllers, batteries and inverters. Through intelligent and scientific management of the entire set of equipment, Save device data in real time for viewing at any time. The mobile solar energy storage vehicle is powered by solar panels, battery storage, pan/tilt system, control system, trailer frame, etc

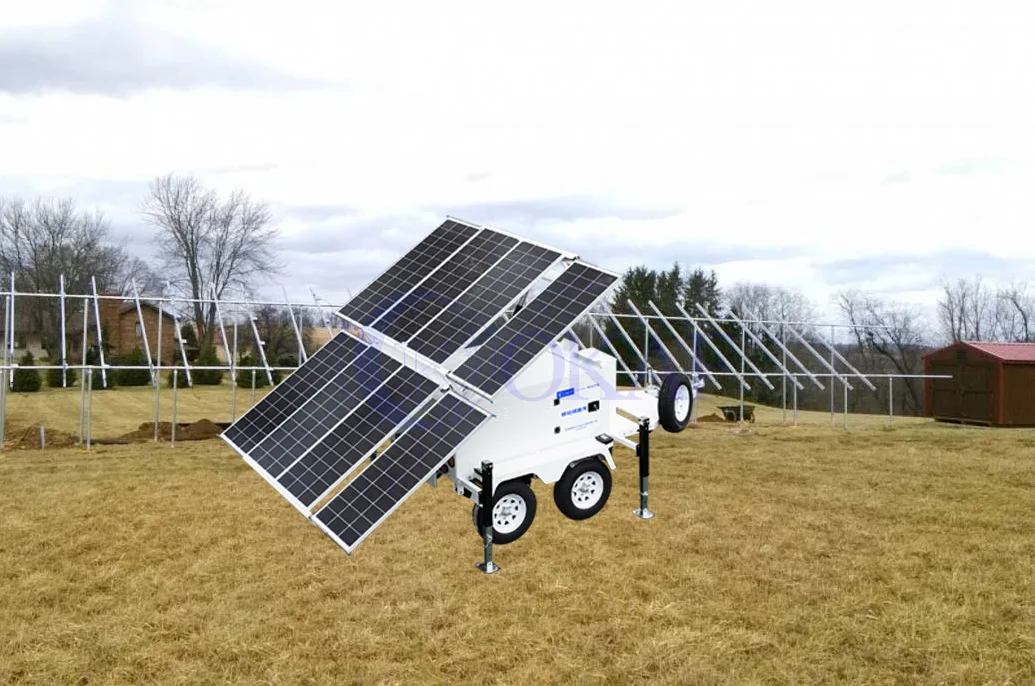

Mobile Solar Station
Our Solar Trailers are built with high-efficiency solar modules and industrial battery banks. No noise. No fuel. Very little maintenance. Well suited for both residential and commercial applications. We design our solar trailers for ease of towing, safety and to meet your power needs
【Functional features】
1. Providing AC 110V, 220V and DC 24V, 12V and other voltage outputs, the effective use time of the solar-based mobile power system can be greatly increased.

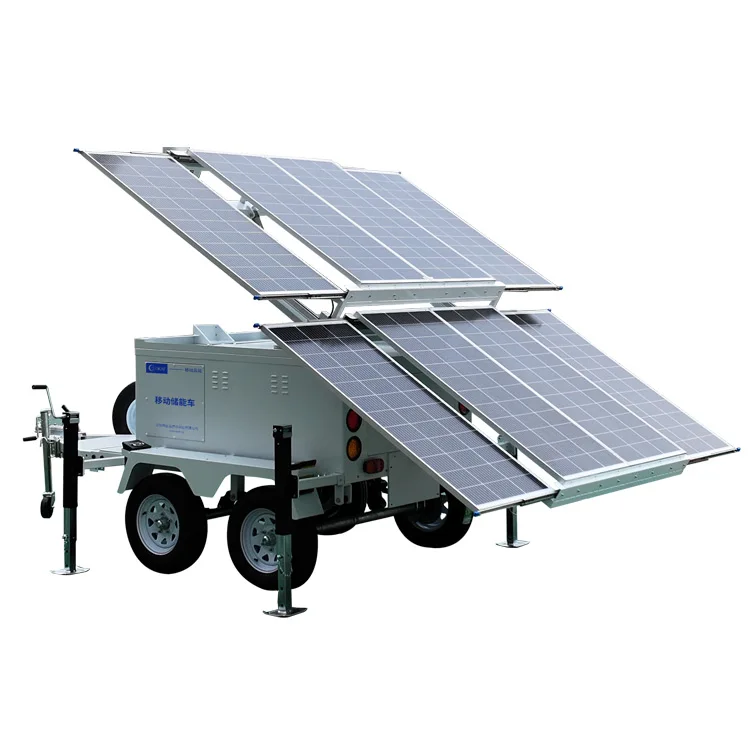

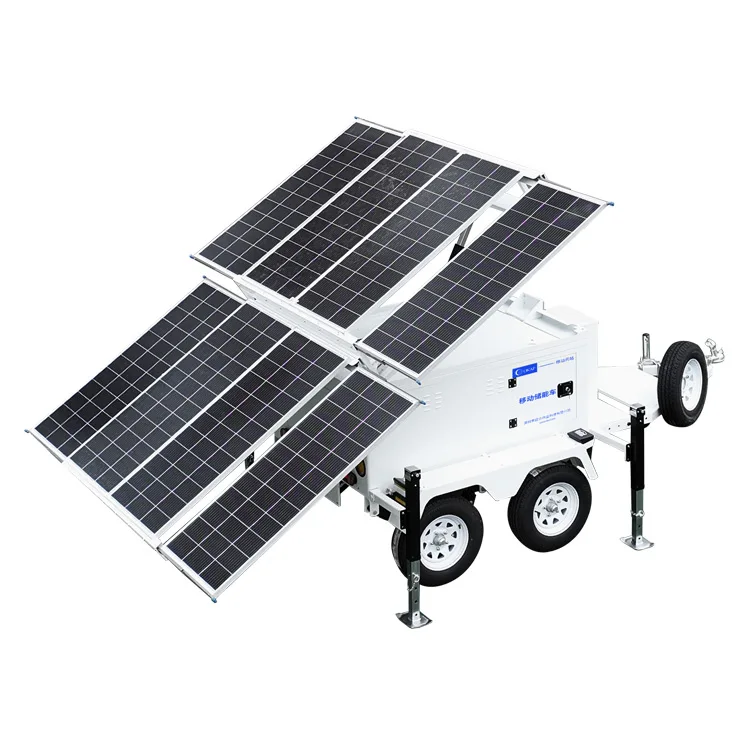

2. The tram is charged by eight 550W (4400W) monocrystalline silicon solar panels, with a conversion efficiency up to 21.7%, low power attenuation, and a 25-year excess linear power output guarantee. The applicable operating temperature is -45℃-+85℃, meeting various requirements. A harsh high and low temperature environment.
3. The power storage uses 18*200AH (43200wh) gel battery, which has high specific energy density, low self-discharge rate ≤2.5%/month, improved AGM separator, lower resistance, high assembly pressure to increase the life of deep cycle, Durable, 4. The discharge depth can reach 80%, the operating temperature is -40℃ - +60℃, and there is no additional cost.
5. The control system is integrated. The switches, display screens, and indicating instruments are all integrated on the same panel to facilitate the operator's factual monitoring. The 4.7-inch LCD displays real-time parameters related to PV, battery, and AC and DC loads, fault code display, and timely push of alarms. Fault information, load switch button, can control the output of AC and DC loads, and independently set the lamp switch and DC power main switch. The control system can detect the power generation voltage of the solar panel in real time and track the highest voltage and current value (VI), so that the system can charge the battery with maximum power output and has short circuit, overload, high voltage, high temperature and other functions.
2. The tram is charged by eight 550W (4400W) monocrystalline silicon solar panels, with a conversion efficiency up to 21.7%, low power attenuation, and a 25-year excess linear power output guarantee. The applicable operating temperature is -45℃-+85℃, meeting various requirements. A harsh high and low temperature environment.
3. The power storage uses 18*200AH (43200wh) gel battery, which has high specific energy density, low self-discharge rate ≤2.5%/month, improved AGM separator, lower resistance, high assembly pressure to increase the life of deep cycle, Durable, 4. The discharge depth can reach 80%, the operating temperature is -40℃ - +60℃, and there is no additional cost.
5. The control system is integrated. The switches, display screens, and indicating instruments are all integrated on the same panel to facilitate the operator's factual monitoring. The 4.7-inch LCD displays real-time parameters related to PV, battery, and AC and DC loads, fault code display, and timely push of alarms. Fault information, load switch button, can control the output of AC and DC loads, and independently set the lamp switch and DC power main switch. The control system can detect the power generation voltage of the solar panel in real time and track the highest voltage and current value (VI), so that the system can charge the battery with maximum power output and has short circuit, overload, high voltage, high temperature and other functions.
APPLICATIONS
EMERGENCY POWER FOR WHEN THE UTILITY IS TURNED OFF DUE TO STORMS OR FIRES
Mobile solar power come with larger battery banks and inverter outputs. It is the perfect choice for construction site trailers, telecom sites and many other commercial applications where reliable power is a must .Electricity to Industrial or commercial site suffering from severe power cuts remote locations where grid is not present,run homes, ranches, off grid cabins, RVs, trailers, tiny homes, and more. Plenty of energy to run most home appliances, refrigerators, freezers, water pumps, lights, communication systems, security cameras, satellite dishes, power tools, and even a welder . . . anywhere.
TECHNICAL DATA
Name | Mobile solar power trailer | Model | OK-48CN | |||
System Voltage | DC 48V | Battery | 18*200AH 12V Lithium battery | |||
Solar panel | 8*550W,efficiency 21.7% | Battery | 43200W·h capacity | |||
Trailer system | ||||||
Trailer standard | US | trailer hitch | 50mm / 2'' ball | |||
Wheel | ２*15'' pneumatic tires | Tripod | ４ | |||
Braking | Hand | Speed | 80km/h | |||
Charging system | ||||||
Power | 43KWH | Input voltage | AC220V / AC110V | |||
Charging efficiency | 85% | Charging current | 80A | |||
Interface | 1×DC12V + 1×DC24V 1×AC240V / AC120V | |||||
Package | ||||||
Size | 3700×2300×2500mm | Operate size | 4700×6500×2500mm | |||
Weight | 2860 | |||||
【Display interface】
Name | display | Specification |
Solar panel | 64.4V | Solar panel voltage |
3.3A | Solar panel current | |
0.2KW | Power | |
0.6KW | Cumulative power generation | |
Battery | 48V | battery voltage |
11.1A | Battery current | |
35% | Battery power percentage | |
25℃ | Battery temperature | |
DC load | 25.3V | DC load voltage |
4.9A | DC load current | |
0.1KW | DC load power | |
0.1KW | DC load cumulative power consumption | |
AC load | 220V | AC load voltage |
1.7A | AC load current | |
0.3KW | AC load power | |
0.3KW | Accumulated power consumption of AC load | |
50HZ | AC load frequency |
Battery care and maintenance tips:
1. There is no need to deliberately ensure that the battery is fully discharged and recharged every time. A deep charge and discharge under the control of the protection circuit can be performed once in a period of time (recommended within 1 month) to correct the battery power statistics;
2. If the battery is not used for a long time, it should be placed in a cool place to reduce the speed of its internal purification reaction.
3. The protection circuit is also unable to monitor the self-discharge of the battery. Batteries that have not been used for a long time should be charged with a certain amount of power to prevent excessive discharge damage caused by self-discharge during storage; 4. It cannot be disassembled and modified. Things to note: 1. If the battery is not used for a long time, it needs to be stored at full charge. Recharge it once every month or so. This will help the battery life (especially important). 2. Please pay attention to fire protection, waterproof, dustproof, and keep a certain distance from flammable materials when charging.
2. If the battery is not used for a long time, it should be placed in a cool place to reduce the speed of its internal purification reaction.
3. The protection circuit is also unable to monitor the self-discharge of the battery. Batteries that have not been used for a long time should be charged with a certain amount of power to prevent excessive discharge damage caused by self-discharge during storage; 4. It cannot be disassembled and modified. Things to note: 1. If the battery is not used for a long time, it needs to be stored at full charge. Recharge it once every month or so. This will help the battery life (especially important). 2. Please pay attention to fire protection, waterproof, dustproof, and keep a certain distance from flammable materials when charging.
