Price:$300.00 - $350.00

Quantity:


Product Overview

Description



Product Description


Stable output, UPS function
24-hour operation, one year warranty
Refuse to cut corners, refuse to use inferior materials






 OPERATING INSTRUCTIONS

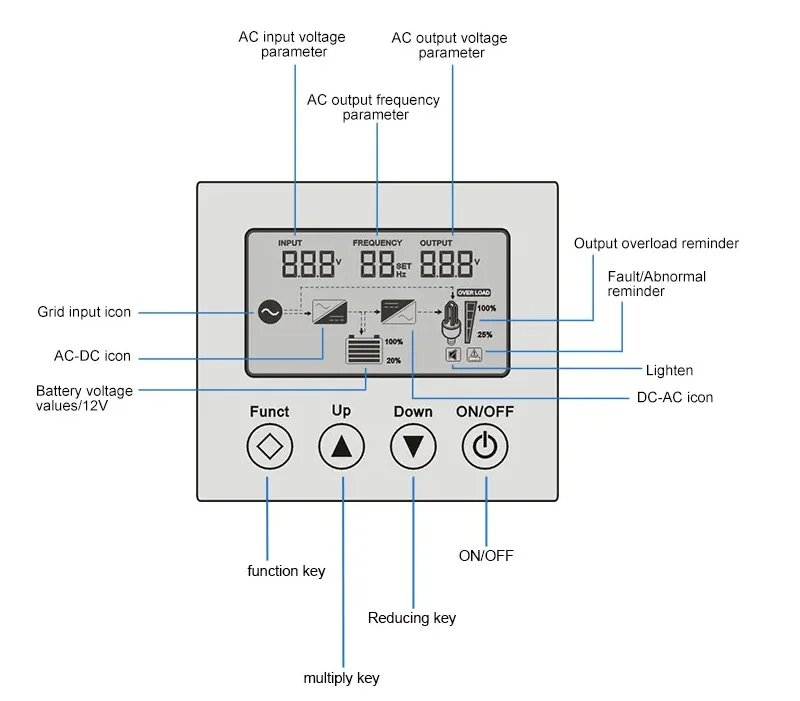

Panel LCD display graphical representation instruction. LCD display and function keys interface can display the equipment working status, such as: input/output voltage, frequency, grid
mode, inverter mode, battery capacity, load capacity, alarm warning etc.




Specification


Type: FT
1KW
1.5KW
2KW
3KW
4KW
5KW
6KW
Rated power
1000w
1500W
2000w
3000w
4000w
5000w
6000W
Battery
Rated voltage
12VD/24VDC /48VDC
24VDC/48VDC
48VDC/96VDC
Charge current
30A(default)-C0-C6 can be set
Battery type
U0-U7 can be set
Input
Voltage range
85-138VAC/170-275VAC
Frequency
45-65Hz
Output
Voltage range
50/60Hz±1%( Inverter mode)
Frequency
110VAC/220VAC;±5%( Inverter mode)
Output wave
Pure sine wave
Switching time
<10ms( traditional load)
Efficiency
>85%(80% Resistance load)
Overload
110-120%/30S;>160%/300ms;
Protection
Battery over voltage protection, battery under voltage protection, overload protection, short circuit protection, over temperature
protection and more
Operating ambient temperature
0-40ºC
Storage ambient temperature
-15 - +50ºC
Operating/storage ambient
0-90% no condensation
Machine size: L*W*H (mm)
480*222*182
655*248*182
Package size: L*W*H(mm)
560*290*235
735*316*235

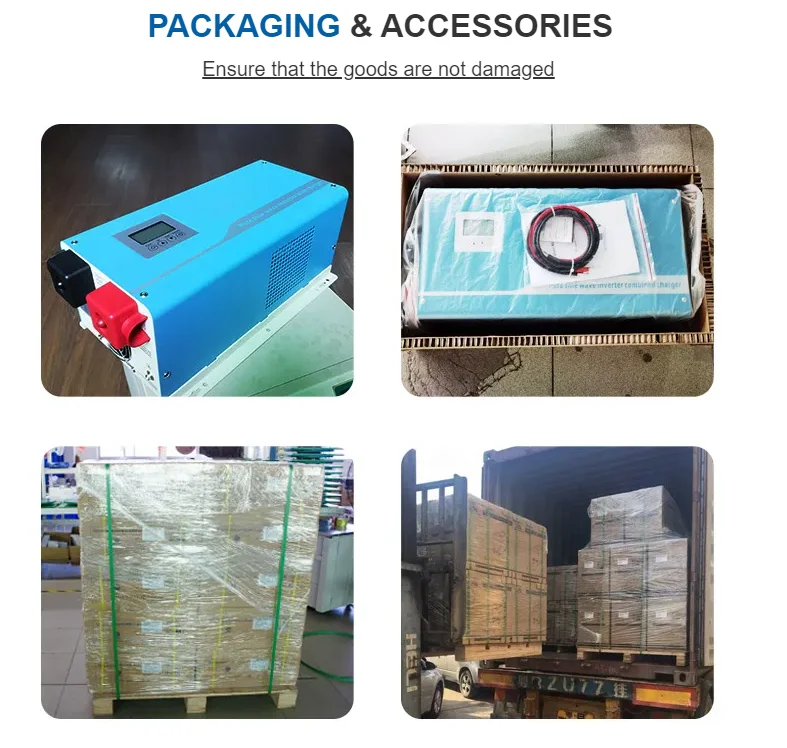

Packing & Delivery




①Open the package, inspect product accessories,including:1 host,1 piece user manual
②Inspect whether the machine have been damaged during the transport or not, If it have some damage, don’t start the machine, please contact us.
