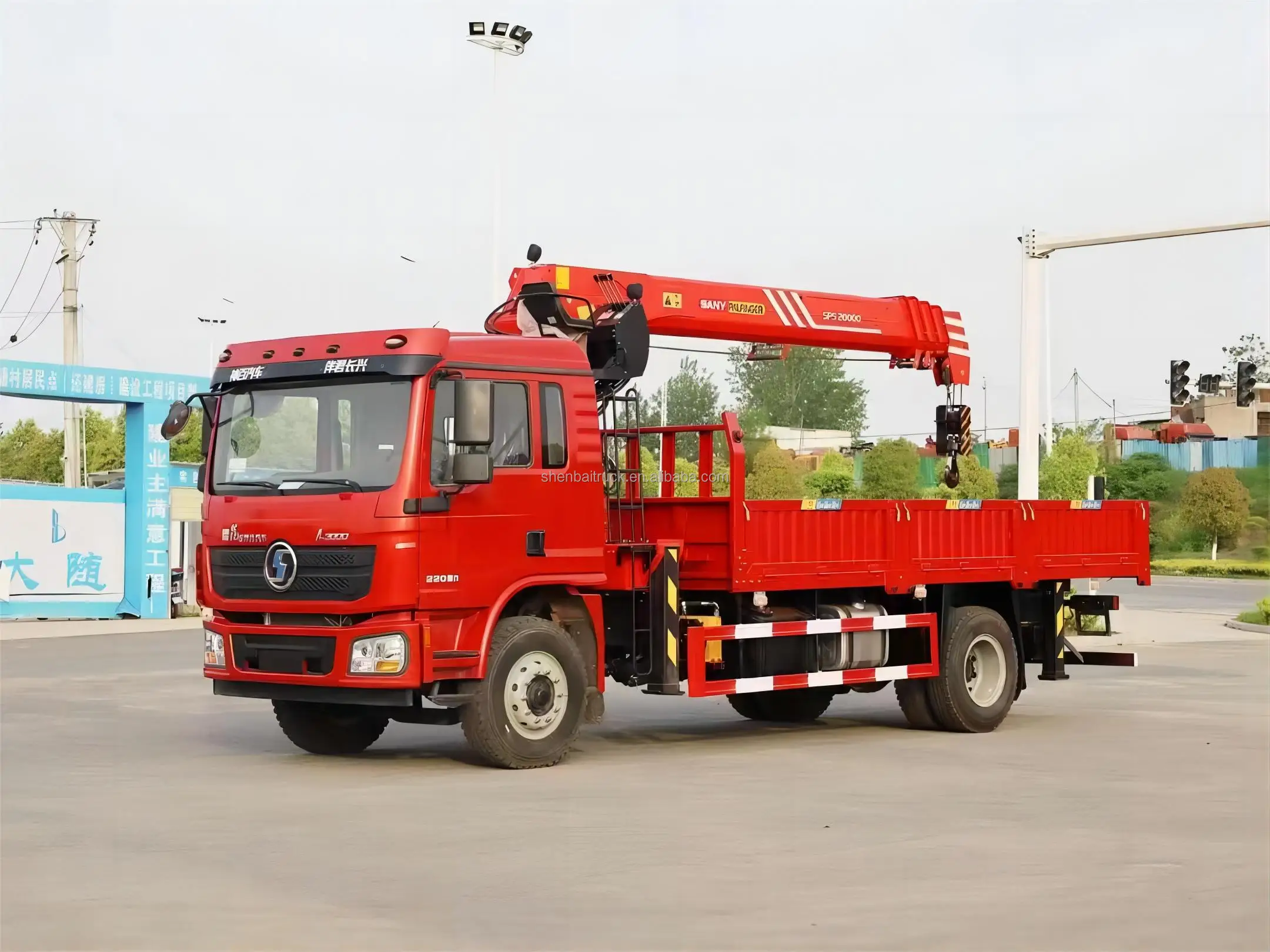

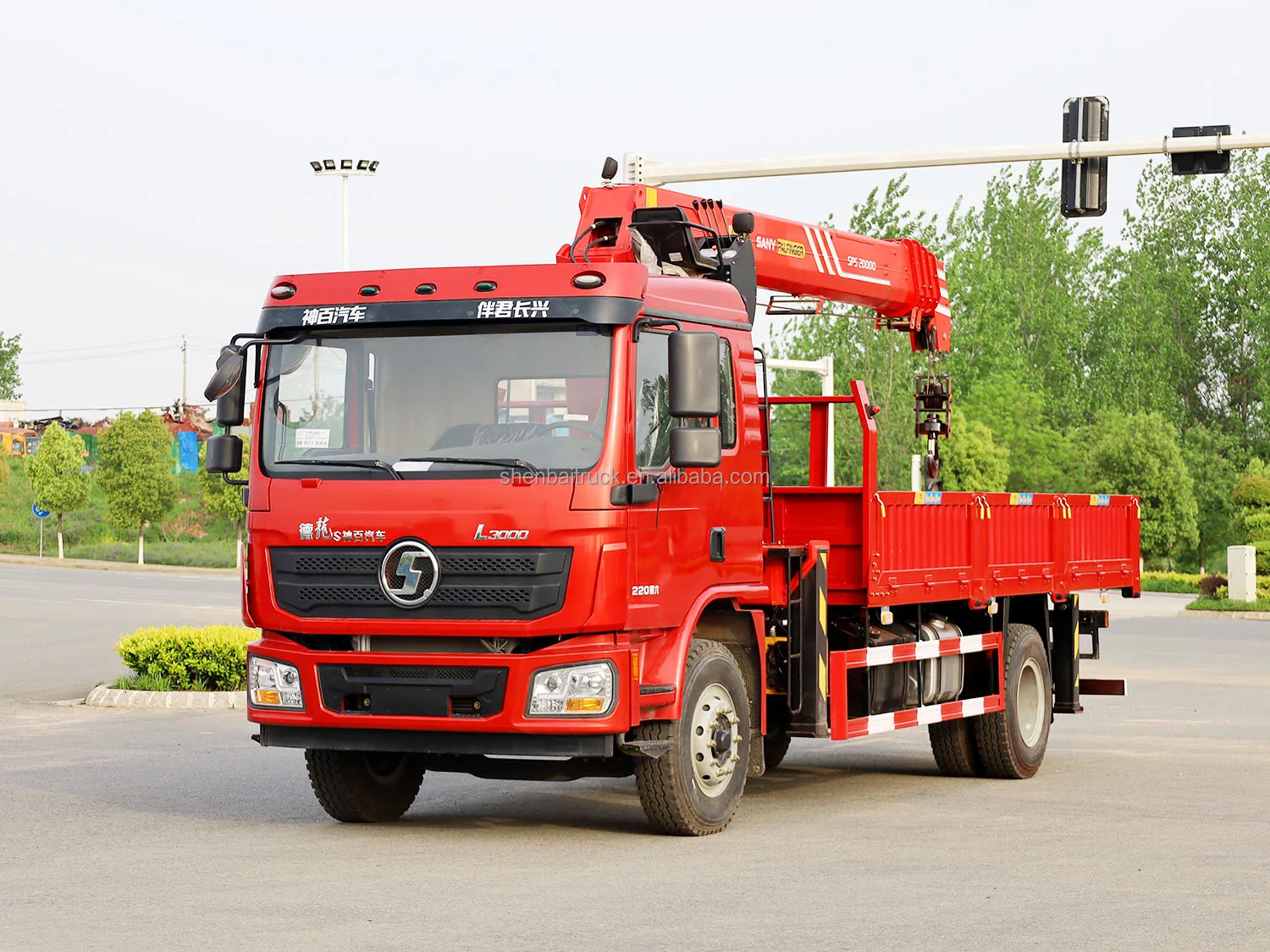

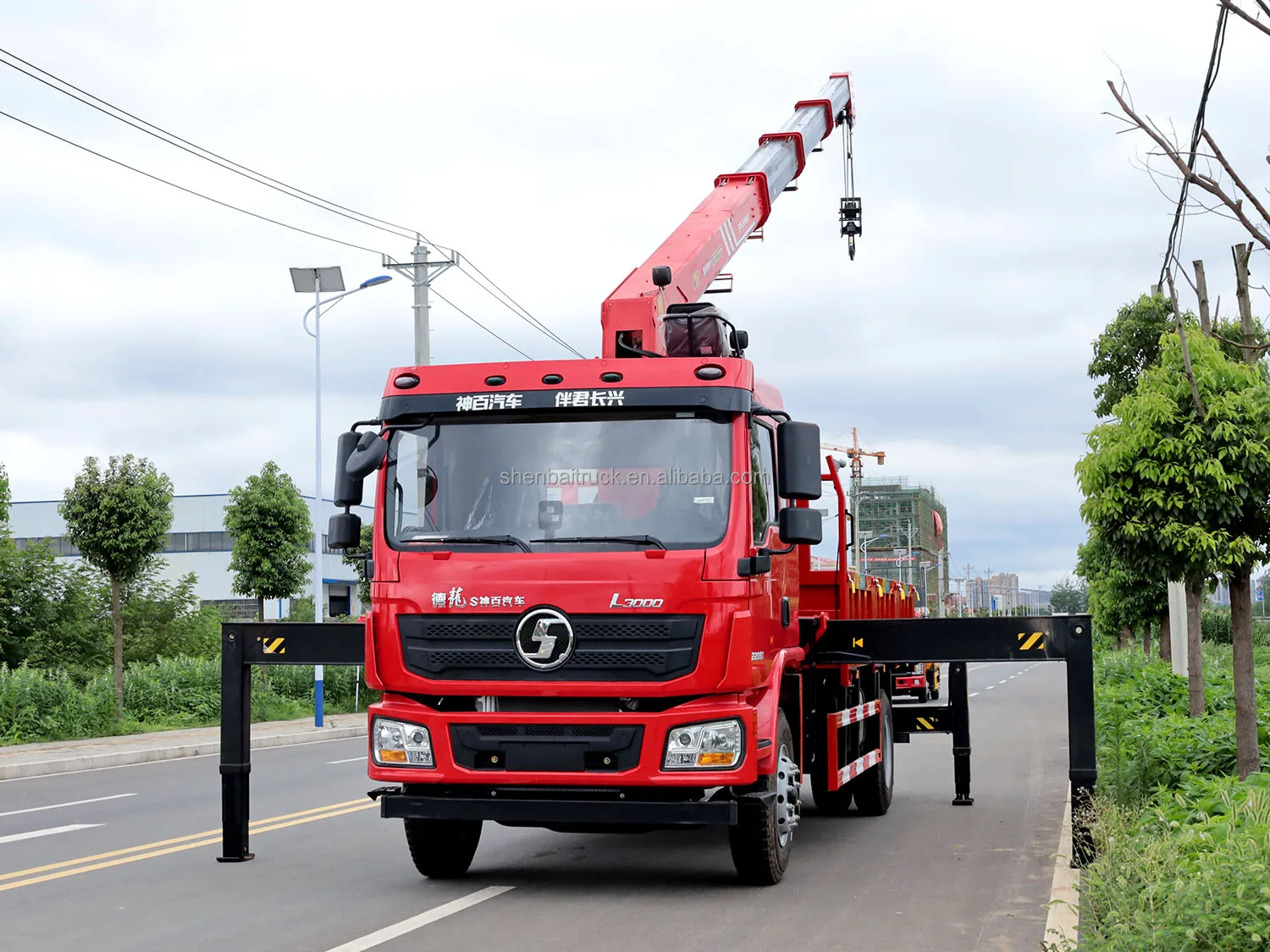

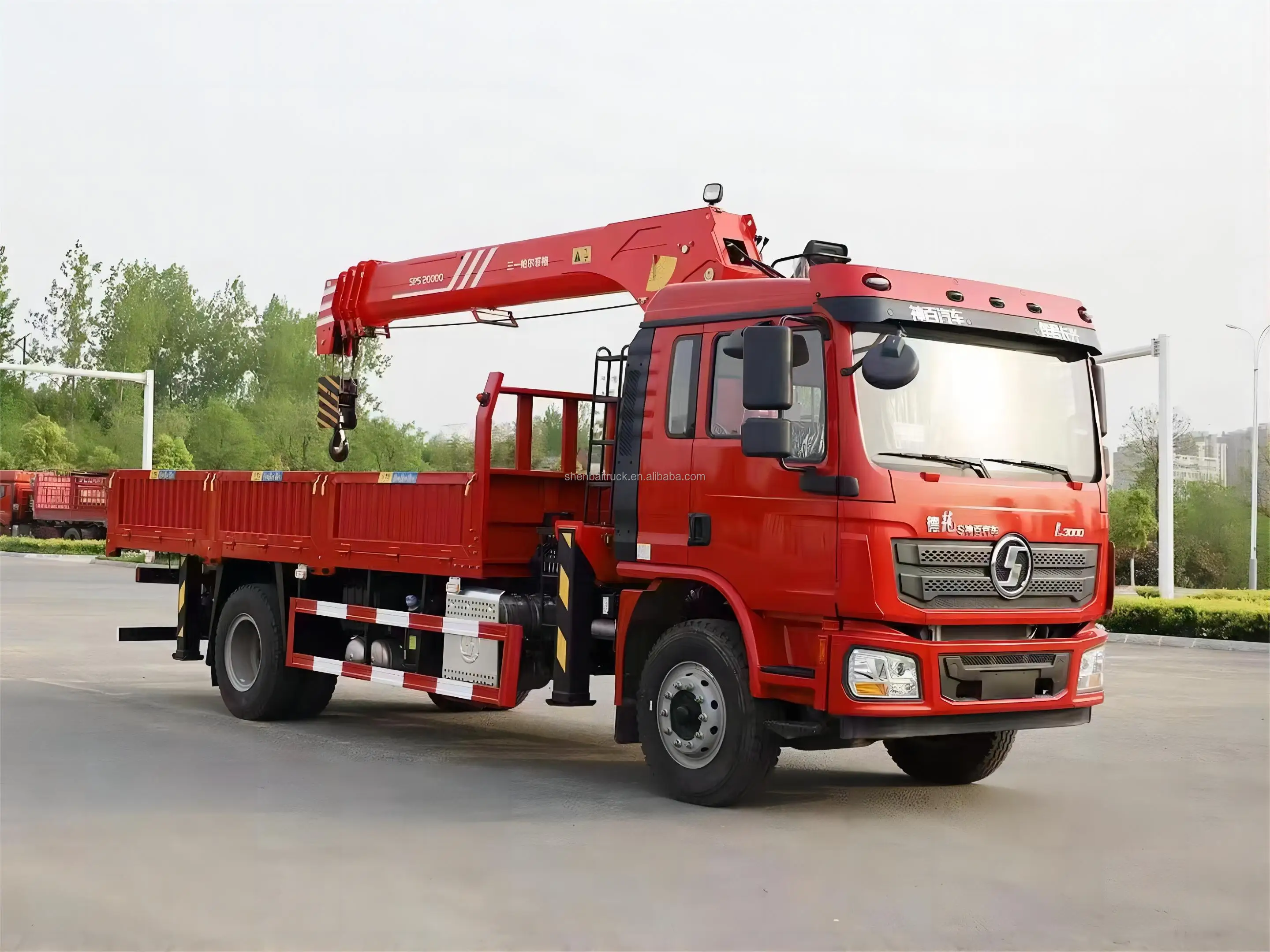

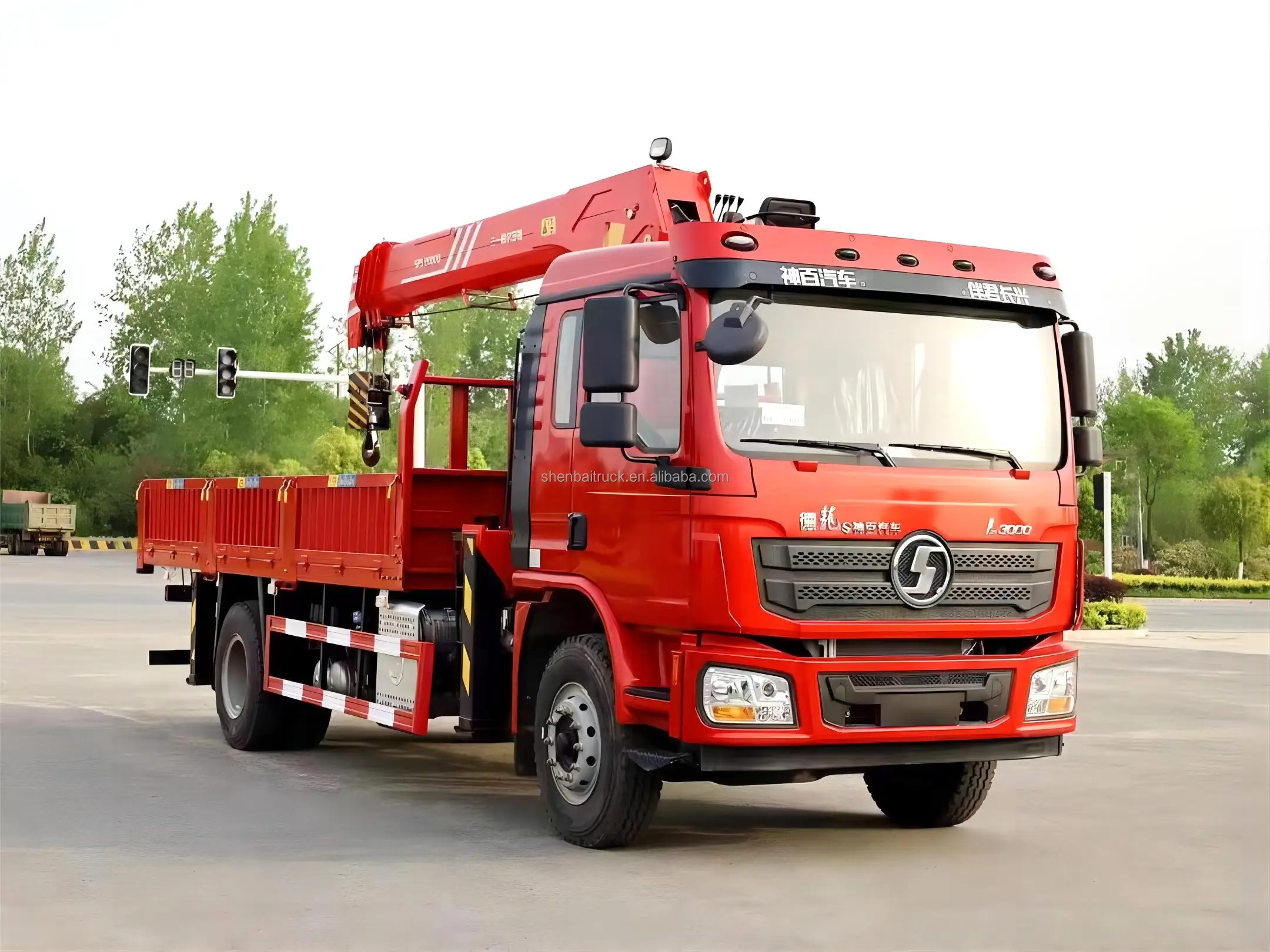

Palfinger Truck Mounted Crane 7Ton 8Ton 10Ton Hydraulic Telescopic Boom Crane Shacman L3000 4x2 Cargo Crane for Truck
- Category: >>>
- Supplier: Hubei Shenbai Special Automobile Co. Ltd.
Share on (1601238209609):
Product Overview
Description
PRODUCT SPECIFICATIONS
Palfinger Truck Mounted Crane 7Ton 8Ton 10Ton Hydraulic Telescopic Boom Crane Shacman L3000 4x2 Cargo Crane for Truck
Shenbei crane mounted for trucks
Shenbai's independent R&D brand:
Shenbai/Palfinger/XCMG/crane, Well know on domestic markets.
With different loading weight:
straight boom crane: 2ton, 3.5 ton, 4 ton, 5 ton, 8 ton, 10 ton, 12ton, 14ton, 16ton, 20ton.
knuckle / folding arms crane: 4 ton, 6.3 ton, 8ton, 12ton, 16ton, 20ton, 25tons, 30ton, 35ton, 40ton, 45ton, 65ton, 110 ton, at basic lifting height of 2m, and 83ton, 100ton, 130ton at lifght height of 4m.
Chassis information | ||||||||
Item | Data | Item | Data | |||||
1 | Applicable crane | 7/8/10 ton | Max Speed | 90km/h | ||||
2 | Chassis Brand | Shacman | Axles | 2 | ||||
3 | Gross weight | 18000Kg | Cab | 3 person allowed | ||||
4 | Curb weight | 11800 kg | Engine Brand | Weichai/Yuchai | ||||
5 | Dimensions | 9000x2550x3850mm | Emission Standard | Euro 3/4/5/6 | ||||
6 | Cargo body dimension | 6200X2450X600mm | Horse Power | 200-300 hp | ||||
7 | Wheelbase | 4500/4700/5000/5200/5600mm | Emissions | 4580-7360ml | ||||
8 | Drive type | 4 x 2 | Chassis Brand | Dongfeng / Shacman/ Faw / Howo /Foton | ||||

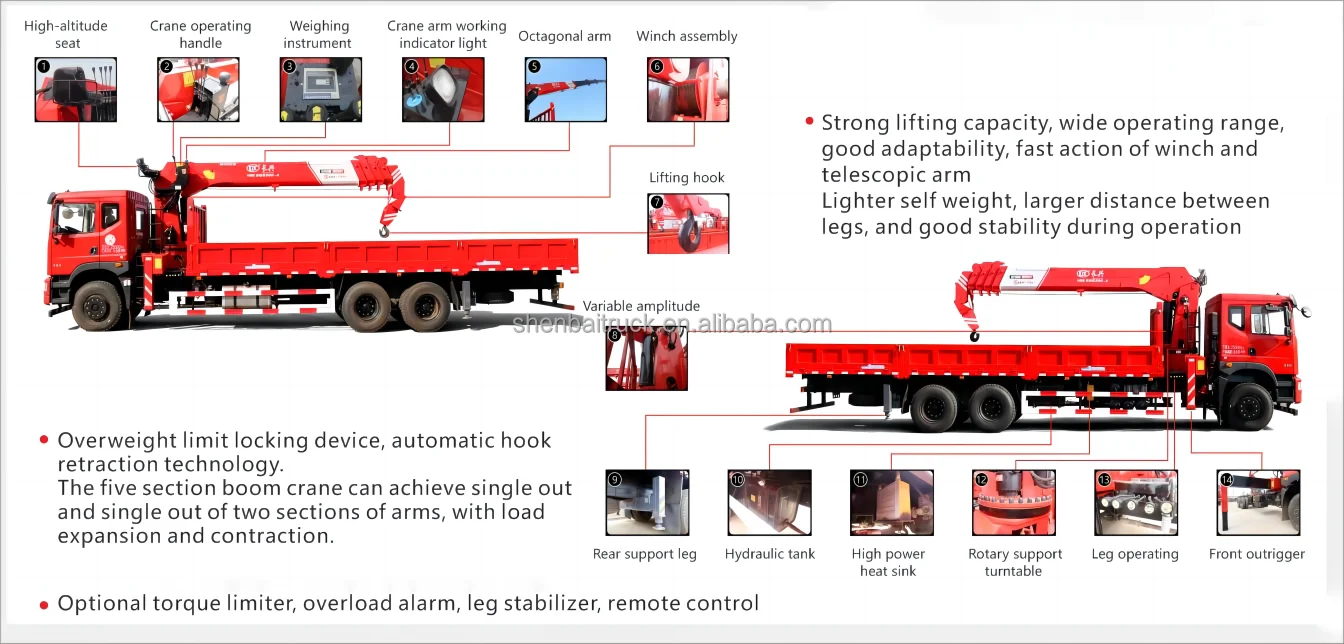

PRODUCT CONFIGURATION
1. Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.
2. End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3. Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4. Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
5. Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.
2. End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3. Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4. Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
5. Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.
Optional Devices
DUMP Function+Rear Outrigger
100M Wireless Remote Control
With Drill
Brick clamping device
Grabber
Aerial work basket
Product Advantage
Certifications
Our Advantages
1. Single cylinder synchronization guy cable technology make work efficiency more higher than before.
2. Advanced development means make sure that the design is reliable.
3. The more symmetrical center design of pentagon hexagon boom make it has bigger anti-bending capacity.
4. Compact hinge point design take up smaller space.
5. The work is more safety after fitted with overwind alarm equipment.
6. The integer lifting winch improved the working efficiency greatly and prolonged work life of hydraulic system.
7. Float three-point bridge structure can lower the accessional stress on the chassis when driving.
8. Self-designed and developed slewing machine with greater driving force can meet various requirements of working situation.
9. Anti-slewing impulse equipment that make vehicle running safety..
2. Advanced development means make sure that the design is reliable.
3. The more symmetrical center design of pentagon hexagon boom make it has bigger anti-bending capacity.
4. Compact hinge point design take up smaller space.
5. The work is more safety after fitted with overwind alarm equipment.
6. The integer lifting winch improved the working efficiency greatly and prolonged work life of hydraulic system.
7. Float three-point bridge structure can lower the accessional stress on the chassis when driving.
8. Self-designed and developed slewing machine with greater driving force can meet various requirements of working situation.
9. Anti-slewing impulse equipment that make vehicle running safety..

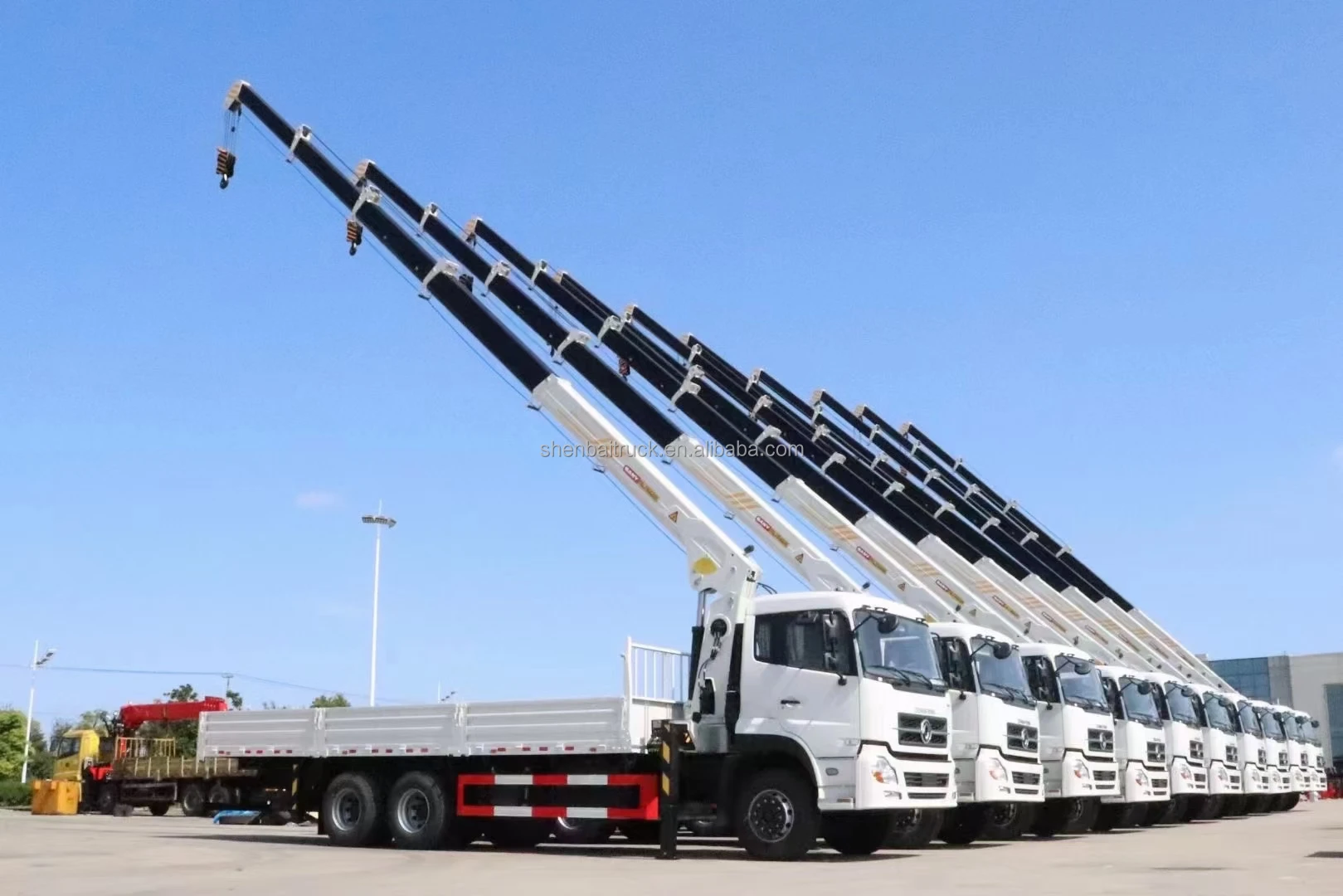

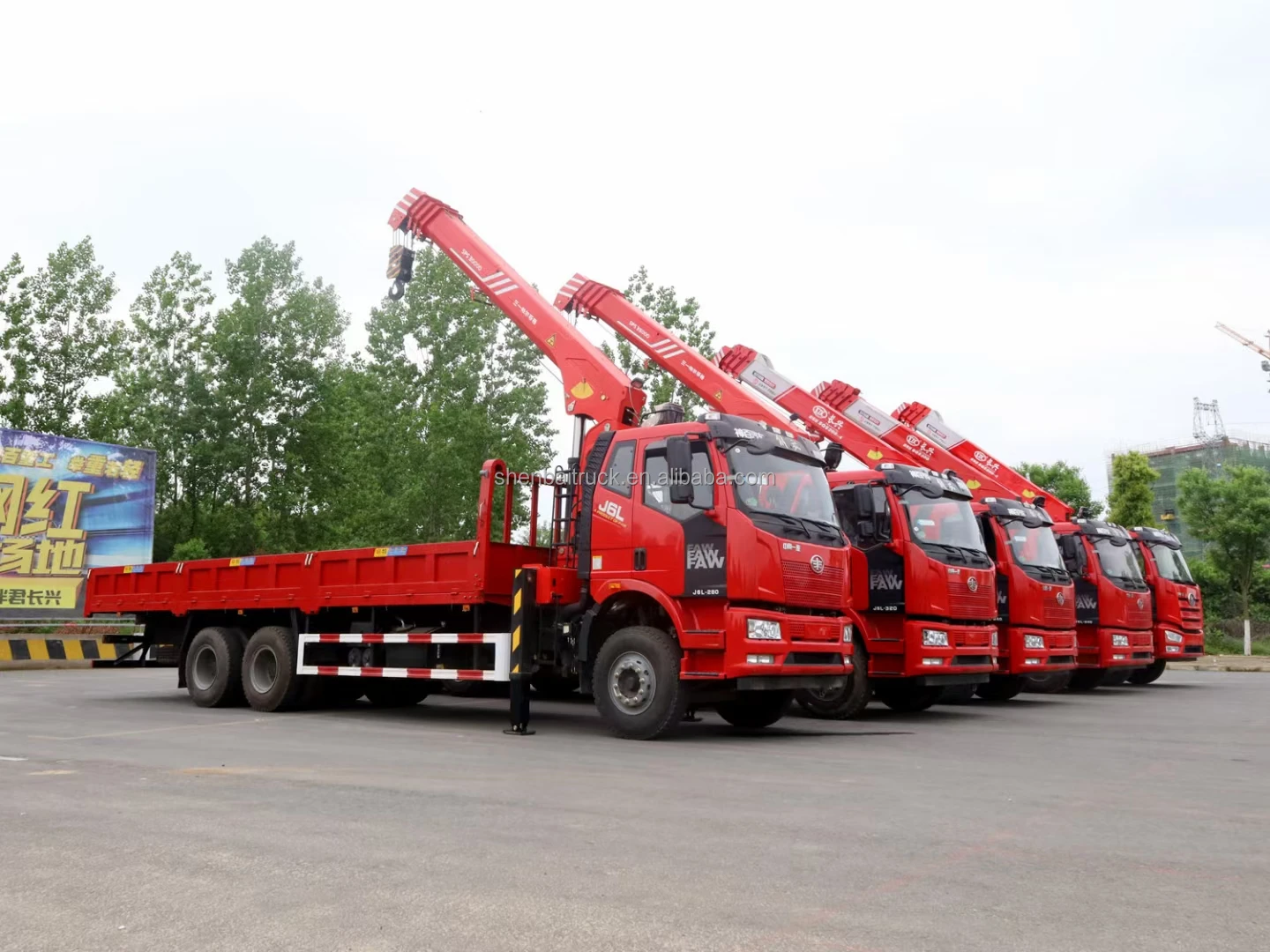

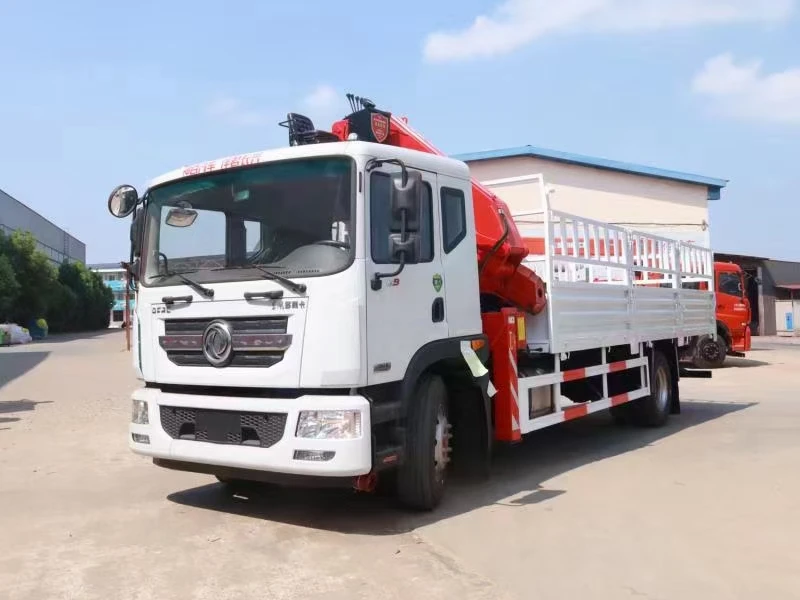

Product Pictures
Packaging and Shipping
Company Profile / About Us

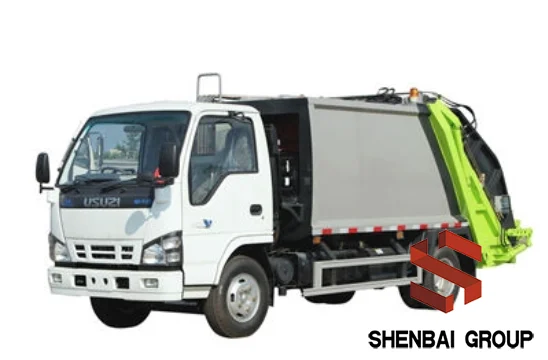

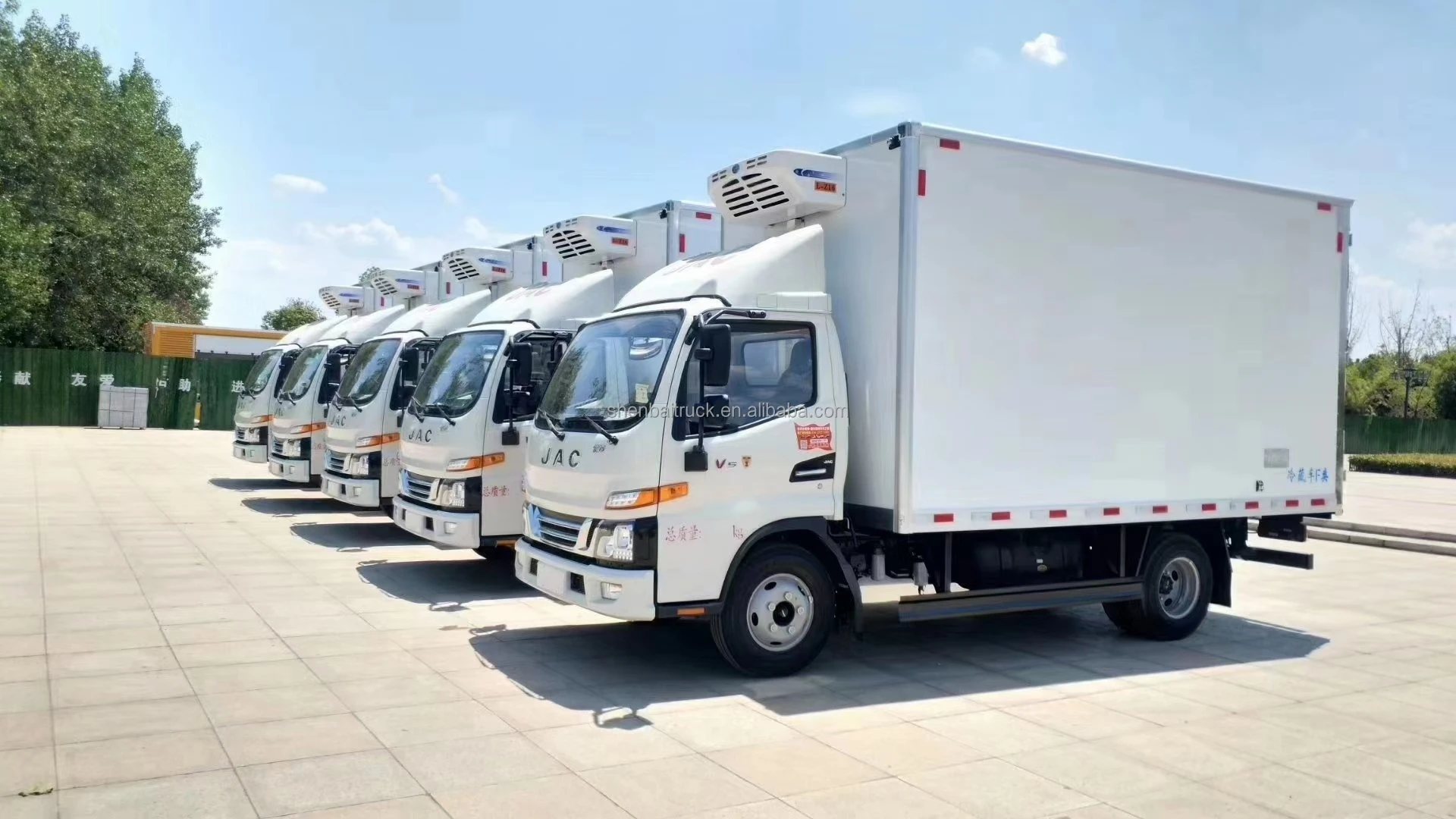

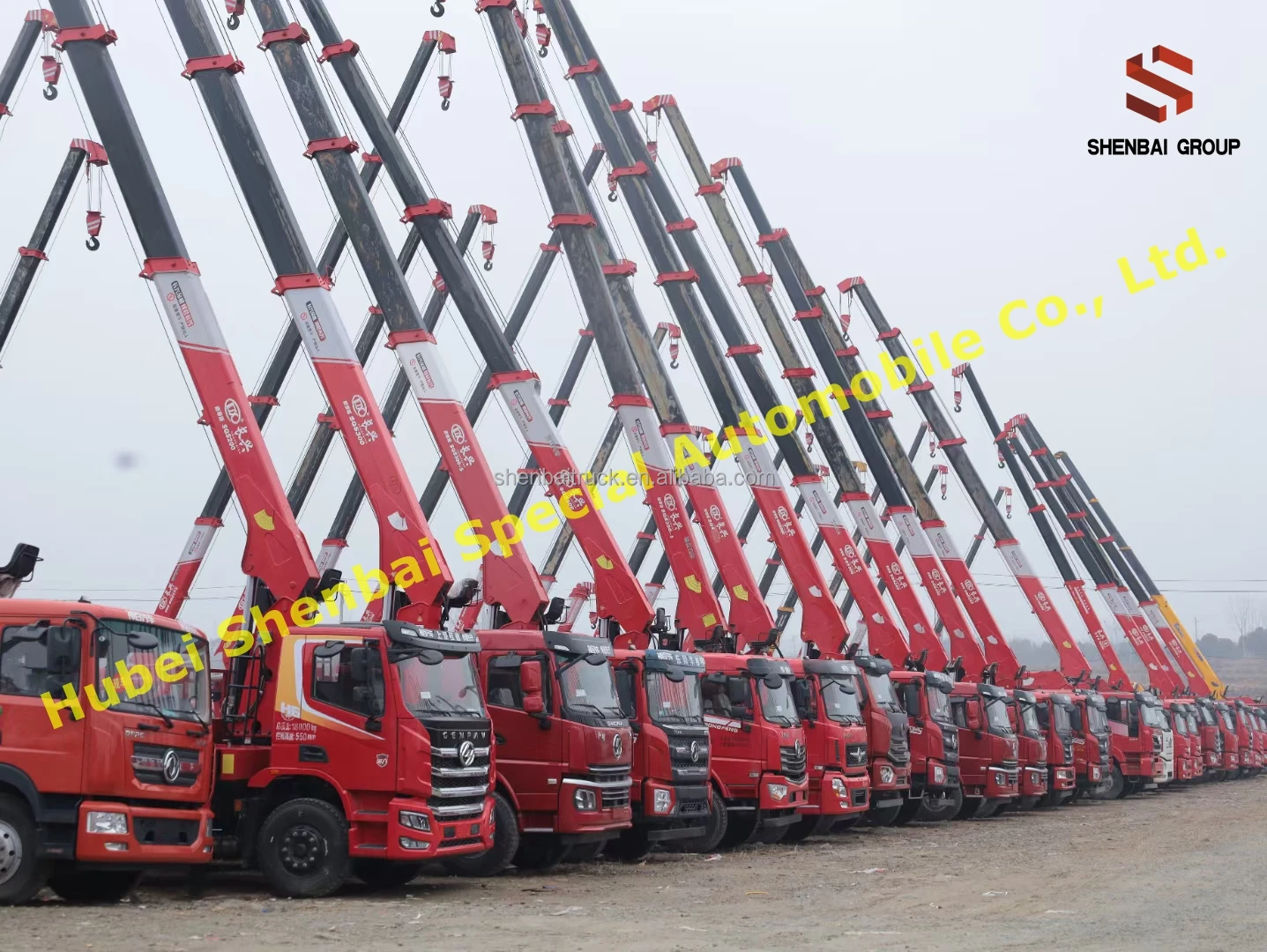

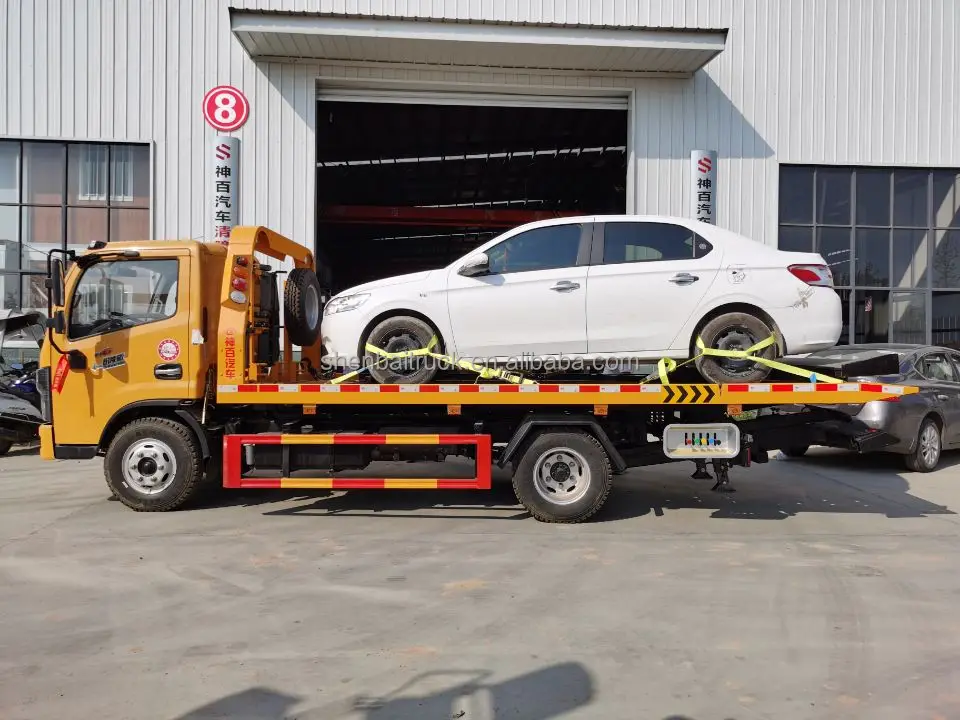

Hubei Shenbai Special Automobile Co., Ltd. was established in 2013 and is located in Suizhou City, Hubei Province. It is a core enterprise of Shenbai Group and a strategic partner of Sany Palfinger. The group focuses on the research, development and manufacturing of cranes, and other special purpose vehicle, like:truck mounted crane, flat bed tow trucks, refrigerated truck,garbage trucks and other special trucks. Shenbai now has an annual production scale of 8,000 special vehicles, and has passed IS9001-2000 international quality system certification and national 3C certification.
Our products have been shipped to many different countries and areas in Asia, Africa and South-America, we're looking for more and more longterm partnership all over the world!
Our products have been shipped to many different countries and areas in Asia, Africa and South-America, we're looking for more and more longterm partnership all over the world!
FAQ
1.Are you factory or trading Company?
Yes, we are factory. You're welcomed to visit our factory.
Yes, we are factory. You're welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with truck.
We can provide various certifications associate with truck.
5. How long could we receive our goods?
It depends on the product that you have ordered. Generally 20-30 days.
It depends on the product that you have ordered. Generally 20-30 days.
6. How about the after-sale service?
We can provide you the technical support to guide you repair your product. And we will also offer original spare parts .
We can provide you the technical support to guide you repair your product. And we will also offer original spare parts .
