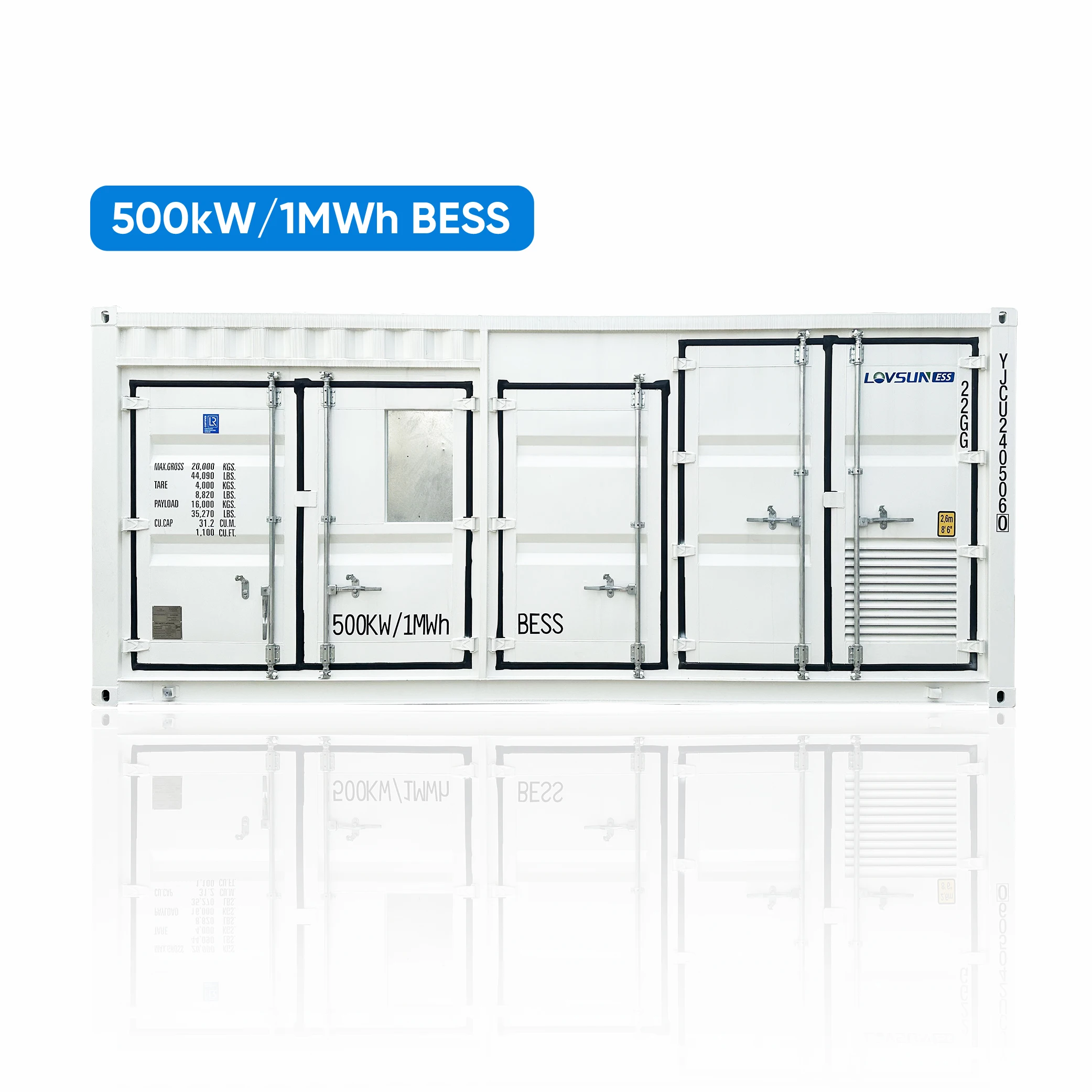

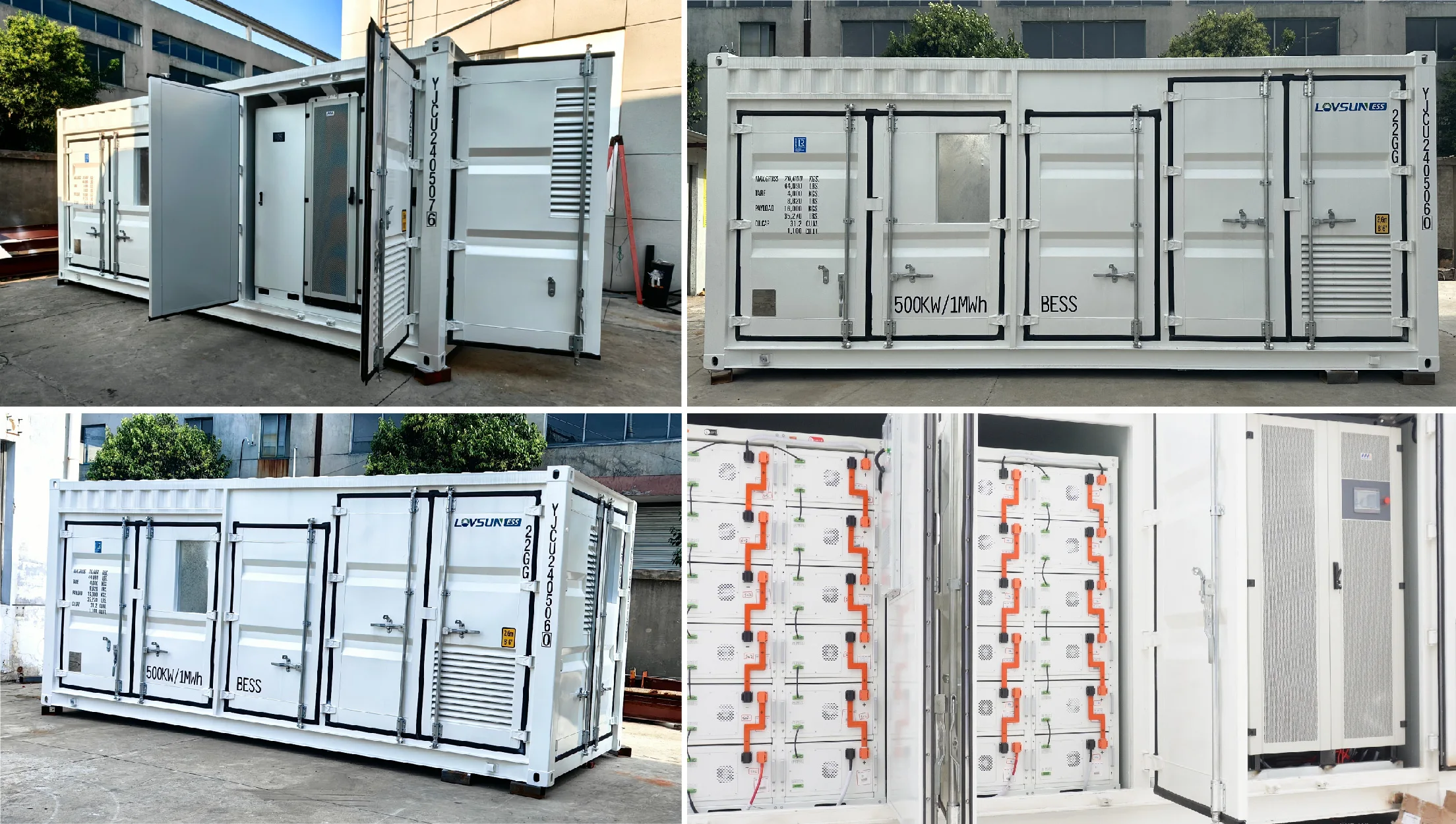

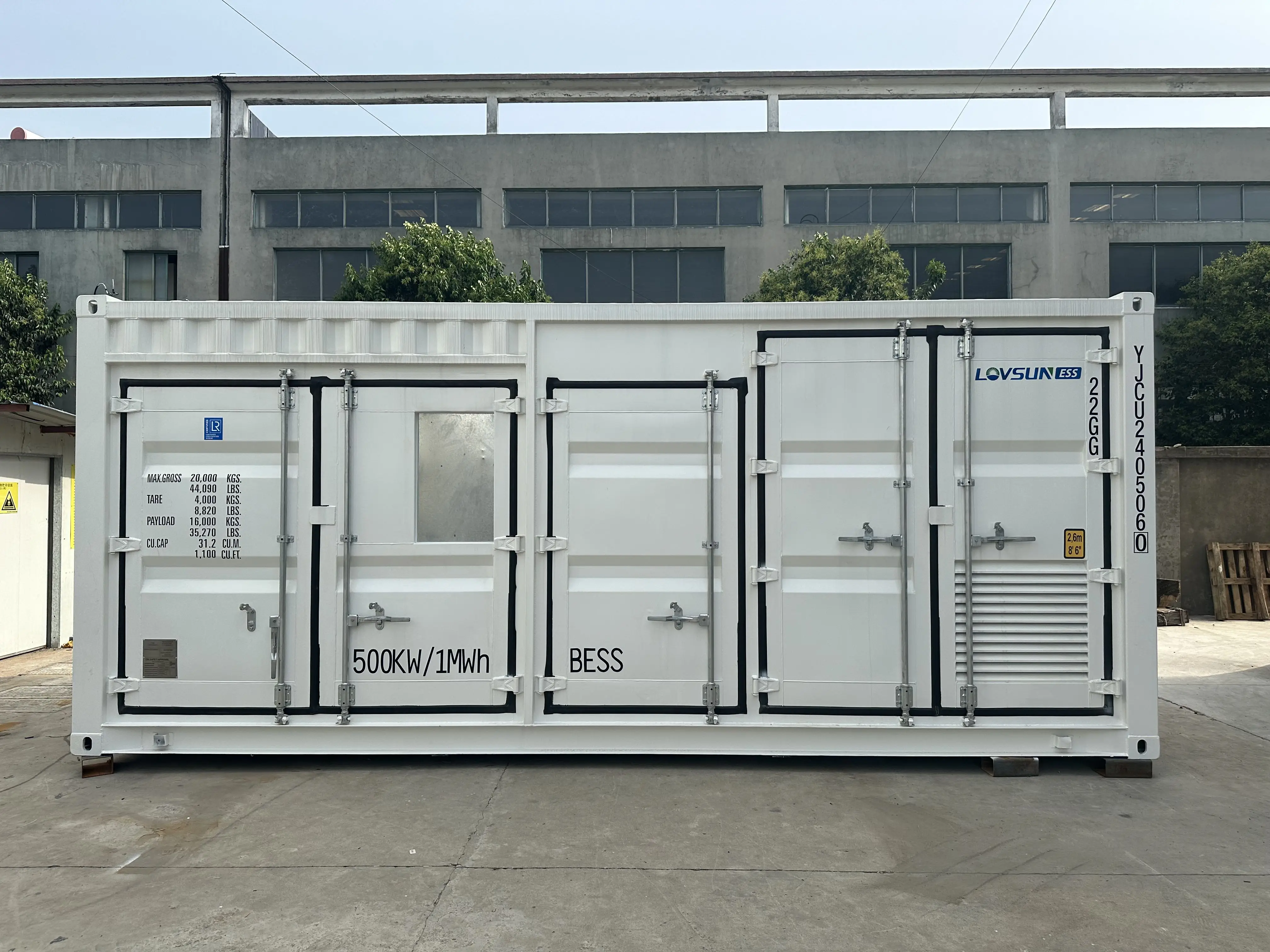

500kW 1MW 500kWh 1MWh Battery Life Span 15 years Energy Storage System Storage Solar Utility Energy Storage Container
- Category: >>>
- Supplier: Lovsun Energy Co.LtdLovsun Co.Ltd
Share on (1601238251738):
Product Overview
Description

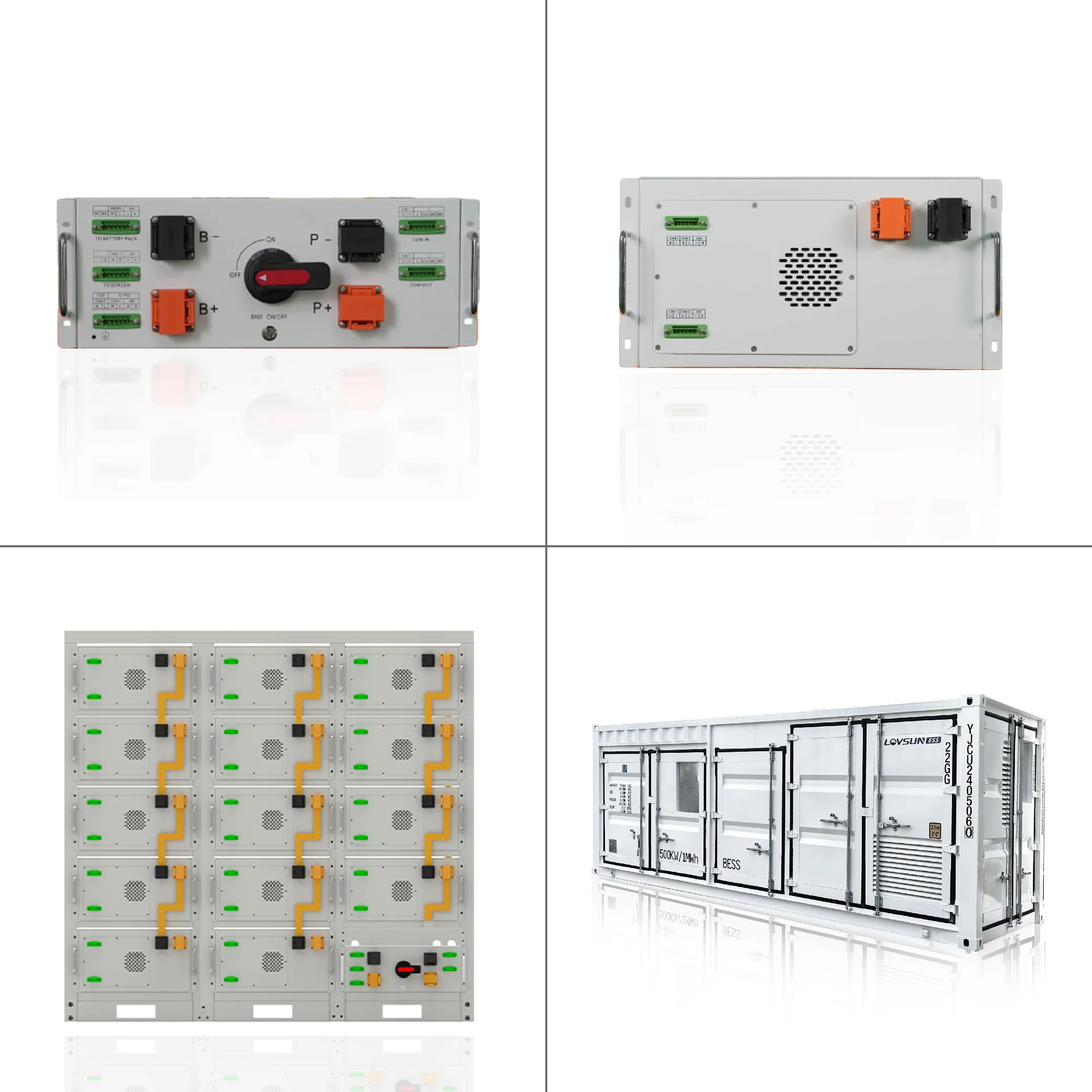

Product Description
Specification
Battery chemistry | Lithium Iron Phosphate (LFP) |
Cell life cycle | 80%Retention with 5,000 Cycles @1C25℃ |
Cell spec | 3.2V/280Ah |

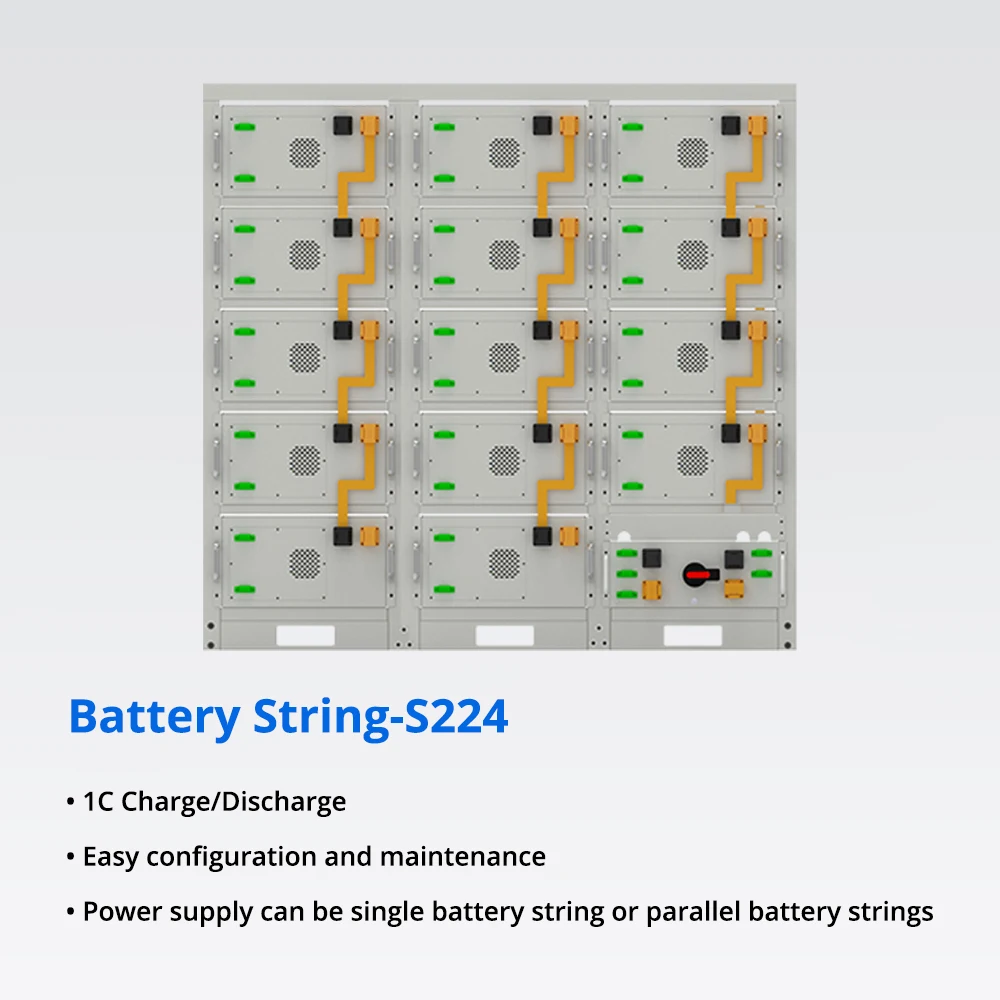

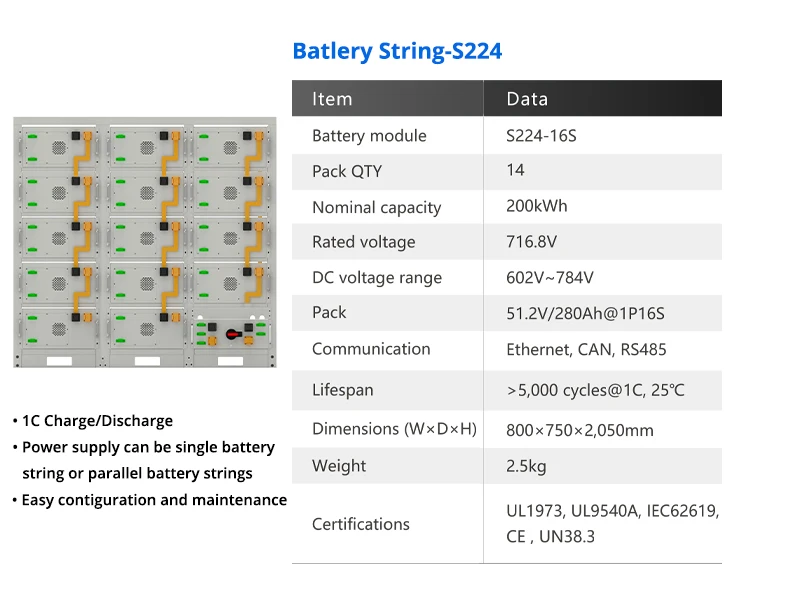

String configuration | 1P224S |
Number of strings | 5 |
Rated energy capacity | 1MWh |
DC rated energy capacity | 1.003.520kWh |
Rated voltage | 716.8V |
Voltage range | 602V~784V |

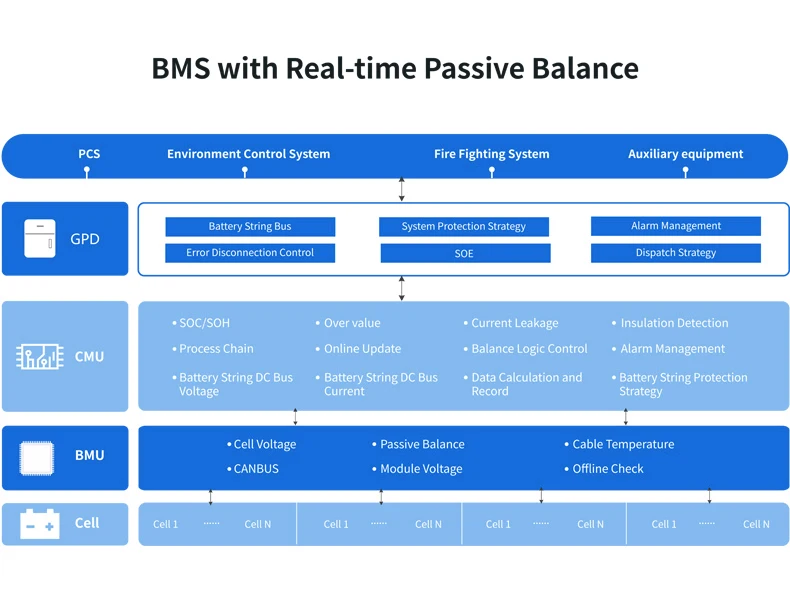

BMS communication interface | RS485,Ethernet |
BMS communication protoco | Modbus RTU,Modbus TCP |

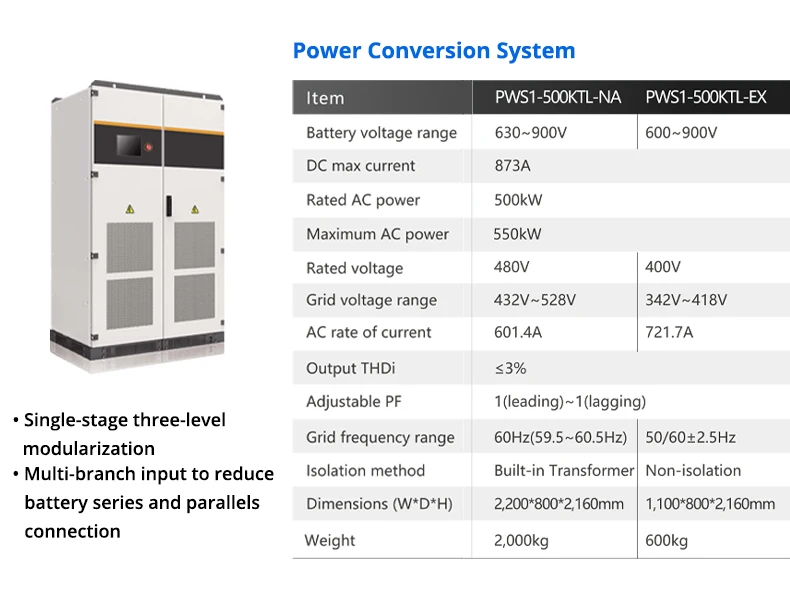

Rated AC power | 500kW |
Maximum AC power | 550kW |
Rated voltage | 480V |
Grid voltage range | 432~528V(Configurable) |
AC rate of current | 601.4A |
Output THDi | <3% |
AC PF | 0.1~1 leading or lagging (Controllable) |
AC output | 3-Phase 4-Wire+PE |
Degree of protection | IP54 |
Operating temperature range | -20~40℃ |
Relative humidity | 0~95%(non-condensing) |
Max working altitude | 3000m/10000feet(>2000m/6500feet derating) |
Cooling concept of DC hatch | HVAC |
Fire fighting system | NOVEC1230/FM-200 |
Communication interfaces | RS485,Ethernet,GPRS |
Certificates | UL9540,IEC62933,UN3536,etc |

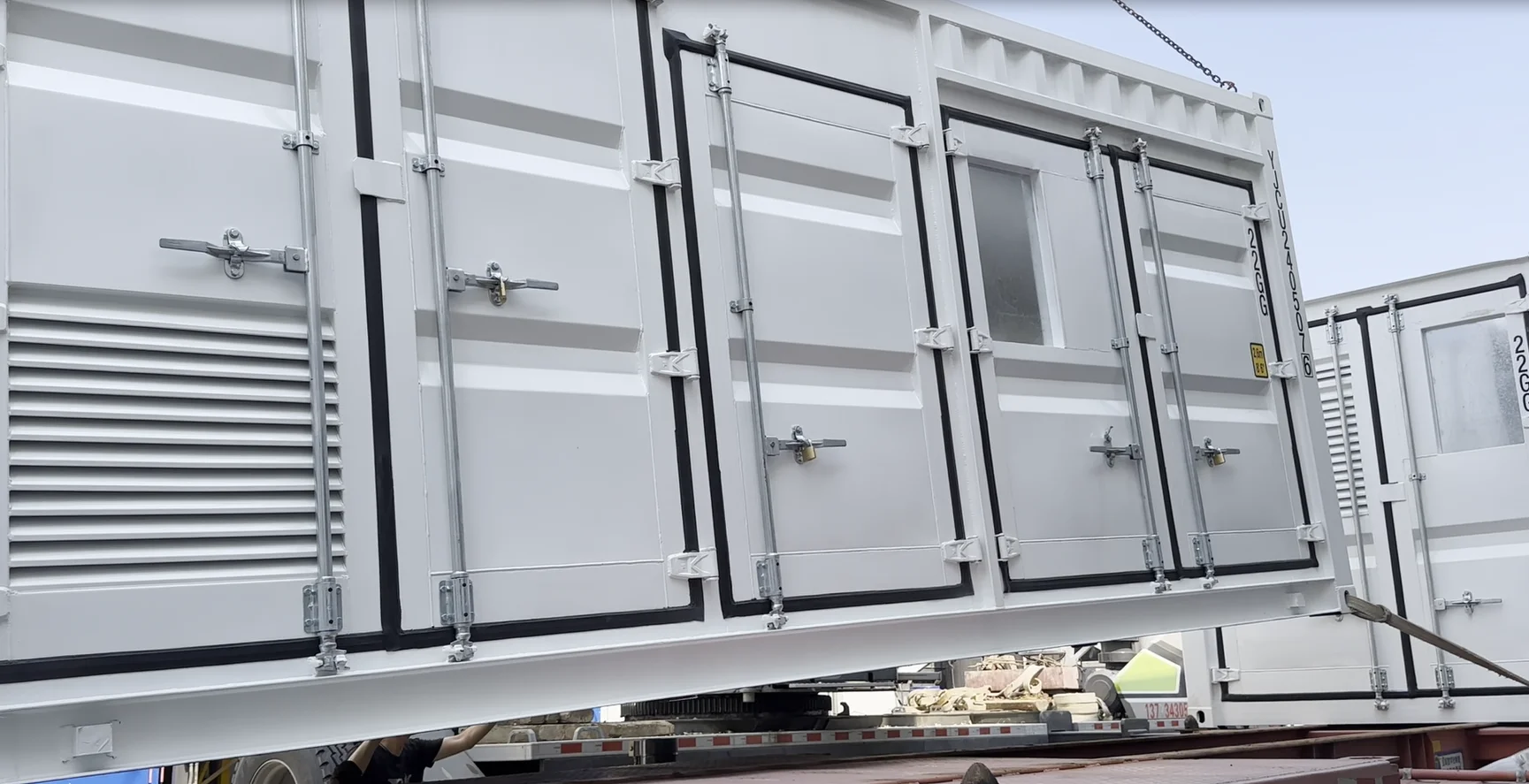

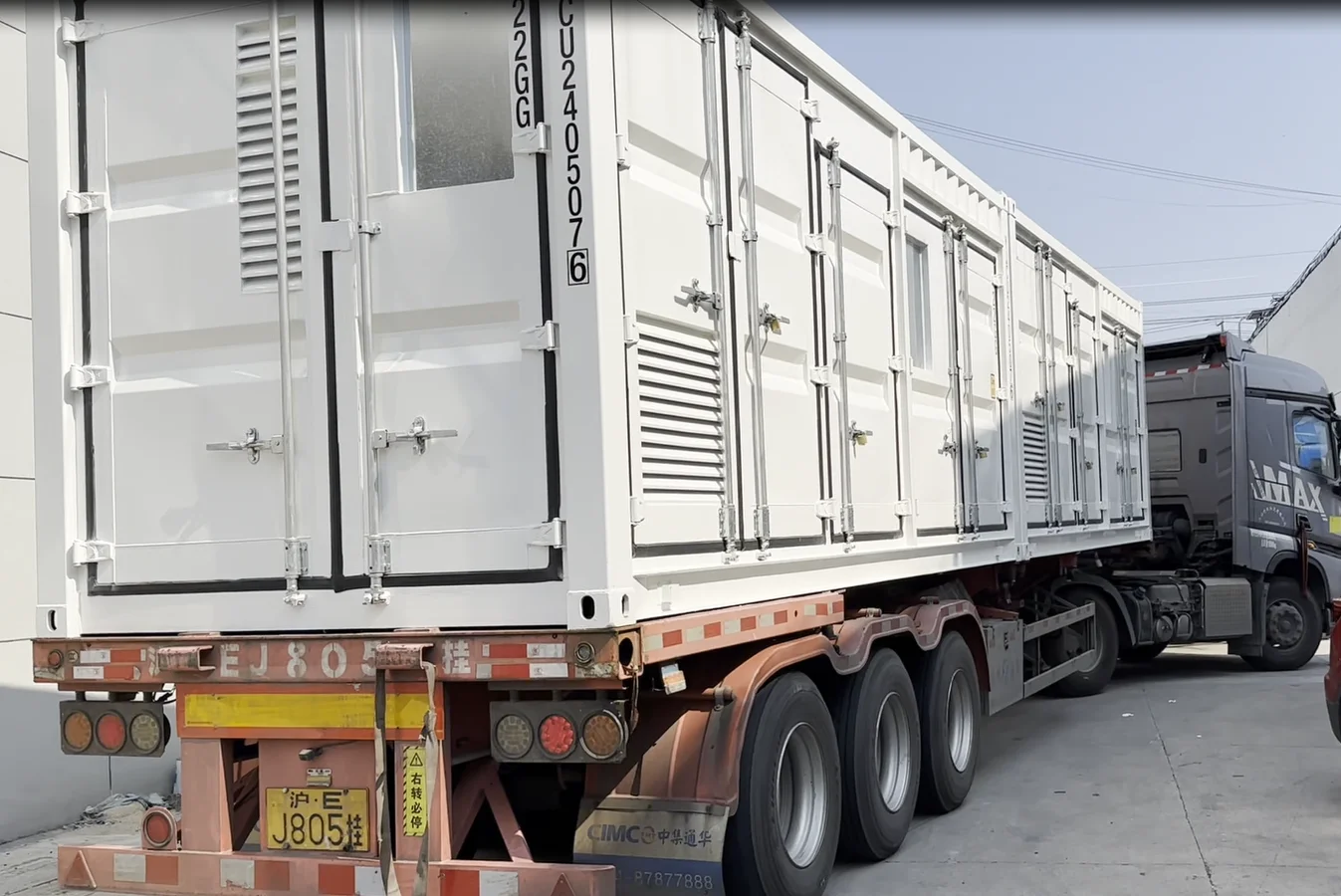

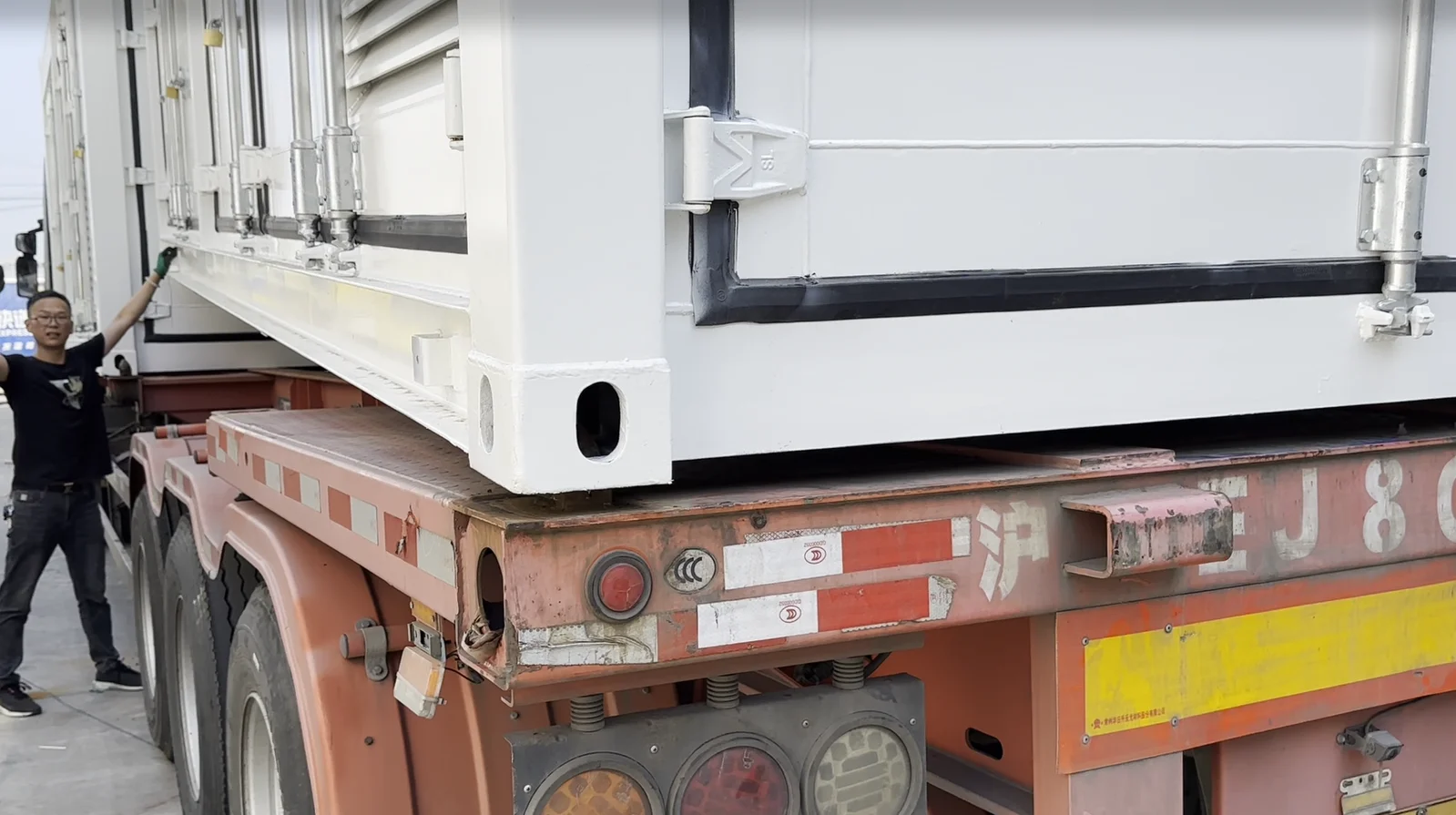

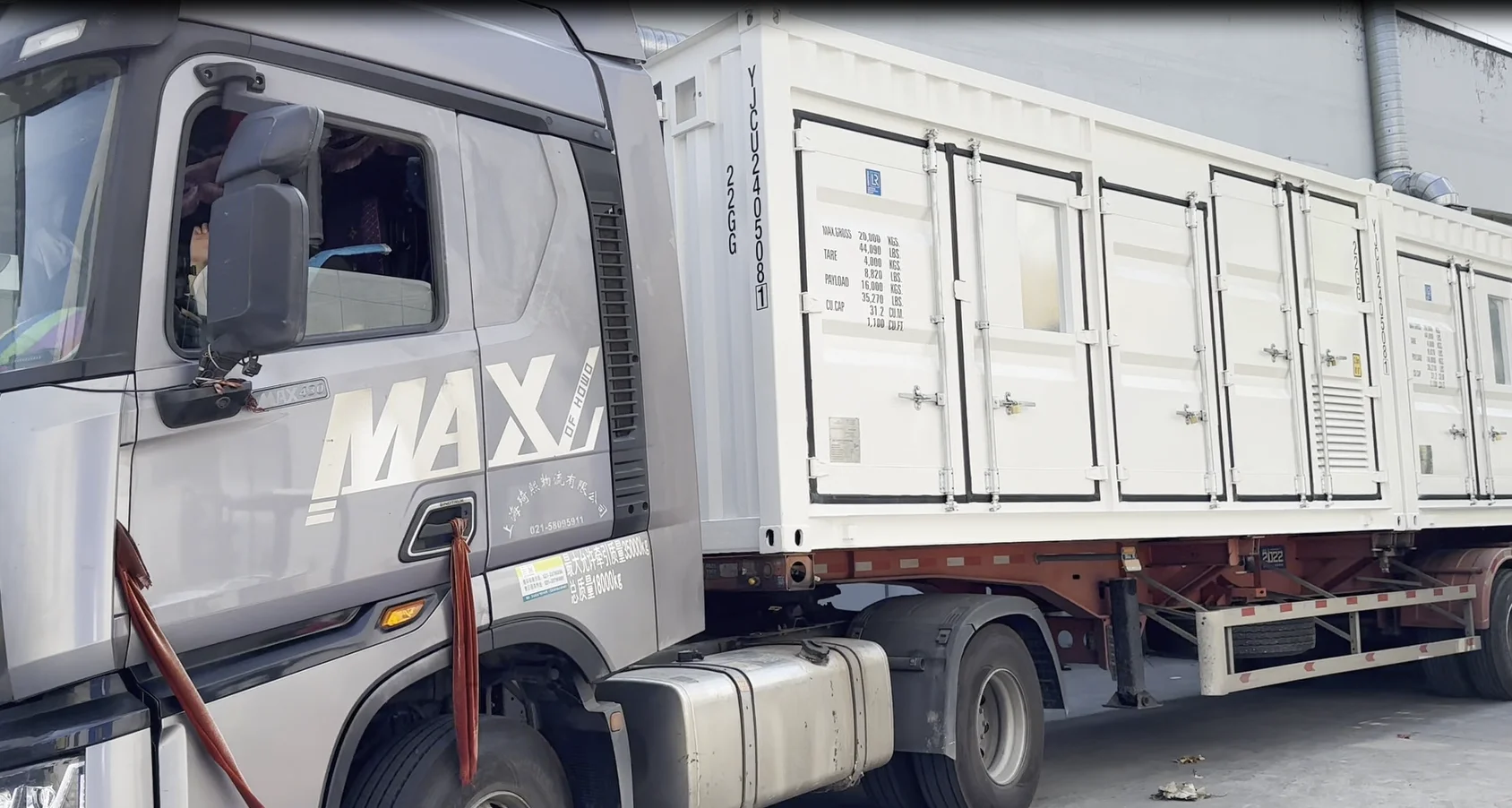

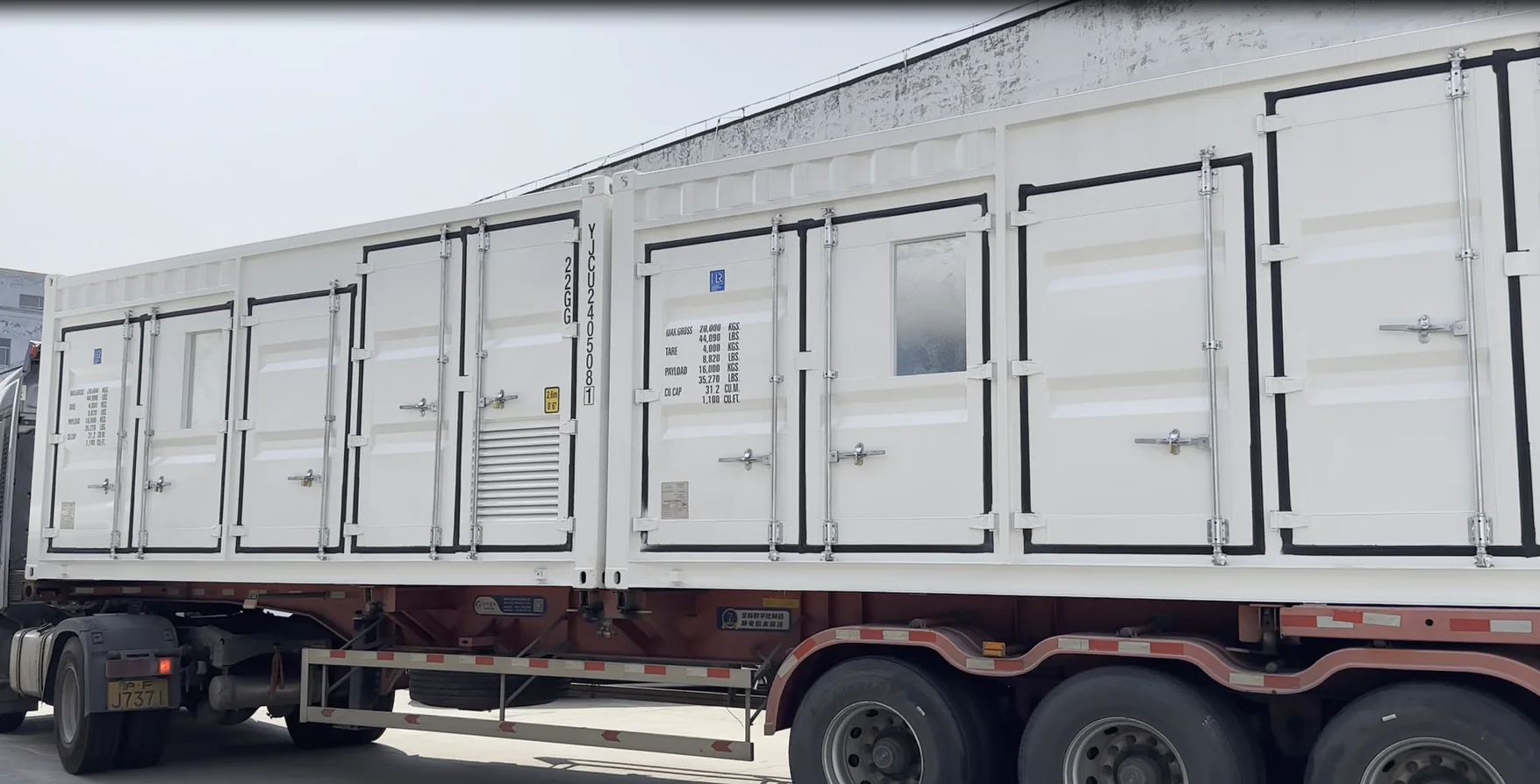

Packing & Delivery
Certifications
Company Profile
Lovsun Energy Co. Ltd. specializes in producing and assembling hybrid battery energy storage systems（BESS).
We adopt advanced technology and reliable products to ensure the stability and reliability of the systems, such as PCS, inverters, solar panels,batteries,EMS and other electric devices.Our product ranges from small and medium-sized commercial solar storage systems to large-scale energy storage integrated systems.
For years for exploring and practicing, we have accumulated rich experience and technology on hybrid solar power system and energy storage system. We are capable to tailor the solar power system from solution design, equipment selection, installation and commissioning to operation and maintenance management, ensuring efficient project operation and optimal cost. Our hybrid energy storage systems have been recognized by customers from Southeast Asia, Africa and Europe.
We adopt advanced technology and reliable products to ensure the stability and reliability of the systems, such as PCS, inverters, solar panels,batteries,EMS and other electric devices.Our product ranges from small and medium-sized commercial solar storage systems to large-scale energy storage integrated systems.
For years for exploring and practicing, we have accumulated rich experience and technology on hybrid solar power system and energy storage system. We are capable to tailor the solar power system from solution design, equipment selection, installation and commissioning to operation and maintenance management, ensuring efficient project operation and optimal cost. Our hybrid energy storage systems have been recognized by customers from Southeast Asia, Africa and Europe.
Why Choose Us
1、Rich project experience and successful cases:
We have completed over 1000 new energy projects and accumulated rich project development experience. These experiences enable us to better understand customer needs and provide more practical solutions.
3、 Perfect supply chain and partners:
4、Comprehensive service with good culture:
We have completed over 1000 new energy projects and accumulated rich project development experience. These experiences enable us to better understand customer needs and provide more practical solutions.
2、High quality products:
We focus on the producing and selecting reliable quality products only, for solar power generation systems, energy storage systems to make the system efficient and low-cost.
3、 Perfect supply chain and partners:
We have a comprehensive supply chain system and have established long-term and stable cooperative relationships with multiple well-known suppliers. This ensures that we can obtain high-quality raw materials and components in a timely manner, providing strong guarantees for the production and delivery of products. Also provide customers with more diversified choices.
4、Comprehensive service with good culture:
We provide comprehensive services from solution design, equipment selection, installation and debugging to operation and maintenance management. Customers only need to put forward their requirements, and we can provide tailored solutions. We will adhere to the core values of gratitude, reliability, responsibility and innovation, providing customers with efficient and cost-effective system solutions.

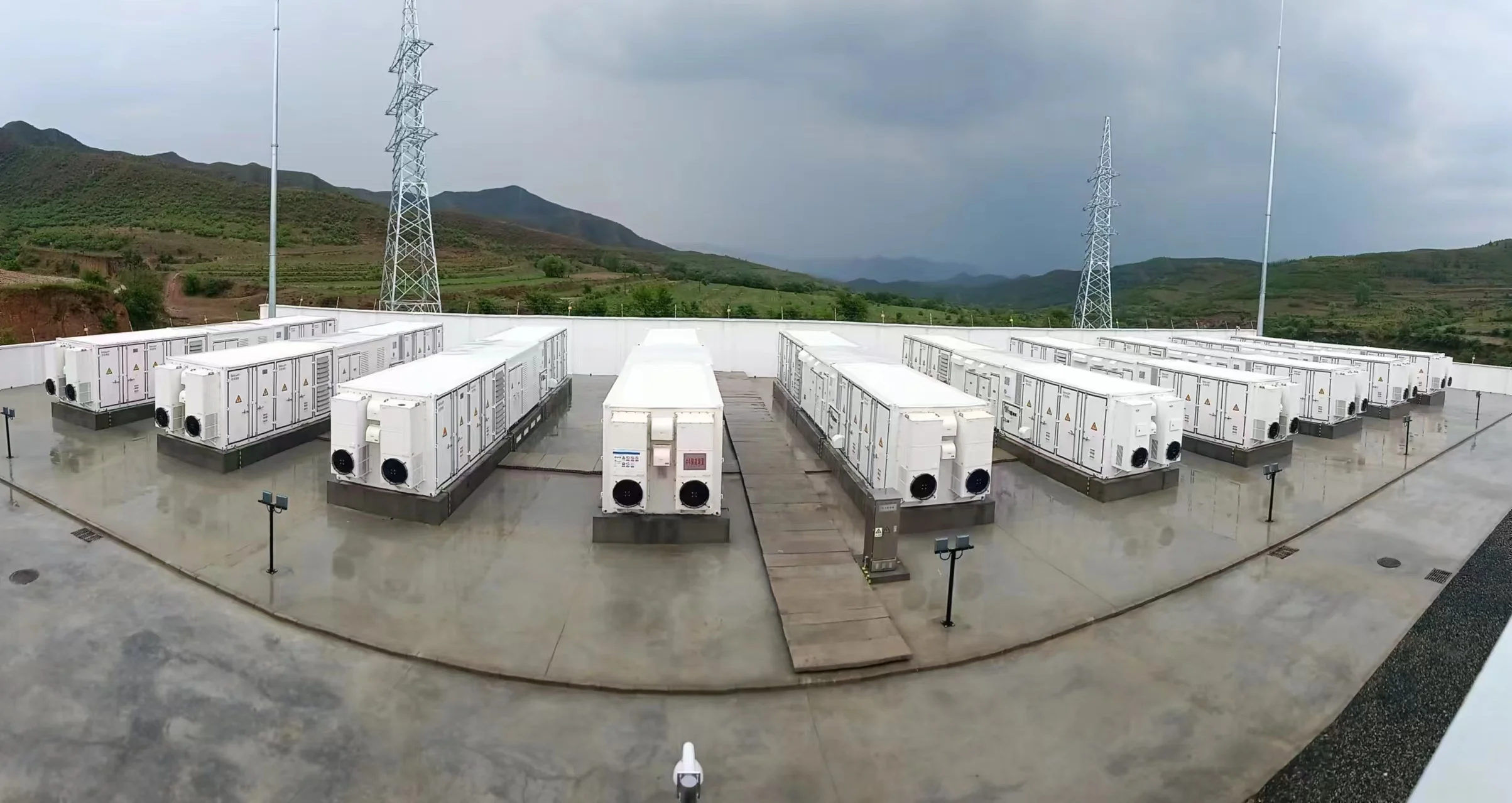

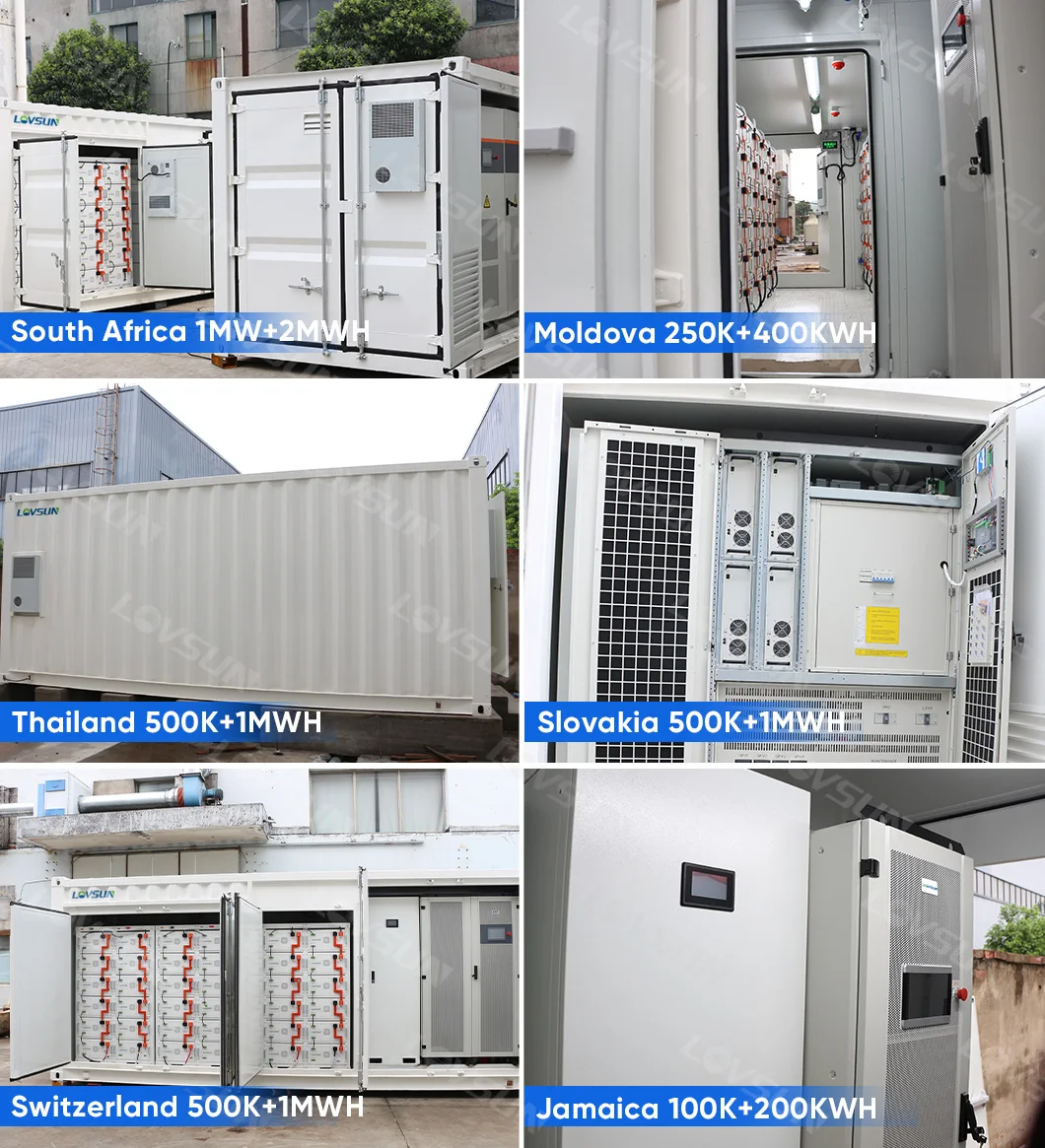

Project
