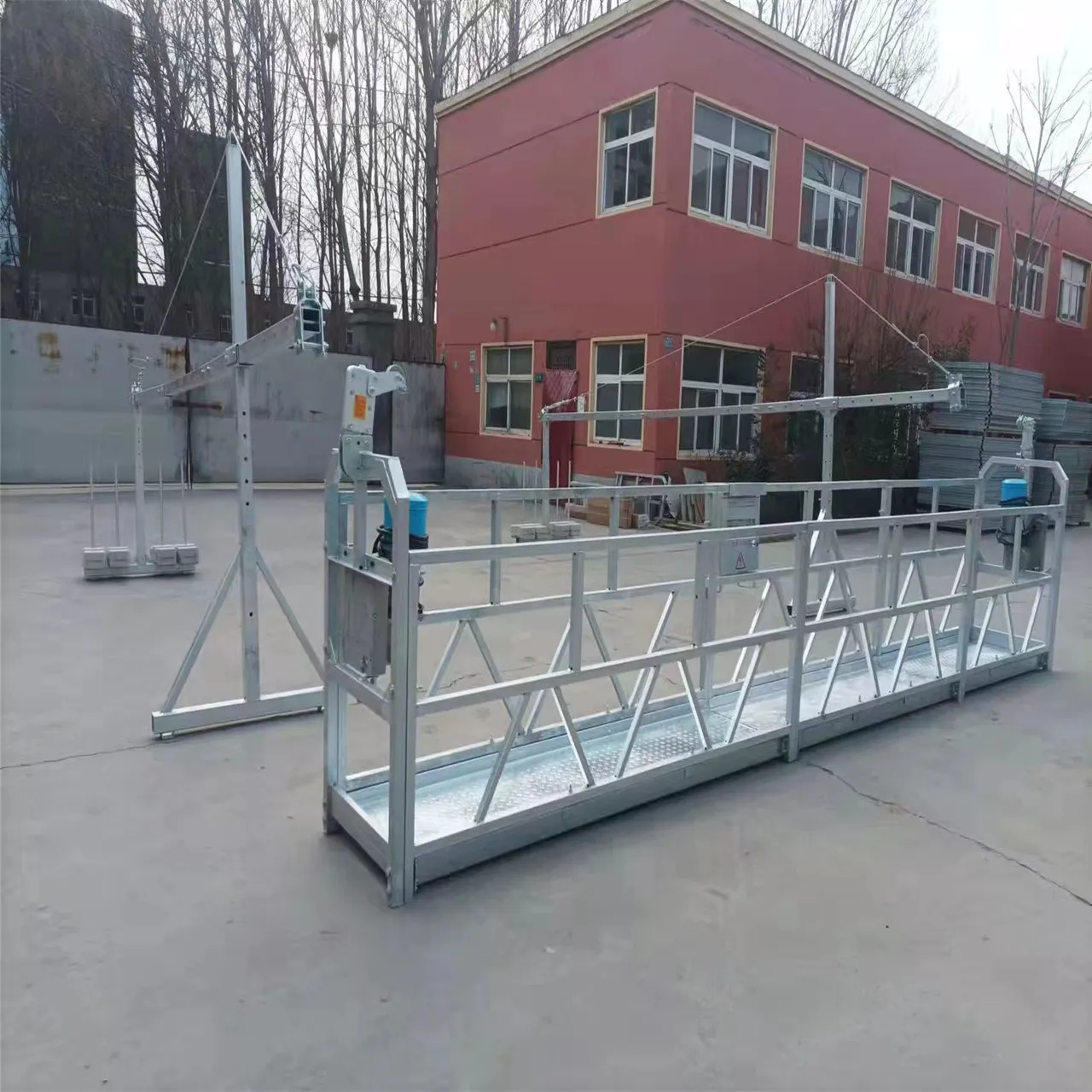

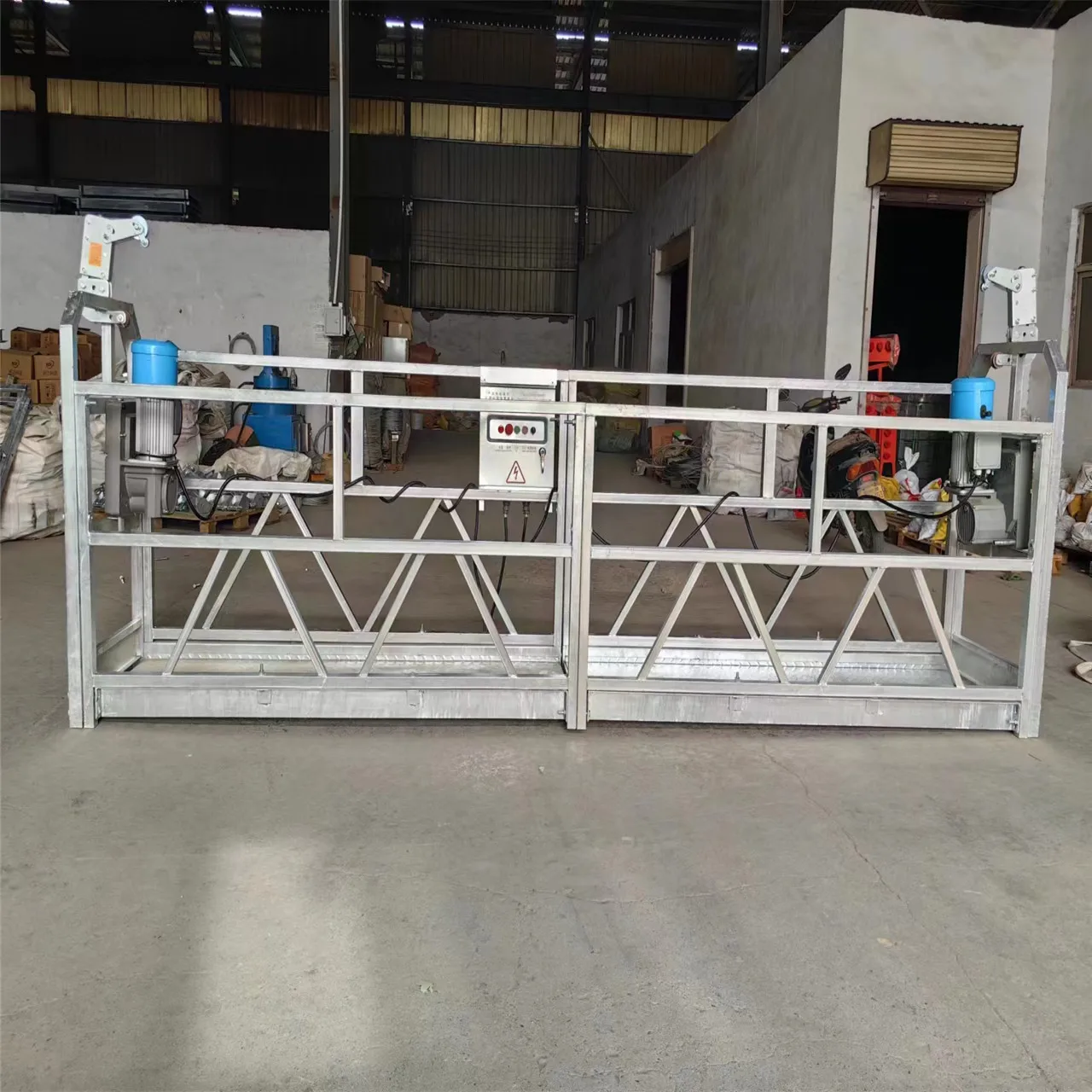

Construction Hanging Scaffolds Electric Lifting Cradle
- Category: >>>
- Supplier: Henan Yuhang Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601238359181):
Product Overview
Description
Product Paramenters
Model | ZLP630 | ZLP800 | ||||
Rated load | 630Kg | 800Kg | ||||
Lifting speed | 9-11m/min | 8-10m/min | ||||
Platform Dimension L×W×H(mm) | (1.5+2+2.5)*0.7m *1.1m | (1.5+2+2.5)*0.7m *1.1m | ||||
Lifting Height | ≤200 m | ≤200 m | ||||
dead-weight | 750kg | 760kg | ||||
power | 2x1.5w | 2x1.8w | ||||

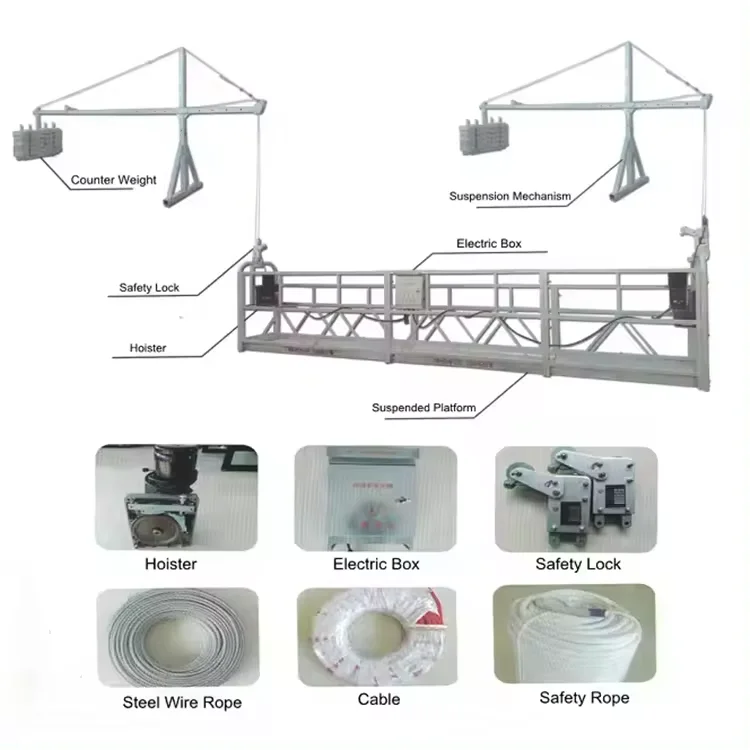

Quality | Suspension platform | 285kg | 285kg | |||
Suspension mechanism | 270kg（Without counterweight） | 270kg（Without counterweight） | ||||
Elevator | 42kgx2pieces | 48kgx2pieces | ||||
Safety lock | 5kgx2pieces | 5kgx2pieces | ||||
Distribution box | 11kg | 11kg | ||||
Steel wire rope (4x31- $8.3) | 4 piecesx25kg | 4 piecesx25kg | ||||
Cable (with steel wire) | 20kg | 20kg | ||||
Safety rope | 11kg | 11kg | ||||
Complete machine (excluding counterweights) | 790kg | 800kg | ||||
Counterweight | 1000kg(25kgx40) | 1000kg(25kgx40) | ||||

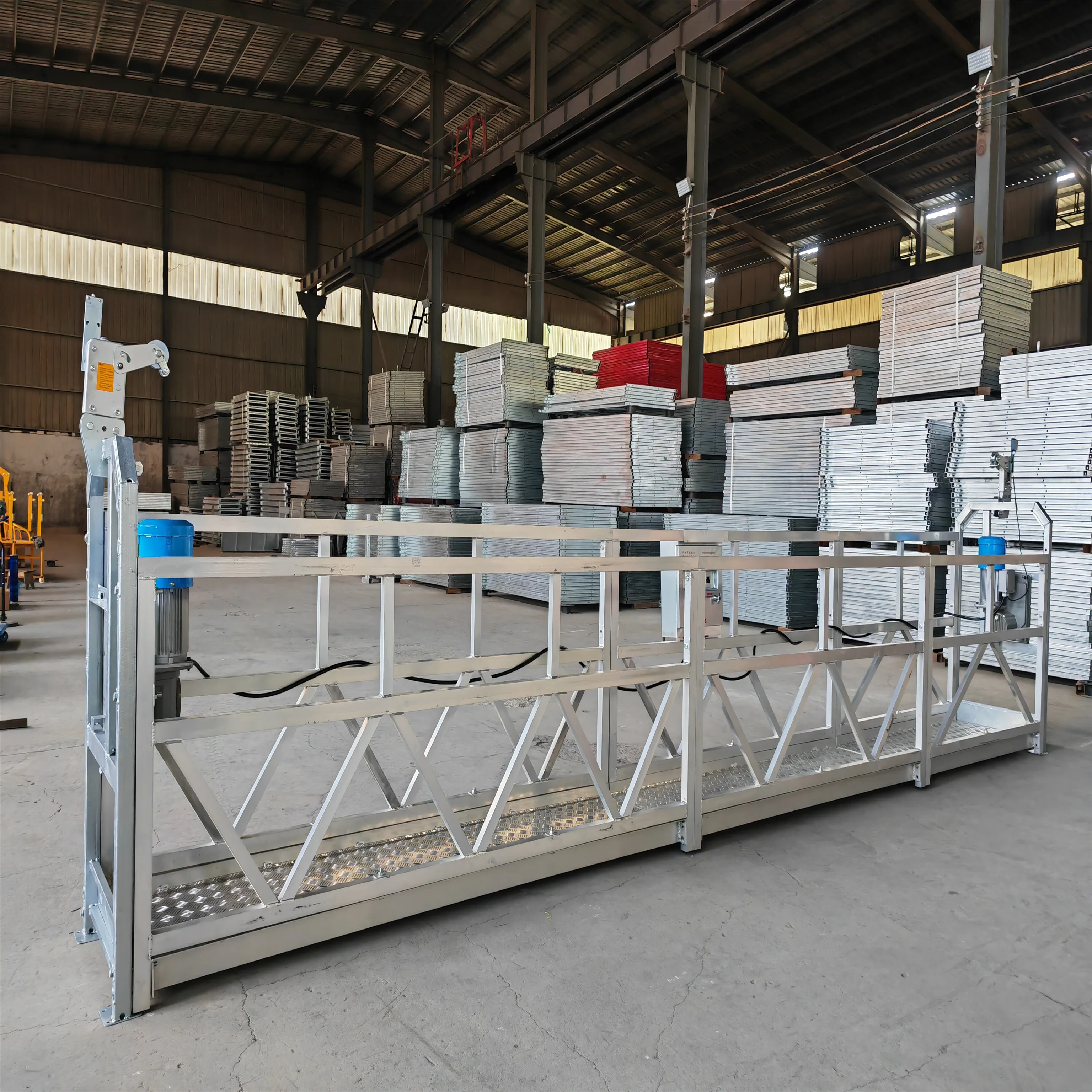

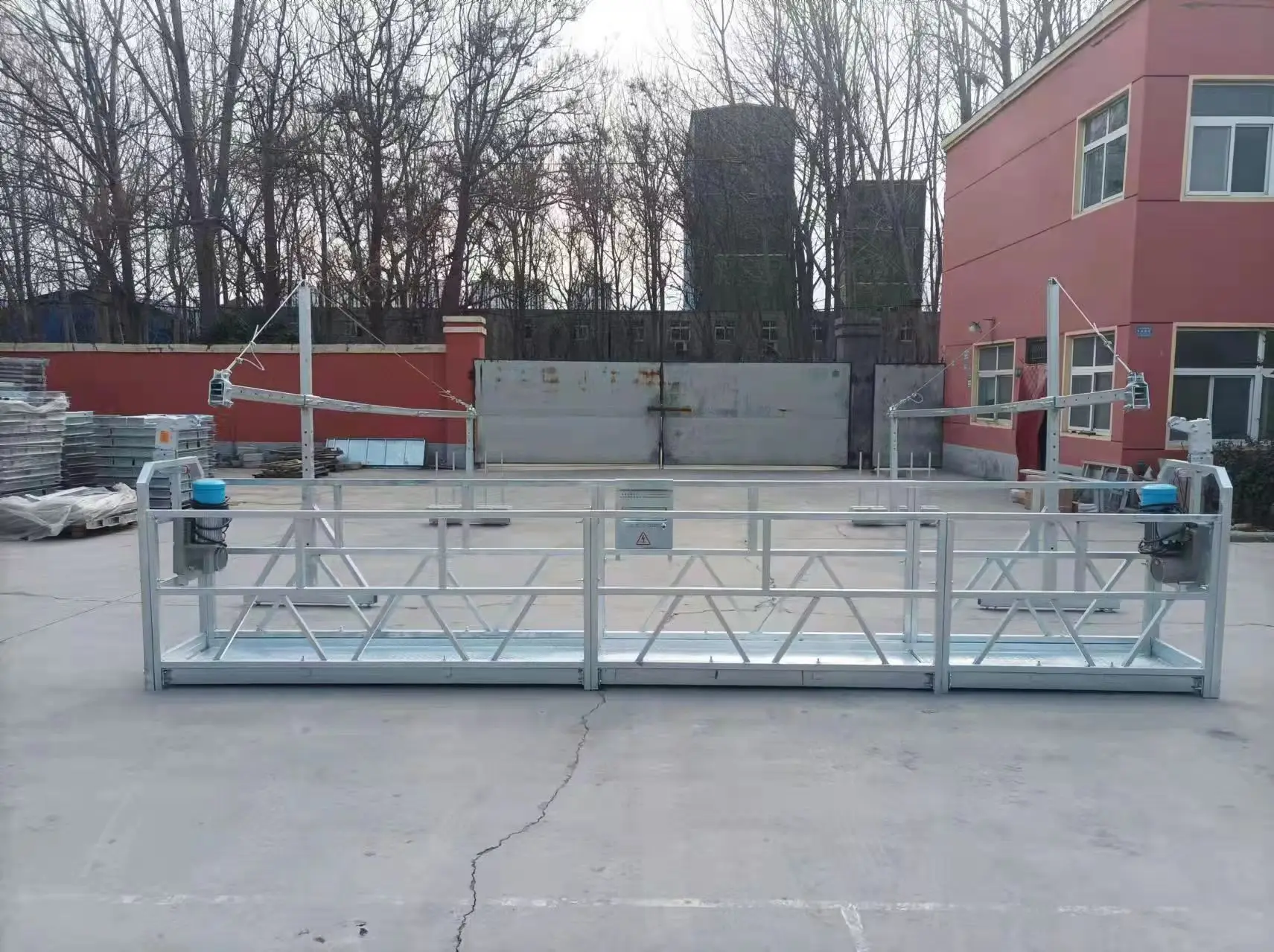

Rope suspended working platform
Zlp suspended working platform includes the ZLP630, ZLP800, ZLP1000 etc.

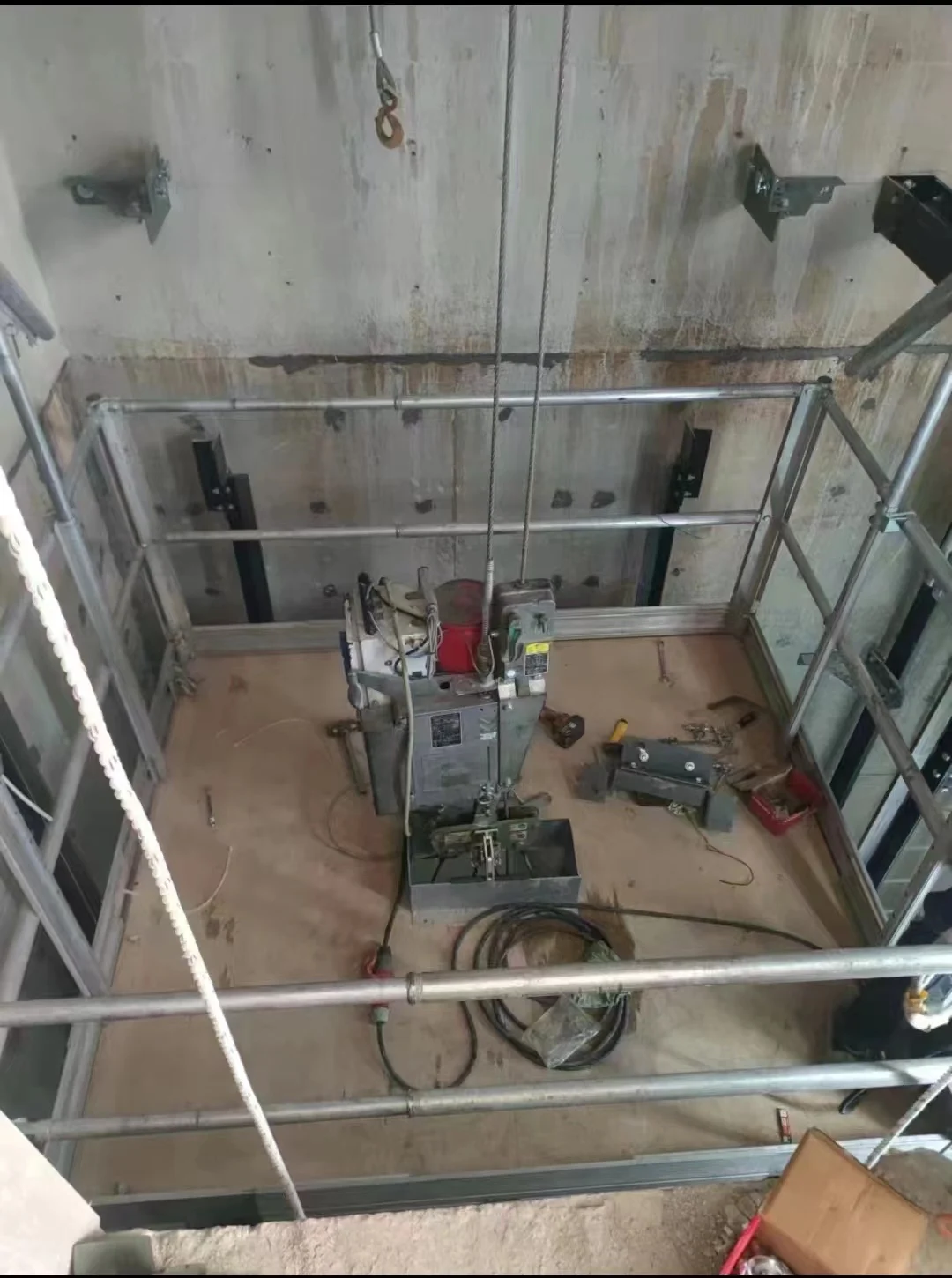

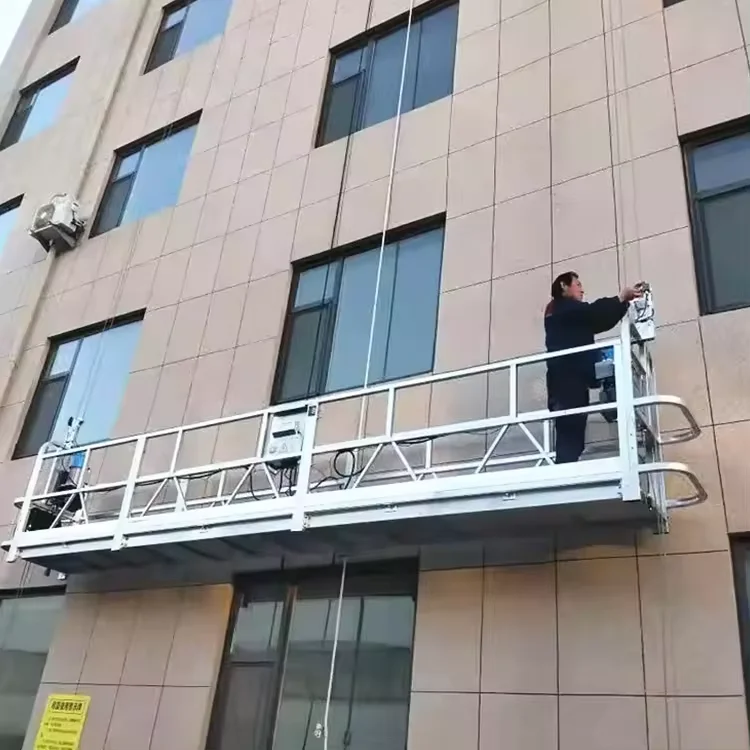

The ZLP series electric hanging basket is a new type of decoration machinery that can replace traditional scaffolding. It is mainly suitable for exterior wall construction, decoration, cleaning, and maintenance projects of high-rise and multi story buildings, such as plastering, tiling, painting, and installing wall curtains. It can also be applied to operations such as material lifting and handling, elevator installation, billboard installation, shipbuilding, large tank construction, bridges, dams, chimneys, etc. The use of rain hanging baskets can greatly reduce labor intensity and improve labor efficiency.
The ZLP series electric hanging basket is a new type of decoration machinery that can replace traditional scaffolding. It is mainly suitable for exterior wall construction, decoration, cleaning, and maintenance projects of high-rise and multi story buildings, such as plastering, tiling, painting, and installing wall curtains. It can also be applied to operations such as material lifting and handling, elevator installation, billboard installation, shipbuilding, large tank construction, bridges, dams, chimneys, etc. The use of rain hanging baskets can greatly reduce labor intensity and improve labor efficiency.

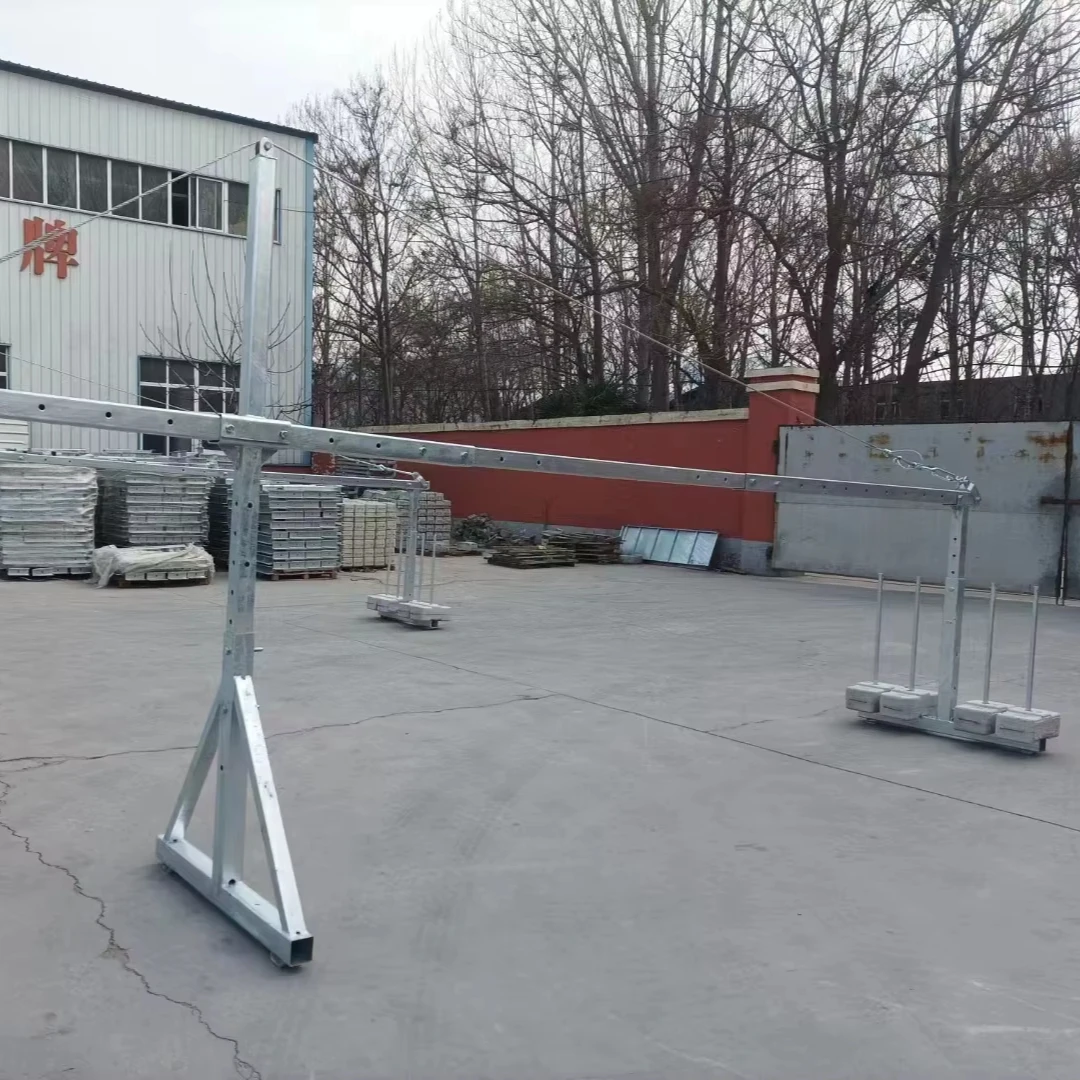

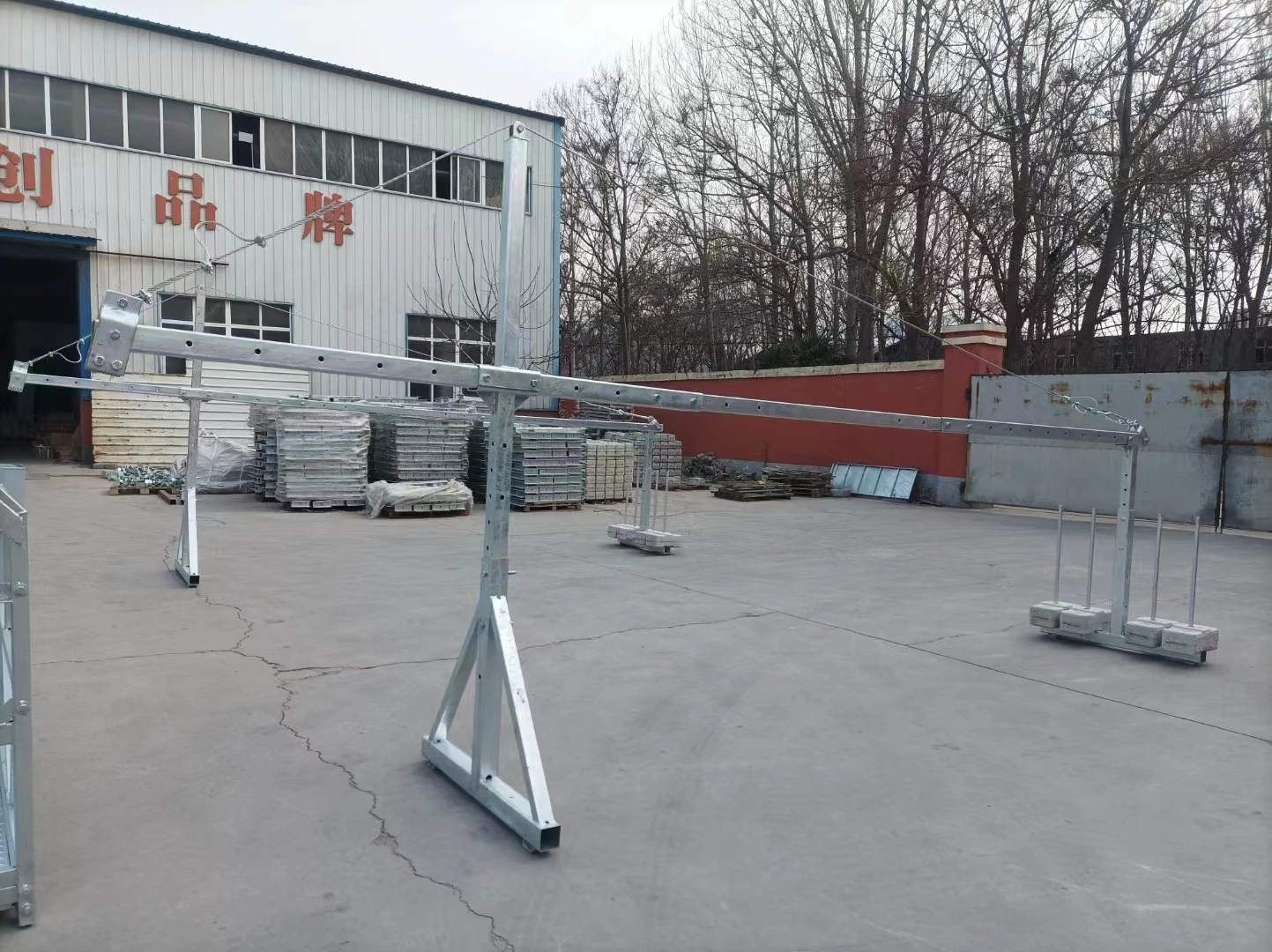

1. Our ZLP630 suspension mechanism has a total length of 6 meters for the front, middle, and rear beams. The rated extension of the front beam is 1300-1500mm, and the height of the front beam above the ground is 1100-1600mm, with an adjustable height of 1.15m-1.6m.
2. There is a steel wire rope in the middle of the 2. 3 × 2.5 ²+2 national standard cable to increase tension. Its average service
life is 4 years.2. There is a steel wire rope in the middle of the 2. 3 × 2.5 ²+2 national standard cable to increase tension. Its average service
4. The housing of the suspended access equipment is made of 104# GB aluminum to avoid cracking. The rope sheave and the worm gear are made of spring steel and 94 tin bronze respectively.
Recommend Products
ELECTRIC SUSPENDED PLATFORM
Bridge Suspended Platform

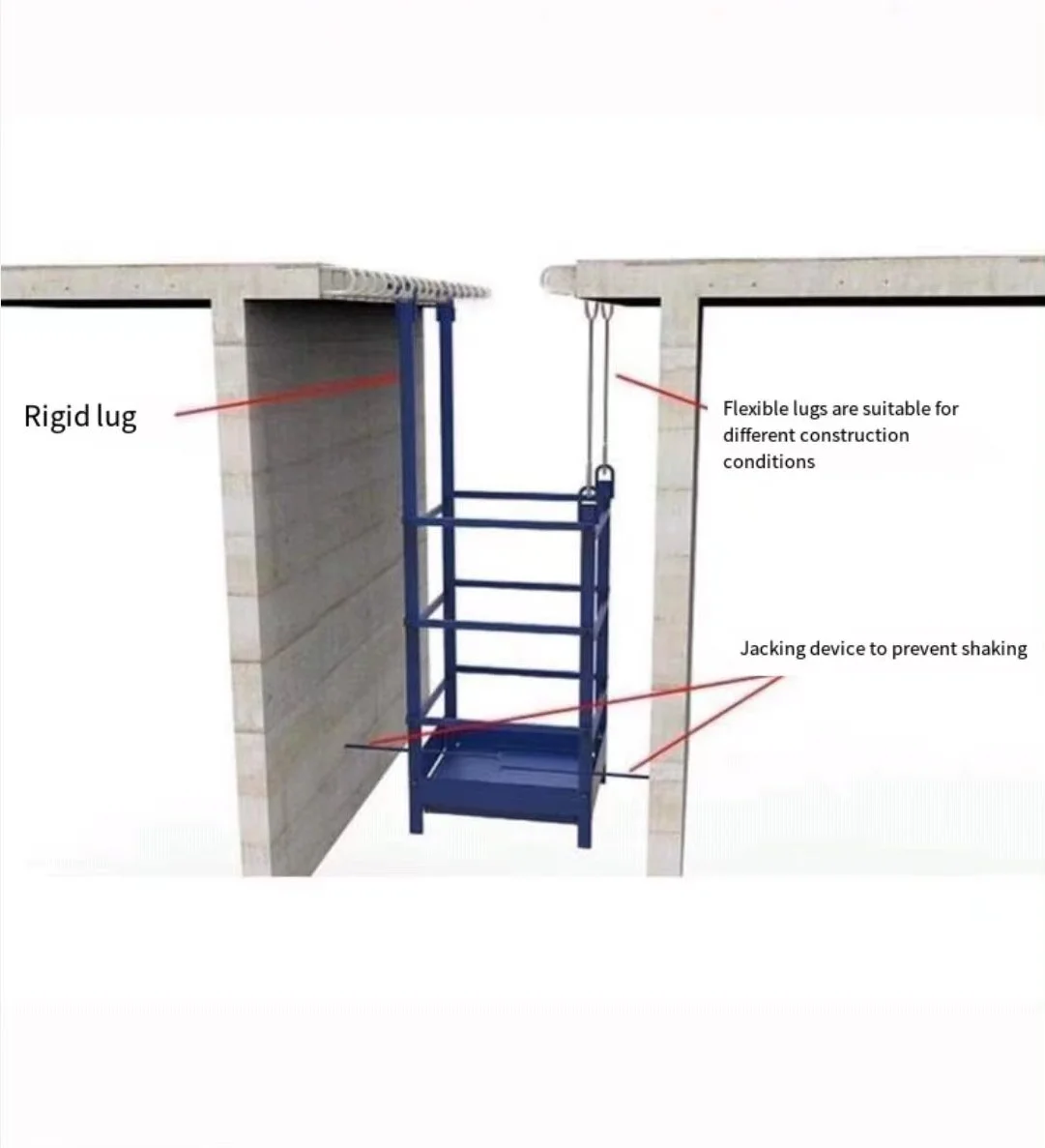

SINGLE PERSON HANGING BASKET
OTHER SUSPENDED PLATFORM
ACCESSORIES
Certifications
Application
Company Profile
Henan Yuhang Machinery Equipment Co., Ltd. was established in 2006. The company is located in Zhengzhou, Henan Province, The company covers an area of 12000 ㎡. It has more than professional technical backbone of mechanical experts and engineers. It is an integrated company that integrates research and development, production, sales, installation services.
For many years, the company has been specializing in the research and development and production of various high-altitude equipment such as high-altitude work baskets, single person baskets, bridge baskets, aluminum alloy baskets, wind power baskets, etc. The product is widely used in fields such as high-rise exterior construction,high-altitude installation,anti-corrosion and lighting, wind power generation, bridge construction,etc.
The company always adheres to promoting development through innovation, continuously reforming and optimizing the research and development of new technologies and products, and outputting high-quality products for our customers. We have always adhered to the business philosophy of "being a solid, trustworthy, and long-term enterprise". The principle of comprehensive quality management is to listen to and analyze customer opinions and requirements, provide more high-quality products and services for our customers, and vin more applause and respect for China's national industry.
For many years, the company has been specializing in the research and development and production of various high-altitude equipment such as high-altitude work baskets, single person baskets, bridge baskets, aluminum alloy baskets, wind power baskets, etc. The product is widely used in fields such as high-rise exterior construction,high-altitude installation,anti-corrosion and lighting, wind power generation, bridge construction,etc.
The company always adheres to promoting development through innovation, continuously reforming and optimizing the research and development of new technologies and products, and outputting high-quality products for our customers. We have always adhered to the business philosophy of "being a solid, trustworthy, and long-term enterprise". The principle of comprehensive quality management is to listen to and analyze customer opinions and requirements, provide more high-quality products and services for our customers, and vin more applause and respect for China's national industry.
FACTORY SHOW
MAIN PRODUCTS
Packing&Delivery
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer with our own factory. We have more than 25 year’s experiences in producing suspended platforms H frame scaffolding,Ringlock scaffolding and self-climbing scaffolding.
Q: How long is your delivery time?
A: Generally, within 3-7 days after receiving payment or depends on the quantity of your order.
Q: Does the platform size can be customized?
A: Yes, OEM service is available here. We can adjust it according to your requirement.
Q: What materials do you use when producing suspended platforms?
A: The materials we use are aluminum alloy; hot-dip galvanized steel and painted steel.
Q: Do you have relevant certificate?
A: We have CE, ISO9001 certificate, and we can assist you with any certificate application you need.
Q: Do you have inspection procedures for the manufacture line?
A: We have 100% self-inspection quality management system during production and before packing.
Q: Can I have a visit to your factory before the order?
A: Why not? Welcome to my factory. You may contact us before you visit, our sales personnel will provide you a full assistance.
A: We are a manufacturer with our own factory. We have more than 25 year’s experiences in producing suspended platforms H frame scaffolding,Ringlock scaffolding and self-climbing scaffolding.
Q: How long is your delivery time?
A: Generally, within 3-7 days after receiving payment or depends on the quantity of your order.
Q: Does the platform size can be customized?
A: Yes, OEM service is available here. We can adjust it according to your requirement.
Q: What materials do you use when producing suspended platforms?
A: The materials we use are aluminum alloy; hot-dip galvanized steel and painted steel.
Q: Do you have relevant certificate?
A: We have CE, ISO9001 certificate, and we can assist you with any certificate application you need.
Q: Do you have inspection procedures for the manufacture line?
A: We have 100% self-inspection quality management system during production and before packing.
Q: Can I have a visit to your factory before the order?
A: Why not? Welcome to my factory. You may contact us before you visit, our sales personnel will provide you a full assistance.
