Xz200 Hot Sale Small Horizontal Directional Drilling HDD Machine
- Category: >>>
- Supplier: Henan Yugong Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601238427242):
Product Overview
Description
60t Underground Horizontal Direction Drilling Machine HDD Construction Rig Machine
Product Description

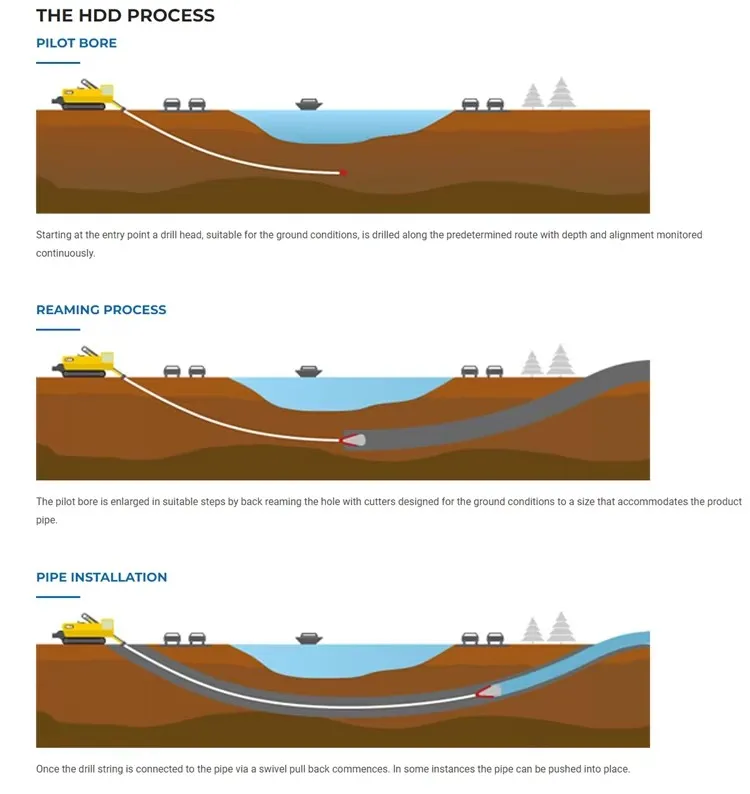

1.Do not obstruct traffic, do not damage the road.
2.High precision, can be turned, the depth can be adjusted at any time, and obstacles can be avoided.
3.City construction will pass three meters, and the river will reach 6-18 meters.
4.The project period is short, the construction personnel are less, it is safer and the cost is lower.
2.High precision, can be turned, the depth can be adjusted at any time, and obstacles can be avoided.
3.City construction will pass three meters, and the river will reach 6-18 meters.
4.The project period is short, the construction personnel are less, it is safer and the cost is lower.
Specification
Model | YG-160A | YG-180 | YG-280 | YG-320 |
Engine rated power | 100KW | 97KW | 160KW | 140KW/160KW |
Maxi. feed force | 160/100KN | 180KN | 280KN | 320KN |
Maxi. torque | 5000N.n | 6000N.n | 10000N.n | 12000N.n |
Power head speed | 0-180r/min | 0-140r/min | 0-120r/min | 0-140r/min |
Moving speed of power head | 30m/min | 20m/min | 20m/min | 20m/min |
Maxi. reaming hole diameter | Φ600mm | Φ600mm | Φ750mm | Φ800mm |
Drill pipe diameter | Φ60mm | Φ60mm | Φ73mm | Φ73mm |
Entry angle | 10-23° | 10-22° | 10-23° | 10-20° |
Maximum mud flow | 160L/min | 250L/min | 250L/min | 320L/min |
Overall quality | 6700kg | 8500kg | 12500kg | 11500kg |
Dimensions | 5.7*1.82*2.4m | 6.4*2.27*2.34m | 7.1*2.26*2.45m | 7.1*2.26*2.45m |

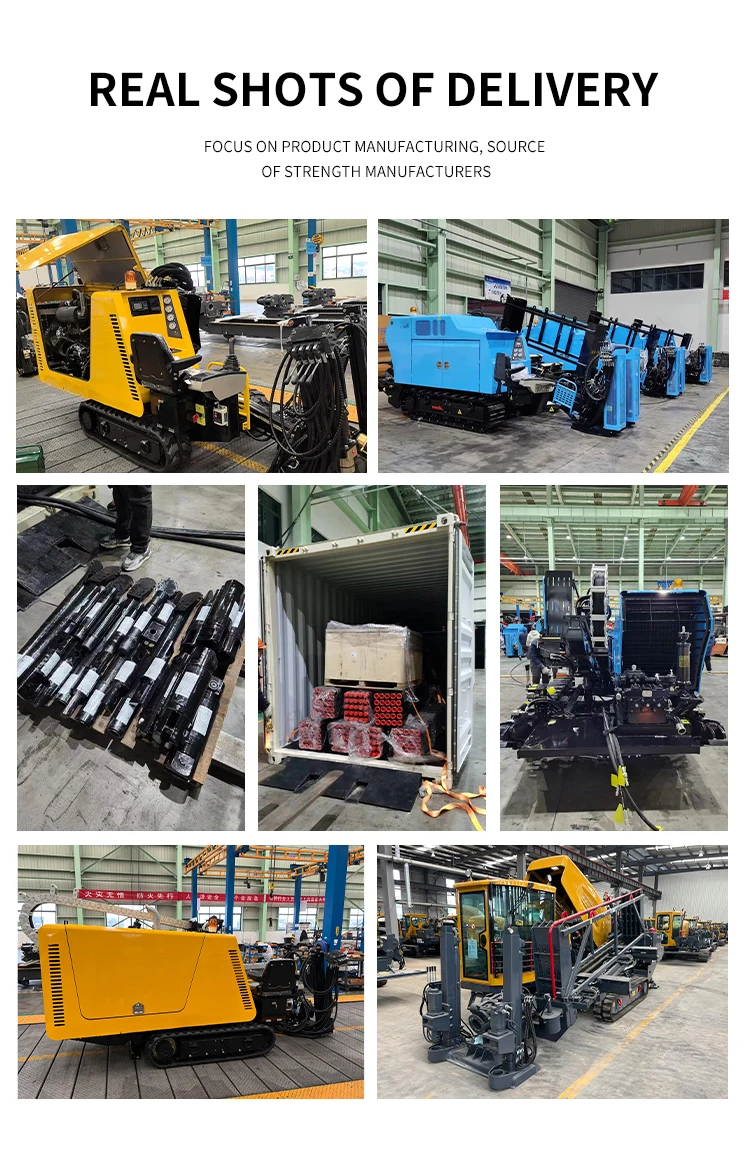

Packing & Delivery

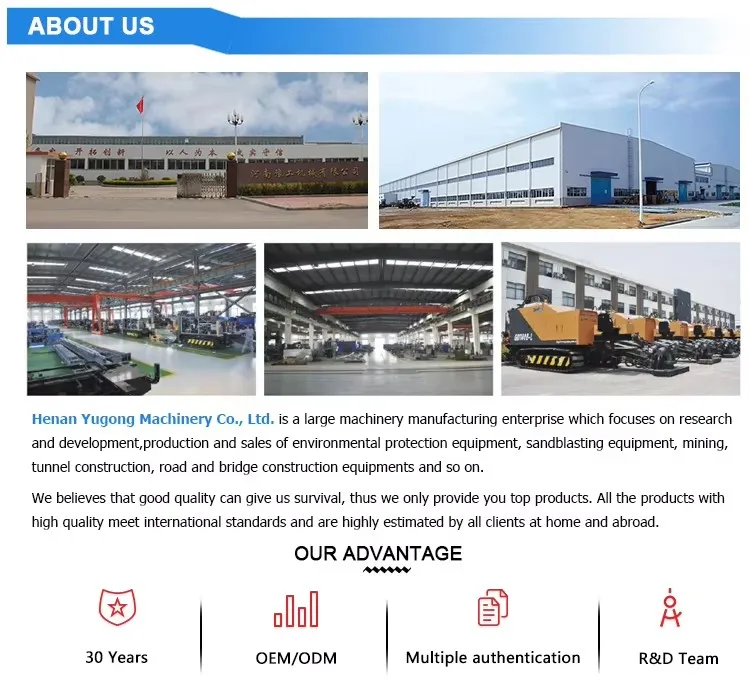

Company Profile
